Part of the Kubota Parts Manuals.
Exploded views split the BX2751 attachment system into its real pieces: the Sub Frame, male quick hitch, mid PTO kit, and every decal position between them. OEM #100Z0239 covers all of it across 10 pages. Each component carries a label and an OEM part number you can cross-reference before an order goes out. Parts lists drill down to individual items like the engagement lever, quick hitch latch, driveline guard, and half driveline. Hardware gets the same treatment, right down to the Pin 3/4 X 8-5/8 and Pin 9/16 X 8-7/16 subframe pins, plus the Pin 1/4 X 1-11/16 in the quick hitch latch assembly. No more guessing at numbers. Sections are bookmarked and the text is keyword-searchable, so you can pull it up on your phone, find the exact piece, and order right the first time.
What's Inside This Parts Manual
| System | Pages |
|---|---|
| Instructions for Parts Books | |
| BX2751 Sub Frame | |

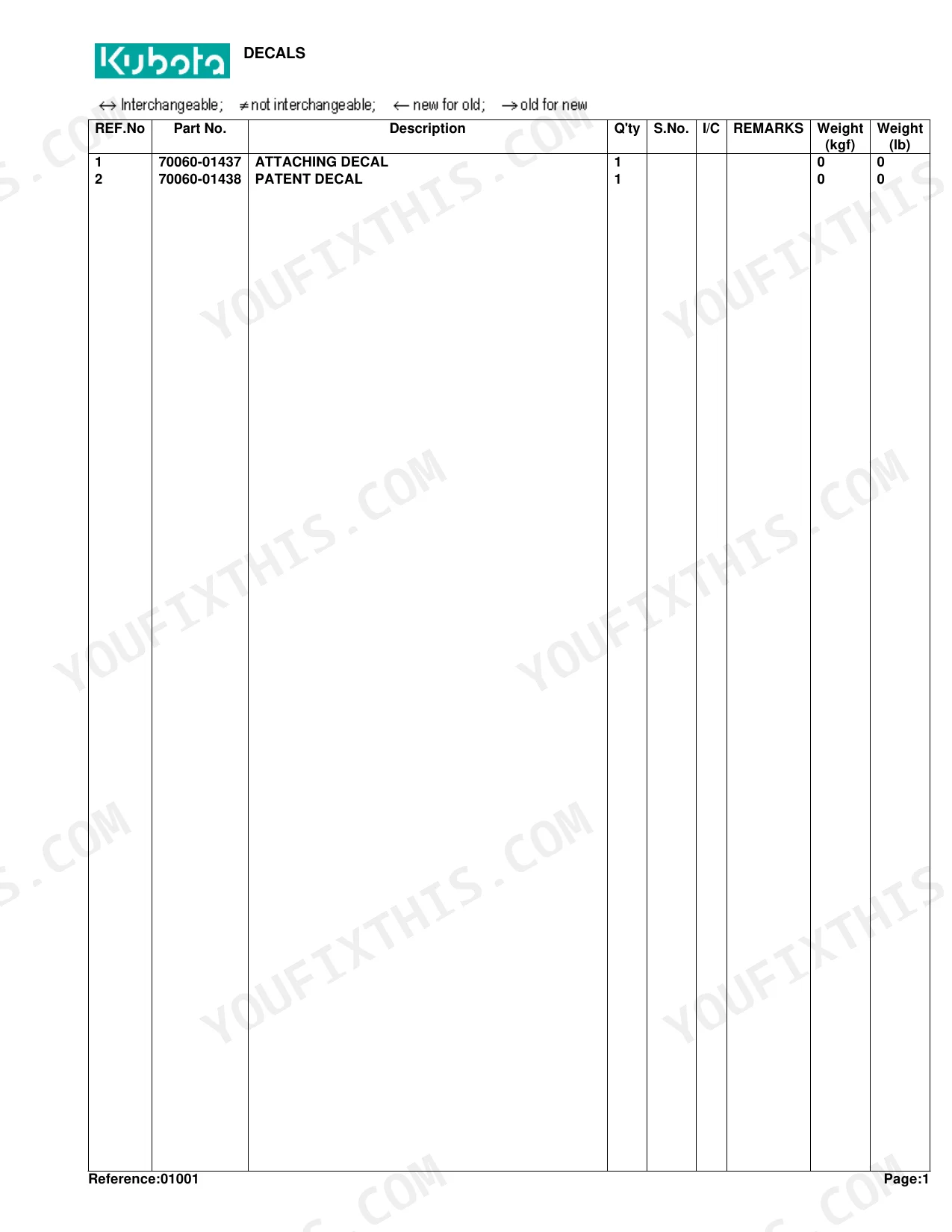

| Decals | |

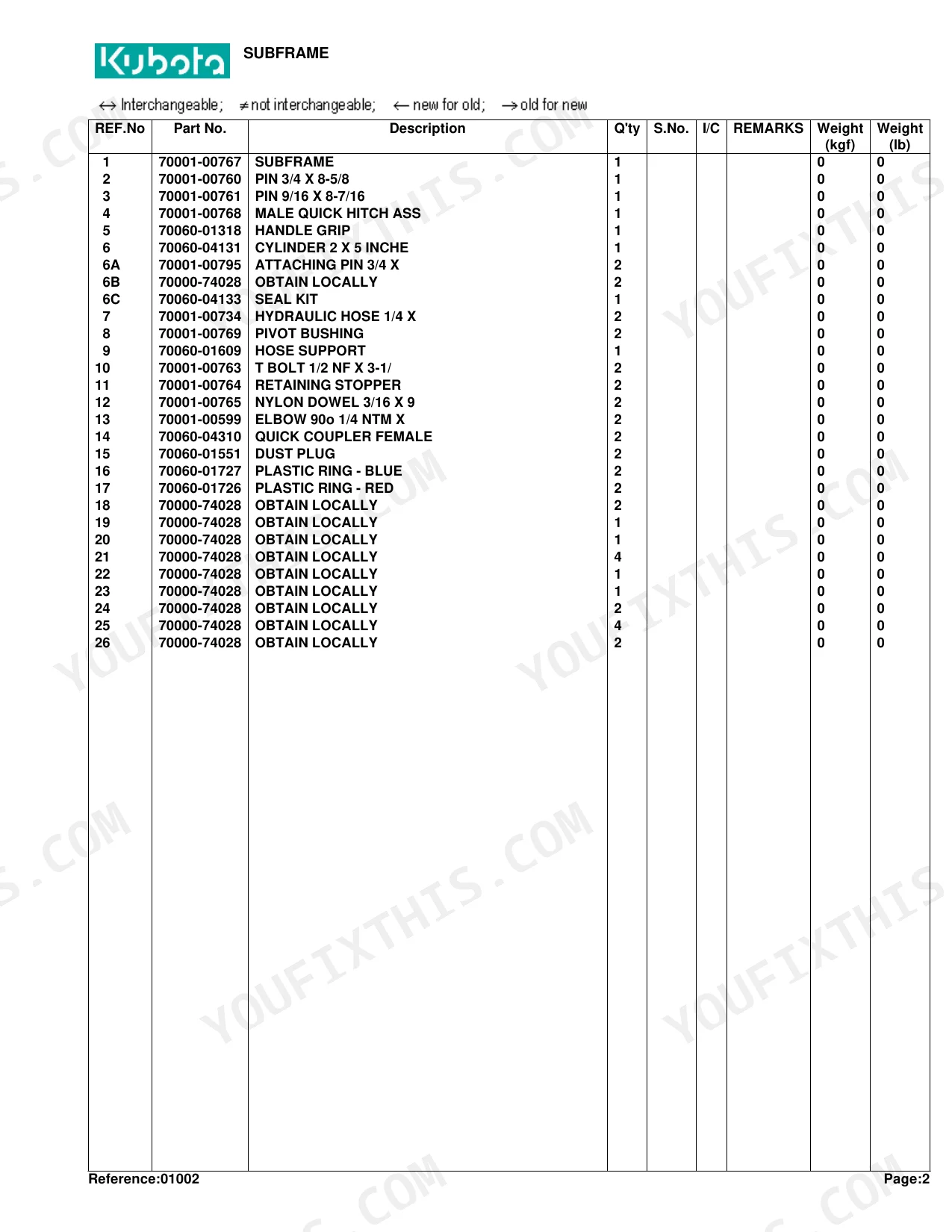

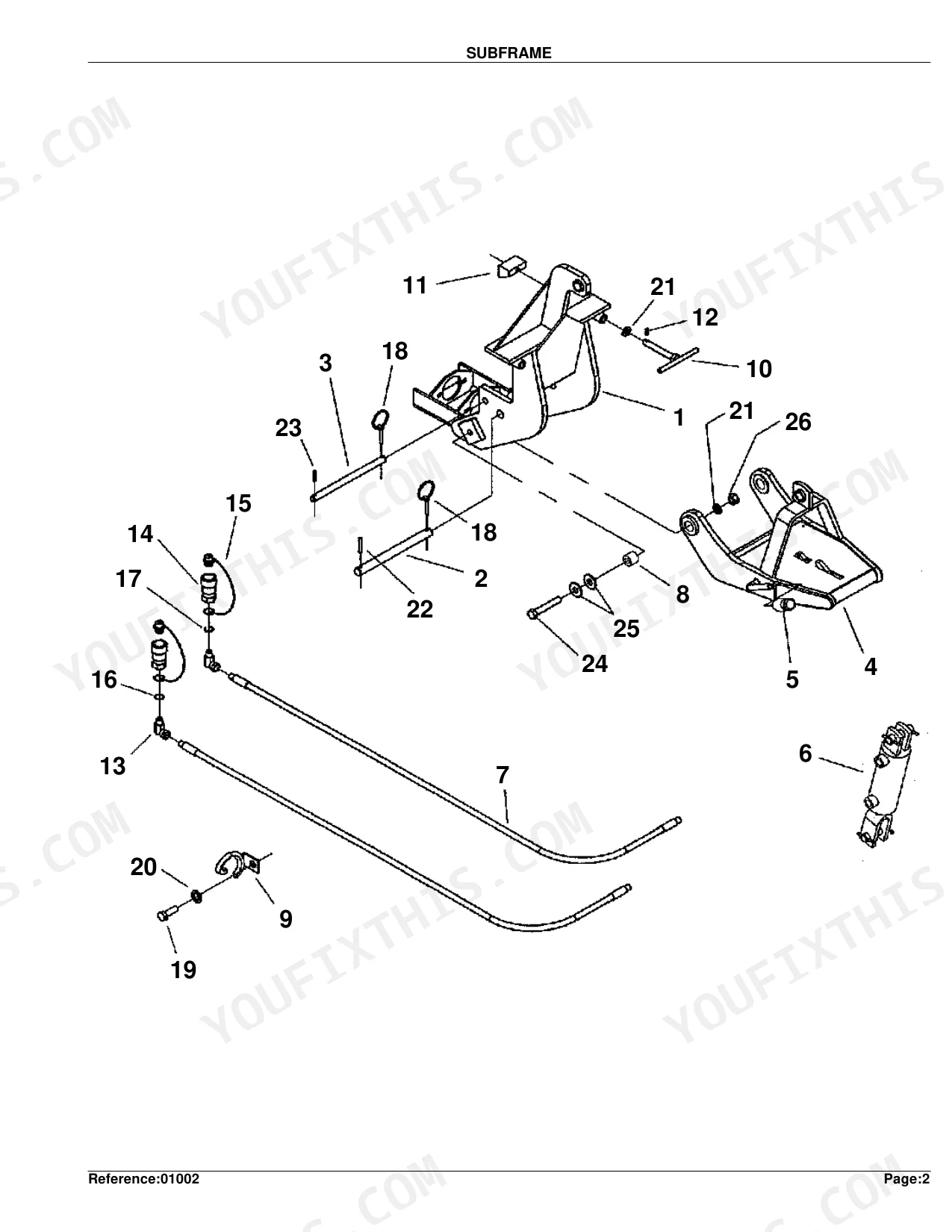

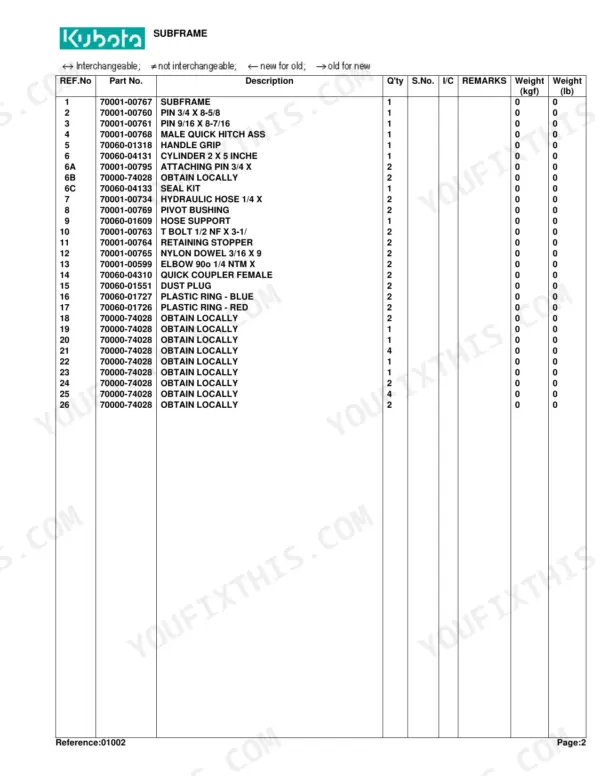

| Subframe | |

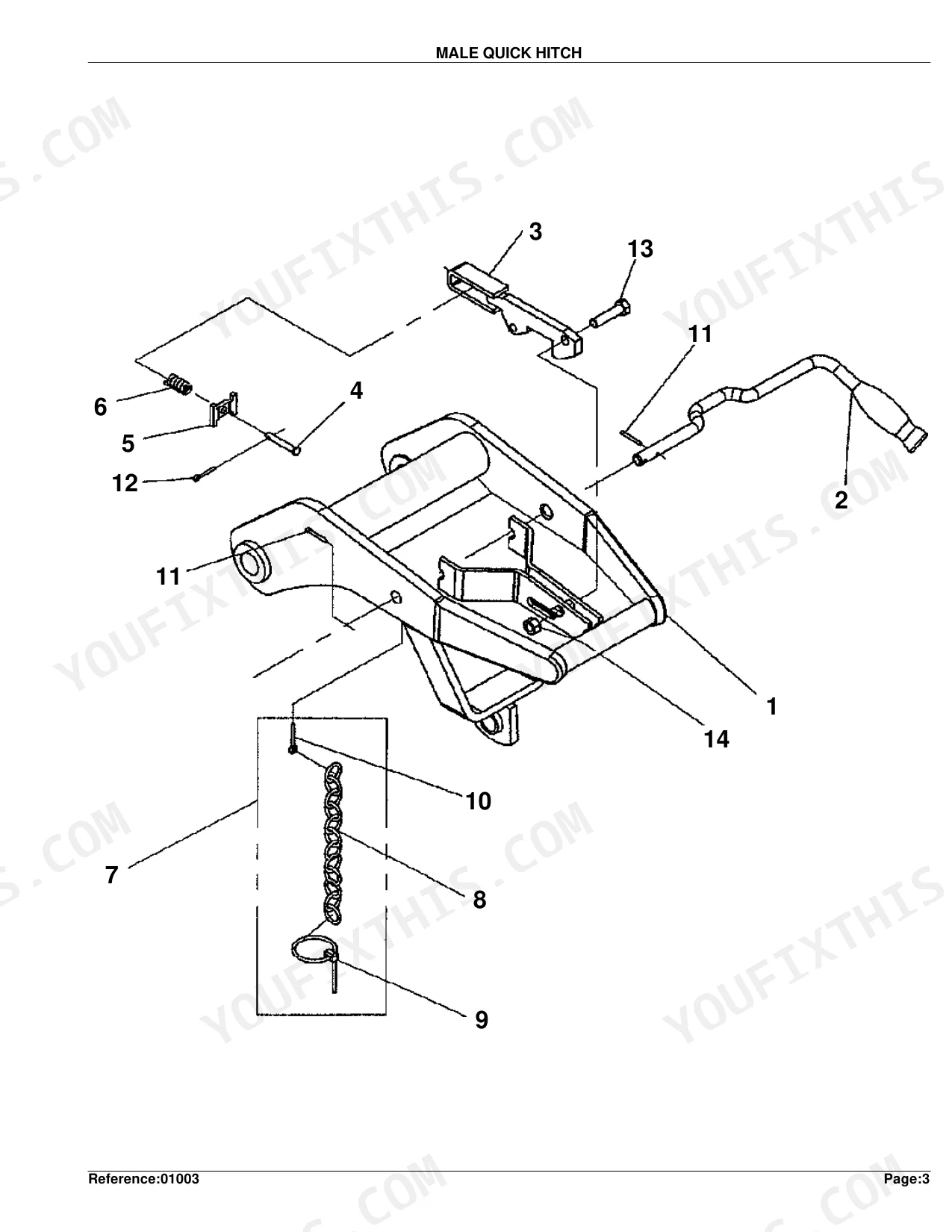

| Male Quick Hitch | |
| Mid PTO Kit |
