This is the Kubota illustrated parts catalog for the BX2537 rotary broom sweeper (publication 100Z0237). This compact 11 page catalog shows each assembly as an exploded diagram paired with a numbered parts list, so you can identify the exact component and its Kubota part number before ordering.It covers the sweeper in four sections: the warning and important decals, the broom assembly with its brushes, bearings, chain drive, and gearbox, the female driveline, and the side casters. A parts-book instruction page explains the serial-number and interchange columns.Use it to order replacement brush segments, bearings, chain, and caster parts, confirm the right part number for your serial number, and keep the sweeper cutting cleanly instead of leaving streaks.
What's Inside This Kubota BX2537 Parts Manual
| System | Pages |
|---|---|
| Instructions for Parts Books | - |
| BX2537 Sweeper | - |
| Decals | - |
| Broom Assembly | - |
| Female Driveline | - |
| Side Casters | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Centering Unit Grease Interval | 4 hours | p. 3 |
Kubota BX2537 Common Problems This Manual Covers
Brush leaves streaks or skips

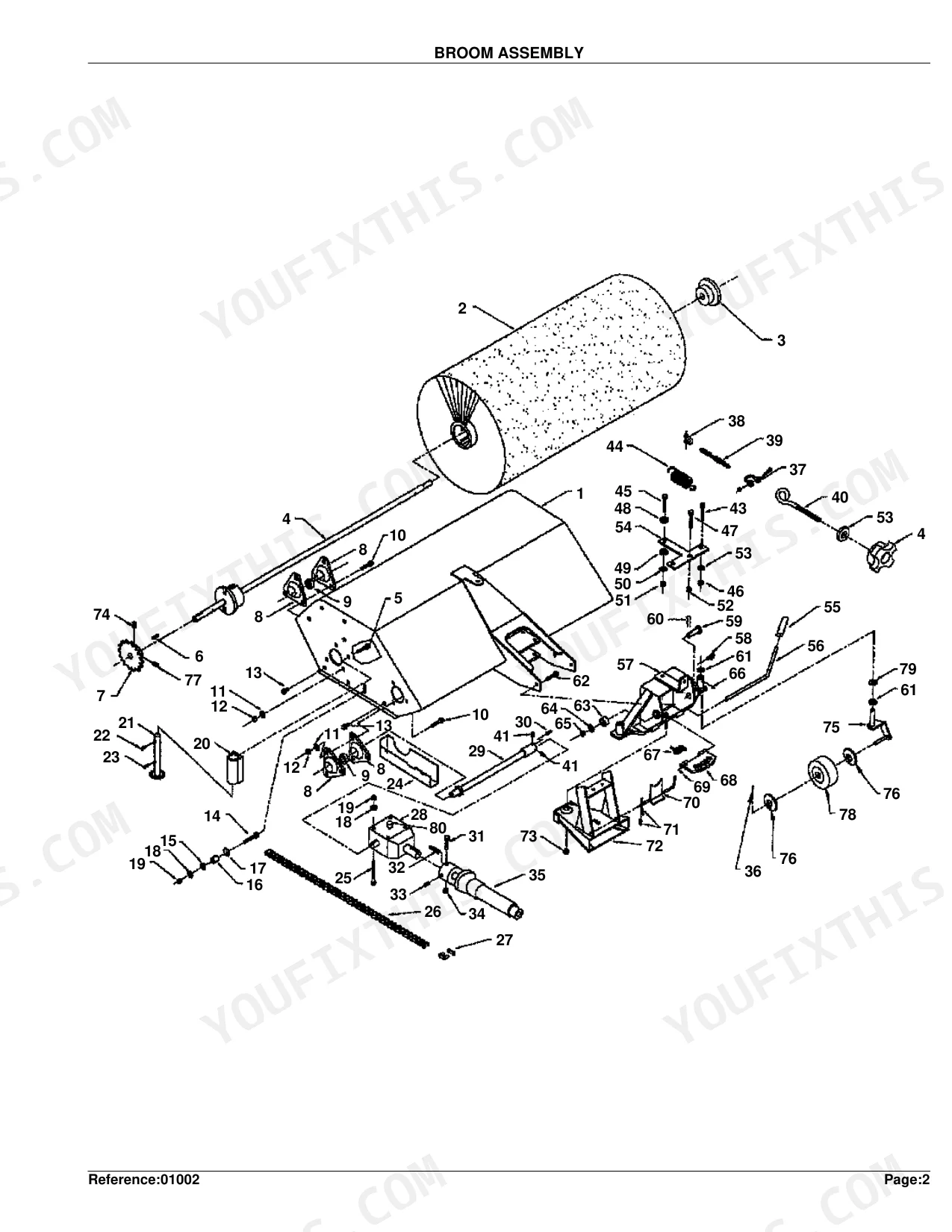

Worn or missing brush segments and damaged support plugs stop the broom sweeping cleanly and leave streaks. The broom assembly diagram identifies the brush, support plug, and driveshaft parts to restore performance.
Manual Section: Broom Assembly p. 5Sweeper will not rotate

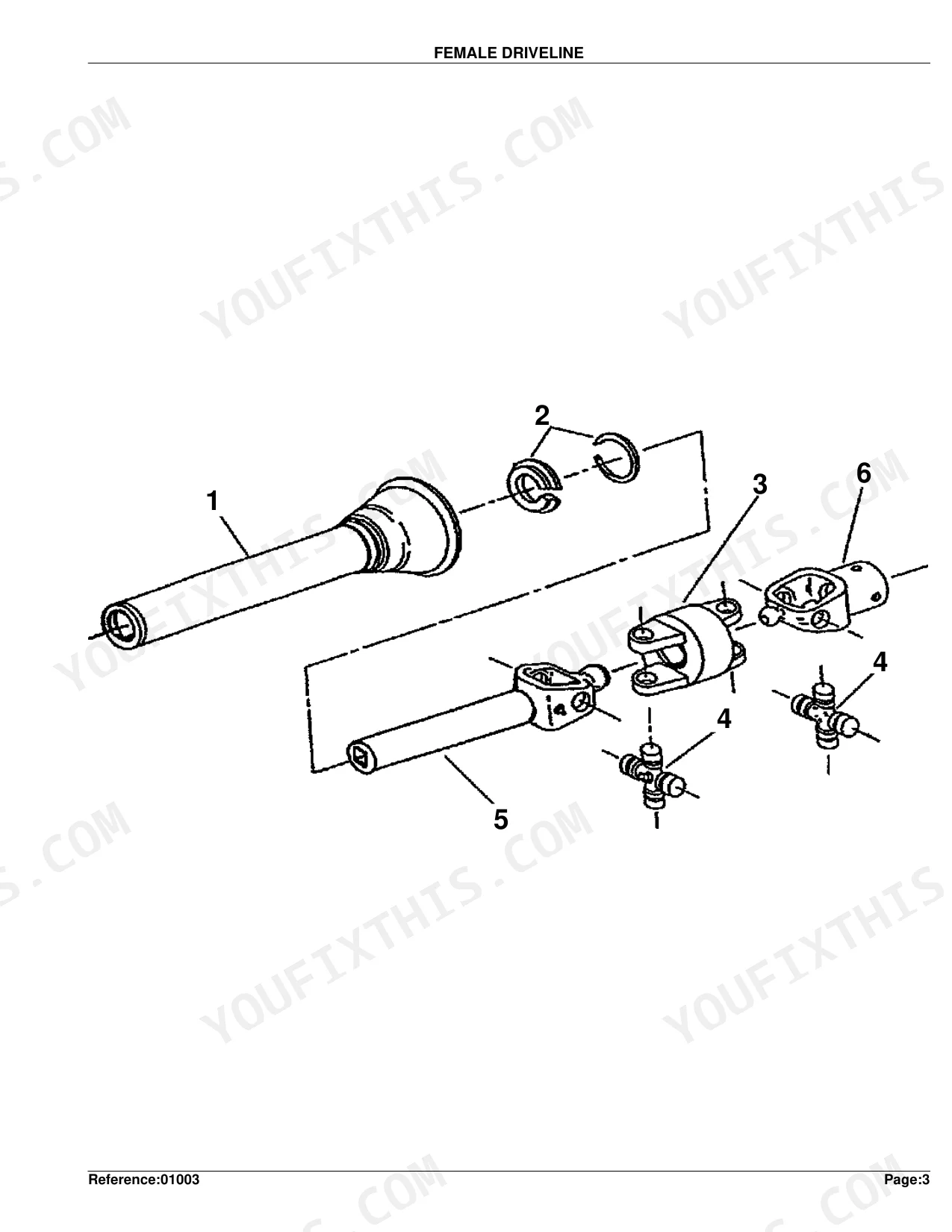

When the broom does not turn or turns intermittently, the fault is usually in the drive engagement. The female driveline section identifies the driveline half and guard parts that transfer power to the sweeper.
Manual Section: Female Driveline p. 8Wobble or uneven sweeping height

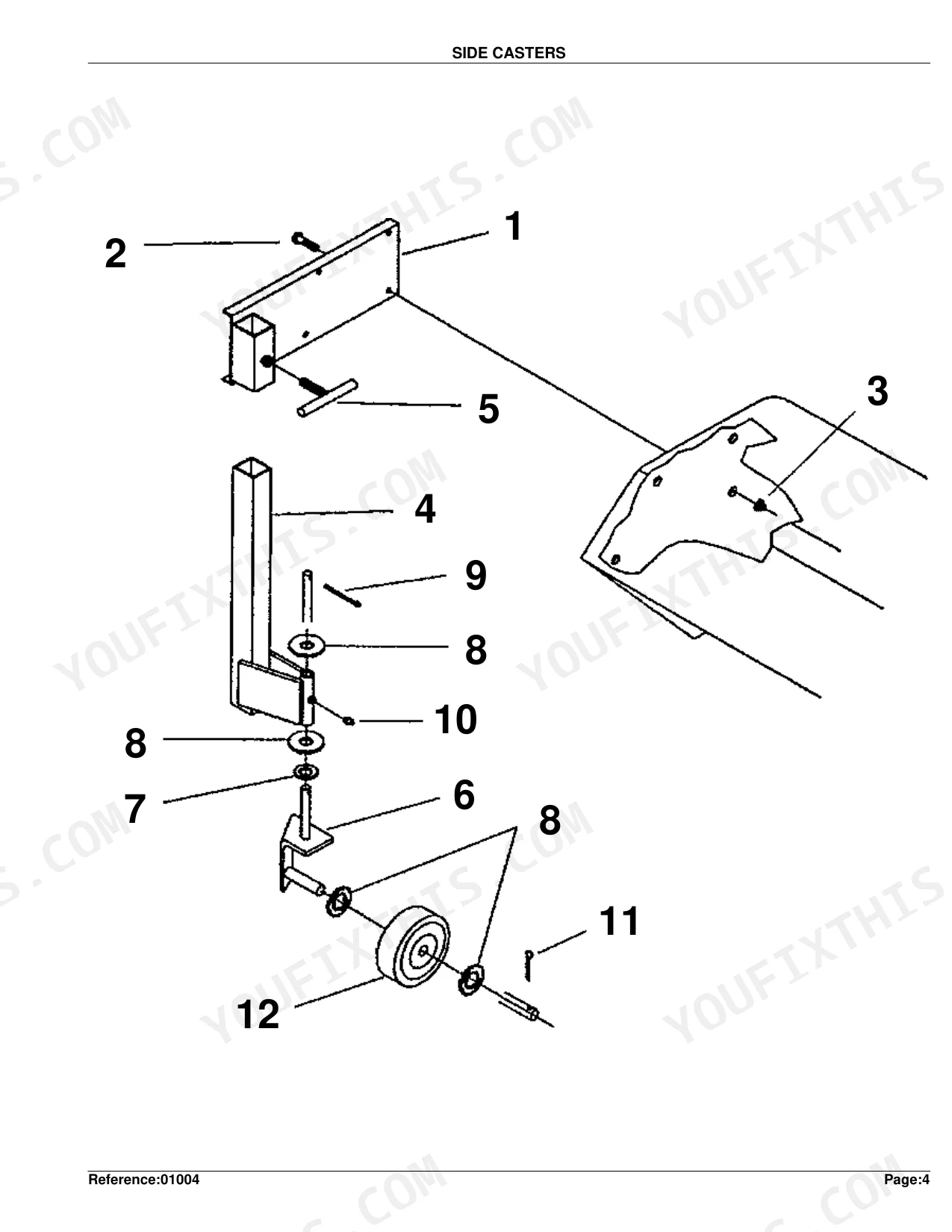

A worn or loose caster lets the sweeper wobble and cut an uneven pattern. The side casters section shows the caster, bracket, and hardware parts to steady the unit.
Manual Section: Side Casters p. 10Housing or chain drive damage
Impact with curbs or debris can crack the housing or damage the chain and gearbox. The broom assembly exploded view identifies the housing, chain, connecting link, and gearbox parts.
Manual Section: Broom Assembly p. 5Faded or missing safety decals

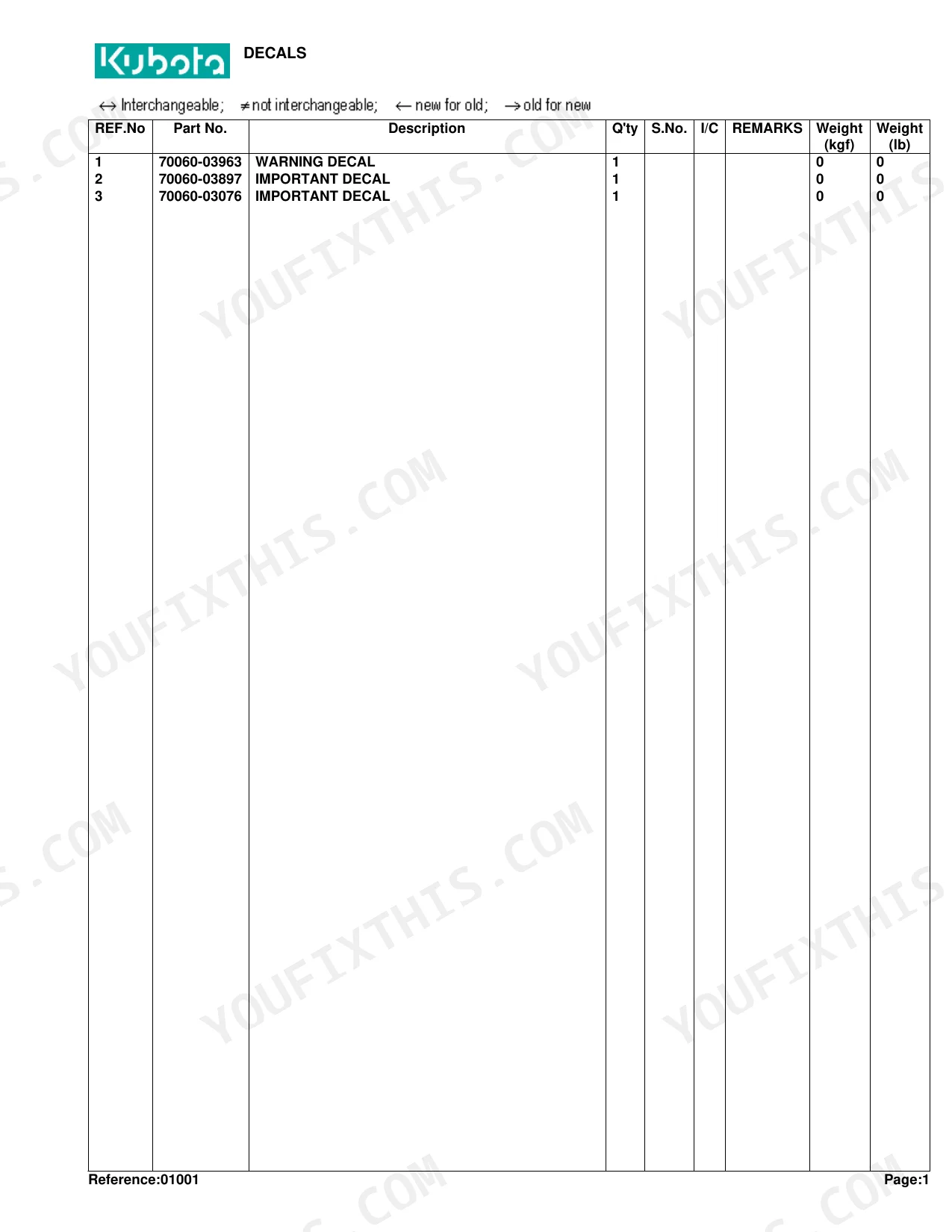

Warning and important decals wear off with use and weather. The decals section lists each decal and its part number so you can replace the required safety labels.
Manual Section: Decals p. 3Frequently Asked Questions
What does this catalog cover?
It covers the Kubota BX2537 sweeper attachment in four sections: decals, the broom assembly, the female driveline, and the side casters. Each is shown as an exploded diagram with a numbered parts list and part numbers.
Is this a repair manual or a parts catalog?
It is a parts catalog. It provides exploded diagrams, part numbers, quantities, and serial-number interchange notes for identifying and ordering parts. It does not include assembly or repair procedures.
What brush options are listed for the broom?
The broom assembly section lists two brush types: a 50 percent steel and 50 percent poly brush, and a 100 percent nylon brush, plus the brush support plug and driveshaft. You can pick the brush material that suits your surface. p. 5
How often should the centering unit be greased?
The catalog notes a grease interval of every 4 hours for the centering unit. Regular greasing at that interval keeps the mechanism free and reduces wear during sweeping. p. 3
