This is the Kubota RCK60B-22BX parts catalog, a 21 page illustrated PDF for the RCK60B-22BX 60 inch mid mount mower deck used on the BX series tractors. It pairs exploded diagrams with reference numbers, Kubota part numbers, quantities, and serial number ranges, so you can identify the exact part before ordering.Coverage runs across the deck: the universal joint and PTO driveline, the bevel gear case, pulley holder, tension pulley, mower deck shell, front gauge wheel, discharge cover, and the linkage that positions and raises the deck.Use it to trace a gearbox oil leak or noisy spindle, match a worn belt, blade, or bearing to its part number, rebuild the center pulley holder, or confirm which gauge wheel and hardware fit your serial number. The interchangeability legend at the front helps you avoid ordering the wrong revision for your BX tractor.
What's Inside This Kubota RCK60B-22BX Parts Manual
| System | Pages | Key Topics |
|---|---|---|

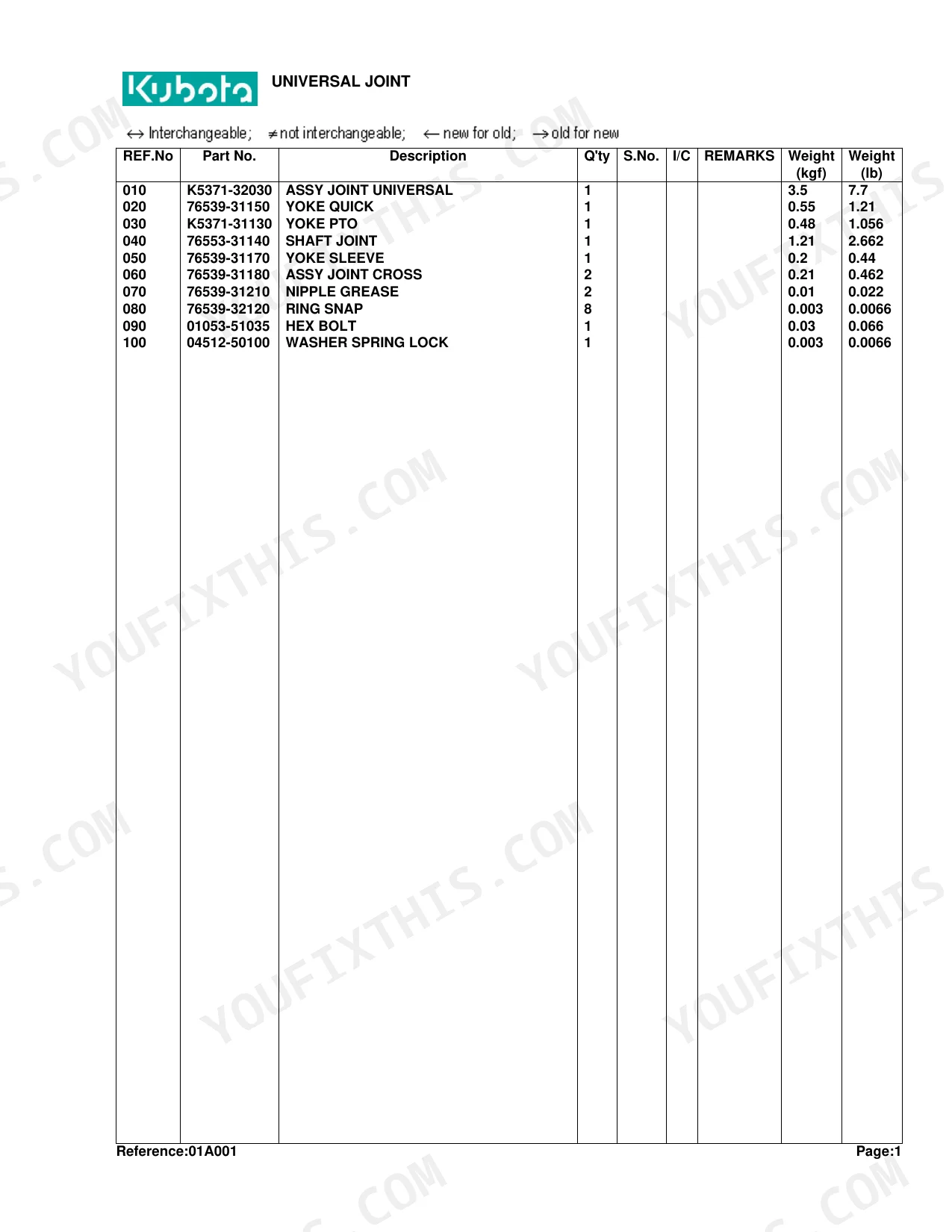

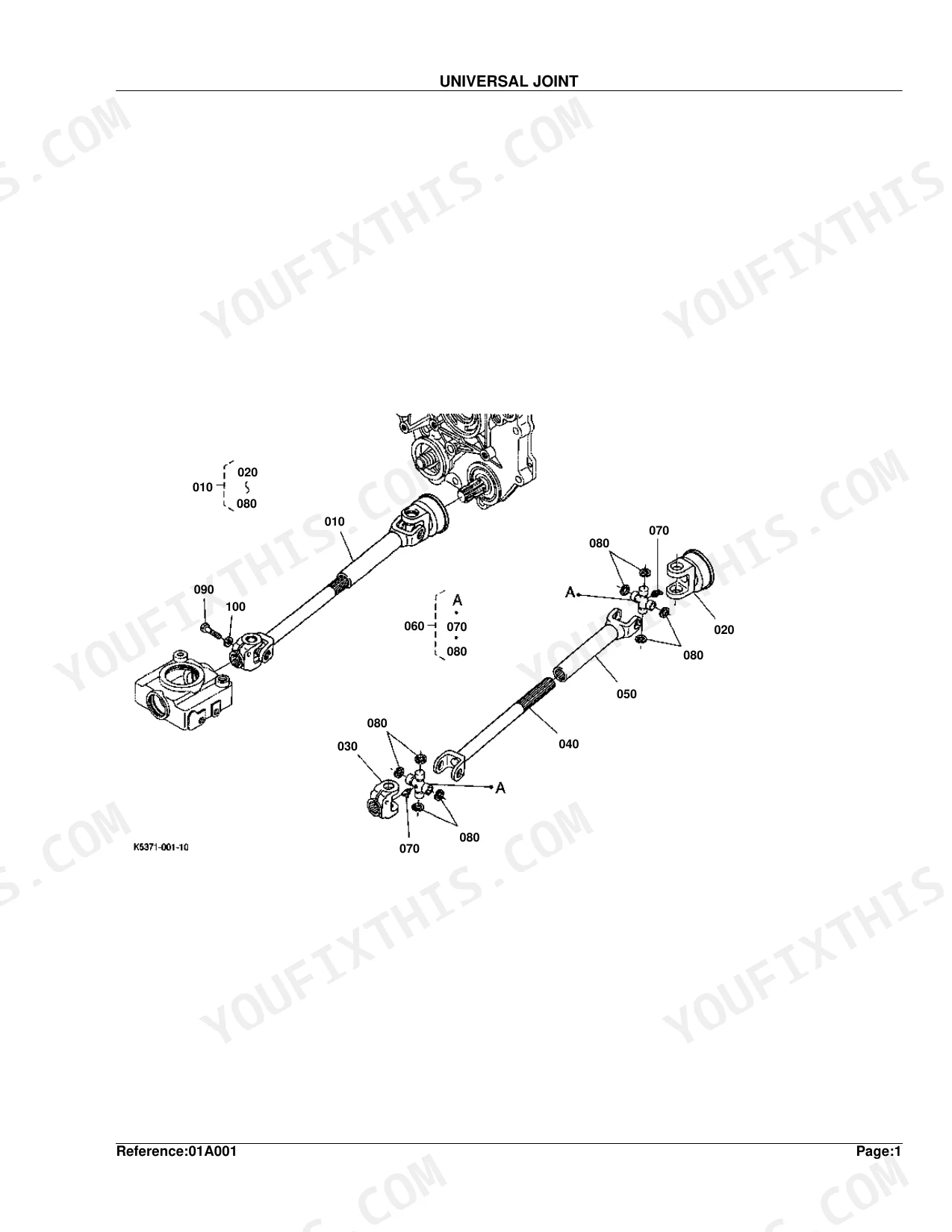

| Universal Joint | 3-4 | Joint Universal Assembly, Yoke Quick, Yoke PTO, Shaft Joint, Yoke Sleeve, Joint Cross Assembly, Nipple Grease, Ring Snap |
| Bevel Gear Case | 5-6 | Case Bevel Gear, Gasket, Stay Case LH, Nipple Grease, Stay Case RH, Hex.bolt, Hex.nut, Shaft Pinion |

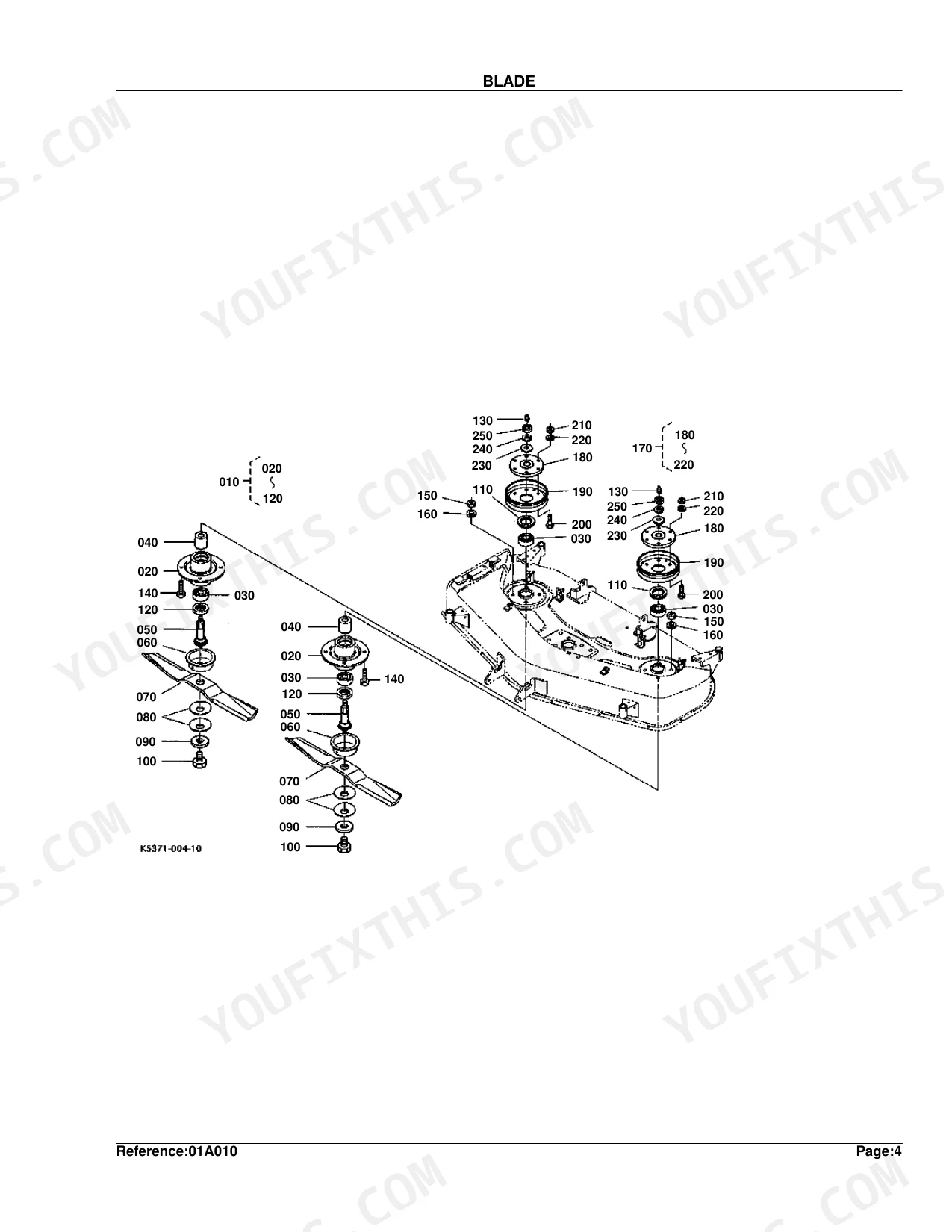

| Pulley Holder | 7-8 | Holder Pulley, Oil Seal Upper, Oil Seal Lower, Boss Spline, Cover Dust, Blade, Spring Corn |
| Tension Pulley | 11-12 | Belt Poly, Arm Tension, Bushing Tension, Collar Tension, Hex.bolt, Hex.nut, Pulley Tension, Cover Tension |

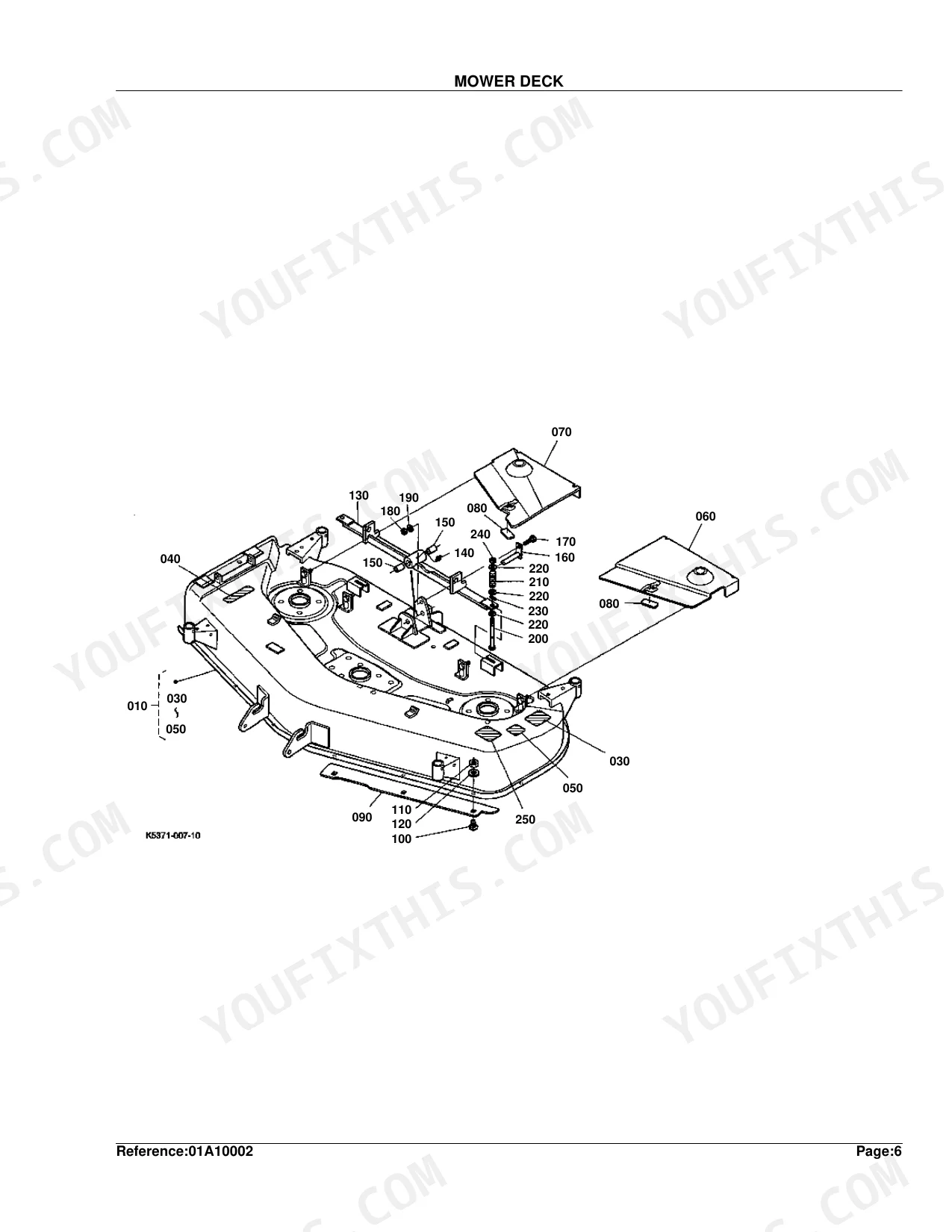

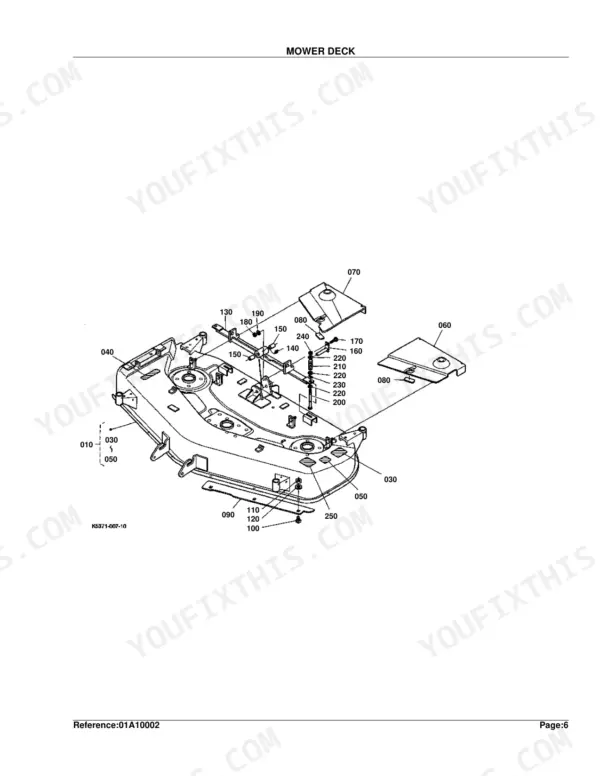

| Mower Deck | 13-14 | Mower Deck Assembly, Label Caution English, Label Caution Ca French, Label Danger English, Label Danger Ca French, Cover Left, Cover Right, Plate Rubber |
| Front Gauge Wheel | 15-16 | Gauge Wheel Assembly, Hex.nut, Ring Snap, Collar Wheel |
| Discharge Cover | 17-18 | Cover Discharge, Spring Discharge, Hex.bolt, Hex.nut |
| Linkage | 19-20 | Lever Link, Spring Pin Front, Link Front, Hex.nut |
| Accessories and Service Parts | 21 | Operator's Manual |
