Rebuilding a Kubota RCK54-22BX rotary mower? This 46-page workshop manual (OEM #97897-17061) spans the whole RCK48-15BX, RCK48-22BX, RCK54-15BX, RCK54-22BX, and RCK60B-22BX family and covers power transmission, the lifting mechanism, the self-balancer system, blade setup, and mower adjustment. Nine pages walk through disassembly, inspection, and servicing of the gear box, blade spindles, and pinion shaft, backed by exploded views of the full rotary mower assembly, a maintenance checklist, tightening torque tables, and a troubleshooting section with servicing specifications. Set the blade screws to 102.9-117.7 N·m (75.9-86.8 ft-lbs), and fill the gear box to exactly 0.36 L before you start it up. Every hour that deck sits idle is money out of your pocket. Pull the PDF up on your phone at the bench and work straight from it.
What's Inside This Kubota RCK48–RCK60 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety First | 3-5 | - |
| Safety Decals | 6-8 | - |

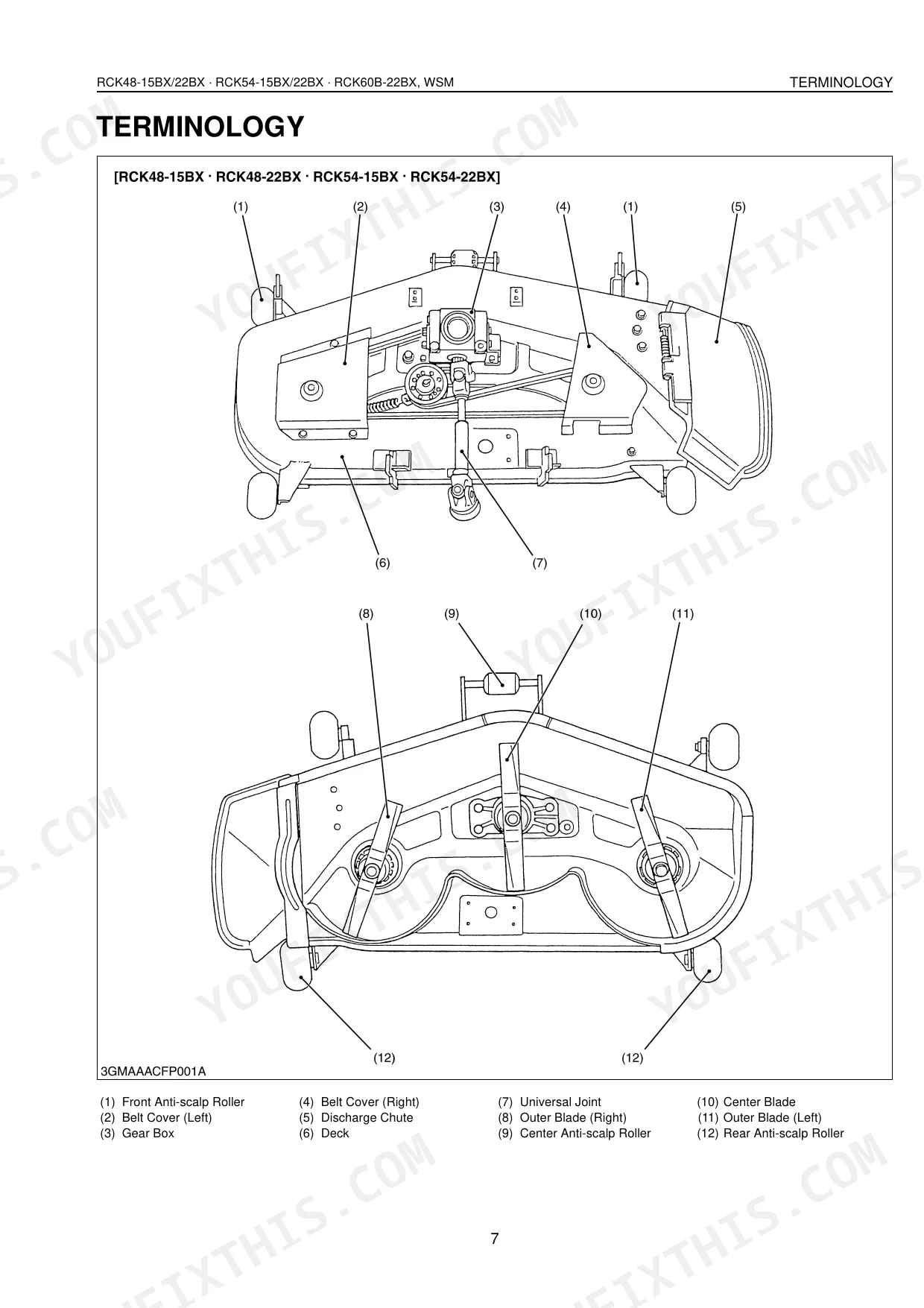

| Terminology | 9-10 | Front Anti-scalp Roller, Belt Cover, Gear Box, Universal Joint, Center Blade, Outer Blade |

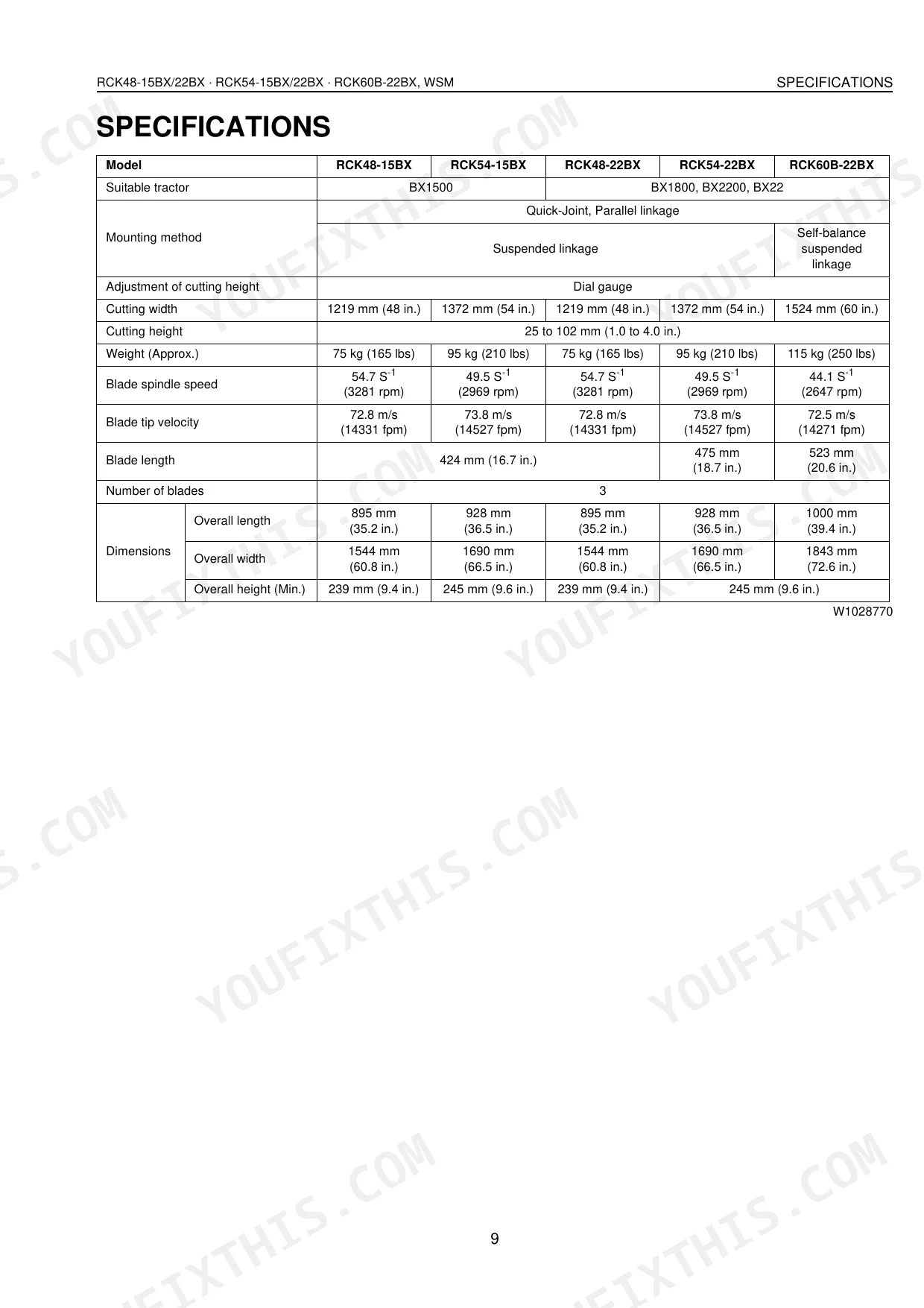

| Specifications | 11 | Suitable tractor, Mounting method, Cutting width, Cutting height, Blade spindle speed, Dimensions |

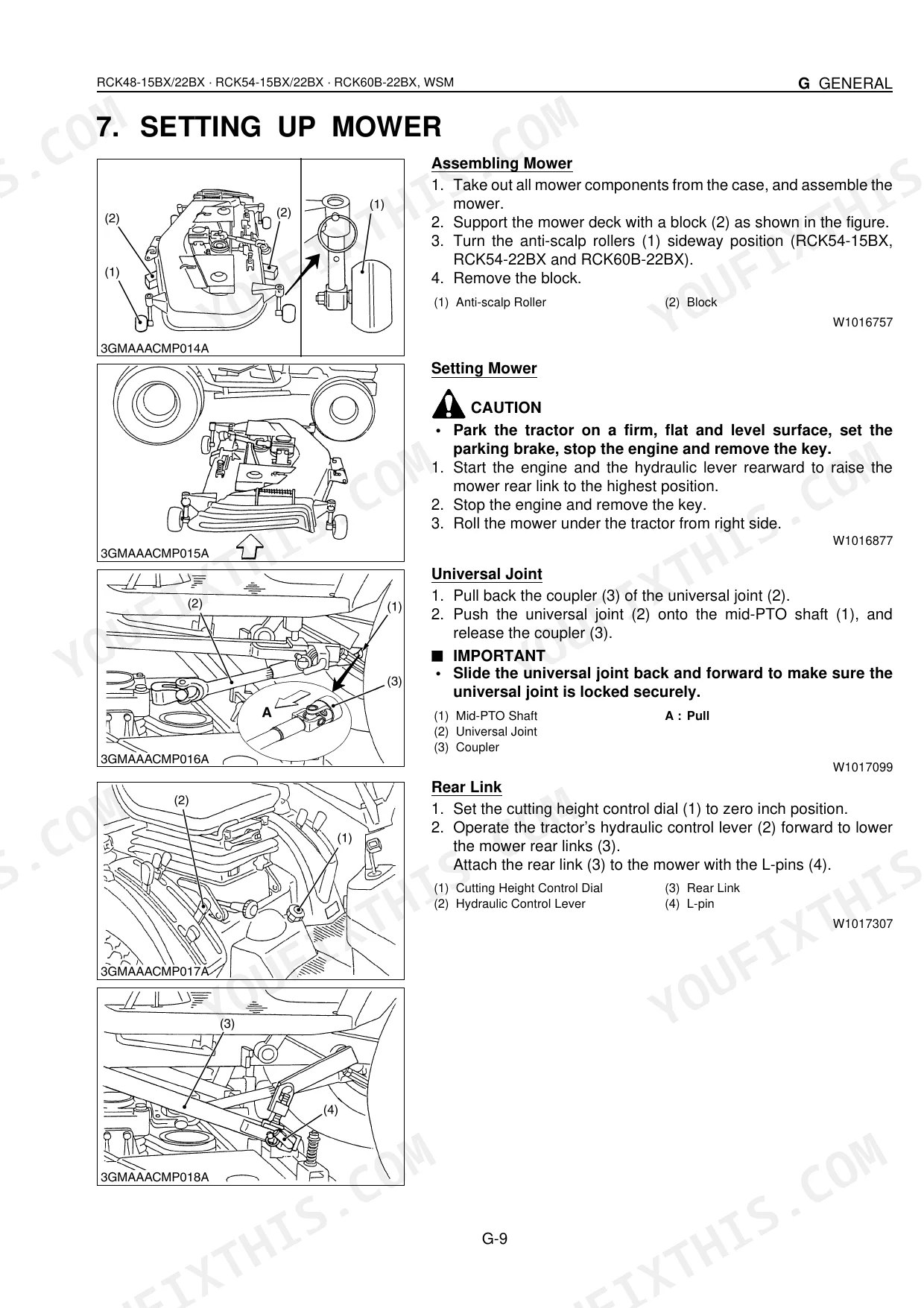

| G General | 12-27 | Contents (1.Mower Identification, 2.General Precaution, 3.Lubricants, 4.Tightening Torques, 5.Maintenance Check List, 6.Check and Maintenance, 7.Setting Up Mower, 8.Mower Adjustment) |
| 1 Rotary Mower | 28-45 | Contents (1.Power Transmission, 2.Lifting Mechanism, 3.Self-Balancer System) |
| 46 | Contents (1.Mower Identification, 2.General Precaution, 3.Lubricants, 4.Tightening Torques, 5.Maintenance Check List, 6.Check and Maintenance, 7.Setting Up Mower, 8.Mower Adjustment) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Mower blade screw tightening torque | 102.9 to 117.7 N·m (10.5 to 12.0 kgf·m, 75.9 to 86.8 ft-lbs) | p. 38 |
| Gear box mounting screw and nut tightening torque | 77.4 to 90.2 N·m (7.9 to 9.2 kgf·m, 57.1 to 66.5 ft-lbs) | p. 36 |
| Gear Box Oil Capacity | 0.36 L | p. 16 |
| Outer Pulley Mounting Nut Tightening Torque | 196.17 to 225.6 N·m | p. 36 |
| Pinion Shaft Turning Force (Max) | Less than 117.7 N | p. 35 |
| Bevel Gears in Gear Box Backlash (Factory Spec) | 0.1 to 0.2 mm | p. 35 |
| Bevel Gears in Gear Box Backlash (Allowable Limit) | 0.4 mm | p. 35 |
| Clearance between stopper and rear link | 1.0 to 2.0 mm | p. 24 |
| Difference (R-F) between front tip and rear tip of blade | 0.0 to 5.0 mm | p. 25 |
| Difference (L-R) between left tip and right tip of blade | Less than 3 mm | p. 26 |
| Balancer spring length (L) (Right and left) | 55.0 mm | p. 26 |
| Pulley Boss Mounting Nut Tightening Torque | 23.5 to 27.4 N-m | p. 42 |
Kubota RCK48–RCK60 Series Common Problems This Manual Covers
Kubota RCK60B-22BX blades do not spin after engaging PTO at full throttle p. 34
Trace the universal joint and driveline connection between tractor PTO and mower input shaft. Confirm the belt is intact and seated on all pulleys, then rotate the pinion shaft by hand. If turning force exceeds 117.7 N (the limit on page 35), the gear box is seized and needs a rebuild before it goes back to service.
Manual Section: Rotary Mower TroubleshootingBlades spinning but cut is ragged, uneven strips left behind on every pass p. 25
Inspect blades for bends, cracks, or missing tips and replace any that are damaged. Measure front-to-rear tip height: the rear tip must sit 0.0 to 5.0 mm higher than the front per page 25. Check left-to-right tip difference per page 26, which must stay under 3 mm. Torque blade screws to 102.9 to 117.7 N·m after any blade work.
Manual Section: G GeneralMower deck won't raise or lifts only partway, stays low after releasing lever p. 24
Check rear link pivot points for binding and bent lift arms. Adjust the clearance between stopper and rear link to 1.0 to 2.0 mm per page 24. Lubricate all pivot pins at the daily service interval. If deck still won't raise fully, inspect the lift cylinder and hydraulic lines for leaks or loss of pressure.
Manual Section: G GeneralLoud grinding or rattling noise from gear box during operation, vibration in deck p. 16
Stop and disengage the PTO immediately. Pull the gear box fill plug and check the oil level, topping up to the 0.36 L capacity (page 16) if it's low. With oil confirmed full, measure bevel gear backlash. Factory spec is 0.1 to 0.2 mm; scrap the gear box once backlash reaches the 0.4 mm allowable limit.
Manual Section: SERVICINGBlade screw backs out or loosens, excess vibration in deck after normal mowing p. 36
Pull the deck guard and torque each blade screw to 102.9 to 117.7 N·m (75.9 to 86.8 ft-lbs) per the spec on page 36. Inspect the blade flange and spindle thread for wear or damage, and make sure the blades seat flat with no debris behind the flange. Recheck torque after the first 30 minutes of mowing following any blade service.
Manual Section: SERVICINGBelt slips under heavy mowing load, blade speed drops noticeably in thick grass p. 42
Examine the drive belt for glazing, cracking, or stretch and replace it if worn. Verify outer pulley mounting nut torque at 196.17 to 225.6 N·m, and confirm the pulley boss nut is at 23.5 to 27.4 N·m per page 42. A glazed belt keeps slipping after retensioning, so replacement is the only real fix.
Manual Section: SERVICINGFrequently Asked Questions
What are the recommended service intervals?
Several intervals keep the mower running safely and trouble-free. Run a check daily at each use, an initial one at 50 hours, routine ones every 150 hours, and a full check every 2 years after purchase, which also covers replacing the gear box oil seal.
What fluids and capacities does this machine require?
The gear box takes 0.36 L (0.38 U.S.qts., 0.32 Imp.qts.) of SAE 90 gear oil (API Service GL-5). At the greasing points, the universal joint, spindle shafts, belt tension pulley, belt tension pivot, and the balance shaft (RCK60B-22BX only), pack in SAE multi-purpose grease until it overflows.
What torque specifications are listed?

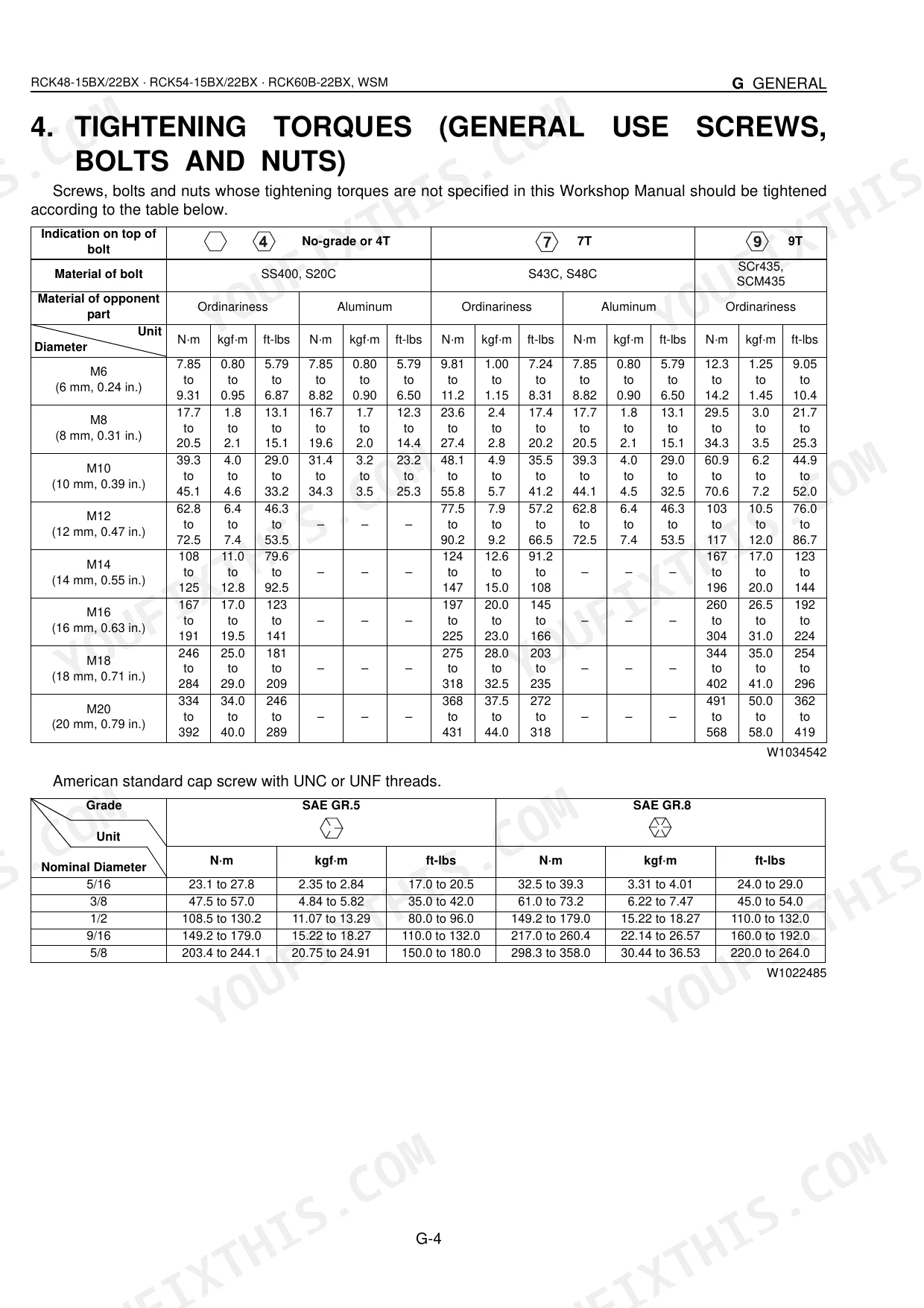

Torque values run by bolt diameter and grade, for example M6 bolts at 7.85 to 9.31 N·m and M8 bolts at 17.7 to 20.5 N·m. Component-specific figures include the mower blade screw at 102.9 to 117.7 N·m (10.5 to 12.0 kgf·m, 75.9 to 86.8 ft-lbs) and the outer pulley mounting nut at 196.17 to 225.6 N·m (20.0 to 23.0 kgf·m, 144.7 to 166.4 ft-lbs).
How will I receive this Kubota RCK48–RCK60 Series Workshop Manual?
Download the complete 46-page searchable Workshop Manual right after checkout. Open it on any device, the laptop at your desk or your phone out in the field.
Are there any print restrictions on this Kubota RCK48–RCK60 Series manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned PDF with an accurate OCR layer, allowing you to search and copy the full text. The text quality is consistently crisp and easy to read on every page, with no blurriness or fading. All diagrams and illustrations are clear raster images, and their labels are perfectly readable. The pages are clean, free from scan artifacts, stains, or skewed content. You will find a few section divider pages with only a title, but no entirely blank pages.
