This Kubota workshop manual (OEM #9Y011-12321) covers one tractor family: the M8200DNB, M8200SDNB, and M8200SDNBC, three variants of a 73-HP utility platform documented from engine teardown to cabin reassembly. Its 152 pages carry color-coded wiring circuits, full hydraulic schematics for the three-point system, and torque tables for every major assembly: clutch housing, transmission case, front axle, steering, and brakes. Exploded views map each disassembly sequence step by step, and the 4WD/Bi-speed Turn troubleshooting routine tells you where to start when that system acts up. Capacities sit in the service section where you need them: 33 L for the transmission case, 10.7 L for the crankcase. When your machine is down and the dealer quotes a week, open a bookmark, search a keyword, and find the right number before you reach for a wrench.
What's Inside This Kubota M8200DNB, M8200SDNB, M8200SDNBC Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | 5-7 | Safety Decals, Following Safety Decals Are Installed On The Machine, Care of Danger, Warning and Caution Labels |
| Dimensions | 9 | Overall length, Overall width, Overall height, Wheel base, Tread, Minimum ground clearance |
| General | 10-23 | Features, Lubricants, Fuel And Coolant, Maintenance, Check And Maintenance (Check Points: Initial 50 Hours, Every 50 Hours), Special Tool |

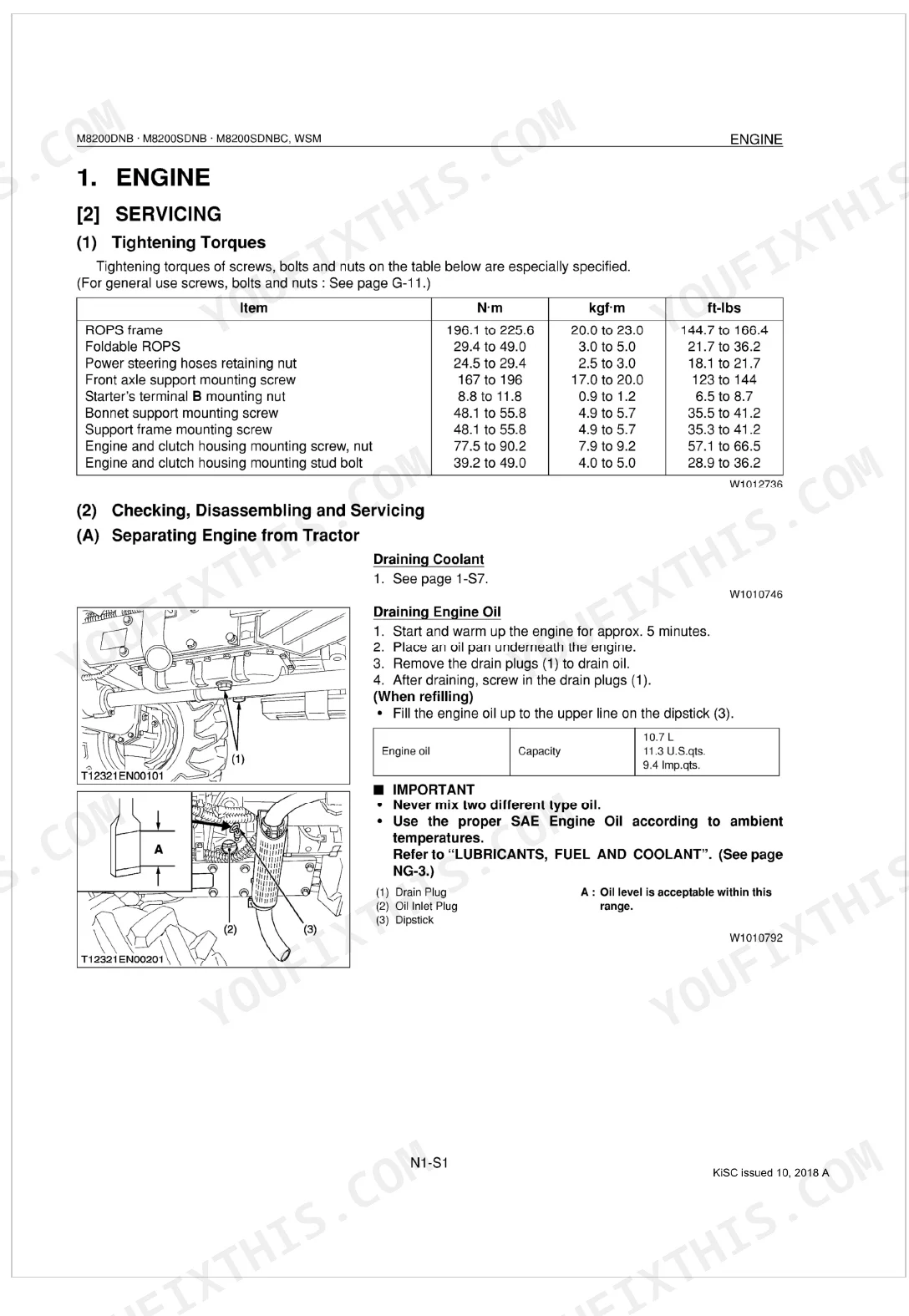

| Engine | 24-28 | Servicing (Tightening Torques, Checking, Disassembling And Servicing), Draining Transmission Fluid, Foldable ROPS, Bonnet And Covers, Radiator Hoses And Air Cleaner Hoses |
| Clutch | 29-37 | Servicing (Tightening Torques, Disassembling And Assembling), Bonnet And Covers, Radiator Hoses And Air Cleaner Hoses, Power Steering Hoses, Propeller Shaft, Wire Harness L.H. |
| Transmission | 38-75 | Mechanism (Structure, M8200SDNB Travelling System, M8200DNB Travelling System, 4WD / Bi-speed Turn Section, PTO System) |
| Rear Axle | 76-79 | Servicing (Tightening Torques, Disassembling And Assembling), Draining Transmission Fluid, Draining Fuel, Rear Wheel, Fender And ROPS, Rear Axle Case |
| Front Axle | 80-95 | Mechanism (Features) |
| Steering | 96-103 | Hydraulic Pump, Steering Cylinder, Relief Valve, Hydraulic Hoses, Tie-rods, Steering Controller |
| Hydraulic System | 104-112 | Mechanism (Three Point Hydraulic System, Hydraulic Circuit For Three Point Hydraulic System) |
| Electrical System | 113-121 | Mechanism (Color Of Wiring, Wiring Diagram, Electrical Circuit), Servicing (4WD / Bi-speed Turn System) |

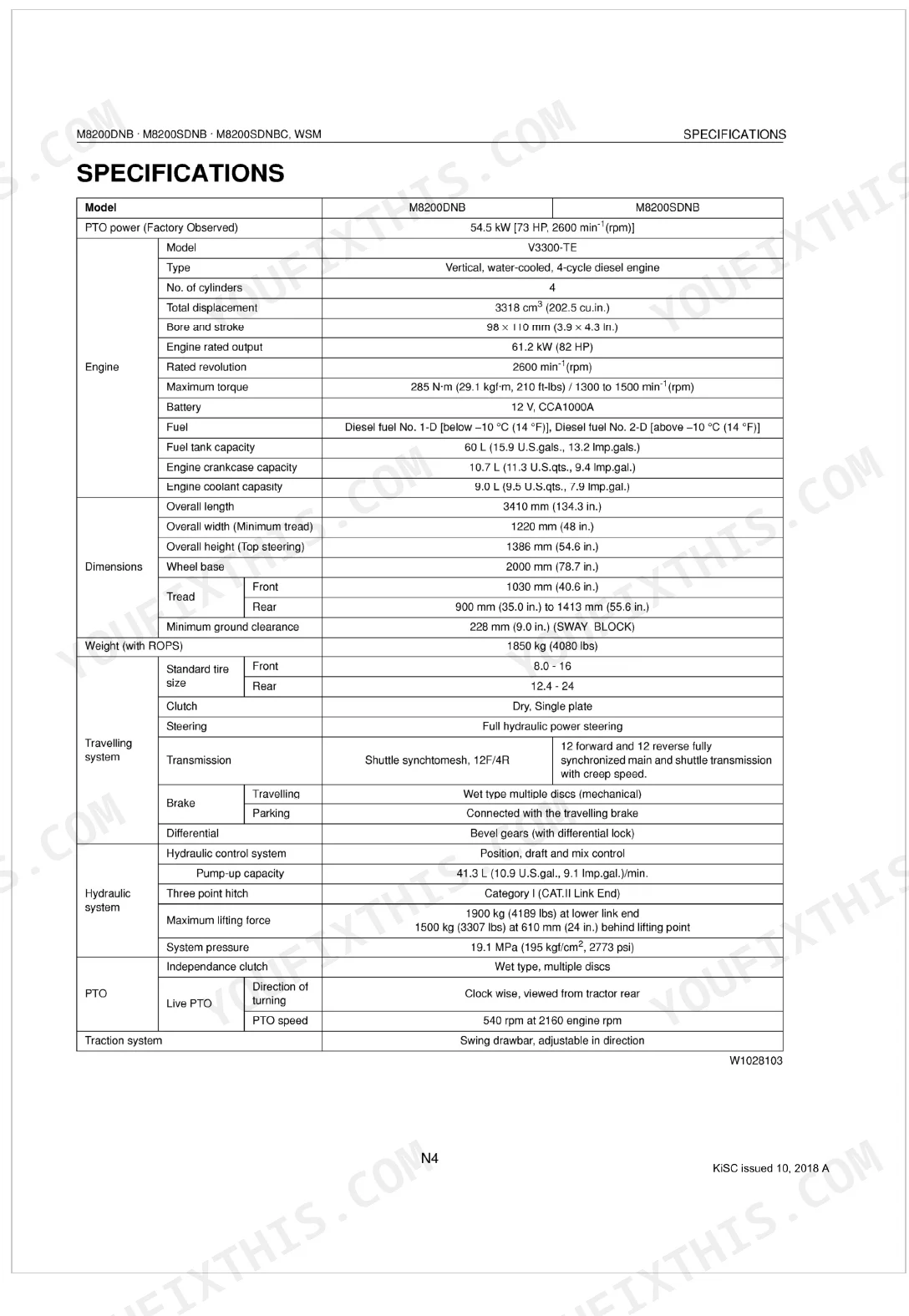

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| M8200DNB, M8200SDNB | ||
| Fuel tank capacity | 60 L (15.9 U.S.gals., 13.2 Imp.gals.) | p. 12 |
| PTO power (Factory Observed) | 54.5 kW [73 HP, 2600 min⁻¹ (rpm)] | p. 8 |
| M8200SDNBC | ||
| Fuel tank capacity | 78 L (20.6 U.S.gals., 17.2 Imp.gals.) | p. 53 |
| PTO power (Factory Observed) | 56.5 kW (73 HP)* / 2600 min⁻¹ (rpm) | p. 127 |
| All Models | ||
| Engine crankcase capacity | 10.7 L (11.3 U.S.qts., 9.4 Imp.gal.) | p. 12 |
| Transmission case capacity | 33 L (34.9 U.S.gals., 29.0 Imp.gals.) | p. 12 |
| Front wheel mounting nut tightening torque | 168 to 296 N-m (17.1 to 20.0 kgf-m, 123.7 to 144.7 ft-lbs) | p. 15 |
| 4WD/Bi-speed Turn Clutch Disc Thickness (Factory Specification) | 1.70 to 1.90 mm (0.067 to 0.075 in.) | p. 51 |
| Front Wheel Steering Angle (Factory Specification) | 0.593 to 0.628 rad. (34 to 36°) | p. 82 |
| Relief Valve Setting Pressure (Power Steering Hydraulic Pump) | 12.8 MPa (131 kgf/cm², 1863 psi) | p. 96 |
| Hydraulic Pump Delivery at Rated Pressure (Three Point Hydraulic Pump) | 38.0 L/min. (10.0 U.S.gals./min., 8.4 Imp.gals./min.) | p. 106 |
| Cabin Mounting Bolt Tightening Torque | 196 to 225 N-m (20 to 23 kgf-m, 145 to 166 ft-lbs) | p. 147 |
Kubota M8200DNB, M8200SDNB, M8200SDNBC Common Problems This Manual Covers
Kubota M8200 three-point hitch drops under load or lifts too slowly with hydraulic pump noise p. 104
Confirm hydraulic fluid level and filter condition before opening anything up. Swap the hydraulic oil filter once hours pass 300. At the test port, gauge three-point pump delivery; factory spec is 38.0 L/min. (10.0 U.S.gals./min., 8.4 Imp.gals./min.) at rated pressure (page 106). Low delivery means pulling the pump to inspect for worn gears or scored housings.
Manual Section: Hydraulic System4WD bi-speed turn clutch slips on tight headland turns, tractor won't pivot cleanly p. 51
Test the 4WD/bi-speed turn switch continuity and connector voltage against the wiring diagram on page 113. When the electrical side checks out, drain the transmission and measure clutch disc thickness; factory spec is 1.70 to 1.90 mm (0.067 to 0.075 in.) per page 51. Anything below minimum means a new disc pack. Refill the transmission case to 33 L (34.9 U.S.gals., 29.0 Imp.gals.).
Manual Section: TransmissionExcessive grinding or whining from transmission under load, louder shifting into high range p. 51

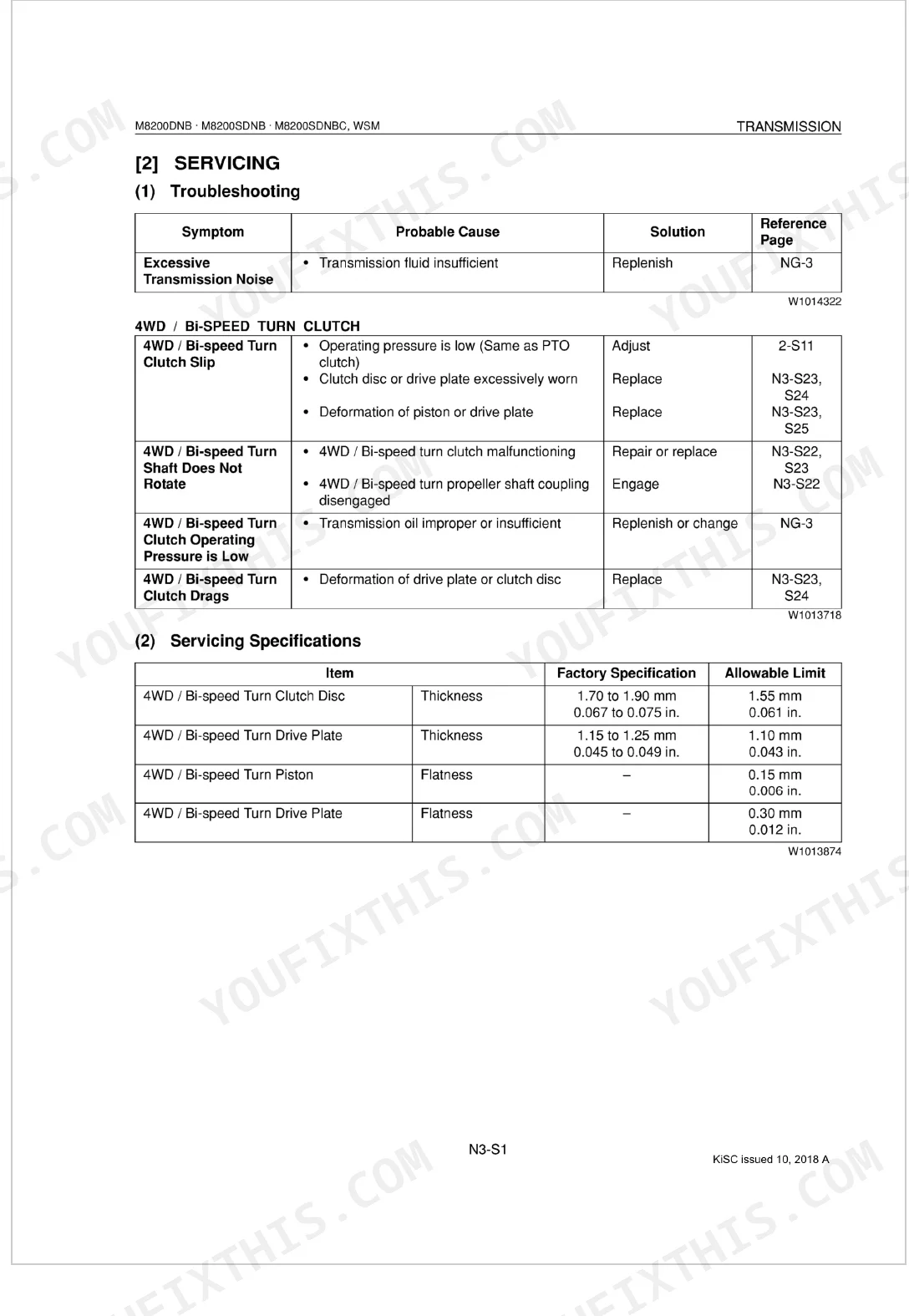

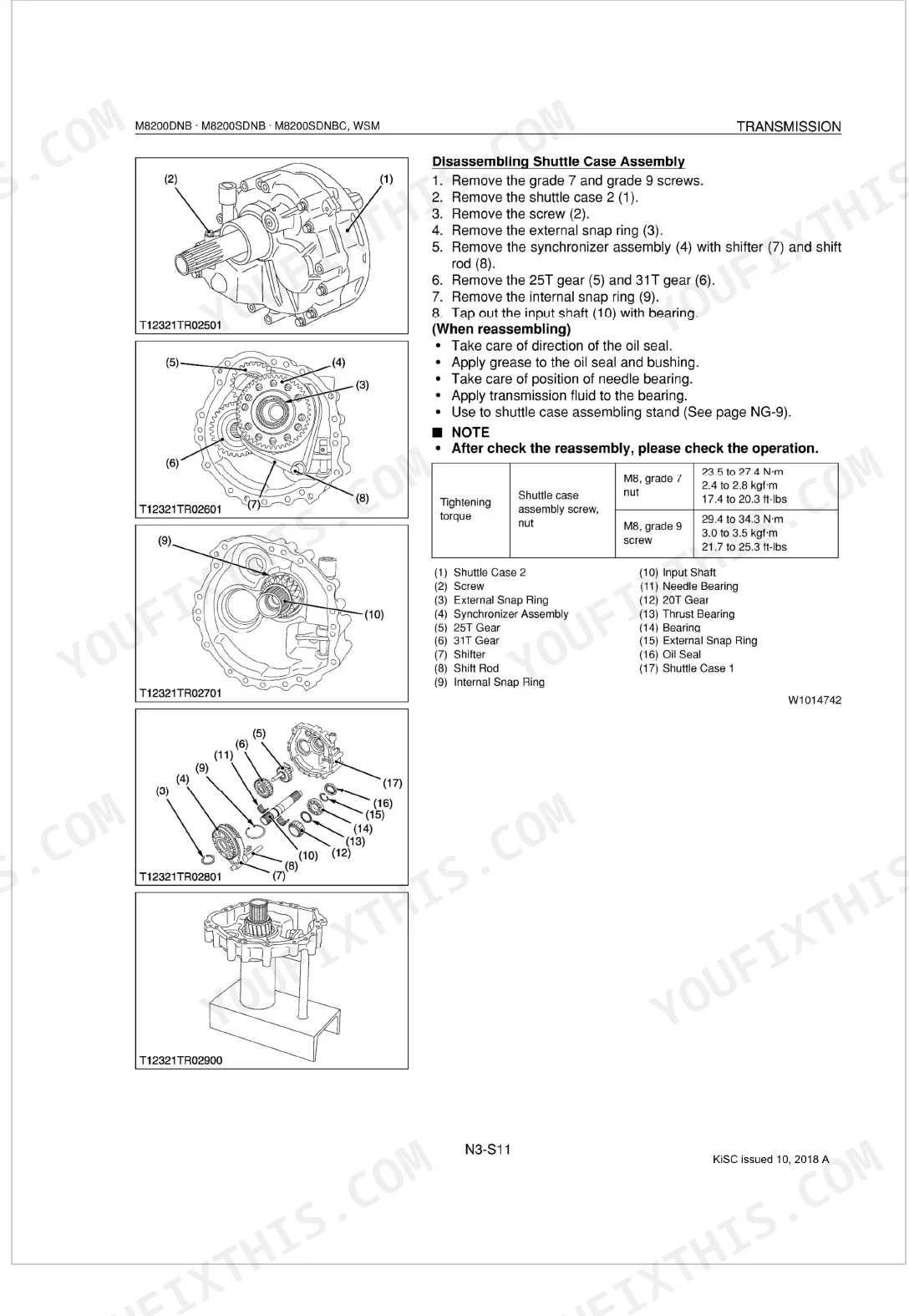

Consult the troubleshooting chart on page 51 to correlate noise with gear range and load condition. Drain fluid and inspect for metal particles; the transmission holds 33 L (34.9 U.S.gals., 29.0 Imp.gals.) and change interval is 600 hours. If metal is present, open the case and use the exploded parts view on page 61 to identify the worn gear or bearing.
Manual Section: TransmissionFront wheels wander or pull to one side during straight field passes p. 80
Inspect tie-rod ends and ball joints for play before touching the alignment. Verify steering angle falls within 0.593 to 0.628 rad. (34 to 36°) per page 82. Once re-aligned, torque tie-rod end nuts to 77.5 to 90.1 N-m as specified on page 83. If the wander persists, check the steering cylinder for internal bypass and read the front axle case fluid level.
Manual Section: Front AxlePower steering stiff or unresponsive, effort increases sharply during slow-speed tight turns p. 96
Measure power steering hydraulic pump output pressure; the relief valve setting is 12.8 MPa (131 kgf/cm², 1863 psi) per page 96. Low pressure calls for adjusting or replacing the relief valve. Run a hand along every steering hose for restriction or leakage. After any line work, torque the power steering hose retaining nuts to 24.5 to 29.4 N-m before testing.
Manual Section: SteeringFrequently Asked Questions

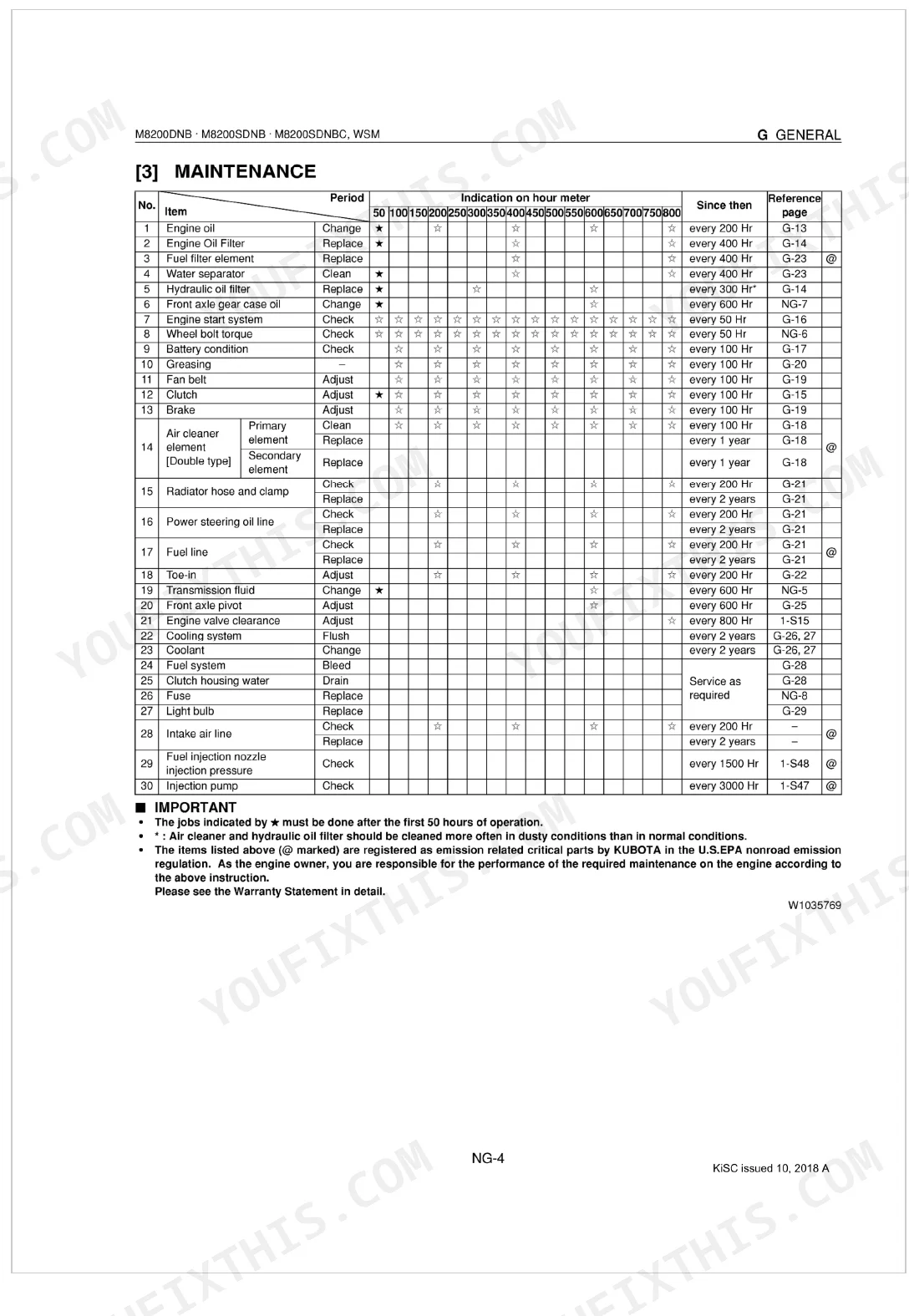

What are the recommended service intervals?
The maintenance schedule runs on engine hours: change the engine oil every 200, replace the hydraulic oil filter every 300, and change the transmission fluid every 600. Wheel bolt torque gets checked every 50 hours, and greasing is done every 100.
What fluids and capacities does this machine require?
The 60 L (15.9 U.S.gals.) tank takes No. 2-D diesel fuel, or No. 1-D below -10 °C. In the engine crankcase, run 10.7 L (11.3 U.S.qts.) of API service CC or CD class engine oil. The transmission case holds 33 L (34.9 U.S.gals.) of KUBOTA SUPER UDT fluid, and the front axle case needs 6.0 L (6.3 U.S.qts.) of KUBOTA SUPER UDT fluid or SAE80, 90 gear oil.
How to troubleshoot engine won't start?
The engine cranks only when four things line up: the main switch at START, the range gear shift lever in neutral, the safety switch ON, and the PTO clutch lever OFF. Miss any one and the starting sequence stays interrupted, so the engine won't turn over.
What are the hydraulic system specifications?
Test conditions put the pump at roughly 2600 rpm, 18.6 MPa (190 kgf/cm², 2702 psi) rated pressure, and 45 to 55 °C oil temperature. Delivery reads 40.5 L/min. at no pressure, dropping to an allowable limit of 31.0 L/min. at rated pressure. The relief valve is set at 12.8 MPa (131 kgf/cm², 1863 psi).
How will I receive this Kubota M8200DNB, M8200SDNB, M8200SDNBC Workshop Manual?
Download the full 152-page searchable Workshop Manual right after checkout. It opens on any device, the laptop at your desk or the phone out in the field.
Am I able to print pages from this Kubota M8200DNB, M8200SDNB, M8200SDNBC?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

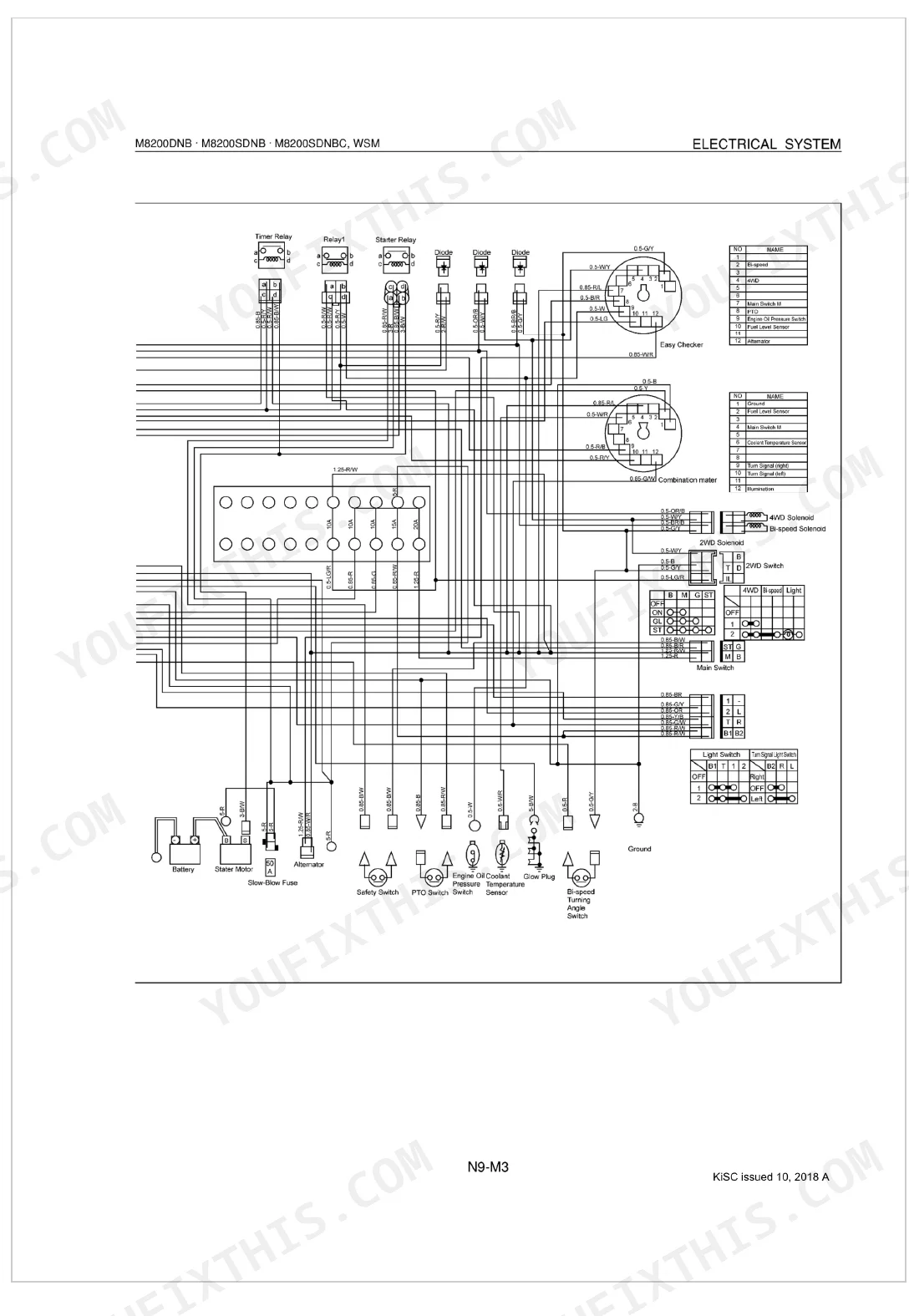

Can I find wiring schematics in this Kubota M8200DNB, M8200SDNB, M8200SDNBC?
Yes, this Kubota M8200DNB, M8200SDNB, M8200SDNBC Workshop Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
Document Quality
This document appears to be a high-quality scanned manual with an added OCR layer, allowing you to search and copy the full text. The text throughout is crisp and easy to read, maintaining good clarity. Diagrams and illustrations are clear raster images with readable labels, though they may pixelate slightly when zoomed in significantly. Pages are clean with no scan artifacts, stains, or skewed content, presenting a professional appearance. You will find a blank page at the beginning (page 2) and a memo page (page 37) included.
