Issued by Manitou under factory document number 547633S, this 88-page Manitou TMT315 operator manual PDF is the original book for the rough terrain forklift truck in both standard and /FL form. The load chart and dimensions sit beside a full tour of the instruments and controls, so you can check rated capacity against load center before a pallet leaves the ground. A quarter of the book belongs to maintenance (filters, cartridges and belts, lubricants, and a servicing schedule keyed to the hour meter), while earlier chapters handle safety decals, load handling rules and mounting the truck onto its carrying trailer. Change the engine oil filter every 200 hours, swap the fuel filter and hydraulic return cartridge at 400, and set wheel nuts to 86.8 to 108 ft. lb. Out on a remote site, nobody is around to ask. Bookmarked and text-searchable, your copy travels in the cab wherever the forklift is working.
What's Inside This Manitou TMT315, TMT315/FL Operator Manual
| System | Pages | Key Topics |
|---|---|---|

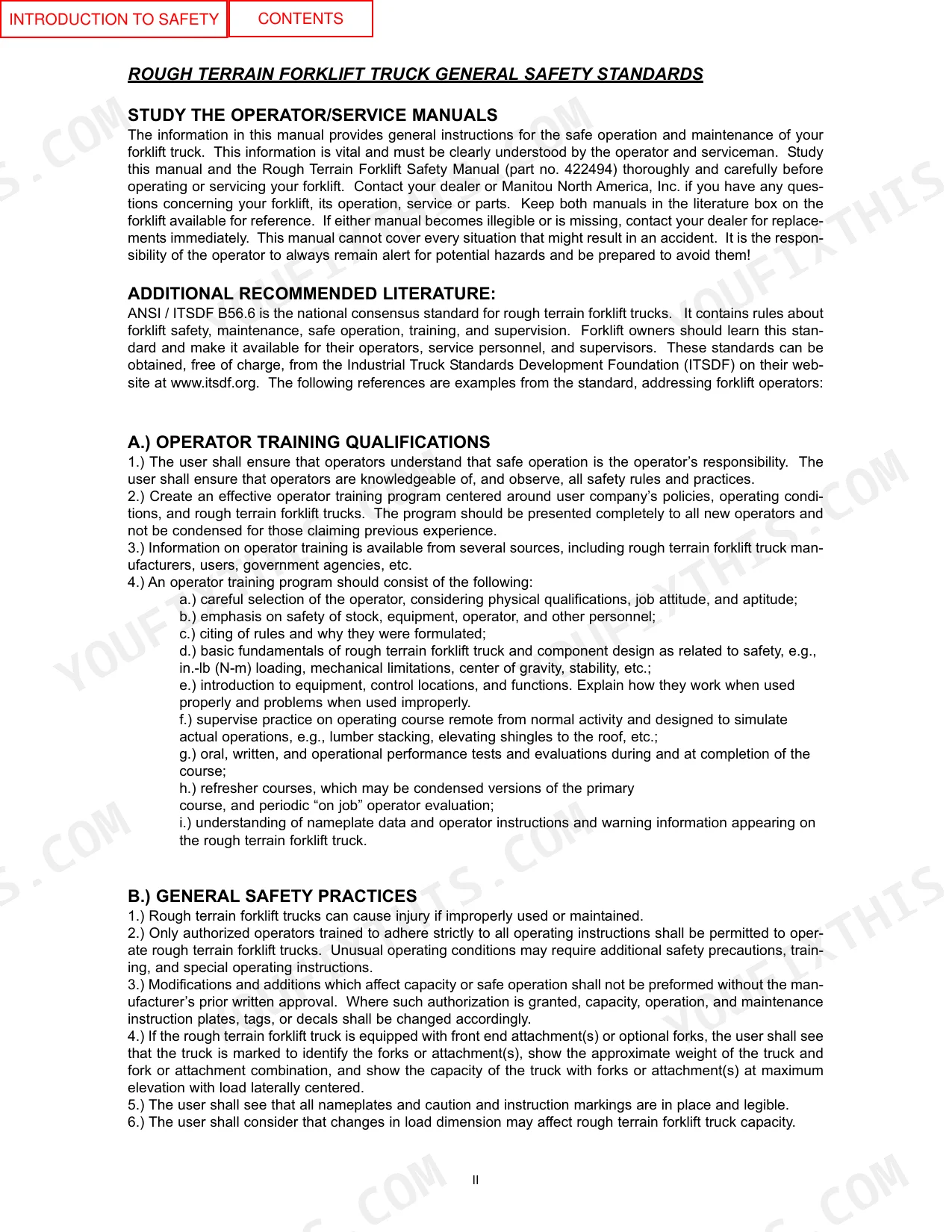

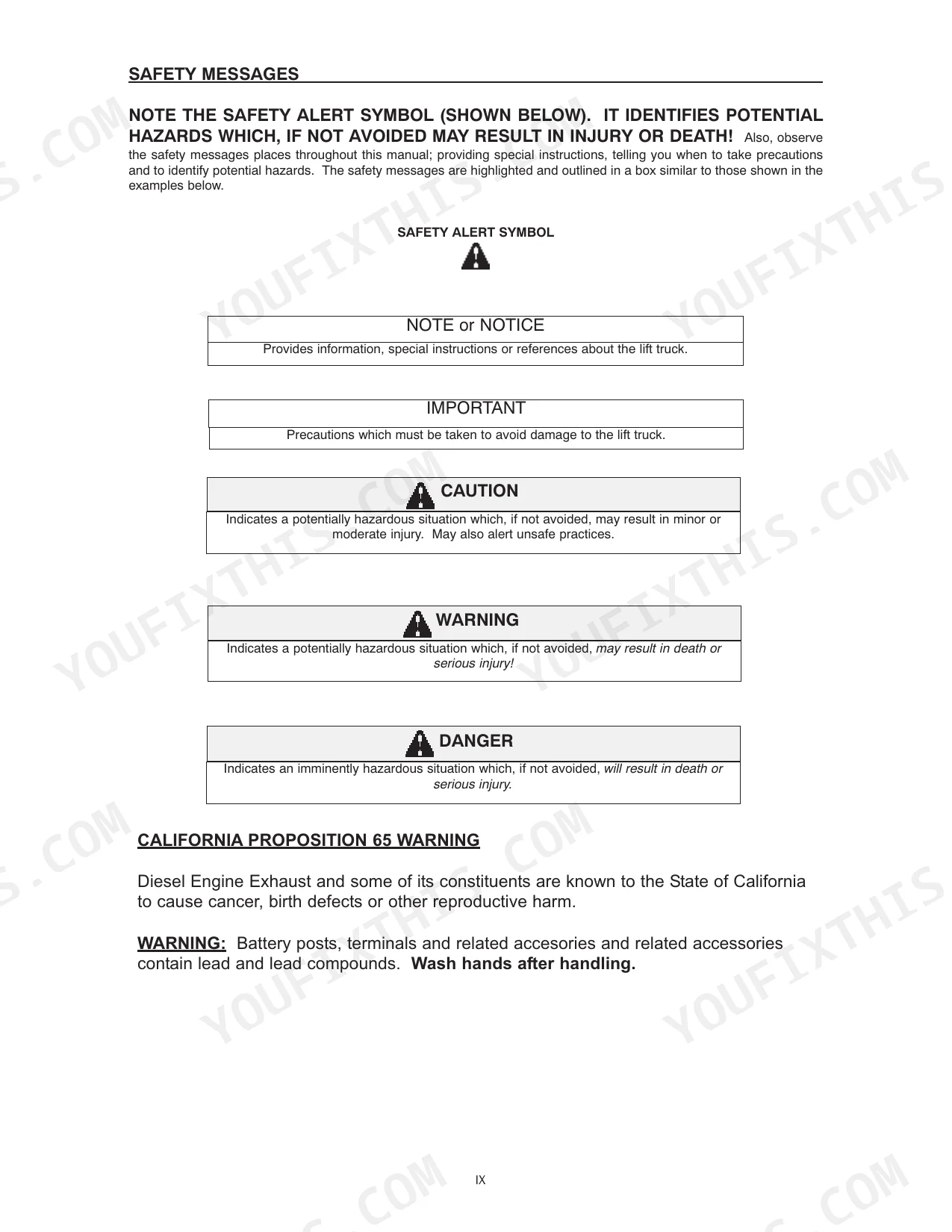

| Introduction to Safety | 3-20 | General Safety Standards, Safety Messages, Safety Decals |

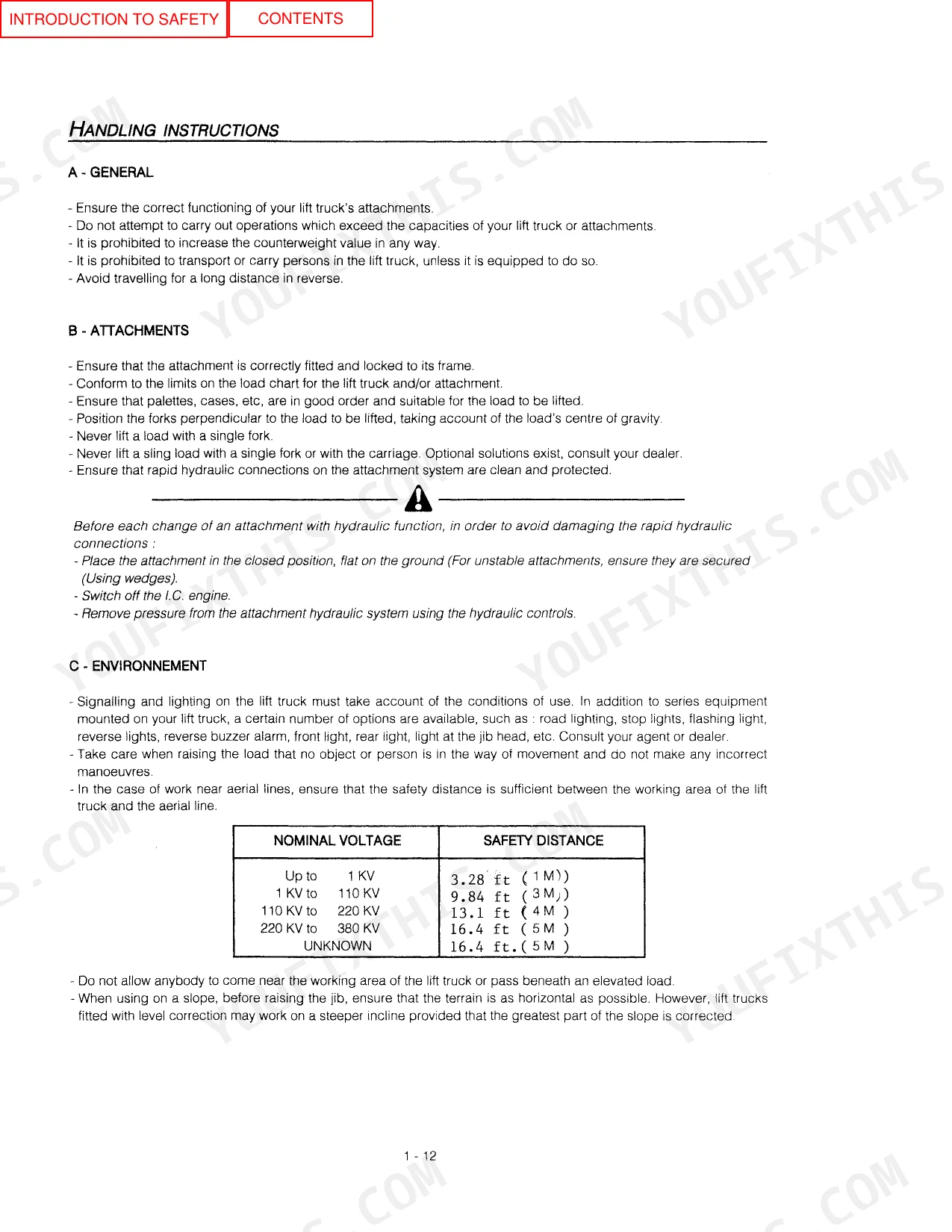

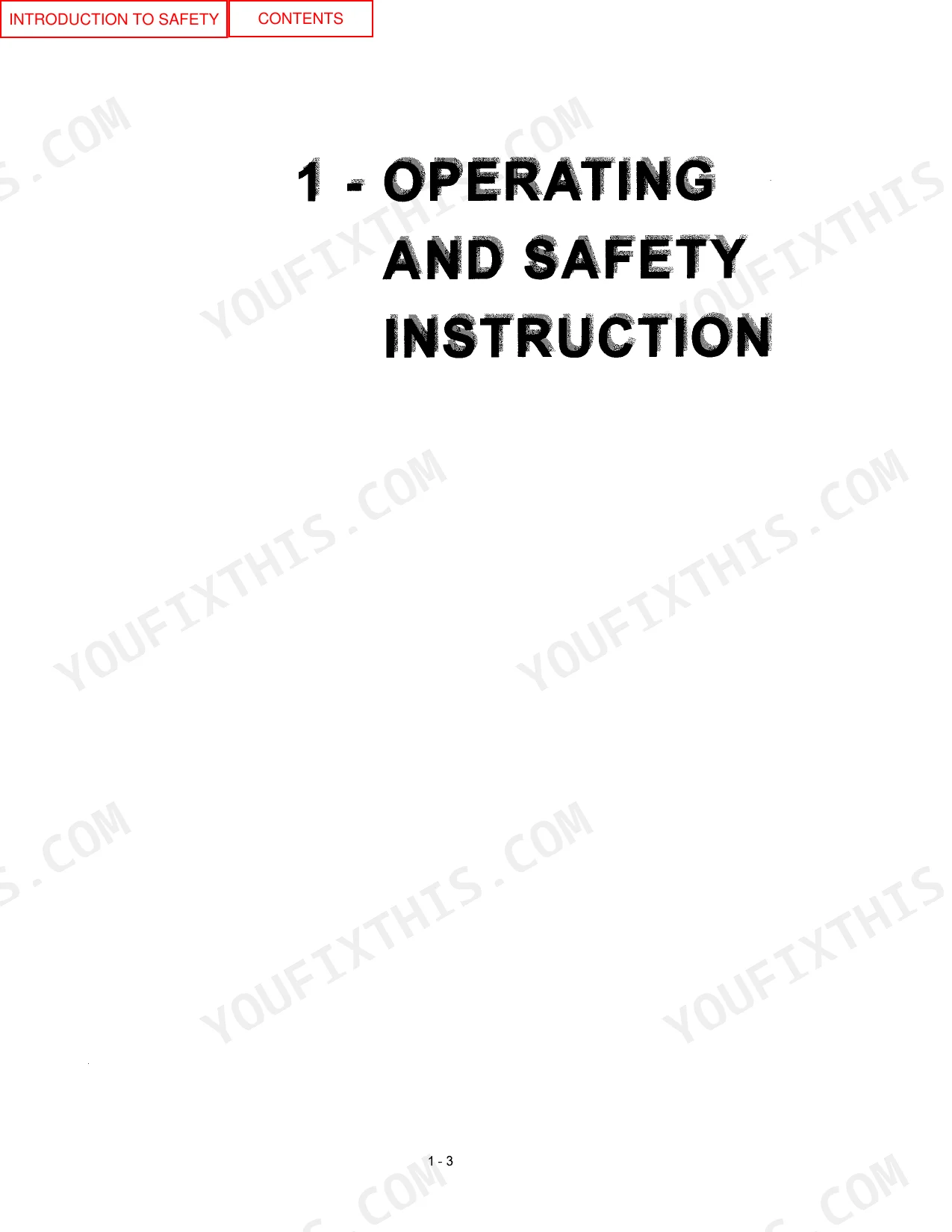

| Operating and Safety Instructions | 23-40 | Driver's Operating Instructions, General Instructions, Operating Instructions, Handling Instructions, Load Handling, Maintenance Instructions, Before Starting Up a New Lift Truck |
| Description | 41-64 | Identification of the Lift Truck, Characteristics, Dimensions and Load Chart, Instruments and Controls, Mounting the Lift Truck on the Tractor Trailer |
| Maintenance | 65-88 | Filters Cartridges and Belts, Lubricants, Servicing Schedule, Occasional Maintenance |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel nut torque | 86.8 to 108 ft. lb. | p. 72 |
| Engine oil filter change interval | 200 H | p. 66 |
| Hydraulic return oil filter cartridge change interval | 400 H | p. 66 |
| Hydrostatic transmission oil filter cartridge change interval | 800 H | p. 66 |
| Fuel filter cartridge change interval | 400 H | p. 66 |
| Dry air filter cartridge change interval | 400 H | p. 66 |
| Engine Capacity | 68.5 in³ | p. 45 |
| Cooling Circuit Capacity | 3.1 Litres | p. 67 |
| Fuel Tank Capacity | 40 Litres | p. 67 |
| Hydraulic Oil Tank Capacity | 35 Litres | p. 67 |
| Front Wheel Nut Torque | 86.8 to 108 ft. lb. | p. 72 |
| Rear Wheel Nut Torque | 86.8 to 108 ft. lb. | p. 72 |
Manitou TMT315, TMT315/FL Common Problems This Manual Covers
Manitou TMT315 red engine oil pressure lamp and buzzer come on while the lift truck is running
Stop the engine immediately when the lamp or buzzer comes on, as page 54 directs, and check the oil level in the engine crankcase before restarting. Do not run the engine with an oil leak (page 36). Confirm the engine oil filter is changed every 200 H on the schedule on page 66.
Manual Section: Engine Oil Pressure p. 54Red water temperature lamp lights up during operation on the signal lamp panel
Stop the engine immediately and trace the fault in the cooling circuit, per page 55. Inspect the hoses and fastening devices, and replace damaged hoses as shown on page 81. Do not restart until you have checked the radiator coolant level and confirmed the fan belt is not damaged or broken (page 38). The circuit holds 3.1 Litres (page 67).
Manual Section: Water Temperature p. 55Red hydrostatic transmission oil filter clog lamp stays on after the hydraulic oil warms up
Replace the hydrostatic transmission oil filter cartridge following page 83: unscrew cap 1, fit a new cartridge and confirm it sits in the correct position before refitting the cover. Never run the truck without a cartridge, because that damages the hydrostatic wheel motors and pump. If the lamp lights on a cold start and goes out at working temperature, that is normal (page 55). The change interval is 800 H.
Manual Section: Hydrostatic Transmission Oil Filter p. 83Red alternator charge lamp lights on the signal lamp panel while operating the lift truck
Stop the engine immediately and check the electrical circuit and alternator belt, as page 55 instructs. Then test each battery cell with a hydrometer following page 80. Keep a minimum of 1260 at 16° C, with no more than 0.025 variation between cells. Do not test right after topping up with distilled water. Battery posts and terminals contain lead, so wash your hands after handling them (page 13).
Manual Section: Alternator Charge p. 55After running out of fuel or draining the tank, the fuel lines are full of air
Bleed the fuel system following page 85. Confirm there is enough fuel in the tank, turn the key to notch I, unscrew bleed screw 1 and work the fuel lift pump until airless fuel drains, then tighten the screw. Bleed the injection nozzles by running the starter until airless fuel reaches the tube connections. Use no open flames when checking the fuel level (page 9).
Manual Section: Fuel System p. 85Air bubbles in the hydraulic circuit after draining and changing the hydraulic oil
With the engine stopped and the jib retracted and lowered, fill until the oil sits halfway between the dipstick marks. Then run the pollution abatement sequence on page 82 so the return filter cleans the circuit. The tank holds 35 Litres (page 67). If air bubbles formed at the pump inlets, call your dealer to bleed them. Never loosen unions or hoses while the circuit is under pressure (page 36).
Manual Section: Hydraulic System p. 82Frequently Asked Questions
What are the replacement specs for the engine oil filter on the Manitou TMT315?
The engine oil filter (part number 565 149) should be changed every 200 hours. When replacing, tighten the filter by hand pressure only and lock it in place by a quarter turn. p. 66
What is the correct wheel nut torque for the Manitou TMT315?
The wheel nuts for both front and rear wheels must be tightened to a torque between 86.8 ft. lb. and 108 ft. lb. p. 72
How do I check and adjust the alternator belt tension?
Check the belt tension between the crankshaft and alternator pulleys. Under normal thumb pressure, the tension should be approximately 8 mm. To adjust, untighten screws 1 (Fig. C2/2) by two to three turns, swivel the alternator assembly to achieve the required tension, and retighten the screws. p. 77
What is the hydraulic oil tank capacity on the Manitou TMT315?
The hydraulic oil tank has a capacity of 35 Litres and requires Oil MANITOU HYDRAULIC ISO 46. p. 67
How will I receive this Manitou TMT315 Operator Manual?
Instant PDF download. You get the full 88-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Does this Manitou TMT315 manual allow printing?
Yes. Many buyers print one chapter at a time for their own shop and keep the rest on a tablet.
