Every one of the 762 pages in this New Holland T1010, T1030, T1110 Repair Manual PDF (OEM #87739173) works toward one job: getting your compact tractor back to factory spec. Inside: factory wiring diagrams covering the battery, key switch, alternator, starter motor, and safety controller, plus hydraulic schematics and complete overhaul procedures for the engine, hydrostatic transmission, FWD front axle, PTO, brakes, and the 230GM mid-mount mower. A full troubleshooting section walks you from symptom to cause before you pull a single bolt. Torque the cylinder head bolts to 49-52 N·m, then verify the high pressure relief valve cracks between 181 and 211 bar before you blame the hydrostat. Your tractor is down; forum guesses won't lift it. Bookmarked and keyword-indexed, this PDF opens on any device: grab your phone, walk to the machine, and start wrenching.
What's Inside This New Holland T1010, T1030, T1110 Repair Manual
| System | Pages | Key Topics |
|---|---|---|

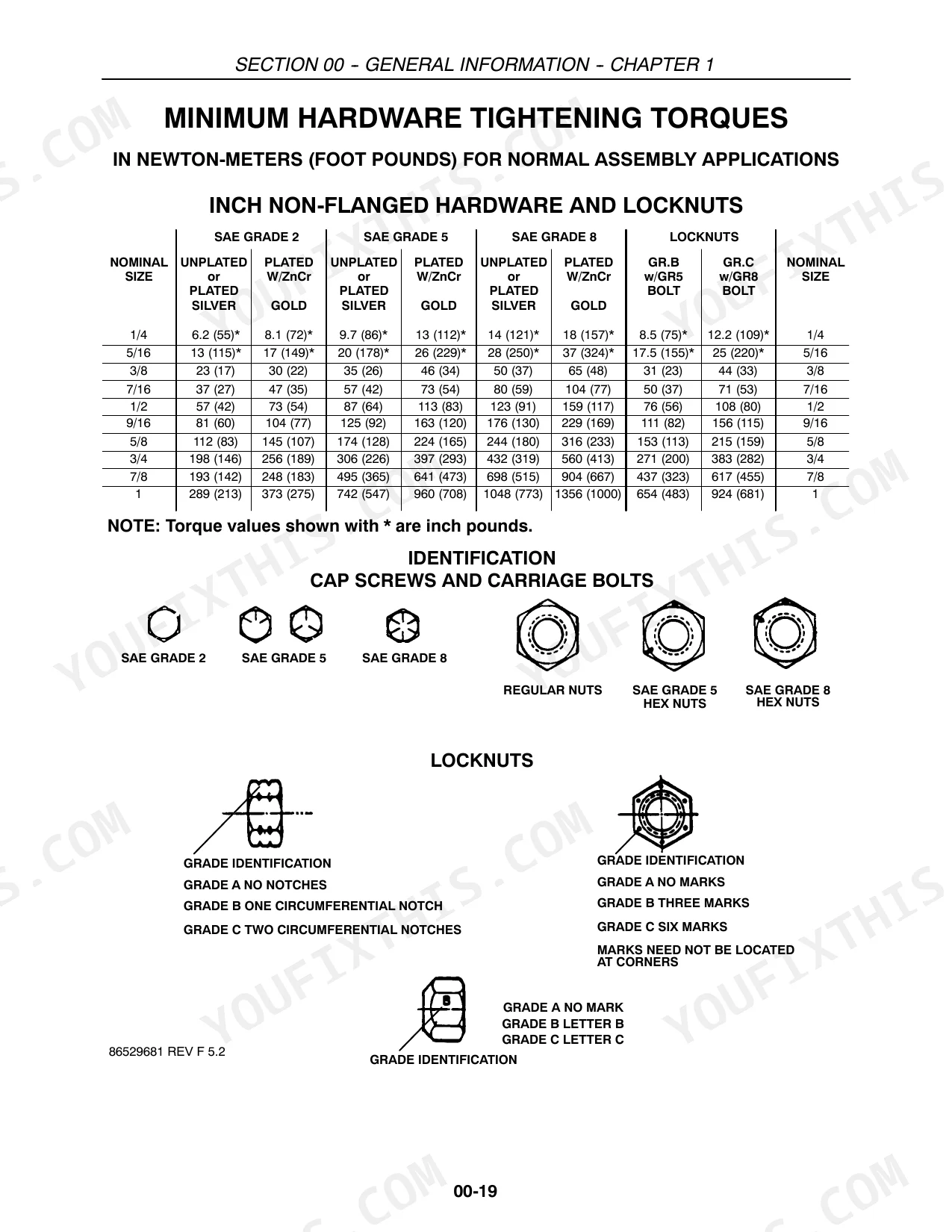

| General Information | 41-72 | Precautionary Statements, Safety Decals, Torque Specifications, Lubrication and Maintenance, Universal Symbols |

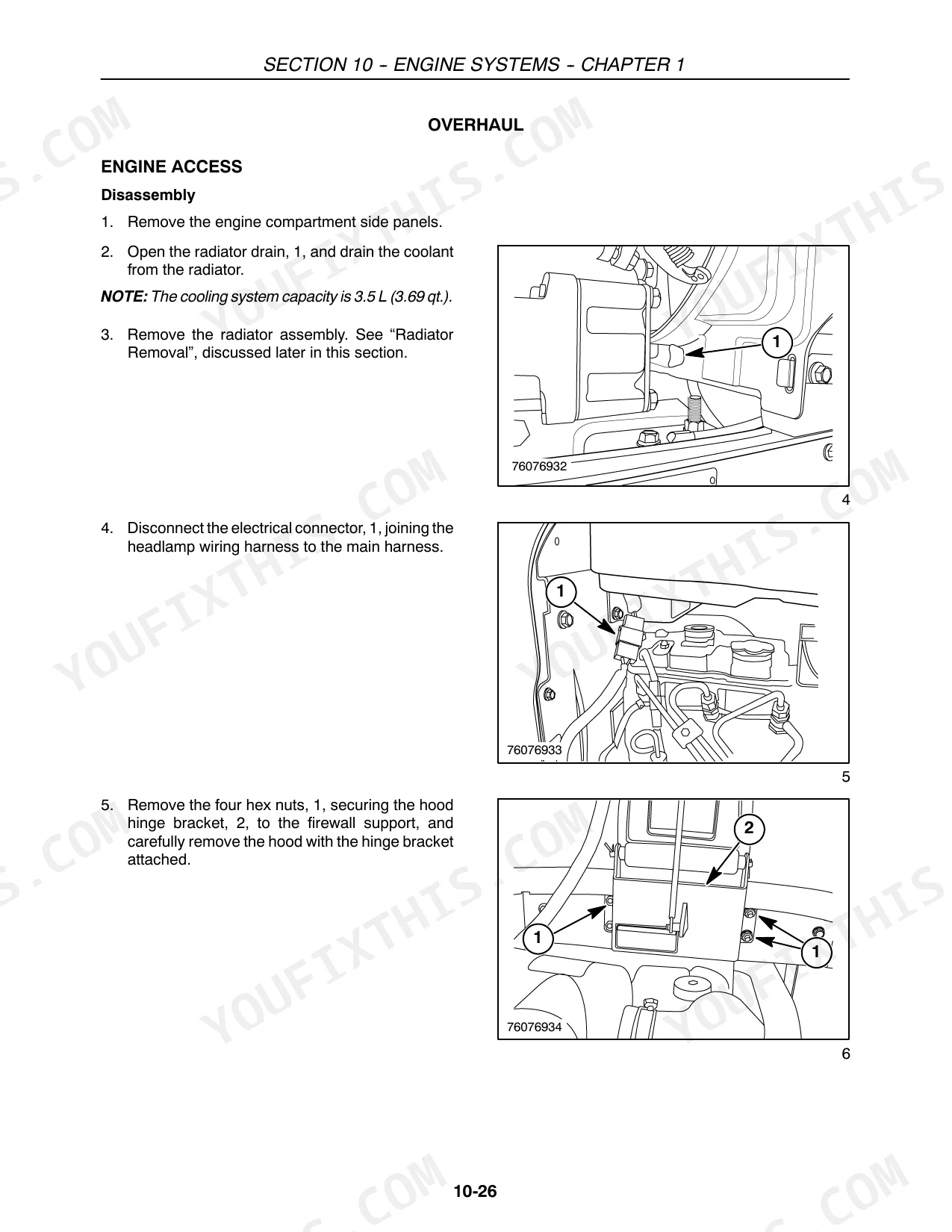

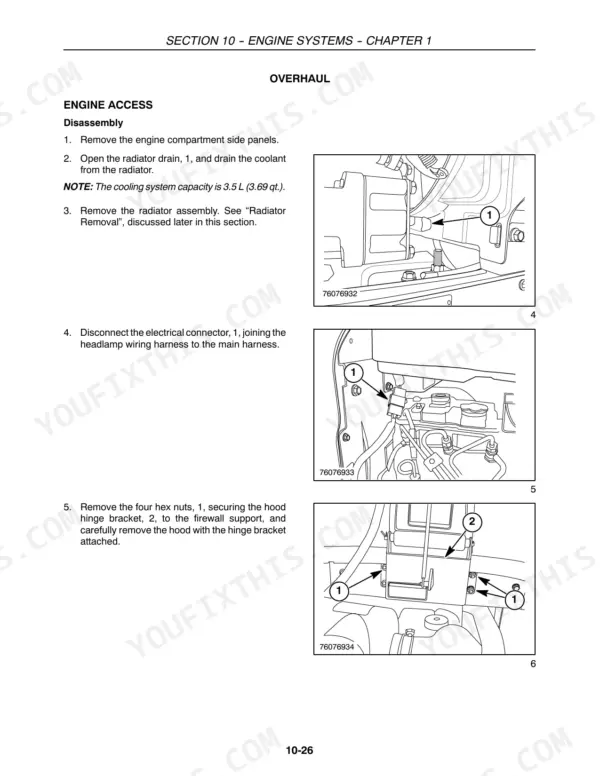

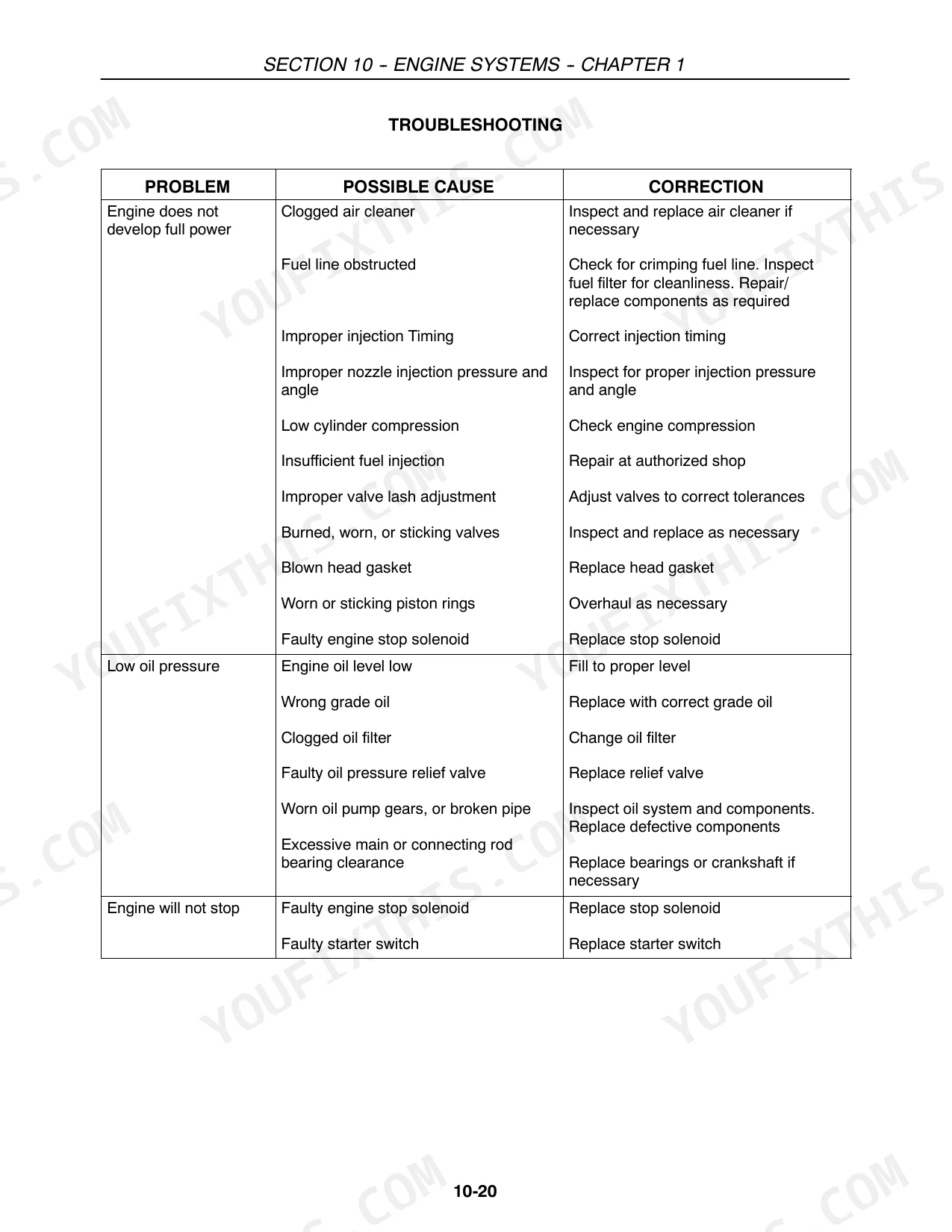

| Engine Systems | 73-200 | Cylinder Head, Cylinder Block, Pistons, Connecting Rods, Crankshaft, Camshaft, Valves, Cooling System |
| FWD | 201-230 | Front Axle |
| Differential and Rear Axles | 231-252 | Differential, Differential Lock, Rear Axle, Drive Pinion, Ring Gear, Pinion Gear, Front Wheel Drive Output Box |
| Hydrostatic Transmission | 253-330 | Variable Displacement Pump, Fixed Displacement Motor, High Pressure Relief Valves, Transmission/Differential, Hydrostatic Transmission Unit |
| PTO | 331-370 | PTO Clutch, PTO Clutch Shaft, PTO Change Lever, Rear Case Cover, PTO Shift Rod and Input Shaft, Mid PTO Shaft and Gears |
| Brakes | 371-386 | Park Brake, Brake Discs, Stators, Brake Actuator Plate |

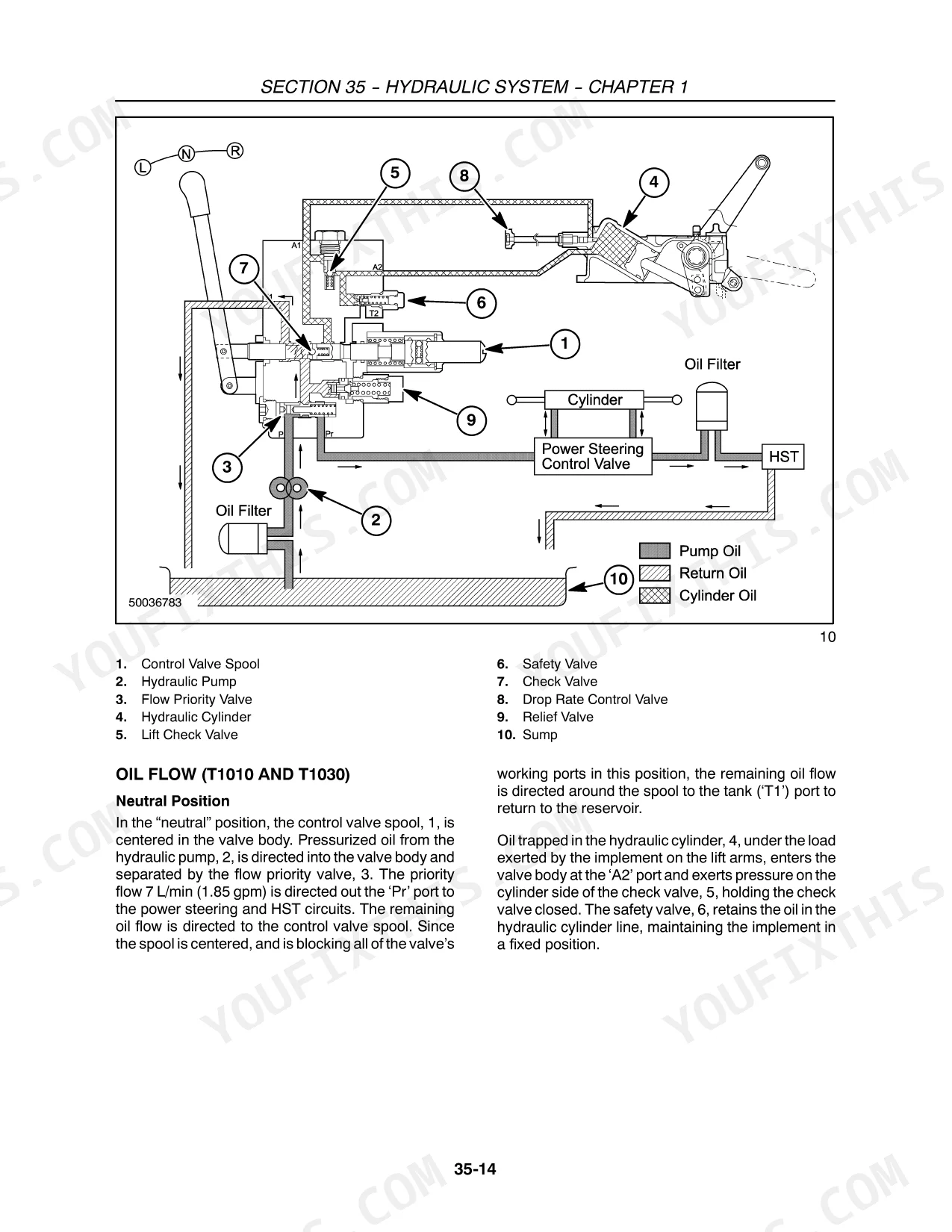

| Hydraulic System | 387-488 | Hydraulics |
| Steering | 489-528 | Power Steering Control Valve, Hydraulic Pump, Steering Cylinder, Flow Priority Valve, Gerotor Pump, Check Valve, Relief Valve |
| Wheels | 529-534 | Wheel Tread Settings, Tractor Weighting, Cast Iron Weights, Liquid Ballast, Tire Pressure |

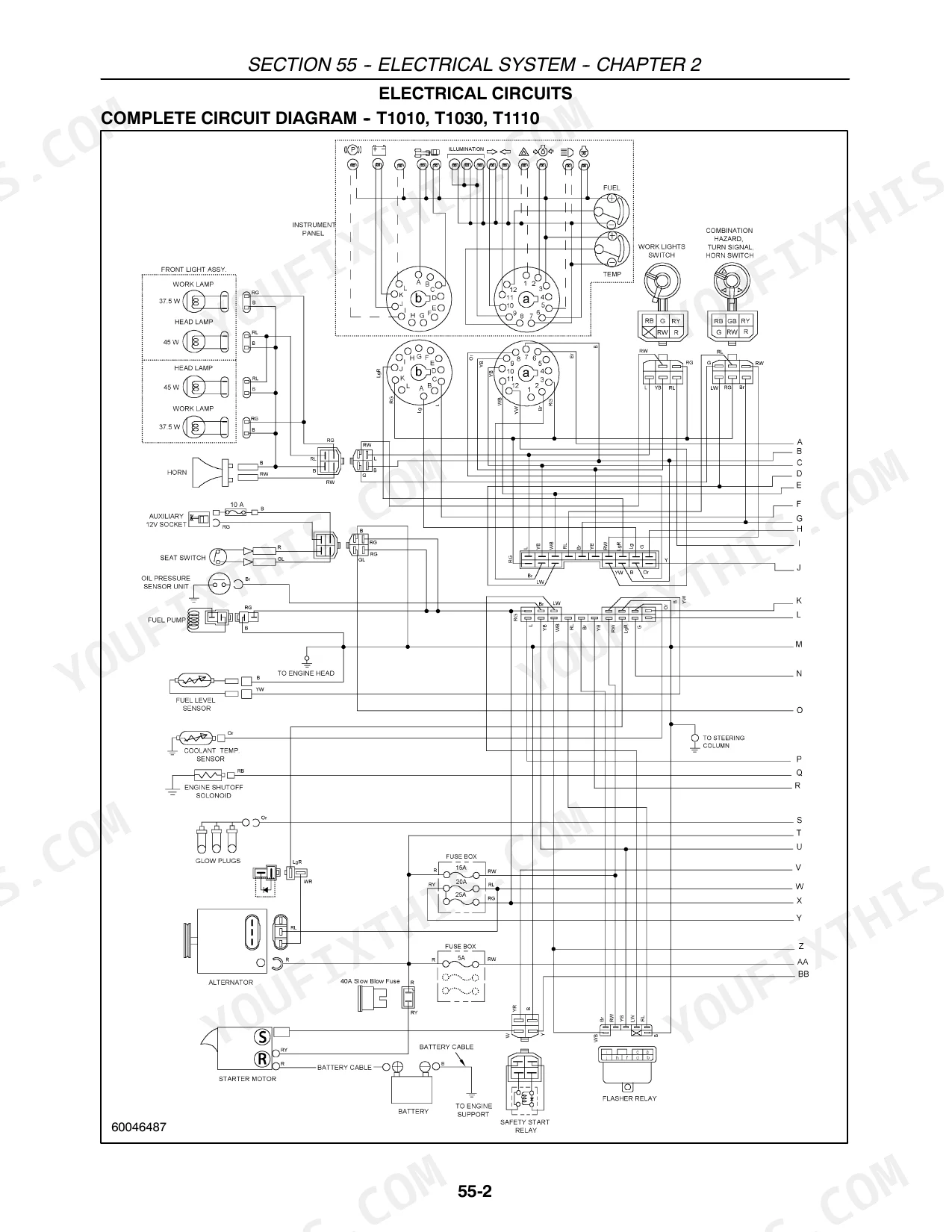

| Electrical System | 535-688 | Battery, Key Switch, Headlights, Alternator, Starter Motor, Safety Controller |
| 230GM Mid Mount Mower | 689-742 | Mower Deck, 90° Gearbox, Blade Spindles, Pulley Holders, Driveshaft, Mower Lift Linkage |
| Platform | 743-762 | Hood, Main Cowling, Dash Panel, Steering Column, Seat, Rollover Protection System (ROPS), Fender Assembly, Foot Platform |

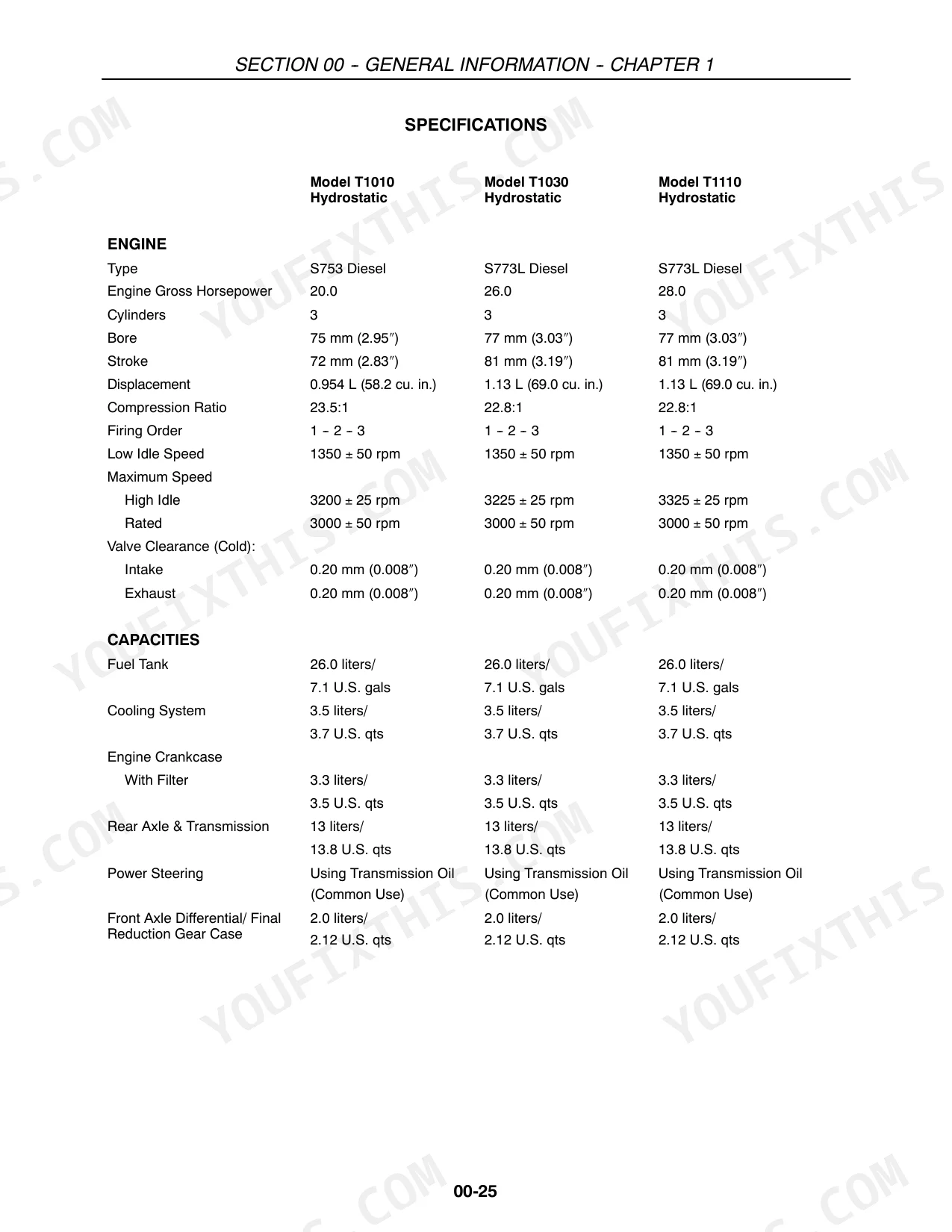

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Wheel Disc-to-Hub Torque | 88 N\u00b7m (65 ft-lbs) | p. 69 |
| Cylinder Head Bolts Torque | 49 - 52 N\u00b7m (36 - 38 ft-lbs) | p. 87 |
| Hydraulic Filter Replacement Interval | 300 Hours | p. 63 |
| High Pressure Relief Valve Pressure | 181 - 211 bar (2574 - 3000 psi) | p. 255 |
| Standard Lining Groove Depth | 0.1 mm (.004 in.) | p. 372 |
| Fan Belt Deflection | 10-15 mm (0.39-0.59 in.) | p. 66 |
| Steering Relief Valve Setting | 100 bar (1418 psi) | p. 67 |
| Fuel Tank Capacity | 26.0 liters | p. 65 |
| Engine Crankcase Oil Capacity (with filter) | 3.3 liters | p. 65 |
| Rear Axle & Transmission Oil Capacity | 13 liters | p. 65 |
| Radiator Cap Pressure Rating | 0.9 bar | p. 66 |
| Main System Protection Fuse | 40A | p. 66 |
New Holland T1010, T1030, T1110 Common Problems This Manual Covers
New Holland T1030 hydrostatic drive loses power under load, tractor barely moves uphill
Check the transmission oil level first; the rear axle and transmission share a 13 liter fill. Drain and replace contaminated oil, and swap the hydraulic filter if it has passed the 300 hour interval. Test the high pressure relief valves against the 181 to 211 bar (2574 to 3000 psi) spec on page 255 before condemning the pump.
Manual Section: Hydrostatic Transmission p. 253PTO slips under load or will not engage when control lever is moved
Verify transmission oil level before pulling anything apart; a low fill in the shared 13 liter transmission and rear axle sump starves the PTO clutch. Inspect the clutch plates and change lever linkage following the teardown in the PTO section starting on page 331, and replace glazed or worn clutch discs as a set.
Manual Section: PTO p. 331Engine overheats and pushes coolant out of the overflow after an hour of mowing
Check fan belt tension first: deflection should be 10 to 15 mm (0.39 to 0.59 in.) under thumb pressure, per the spec on page 66. Pressure test the radiator cap and replace it if it will not hold the 0.9 bar rating listed on page 66. Clean chaff from the radiator core and check coolant level cold.
Manual Section: Engine SystemsSteering wheel turns hard at idle and kicks back over rough ground
Check hydraulic oil level and bleed air from the steering circuit before pulling the pump. Test system pressure with a gauge teed into the circuit; the steering relief valve should crack at 100 bar (1418 psi), the setting listed on page 67. If pressure is low, inspect the pump and relief valve per the Steering section starting on page 489.
Manual Section: Steering p. 489Brakes grab, pull to one side, or park brake will not hold on slopes
Measure the brake disc lining grooves; replace discs once the standard 0.1 mm (.004 in.) groove depth is worn away, and at the 0.05 mm (0.002 in.) allowable limit they are past service, per the specs on page 372. Adjust pedal linkage evenly on both sides, then pull the covers and inspect discs, stators, and the actuator plate following the Brakes section starting on page 371. Flush the oil if discs were contaminated.
Manual Section: Brakes p. 371Frequently Asked Questions
What are the torque specifications for the wheel bolts on the T1010, T1030, and T1110 tractors?
The torque specification for the front wheel bolts is 88 N⋅m (65 ft-lbs), and the torque specification for the rear wheel bolts is 122 N⋅m (90 ft-lbs). p. 69
What is the torque specification for the cylinder head bolts on the T1010, T1030, and T1110 engines?
The cylinder head bolts should be tightened to a final torque specification of 49 - 52 N⋅m (36 - 38 ft-lbs). p. 87
What is the recommended service interval for replacing the engine oil filter?
The engine oil filter must be replaced every 100 hours of operation. p. 149
What is the correct valve clearance for the intake and exhaust valves on the T1010, T1030, and T1110 engines?
The valve clearance for both intake and exhaust valves, when cold, is 0.20 mm (0.008 inches). p. 65
What is the cooling system capacity for the T1010, T1030, and T1110 tractors?
The cooling system capacity for these tractor models is 3.5 liters (3.7 U.S. quarts). p. 65
How is this New Holland T1010 Repair Manual delivered?
You download the Repair Manual yourself: 762 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Can I print this New Holland T1010 manual?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
