Part of the New Holland Repair Manuals.
This is the full factory repair manual for the New Holland T6010, T6020, T6030, T6040, T6050, T6060 and T6070 tractors, the T6000-series Delta, Plus and Elite models (the range formerly sold as the TS-A tractors), the same service information a dealer technician works from. It covers the whole tractor: the engine, the clutches, the transmission system, the drive lines and four-wheel drive front axle, the rear axle and final drive, the power take-off, the braking system, the hydraulic lift and remote circuits, the steering, the axles and wheels, the full electrical system with the wiring diagrams and the cab, air conditioning and bodywork. Every section carries the specifications and capacities, the tightening torques, the functional adjustments, the fault finding and the step-by-step removal, overhaul and installation procedures, so you can chase an engine, transmission or hydraulic problem and put it right instead of guessing.
What's Inside This New Holland New Holland T6010 T6020 T6030 T6040 T6050 T6060 T6070 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General and Specifications | General Service Instructions, Safety Precautions, Separating the Tractor, Machine Specifications and Dimensions, Standard Tightening Torques, Special Tools, Model Coverage T6010 to T6070 | |

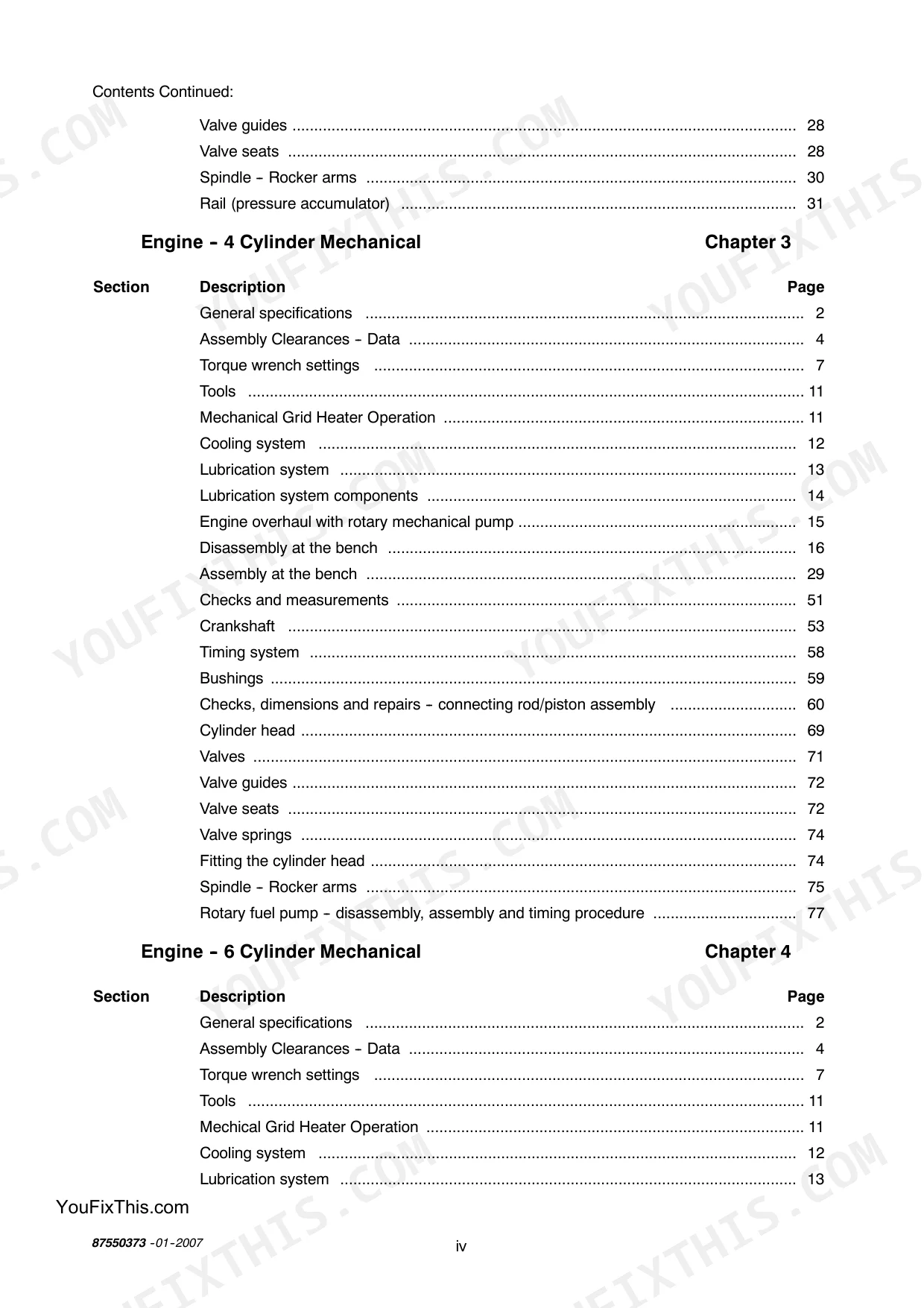

| Engine | Diesel Engine Description and Operation, Cylinder Head and Valves, Pistons and Connecting Rods, Crankshaft and Timing, Cooling and Lubrication, Fuel Injection, Engine Removal and Overhaul | |
| Clutches | Main Clutch and PTO Clutch, Clutch Release Mechanism, Pedal Free Play and Adjustment, Removal, Inspection and Overhaul, Fault Diagnosis | |

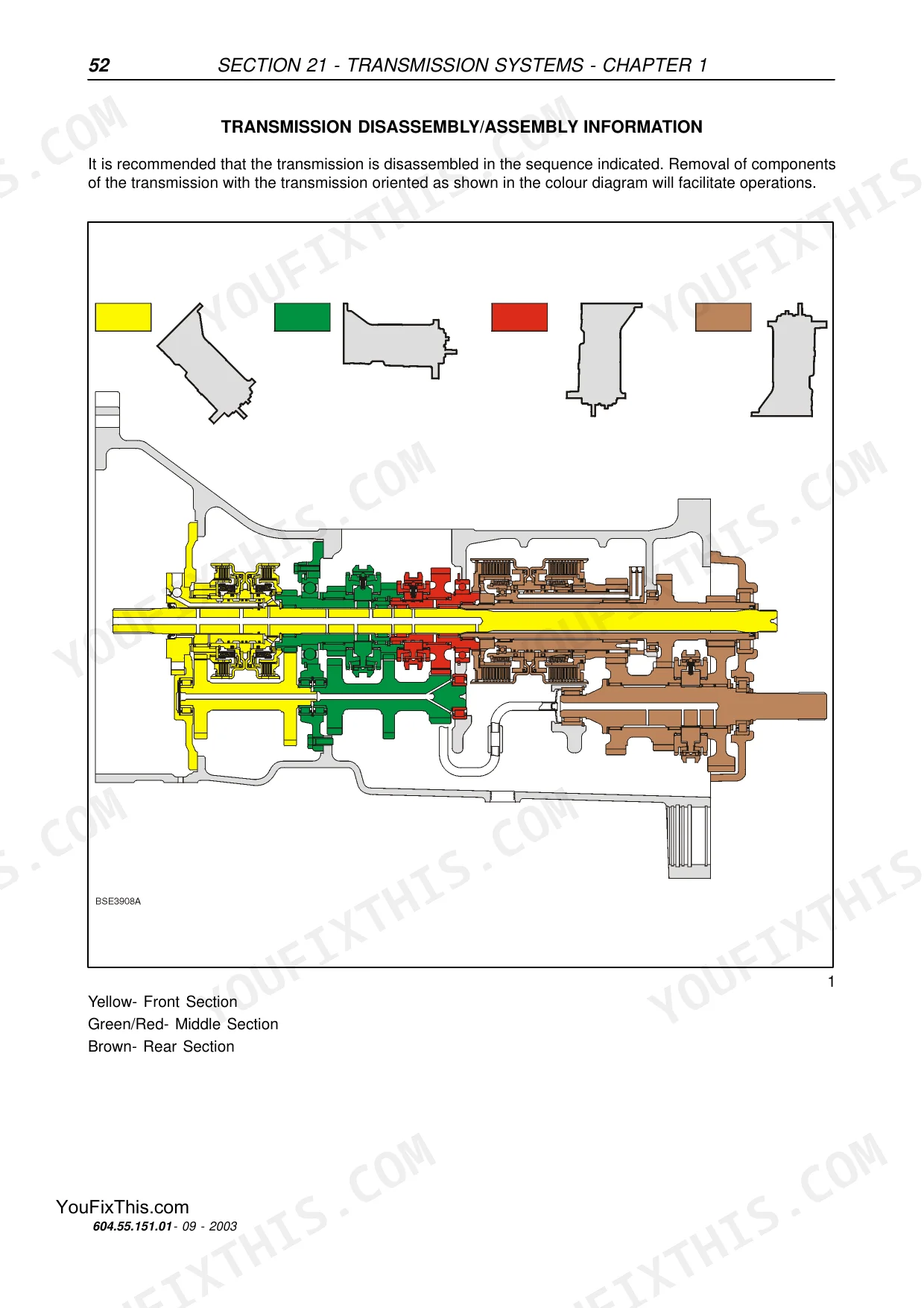

| Transmission System | Gearbox, Range and Powershuttle Transmission, Synchronisers and Selectors, Transmission Oil Flow, Description and Operation, Fault Diagnosis, Overhaul | |
| Drive Lines and Four-Wheel Drive | Drive Lines and Propeller Shafts, Four-Wheel Drive Front Axle, Front Differential and Bevel Gears, Planetary Wheel Hubs, Engagement, Fault Diagnosis, Overhaul | |
| Rear Axle and Final Drive | Rear Axle Housing, Differential and Differential Lock, Final Drive and Bull Gears, Rear Hubs, Description and Operation, Fault Diagnosis, Overhaul | |
| Power Take-Off | Rear Power Take-Off Clutch and Shaft, Ground-Speed PTO, Engagement and Interlock, Adjustment, Fault Diagnosis, Overhaul | |
| Braking System | Service Brakes and Parking Brake, Brake Discs and Actuators, Hydraulic Brake Circuit, Trailer Brake, Pedal Adjustment and Bleeding, Fault Diagnosis, Overhaul | |

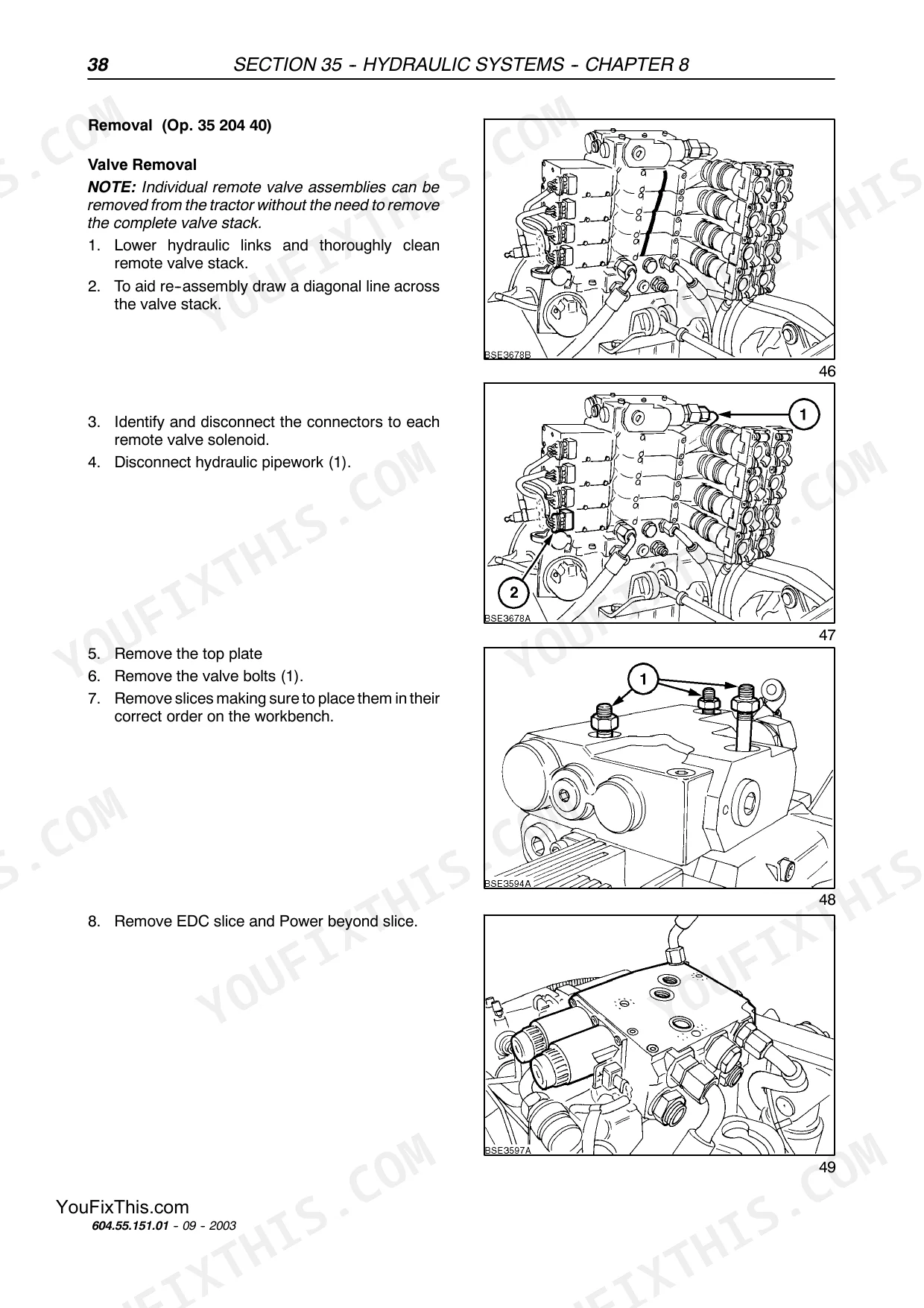

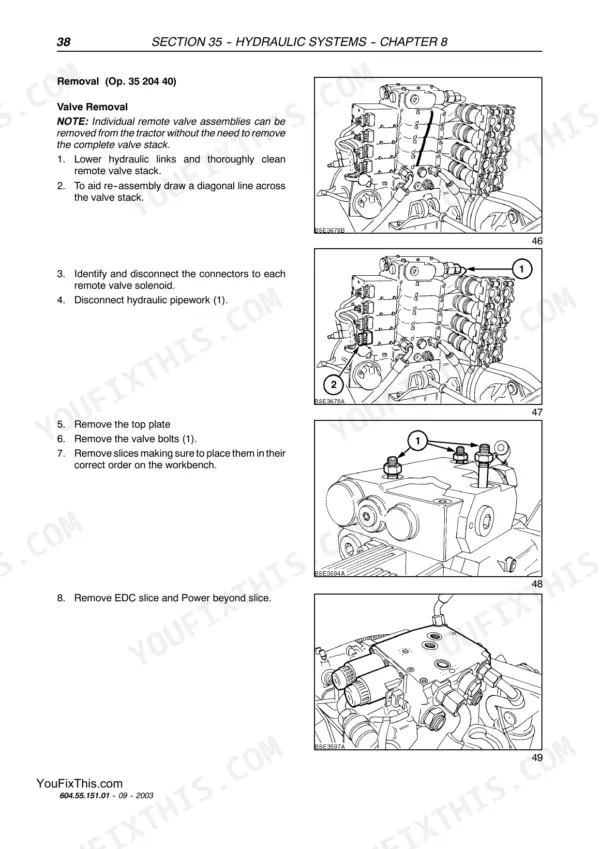

| Hydraulic System and Lift | Hydraulic Pump and Circuits, Rear Lift and Three-Point Hitch, Remote Control Valves, Draft and Position Control, Pressure Testing, Fault Diagnosis, Overhaul | |
| Steering, Axles and Wheels | Hydrostatic Power Steering, Steering Cylinder and Pump, Front Axle Beam, Front and Rear Wheels and Tyres, Toe-In and Track Setting, Fault Diagnosis, Overhaul | |
| Electrical System | Wiring Diagrams, Starting and Charging Systems, Battery, Alternator and Starter Motor, Lighting, Instruments and Warning Devices, Switches and Sensors, Fault Diagnosis | |
| Cab, Air Conditioning and Bodywork | Operator Cab and Platform, Heating, Ventilation and Air Conditioning, Compressor and Refrigerant Circuit, Controls, Doors, Glass, Trim and Bodywork Panels, Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Series | T6000 Delta, Plus and Elite (formerly TS-A range) | |
| Width Across Standard Fenders | 2170 mm (85.4 in) | |
| Width Across Extended Fenders | 2550 mm | |
| Drive | Two-wheel drive or four-wheel drive | |
| Model Coverage | T6010, T6020, T6030, T6040, T6050, T6060, T6070 |
New Holland New Holland T6010 T6020 T6030 T6040 T6050 T6060 T6070 Common Problems This Manual Covers
Three-point hitch lifts slowly, will not hold, or drops under load.
Work the Hydraulic System and Lift section: it covers the pump output, the lift control valve and the draft and position control and gives the pressure-testing procedure to find whether the pump, a control valve or worn lift cylinder seals are behind the slow or dropping hitch.
Manual Section: Hydraulic System and LiftTransmission or powershuttle shifts harshly, slips, or jumps out of gear.
Work the Transmission System section: it covers the gearbox, range and powershuttle, the synchronisers and the selectors and gives the adjustment, fault diagnosis and overhaul to correct harsh shifts, slipping and jumping out of gear.
Manual Section: Transmission SystemFour-wheel drive will not engage or the front axle is noisy.
Work the Drive Lines and Four-Wheel Drive section: it covers the drive lines, the front differential and the planetary hubs and gives the engagement checks, fault diagnosis and overhaul to restore drive and cure front-axle noise.
Manual Section: Drive Lines and Four-Wheel DriveEngine is hard to start, smokes, or lacks power.
Work the Engine section: it covers the fuel injection, the compression and the valve and timing and gives the specifications, the diagnosis and the overhaul to cure hard starting, smoke and low power on the T6000 diesel engine.
Manual Section: EngineFrequently Asked Questions
Which models does this manual cover and are these the old TS-A tractors?
It covers the New Holland T6010, T6020, T6030, T6040, T6050, T6060 and T6070 Delta, Plus and Elite tractors, which are the T6000-series that replaced the TS-A range and share the same platform, so the manual applies to both naming schemes.
The three-point hitch or hydraulics lift slowly or not at all - what does the manual cover?
The Hydraulic System and Lift section covers the pump and circuits, the rear lift and three-point hitch, the remote valves and the draft and position control, with the pressure testing and fault diagnosis to fix a slow or weak lift.
Does this manual cover the transmission and powershuttle overhaul?
Yes. The Transmission System section covers the gearbox, the range and powershuttle, the synchronisers and selectors and the oil flow, with the description, fault diagnosis and full overhaul procedures.
Does the manual include the wiring diagrams and electrical diagnostics?
Yes. The Electrical System section carries the wiring diagrams, the starting and charging systems, the instruments and warning devices and the switches and sensors, so you can trace an electrical fault on any of the T6010 to T6070 tractors.
Does the manual give the engine specifications and overhaul procedures?
Yes. The Engine section covers the diesel engine with the cylinder head, pistons, crankshaft and timing, the cooling, lubrication and fuel injection and the specifications and torques for a full engine overhaul.
Is this New Holland T6010, T6020, T6030, T6040, T6050, T6060, T6070 manual a?
This is a 4423-page searchable PDF (95 MB) ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this New Holland T6010, T6020, T6030, T6040?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
