You are in the cab at first light, a fault code on the display and a crop that will not wait for the dealer. The print number on this book, 47894503, is New Holland's own, and it is the same 522 page operator manual that came with the tractor.
It covers the T7.220, T7.235, T7.250, T7.260, and T7.270, from the product identification plates and safety decals through headland turn sequences, rear and front PTO, electronic draft control, the electro-hydraulic remote valves, trailer braking and wheel track adjustment.

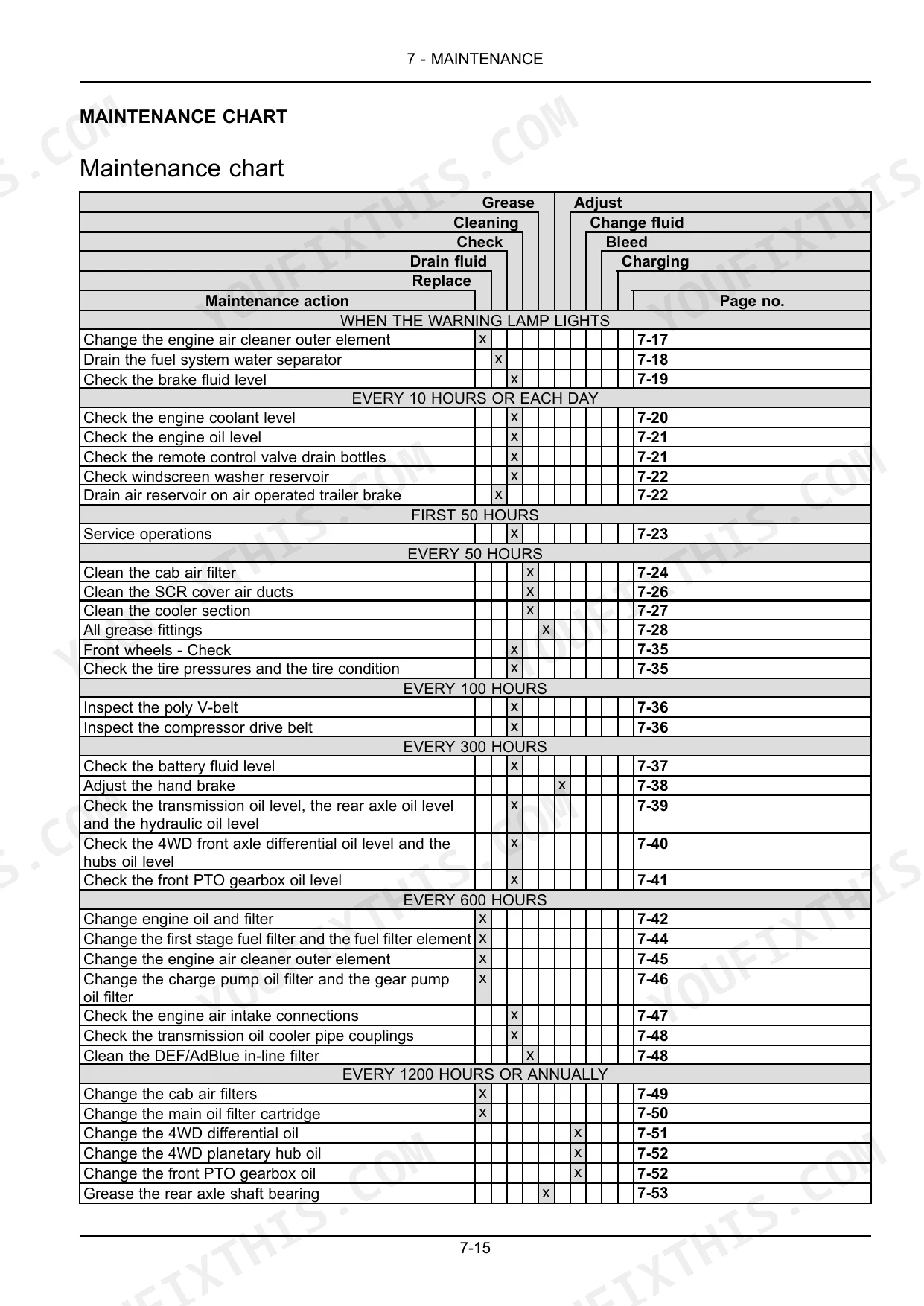

Maintenance starts at page 391, and the interval chart on page 405 runs from every 10 hours through every 1200 hours or annually, and Troubleshooting at page 479 turns an alarm or fault code into a decision you can act on. It is a PDF download, readable on a tablet in the cab and printable at the bench, so the tractor goes back in the field the same day.
What's Inside This New Holland T7.220–T7.270 Auto Command Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 11-32 | Metric and Imperial Units Abbreviations, To the Owner, Product Identification, Engine Identification, Drive Line Identification, Cab Identification, Product Identification Plate |
| Safety Information | 33-62 | Safety Precautions, Safety Decals, Safety Rules, Burn Prevention, Prevention of Fire or Explosions, Fire Extinguisher, Protection Offered by the Tractor, Hazardous Substances |

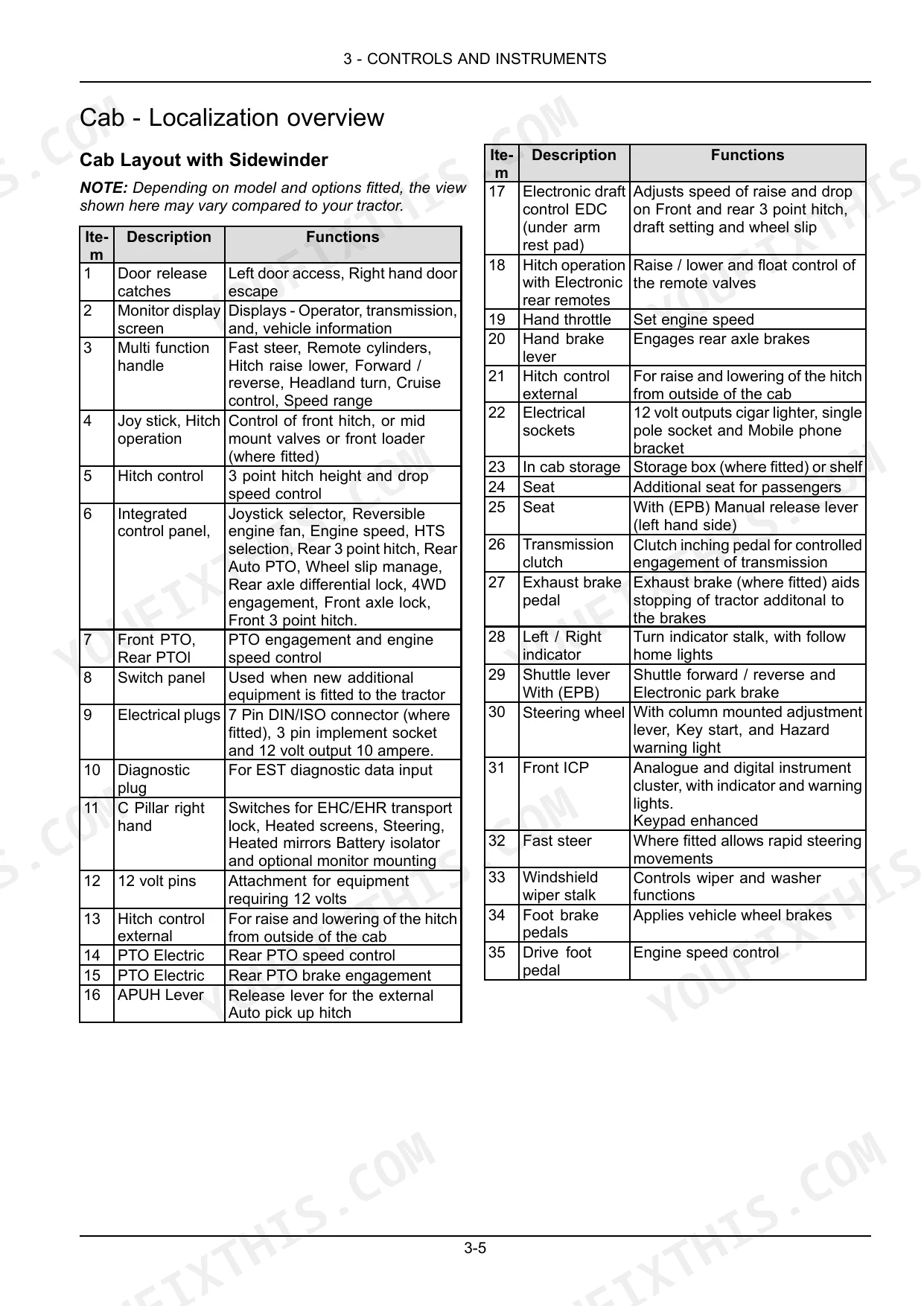

| Controls and Instruments | 63-162 | Access to Operator's Platform (Introduction, Cab - Localization Overview, Cab Air Filters, In Cab Storage, Cable and Wiring Routing, Mobile Telephone, Implement Monitor Installation, Cab Air Pressurisation Control) |

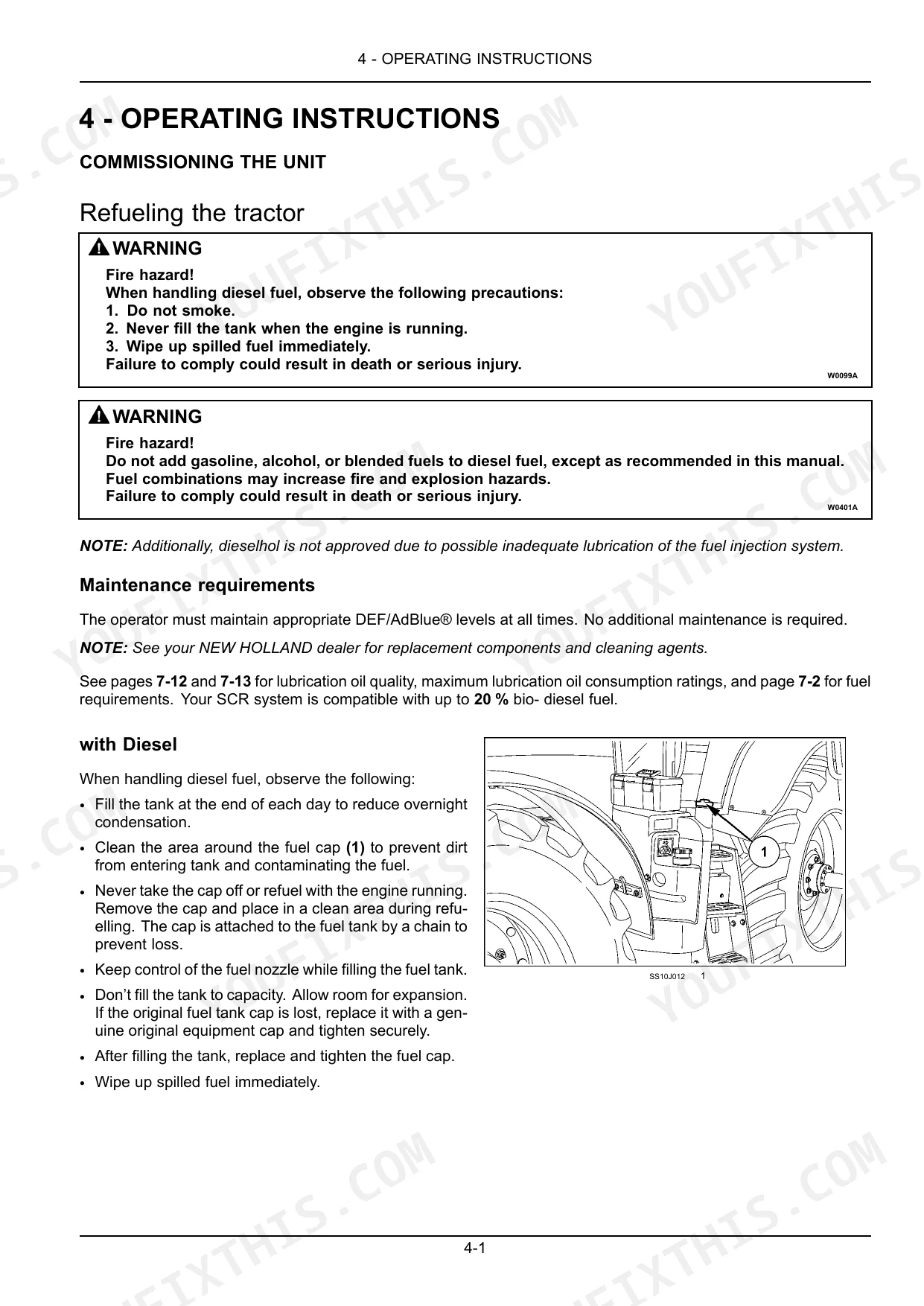

| Operating Instructions | 163-176 | Commissioning the Unit (Refueling the Tractor) |
| Transport Operations | 177-180 | Preparing for Road Transport (Tractor Transporting, Secure the High Visibility Roof Panel), Recovery Transport (Freeing a Stuck Tractor, Towing the Tractor) |
| General Information and Power Management | 181-191 | Variable Engine Power Management, Constant Engine Speed, Differential Lock, Four Wheel Drive, Front Axle Suspension |
| Automated Headland Functions | 192-207 | Headland Turn Sequence (HTS), Recording Sequences, Replaying Sequences, Deleting Sequences |
| Transmission Operation | 208-225 | CVT Transmission, Drive Pedal, Engine Speed Control, Shuttle Lever, Cruise Mode, Power Take-Off (PTO) Mode |
| Power Take-Off (PTO) Operations | 226-247 | Rear PTO Operation, PTO 2 Speed System, PTO Shiftable Multi Speed, Front PTO Operation, Auto PTO Operation |
| Hitch Operations | 248-276 | Electronic Draft Control (EDC), Rear Hitch, Front Hitch, Hitch Position Display, Hitch Float, Front Hitch Management |
| Electro-Hydraulic Remote Control Valves | 277-308 | Remote Control Valves, Control Lever Operation, EHR Quad Switch, Electronic Joystick, Auxiliary Front Couplers, External EHR Controls |
| Hydraulic Power and Trailer Braking | 309-353 | Hydraulic Oil Level, Power Beyond Port, Trailer Braking Systems, Trailer Brake Bias Control, Auxiliary Air Supply |
| Wheel Track and Ballasting | 354-390 | Front Wheel Track Adjustment, Rear Wheel Track Adjustment, Ballasting and Tires, Tire Inflation, Tire Pressures |
| Maintenance | 391-478 | Maintenance Chart, When the Warning Lamp Lights, Every 10 Hours or Each Day, First 50 Hours, Every 50 Hours, Every 100 Hours, Every 300 Hours, Every 600 Hours |
| Troubleshooting | 479-486 | Fault Code Resolution, Alarm, Symptom |
| Specifications | 487-502 | General Dimensions |
| Accessories | 503-508 | Radio, External Rear View Mirrors, Auxiliary Headlights, Rotating Beacon, Front-End Loader Fixation Points |
| Forms and Declarations | 509-522 | Service Record, Owner Copy, Dealer Copy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 3 pin power socket rating | 25 A | p. 387 |
| 3 pin power socket (key switched) rating | 10 A | p. 387 |
| Original (factory fit) charge pump oil filter length | 204 mm (8.03 in) | p. 413 |
| Original (factory fit) charge pump oil filter diameter | 94.3 mm (3.71 in) | p. 413 |
| Front disc to hub nuts | 279 Nm (206 lb ft) | p. 425 |
| Front disc to rim nuts | 250 Nm (184 lb ft) | p. 425 |
| Fuel filter tightening torque | 15 Nm (11.1 lb ft) | p. 434 |
| Locknut torque for automatic pickup hitch lift rod | 100 Nm (74 lb ft) | p. 462 |
| Distance from the bulk head to the centre of the clevis hole for brake pedal | 147 mm (5.8 in) | p. 460 |
| System pressure at 2100 RPM rated engine speed | 210 - 220 bar (3045.0 - 3190.0 psi) | p. 495 |
| Standard pump flow at rated engine speed | 150 l (39.6 US gal) | p. 495 |
| Engine Oil Capacity (including filter) | 15L | p. 403 |
New Holland T7.220–T7.270 Auto Command Common Problems This Manual Covers
Fault code with the crop waiting

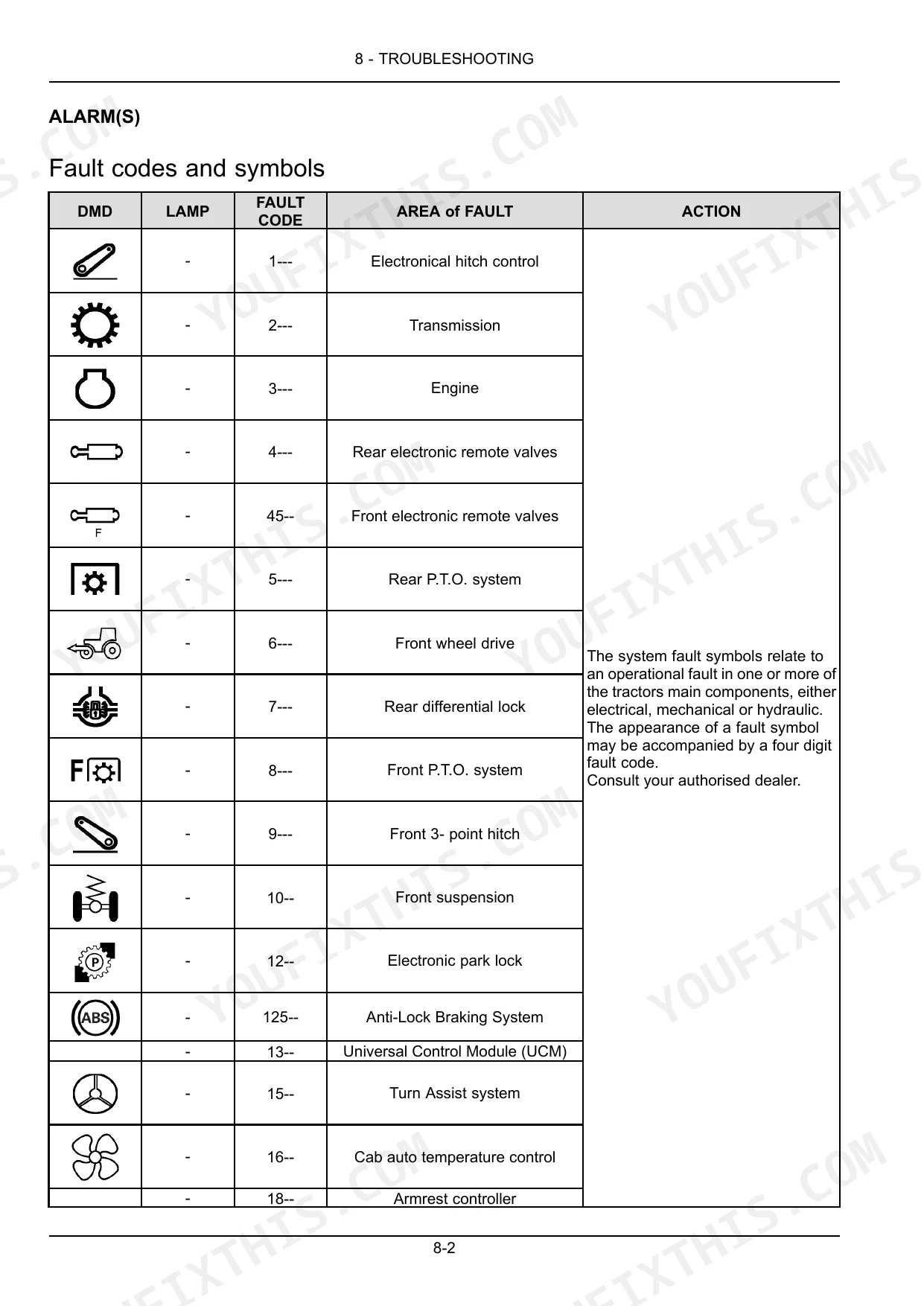

A warning lamp or alarm comes up mid field and nobody wants to trailer the tractor to a dealer over a code nobody has read yet. The Troubleshooting section works through fault code resolution, alarms and symptoms so you can tell a sensor complaint from a stop-work fault.
Manual Section: Troubleshooting p. 479Rear wheel nuts loose after track change
Setting rear track for row crop work and then retorquing by feel is how discs come loose in the field. The manual gives rear disc to hub nut (M22) torque as 500 Nm and disc to rim nut (M16) torque as 250 Nm.
Manual Section: Wheel Track and Ballasting p. 371Three-point hitch creeps or fights draft
An implement that will not hold depth, or a hitch that drifts down while you are turning, usually comes back to how draft control and the position settings are configured rather than a worn ram. Hitch Operations covers Electronic Draft Control, hitch position display and hitch float for the rear and front hitch.
Manual Section: Hitch Operations p. 248Rear PTO will not engage
The PTO refuses to start, or auto PTO cuts out every time the hitch lifts on the headland, and the implement sits idle. The PTO section covers rear PTO operation, the 2 speed and shiftable multi speed systems, front PTO and auto PTO behaviour.
Manual Section: Power Take-Off (PTO) Operations p. 226Wrong charge pump filter fitted
Service replacement and original charge pump oil filters are not the same size, and fitting the wrong one at a busy time of year costs a second trip. The service replacement filter is 254 mm (10.00 in) long and 116.8 mm (4.60 in) in diameter, against 204 mm (8.03 in) and 94.3 mm (3.71 in) for the factory fit filter.
Manual Section: Maintenance p. 413Slow remotes and weak trailer brakes
Remote cylinders that crawl under load, or a loaded trailer that pushes on the downhill run, both trace back to the hydraulic side rather than the implement. This section covers hydraulic oil level checks, the power beyond port, trailer braking systems and trailer brake bias control.
Manual Section: Hydraulic Power and Trailer Braking p. 309Running hot after a top-up

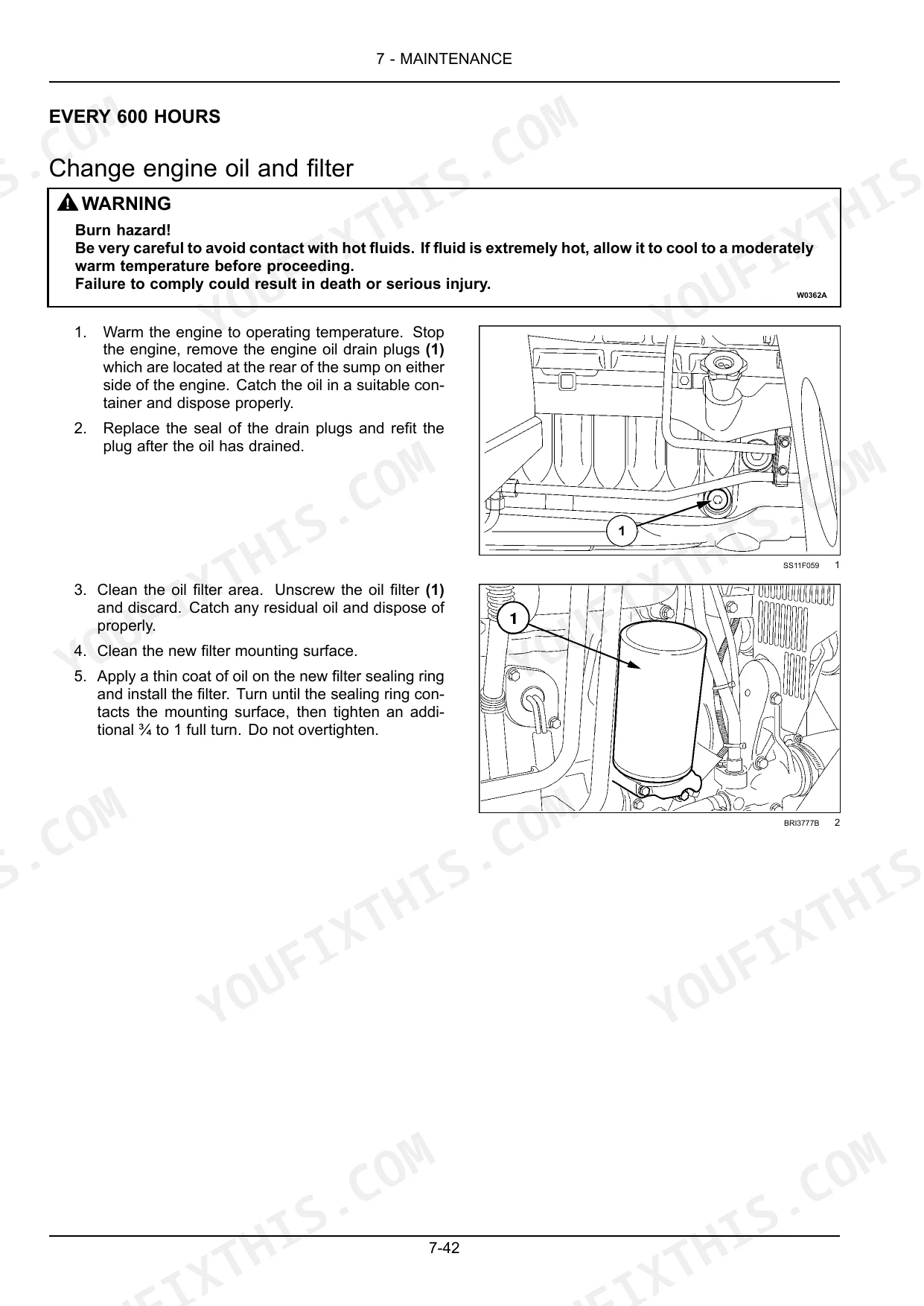

Guessing at fluid quantities after a service leaves the engine short or the cooling system overfilled, and the tractor starts running warm under drawbar load. Engine oil capacity including the filter is 15 L, the cooling system holds 22.5 L, and the CVT transmission takes 84 L.
Manual Section: Maintenance p. 403Frequently Asked Questions
Which New Holland tractors does this manual cover?
It is the operator manual for the T7.220, T7.235, T7.250, T7.260 and T7.270, published by New Holland under print number 47894503, 522 pages in English. Check the number on your own book or the product identification plate to confirm the match before you buy.
Does it give the fluid capacities for a service?
Yes. The Maintenance section lists engine oil capacity including filter at 15 L, cooling system at 22.5 L, CVT transmission oil at 84 L, and fuel tank at 395 L on models without ABS or 354 L with ABS. p. 403
What wheel nut torques does the New Holland T7.220–T7.270 manual give?
For four wheel drive tractors with adjustable front wheels, the Maintenance section gives front disc to hub nuts at 279 Nm (206 lb ft) and front disc to rim nuts at 250 Nm (184 lb ft). On manual adjust rear wheels with a flanged axle, disc to hub nuts are 500 Nm (369 lb ft). p. 425
Does it explain the headland turn sequence?
It does. The Automated Headland Functions section walks through recording a Headland Turn Sequence, replaying it on the turn and deleting sequences you no longer use, so the same headland routine repeats without you working the controls by hand every pass. p. 192
How will I receive this New Holland T7.220–T7.270 Operator Manual?
This is a 522-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print a copy of this New Holland T7.220–T7.270 Operator Manual for the shop?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
