Climb into the cab with the New Holland T7.270 operator manual PDF open and you can have the Auto Command transmission, the instrument cluster displays, and the rear PTO controls straight in under an hour, 468 pages of factory operator instruction under OEM number 84411318 covering all five T7 models: 220, 235, 250, 260 and 270. Field operations take up the largest block in the book, walking electronic draft control, electro-hydraulic remote valves, three-point hitch setup, drawbar towing and ballasting. Wiring pages and the error code tables let you read a warning symbol without waiting on a dealer diagnosis. Fill to 15.0 liters of engine oil including the filter, set disc to hub nuts at 210 N·m (155 lb ft) and disc to rim nuts at 250 N·m (184 lb ft), then work the 10, 50, 300, 600 and 1200 hour schedules. Every hour that tractor sits idle is acres you are not covering. Bookmarked, text searchable, and on whatever screen you carry out to the machine.
What's Inside This New Holland T7.220–T7.270 Series Operator Manual

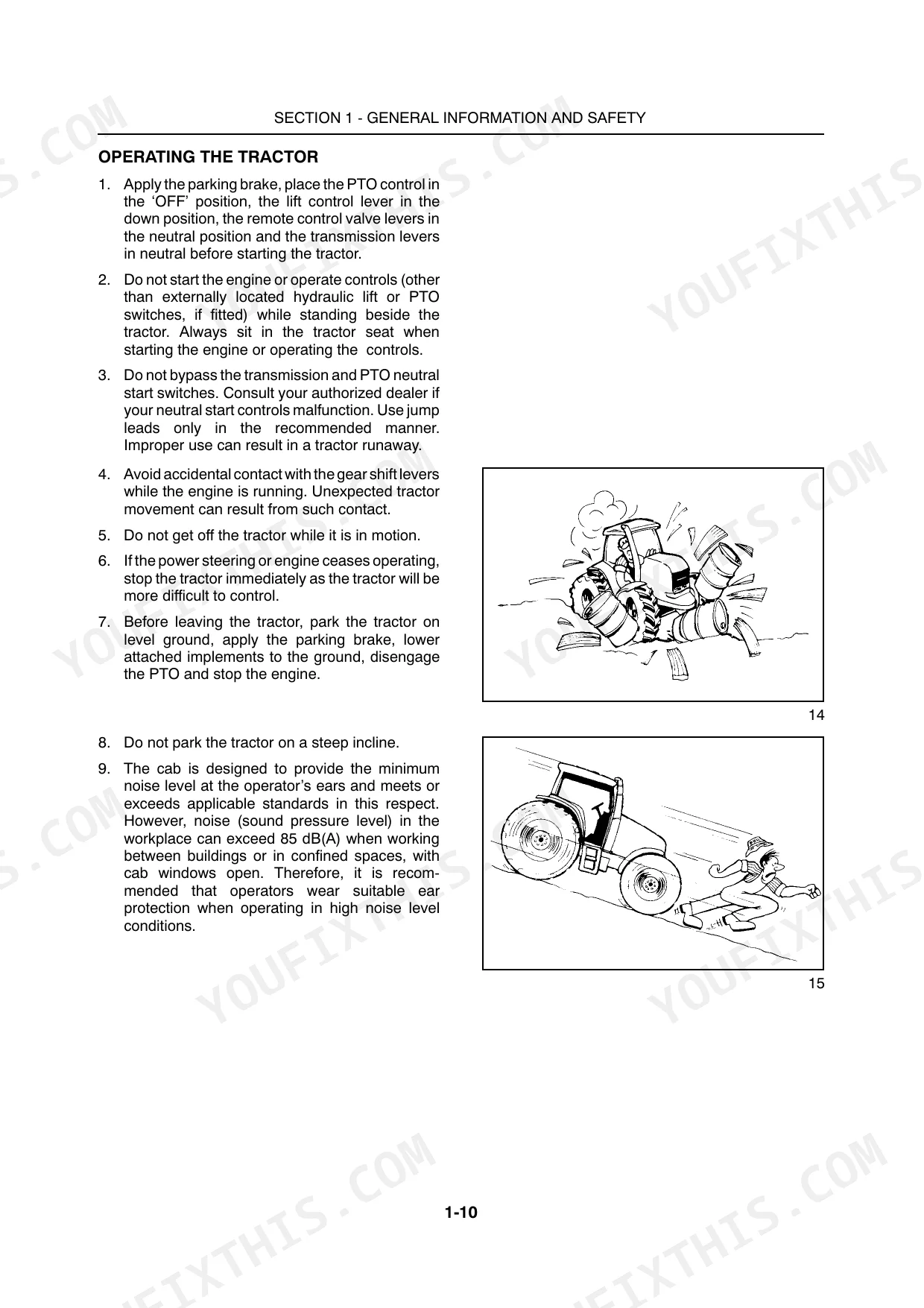

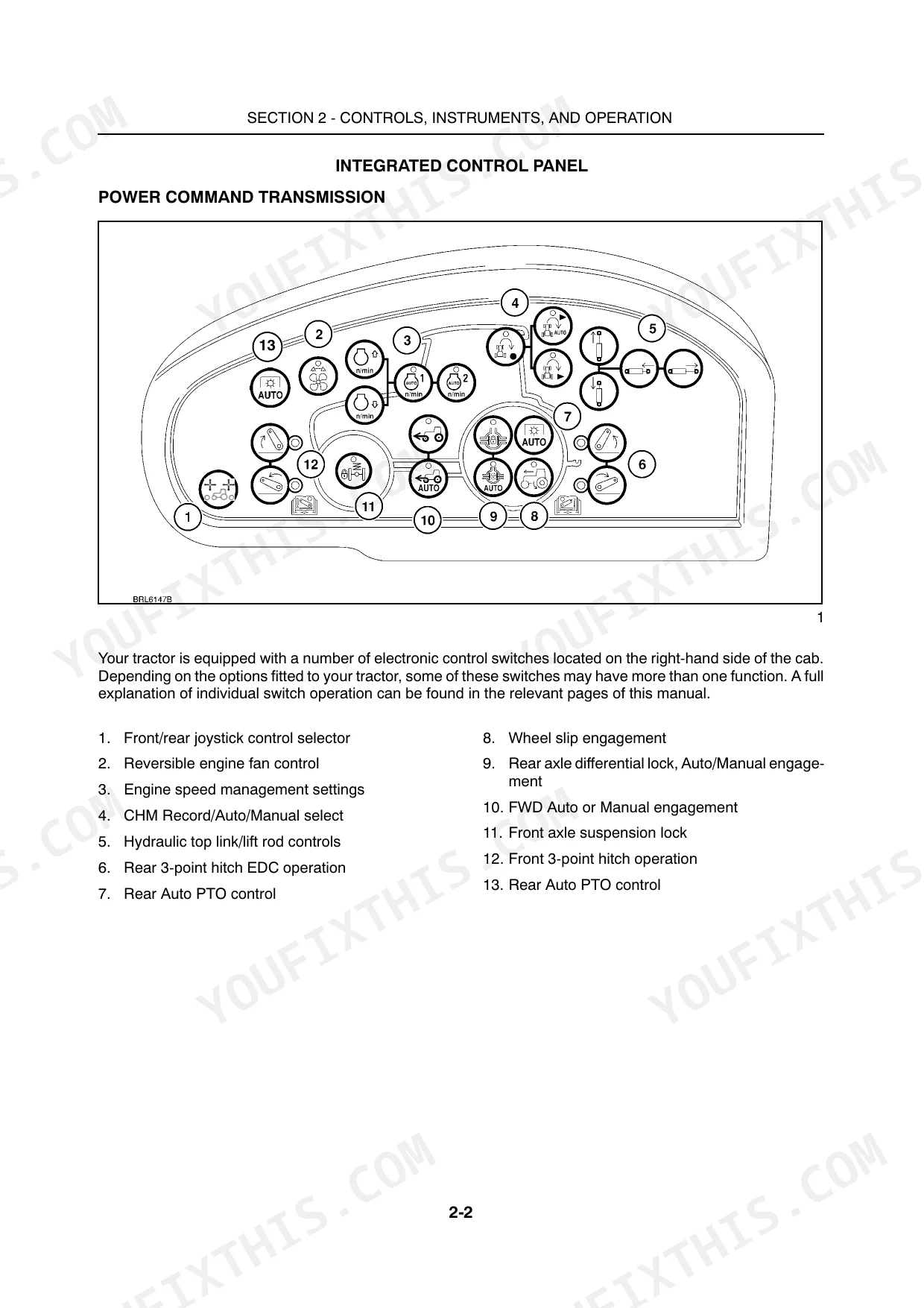

| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 3-8 | Adjustment, Maintenance, Operation, Service Parts, Model Identification, PIN Identification |
| General Information and Safety | 9-40 | End User License Agreement Terms, Product Identification, Ecology and the Environment, Precautionary Statements, Safety Precautions, Operator Protective Structure, Operators Seats |
| Controls, Instruments, and Operation | 41-174 | Integrated Control Panel, Cab, Seats, Instrument Console, Analog/Digital Instrument Cluster, Instrument Panel Displays, Enhanced Keypad and Performance Monitor |
| Field Operations | 175-336 | Starting the Engine, Engine Power Management, Engine Speed Management, Custom Headland Management, Fast Steer, Front P.T.O. and 3-Point Hitch, Rear Power Take-Off |

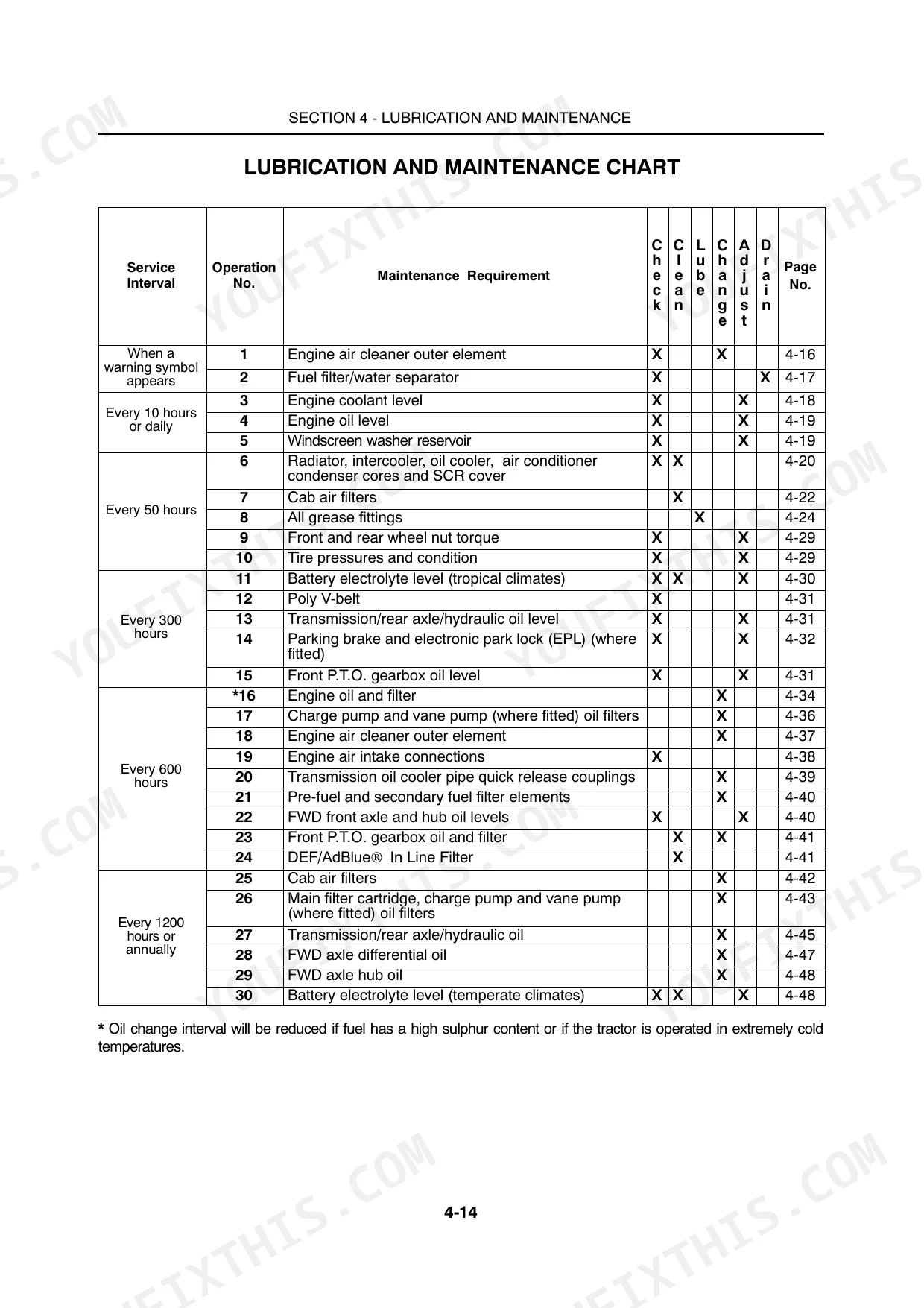

| Lubrication and Maintenance | 337-420 | Protective Guards, Lubricants and Coolants, Lubricant and Coolant Specification, Lubrication and Maintenance Chart, When the Warning Symbol Appears |
| Troubleshooting | 421-432 | Error Codes |
| Accessories | 433-436 | ISO Connector, Auto Guidance Control, Rotating Beacon, Battery Isolator Switch |

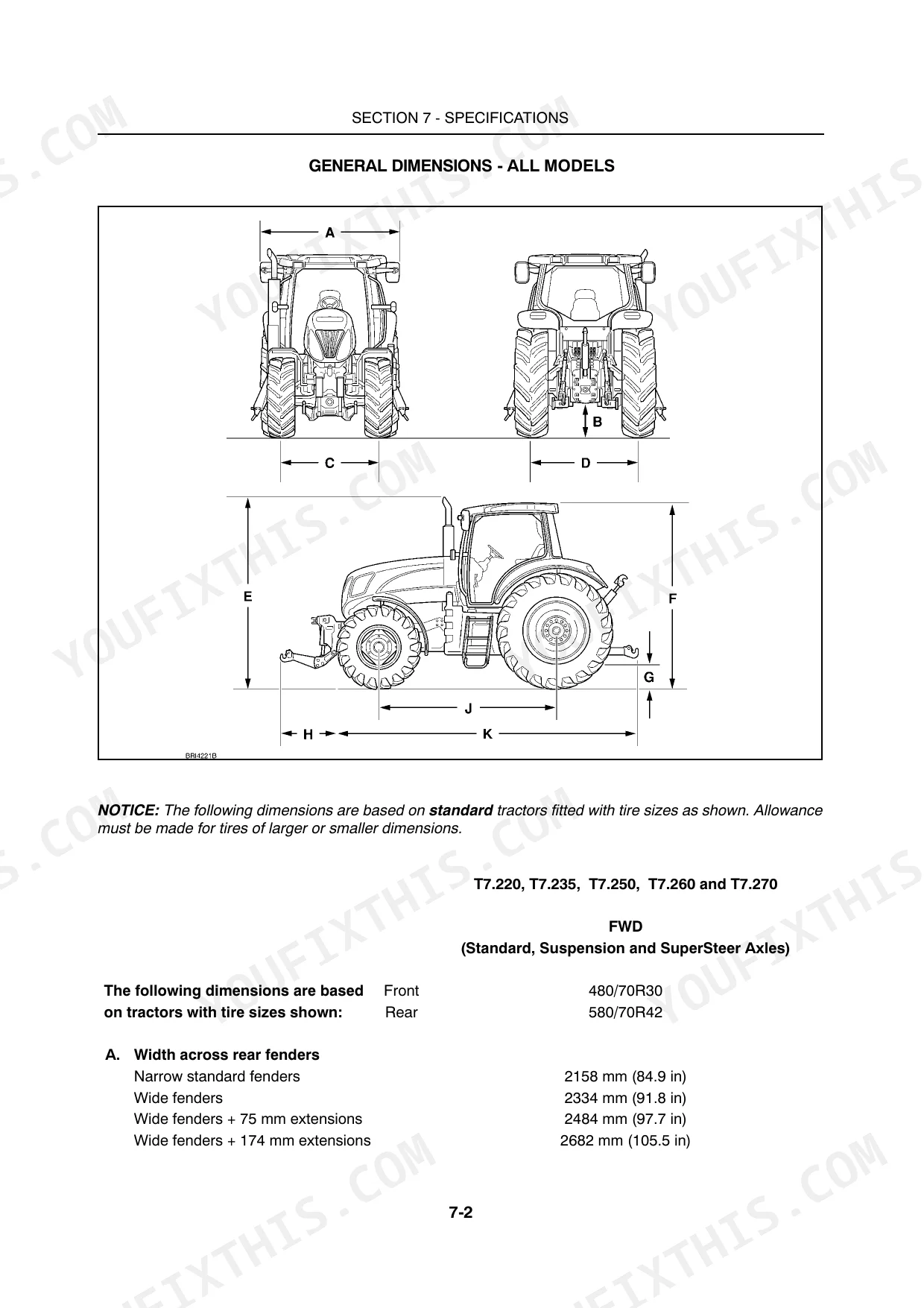

| Specifications | 437-456 | General Dimensions |
| Delivery Report | 457-468 | First 50 Hour Service, Check and Adjust, As Required |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Steering angle sensor pre-set limits (Wheel speed 0 - 10 km/h) | 15° right, 13.5° left (9° and 7.7° with Supersteer) | p. 169 |
| Steering angle sensor pre-set limits (Wheel speed 10 - 15 km/h) | 5° right, 4.5° left (2° and 1.6° with Supersteer) | p. 169 |
| Disc to hub nuts | 210 N·m (155 lb ft) | p. 316 |
| Disc to rim nuts | 250 N·m (184 lb ft) | p. 316 |
| Engine Oil Capacity (including filter) | 15.0 liter | p. 371 |
| Transmission/Rear Axle/Hydraulic Oil Capacity (Auto Command) | 84.0 liters | p. 383 |
| FWD Front Axle Differential Oil Capacity | 11 liters | p. 383 |
| FWD Front Hub Oil Capacity (without brakes) | 2.3 liters | p. 384 |
| FWD Front Hub Oil Capacity (with brakes) | 3.8 liters | p. 384 |
| Split Wedge Bolts Torque (Steel Center Disc) | 500 N·m | p. 323 |
| Split Wedge Bolts Torque (Cast Center Disc) | 300 N·m | p. 324 |
| Front Weight Assembly Bolt Torque | 169 N·m | p. 330 |
New Holland T7.220–T7.270 Series Common Problems This Manual Covers
New Holland T7.250 will not move forward or reverse after startup, transmission warning displayed
Check the transmission troubleshooting chart starting on page 427 before you touch anything. Verify the shuttle lever is centered and the park lock is released. Confirm battery voltage is healthy, since low storage voltage blocks clutch solenoids. Check transmission oil level: Auto Command holds 84.0 liters per page 383.
Manual Section: Transmission Troubleshooting p. 427DEF or urea warning lamp on the display with engine power reduction
Check the error code reference on page 422 and write down the code before clearing anything. Verify the DEF tank holds clean fluid from a sealed container, not a jug that has sat open all season. Inspect the NOx sensor connector for corrosion. Do not dilute DEF with water or diesel.
Manual Section: Error Codes and Warnings p. 422Rear remote hydraulics or three-point hitch will not respond to lever movement
Check the hitch troubleshooting chart on page 429 and watch the hitch status light while you move the lever. Verify the lift limit and drop rate controls are not set to zero and the transport lock is off. Confirm hydraulic oil level; Power Command systems take 82.0 liters per page 382.
Manual Section: Three-Point Hitch Troubleshooting p. 429Speed readout drops to zero and speed-based functions quit during field work
Inspect the wheel speed sensor wiring at the axle for rodent damage and packed mud. Clean the sensor face, then verify the steering angle sensor is within its pre-set limits listed on page 169: 15 degrees right and 13.5 degrees left below 10 km/h. Check the error code list.
Manual Section: Error Codes and WarningsEngine cranks slowly or will not start on a cold morning

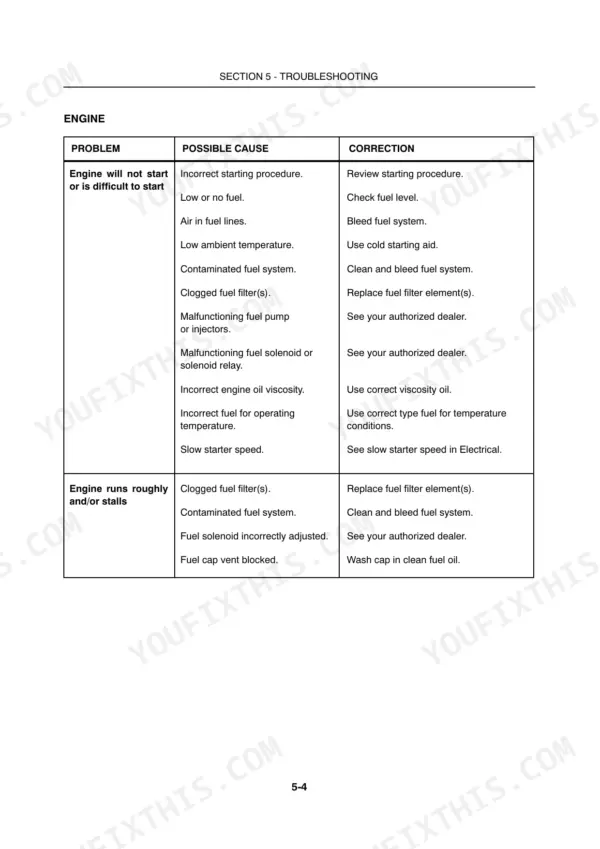

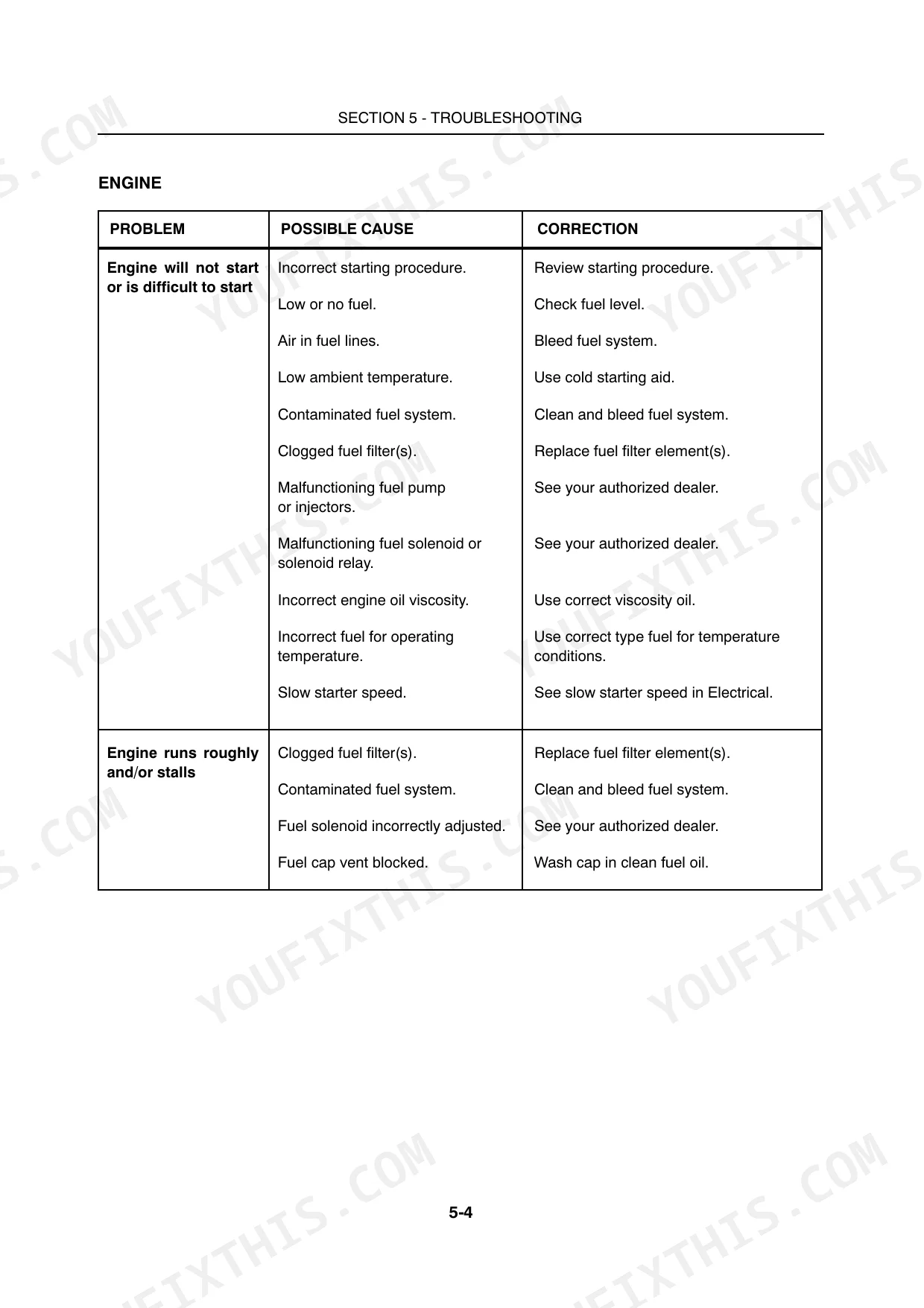

Check the engine troubleshooting pages starting at 424. Clean and tighten both battery terminals, then verify the charging system by watching the alternator lamp after startup. Allow the cold start aid its full cycle before cranking. Confirm engine oil is the correct grade and level; capacity is 15.0 liters including filter per page 371.
Manual Section: Engine Troubleshooting p. 424Wheel nuts loosening or rim slipping after changing tread width for the season
Retorque wheel hardware after the first hour of work, then daily until readings hold. Torque disc to hub nuts to 210 N·m (155 lb ft) per page 316. On steel center discs, torque disc to rim nuts to 250 N·m and split wedge bolts to 500 N·m as listed on page 323.
Manual Section: Field Operations p. 316Frequently Asked Questions
What is the rear wheel disc to hub nut torque on a New Holland T7.220-T7.270 Series with a steel center disc?
For tractors equipped with a steel center disc, the torque specification for the disc to hub fixings (10 x M22 bolts) is 500 N·m (369 lb ft). p. 323
How do I clear error codes on a New Holland T7.235 using the color display?
To clear error codes using the color display, navigate to the Diagnostic, Fault, and Display menus. From the pop-up menu, touch 'Select List' to view stored error codes, then touch 'Erase All' to clear the memory. p. 108
How do I reset the service reminder on a New Holland T7.220-T7.270 Series after the 1200 hour service?
To reset the service reminder, access the Service screen via the Toolbox menu. Select the service hours display, touch the hour figure to change the interval, and select 'Service done' to reset the counter and update maintenance history. p. 105
What is the engine oil capacity for the New Holland T7.220 to T7.270 Series tractor?
The engine oil capacity, including the filter, for all models is 15.0 liters (3.96 U.S. gal). p. 371
What is the correct valve tappet clearance for a New Holland T7.220 to T7.270 Series tractor engine?
The valve tappet clearance for the engine when cold is 0.25 mm (0.009 in) for the intake and 0.51 mm (0.020 in) for the exhaust. p. 445
How quickly can I access this New Holland manual after buying?
Instant PDF download. You get the full 468-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this New Holland T7.220–T7.270 Series manual print-friendly?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
