Steering starts on page 293, Power Train on 395, Brakes on 649 and Hydraulics on 689, and each of those sections runs from component removal and installation through specifications, pressure checks and troubleshooting. That is the pattern across this New Holland W130B service manual, 917 pages under publication 84249884, written for serial number N8F203848 and after.
Chasing a slow lift circuit or a loader that will not build pressure is guesswork without numbers. The Hydraulics section lists main relief settings of 248 and 255 bar (3596 to 3700 psi) and pilot pressure of 29 to 40 bar (420 to 580 psi) on page 731, so you can put a gauge on the machine and know what the reading should be.
It downloads as a 137.25 MB PDF with 51 bookmarks, so you can jump straight to a tab, print the pages you need, and keep the file as long as you own the loader.
What's Inside This New Holland W130B Manual

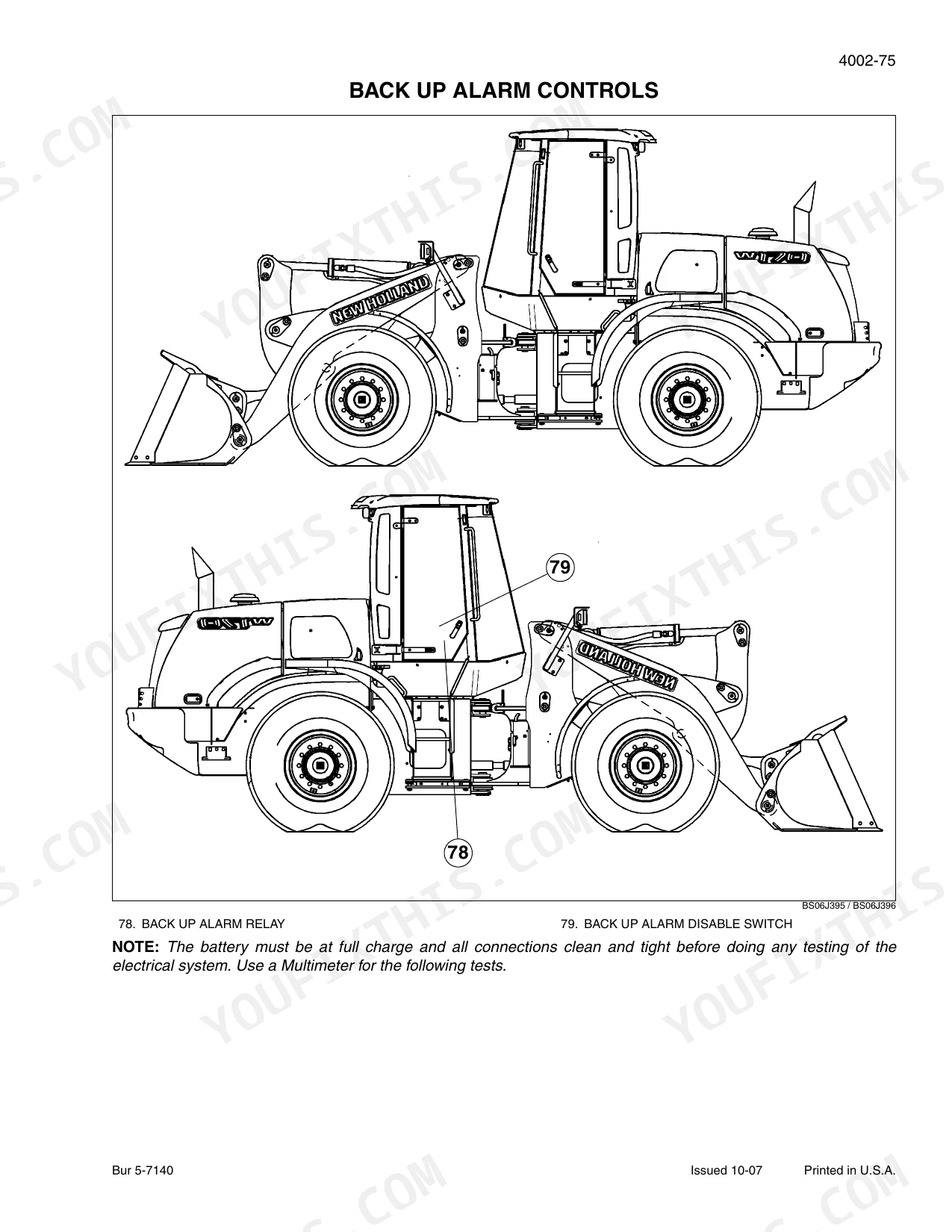

| System | Pages | Key Topics |
|---|---|---|
| General | 7-26 | Section Index - General (Standard Torque Specifications, Fluids and Lubricants, Metric Conversion Chart) |
| Engines | 27-64 | Section Index - Engines (Engine and Radiator Removal and Installation, Stall Tests, After Cooler, Engine) |
| Fuel System | 65-66 | Section Index - Fuel System (for Fuel System Repair, See the Engine Service Manual) |
| Electrical | 67-292 | Section Index - Electrical (Removal and Installation of Starter and Alternator, Electrical Specifications and Troubleshooting, Batteries, Instrument Cluster) |
| Steering | 293-394 | Removal and Installation of Steering Components, Steering Specifications, Pressure Checks, And Troubleshooting, Steering Cylinders, Center Pivot, Auxiliary Steering Motor and Pump |
| Power Train | 395-648 | Removal and Installation of Power Train Components, Transmission Specifications, Pressure Checks, And Troubleshooting, Transmission, Front Axle, Rear Axle, Drive Shafts |
| Brakes | 649-688 | Section Index - Brakes (Removal and Installation of Brake Components, Hydraulic Brake Troubleshooting, Brake Pump, Brake Accumulators, Parking Brake) |
| Hydraulics | 689-816 | Removal and Installation of Hydraulic Components, Hydraulic Specifications, Troubleshooting, And Pressure Checks, Cleaning the Hydraulic System, Hydraulic Pump |
| Mounted Equipment | 817-917 | Section Index - Mounted Equipment (Air Conditioning Troubleshooting and System Checks for Systems with HFC-134a Refrigerant, Air Conditioner System Service, Removal and Installation of Air Conditioning and Heater Components, Loader, Rollover Protective Structure Cab Structural Frame, Cab Glass Installation, Electrical Schematic Foldouts and Hydraulic Schematic Foldout) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 1/4 inch Grade 5 Bolt Torque | 108 to 132 Pound-Inches (12 to 15 Newton metres) | p. 11 |
| 5/16 inch Grade 5 Bolt Torque | 204 to 252 Pound-Inches (23 to 28 Newton metres) | p. 11 |
| Filter head screws | 25 Nm (221 lb-in) | p. 444 |
| Oil distribution cover screws | 25 Nm (221 lb-in) | p. 444 |
| Engine Oil Capacity with Filter Change | 13.2 liters (14 U.S. Quarts) | p. 17 |
| Engine Cooling System Capacity | 36.0 liters (38.0 U.S. Quarts) | p. 17 |
| Fuel Tank Capacity | 246 liters (65 U.S. Gallons) | p. 17 |
| Hydraulic System Total Capacity | 147.6 liters (39.0 U.S. Gallons) | p. 17 |
| Transmission Total System Capacity | 26.7 liters (28.2 U.S. Quarts) | p. 17 |
| Front Axle Oil Capacity | 22 liters (23.2 U.S. Quarts) | p. 17 |
| Rear Axle Oil Capacity | 22 liters (23.2 U.S. Quarts) | p. 17 |
| Main Relief Valve Pressure Settings | 248 and 255 bar (3596 to 3700 psi) | p. 731 |
New Holland W130B Common Problems This Manual Covers
Lift arms settle with a loaded bucket
Arms that creep down while the machine idles usually point at cylinder seals or a leaking loader valve spool rather than the pump. The Hydraulics section covers pressure checks, troubleshooting and removal and installation of hydraulic components so you can isolate the circuit before pulling a cylinder.
Manual Section: Hydraulics p. 689Loader bogs down in the pile

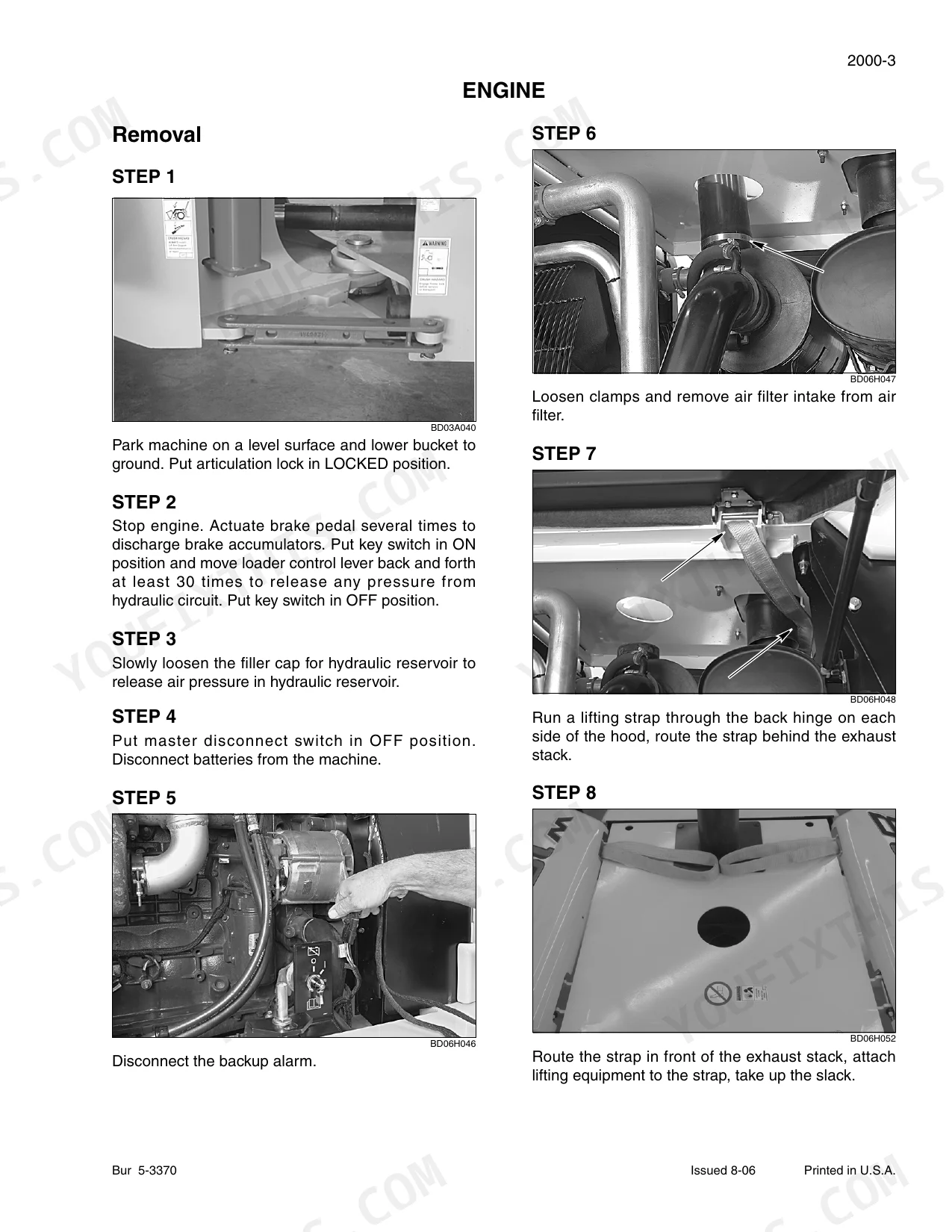

Low power when the bucket digs in can come from the engine, the torque converter or a dragging brake, and guessing costs a weekend. The Engines section includes stall tests and after cooler coverage, which is the check that separates an engine problem from a power train problem.
Manual Section: Engines p. 27Fault code on the instrument cluster

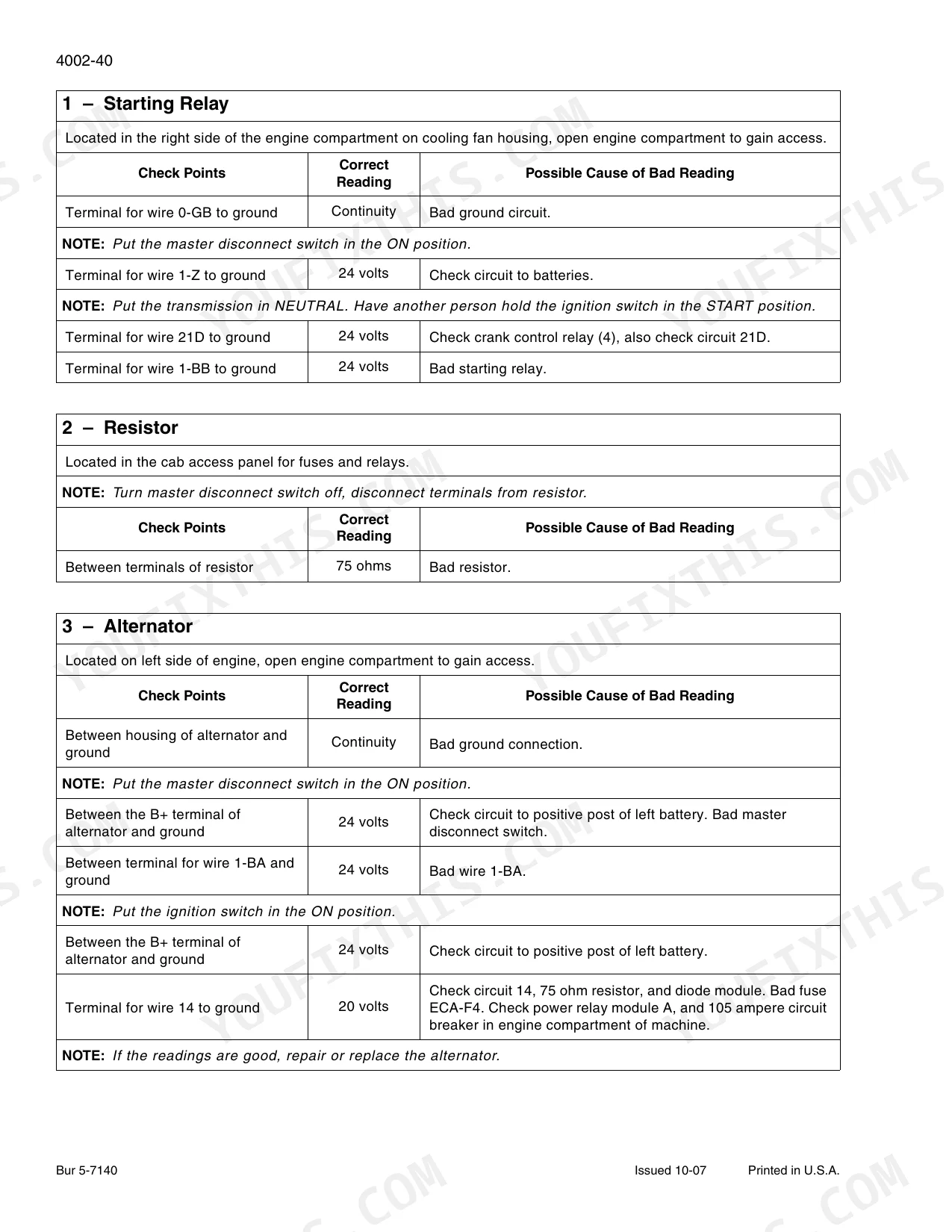

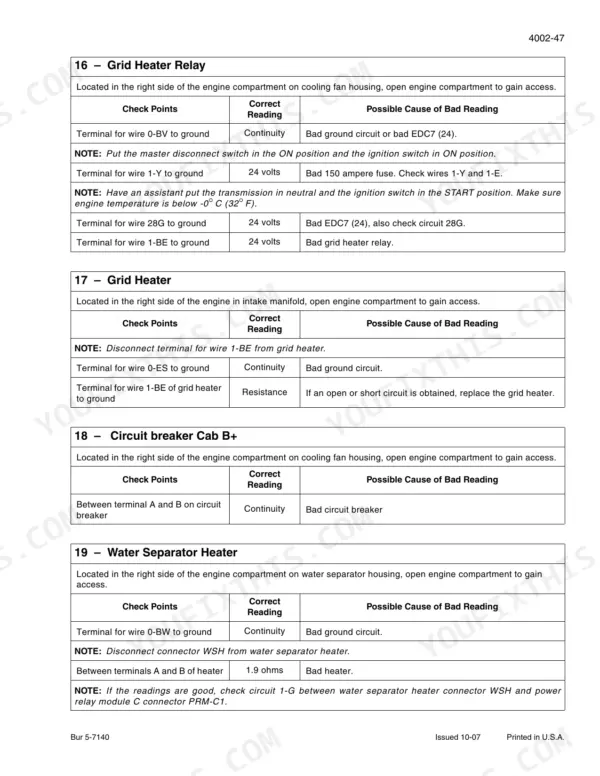

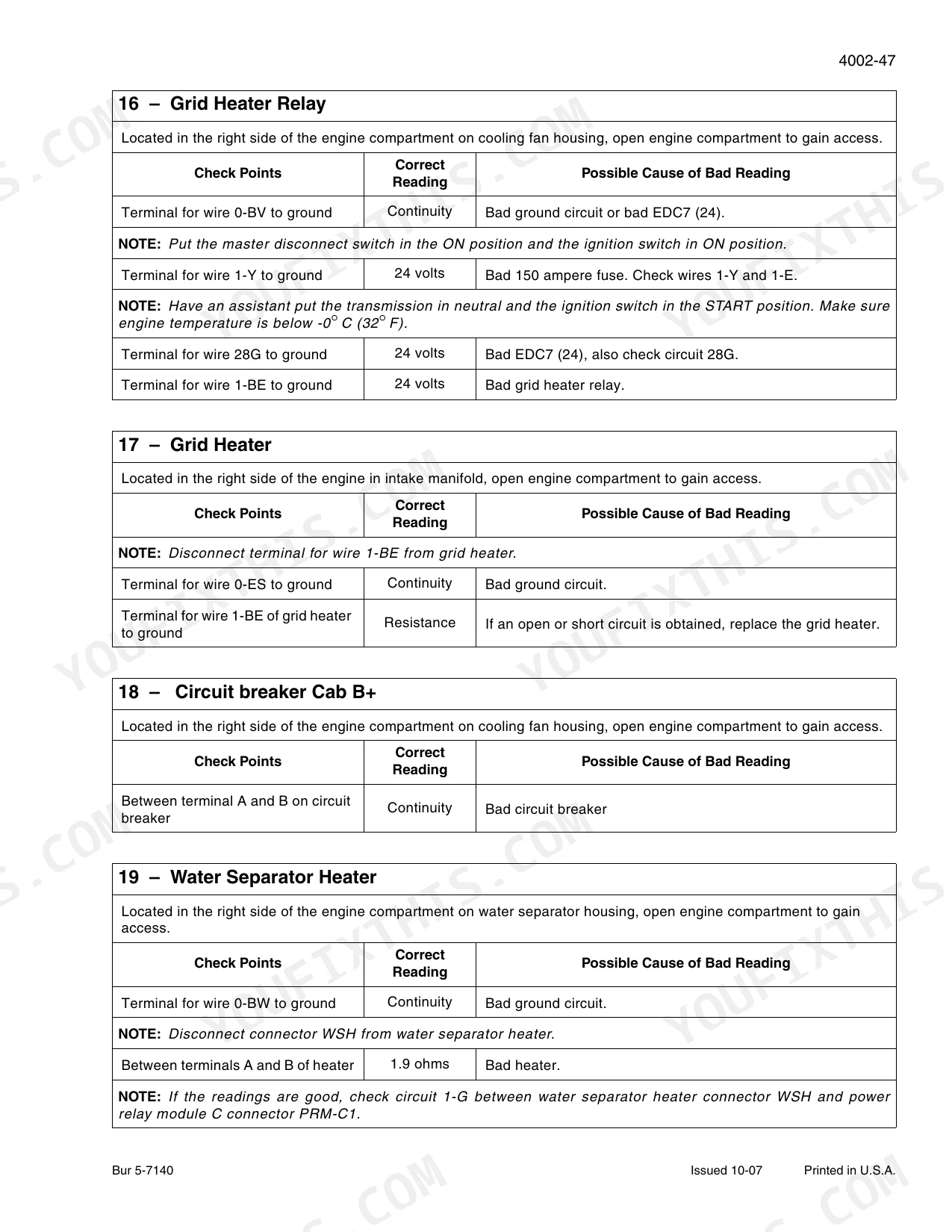

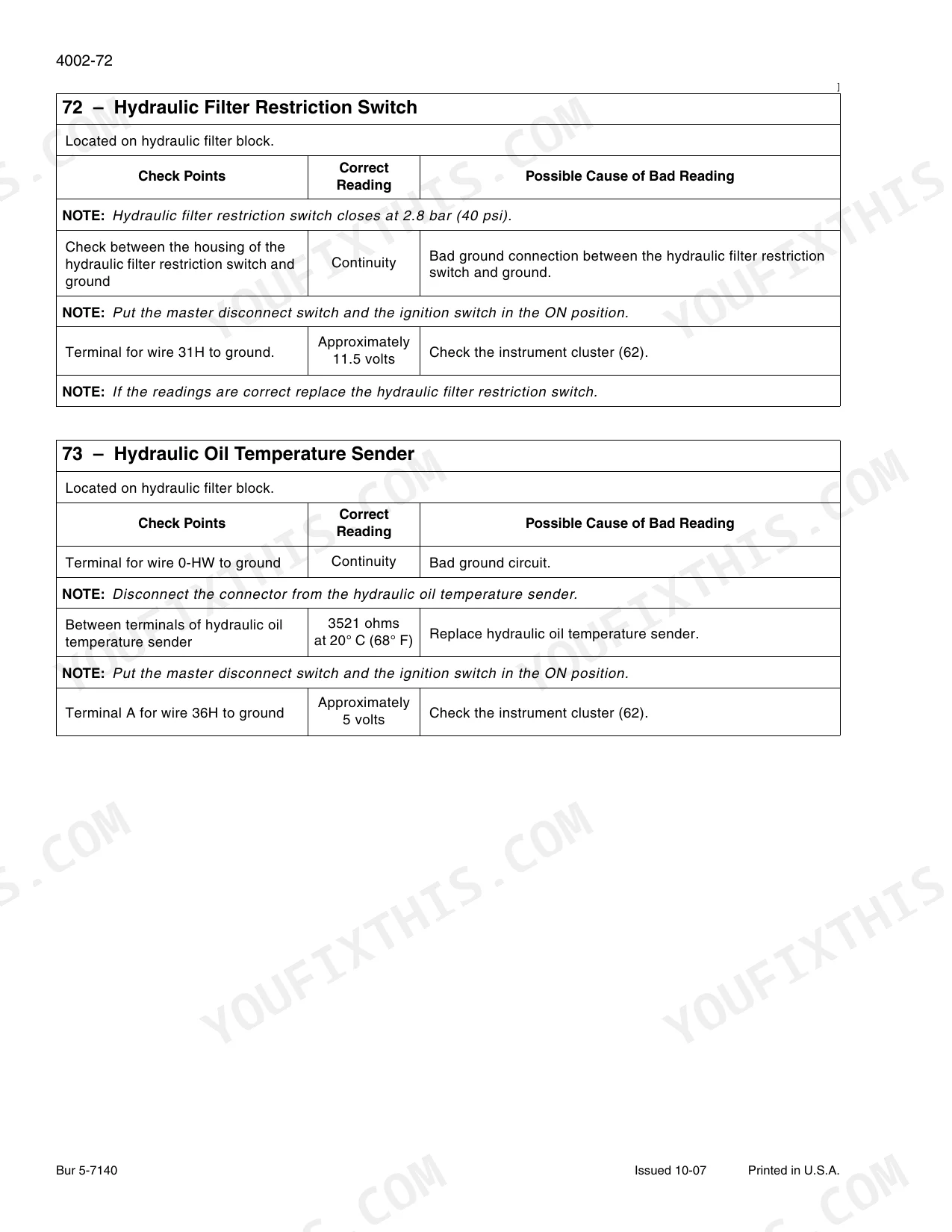

W130B owners report codes that lock the machine out of starting until the fault is cleared, often traced to a communication or wiring issue. The Electrical section carries specifications, troubleshooting, battery service and instrument cluster coverage so you can read the code and trace the circuit behind it.
Manual Section: Electrical p. 67Heavy or wandering articulated steering
Slop at the articulation joint or a steering wheel that goes stiff at low idle shows up first when you are spotting a truck. The Steering section covers steering cylinders, the center pivot, the auxiliary steering motor and pump, plus pressure checks and troubleshooting.
Manual Section: Steering p. 293Transmission slips or shifts harshly
Shuttling between forward and reverse all shift is hard on clutch packs, and a slipping gear feels much like a converter problem from the seat. The Power Train section gives transmission specifications, pressure checks and troubleshooting along with front axle, rear axle and drive shaft repair.
Manual Section: Power Train p. 395Soft brake pedal or long stops
A pedal that sinks or takes repeated pumping on a loaded machine usually traces to the accumulators, the brake pump or air in the circuit. The Brakes section covers hydraulic brake troubleshooting, brake pump and accumulator service, and the parking brake.
Manual Section: Brakes p. 649Cab air conditioning blows warm
A cab that will not cool in summer is usually a leak, a charge problem or a failed component rather than a control fault. The Mounted Equipment section includes air conditioning troubleshooting and system checks for HFC-134a systems, plus removal and installation of the air conditioning and heater components.
Manual Section: Mounted Equipment p. 817Frequently Asked Questions
Which machine does this manual cover?
It is the New Holland W130B wheel loader service manual, publication number 84249884. Coverage runs across General, Engines, Fuel System, Electrical, Steering, Power Train, Brakes, Hydraulics and Mounted Equipment.
Does it give hydraulic pressure specifications?
Yes. The Hydraulics section covers specifications, troubleshooting and pressure checks, including main relief valve settings of 248 and 255 bar (3596 to 3700 psi) and pilot pressure of 29 to 40 bar (420 to 580 psi) on page 731. p. 689
Are wiring and hydraulic schematics included?
Yes. Electrical schematic foldouts and a hydraulic schematic foldout are grouped at the end of the Mounted Equipment section. Circuit level troubleshooting, starter and alternator work, batteries and the instrument cluster sit in the Electrical section starting on page 67. p. 817
Does it cover fuel injection repair?
Only partly. The Fuel System section directs you to the Engine Service Manual for fuel system repair itself. Engine removal and installation, radiator work, stall tests and the after cooler are covered here in the Engines section. p. 65
What format is this New Holland W130B manual in?
One searchable PDF covering 917 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Is printing allowed for this New Holland W130B Service Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
