Need the factory reference for your Yanmar B7-5B excavator? This 725-page service manual PDF walks you through every system, from engine cylinder head and EGR procedures to hydraulic pump teardown and swing motor rebuild. Open to the hydraulic chapter and you get full circuit schematics with pressure adjustment procedures and circuit operation detail; the wiring section maps out the entire electronic control system. Includes exploded views of every major hydraulic component, tightening torque tables for machine and engine fasteners, and a troubleshooting section with fault-by-fault isolation charts and non-breakdown diagnostics. Torque the engine mount vibroisolating rubber bolt (M16, Grade 10.9T) to 205.9–235.4 N·m. The radiator-side mount bolt (M12) gets 107.9–127.5 N·m. No more chasing values through forum posts. Bookmarked by section; pull it up on your tablet and get straight to the spec you need.

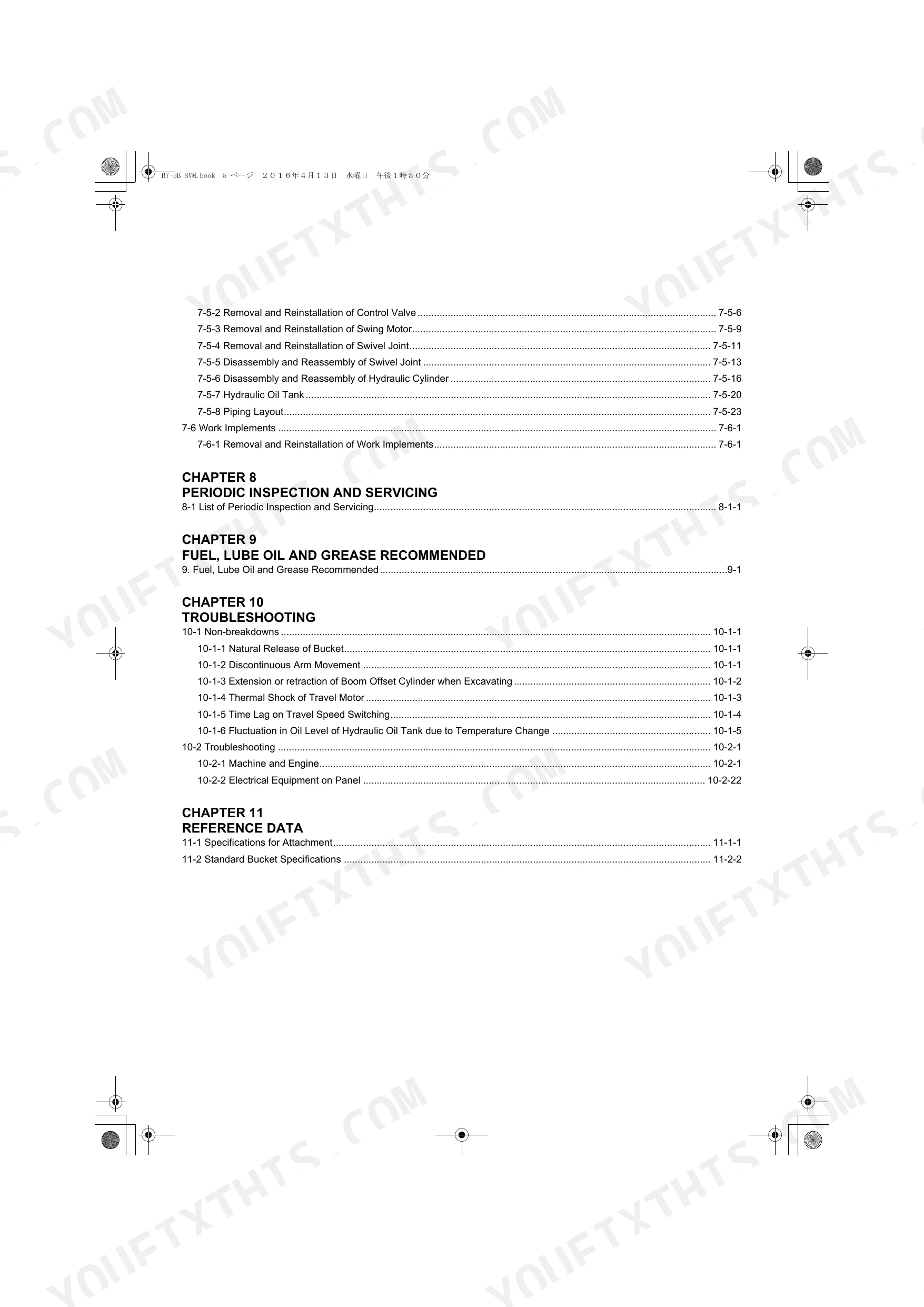

What's Inside This Yanmar B7-5B Manual
| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | 12-25 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment |

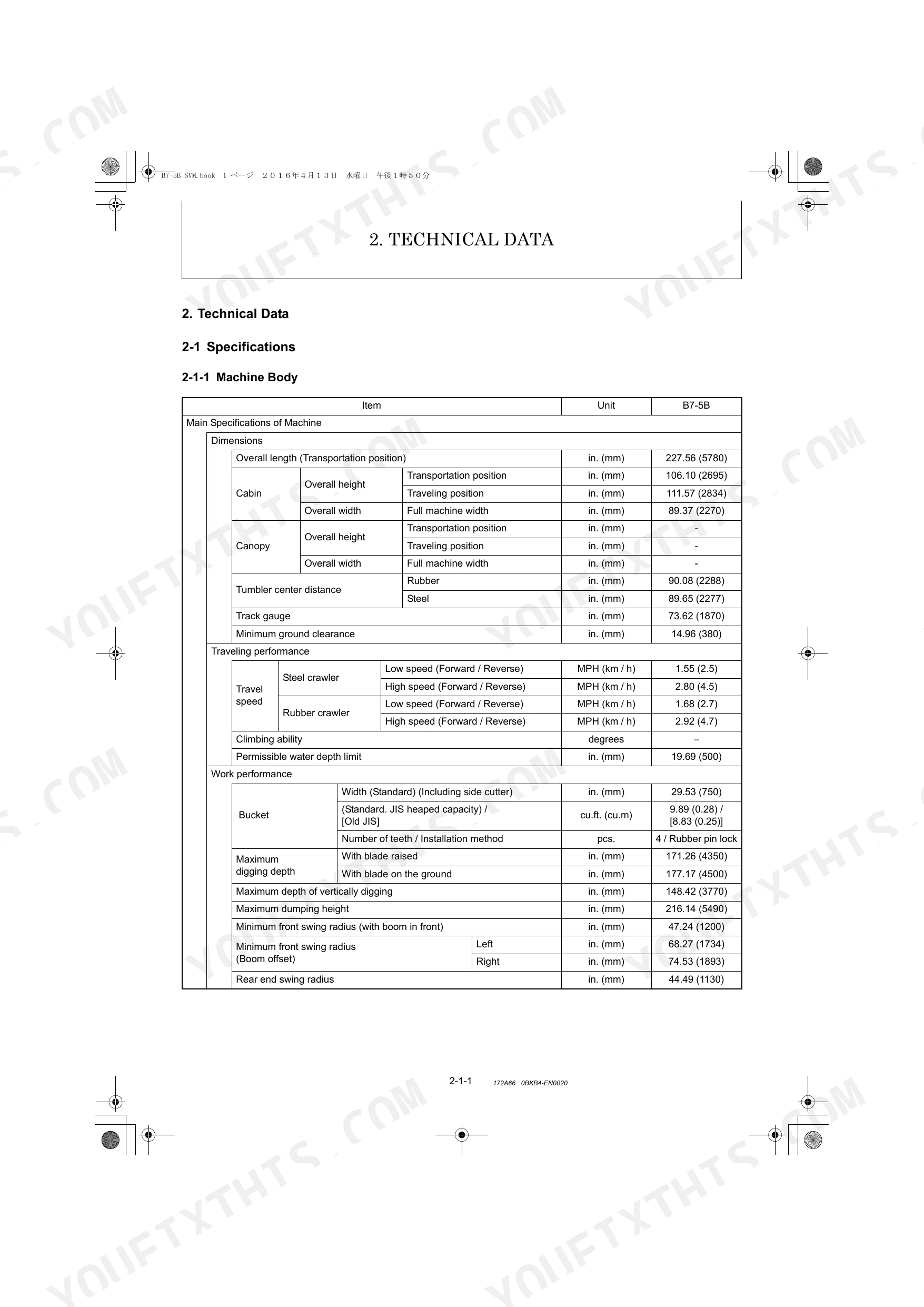

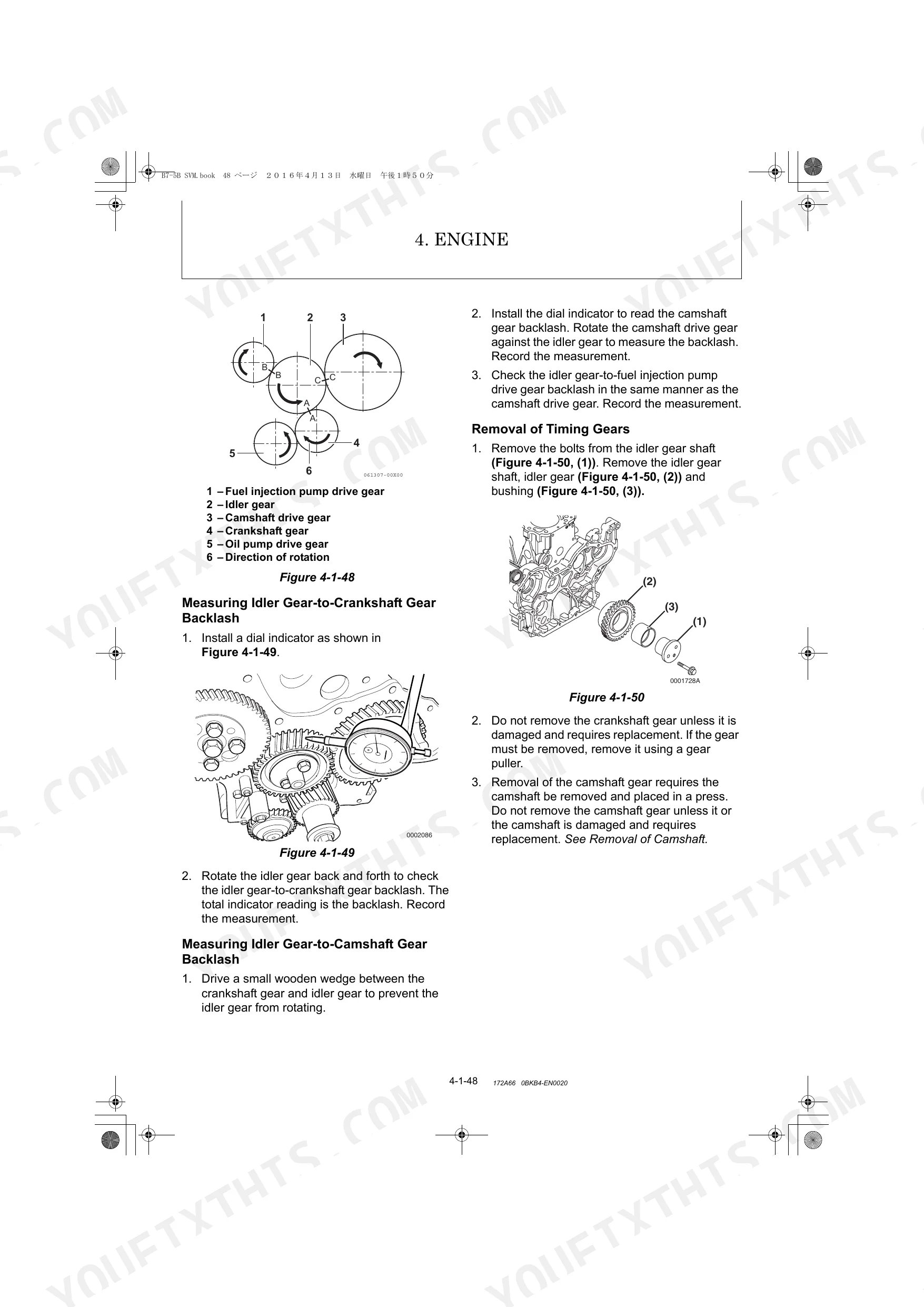

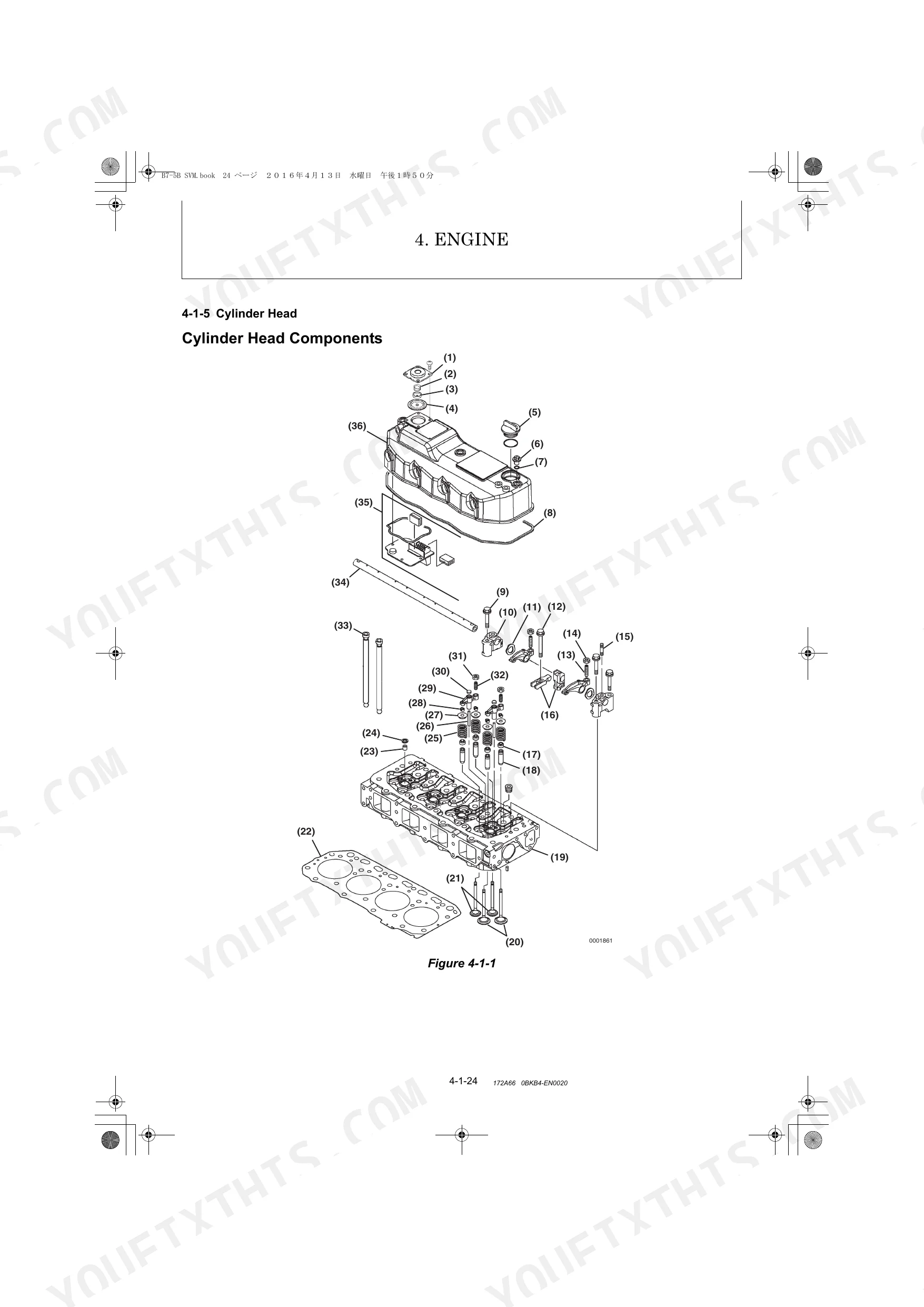

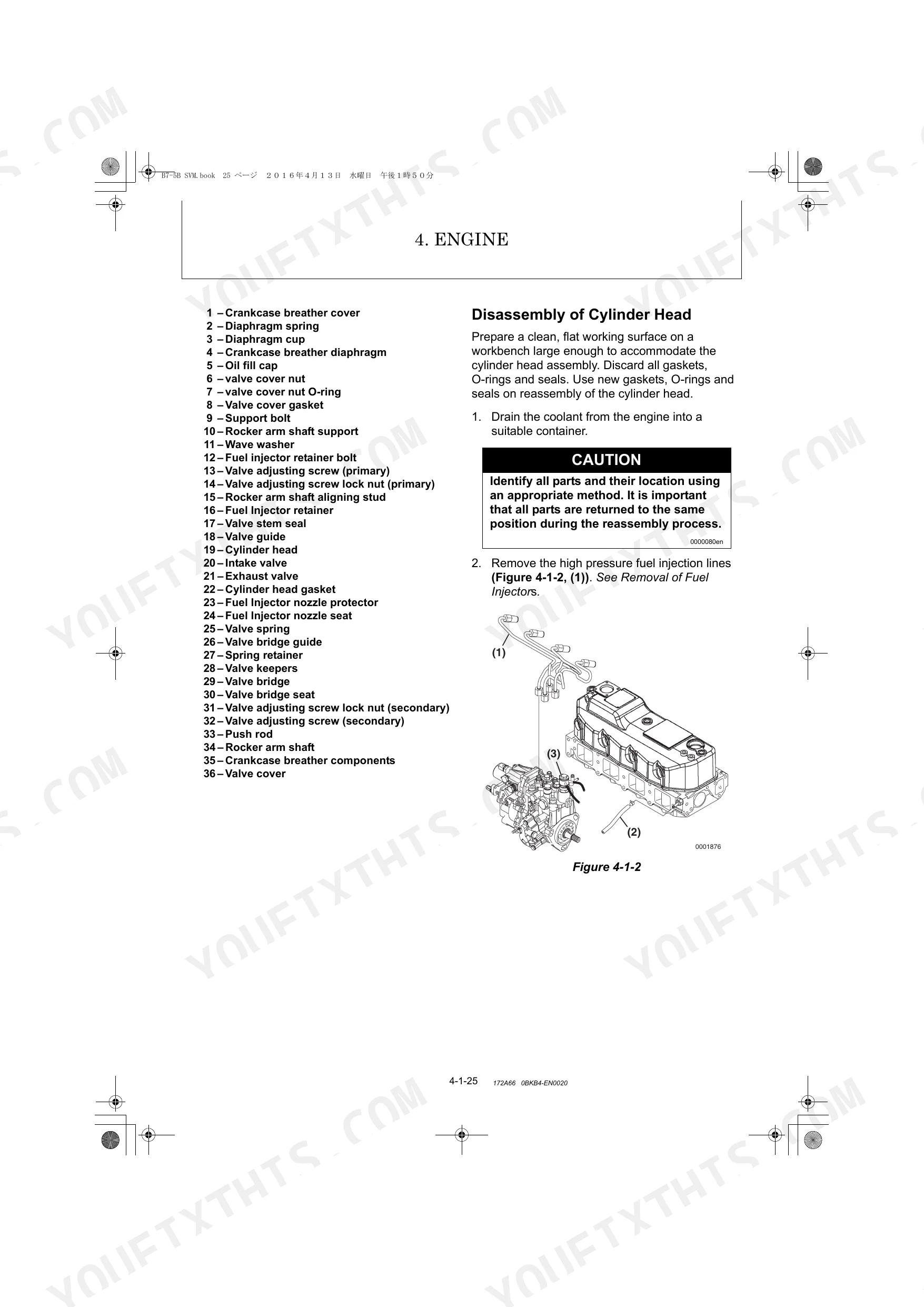

| Technical Data | 26-39 | Specifications (Machine Body, Engine), Outline Drawing and Working Area, Weight List of Main Parts, Lifting Capacity List |
| Service Standards | 40-61 | Machine Performance, Engine, Undercarriage (Rubber Crawler Specifications, Steel Crawler Specifications, Common Specifications of Steel & Rubber Crawlers), Controls |
| Engine | 62-231 | 4-1 Engine, 4-2 Fuel System, 4-3 Cooling System, 4-4 Lubrication System, 4-5 Starter Motor, 4-6 Alternator, 4-7 Electronic Control System, 4-8 Electric Wiring |

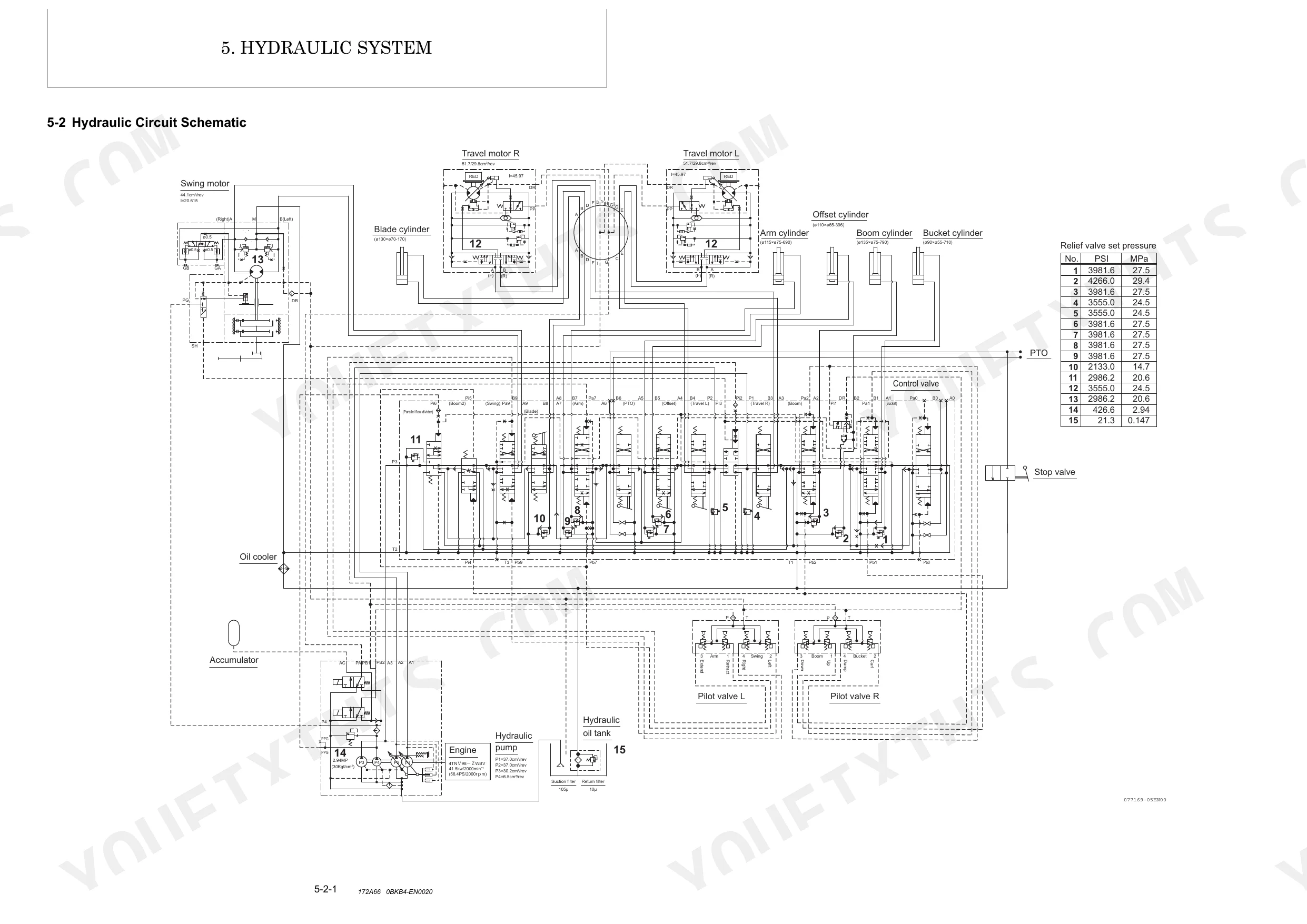

| Hydraulic System | 232-269 | 5-1 Outline, 5-2 Hydraulic Circuit Schematic, 5-3 Circuit Operation, 5-4 Pressure Adjustment |
| 6-1 Hydraulic Pump | 270-312 | - |
| 6-2 Control Valve | 313-364 | - |
| 6-3 Pilot Valve | 365-375 | - |
| 6-4 Swing Motor | 376-429 | - |
| 6-5 Travel Motor | 430-577 | - |
| Adjustment and Repair | 578-675 | 7-1 Electric Equipment of the Machine, 7-2 Undercarriage, 7-3 Controls, 7-4 Swing Bearing, 7-5 Hydraulic Equipment, 7-6 Work Implements |
| Periodic Inspection and Servicing | 676-679 | 8-1 List of Periodic Inspection and Servicing |
| Fuel, Lube Oil and Grease Recommended | 680-683 | Fuel, Engine Oil, Hydraulic Oil, Travel Reduction Gear Oil, Cooling Water, Grease, Antifreeze, Mixture Ratio of Cooling Water and Antifreeze |
| Troubleshooting | 684-721 | 10-1 Non-Breakdowns, 10-2 Troubleshooting |
| Reference Data | 722-725 | 11-1 Specifications for Attachment, 11-2 Standard Bucket Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

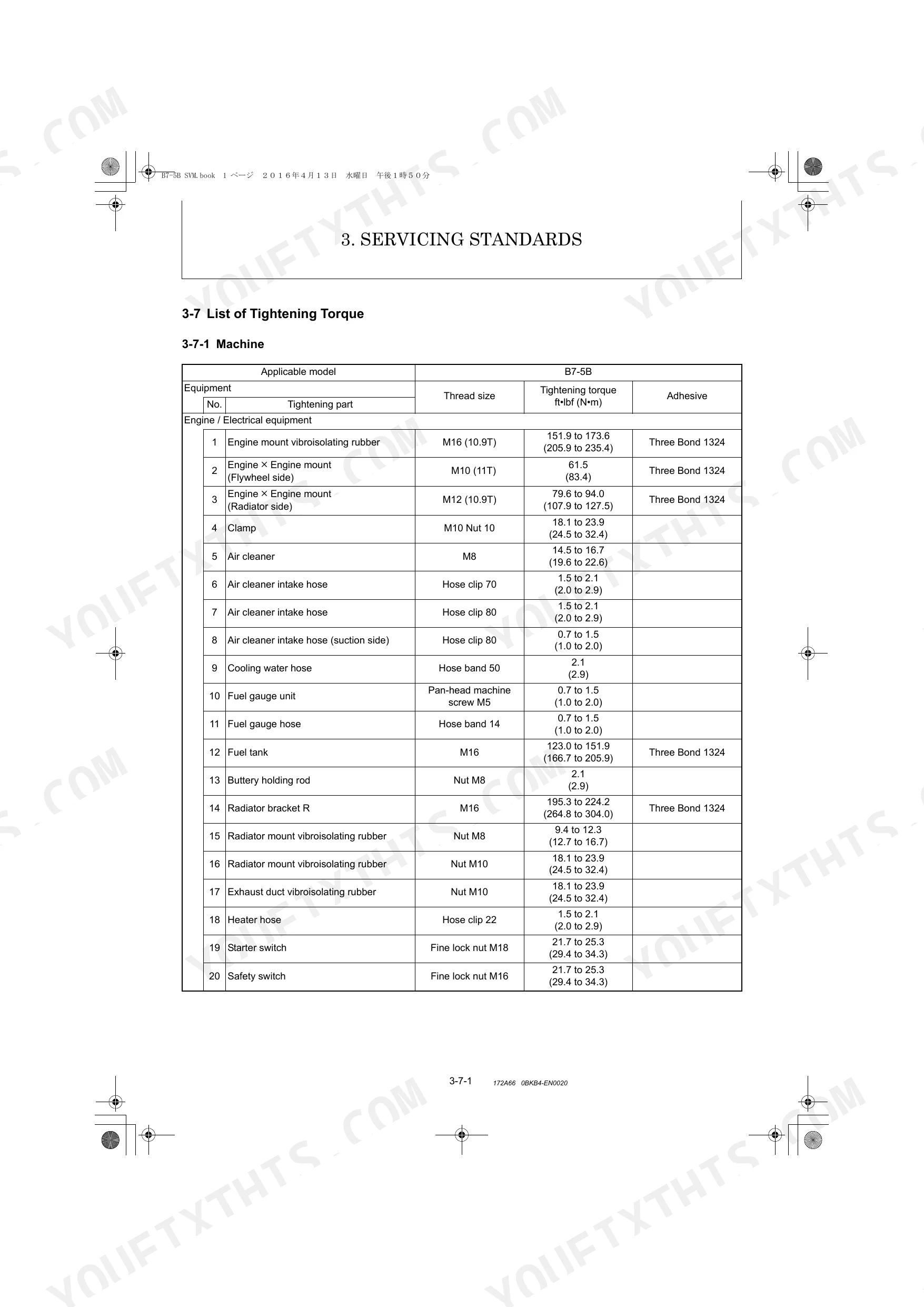

| Engine mount vibroisolating rubber bolt (M16 (10.9T)) | 151.9 to 173.6 ft·lbf (205.9 to 235.4 N·m) | p. 55 |
| Engine × Engine mount (Radiator side) bolt (M12 (10.9T)) | 79.6 to 94.0 ft·lbf (107.9 to 127.5 N·m) | p. 55 |
| Hydraulic hose length variation at high pressure | +2 % to -4 % | p. 15 |
| Pipe joint bolt tightening torque (M8) | 9.40 to 12.32 ft·lbf (12.7 to 16.7 N·m) | p. 59 |
| Pipe joint bolt tightening torque (M12) | 18.07 to 25.30 ft·lbf (24.5 to 34.3 N·m) | p. 59 |
| Fan belt size | A42 | p. 32 |
| Radiator cap pressure | 13.1 PSI (0.09 MPa) | p. 32 |
| Radiator fan quantity and diameter | 6 × Ø16.1 in. (Ø410 mm) | p. 32 |
| Thermostat opening temperature | 159.8 °F (71 °C) | p. 32 |
| Thermostat full-open temperature | 179.6 °F (82 °C) | p. 32 |
| Hydraulic oil tank capacity (In the tank) | 15.05 Gals. (57 L) | p. 29 |
| Hydraulic oil tank capacity (Other parts) | 11.35 Gals. (43 L) | p. 29 |
Yanmar B7-5B Common Problems This Manual Covers
Yanmar B7-5B hydraulic functions weak, erratic, or completely dead after pump or seal work p. 12
Bleed trapped air by cycling all implements through full range at low RPM before loading. Verify hydraulic oil is filled to 15.05 Gals. (57 L) in the tank (page 29). Confirm system pressure reaches 3553 PSI (24.5 MPa) per specs on page 28. Review seal handling cautions on page 12 to catch any twist or installation damage.
Manual Section: General Cautions for Maintenance WorkHydraulic leak reappears at fittings or hose ends shortly after line or valve reassembly p. 59
Inspect every fitting for damage and verify torque before closing up: M12 pipe joint bolts require 18.07 to 25.30 ft·lbf (24.5 to 34.3 N·m), per page 59. Clean all mating faces before installing new seals. Check hose routing for contact points; at operating pressure, hoses can change length by +2% to -4% (page 15).
Manual Section: Hydraulic EquipmentEngine overheating and coolant level dropping after recent radiator flush or hose replacement p. 32
Check the fan belt is the correct A42 size (page 32) and inspect for glazing or slack. Verify the thermostat begins opening at 159.8°F (71°C) and fully opens at 179.6°F (82°C). Confirm all coolant hose clamps are seated properly and the radiator cap holds 13.1 PSI (0.09 MPa). Flush the radiator core if airflow feels restricted.
Manual Section: EngineBucket curl or arm crowd feels sluggish and pressure seems low during normal digging p. 232
Check hydraulic oil is clean and at the correct 15.05 Gals. (57 L) tank level (page 29). Measure main pump output pressure against the 3553 PSI (24.5 MPa) maximum allowable (page 28). If pressure tests pass, work through the hydraulic system troubleshooting flow starting on page 684, focusing on control valve spool stroke and internal leakage.
Manual Section: Hydraulic SystemMonitor panel warning lamps, hourmeter, or work lights fail or behave erratically during operation p. 684
Check alternator output against its 55 A nominal rating (page 33). Inspect all harness connectors at the panel for corrosion, bent pins, or loose retention clips. Pull the wiring diagram to trace each circuit before swapping parts. Battery charge alarm, water temp alarm, and monitor lamp diagnostics are covered in the troubleshooting section starting page 684.
Manual Section: TroubleshootingFrequently Asked Questions
What does an error code mean on a YANMAR B7-5B excavator?
The manual provides a "Detected failure list" that explains what various "Lamp Number of flash" (error codes) mean. For example, "4" flashes indicate "Coolant temperature sensor failure" (Sensor voltage is 4.8 V or more, or 0.2 V or less), and "5" flashes indicate "Accelerator sensor failure" (Sensor voltage is 4.6 V or more, or 0.2 V or less). The list also includes the operation when failure occurs and the action/condition for recovery.
How do I reset the hydraulic system or monitor panel on a YANMAR B7-5B?
To release air from the hydraulic system after disassembly or parts replacement, put a specified quantity of hydraulic oil into the tank, keep the oil supply cap removed, install an air bleeder hose onto the bleeder valve and loosen it half a turn (inside diameter 0.20 in. [5 mm]), check that all air has been released, and then tighten the bleeder valve. For hydraulic cylinders, extend and retract the cylinder up to 2 to 4 inches (50 to 100 mm) from each stroke end slowly 4 or 5 times, then fully extend and retract 3 or 4 times.
What are the torque specs for YANMAR B7-5B track roller or undercarriage bolts?
For track roller bolts, the tightening torque is 274.9 to 296.6 ft·lbf (372.7 to 402.1 N·m) for M20 bolts. For the plug R (PT) 1/8 in the track roller, the tightening torque is 6.05 to 7.23 ft·lbf (8.2 to 9.8 N·m).
How to enter diagnostic mode on YANMAR B7-5B
To enter diagnostic mode, open the cover under the operator's seat, disconnect the coupler, and connect the diagnostics service tool to the coupler. Then, turn the starter switch key to the "ON" position, start the diagnostic service tool software, and turn the starter switch key to the "START" position.
How quickly can I access this manual after buying?
A 725-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Service Manual have electrical diagrams?
Yes, this Yanmar B7-5B Service Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
