Part of the Yanmar Repair Manuals.
A Yanmar L48N that cranks sweetly and never fires will eat a whole morning before you even open the fuel system, and the answer is usually somewhere in these 104 pages: air in the lines, a lever left in the wrong position, or a filter that was due at 200 hours. This is Yanmar's own operation manual (publication 0ALN0-G00100) for the L48N, L70N and L100N air cooled industrial diesels, in English, as a searchable, bookmarked PDF.
It walks through daily checks, fuel and oil specifications, recoil and electric starting, engine speed adjustment, the full periodic maintenance schedule, troubleshooting charts, and long term storage. Oil capacities, fuel tank capacities, and general specifications for all three engines sit in the back.
Whether your L-N series engine drives a pump, a generator, or sits on a stand, this is the book that gets the intervals and the part numbers right the first time, down to the outlet fuel filter.
What's Inside This Yanmar L48N, L70N, L100N Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3-4 | Record of Ownership, Table of Contents |
| Yanmar Warranties | 9-12 | Yanmar Limited Warranty (What Is Covered by This Warranty?, How Long Is the Warranty Period?, What the Engine Owner Must Do:, To Locate an Authorized Yanmar Industrial Engine Dealer or Distributor:, What Yanmar Will Do:, What Is Not Covered by This Warranty?, Warranty Limitations:, Warranty Modifications:, Questions:, Retail Purchaser Registration) |
| Safety | 13-24 | Safety Statements, Safety Precautions (Before You Operate, During Operation and Maintenance) |

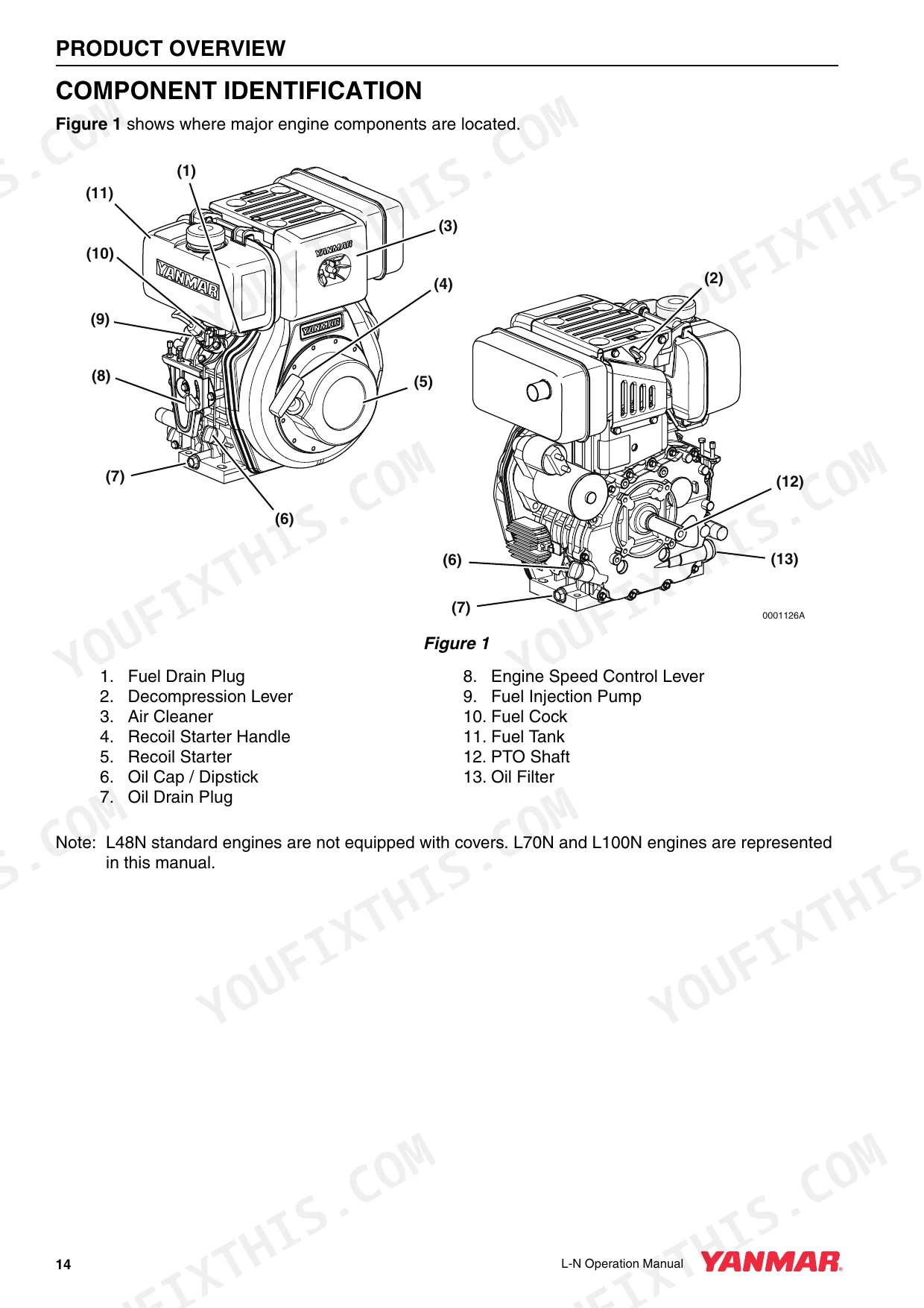

| Product Overview | 25-32 | Yanmar L-N Series Engine Features and Applications, Component Identification, Location of Labels, Major Engine Components, Air Cooled Engine |

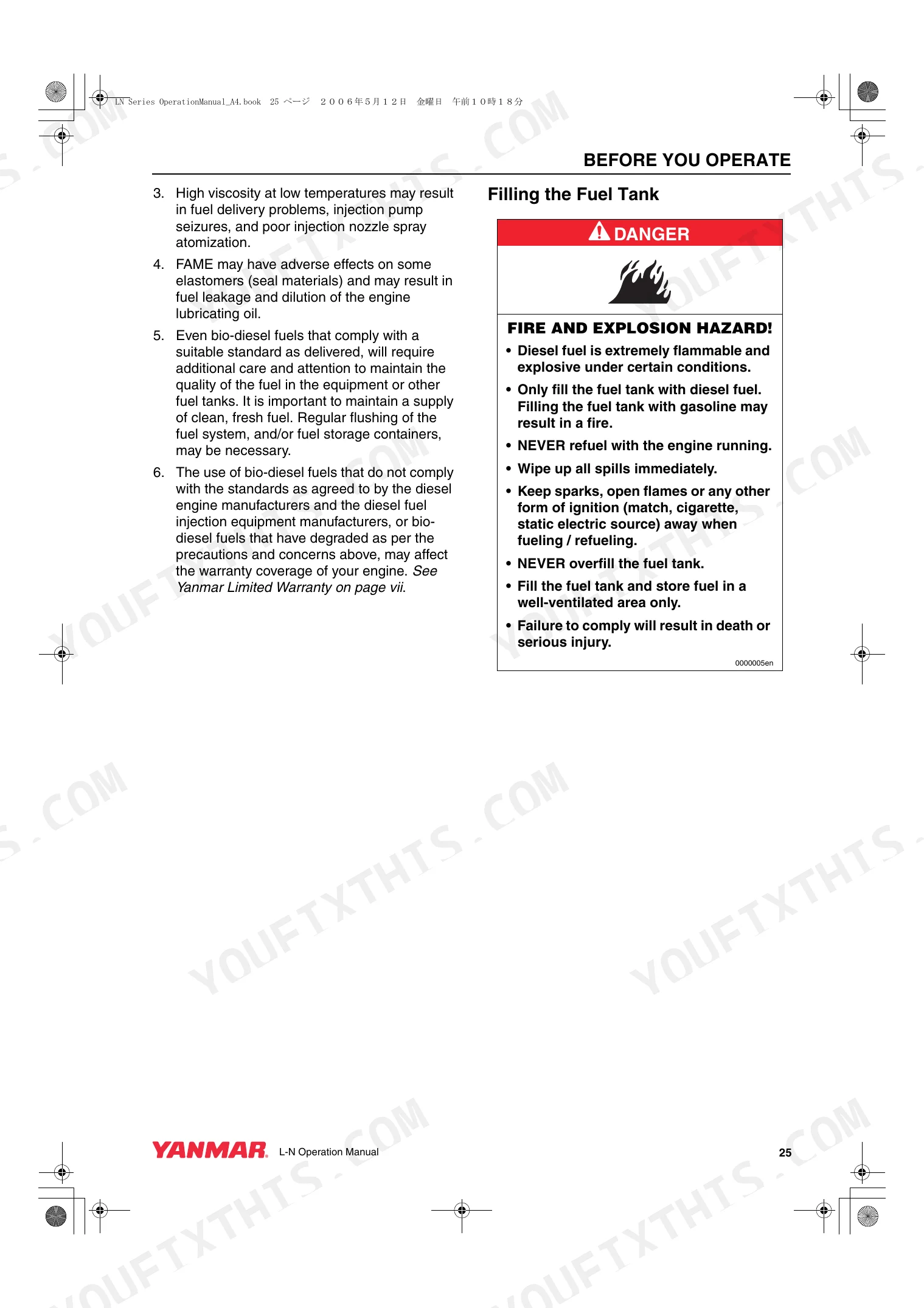

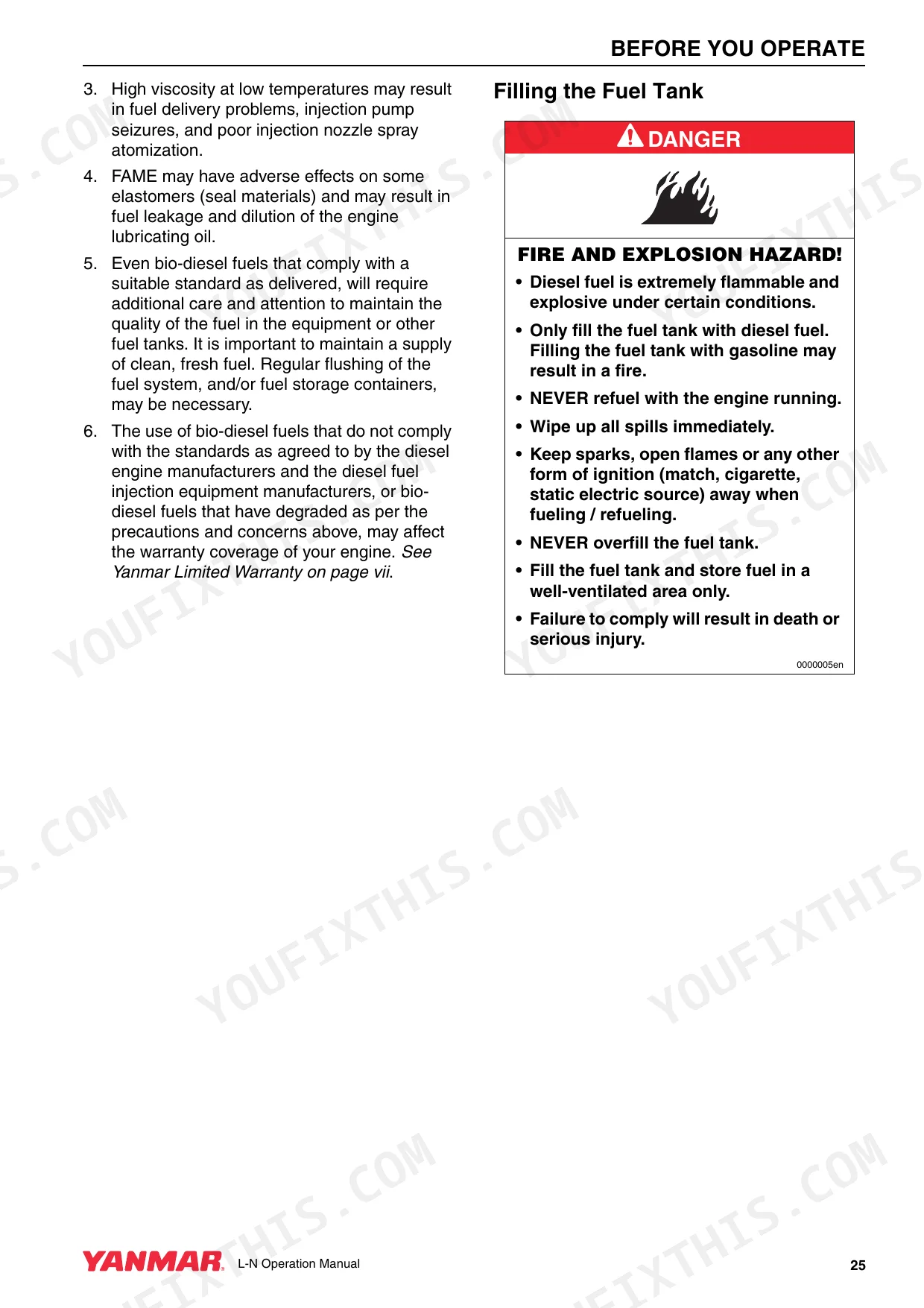

| Before You Operate | 33-42 | Diesel Fuel (Specifications, Filling the Fuel Tank), Engine Oil (Specifications, Viscosity, Checking Engine Oil, Adding Engine Oil, Capacity) |

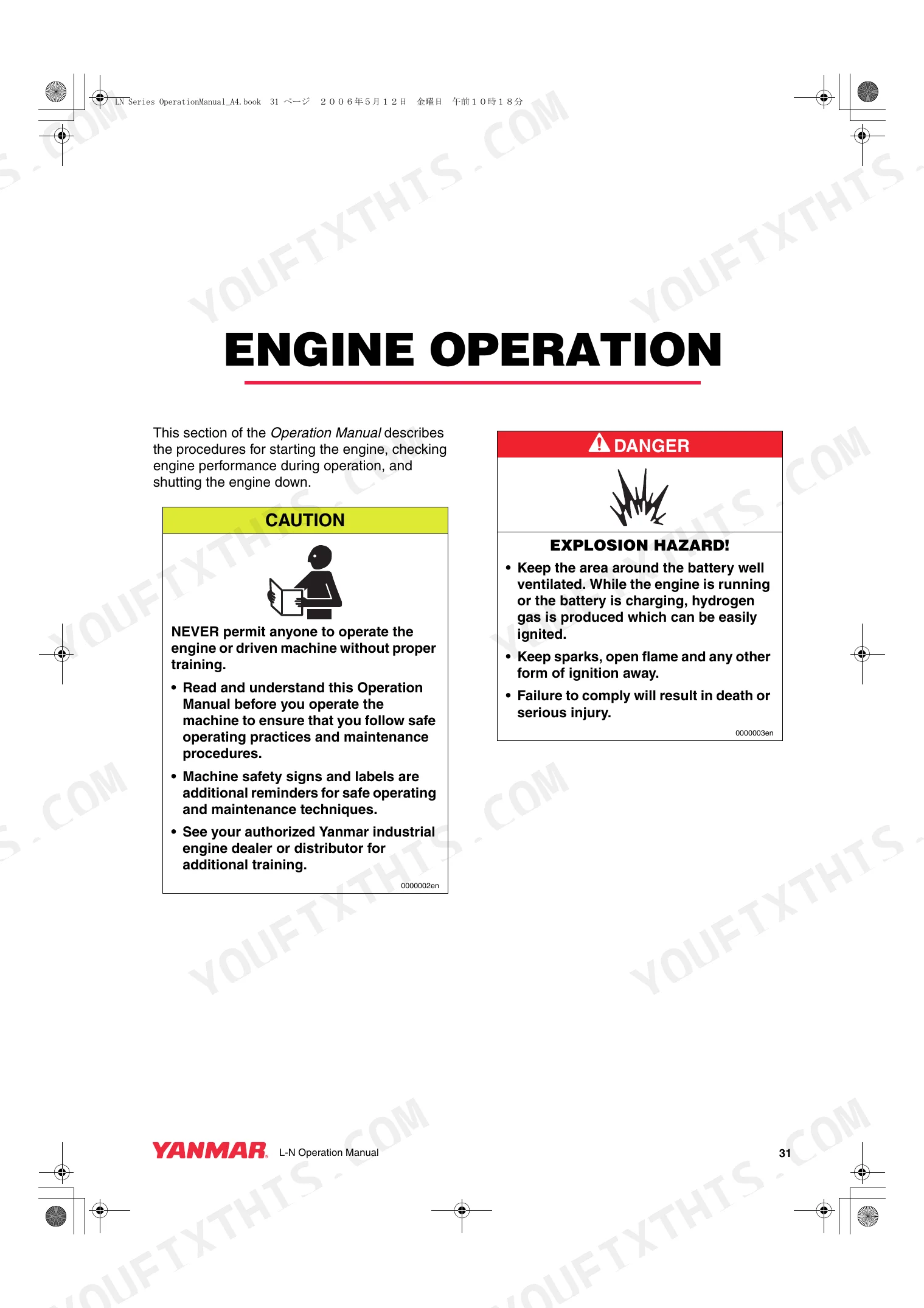

| Engine Operation | 43-58 | Starting the Engine (Recoil Start, Electric Start), Check the Engine During Operation, Adjust Engine Speed |
| Periodic Maintenance | 59-90 | Precautions (Importance of Periodic Maintenance, Performing Periodic Maintenance, Importance of Daily Checks, Keep a Log of Engine Hours and Daily Checks, Yanmar Replacement Parts, Tools Required, Ask Your Authorized Yanmar Industrial Engine Dealer or Distributor for Help, Tightening Fasteners) |

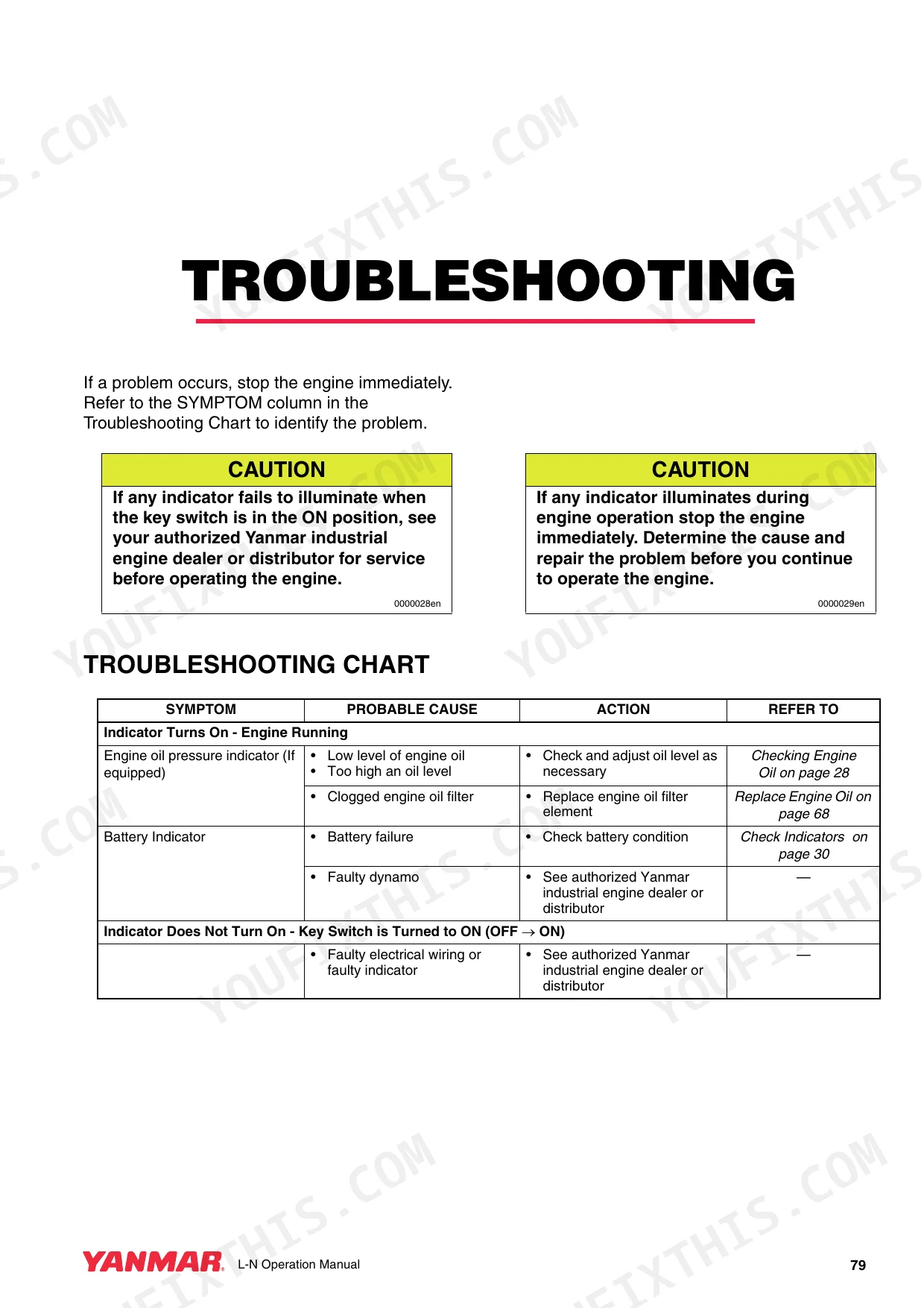

| Troubleshooting | 91-94 | Troubleshooting Chart, Troubleshooting Information |
| Long Term Storage | 95-98 | Before You Place the Engine in Long Term Storage, Returning the Engine to Service |
| Specifications | 99-103 | General (Model Number, Engine Speed Specifications, Engine General Specifications), Principal Engine Specifications, Engine Specifications |

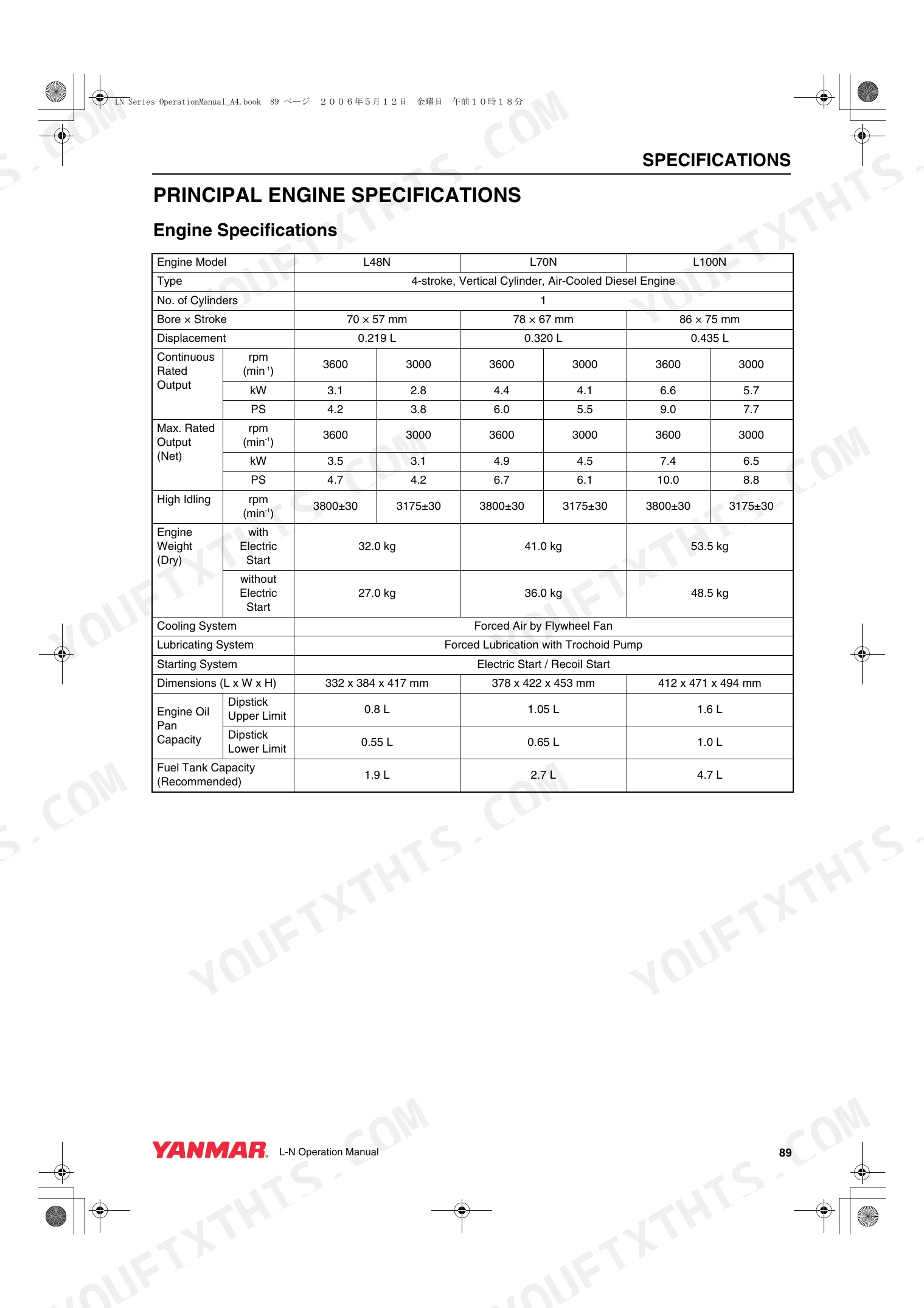

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| L48N, L70N, L100N | ||
| Outlet Fuel Filter Part No. | 114250-55121 | p. 86 |
| All Models | ||
| Outlet Fuel Filter Replacement Interval | Every 200 hours | p. 72 |
| Fuel Injection Nozzle Inspection/Cleaning/Test Interval | Every 1500 hours | p. 72 |
| Intake / Exhaust Valve Clearance Adjustment Interval | Every 400 hours | p. 72 |
| Ambient Temperature Limit (Overheating Risk) | Above +40°C | p. 22 |
| Engine Oil Change Interval | 200 hours | p. 72 |
| L48N | ||
| Engine Oil Capacity (Dipstick Upper Limit), L48N | 0.80 L | p. 41 |
| Fuel Tank Capacity (Recommended), L48N | 1.9 L | p. 101 |
| L70N | ||
| Engine Oil Capacity (Dipstick Upper Limit), L70N | 1.05 L | p. 41 |
| Fuel Tank Capacity (Recommended), L70N | 2.7 L | p. 101 |
| L100N | ||
| Engine Oil Capacity (Dipstick Upper Limit), L100N | 1.6 L | p. 41 |
| Fuel Tank Capacity (Recommended), L100N | 4.7 L | p. 101 |
Yanmar L48N, L70N, L100N Common Problems This Manual Covers

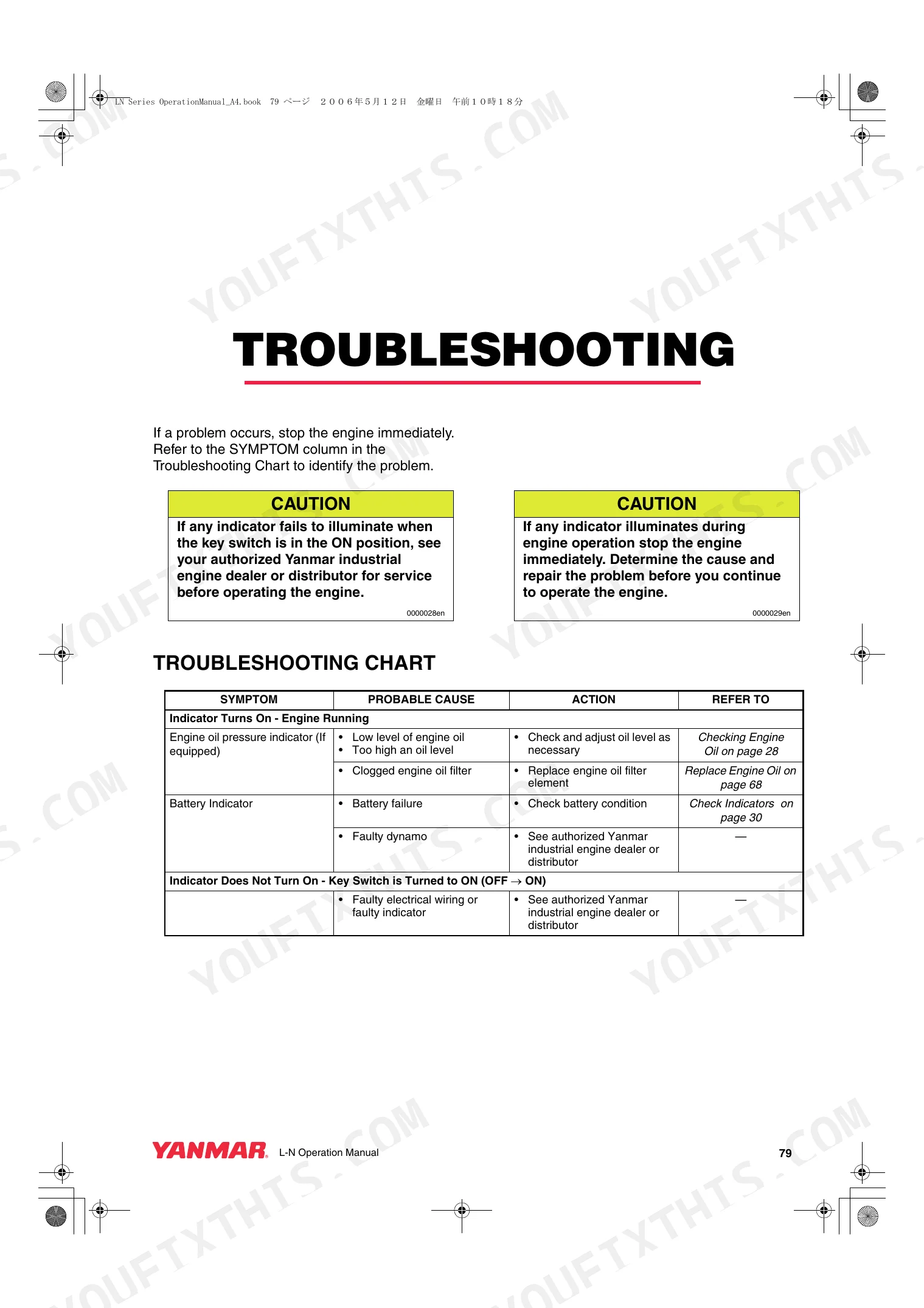

Cranks but will not fire
After a filter change or running the tank dry, air in the fuel system will keep one of these single cylinder diesels from lighting no matter how hard you pull. The troubleshooting chart works from fuel supply through compression in order, so you stop guessing and start checking.
Manual Section: Troubleshooting p. 91Hard starting from tight valves
Valve lash closes up as the seats wear, and a tight intake or exhaust valve bleeds off compression until the engine refuses to start cold. The manual schedules valve clearance adjustment every 400 hours to catch it before a valve burns.
Manual Section: Periodic Maintenance p. 59Fuel starvation from clogged filter
Surging, dying under load, or a gradual loss of power usually traces back to a dirty outlet fuel filter or inlet screen. The maintenance schedule calls for both every 200 hours and lists the outlet filter part number (114250-55121), so you order the right part once.
Manual Section: Periodic Maintenance p. 59No start after months in storage
Stale fuel and dry cylinders make any small diesel miserable after a season on the shelf, and hours disappear while it sits dead. The storage section covers both directions: preparing the engine for long term storage and the steps for returning it to service.
Manual Section: Long Term Storage p. 95Overheating in high ambient temperatures
These engines shed heat through fins and blower air alone, and the manual flags operation above +40°C as a risk. The safety precautions lay out the operating limits and airflow warnings before heat stress turns into scored bores.

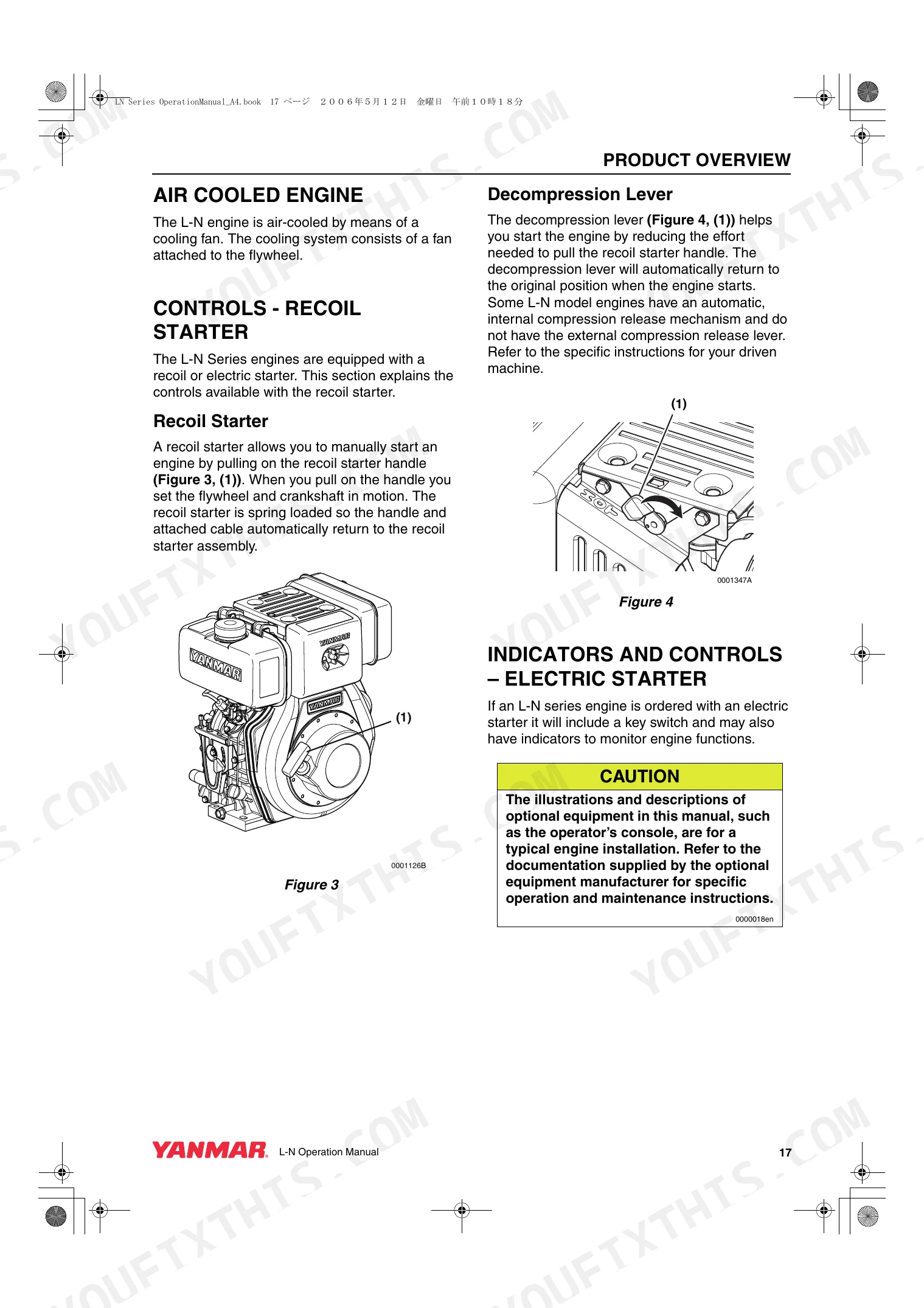

Manual Section: Safety p. 13Decompression lever and recoil start trouble
A recoil starter that snaps back or never spins the crank fast enough often comes down to misusing the decompression lever. The overview explains the lever, the recoil and electric start controls, and the indicators, so you know what each one is supposed to do.
Manual Section: Product Overview p. 25Frequently Asked Questions
Which engines does this manual cover?
The Yanmar L48N, L70N, and L100N air cooled industrial diesel engines, the L-N series. It is Yanmar publication 0ALN0-G00100, written in English, 104 pages, and applies whether the engine runs a generator, a pump, or other equipment.
Does it include the maintenance schedule and service intervals?
Yes. The Periodic Maintenance section carries the schedule: engine oil every 200 hours, the outlet fuel filter every 200 hours, valve clearance adjusted every 400 hours, and the fuel injection nozzles inspected, cleaned and tested every 1,500 hours, along with the daily checks and the tightening-fastener precautions. p. 59
What are the engine oil capacities for the Yanmar L48N, L70N, L100N?
To the dipstick upper limit: 0.80 L for the L48N, 1.05 L for the L70N, and 1.6 L for the L100N. Oil specifications, viscosity selection, and the checking and filling procedures are all in the Before You Operate section. p. 33
Will it help with an engine that cranks but will not start?
Yes. The Troubleshooting section has a chart that works through no-start, hard starting, and running faults symptom by symptom, and Engine Operation covers the correct recoil and electric starting procedures, including decompression lever use. p. 91
What format is this manual in?
A 104-page Operation Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
