Before you trust a torque figure from a forum thread, check the cover of this PDF: publication 0ALN0-G00101 is Yanmar's own operation manual for the L48N, L70N, and L100N air-cooled industrial diesels, exactly as it left the factory. A guessed fastener torque or an invented oil capacity is how a small diesel ends up with a cracked case or a scored bore, and this book replaces guessing with Yanmar's printed numbers, including a standard tightening chart that puts an M10x1.5 bolt at 49.0 N-m.
Inside the 82 pages you get diesel fuel and engine oil specifications, recoil and electric starting procedures, daily checks, periodic maintenance schedules, a troubleshooting chart, long term storage steps, and full specification tables for all three models.
With 132 bookmarks in the file, you can land on the troubleshooting chart on page 69 or the specification tables from page 77 in two clicks.
What's Inside This Yanmar L48N, L70N, L100N Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3-4 | Record of Ownership |
| Yanmar Warranties | 9-12 | Yanmar Limited Warranty (What Is Covered by This Warranty?, How Long Is the Warranty Period?, What the Engine Owner Must Do:, To Locate an Authorized Yanmar Industrial Engine Dealer or Distributor:, What Yanmar Will Do:, What Is Not Covered by This Warranty?, Warranty Limitations:, Warranty Modifications:, Questions:, Retail Purchaser Registration) |
| Safety | 13-22 | Safety Statements, Safety Precautions (Before You Operate, During Operation and Maintenance) |
| Product Overview | 23-30 | Yanmar L-N Series Engine Features and Applications, Component Identification, Location of Labels, Major Engine Components, Air Cooled Engine |
| Before You Operate | 31-38 | Diesel Fuel (Specifications, Filling the Fuel Tank), Engine Oil (Specifications, Viscosity, Checking Engine Oil, Adding Engine Oil, Capacity) |

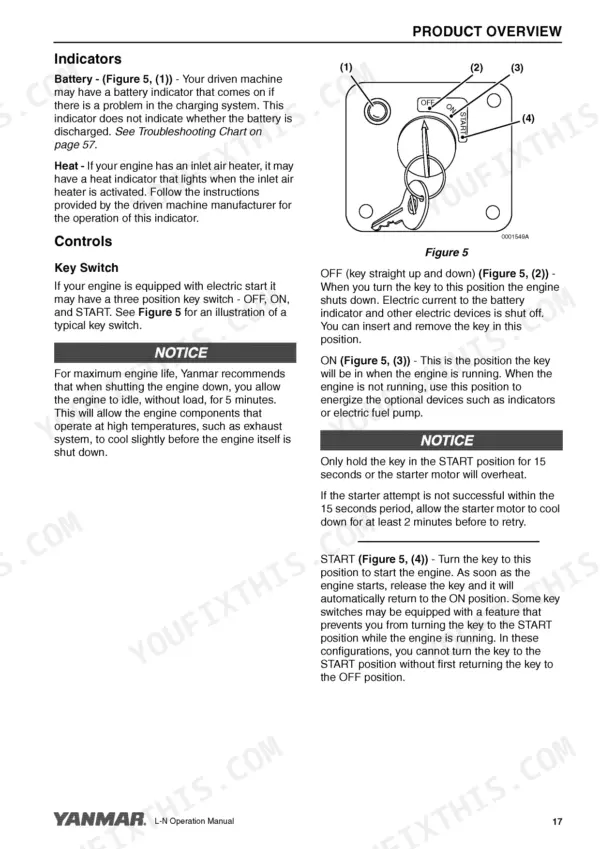

| Engine Operation | 39-48 | Starting the Engine (Recoil Start, Electric Start), Check the Engine During Operation, Adjust Engine Speed |
| Periodic Maintenance | 49-68 | Precautions (Importance of Periodic Maintenance, Performing Periodic Maintenance, Importance of Daily Checks, Keep a Log of Engine Hours and Daily Checks, Yanmar Replacement Parts, Tools Required, Ask Your Authorized Yanmar Industrial Engine Dealer or Distributor for Help, Tightening Fasteners) |
| Troubleshooting | 69-72 | Troubleshooting Chart, Troubleshooting Information |
| Long Term Storage | 73-76 | Before You Place the Engine in Long Term Storage, Returning the Engine to Service |

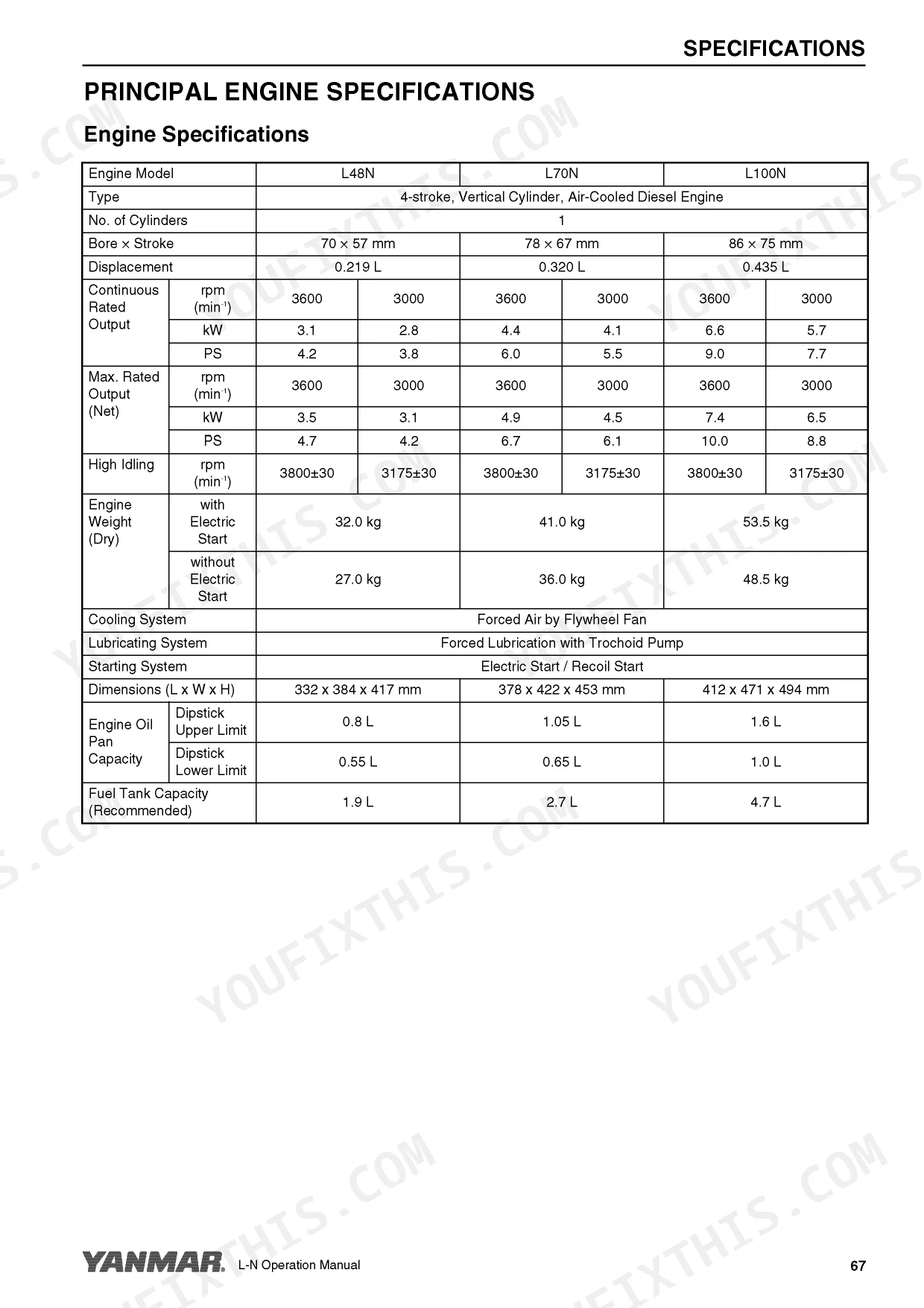

| Specifications | 77-81 | General (Model Number, Engine Speed Specifications, Engine General Specifications), Principal Engine Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Air cleaner element cleaning interval | Every 100 hours (air blow) | p. 26 |
| Ambient temperature for potential overheating/oil breakdown | +40°C | p. 19 |
| Maximum engine installation angle for satisfactory oil pressure | 20° (continuously running), 30° (short periods less than 3 minutes) | p. 20 |
| Standard Bolt Torque (M10x1.5) | 49.0 ± 4.9 N-m | p. 51 |
Yanmar L48N, L70N, L100N Common Problems This Manual Covers
Cranks but will not start
Air in the fuel line or a stuck injection pump plunger is the usual culprit on these engines, especially after fuel system service. The troubleshooting chart walks the symptom back through fuel, intake, and starting causes before you begin pulling parts.
Manual Section: Troubleshooting p. 69Engine keeps running after shutdown
A fuel shutoff fault can leave the engine running with the control at STOP. The shutdown procedure covers the normal stop and what to do when the engine does not respond, including closing the fuel cock.
Manual Section: Engine Operation p. 39Overheating and oil breakdown in hot weather
Above an ambient temperature of 40°C these air-cooled engines can overheat and break the oil down, with heavy damage to the moving parts following close behind. The safety precautions spell out that limit before the damage is done.
Manual Section: Safety p. 13White smoke on an angled installation
Run the engine at more than 20 degrees of tilt continuously, or past 30 degrees even briefly, and oil enters the combustion chamber, causing white smoke, excessive speed, and poor oil pressure. The manual gives the exact angle limits so you can check the mounting before blaming the rings.
Manual Section: Safety p. 13Power fade from a clogged air cleaner

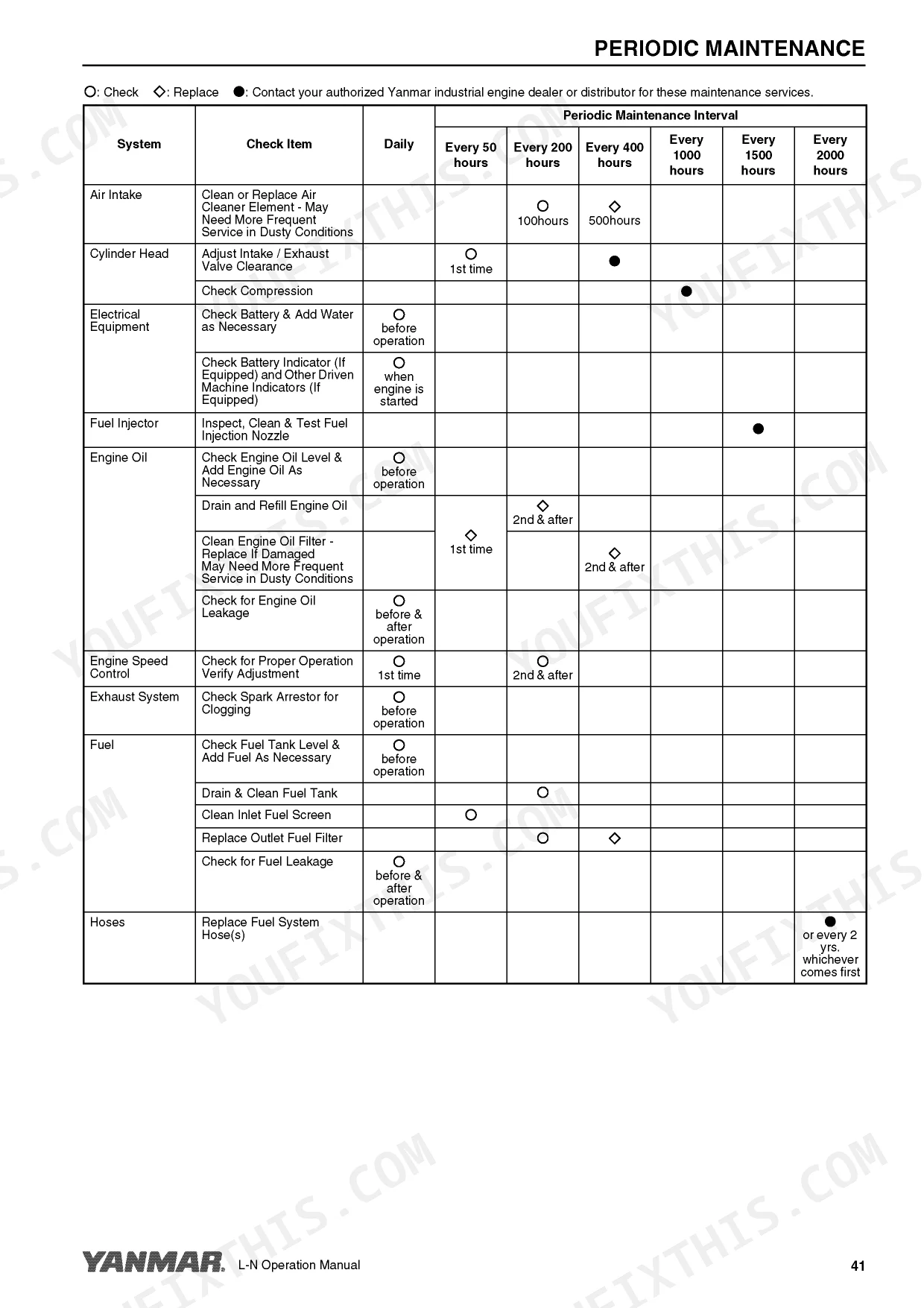

A diesel working in dust plugs its filter element fast, and power drops with it. The manual sets the element cleaning interval at every 100 hours with compressed air and lays out the rest of the service schedule alongside it.
Manual Section: Periodic Maintenance p. 49No-start after months in storage
Fuel left sitting gums up the injection system, and a stored engine often refuses to fire when it comes back out. Following the storage preparation and return-to-service steps saves you from bleeding lines and chasing stuck plungers later.
Manual Section: Long Term Storage p. 73Hard cold starting on the wrong oil

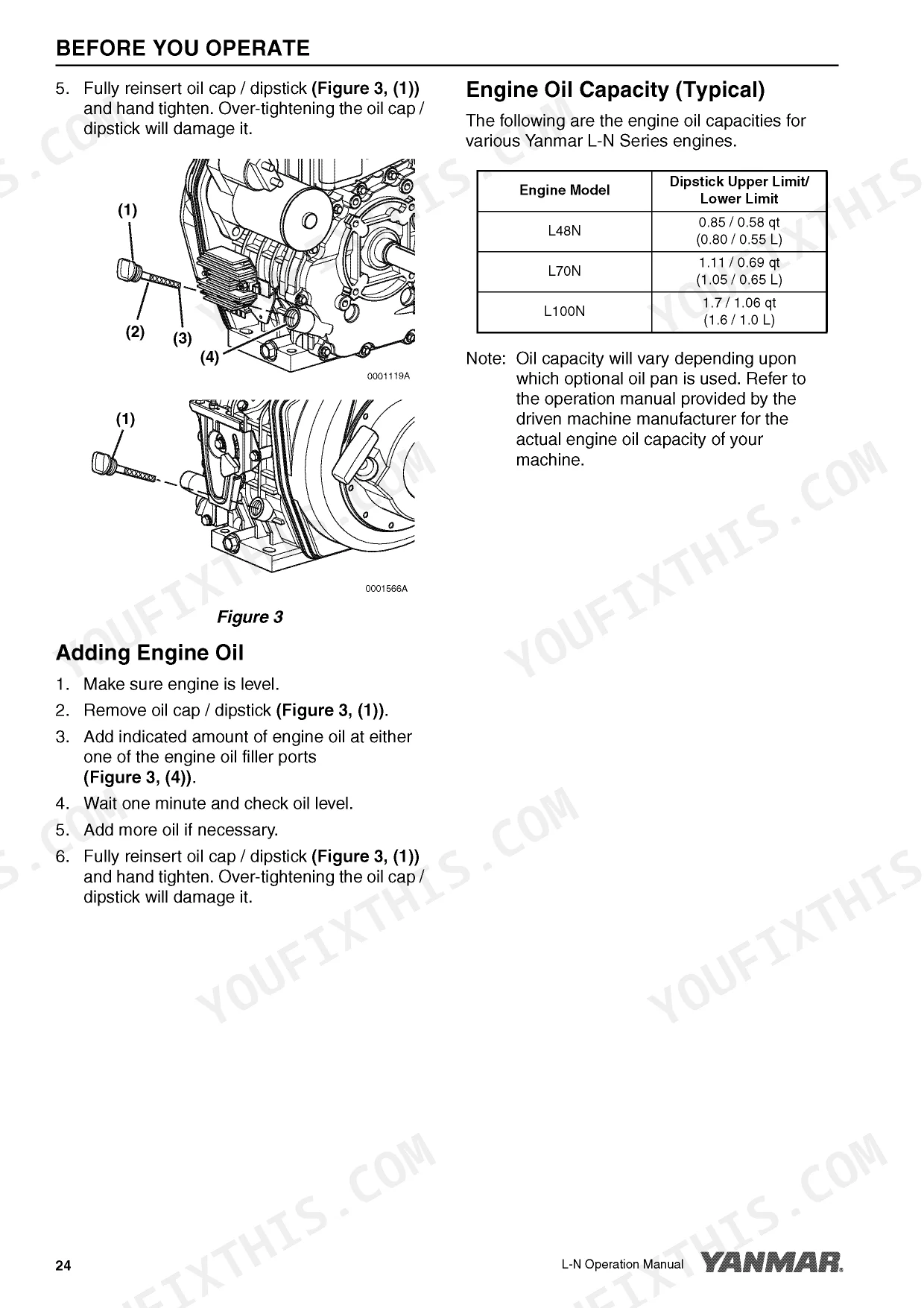

Oil that is too heavy for the season drags the crank down and makes recoil starting a fight. The engine oil viscosity and specification pages tell you what to fill with before temperatures drop.
Manual Section: Before You Operate p. 31Frequently Asked Questions
Which Yanmar engines does this manual cover?

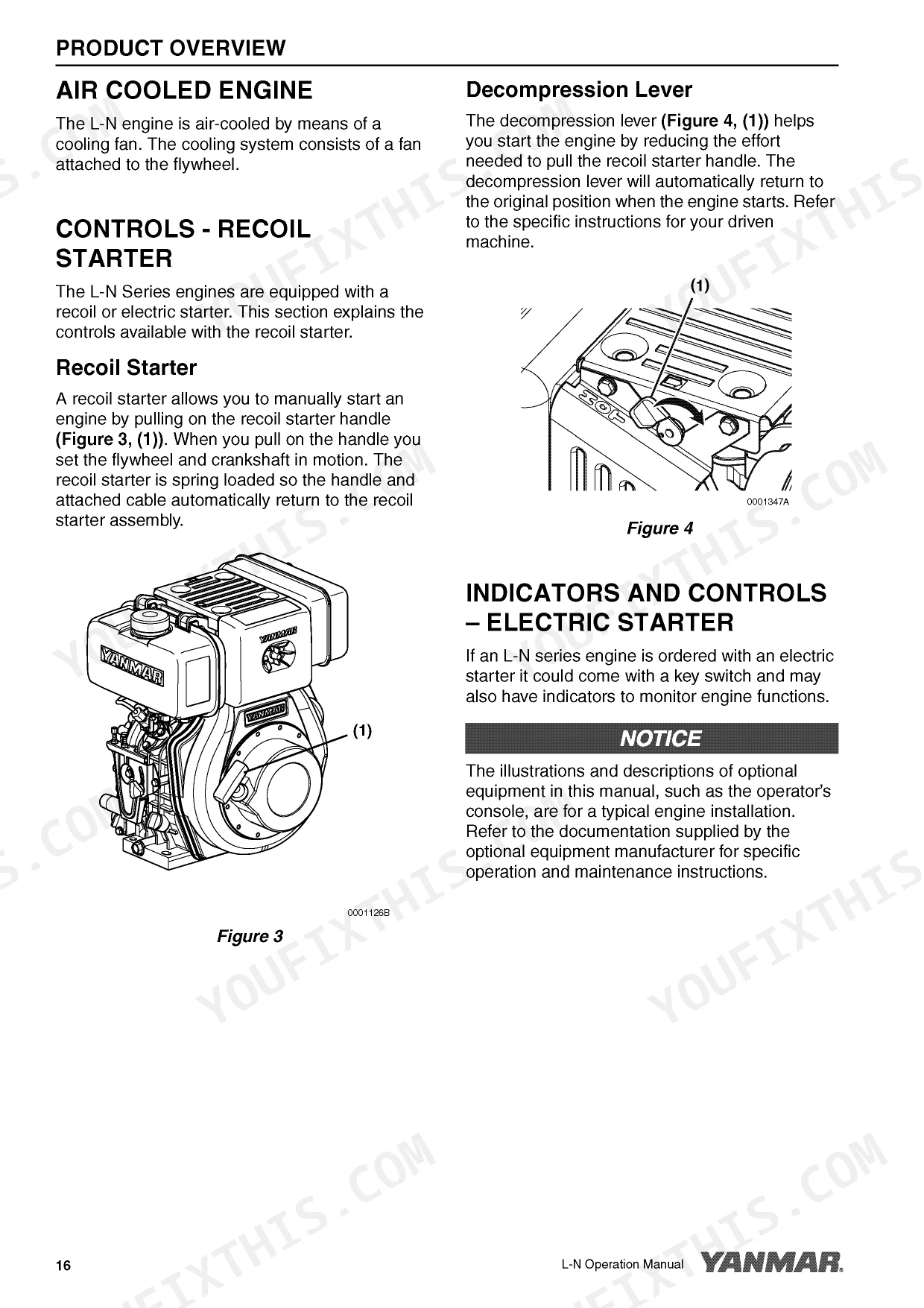

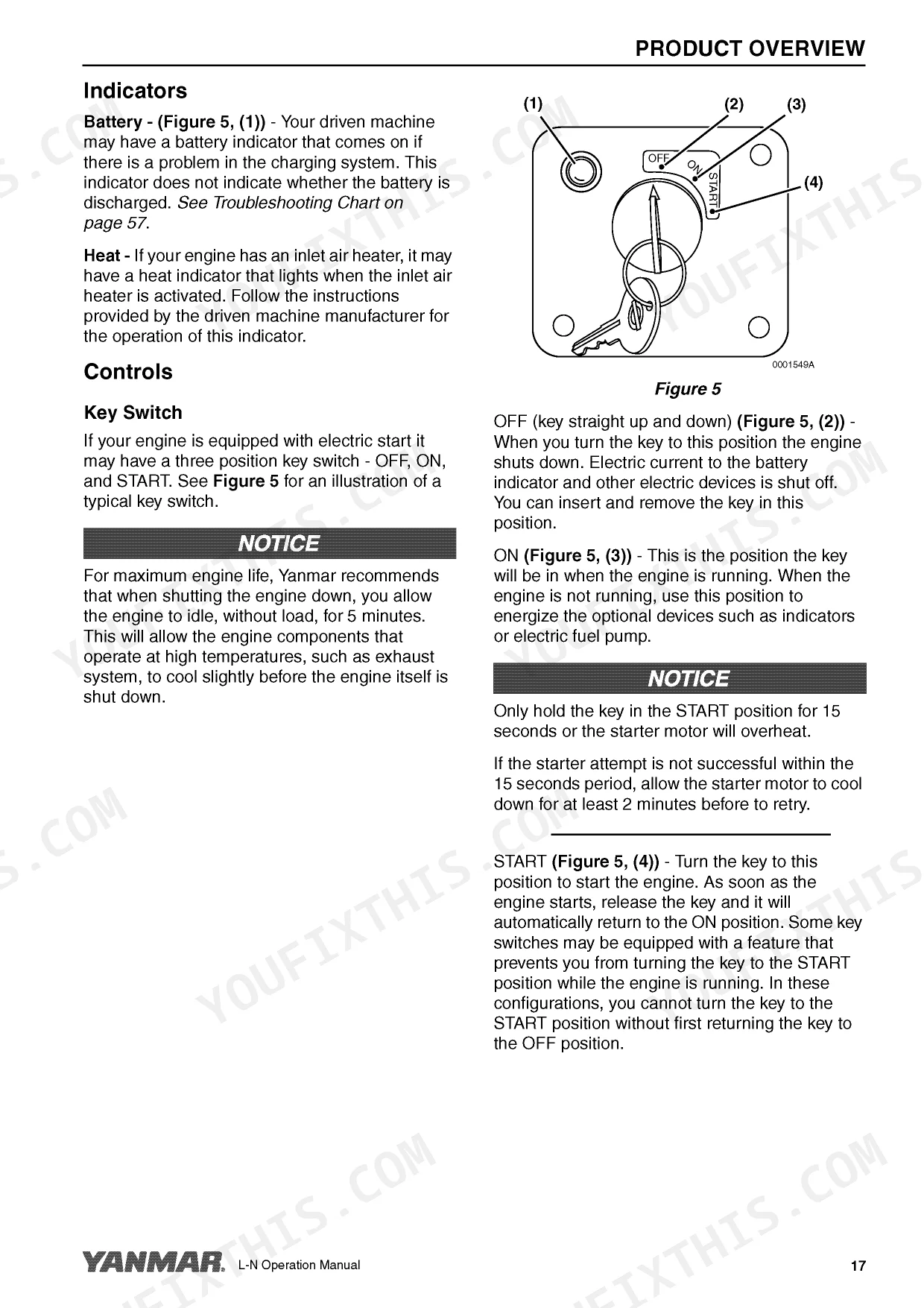

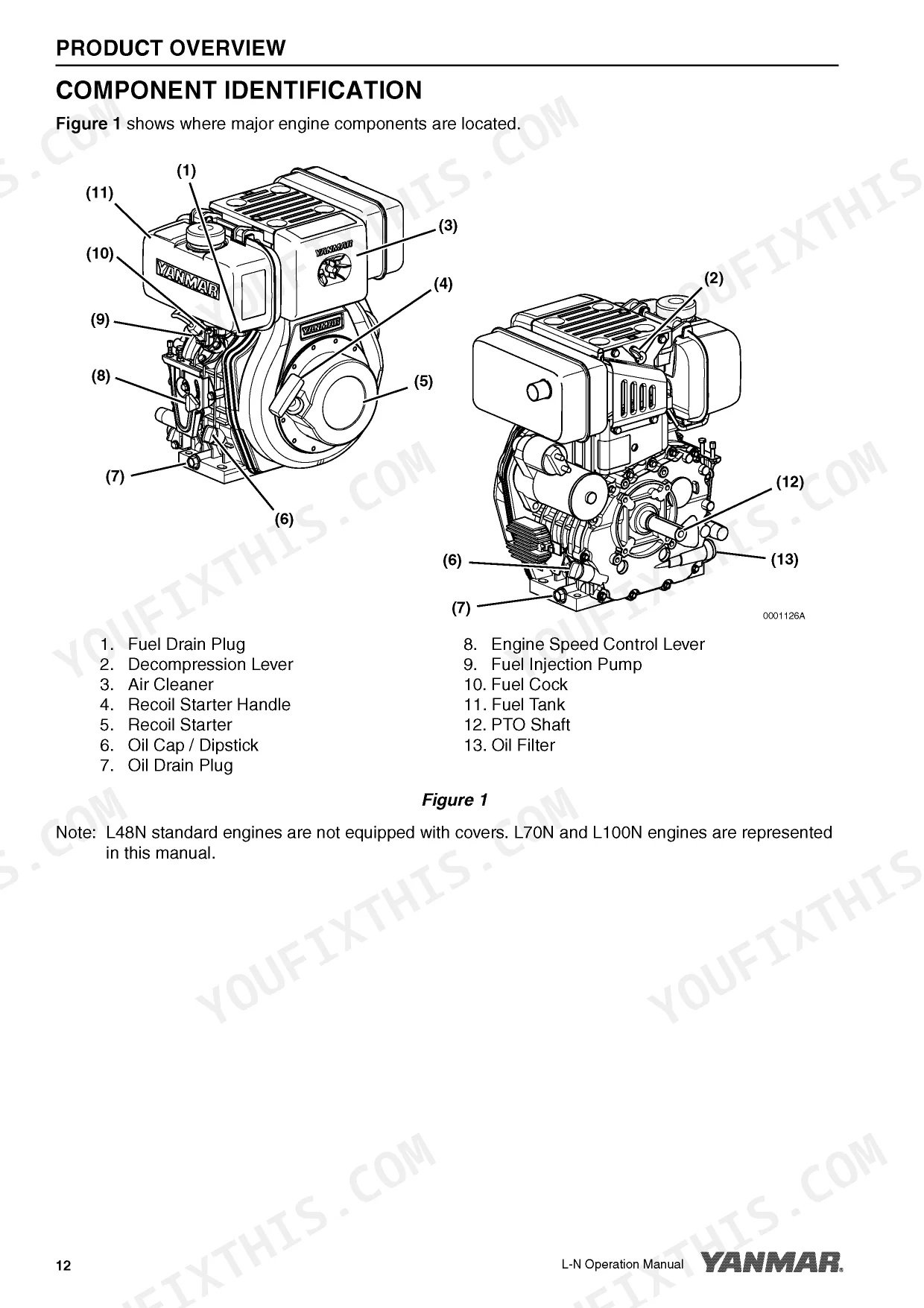

It covers the Yanmar L-N series air-cooled industrial diesels: L48N, L70N, and L100N. The Product Overview section identifies components, labels, and controls for both recoil-start and electric-start versions. p. 23
Is this a full workshop manual with rebuild clearances?
No. This is Yanmar's factory operation manual, publication 0ALN0-G00101. It covers operation, daily checks, maintenance schedules, troubleshooting, storage, and specification tables, not teardown data like bearing clearance or ring end gap. For running, servicing, and diagnosing these engines, it is the right book.
Does it include torque and maintenance specifications?
Yes. The Periodic Maintenance section includes a standard fastener tightening chart — an M10x1.5 bolt takes 49.0 ± 4.9 N-m (page 51) — along with service intervals, and the Specifications section carries the rest. p. 49
My engine cranks but will not start. Will this help?

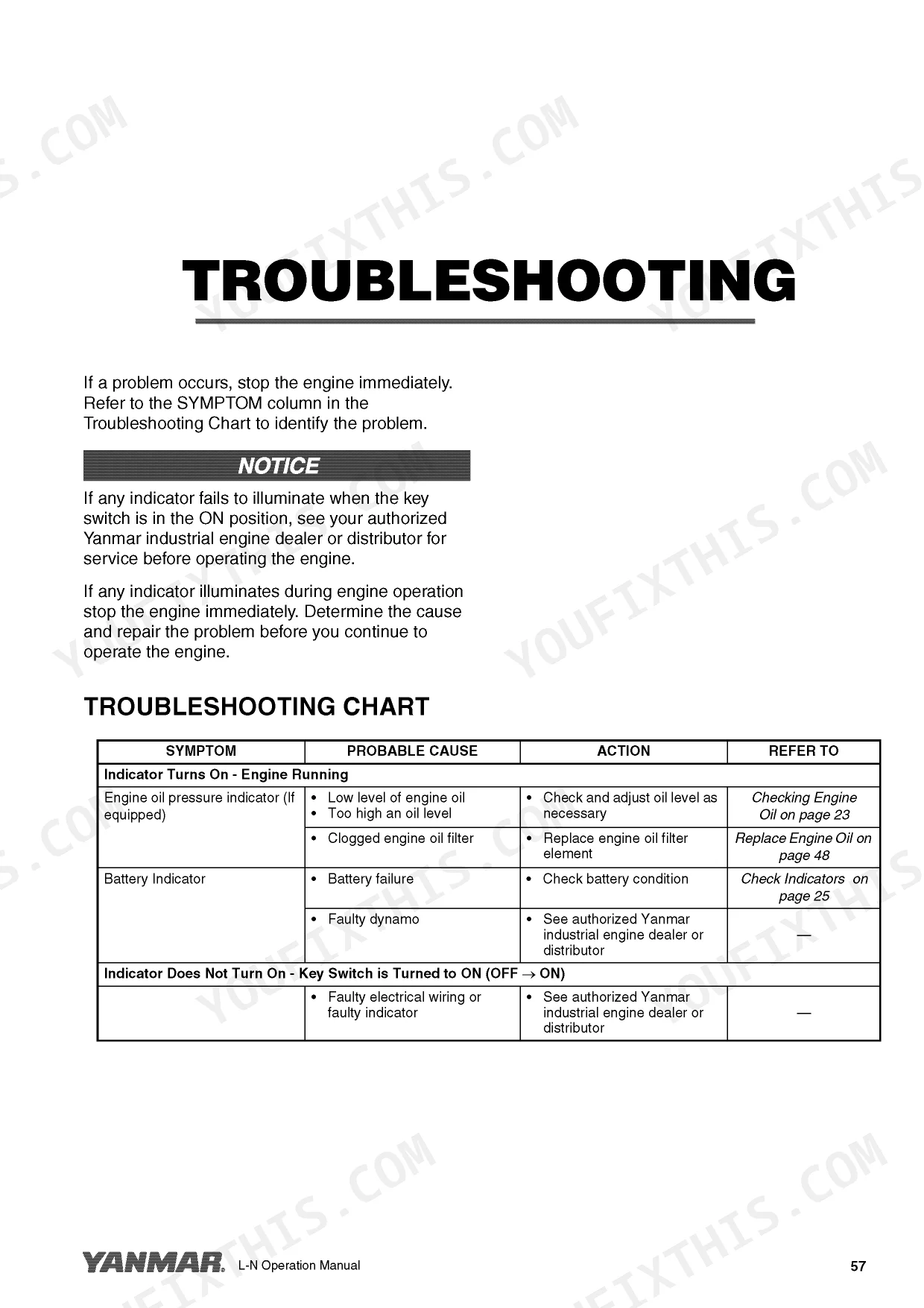

The Troubleshooting section includes a chart that works through starting failures step by step, and the Before You Operate and Engine Operation sections cover fuel, oil checks, and the correct recoil and electric starting procedures that prevent most no-starts in the first place. p. 69
Is this manual a download or a disc?
A 82-page Operation Manual in searchable PDF format (5 MB), available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
