The rocker cover is off, the feeler gauge is in your hand, and the job stalls until you know the lash. This manual puts the number on the page, 0.006 ± 0.002 in. (0.15 ± 0.05 mm) for intake and exhaust, with the full procedure around it. It is Yanmar's own service manual, publication 0BLN0-G00100, for the L48N, L70N, and L100N industrial engines, whether yours is still mounted or already stripped on a stand.
Across 255 pages it works through periodic maintenance, engine disassembly and measurement including the cylinder head, the fuel system from operation theory to components, starter and charging system service, wiring, and troubleshooting built around compression testing. Specifications and special service tools open each chapter, so clearances and torque values sit where you expect them.
The PDF carries 284 bookmarks, so a symptom becomes the right procedure in a couple of clicks, not a hunt through loose paper.
What's Inside This Yanmar L48N, L70N, L100N Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 1-9 | Model Overview, How to Use This Manual, Model Identification |
| Yanmar Warranties | 10-15 | Yanmar Limited Warranty, Warranty |
| Safety | 16-33 | - |
| General Service Information | 34-55 | Component Identification, Location of Labels, Specifications, Major Engine Components, Diesel Fuel, Engine Oil, Abbreviations and Symbols, Unit Conversions |
| Periodic Maintenance | 56-91 | Before You Begin Servicing, Periodic Maintenance Schedule, Periodic Maintenance Procedures |
| Engine | 92-159 | Before You Begin Servicing, Introduction, Specifications, Special Service Tools, Measuring Instruments, Cylinder Head |
| Fuel System | 160-191 | Before You Begin Servicing, Introduction, Specifications, Special Service Tools, Measuring Instruments, Fuel System Operation, Fuel System Diagram, Fuel System Components |
| Starter | 192-215 | Before You Begin Servicing, Introduction, Specifications, Special Service Tools, Measuring Instruments, Electric Starter Motor Components (Standard) |
| Charging System | 216-233 | Before You Begin Servicing, Introduction, Specifications, Special Service Tools, Measuring Instruments, Charging System Operation, Charging System Wiring Diagrams |
| Electric Wiring | 234-241 | Electric Wiring Precautions, Electrical Wire Resistance, Battery Cable Resistance (If Equipped), Electrical Wire Sizes - Voltage Drop, Conversion of Awg to European Standards |
| Troubleshooting | 242-254 | Before You Begin Servicing, Introduction, Specifications, Measuring Instruments, Troubleshooting by Measuring Compression Pressure, Troubleshooting Quick Reference Charts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Valve Clearance - Intake / Exhaust | 0.006 ± 0.002 in. (0.15 ± 0.05 mm) | p. 96 |
| Pinion Projection Length (Length L) | 0.012 - 0.059 in. (0.3 - 1.5 mm) | p. 197 |
| Pinion DP or Module / Number of Teeth | 8 | p. 196 |
| Valve Clearance | 0.006 ± 0.002 in. (0.15 ± 0.05 mm) | p. 39 |
Yanmar L48N, L70N, L100N Common Problems This Manual Covers
Cranks but will not fire
Air drawn into the fuel line or a stuck plunger in the injection pump will keep one of these engines spinning without a hint of combustion. The Fuel System chapter lays out system operation, the fuel diagram, and each component so you can trace the fault from tank to injector.
Manual Section: Fuel System p. 160Low compression, hard starting
Worn or stuck rings, sticking valves, or lash that has closed up will bleed away compression until the engine will not light off. The Engine chapter covers specifications, measuring instruments, and cylinder head work needed to find and correct the wear.
Manual Section: Engine p. 92Valve lash drifts out of spec
Lash on these engines tightens with seat wear, and running with no clearance holds a valve off its seat. The Periodic Maintenance chapter schedules the check and gives the adjustment procedure.
Manual Section: Periodic Maintenance p. 56Starter pinion or ring gear damage
Hitting the starter with the engine already running chews the pinion and ring gear, and after that engagement gets noisy or fails outright. The Starter chapter covers the electric starter motor components with specifications and the measuring instruments to check them.
Manual Section: Starter p. 192Battery goes flat between runs
A charging fault leaves you bleeding fuel and swapping batteries when the real problem is upstream. The Charging System chapter explains system operation and includes the charging system wiring diagrams for step-by-step testing.
Manual Section: Charging System p. 216Voltage drop in undersized wiring
Long or thin battery cables rob the starter of current and mimic a weak battery. The Electric Wiring chapter covers wire and battery cable resistance, wire sizes versus voltage drop, and AWG to European size conversion.
Manual Section: Electric Wiring p. 234No-start with no obvious cause
When fuel, compression, and electrics all look plausible, guessing gets expensive. The Troubleshooting chapter works from measured compression pressure and quick reference charts to narrow the fault before you pull anything apart.
Manual Section: Troubleshooting p. 242Frequently Asked Questions
Which engines does this manual cover?
It covers the Yanmar L48N, L70N, and L100N industrial engines. It is Yanmar publication 0BLN0-G00100, and the same procedures apply regardless of what equipment the engine is installed in.
What is the valve clearance for Yanmar L48N, L70N, L100N engines?
The manual specifies 0.006 ± 0.002 in. (0.15 ± 0.05 mm) for both intake and exhaust on all three models. The Engine chapter's specifications pages carry this alongside the other clearances you need at reassembly. p. 96
Does it cover the fuel injection pump and bleeding air from the fuel system?

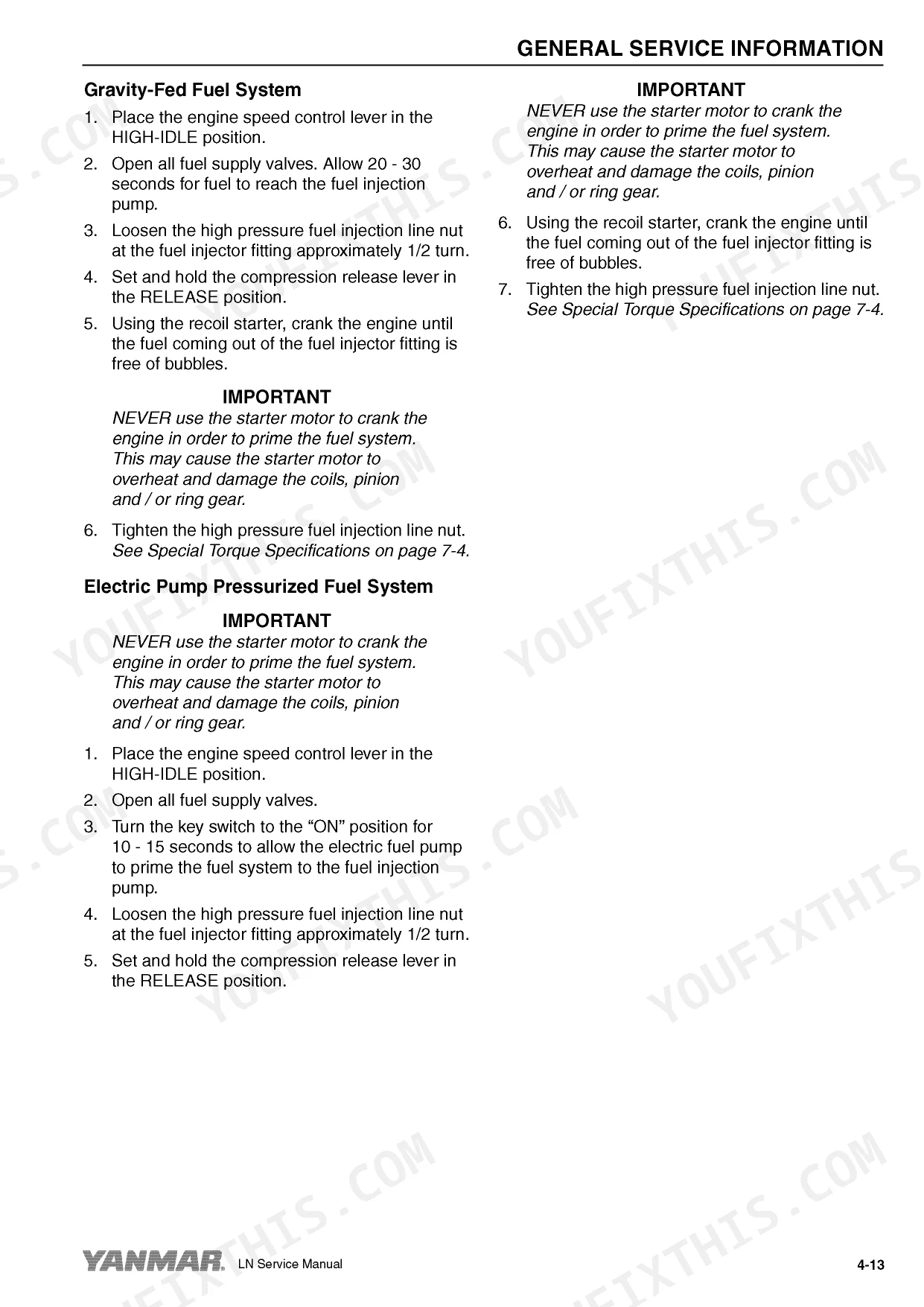

Yes. The Fuel System chapter covers system operation, a fuel system diagram, and the individual components, with its own specifications and special service tools listed up front. That is the chapter to work through for a stuck pump or air in the lines. p. 160
Can it help diagnose a no-start without guessing at parts?
The Troubleshooting chapter is built around measuring compression pressure and includes quick reference charts, so you can separate a fuel problem from a mechanical one before ordering anything. p. 242
What format is this manual in?
A 255-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Service Manual have electrical diagrams?

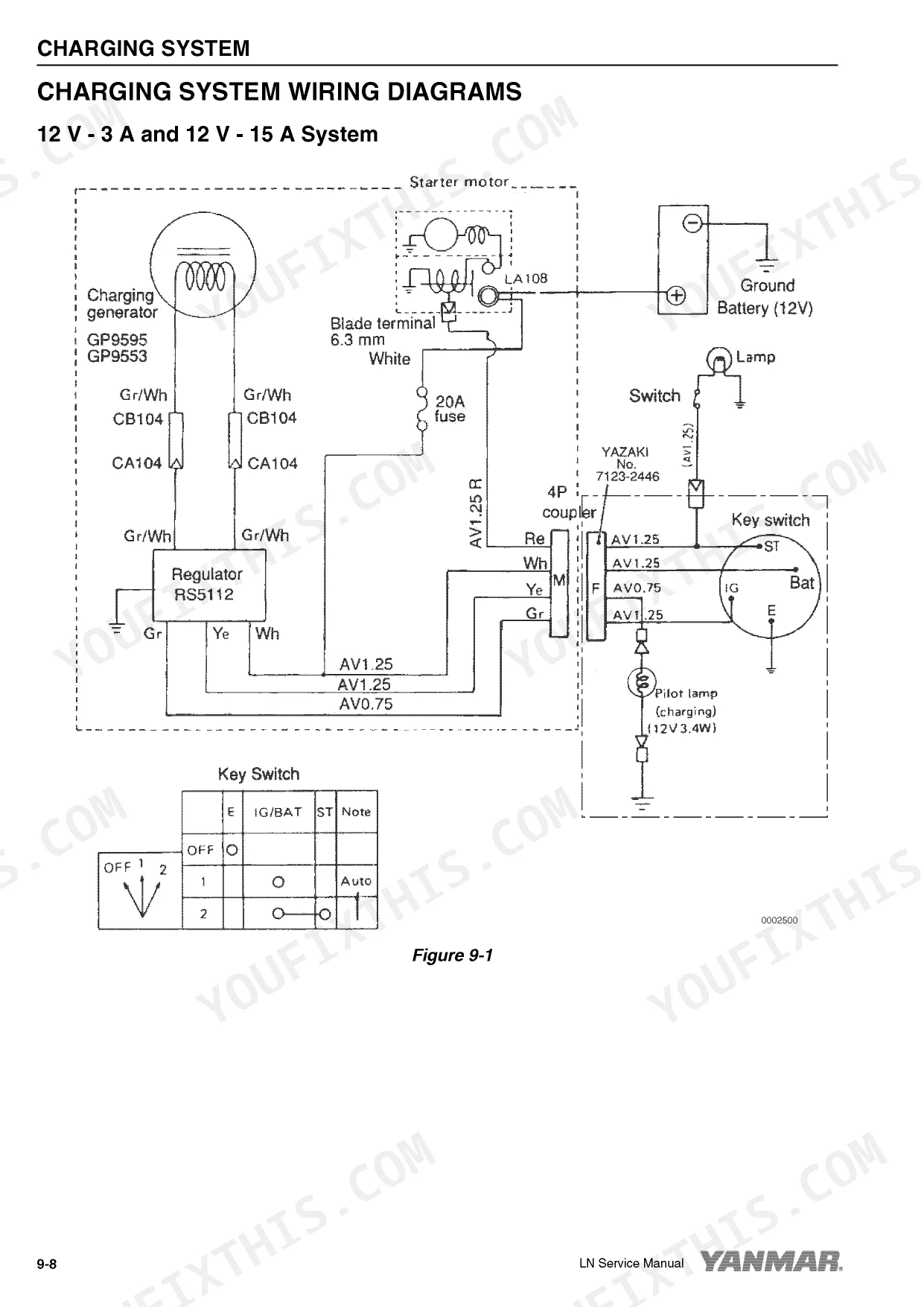

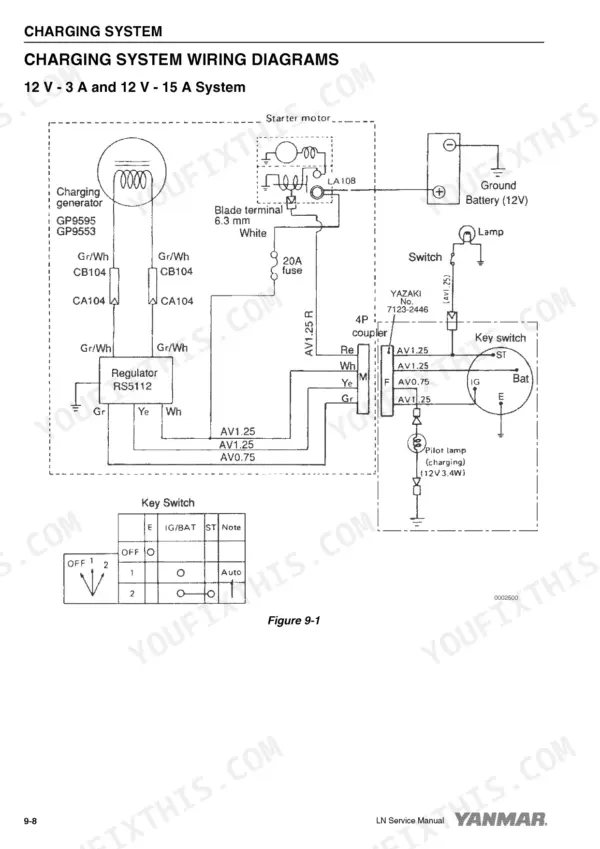

Yes. The Charging System chapter carries the charging system wiring diagrams, starting on page 224, and there is a separate Electric Wiring chapter covering wiring precautions, electrical wire resistance, battery cable resistance, wire sizes against voltage drop, and AWG to European size conversion - which is what you need when a long or undersized cable is starving the starter.
