Getting your 2000-2005 excavator back to work is the sole focus of this 356-page Yanmar SV15, SV17 service manual PDF, which also fully covers the 17(EX) variant. Inside, you get complete teardown procedures for the engine, swing motor, and travel motor, plus full hydraulic schematics routing every fluid line on the machine. Open the file to find heavy troubleshooting sections, clear wiring diagrams, and detailed repair instructions covering everything from pilot valve overhauls to crawler tension adjustments. Lock down the M12 track roller bolts to the lower frame with 78.4 to 98.1 N-m of torque, and verify your M10 bucket pins are secured exactly between 44.1 and 58.8 N-m. Stop fighting electrical gremlins without a map. Download this bookmarked file directly to your tablet, quickly locate the exact spec you need, and get your equipment digging again.
What's Inside This Yanmar SV15, SV17, SV17(EX) Manual
| System | Pages | Key Topics |
|---|---|---|

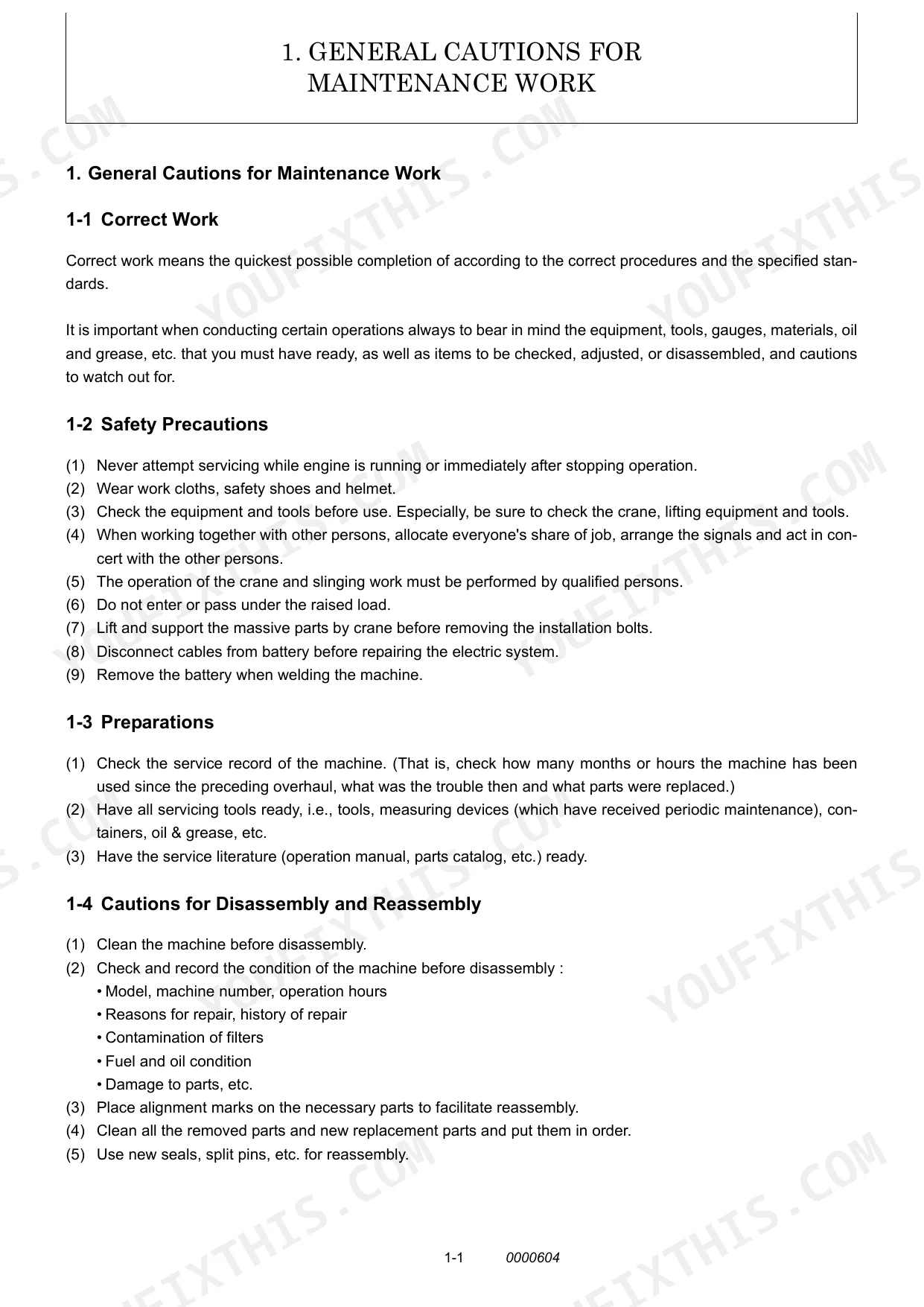

| General Cautions for Maintenance Work | 9-22 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment |

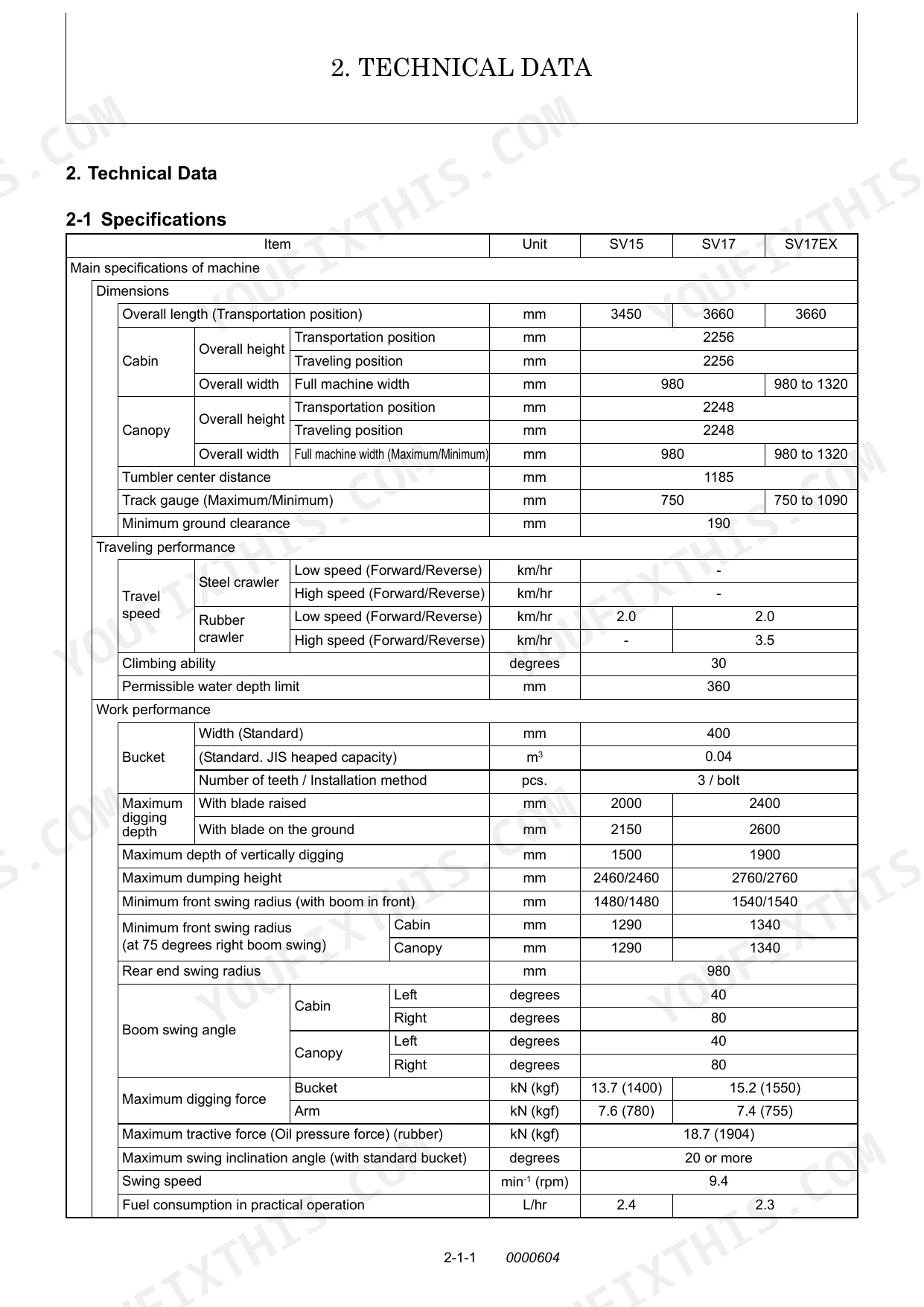

| Technical Data | 23-38 | Specifications, Outline Drawing and Working Area, Weight List of Main Parts, Lifting Capacity List |
| Engine | 57-100 | General (Engine External Views, Exhaust Gas Emission Regulation), Measurement |
| Hydraulic Equipment | 101-216 | Hydraulic Pump (Sv15, Sv17), Control Valve, Pilot Valve, Swing Motor, Travel Motor (Sv15 |
| Adjustment and Repair | 217-356 | Electric Equipment of Machine, Undercarriage, Controls, Implement |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Tightening torque for M10 bolts (e.g., bucket pins) | 44.1 to 58.8 N·m (4.5 to 5.6 kgf·m) | p. 304 |
| Tightening torque for Track roller x Lower frame (M12 x 25) | 78.4 to 98.1 N·m (8 to 10 kgf·m) | p. 304 |
| Tightening torque for Sprocket x Travel motor (M10 x 25) | 78.4 to 98.1 N·m (8 to 10 kgf·m) | p. 304 |
| Tightening torque for Hose clip 13 | 2.5 to 3.4 N·m (25 to 35 kgf·cm) | p. 55 |
| Tightening torque for Hose clip 22 | 3.92 to 4.90 N·m (40 to 50 kgf·cm) | p. 55 |
| Suction filter type | Wire gauze | p. 28 |
| Suction filter filtration area | 330 cm² | p. 28 |
| Fuel filter type | Filter paper with automatic air release device | p. 29 |
| Fuel filter filtration area | 432 cm² | p. 29 |
| Oil/water separator type | Mesh filter screen | p. 29 |
| Oil/water separator cleaning interval | Every 200 hrs | p. 308 |
| Air cleaner type | Cyclone type | p. 30 |
Yanmar SV15, SV17, SV17(EX) Common Problems This Manual Covers
Yanmar SV15 hydraulic functions become weak, jerky, or stop completely after running normally.
Inspect all lines for leaks using the hydraulic schematic. Fill the hydraulic oil tank to its 20.5 L capacity, as shown on page 28. Run the machine at low idle, cycle all circuits to purge air, and verify the fluid level again.
Manual Section: Adjustment and RepairMachine overheats and engine performance drops noticeably during long continuous digging operations. p. 54
Inspect the radiator grille and clear any trapped debris. Check all cooling lines for leaks or cracks. Tighten the radiator hose clamp 35 to 3.92 to 4.91 N·m (40 to 50 kgf·cm) as specified on page 54. Verify coolant levels and replace damaged hoses to restore flow.
Manual Section: EngineEngine starts up normally but runs poorly, idles rough, or stalls out under load. p. 308
Drain the water separator mesh filter screen. Inspect the cyclone type air cleaner for blockages. Replace the fuel filter element every 200 hrs according to the maintenance schedule on page 308. Fill the fuel tank to its maximum 24.5 L capacity, referenced on page 311, and bleed the lines.
Manual Section: Adjustment and RepairTrack travel feels weak, pulls heavily to one side, or travel motor makes loud grinding noises. p. 304
Inspect the undercarriage components for excessive wear or damage. Torque the M10 undercarriage bolts to 44.1 to 58.8 N·m (4.5 to 5.6 kgf·m) using the specifications on page 304. Adjust track tension to standard operating limits and clear any packed mud from the drive sprockets.
Manual Section: Travel Operation IssuesFrequently Asked Questions
How do I reset the Yanmar SV15/SV17 hydraulic system?
To release air from the hydraulic system after disassembly or parts replacement, run the engine at medium speed and activate the respective circuits for 10 to 15 minutes. For hydraulic cylinders, set the engine speed to low idle, then slowly extend and retract the cylinder up to 1.97 to 3.9 inches (50 to 100 mm) from each stroke end 4 or 5 times, followed by fully extending and retracting 3 or 4 times.
What is the torque spec for Yanmar SV15/SV17 track roller bolts?
The tightening torque for the track roller bolts (M12 × 25) connecting to the lower frame is 78.5 to 98.1 N·m (8 to 10 kgf·m). Loctite 243 adhesive should also be applied.
What is the torque spec for Yanmar SV15/SV17 bucket pin bolts?
For M10 bolts used in the bucket pin connections, the tightening torque is 44.1 to 58.8 N·m (4.5 to 5.6 kgf·m). Three Bond 1324 or its equivalent adhesive should be applied.
What are the replacement specifications for hydraulic hoses?
Hydraulic hoses are identified by an 11-digit part code that specifies the material, type, nominal diameter, length, and fitting combination. For example, a high-pressure rubber hose (SAE J517, 100R1) with a 0.25 inch (6.3 mm) inner diameter has a working pressure of 2489 PSI (17.2 MPa).
How quickly can I access this manual after buying?
Immediate download of the complete 356-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Can I find hydraulic circuit diagrams in this Yanmar SV15, SV17, SV17(EX)?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Yanmar SV15, SV17, SV17(EX).
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy most of the text. The text throughout the manual is crisp and consistently easy to read. Diagrams and illustrations are raster images, but they are generally clear with readable labels. Pages are clean with no notable scan artifacts, stains, marks, or skewed content, though some blank pages are present as section dividers.
