All 123 pages of this Yanmar SVE8, SVE12 service manual PDF (OEM #YT7708-194E) focus on one goal: keeping your marine diesel engine firing perfectly. Inside, you get complete electrical wiring diagrams, a massive troubleshooting section covering everything from difficult starts to sudden shutoffs, and detailed fuel injection pump adjustments. Open to the alignment section for step-by-step rebuilding instructions packed with extensive clearance charts and tightening specifications. Dial in your rated injection pressure to exactly 160±5 kg/cm^2, then verify you are swapping the fuel oil filter element right at the 250-hour mark. A dead engine offshore is a mechanic's worst nightmare. Download this bookmarked file right to your tablet, jump straight to the exact spec you require, and get the motor back together.
What's Inside This Yanmar SVE Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Summary of Engine | 5-20 | Engine Specifications, Performance Curves, Flow Diagrams (Cooling Water Diagram, Lube Oil Diagram, Fuel Diagram, Electrical Wiring Diagram, Gear Train, Marine Gear), Piping Diagram |
| Maintenance and Inspection | 21-30 | Fuel Oil and Lubricant, Pointers for Maintenance, Normal Operation, Periodic Check Table, Periodic Checks |
| Alignment of Engine | 31-72 | Tools for Overhaul and Reassembling, Engine Adjustment Specifications |

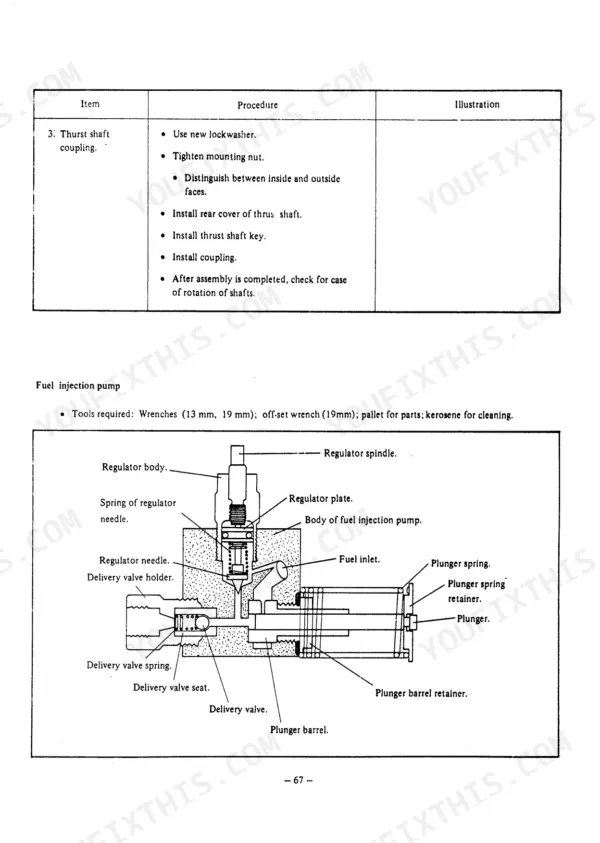

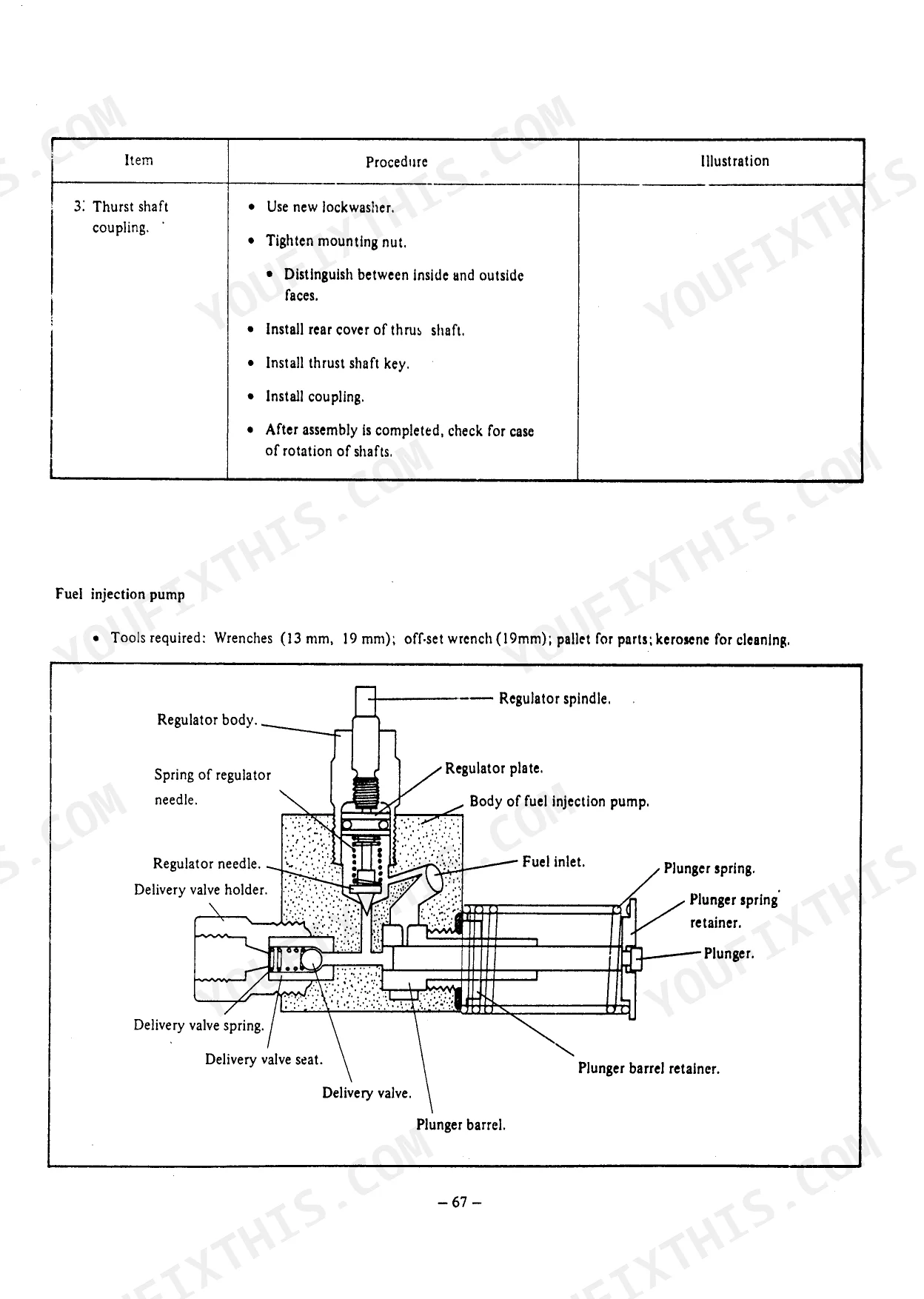

| Adjustment | 73-78 | Air Bleeding, Fuel Injection Pump (Timing, Quantity), Fuel Injection Valve, Intake/Exhaust Valve Clearances, Governor Linkage |

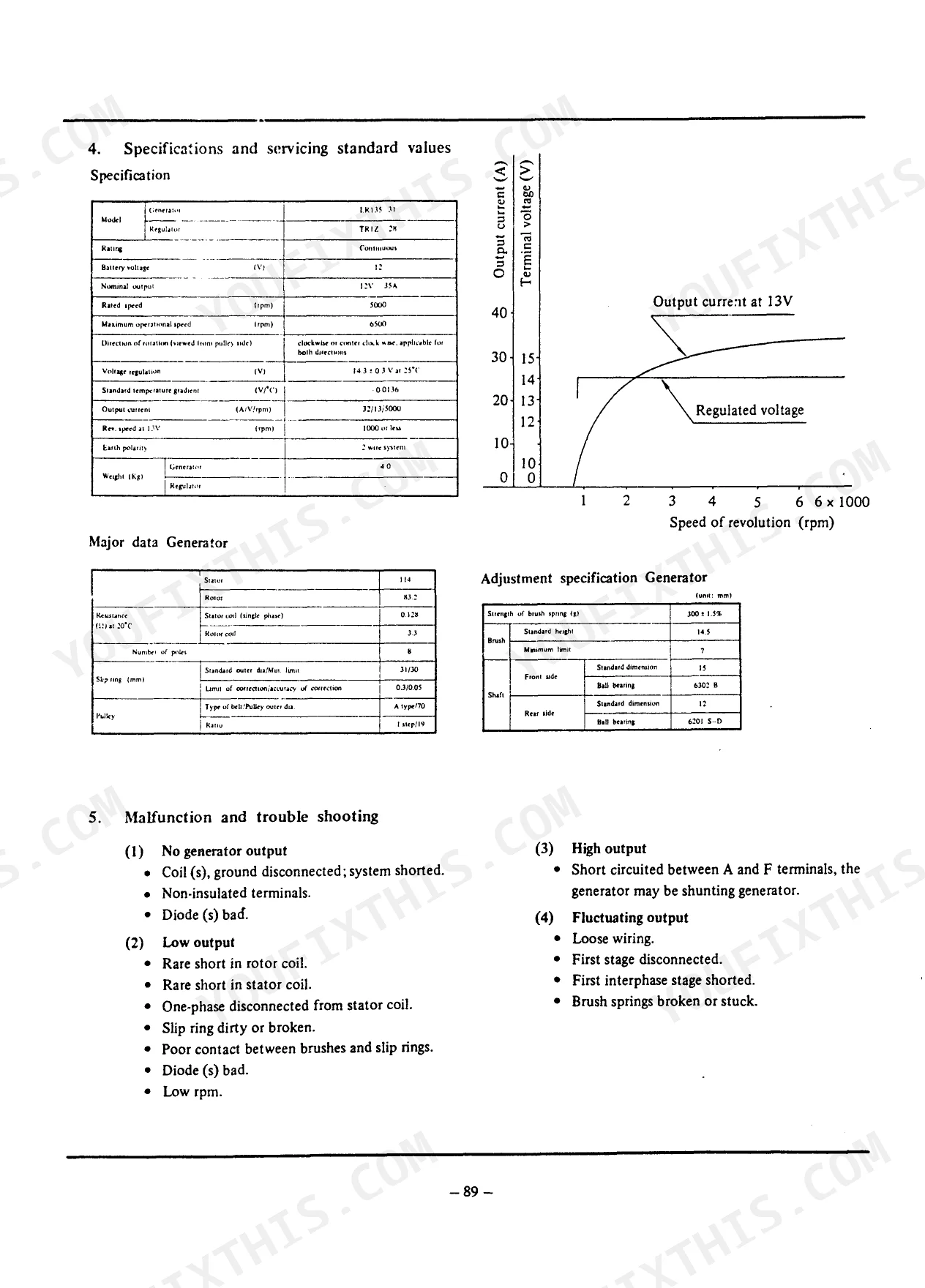

| Electrical Equipment | 79-92 | Starter Motor, AC Generator, Reference Data (for Diodes) |
| Troubles and Countermeasures | 93-121 | Major Classification of Troubles, Difficult Starting, Disordered Running, 6-4 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel oil filter element replacement interval | Every 100 hours (for cleaning/replacement) | p. 27 |

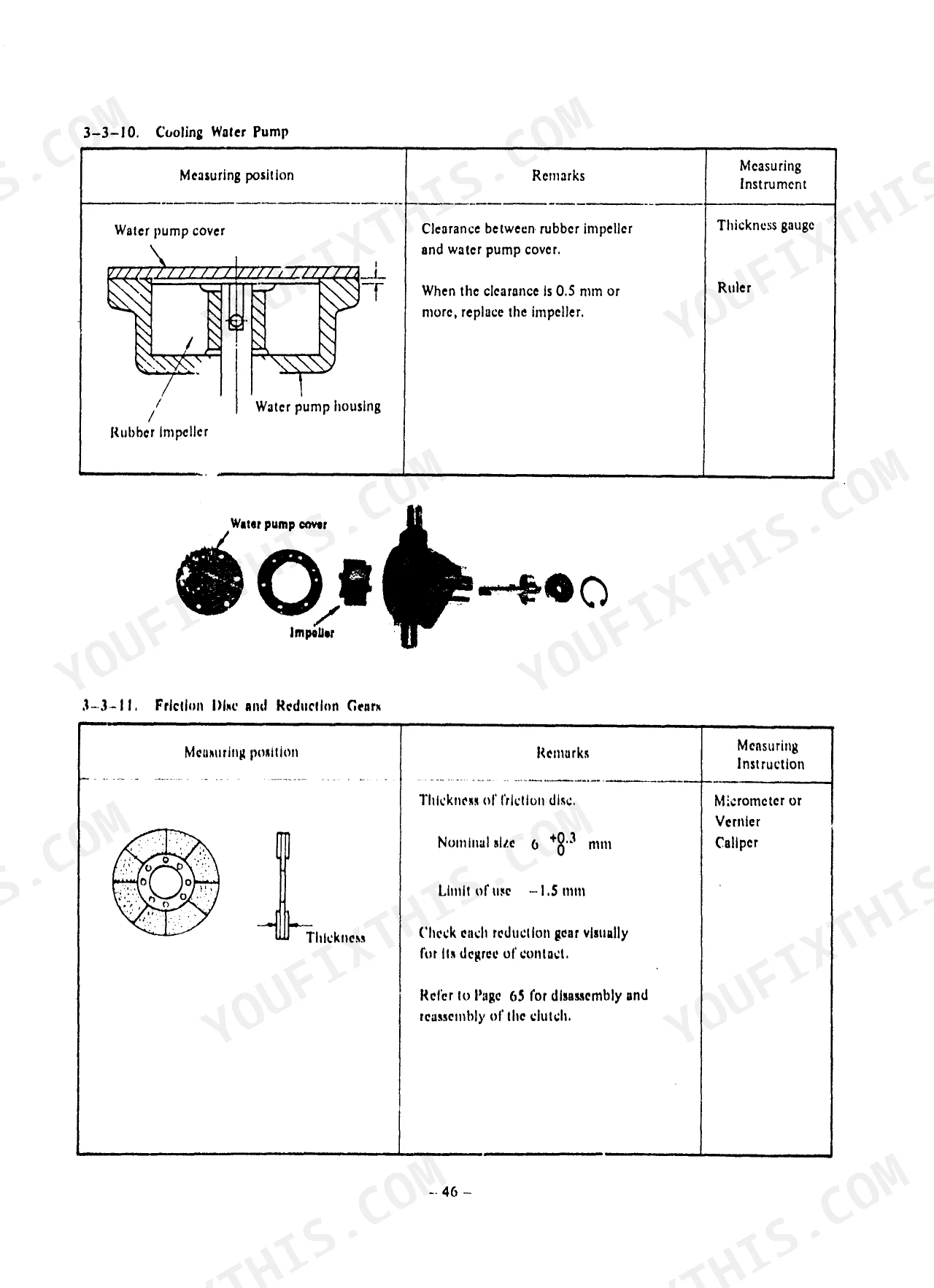

| Impeller replacement condition (clearance) | When the clearance is 0.5 mm or more, replace the impeller. | p. 46 |
| Rated injection pressure | 160±5kg/cm^2 | p. 73 |
| Anticorrosive zinc mounting torque | 8 x 200 kg/cm | p. 50 |
| Packings replacement for leakage | exchange of packings should be necessary | p. 120 |

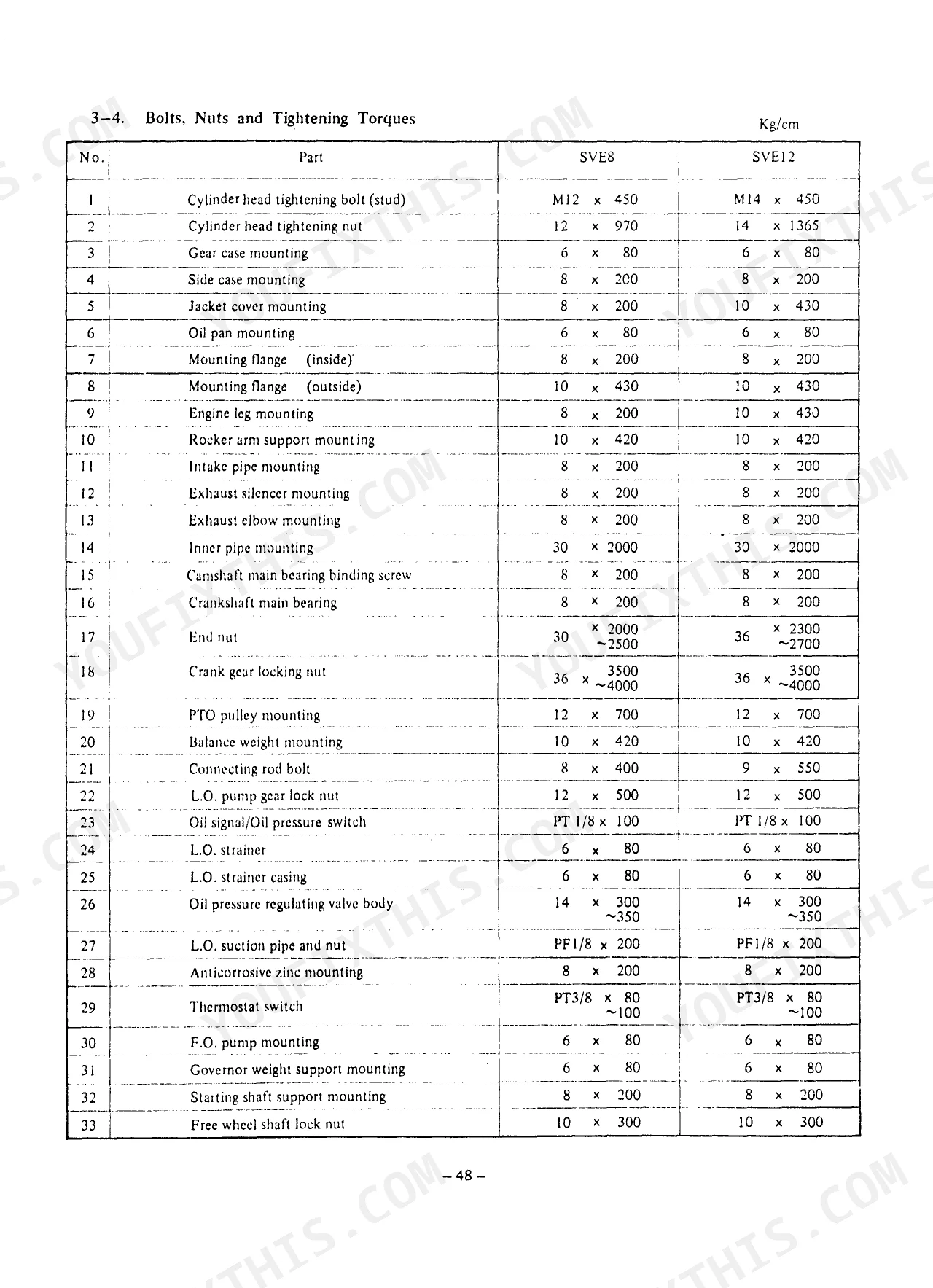

| Gear case mounting torque | 6 x 80 kg/cm | p. 50 |
| Belt play | 5 mm | p. 28 |
| SVE8 | ||
| Bore x stroke | 75 x 75 mm | p. 5 |
| SVE12 | ||
| Bore x stroke | 85 x 90 mm | p. 5 |
Yanmar SVE Series Common Problems This Manual Covers
Yanmar SVE8 engine cranks but will not start or starts briefly then dies after winter layup p. 93
Check the fuel system for air leaks. Verify the injection pressure is set to 160 Kg/cm² as shown on page 35. Inspect the fuel oil filter element and clean or replace it if it has been in service for 100 hours. Bleed the lines completely before attempting restart.
Manual Section: Difficult StartingCooling-water discharge weak or absent at exhaust outlet with rising coolant temperature under heavy load p. 46
Remove the raw-water pump cover and inspect the impeller. Measure the clearance between the impeller and housing. Replace the impeller if clearance reaches 0.5 mm or more, per the guidelines on page 46. Verify the seawater intake strainer is completely clear of debris before restarting the engine.
Manual Section: 3. Alignment of EngineHard starting, rough running, misfire, or uneven idle with excessive black smoke at operating speed p. 33
Inspect the cylinder head and verify intake and exhaust valve clearances. Adjust the clearances to exactly 0.2 mm in a cold state as specified on page 33. Check the generator drive belt play and ensure it measures about 5 mm to maintain proper alternator load and cooling fan speed.
Manual Section: 3. Alignment of EngineLow oil pressure warning or abnormal mechanical noise detected during normal engine operating temperatures p. 120
Inspect the oil pan and gear case packings for deterioration. Torque the gear case mounting bolts to 6 x 80 kg/cm according to the specifications on page 50. Exchange packings if you spot oil leakage along the processed surfaces. Check the lube oil strainer and clean it thoroughly.
Manual Section: Oil, Water or Gas LeakageFrequently Asked Questions
What are the torque specifications for the SVE12 cylinder head bolts?
For the SVE12 model, the cylinder head bolts should be tightened to a torque of 12 kg-m. This is a critical step in the reassembly sequence to ensure proper engine function.
What is the procedure to make the Yanmar SVE12 fuel system operational after air bleed?
To make the fuel system operational after air bleeding, you must first open the fuel cock and allow fuel to flow into the filter, then loosen the air bleeding screw at the top of the fuel filter. Continue pumping the feed pump priming lever until the fuel coming from the bleeding screw is free of bubbles, then tighten the bleeding screw firmly. This process ensures all air is removed from the fuel lines.
What are the replacement specifications for fuel filter elements?
The fuel oil filter element should be cleaned every 100 hours of operation. For replacement, the fuel oil filter element needs to be replaced every 250 hours to maintain optimal fuel system performance.
What are the replacement specifications for the raw-water impeller?
The impeller in the cooling water system should be replaced every 500 hours of operation. Regular replacement ensures efficient cooling and prevents overheating.
What format is this manual in?
You get a 123-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Can I find wiring schematics in this Yanmar SVE8 & variants manual?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Yanmar SVE8 & variants.
Document Quality
This document is a scanned PDF of a physical service manual, with an OCR layer that allows you to search and copy text. The text quality is generally readable but exhibits the slight blur and pixelation typical of scanned content rather than native digital text. Diagrams and illustrations are raster images, meaning they may show some pixelation upon significant zooming, though their labels are mostly legible. You will notice some scan artifacts like slight background discoloration and occasional skewing on pages. The document concludes with a contact page and does not contain notable blank filler pages.
