Need the factory part numbers for your Yanmar V7 Wheel Loader? All 144 pages of this parts catalog (OEM #CP547ENWL00100) focus on one thing: identifying and ordering every component on the machine. You get exploded views and OEM part numbers across the complete machine: cab assembly with glass and door hardware, front and rear axle with differential and brake components, hydrostatic pump and motor, the full 3-section control valve, lift and bucket cylinder assemblies, and a dedicated engine section covering everything from crankshaft and piston to fuel injection and the generator. Factory data drills to the part level: a 0.1mm differential shim and a 17x40x4 rear axle washer each have their own line entries, so you're ordering exact factory fitment. Wrong part ordered, job stalls. Bookmarked by system; search by keyword or click straight to the section you need.
What's Inside This Yanmar V7 Parts Manual

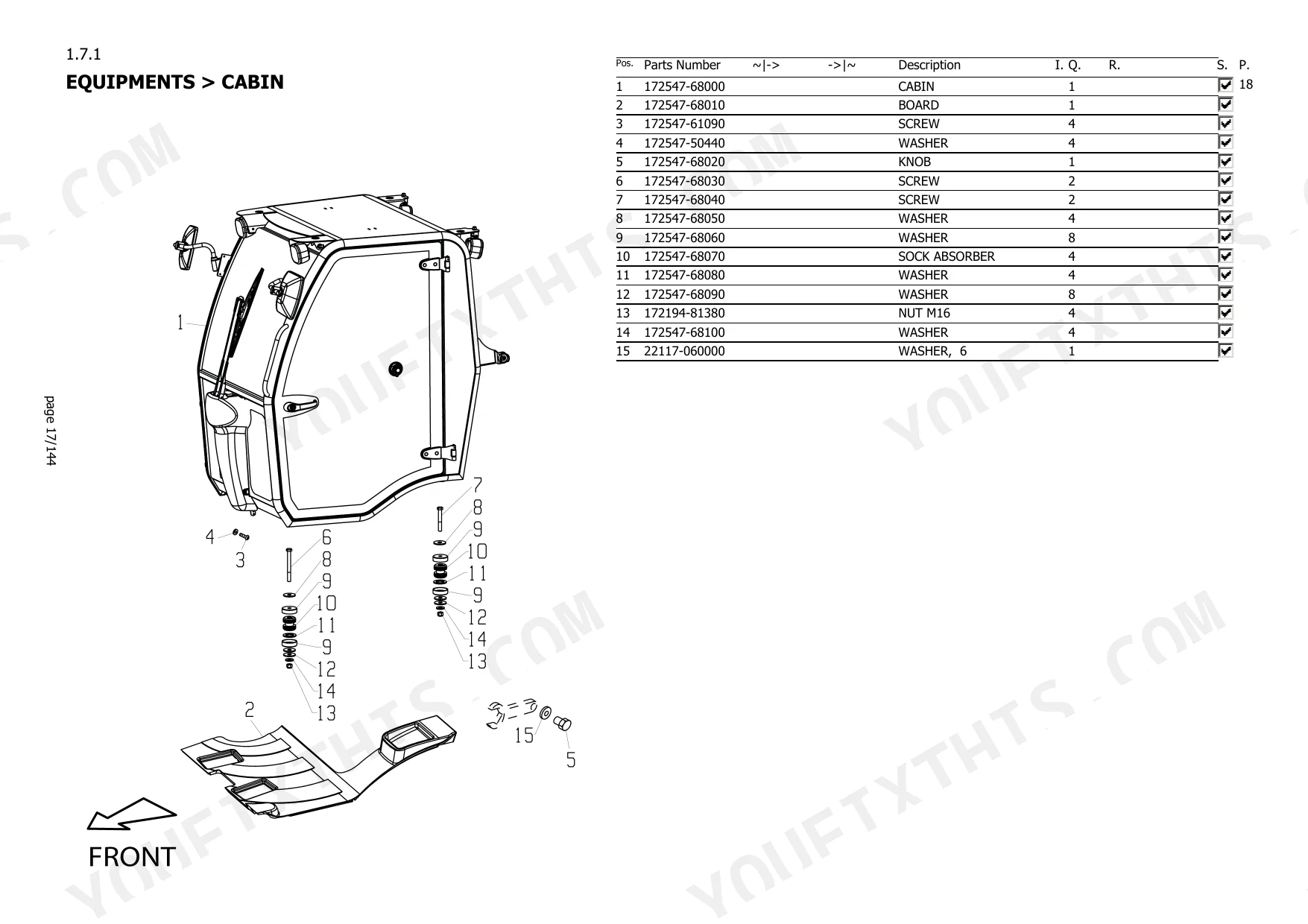

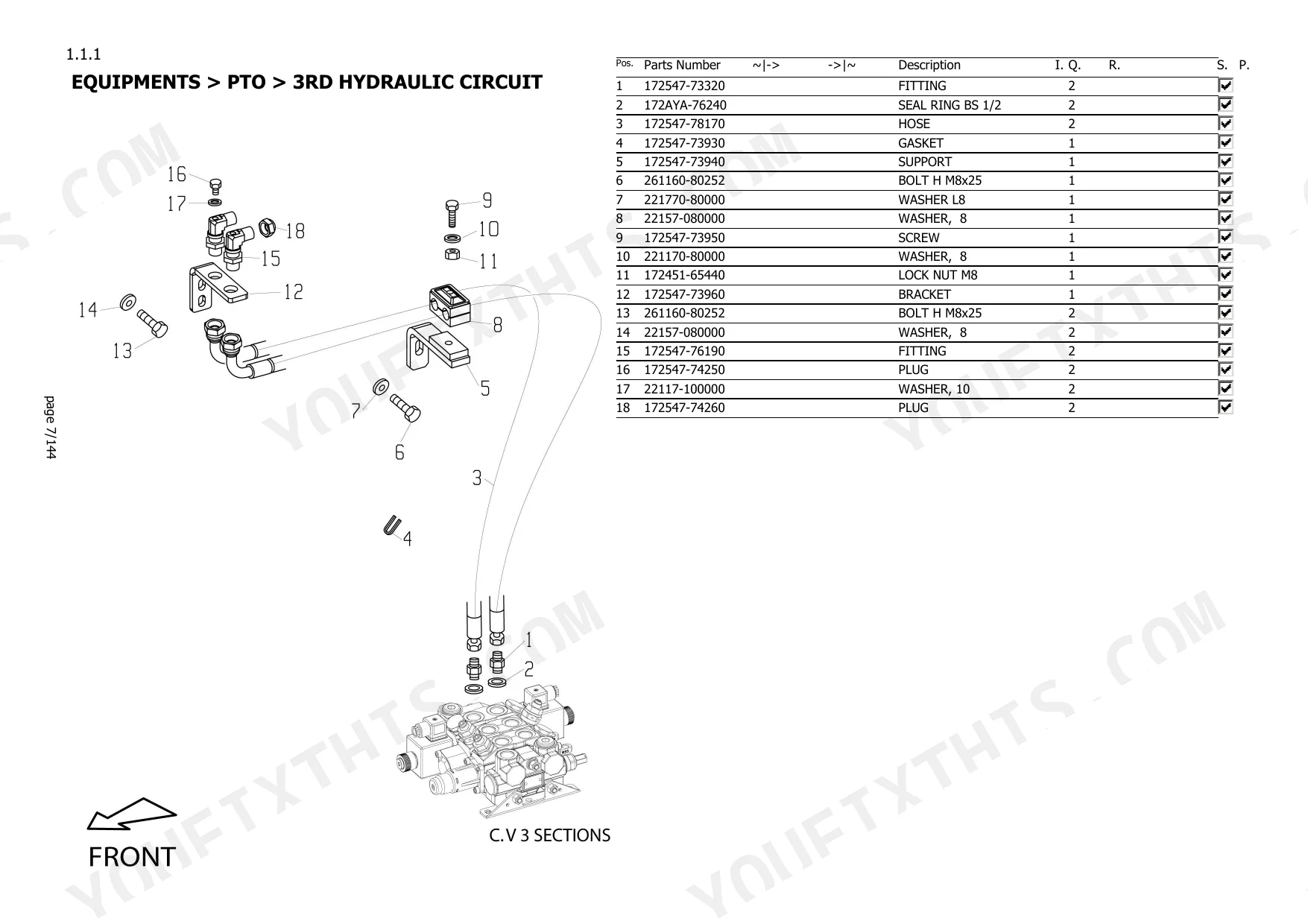

| System | Pages | Key Topics |
|---|---|---|
| Equipments | 6-24 | PTO (3rd Hydraulic Circuit, 4th Hydraulic Circuit), Progressive Brake, Seat (Ass'y, Bellows Seat), Heating, Quick Hitch, Wheel |
| Painting | 26 | Tumeric Yellow Paint - 1Kg, Tumeric Yellow Paint - Spray, Navy Gray Paint - 1KG, Navy Gray Paint - Spray |
| Label | 27-30 | Board Label Drive, Board Label Picto, Kit Label Deco |
| Silencer | 31 | Thermal Insulating, Clamp, Gasket |
| Air Cleaner | 32-34 | Assy |
| Accelerator | 35 | Pedal, Cable, Wire Stop, Bracket, Pin, Cover |
| Engine Mount | 36 | Absorber Shock, Support R, Support L, Bolt H M12x35 10.9 Dry Glue Sealand, Washer 12.5X26X3, Locknut 10 |
| Radiator & Mount | 37-38 | Cooler |
| Fuel Tank | 39 | Fuel Pump, Water SEPARATOR/FUEL, Filter, Hose, Plug |
| Battery | 40 | Cable (-), Cable (+), Plate, Rubber Cover, Support |
| Electric Part (Wiring) | 41 | Main Electric Wiring, Rear Light Cable, Electric Wiring, Electrical Equipment |
| Electric Part (Equipment) | 42-43 | Fuse, Relay, Switch, Light, Horn, Instrument Panel |

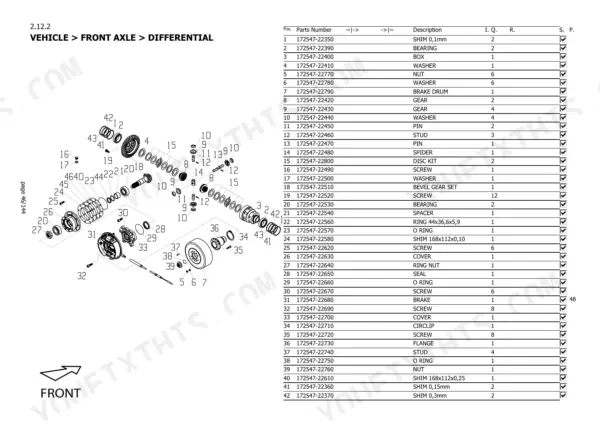

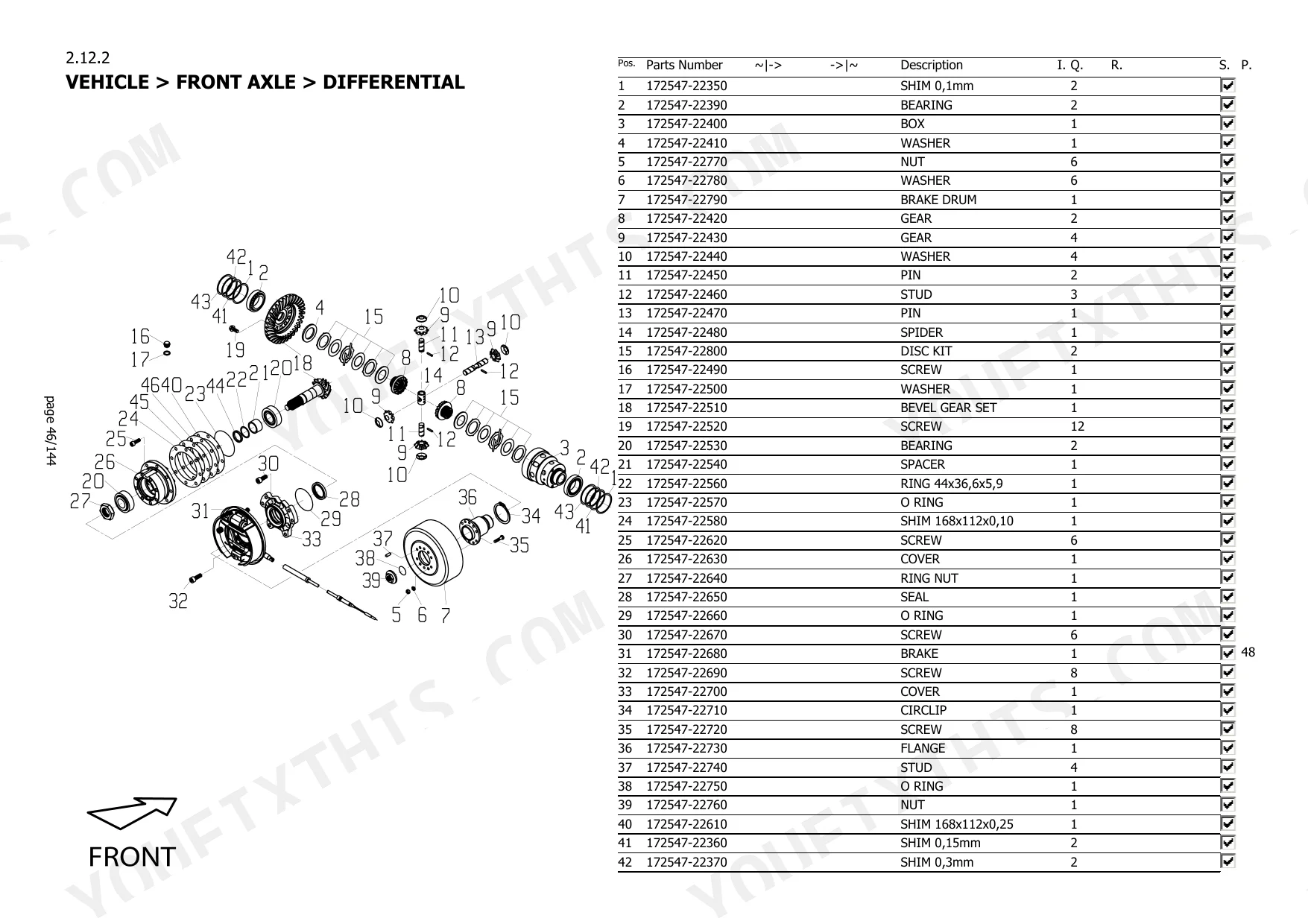

| Front Axle | 44-50 | Center Housing, Differential, Brake |
| Transmission | 51 | Drive Shaft, Assembly Kit Cardan, Grease Fitting, Spider, Flange |
| Rear Axle | 52-57 | Axle Support, Center Housing, Gear |
| Brake Pedal | 58 | Brake Pump, Tank, Hose, Pressure Switch, Pin |
| Park Brake Lever | 59 | Handbrake Assy, Cable, Pin, Cotter Pin, Clamp, Lock Nut M8 |
| Control Lever | 60 | Handle, Cable, Ball Joint, Bellows, Plate, Joint |

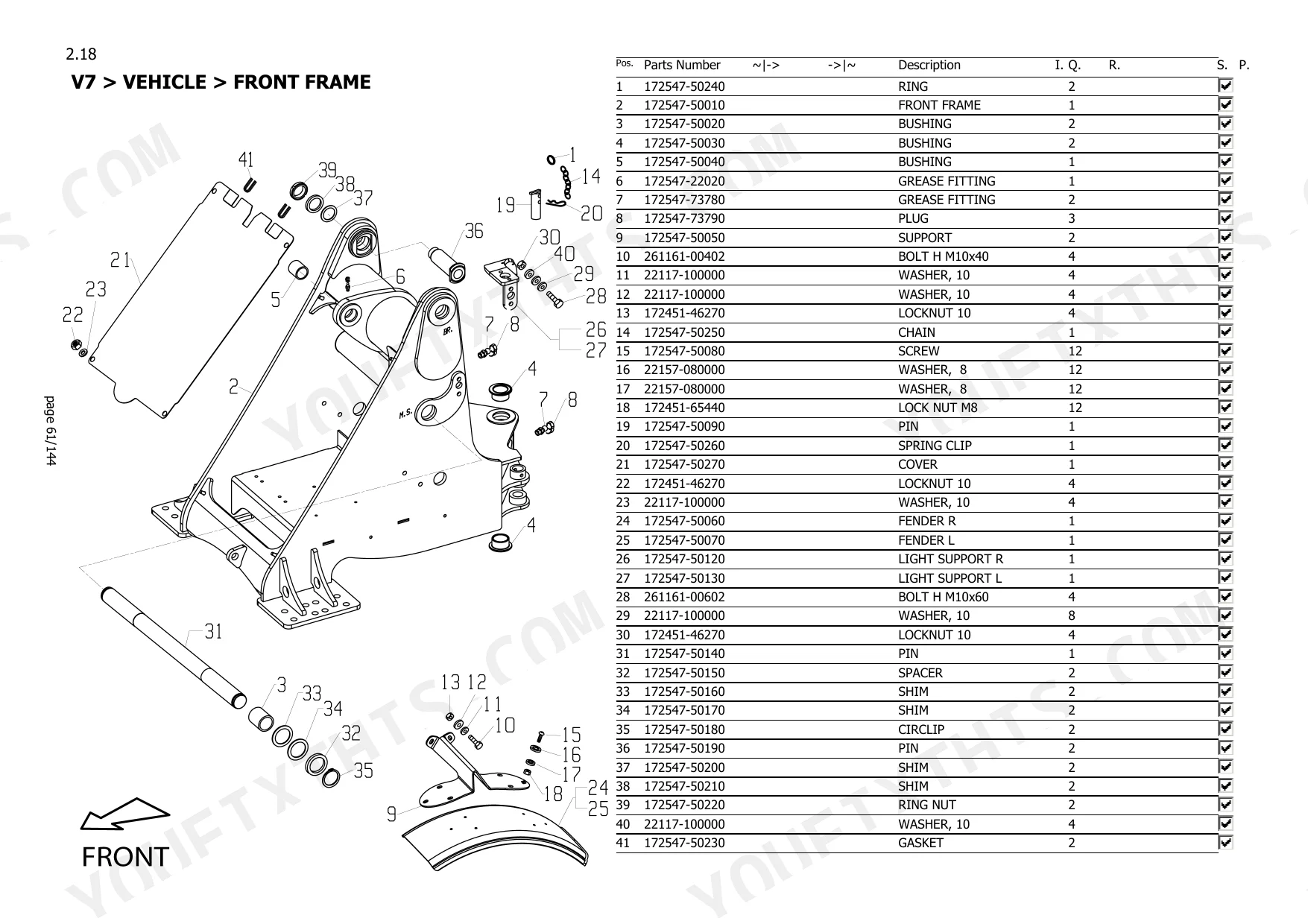

| Front Frame | 61 | Bushing, Grease Fitting, Support, Chain, Fender |
| Rear Frame | 62 | Bushing, Counterweight, Grill, Gasket, Chain |
| Cover (Engine) | 63 | Engine Cover, Insulation, Hinge, Lock, Grill, Gasket |
| Cover (Cabin) | 64-67 | - |
| Lift Cylinder | 68-69 | Lifting Cylinder Assy |
| Buket Cylinder | 70-71 | Bucket Cylinder Assy |
| Steering Cylinder | 72-73 | Assy |

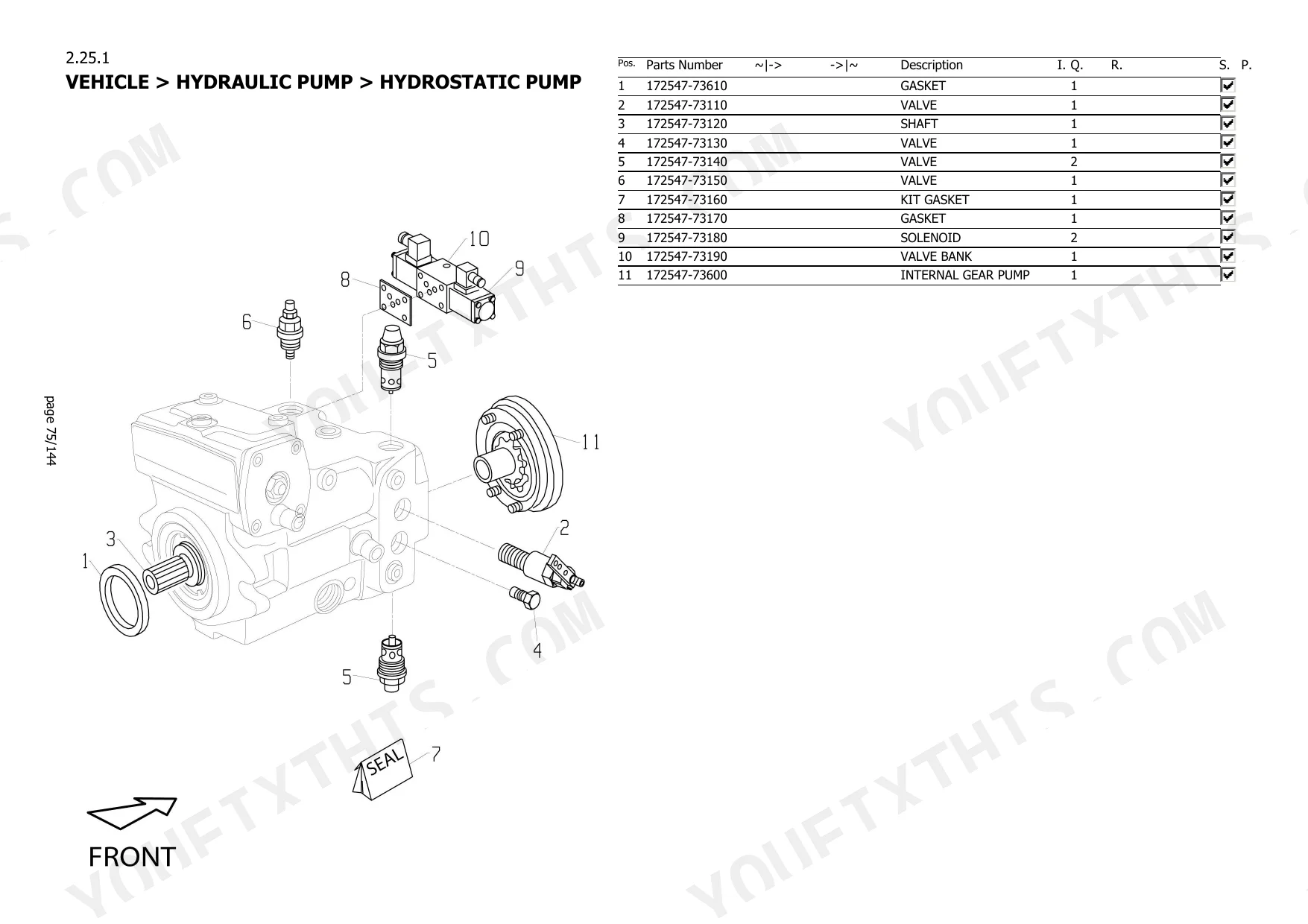

| Hydraulic Pump | 74-77 | Hydrostatic Pump, Hydrostatic Motor, Coupling Assy |
| Steering Unit | 78-79 | Steering Column |
| Control Valve | 80-87 | Valve Bank (3 Sec.), Section |
| Hydraulic Oil Tank | 88-89 | Oil Filter |
| Hydraulic Oil Piping (Pump-Radiator-Tank) | 90 | Nipple, Union, Half-Flange, O Ring, Valve, Hose |
| Hydraulic Oil Piping (Control Valve-Pump-Tank) | 91 | Hydraulic Pump, Nipple, Fitting, Hose, Pressure Switch, Seal Ring |
| Hydraulic Oil Piping (Lift Cylinder) | 92 | L-Connection, Valve, T-Connection, Hose, Nipple, Pin |
| Hydraulic Oil Piping (Buket Cylinder) | 93 | Hose, Nipple, Valve, Seal Ring |
| Hydraulic Oil Piping (Steering Cylinder) | 94 | Socket, 90°-CONNECTION, T-Connection, Grease Fitting, Plug, Tubing |
| Hydraulic Oil Piping (Steering) | 95 | Fitting, Hose, Nipple, Union, Flow Control Valve, Seal Ring |
| Hydraulic Oil Piping (Pressure Outlets) | 96 | Socket, Nipple, Hose, Pressure Drive, Clamp, Union |

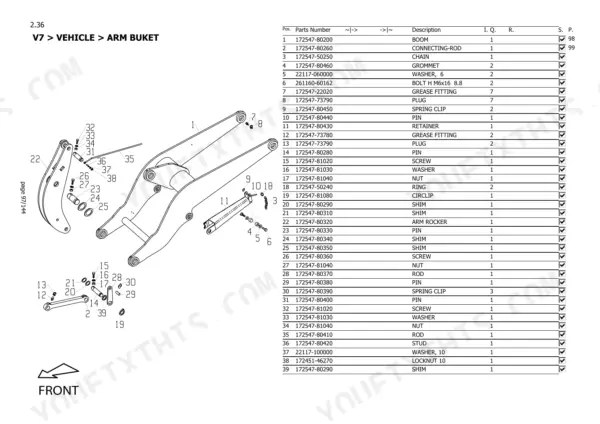

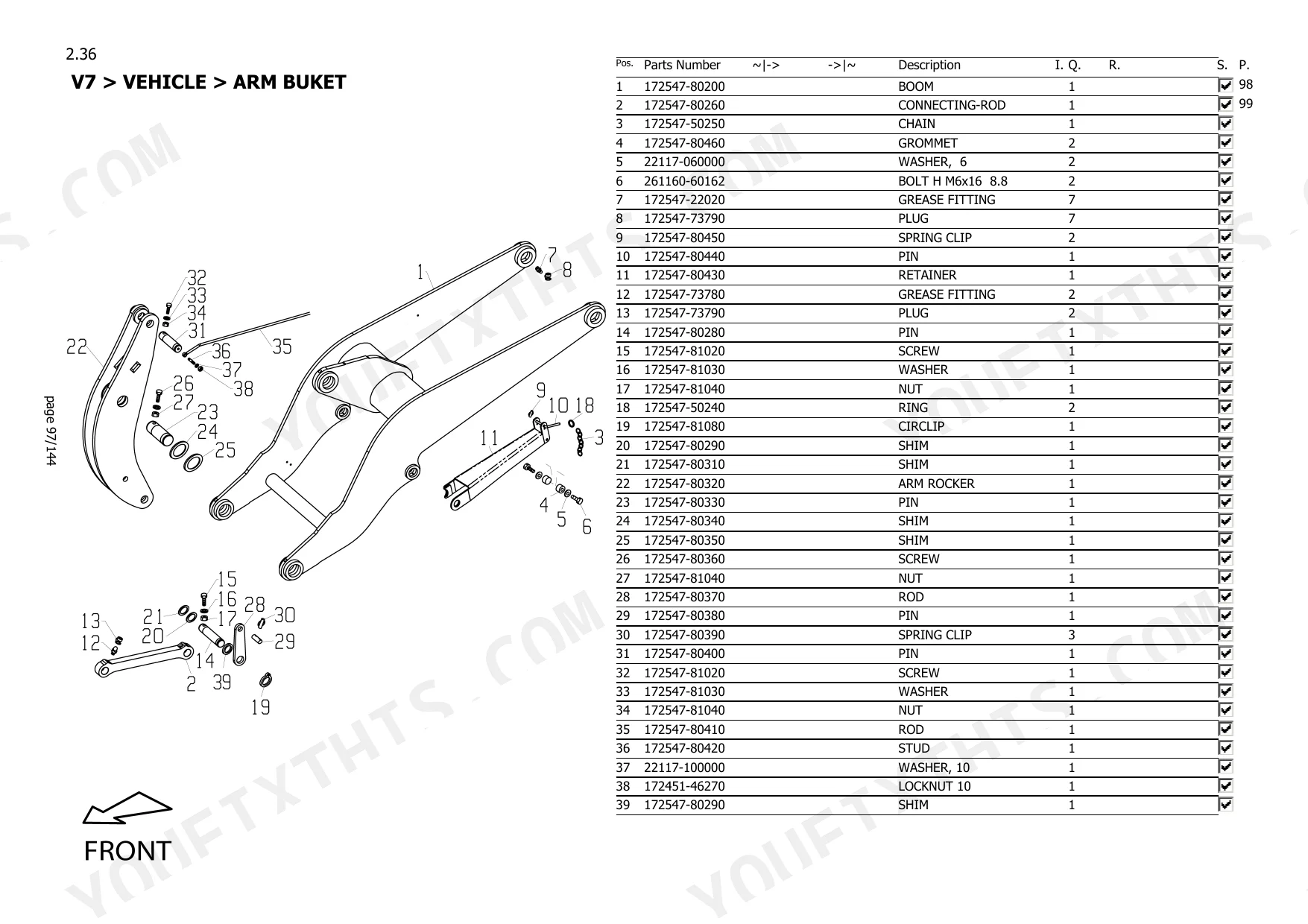

| Arm Buket | 97-99 | Boom, Connecting-Rod |

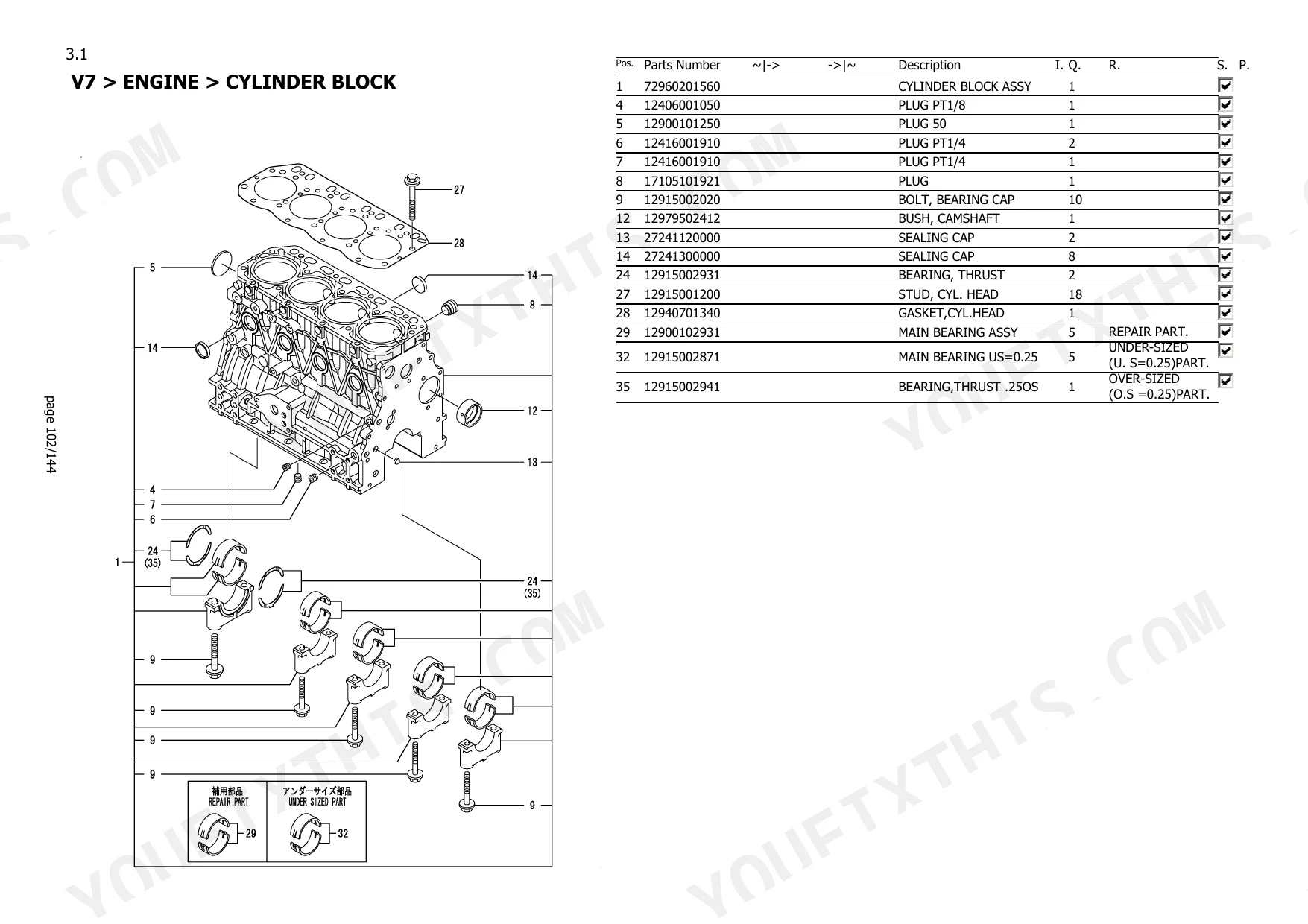

| Engine | 101-120 | Cylinder Block, Gear Housing, Flywheel Housing & Oil Sump, Cylinder Head & Bonnet, Suction Manifold, Exhaust Manifold, Camshaft & Driving Gear, Crankshaft & Piston |
| Maintenance Kit | 121-122 | Kit per Hour (Service Kit 50H) |
| Documents | 123-144 | User Manual |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| TUMERIC YELLOW PAINT | 1Kg | p. 26 |
| NAVY GRAY PAINT | 1KG | p. 26 |
| FUSE | 3A | p. 42 |
| SHIM | 0.1mm | p. 46 |
| WASHER | 17x40x4 | p. 52 |
Yanmar V7 Common Problems This Manual Covers
Yanmar V7 hydraulic oil tank filter: need correct part number for 50-hour service p. 88
Check the Hydraulic Oil Tank section on page 88. The oil filter is itemized in the exploded view with its own part number; match it to your serial number range before ordering. Cross-reference the Maintenance Kit on page 121: the 50-hour service kit may bundle this filter, which avoids ordering individual components separately.
Manual Section: Hydraulic Oil TankAir cleaner filter assembly: can't identify correct part number for routine replacement p. 32
Check the Air Cleaner section starting at page 32. The Assy is broken out with individual component part numbers across pages 32-34. Before ordering separately, verify on page 121: the 50-hour service kit often includes the air filter assembly, which saves a separate line item on the parts order.
Manual Section: Air CleanerBoom lift cylinder seal components: need part numbers, unsure what the Assy includes p. 68
Check the Lift Cylinder section on page 68. The Lifting Cylinder Assy is fully broken down across pages 68-69 with separate part numbers for each component. Cross-reference page 92 to confirm matching hose fitting part numbers; also verify against the 50-hour service kit on page 121 to avoid ordering parts already bundled in scheduled maintenance.
Manual Section: Lift CylinderFront axle brake shims: unsure which thickness part number to order for adjustment p. 44
Check the Front Axle section starting at page 44. Brake shims appear in the parts diagram on page 46 and page 47; three thicknesses are listed: 0.1mm and 0.3mm on page 46, and 0.2mm on page 47. Each thickness carries its own part number, so confirm the required clearance before placing the order.
Manual Section: Front AxleFuel tank water separator and filter: can't match part numbers to correct replacement items p. 39
Check the Fuel Tank section on page 39. The Water Separator/Fuel filter, fuel pump, and individual hose fittings each carry separate part numbers in the exploded view. Cross-reference page 121 to confirm whether the 50-hour service kit already includes your fuel filter before ordering individual fuel system components.
Manual Section: Fuel Tank50-hour maintenance kit: need the bundle part number, unclear which items are included p. 121
Check the Maintenance Kit section on page 121. The Service Kit 50H lists all scheduled wear items as a bundled assembly with a single part number. For individual components, cross-reference Air Cleaner (page 32), Fuel Tank (page 39), and Hydraulic Oil Tank (page 88) to verify each item before deciding to order separately.
