All 520 pages of this Yanmar ViO23-6 Service Manual cover one machine: your mini excavator, from canopy mount to rubber track. If you've been hunting for a Yanmar ViO23-6 service manual PDF with actual factory numbers, this is it. Inside: hydraulic circuit schematics with full fluid routing, electrical wiring diagrams for both machine and engine systems, a complete tightening torque section, error code lists, and a troubleshooting chapter covering non-breakdowns and a quick-reference fault table. Step-by-step rebuild procedures span the engine, fuel, cooling, lubrication, swing, travel, and hydraulic pump assemblies. Replace rubberized fuel hoses at 2,000 hours or two years, whichever comes first; torque the M16×40 canopy mount to 123.0–151.9 ft·lbf with ThreeBond 1324 applied. Every hour your machine sits idle costs you money. Bookmarked and searchable: jump to any section, find any spec, get the job done.
What's Inside This Yanmar ViO23-6 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | 10-21 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment |
| Technical Data | 22-48 | 2-1 Specifications, 2-2 Outline Drawing and Working Area, 2-3 Weight List of Main Parts, 2-4 Lifting Capacity List, 2-5 Specifications for Attachment |
| Service Standards | 49-78 | Machine Performance, Engine, Undercarriage (Rubber Track Specifications), Controls, Hydraulic Equipment (Hydraulic Cylinders) |
| Engine | 79-214 | 4-1 Safety, 4-2 Engine, 4-3 Fuel System, 4-4 Cooling System, 4-5 Lubrication System, 4-6 Starter Motor, 4-7 Alternator, 4-8 Electric Wiring |
| Electric System | 215-236 | 5-1 Electric Equipment of Machine, 5-3 Engine Speed Controller, 5-4 Error Code List |
| Hydraulic System | 237-404 | 6-1 Outline, 6-2 Hydraulic Pump, 6-3 Control Valve, 6-4 Pilot Valve, 6-5 Swing Motor, 6-6 Travel Motor, 6-7 Proportional Solenoid Valve |
| Adjustment and Repair | 405-506 | 7-1 Engine and Electric Equipment, 7-2 Undercarriage, 7-3 Controls, 7-4 Swing Bearing, 7-5 Hydraulic Equipment, 7-6 Work Implements |
| Troubleshooting | 507-520 | 8-1 Non-Breakdowns, 8-2 Quick Reference Table for Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 4-pole canopy × Canopy mount (M16×40) tightening torque | 123.0 to 151.9 ft·lbf (166.7 to 206 N·m) | p. 67 |
| Hydraulic hose (Hose clip 60) tightening torque | 3.3 to 4.4 ft·lbf (4.5 to 5.9 N·m) | p. 67 |
| Fuel filter filtration area | 66.96 sq.in. (432 sq.cm) | p. 29 |
| Rubberized fuel hoses replacement interval | Every two years or every 2000 hours of engine operation, whichever comes first | p. 81 |
| Air cleaner filtration area | 6.35 sq.ft. (0.59 sq.m) | p. 29 |
| Overall length (Transportation position) | 153.1 in | p. 22 |
| Travel speed (Rubber track, Low speed) | 1.4 MPH | p. 22 |
| System relief set pressure (P1, P2) | 2987 PSI | p. 24 |
| Maximum P.T.O. discharge volume | 11.1 GPM | p. 24 |
| Rated output / engine speed | 19.6 HP / 2400 rpm | p. 28 |
| Compression pressure | 498 PSI | p. 28 |
| Radiator cooling fluid quantity | 3.7 L | p. 37 |
Yanmar ViO23-6 Common Problems This Manual Covers
Yanmar ViO23-6 hydraulic leak at pump bolt area and complete loss of hydraulic performance p. 24
Inspect the main pump housing for loose bolts and failed seals. Verify the system relief set pressure reaches 2987 PSI as detailed on page 24. Replace any damaged O-rings immediately. Clean the mounting surface thoroughly before installing new seals and torquing the bolts.
Manual Section: Hydraulic SystemEngine overheating or rapid coolant temperature rise during heavy trenching operations and continuous digging p. 37
Check the radiator core for debris blockages and clear with compressed air. Drain the system and refill the radiator cooling fluid quantity to exactly 3.7 L using page 37 as a guide. Inspect the fan belt tension and replace any cracked or hardened coolant hoses.
Manual Section: EngineTrack drive weakness or one-side travel failure when operating in low speed across uneven terrain p. 22
Measure the track tension and adjust the grease cylinder if loose. Test the travel speed to confirm it reaches 1.4 MPH on page 22. Inspect the travel motor for hydraulic fluid leaks. Repair the drive motor seals and verify the undercarriage rollers spin freely.
Manual Section: Travel Motor TroubleshootingEngine crank but no start condition or poor fuel pressure during cold morning startups p. 81
Drain the water separator and inspect the fuel filter element. Verify the rubberized fuel hoses replacement interval does not exceed every two years or every 2000 hours of engine operation, whichever comes first, according to page 81. Install new lines and bleed the fuel system completely.
Manual Section: Engine General TroubleshootingFrequently Asked Questions
How do I reset error codes on a YANMAR ViO23-6?
After solving the cause of an error, the error condition can be canceled by using the starter switch to turn the power OFF and then back ON. This procedure is outlined in the 'Alarm lamp error list' section of the manual.
How do I clear a YANMAR excavator fault code?
To clear a fault code on the YANMAR ViO23-6, first identify and resolve the underlying cause of the error. Once the issue is fixed, turn the starter switch to the OFF position and then back to the ON position to cancel the error condition.
What does the YANMAR ViO23-6 warning light mean?
The YANMAR ViO23-6 LCD monitor displays various LED lamps for warnings, such as the Warning lamp, Hydraulic oil temp. lamp, Engine oil pressure lamp, Battery charge lamp, Engine water temp. meter, and Fuel meter. In the event of machine failure, corresponding icons and error codes are displayed, and warning/caution lamps flash. For specific error codes and their meanings, refer to Section 5-4, 'Error Code List' on page 103.
How to check torque specs for YANMAR ViO23-6 track roller bolts
For YANMAR ViO23-6 track roller bolts (M12), the tightening torque is 57.9 to 72.3 ft·lbf (78.5 to 98.1 N·m). It is also recommended to apply Three Bond 1324 or its equivalent as an adhesive.
How will I receive this Service Manual?
This is a 520-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.

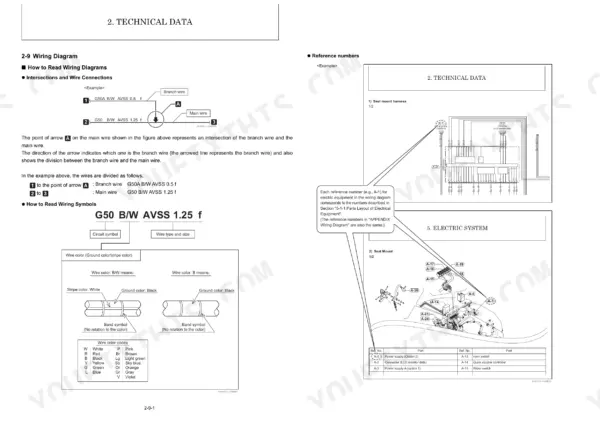

Can I find wiring schematics in this Yanmar ViO23-6 manual?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
