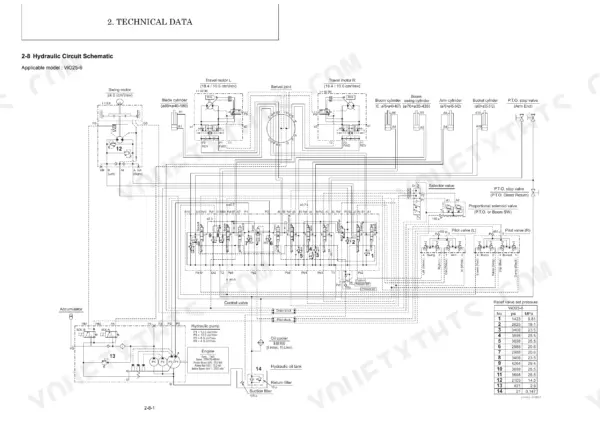

Hunting for a reliable Yanmar ViO25-6 service manual pdf? This is the factory original: 565 pages covering every major system on the ViO25-6 compact excavator, from engine internals to full hydraulic circuit operation. Inside, you get wiring diagrams for the engine start/stop circuits and automatic deceleration system, plus hydraulic schematics that trace fluid routing through the pump, control valve, pilot valve, swing motor, and travel motor. Open to the service standards section for a complete tightening torque table, pressure adjustment procedures, and an error code list tied directly to electric system diagnostics. Torque the M16x35 track roller mounting bolts to 206-245 N•m; your suction filter specs out at 697 sq.cm and 150-micron filtration accuracy. Your machine is down and every hour counts. Search by keyword, jump straight to the spec, and fix it right the first time. Bookmarked and ready on any device.
What's Inside This Yanmar ViO25-6 Manual

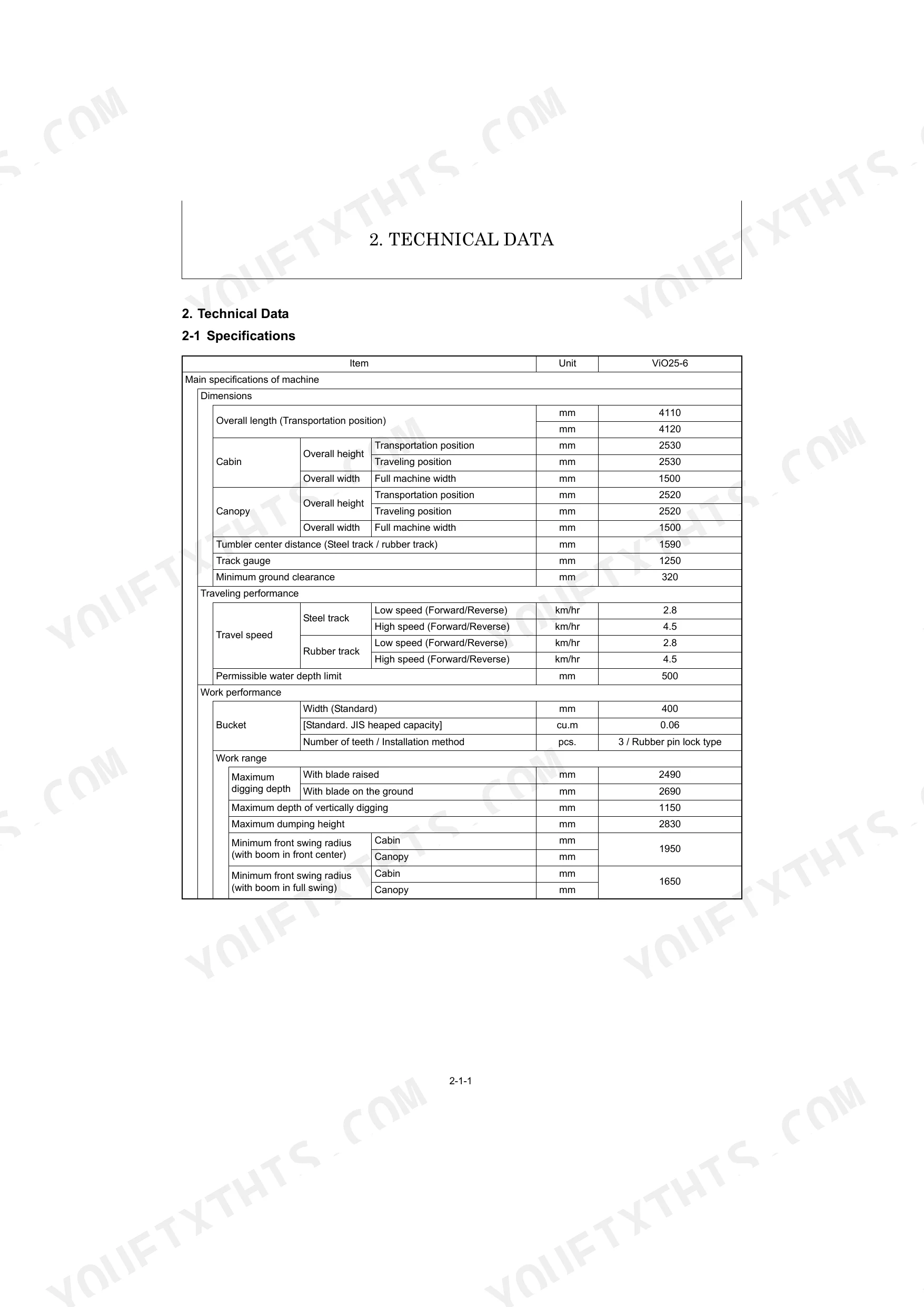

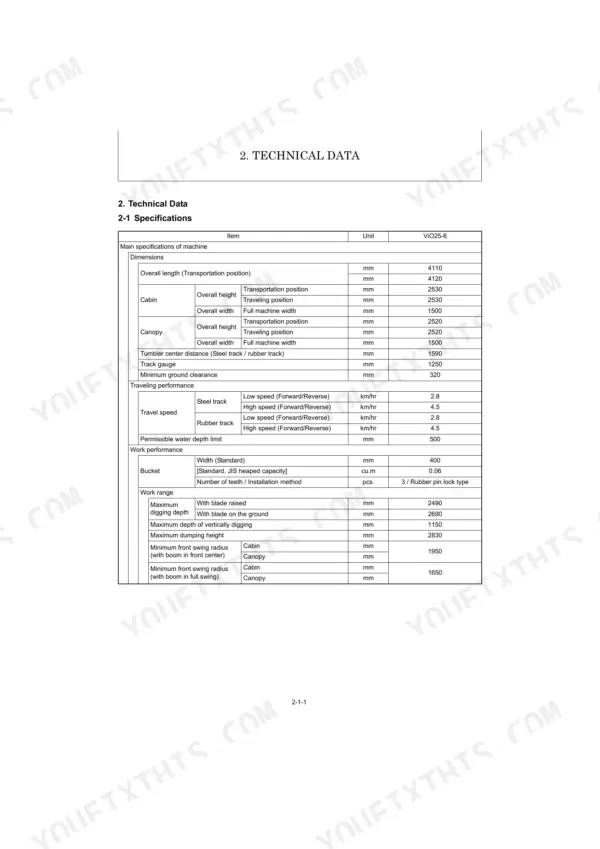

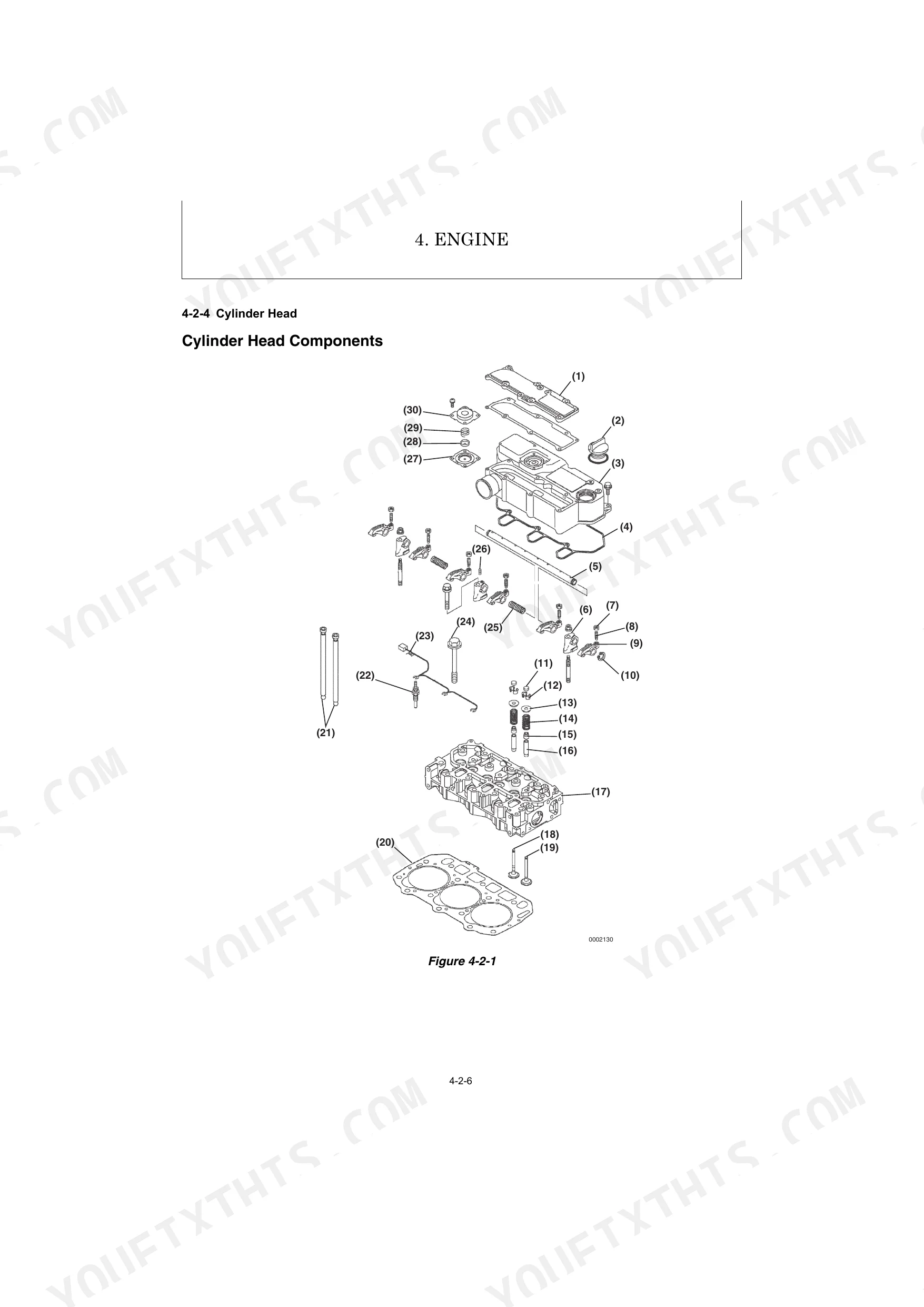

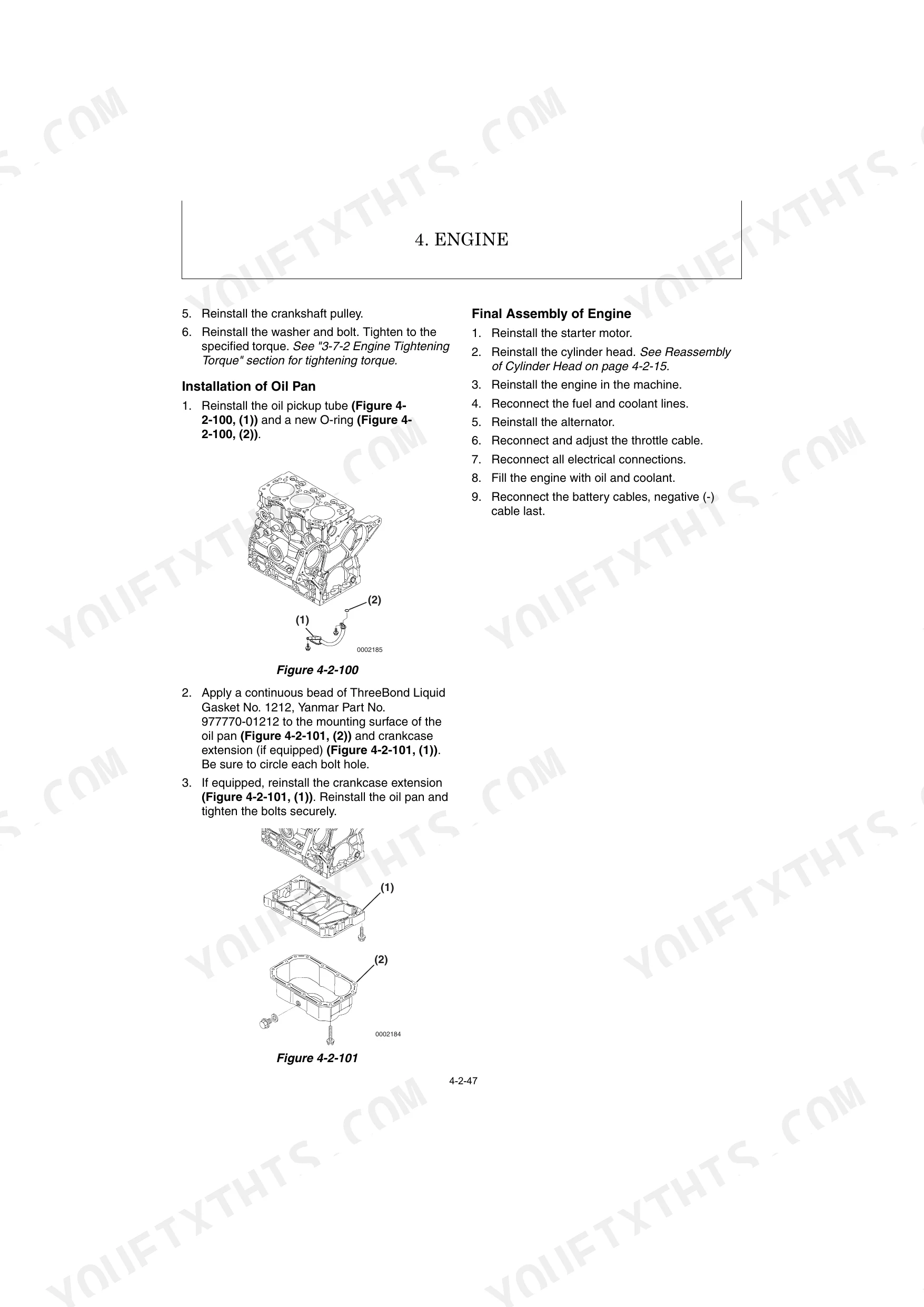

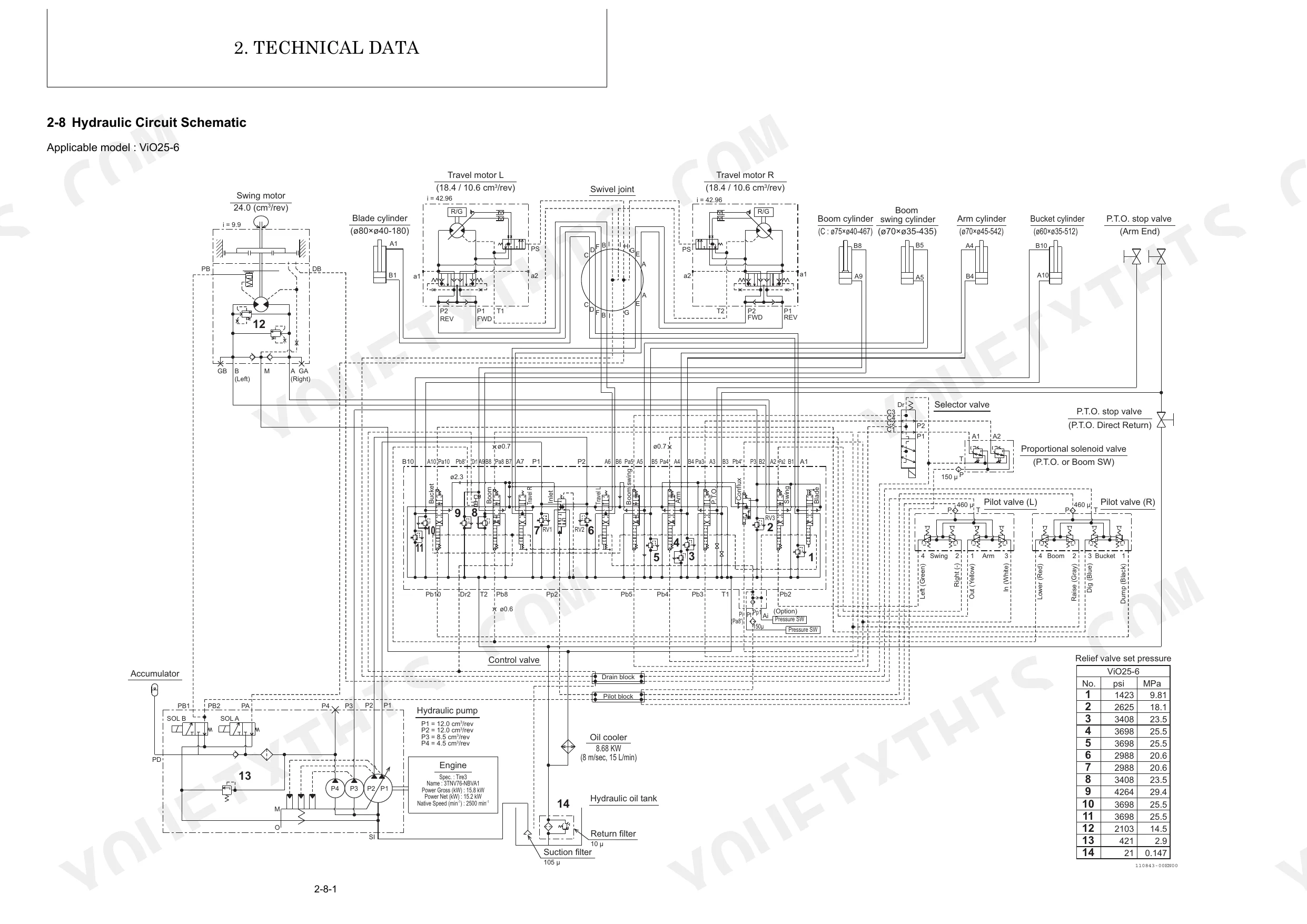

| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | 12-23 | 1-1 Correct Work, 1-2 Safety Precautions, 1-3 Preparations, 1-4 Cautions for Disassembly and Reassembly, 1-5 Cautions for Removal and Installation of Hydraulic Equipment |
| Technical Data | 24-50 | 2-1 Specifications, 2-2 Outline Drawing and Working Area, 2-3 Weight List of Main Parts, 2-4 Lifting Capacity List, 2-5 Specifications for Attachment |
| Service Standards | 51-82 | 3-1 Machine Performance, 3-2 Engine, 3-3 Undercarriage, 3-4 Controls, 3-5 Hydraulic Equipment, 3-6 Implement, 3-7 List of Tightening Torque, 3-8 Pressure Adjustment |
| Engine | 83-226 | 4-1 Safety, 4-2 Engine, 4-3 Fuel System, 4-4 Cooling System, 4-5 Lubrication System, 4-6 Starter Motor, 4-7 Alternator, 4-8 Electric Wiring |
| Electric System | 227-254 | 5-1 Electric Equipment of Machine, 5-2 Circuit Description of Engine Start and Stop, 5-3 Automatic Deceleration System, 5-4 Error Code List |
| Hydraulic System | 255-454 | 6-1 Outline, 6-2 Circuit Operation, 6-3 Hydraulic Pump, 6-4 Control Valve, 6-5 Pilot Valve, 6-6 Swing Motor, 6-7 Travel Motor, 6-8 Proportional Solenoid Valve |
| Adjustment and Repair | 455-552 | 7-1 Engine and Electric Equipment, 7-2 Undercarriage, 7-3 Controls, 7-4 Swing Bearing, 7-5 Hydraulic Equipment, 7-6 Work Implements, 7-7 Cabin |

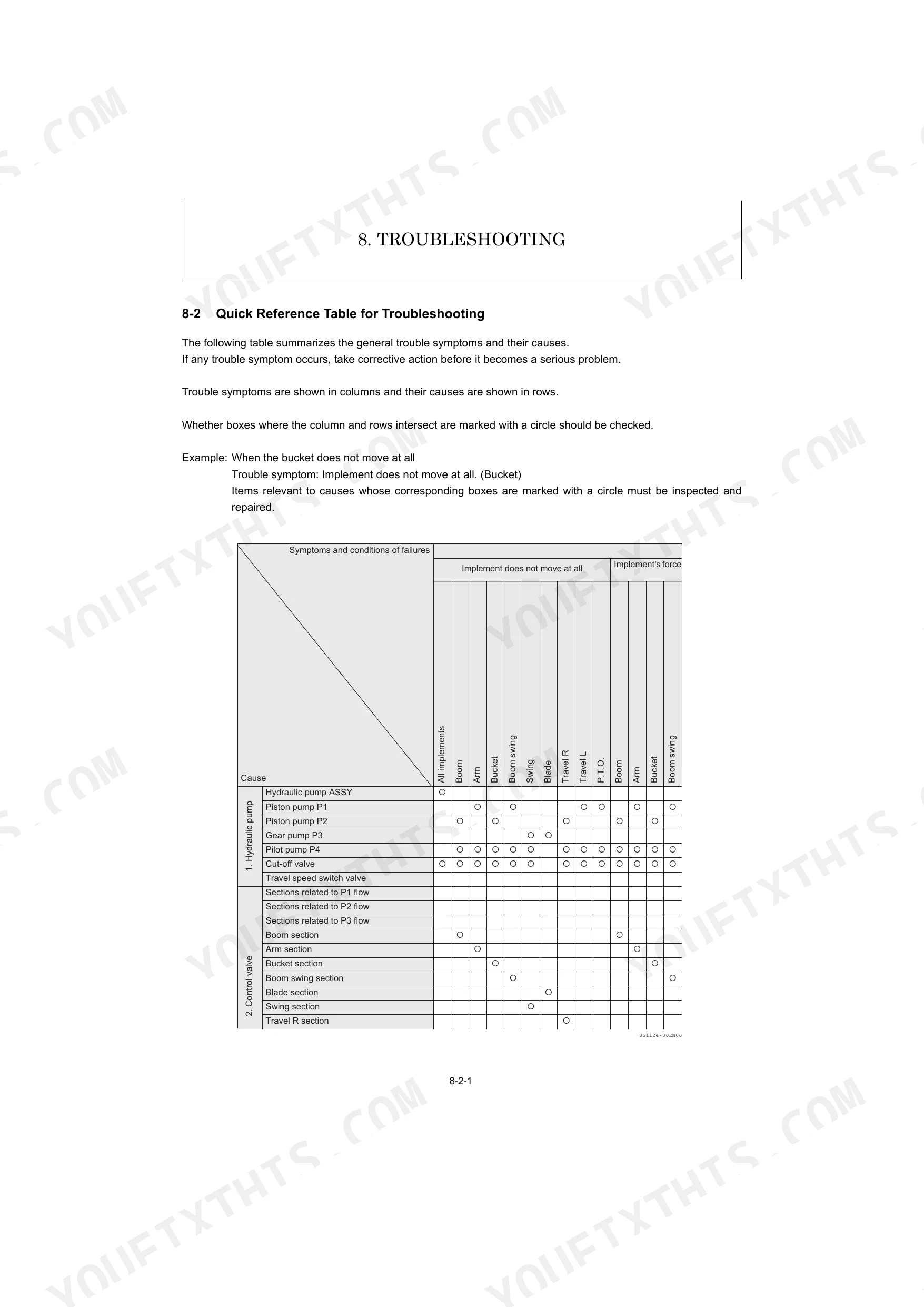

| Troubleshooting | 553-565 | 8-1 Non-Breakdowns, 8-2 Quick Reference Table for Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Track roller mounting bolt (M16x35) | 206 to 245 N•m | p. 69 |
| Suction filter filtration area | 697 sq.cm | p. 28 |
| Suction filter filtration accuracy | 150 u | p. 28 |
| Oil/water separator type | Mesh filter | p. 31 |
| Water separator inspection interval | Daily | p. 38 |
| Fan belt size | 36 | p. 31 |
| Fan belt replacement interval | Every 2000h / Every two years | p. 38 |
| Coolant hose replacement interval | Every 2000h / Every two years | p. 38 |

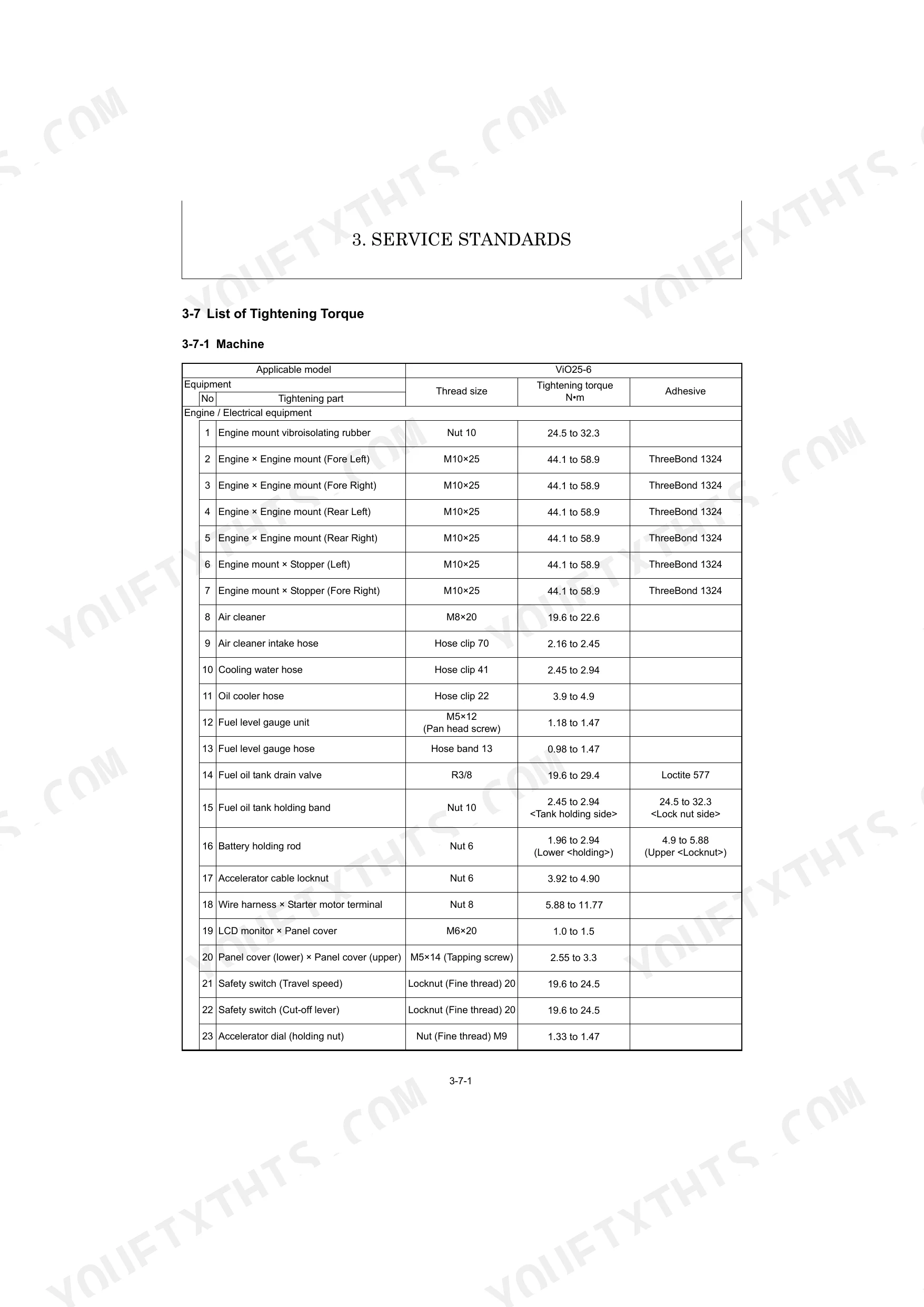

| Cooling water hose clip 41 tightening torque | 2.45 to 2.94 N•m | p. 68 |
| Battery type (JIS) | 65B24L | p. 32 |
| Battery voltage - 5 hrs rate capacity | 12 V - 36 Ah | p. 32 |
| Overall length (Transportation position) | 4110 mm | p. 24 |
Yanmar ViO25-6 Common Problems This Manual Covers
Yanmar ViO25-6 hydraulic pump making abnormal sounds and attachments operate slowly or not at all p. 560
Inspect the hydraulic fluid level and ensure the tank is filled to its 25 L capacity as noted on page 28. Drain the system and clean the suction filter if fluid is contaminated. Check page 560 for the quick reference table to isolate relief valve issues.
Manual Section: General Troubleshooting (Quick Reference Table)Engine starts normally but loses power, runs rough, or stalls out completely under heavy load
Drain the water separator mesh filter daily to prevent fuel contamination. Inspect all fuel delivery lines for severe air leaks. Verify the engine total displacement parameters match the 1115 cu.cm specification found on page 30. Clean the injector nozzles if rough idle persists.
Manual Section: Engine Troubleshooting (General)Temperature gauge spikes into the red zone and visible coolant leaks appear near the radiator p. 83
Inspect all cooling water hoses for dry rot or impact damage. Torque the cooling water hose clip 41 to exactly 2.45 to 2.94 N·m as detailed on page 68. Test the radiator cap pressure to verify it holds 88.3 kPa according to page 31.
Manual Section: EngineDigital display flickers randomly and work lights fail to turn on during cold morning starts p. 247
Test the 65B24L battery to ensure it meets the 12 V - 36 Ah specification listed on page 32. Verify the alternator nominal output reaches 40 A. Torque the upper locknut on the battery holding rod to 4.9 to 5.88 N·m using the specs on page 68.
Manual Section: Electrical System Error Code ListHigh pitched squealing noise from the engine compartment followed by sudden loss of cooling fan p. 455
Measure the fan belt slack directly halfway between the pulleys. Adjust the tensioner bracket until the belt slack measures exactly 10 to 15 mm as instructed on page 53. Replace the belt completely if you observe severe cracking or glazing on the inner ribs.
Manual Section: Adjustment and RepairFrequently Asked Questions
How do I reset the service alarm on a YANMAR ViO25-6?
To clear error conditions associated with service alarms, turn the starter switch to the “OFF” position and then back to the “ON” position. This action will allow you to check if the error code is still displayed.
What are the error codes on a YANMAR ViO25-6 excavator?
The YANMAR ViO25-6 excavator displays error codes on the LCD screen in the event of machine failure. For example, error code 00 000091.00 indicates an "Accelerator sensor malfunction: above normal operating range (SAEJ1843)". A comprehensive list of error codes, their descriptions, and causes can be found starting on page 105.
How do I clear fault codes on a YANMAR ViO25-6?
To clear fault codes, turn the starter switch to the “OFF” position and then back to the “ON” position. This procedure allows you to check if the error code is still displayed after addressing the underlying cause of the fault.
What are the hydraulic torque specs for a YANMAR ViO25-6?
The hydraulic torque specifications for the YANMAR ViO25-6 vary by fitting type. For example, a parallel pipe thread G (PF) 1/8 requires a tightening torque of 13.7 to 16.7 N·m, while a taper pipe thread G (PF) 1/8 requires 6.9 to 8.8 N·m. Unified screw threads also have specific torque ranges, such as 7/16-20UNF at 17.7 to 21.6 N·m.
How will I receive this Service Manual?
Instant PDF download. You get the full 565-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this Service Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

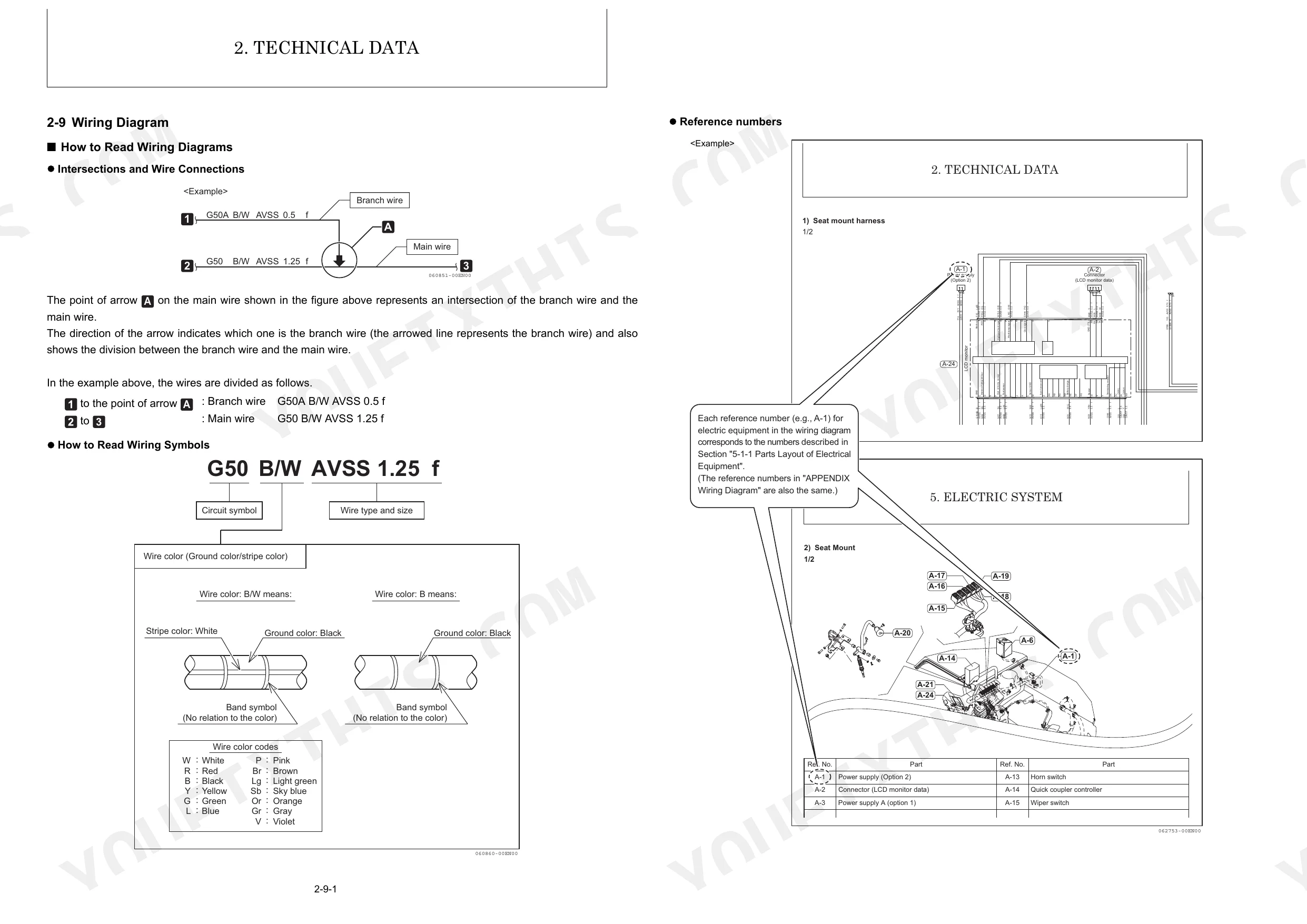

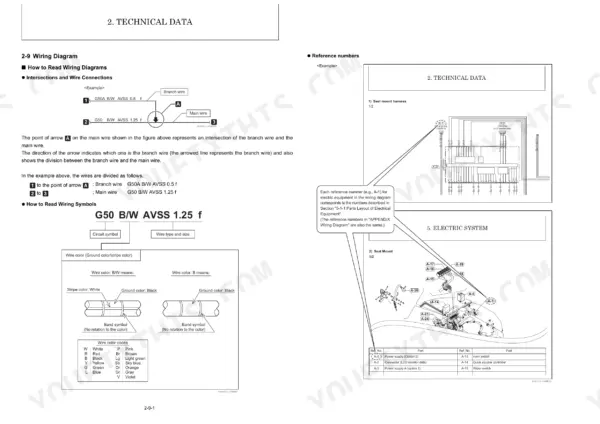

Are electrical wiring diagrams included in this Yanmar ViO25-6 Service Manual?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
