Looking for a factory-level Yanmar SV22 service manual PDF? All 406 pages of OEM reference MMB28ENMA00100 are here, covering the complete SV22 excavator from engine teardown to full hydraulic circuit operation. Inside you get hydraulic schematics tracing every circuit: boom, arm, bucket, swing, blade, and travel. Wiring diagrams cover the full electric system including LCD monitor alarms and the complete error code list, plus a calibration section, torque tables, and a troubleshooting guide tackling non-breakdown symptoms like cylinder drift, thermal shock, and telescopic motion. Torque the travel motor-to-track frame M10 bolts to 67 to 79 N·m and replace your gear oil filter every 250 hours. Those aren't forum estimates. Download now, jump to any bookmarked section, search any spec by keyword, and walk to your machine with the right answer.
What's Inside This Yanmar SV22 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | - | Correct Work, Safety Precautions, Disassembly and Reassembly, Hydraulic Equipment Removal/Installation, Hydraulic Hose Installation, Air Release |

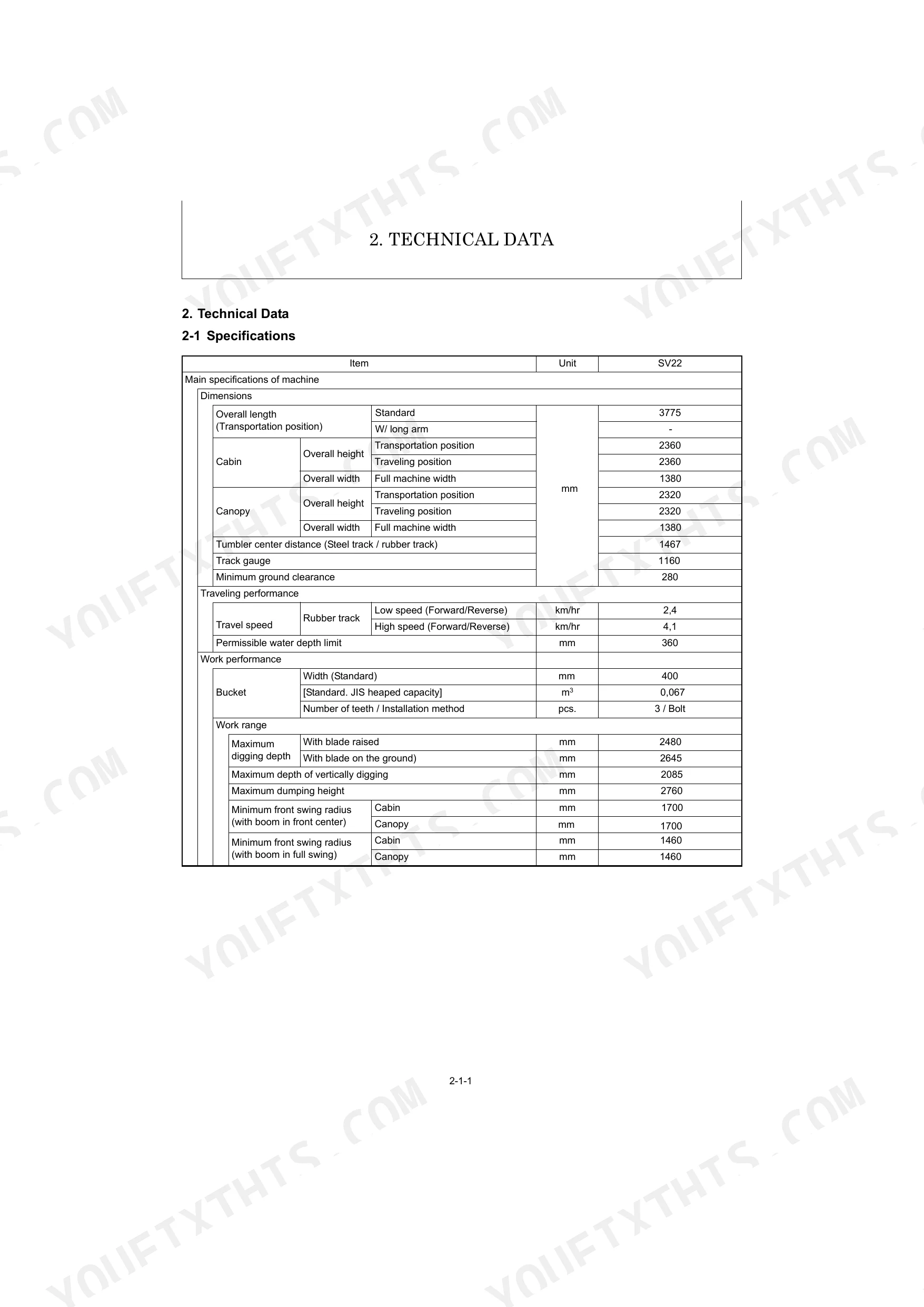

| Technical Data | - | Specifications, Outline Drawing, Weight List, Lifting Capacity, Periodic Inspection, Fuel/Lube/Grease Recommended, Hydraulic Circuit Schematic, Wiring Diagram |

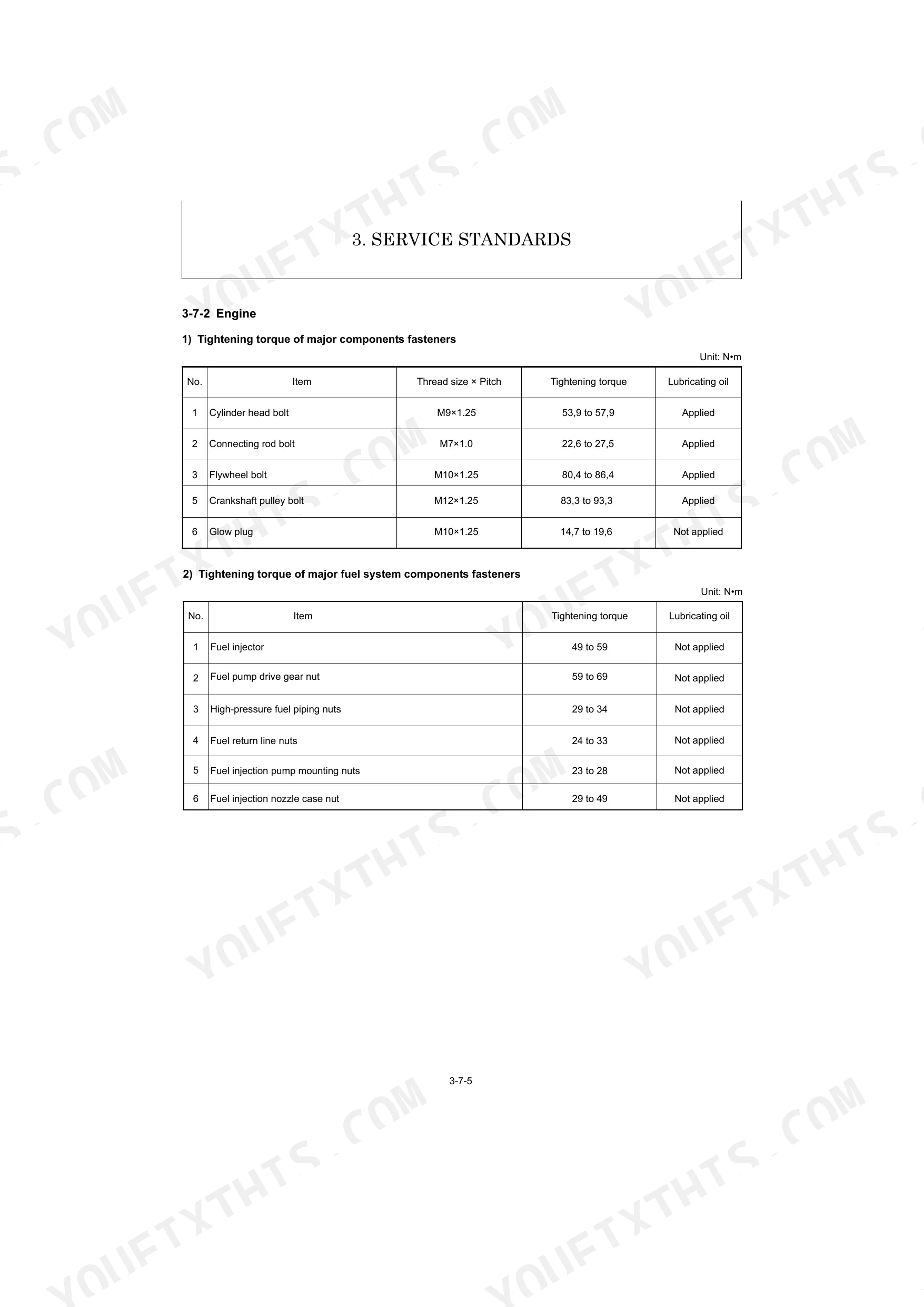

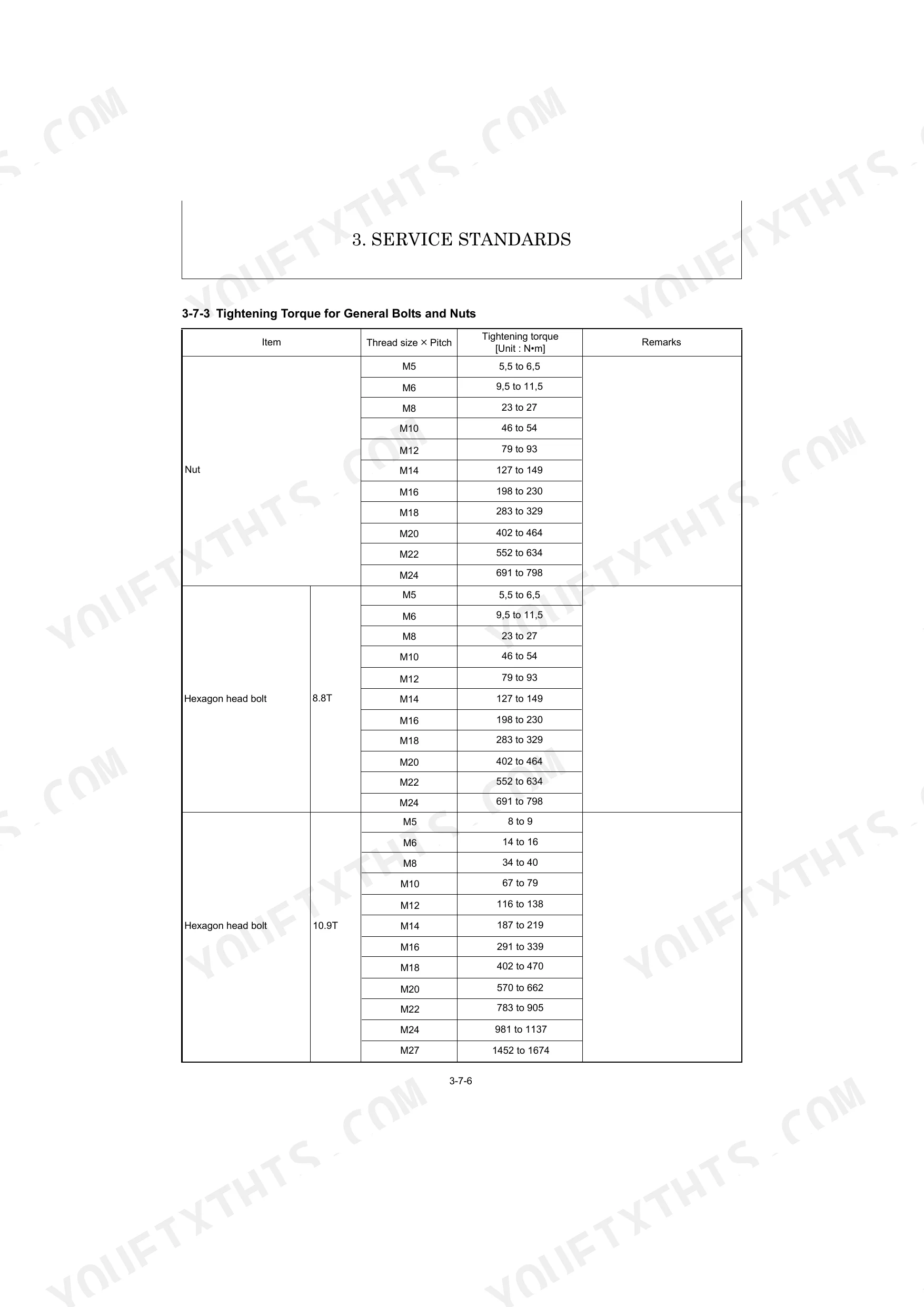

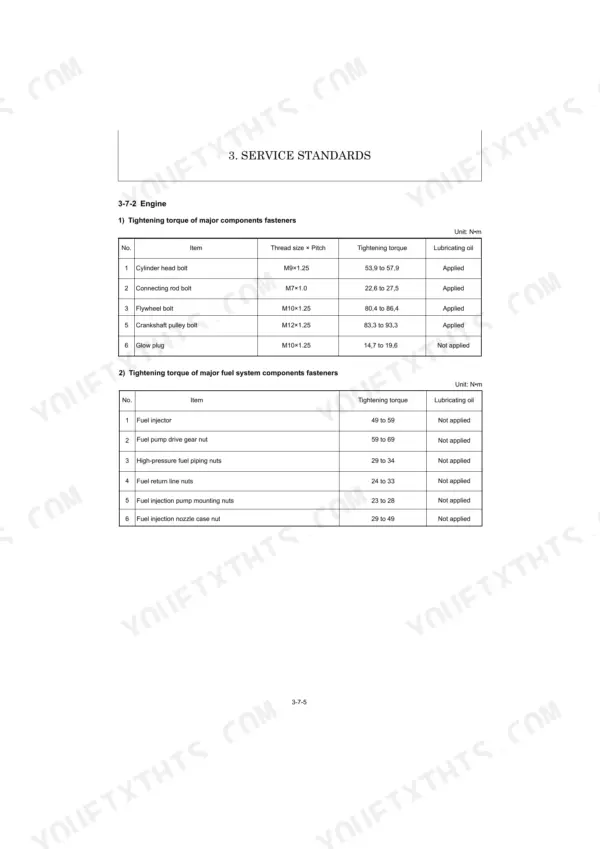

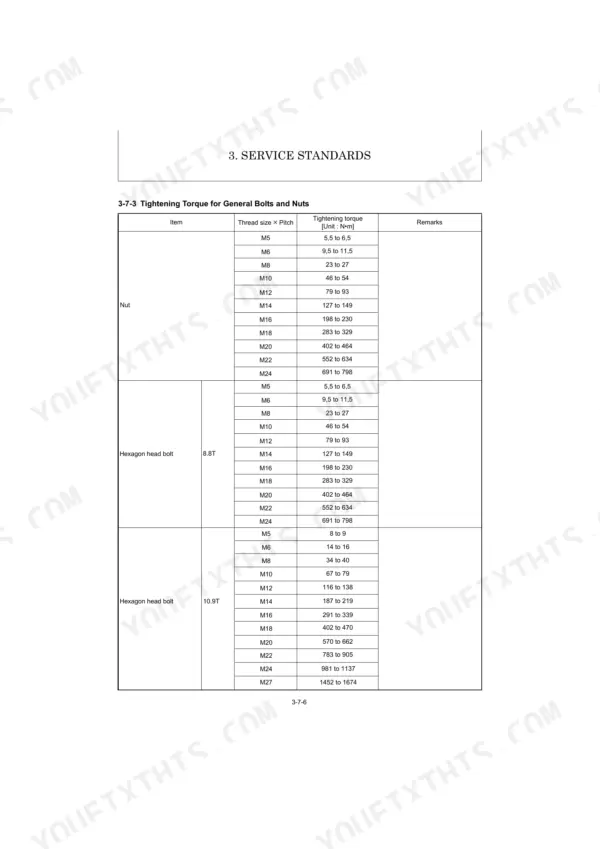

| Service Standards | - | Machine Performance, Undercarriage, Controls, Hydraulic Equipment, Implement, Tightening Torque, Pressure Adjustment |

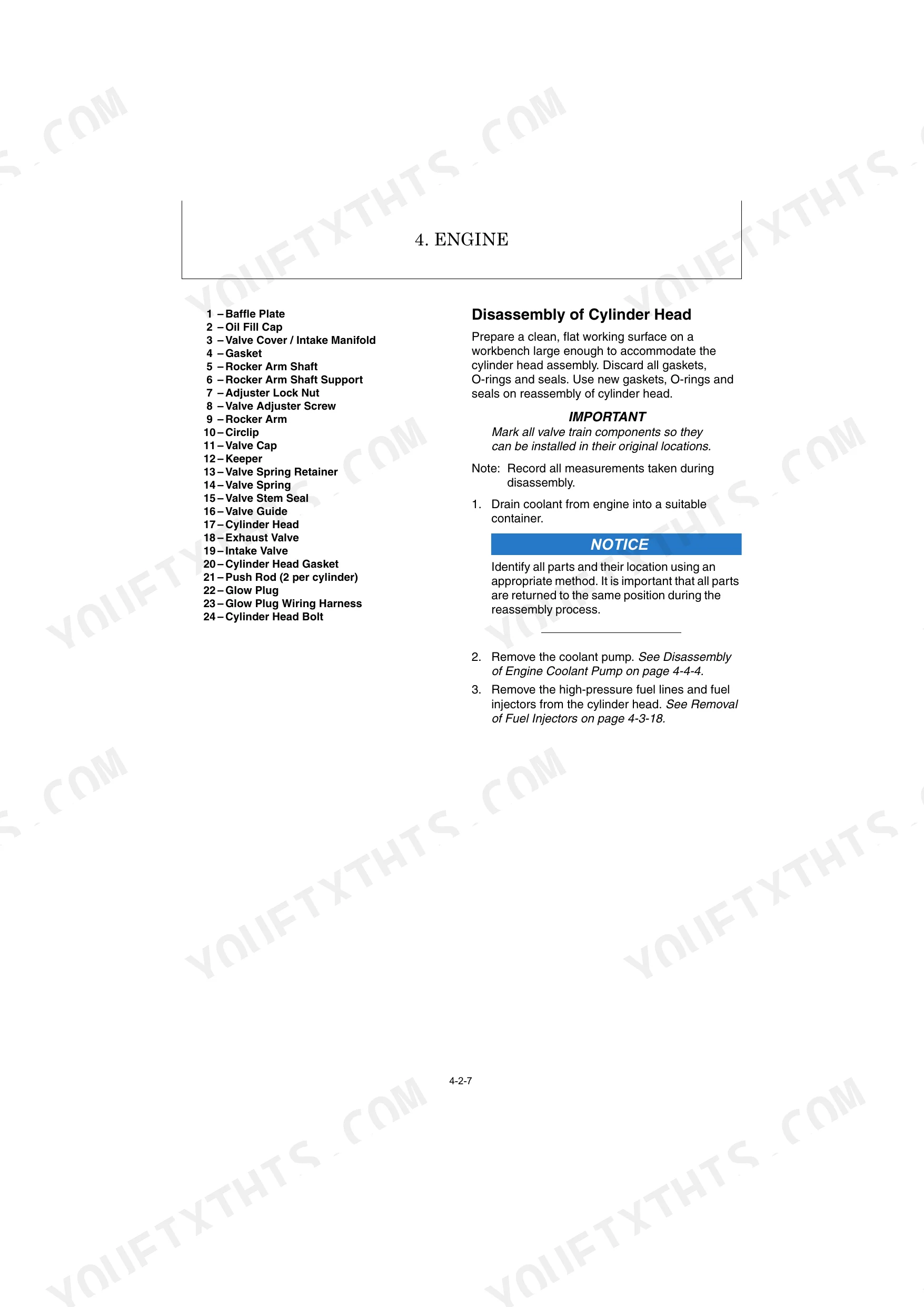

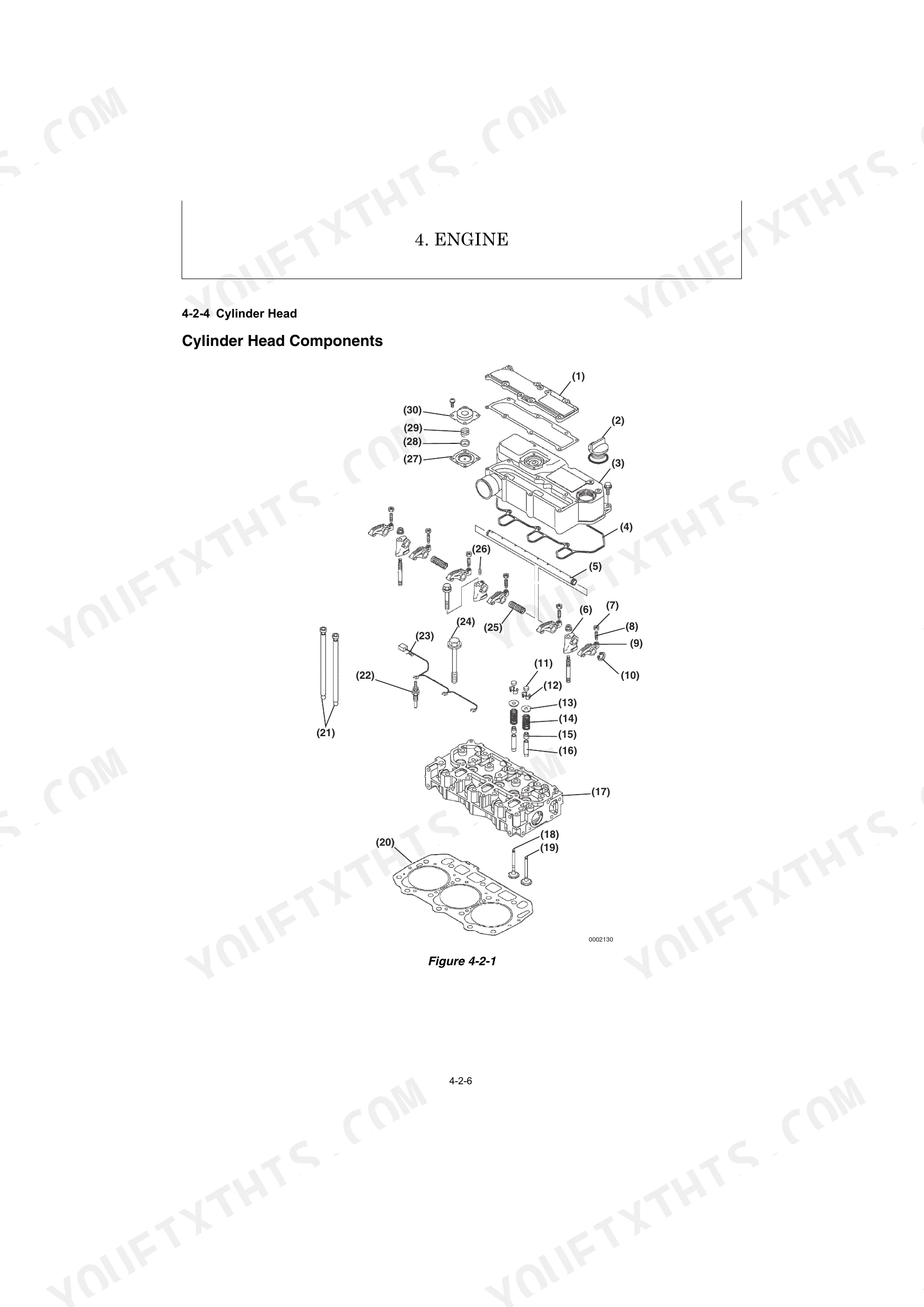

| Engine | - | Safety, Cylinder Head, Crankshaft and Camshaft Components, Fuel System, Cooling System, Lubrication System, Starter Motor, Alternator |

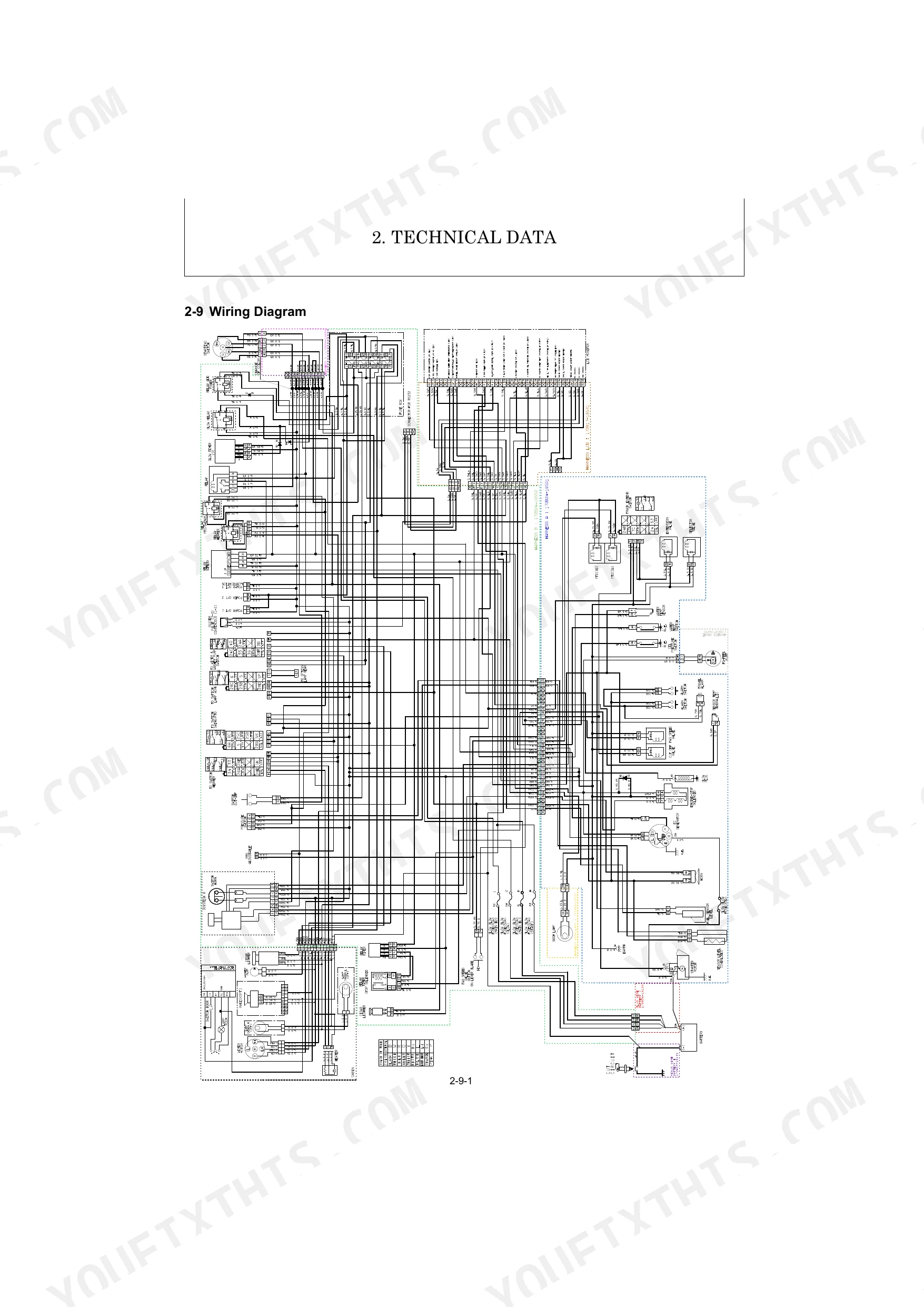

| Electric System | - | Electric Equipment of Machine, LCD Monitor and Alarm Systems, Circuit Description of Engine Start and Stop, Battery Charge, Error Code List |

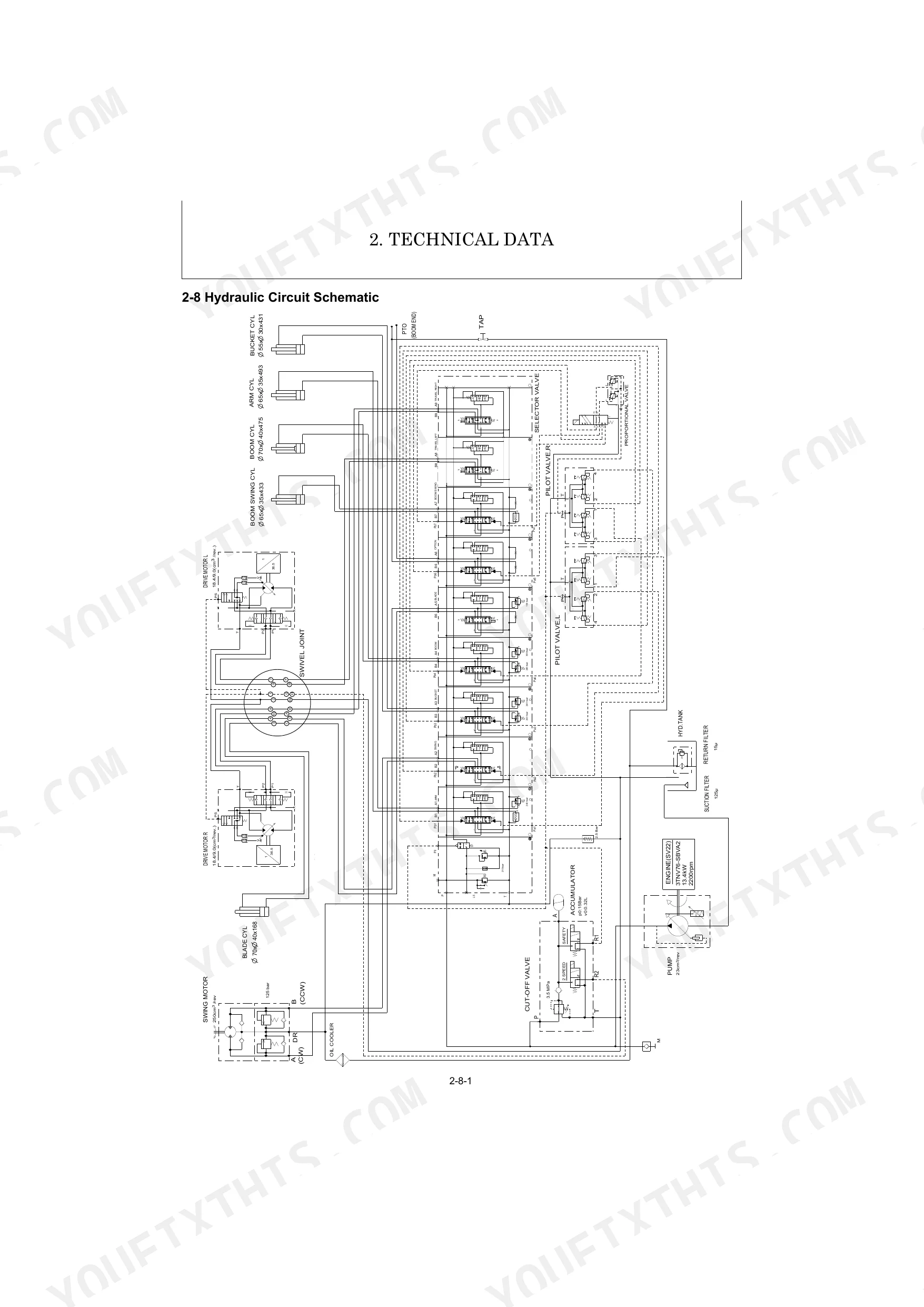

| Hydraulic System | - | Outline, Circuit Operation (Boom, Arm, Bucket, Swing, PTO, Blade, Travel), Hydraulic Pump, Control Valve, Pilot Valve, Swing Motor, Travel Motor |
| Adjustment and Repair | - | Engine and Electric Equipment, Undercarriage, Controls, Swing Bearing, Hydraulic Equipment, Implements |
| Troubleshooting | - | Non-Breakdowns (Natural Release, Discontinuous Movement, Drifting, Thermal Shock, Time Lag, Oil Level Fluctuation, Cylinder Elongation, Telescopic Motion) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Travel motor to Track frame bolt tightening torque | 67 to 79 N·m | p. 57 |
| LO filter filtration area | 800 cm² | p. 25 |
| LO filter valve opening pressure | 0,08 to 0,12 MPa | p. 25 |
| Fuel filter filtration area | 432 cm² | p. 25 |
| GO filter replacement interval | Every 250h | p. 32 |
| Oil/water separator type | Mesh filter | p. 25 |
| Water separator inspection/adjustment interval | Daily | p. 32 |
| Suction filter filtration area | 550 cm² | p. 22 |
| Suction filter filtration accuracy | 125 u | p. 22 |
| Return filter filtration area | 2200 cm² | p. 22 |
| Return filter filtration accuracy | 15 u | p. 22 |
| Radiator hose clip 35 tightening torque | 2,5 to 3,5 N·m | p. 55 |
Yanmar SV22 Common Problems This Manual Covers
Yanmar SV22 hydraulic functions feel weak or intermittent under load, bucket slow to respond p. 22
Check hydraulic oil level first; the tank holds 20 L (page 22) and low level alone causes sluggish response. Inspect the return filter: replace it every 50 hours (page 32), as a clogged element bypasses at 0.15 MPa and starves the circuit. Pull a fluid sample and look for metal particles or milky color before condemning the pump.
Manual Section: Hydraulic SystemEngine overheats repeatedly, coolant level drops between checks, no visible external leak p. 55
Inspect all coolant hoses and clamps before chasing internal causes. Torque hose clip 35 to 2.5 to 3.5 N·m (page 55) and replace hoses every 2000 hours (page 32). Clean debris from the radiator grille, verify coolant level cold, and check the overheating chart if the condition continues after mechanical fixes.
Manual Section: EngineHard starting or rough running after machine sits for extended periods, white smoke on startup p. 32
Drain the water separator daily (page 32): this mesh filter is the first thing to check after any extended sit. Replace the fuel filter every 250 hours. If the engine fires then stumbles or produces white smoke, inspect injection pressure; the valve should open at 12.3 to 13.3 MPa (page 48). Check the starting troubleshooting chart.
Manual Section: EngineMachine pulls to one side during travel, won't track straight on level ground p. 57
Adjust track tension before anything else; uneven tension is the most common pull cause. Inspect rubber track lug height and replace when wear exceeds 5 mm. If tension is correct, verify travel motor mounting bolts at 67 to 79 N·m (page 57), then use the straight-travel chart to isolate a hydraulic drive imbalance.
Manual Section: Adjustment and RepairHydraulic hose weeping oil, fittings showing mist or residue, implement function suddenly drops p. 61
Inspect hoses under full working pressure (21 MPa, page 20); sweating at the braid means the inner tube is gone. Torque parallel G3/8 fittings to 44.1 to 53.9 N·m (page 61) and hose clips to 2.5 to 3.5 N·m (page 57). Replace any hose with surface cracks, kinks, or oil seeping at the crimp before returning the machine to service.
Manual Section: Hydraulic SystemFrequently Asked Questions
How do I reset the Yanmar SV22 error code?
To check if an error code is reset after corrective measures, turn the starter switch to the “OFF” position and then to the “ON” position. This action allows the system to re-evaluate the fault and determine if the error code is still displayed, indicating whether the issue has been resolved. This procedure is common for various error codes listed in the manual.
What does the Yanmar SV22 alarm or warning light mean?
The Yanmar SV22 LCD monitor displays various alarm and warning lights, including a Warning lamp and Information lamp. For specific details on what each light signifies, refer to the Error Code List. For example, an error code like "00.000001.01 Accelerator sensor malfunction: short circuit to low voltage side" indicates a specific issue that would likely trigger a warning.
How do I reset the Yanmar SV22 hydraulic pilot control lock?
The hydraulic pilot control lock on the Yanmar SV22 is a mechanical safety feature. To 'reset' or disengage the lock, move the lock lever from the 'N' (Normal) position to the 'P' (Pushed) position. The operating force for moving the lock lever from N to P should be less than 39.8 N to allow implements to operate.
How do I reset the Yanmar SV22 battery disconnect or electrical system?
To reset the electrical system after servicing, reconnect the battery cables, ensuring the negative (-) cable is connected last. Before servicing, always disconnect the negative (-) battery cable to prevent shock hazards. This is a standard procedure for safely restoring power to the electrical system.
What do I get after purchasing this Yanmar SV22 manual?
Instant PDF download. You get the full 406-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this Yanmar SV22 manual include hydraulic schematics?

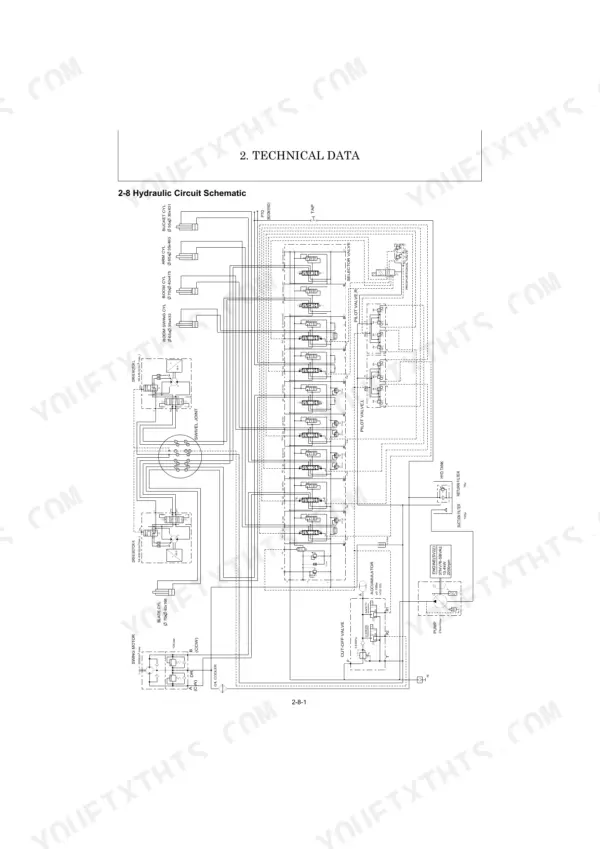

Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
