Need the Yanmar ViO38U service manual PDF with full factory specs? This 487-page OEM reference puts factory-level detail on every system of the ViO38U compact excavator: engine internals, fuel injection, hydraulic circuits, and electrical troubleshooting. Inside, you get complete wiring diagrams with monitor and alarm circuit logic, a full hydraulic circuit schematic tracing flow through the control valve, pilot valve, swing motor, and travel motor, plus a dedicated troubleshooting section with a compression pressure test guide and quick-reference fault tables. Separate torque tables break out machine fasteners, engine hardware, and hydraulic fittings. Check the hydraulic return filter bypass valve setting at 0.15 MPa and verify the air cleaner's 0.9 m² filtration area before putting anything back together. Your machine isn't making money sitting in the yard. Download, search by keyword, and get to work.
What's Inside This Yanmar ViO38U Manual
| System | Pages | Key Topics |
|---|---|---|

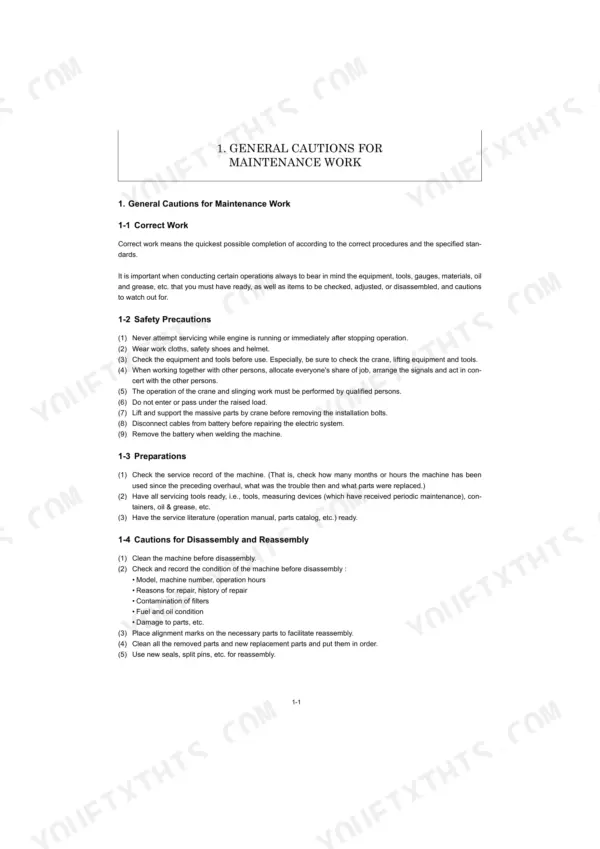

| General Cautions for Maintenance Work | 8-9 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment |
| Technical Data | 18-31 | Specifications, Outline Drawing and Working Area, Weight List of Main Parts, Lifting Capacity List |
| Service Standards | 32-55 | Machine Performance, Engine, Undercarriage (Rubber Crawler Specifications, Steel Crawler Specifications, Common Specifications of Steel & Rubber Crawlers), Controls |
| Safety (Engine) | 58-69 | Safety Precautions for Engine Disassembly, Assembly, And Service Operations |

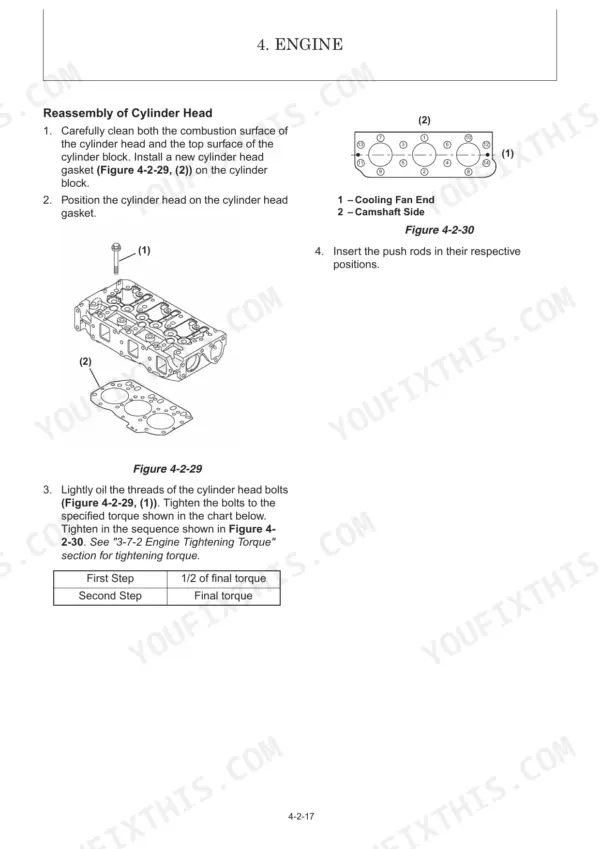

| Engine | 70-115 | Engine Assembly, Disassembly, Pistons, Crankshaft, Cylinder Head, Valve Train, Component Inspection and Clearances |
| Fuel System | 116-147 | Fuel Injection Pump, Injection Nozzle, Fuel Filter, Bleeding Procedures, Injection Timing Adjustment |
| Cooling System | 148-155 | Radiator, Water Pump, Thermostat, Coolant Capacity, Cooling Fan, Belt Tension |
| Lubrication System | 156-163 | Oil Pump, Oil Pressure Specifications, Oil Filter, Lubrication Circuit, Oil Capacity 3.5 L |
| Starter Motor | 164-178 | Starter Motor Disassembly, Assembly, Brush Wear Limits, Commutator Inspection, No-Load Test Specifications |
| Alternator and Wiring | 179-199 | Alternator Output, Regulator, Rotor and Stator Tests, Wiring Harness, Engine Electrical Troubleshooting |
| Electric System | 200-211 | Electrical Equipment Layout, Monitor and Alarm Systems, Wiring Diagram, Engine start/stop Circuit, Battery Charging |

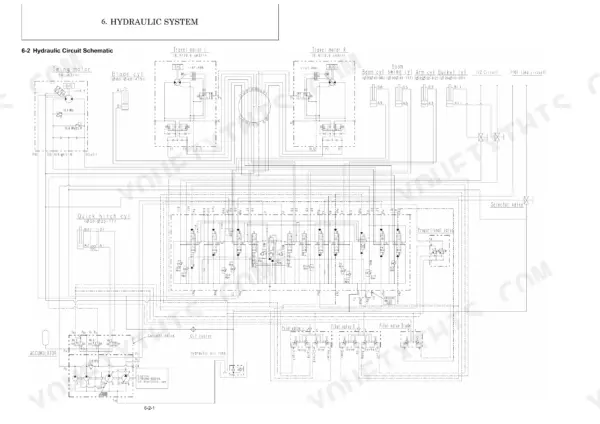

| Hydraulic System | 212-308 | Hydraulic Pump, Control Valve, Pilot Valve, Swing Motor, Travel Motor, Pressure Adjustment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Return filter type | Y2502 | p. 23 |
| Return filter filtration area | 4600 cm² | p. 23 |
| Oil/water separator type | Mesh filter | p. 25 |
| Air cleaner type | Cyclone type | p. 25 |
| Air cleaner filtration area | 0.9 m² | p. 25 |
| Allowable clearance for front attachment pins and bushings | 1 mm | p. 47 |
| Idler & shaft pin wear limit (Steel Crawler) | 20 mm | p. 45 |
| Headlight power | 12-55 V-W | p. 26 |
| Boom light power | 12-55 V-W | p. 26 |
| Thermostat opening temperature | 70 to 73 °C | p. 25 |
| Thermostat full-open temperature | 80 to 84 °C | p. 25 |
| Engine Model | 3TNV88-BQBVA | p. 24 |
Yanmar ViO38U Common Problems This Manual Covers
Yanmar ViO38U slow hydraulics after warming up or replacing the return filter p. 22
Inspect the hydraulic tank and verify the 60 L fluid capacity is met according to page 23. Test standard upward boom speed, which should be 2.3 sec as shown on page 22. Drain aerated fluid and bleed the pilot lines to restore proper cycle times.
Manual Section: Hydraulic SystemEngine overheating risk and temperature warning buzzer sounding during heavy digging operations p. 41
Clean the radiator grille and inspect all coolant hoses for leaks. Test the cooling water temperature switch. Replace the sensor if the alarm fails to turn on between 107 to 113 °C as specified on page 41. Torque the cylinder head bolts to 85.3 to 91.1 N•m per page 52.
Manual Section: EngineIntermittent monitor display operation and flickering exterior work lights during heavy machine vibration
Inspect the wiring harness connections behind the main monitor panel. Review the wiring diagram for ground faults. Test the exterior illumination circuits and verify the headlight power output meets the 12-55 V-W requirement detailed on page 26. Clean and tighten all loose terminal rings.
Manual Section: Electric SystemExcessive bucket play and clunking noise from the front attachment during trenching p. 47
Measure the front attachment pins and bushings for wear. Replace the hardware if the gap exceeds the 1 mm allowable clearance listed on page 47. Check the swing bearing and torque the lower frame bolts to 255 N•m as shown on page 50 to eliminate excess movement.
Manual Section: General Cautions for Maintenance WorkFrequently Asked Questions
What are the torque specs for YANMAR ViO38U track roller bolts?
For the YANMAR ViO38U, the track roller bolts (M16x35, 10.9) require a tightening torque of 291 to 339 N·m. Three Bond 1324 adhesive should be applied.
What are the replacement specifications for Hydraulic return filter?
The hydraulic return filter for the YANMAR ViO38U has a type Y2502, a filtration area of 4600 cm², a filtration accuracy of 100 µ, and a by-pass valve opening pressure of 0.15 MPa. It should be replaced with a new one during reinstallation.
What are the replacement specifications for Fuel/water separator element?
The fuel/water separator element for the YANMAR ViO38U is a Mesh filter type. No other specific replacement specifications are provided in the manual.
How do you fix yanmar ViO38U slow hydraulics after warming up or replacing the return filter?
Inspect the hydraulic tank and verify the 60 L fluid capacity is met according to page 23. Test standard upward boom speed, which should be 2.3 sec as shown on page 22. Drain aerated fluid and bleed the pilot lines to restore proper cycle times.
Is this Service Manual a digital download?
A 487-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this Service Manual?
Print what you need — the PDF is DRM-free, so you can output individual sections or the full manual. Standard letter or A4 paper works fine for shop use.
Are hydraulic system diagrams in this Yanmar ViO38U Service Manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
