Part of the Case Repair Manuals.
Every one of the 616 pages in this Case 125B Service Manual PDF (OEM #8-74350) is aimed at one machine: your 125B excavator, from its Deutz engine to the turntable bearing. Inside: full wiring schematics with electrical troubleshooting, hydraulic diagrams covering the pump, swing motor, control valves, and cylinders, plus removal and installation procedures for tracks, final drives, drive motors, and the boom and arm. You also get maintenance and lubrication charts and a factory torque table for every metric fastener grade. Torque Grade 8.8 M10 bolts to 38-45 pound-feet, and fill the hydraulic reservoir to 58.1 US gallons (220 litres). No more chasing hydraulic pressure faults with borrowed numbers from a forum thread. This bookmarked PDF opens on any device; pull it up on a tablet next to the machine and start wrenching.
What's Inside This Case 125B Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 3-14 | Safety Rules, Service Manual Introduction, And Torque Specifications, Maintenance and Lubrication |

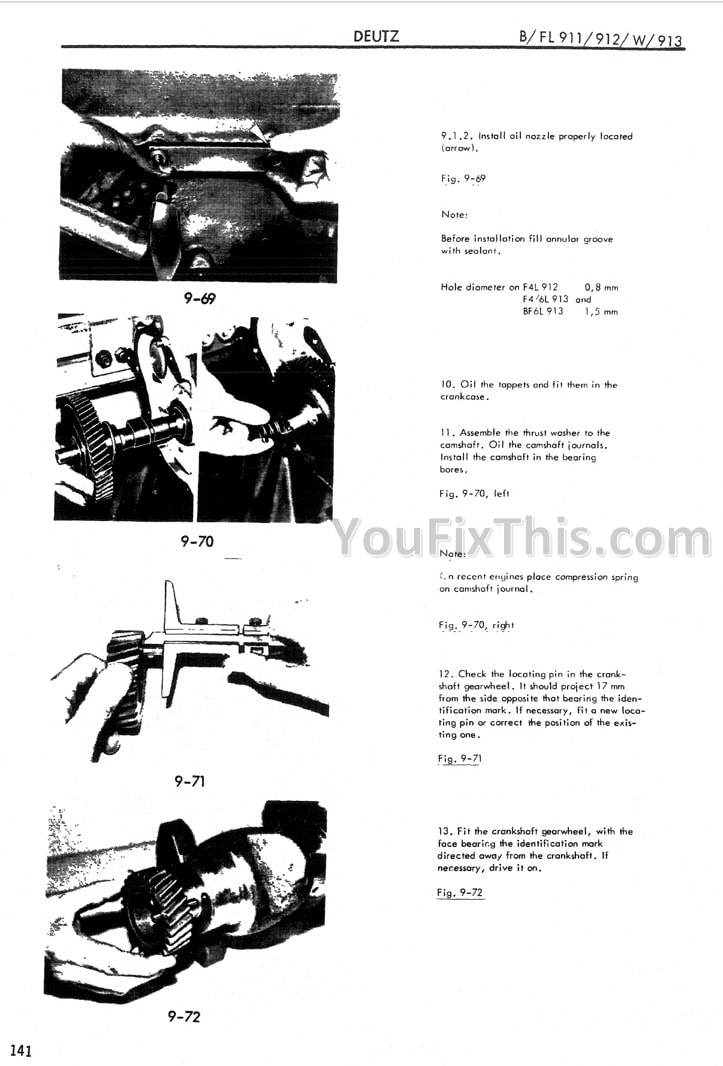

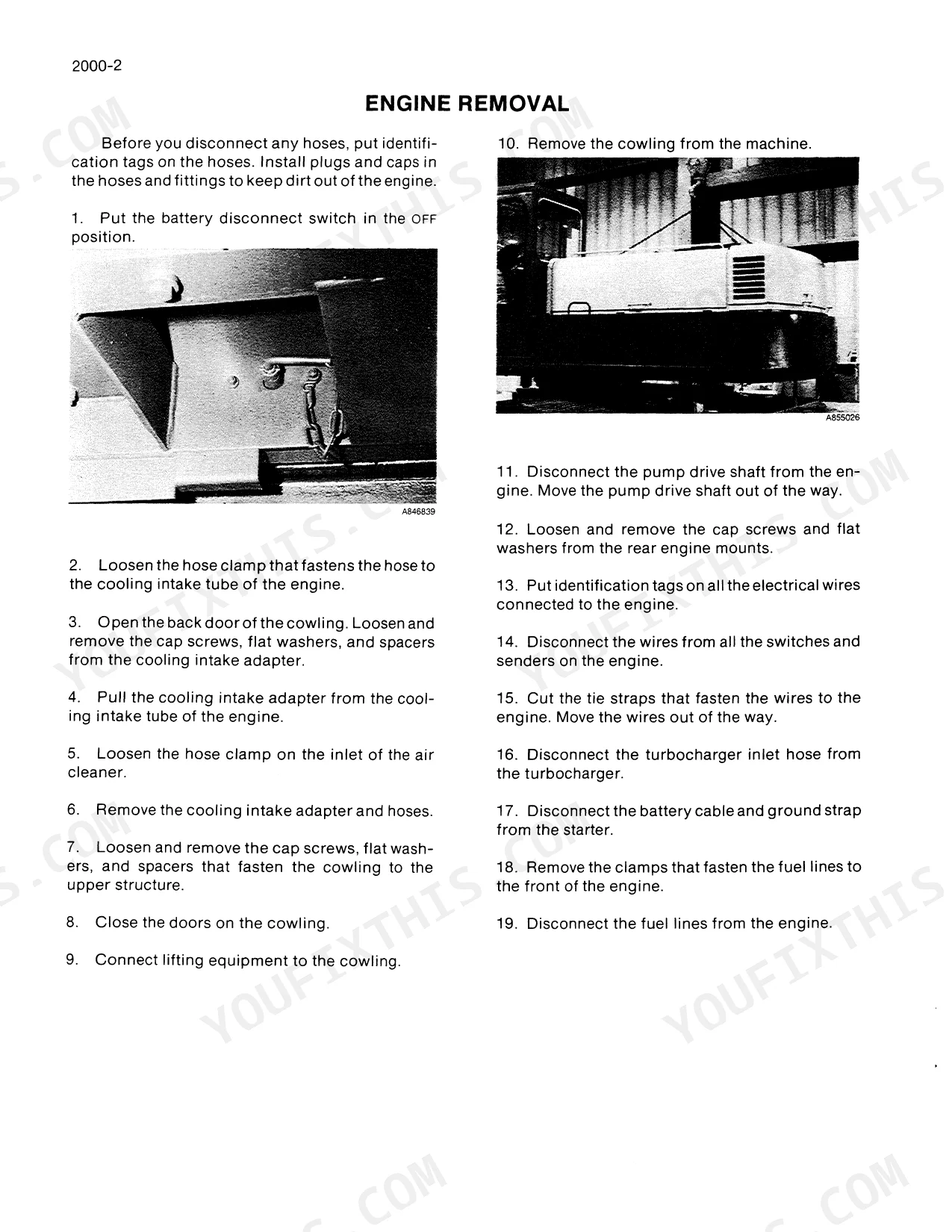

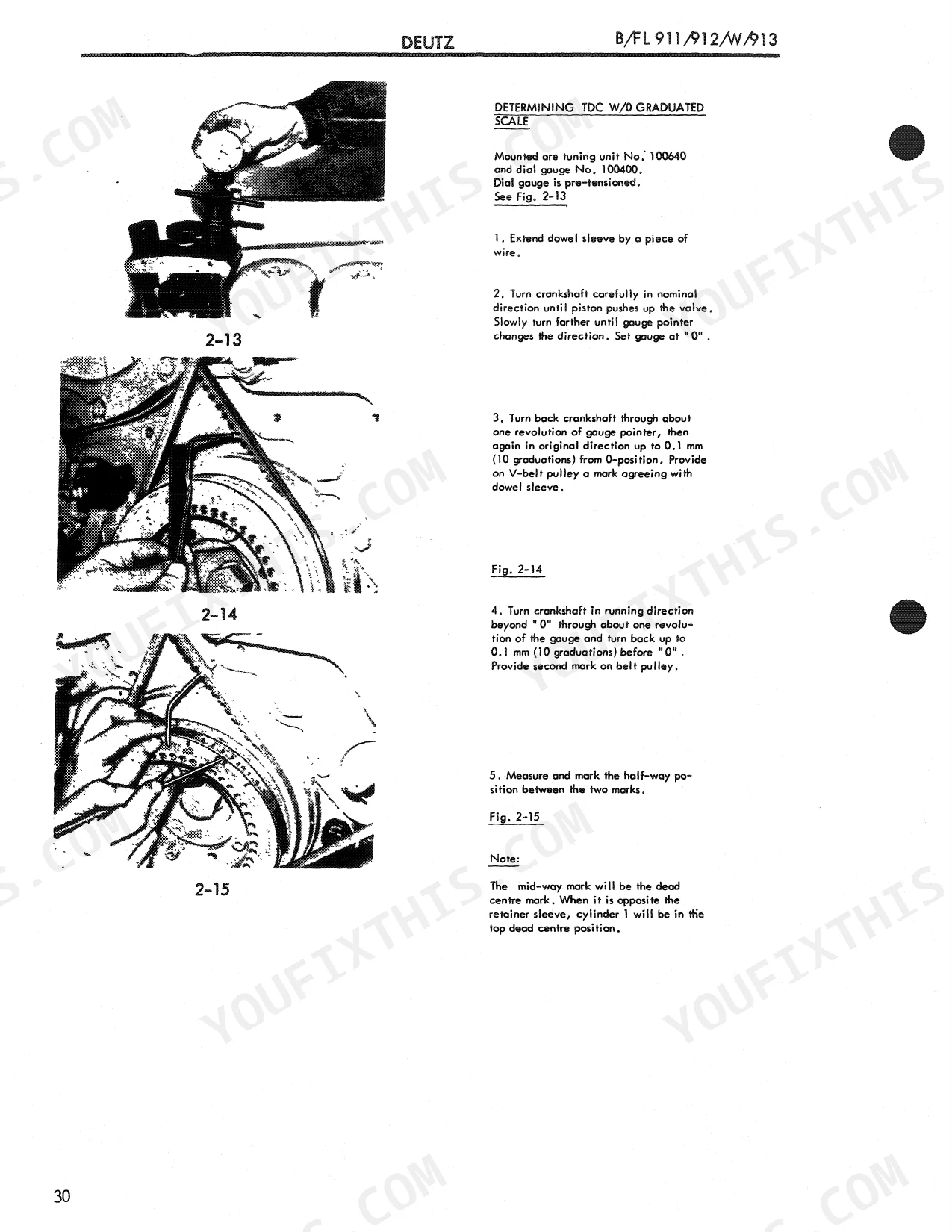

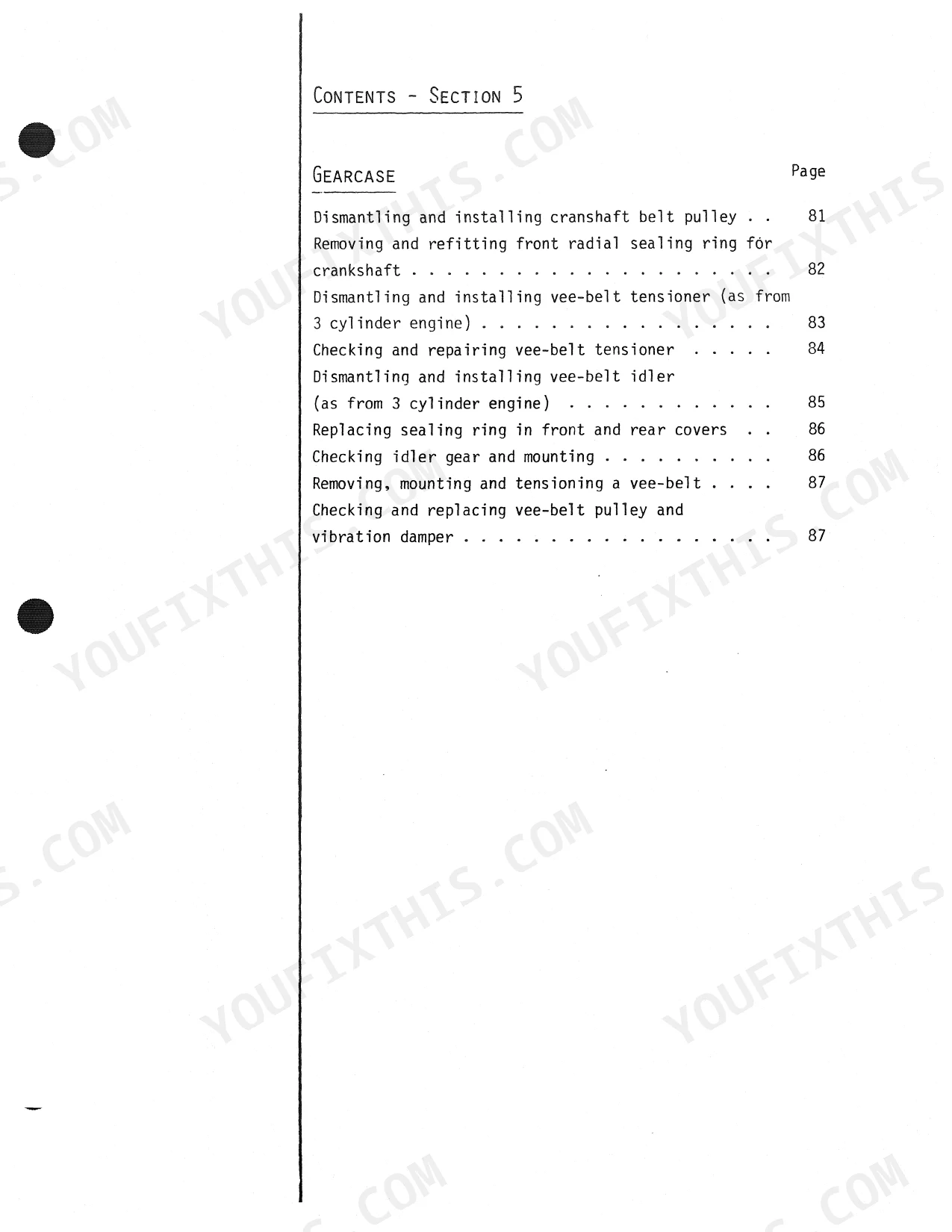

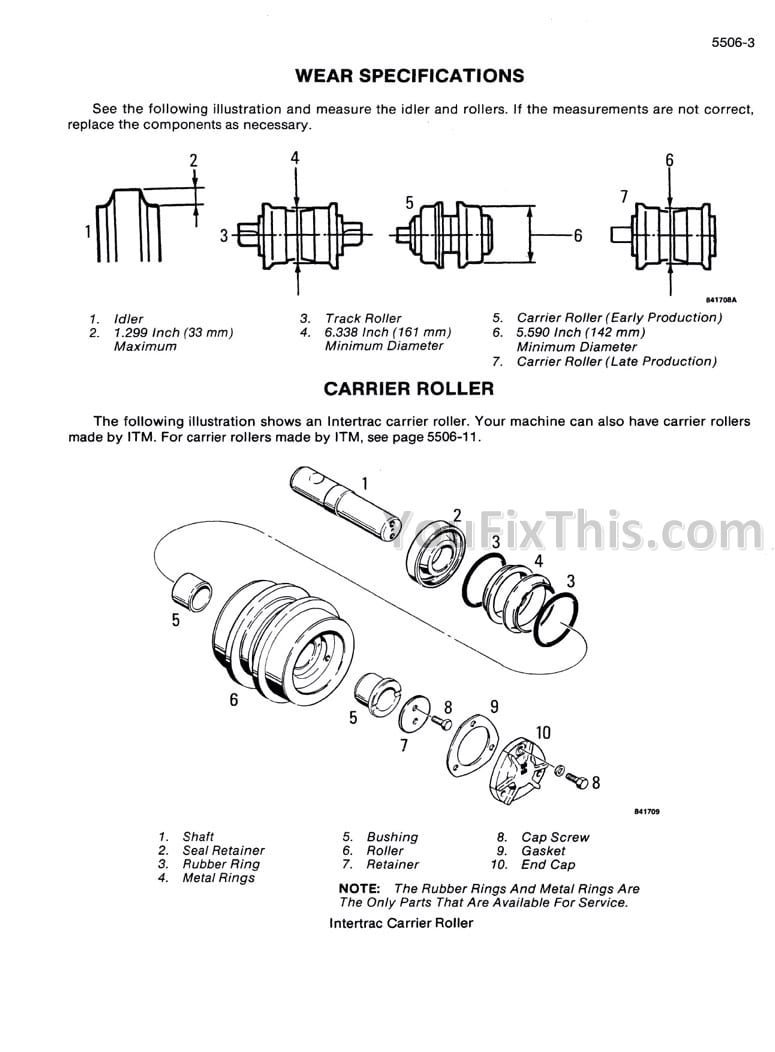

| Engine | 15-248 | Engine Removal and Installation, Engine Accessories, Deutz Engine Service Manual |
| Fuel System | 249-252 | Fuel Lines, Fuel Tank, And Engine Controls |
| Electrical | 253-306 | Electrical System Specifications and Troubleshooting, Wiring Schematics, Batteries, Starter, Alternator |
| Track and Suspension | 307-350 | Removal and Installation of Track Components, Troubleshooting, Track Chain and Shoes, Track Rollers, Carrier Rollers, Idlers, And Sprockets |

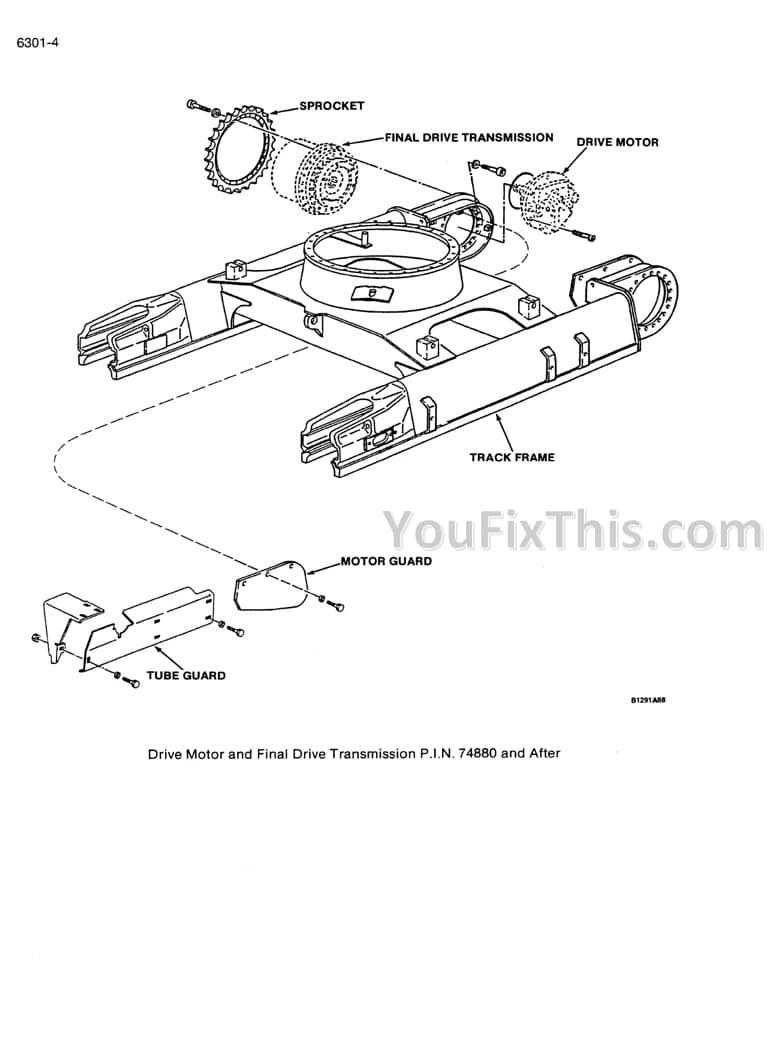

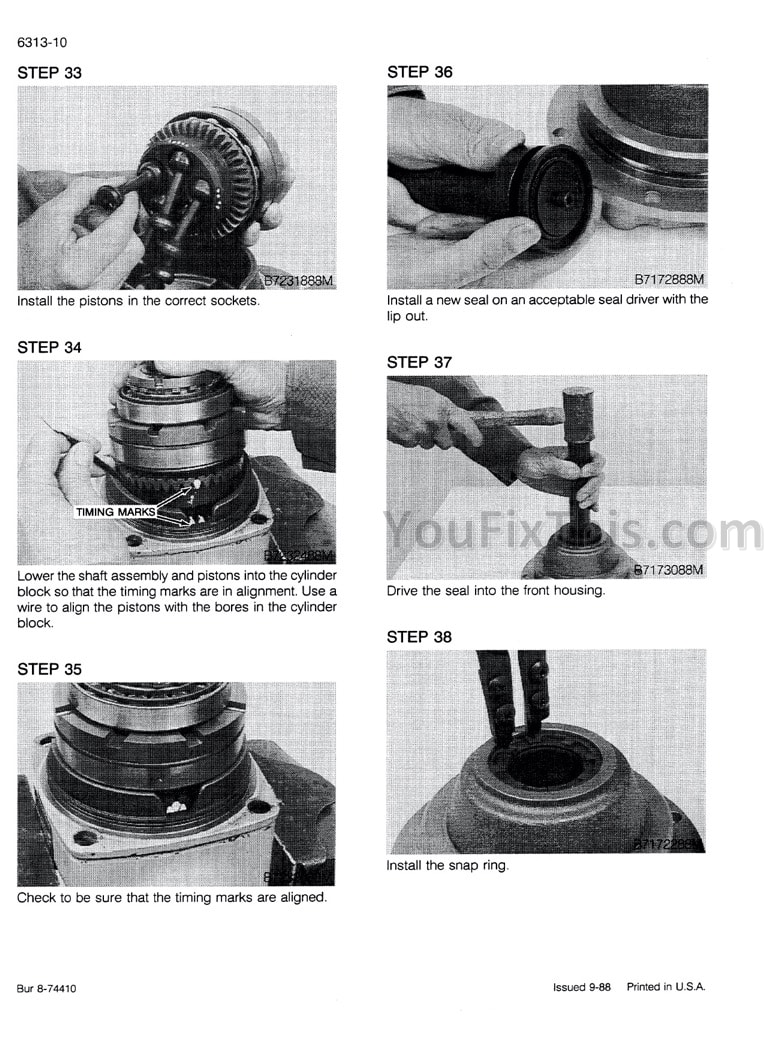

| Power Train | 351-408 | Removal and Installation of Power Train Components, Drive Motor Prior to Machine P.I.N. 74880, Drive Motor Machine P.I.N. 74880 and After |
| Hydraulic Components | 409-608 | Hydraulic Pump, Control Valve, Solenoid Control Valve, Swing Motor, Hydraulic Swivel, Cylinders |
| Mounted Equipment | 609-616 | Boom, Arm, And Tool, Turntable Bearing and Related Parts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

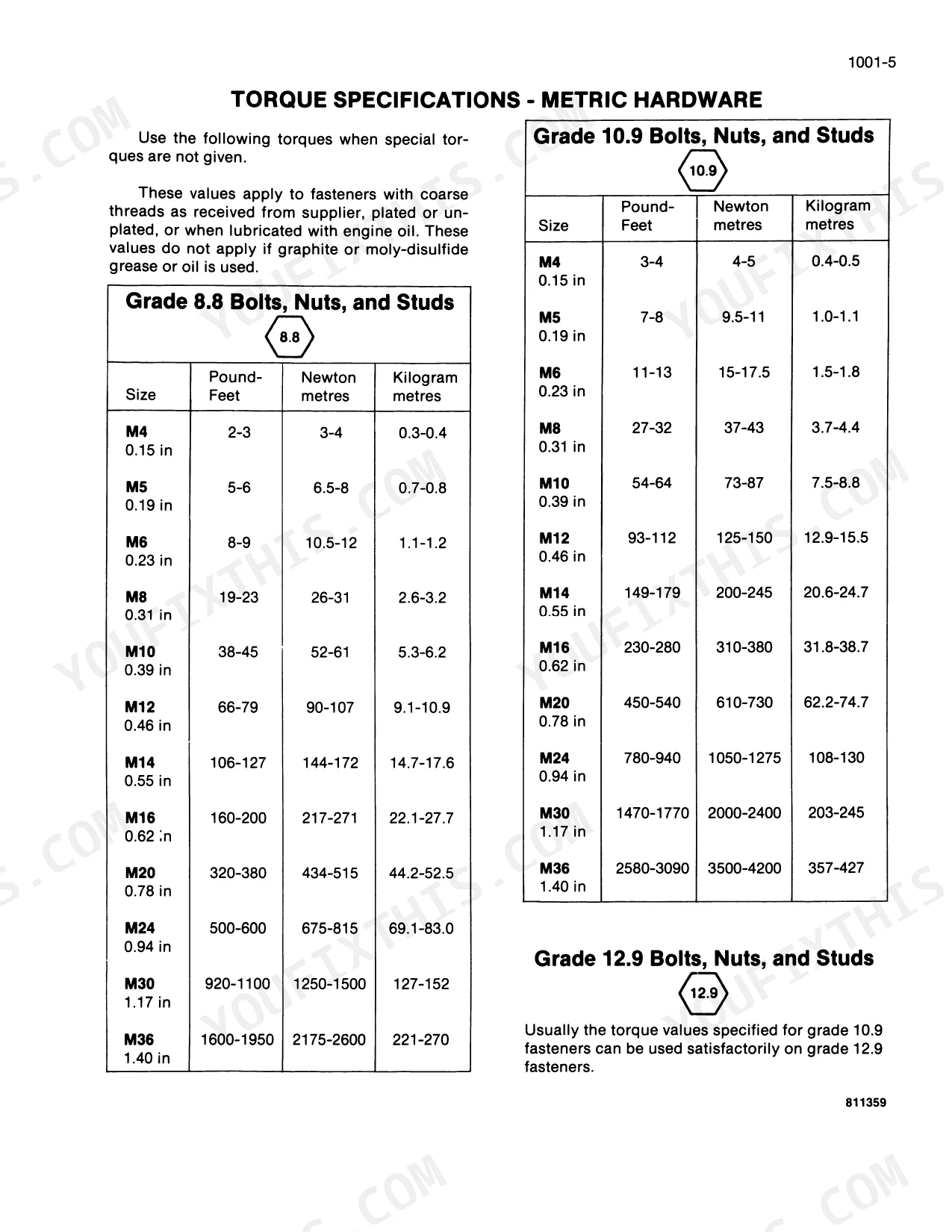

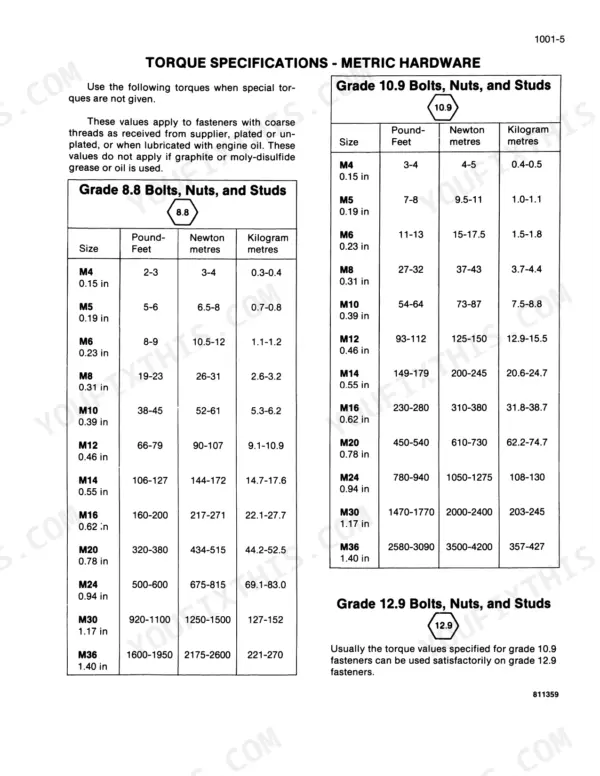

| Grade 8.8 Bolts, Nuts, and Studs M4 | 2-3 pound-feet | p. 7 |
| Grade 8.8 Bolts, Nuts, and Studs M5 | 5-6 pound-feet | p. 7 |
| Engine crankcase capacity without filter change | 18 U.S. quarts (17 litres) | p. 13 |
| Engine crankcase capacity with filter change | 19.1 U.S. quarts (18 litres) | p. 13 |
| Hydraulic system reservoir capacity | 58.1 U.S. gallons (220 litres) | p. 13 |
| Hydraulic system complete system capacity | 84.5 U.S. gallons (320 litres) | p. 13 |
| Valve clearance Inlet | 0.15 mm | p. 31 |
| Valve clearance Exhaust | 0.15 mm | p. 31 |
| Hydraulic Swivel Weight | 220 pounds | p. 599 |
| Track Shoe Mounting Bolt Torque | 400 pound-feet | p. 316 |
| Alternator Output | 27 ampere | p. 296 |
Case 125B Common Problems This Manual Covers
Case 125B boom and arm slow with weak digging force, hydraulic pump whines under load
Check the hydraulic reservoir level first; the tank holds 58.1 U.S. gallons (220 litres) and a low level lets the pump pull air and cavitate. Inspect the suction line for a collapsed hose or loose clamps, then run the circuit tests in the Hydraulic Components section starting on page 409 to separate a tired pump from a stuck relief valve.
Manual Section: Hydraulic Components Troubleshooting p. 409Engine cranks slowly or will not turn over, battery keeps going dead overnight
Test battery voltage under load before condemning the starter. Run the engine and verify the alternator puts out 28 volts at 27 amperes per the spec on page 296; anything less points to worn brushes or a failed regulator. Clean and tighten the ground cables at the frame, then work through the starter circuit checks beginning on page 253.
Manual Section: Electrical System Troubleshooting p. 253Engine down on power with rough idle and black smoke under load
Check valve clearance with the engine cold and set both intake and exhaust to 0.15 mm (0.006 in) using the specifications on page 31. Tight valves burn seats and rob compression. Test the injection nozzles and verify injection pump timing next, and swap fuel filters if the machine has been sitting on stale fuel.
Manual Section: Engine Troubleshooting p. 31Track keeps coming loose or throwing off, noisy travel and clunking from undercarriage
Measure track sag and adjust tension through the grease fitting on the recoil adjuster. Inspect shoes for loose hardware and torque the track shoe mounting bolts to 400 pound-feet (540 Nm) per page 316. Check idlers and rollers for flat spots and oil leaks, and replace a hooked sprocket before it eats a new chain.
Manual Section: Track and Suspension Troubleshooting p. 316Hydraulic oil overheating during steady digging, sluggish functions after the first hour
Verify oil level and condition first; the complete system takes 84.5 U.S. gallons (320 litres), and overfilled or aerated oil runs hot. Clean the oil cooler fins with compressed air, check for a slipped relief valve dumping over relief, and follow the oil temperature diagnostics in the Hydraulic Components section starting on page 409.
Manual Section: Hydraulic Components Troubleshooting p. 409Frequently Asked Questions
What are the recommended service intervals for the machine?

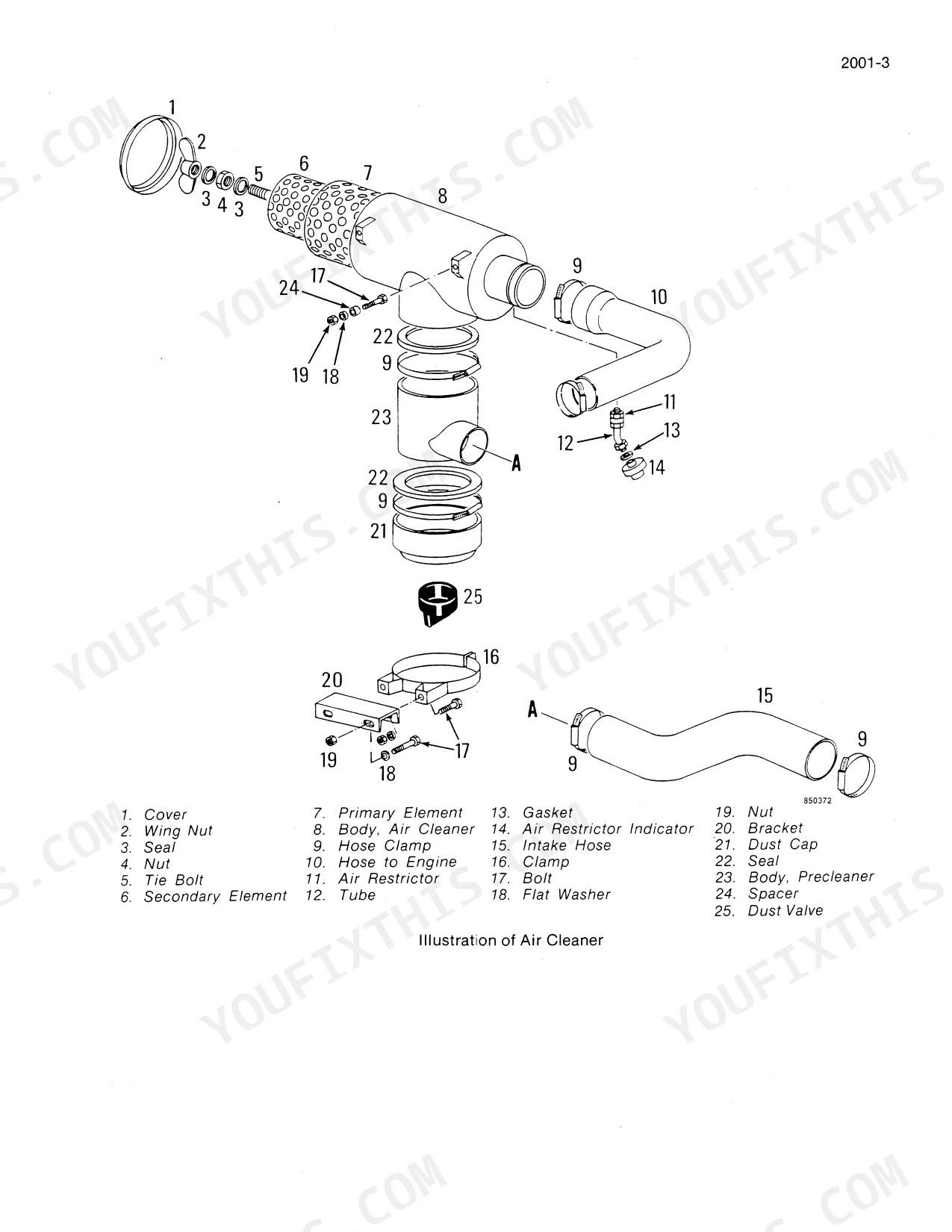

The maintenance schedule specifies intervals for various tasks. For example, clean the air cleaner dust cup every 10 hours, check track tension every 100 hours, and change engine oil every 250 hours. A full maintenance schedule is provided in the manual starting on page 11. p. 11
What are the fluid capacities for the engine and hydraulic system?
The engine crankcase capacity is 18 U.S. quarts (17 litres) without a filter change and 19.1 U.S. quarts (18 litres) with a filter change. The hydraulic system reservoir capacity is 58.1 U.S. gallons (220 litres), with a total system capacity of 84.5 U.S. gallons (320 litres). p. 13
What is the procedure for troubleshooting a starter that does not run?
If the starter does not run, check for a discharged battery, loose or dirty battery cable connections, or bad wiring in the starting circuit. You should also perform a No Load Test as described in section 4006 to determine if the starter itself is damaged. p. 102
What are the valve clearance specifications for the engine?
The valve clearance for both inlet and exhaust valves is 0.15 mm (0.006 inch) when the engine is cold. p. 32
What is the torque specification for M12 grade 8.8 bolts?
The torque specification for M12 grade 8.8 bolts is 66-79 pound-feet (90-107 newton metres). p. 7
What format is this Case 125B manual in?
A 616-page Service Manual in scanned PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this Case 125B Service Manual printable?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
