Wrenching on an old Case crawler? This 974-page Case 310 Service Manual PDF (OEM #9-99772) covers the 310, 310G, and 350 crawlers, from the 188 diesel and 148 spark-ignition engines down to the final drives. Inside: factory wiring diagrams, hydraulic schematics with pressure check procedures, troubleshooting charts for the power shuttle transmission, and rebuild steps for the Intertrac track and suspension system. You also get full sections on mounted equipment: loaders, dozers, winches, rippers, and the Model 26, 32, and 33 backhoes. Set fan belt deflection at 1/2 inch, torque the lower mounting bolts to 22-30 foot pounds, and swap filters every 500 hours. These crawlers outlived their paper manuals decades ago. This scanned factory PDF is bookmarked by section, opens on any device, and walks to the machine with you.
What's Inside This Case 310G, 350, 310G-350, 310 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 3-28 | Detailed Engine Specifications - 188 Diesel, Maintenance and Lubrication, Torque Chart, Detailed Engine Specifications 148 Spark Ignition |

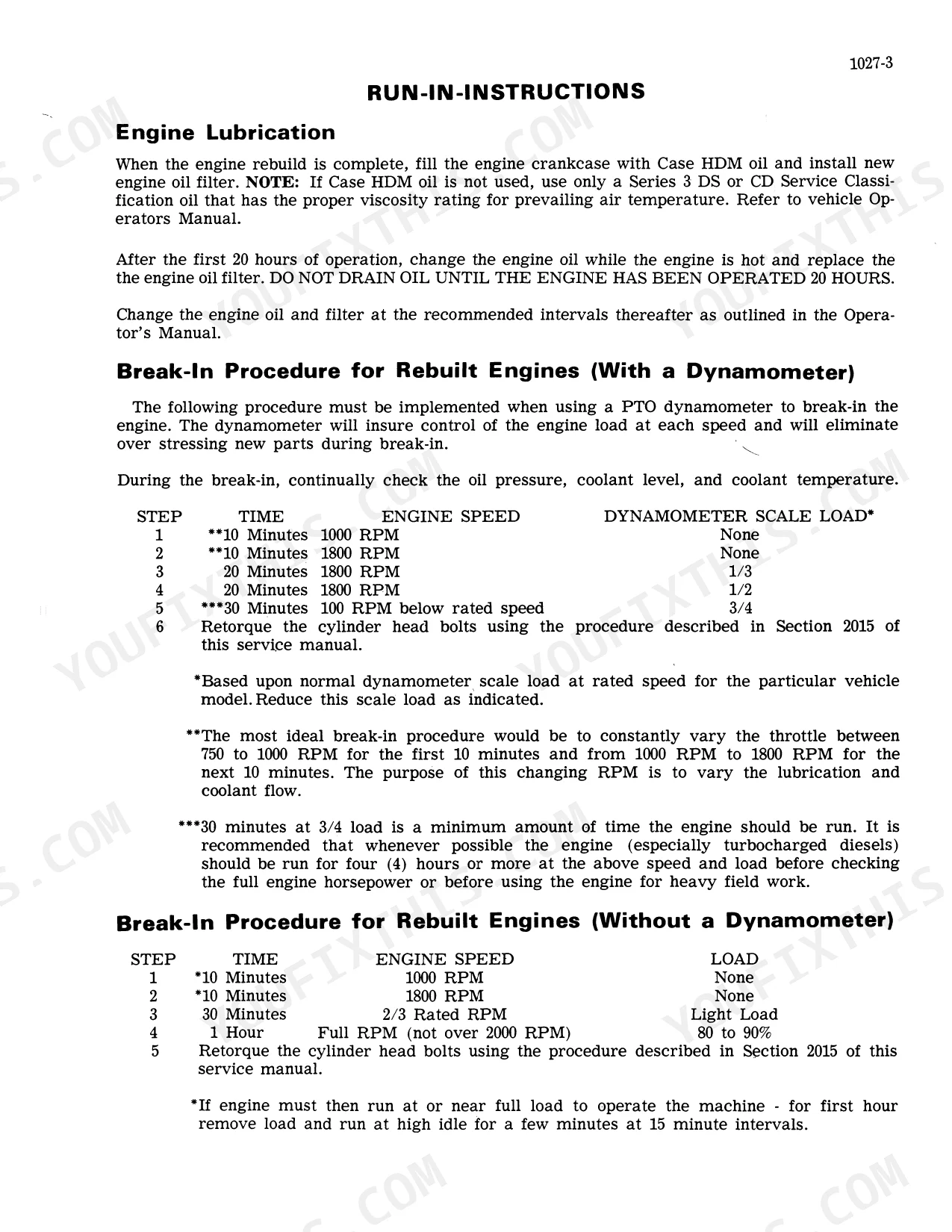

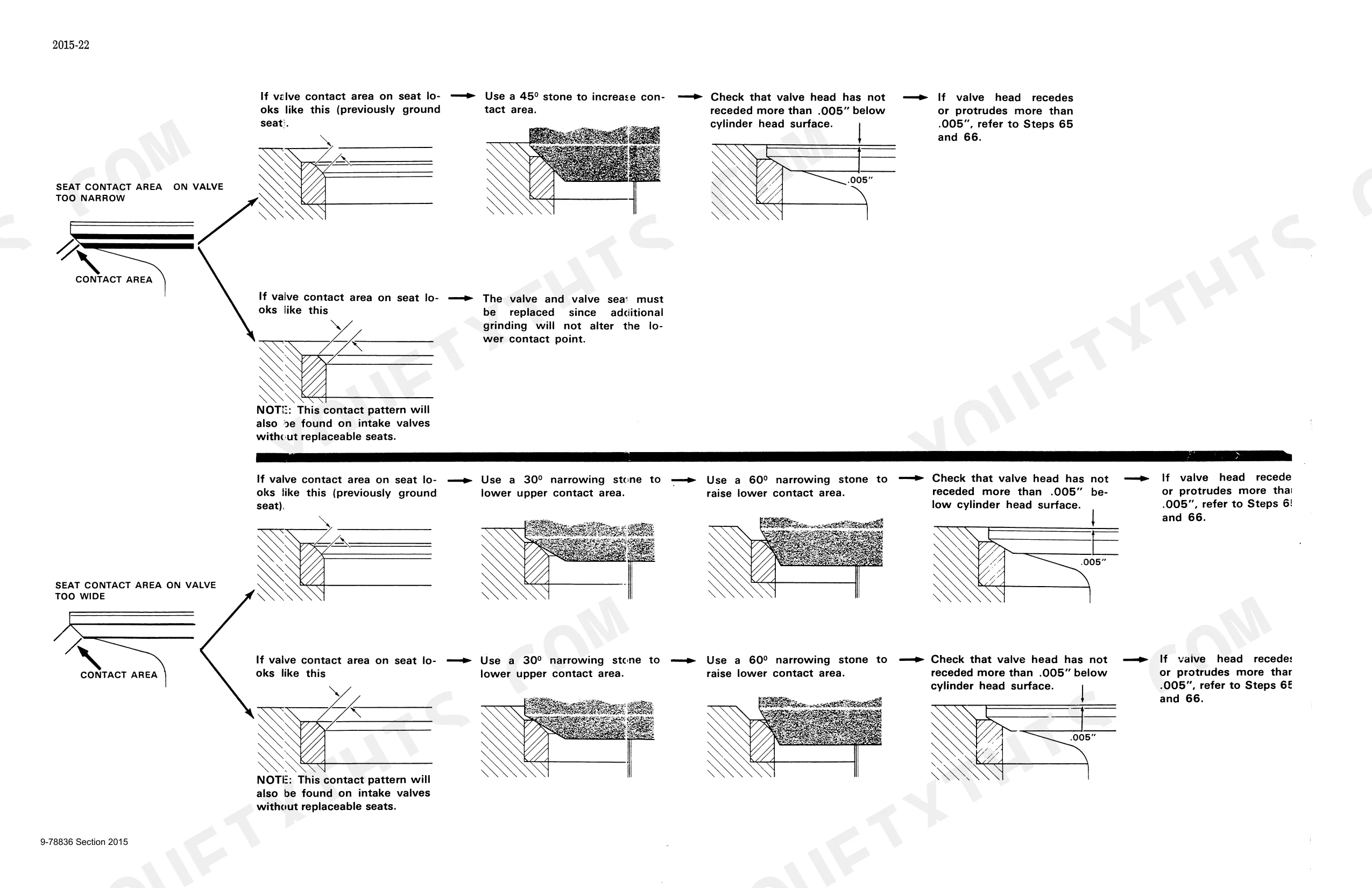

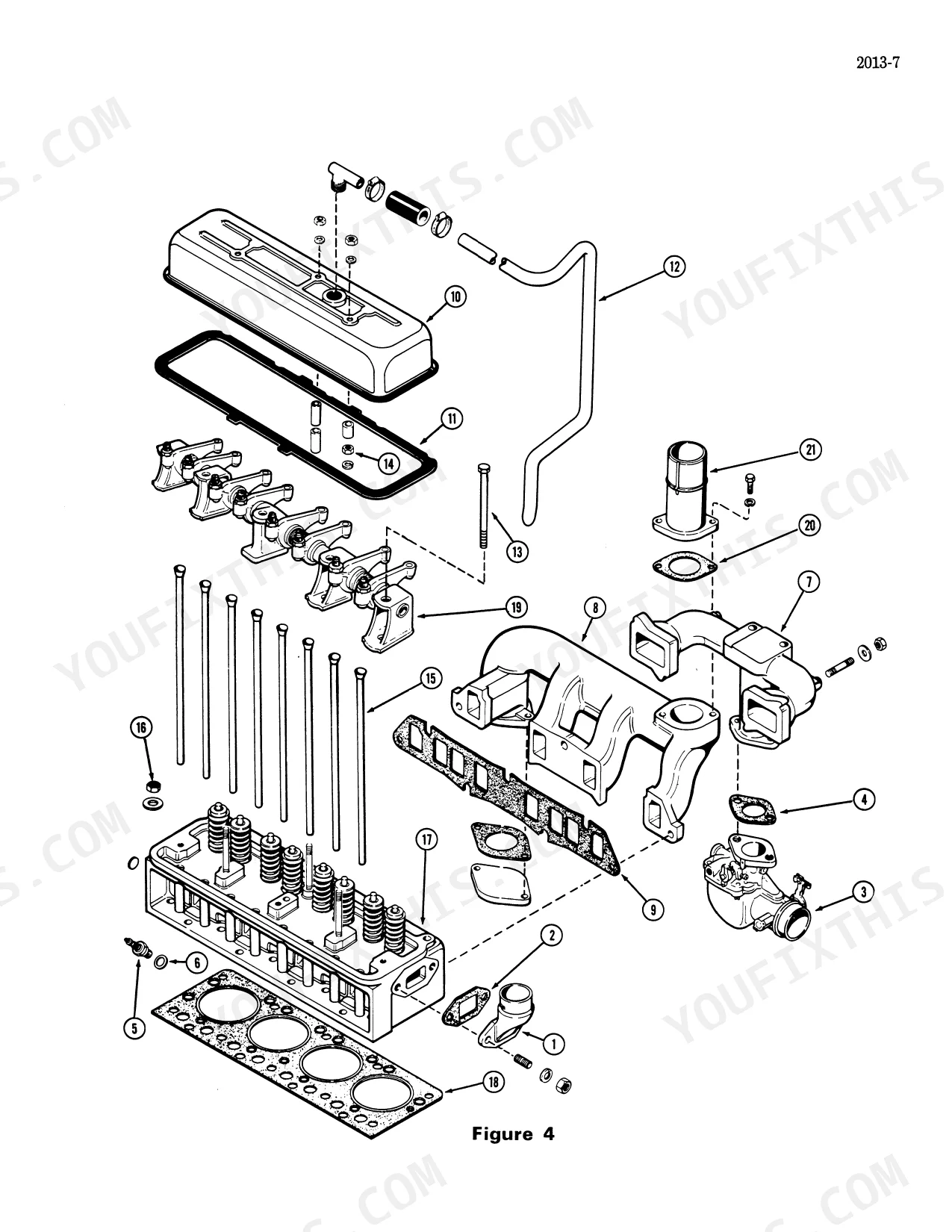

| Engine | 29-312 | Engine Diagnosis, Engine Tune-Up, Cylinder Head and Valves, Spark Ignition Engine, Cylinder Head, Valve Train and Camshaft, Engine Block |
| Fuel System | 313-396 | Model Tsx Series Carburetor, Fuel Filters, Diesel Engine, Fuel Injection Pump, Fuel Injectors, Throttle Linkage Adjustments, Fuel Lines |
| Hydraulics | 397-556 | Hydraulic Diagrams, Trouble Shooting, Pressure Checks, Equipment Pumps, Loader and Dozer Control Valves, Commercial-Shearing Backhoe Control Valves, Pull Behind Hydraulics |
| Track and Suspension | 557-614 | Track and Suspension System, Intertrac Rollers |
| Power Train | 615-708 | Trouble Shooting and Testing, Power Shuttle Transmission, Torque Converter and Universal Joint Coupling, Transmission-Differential, Clutch, Drive Shaft, Final Drives, Power Takeoff |

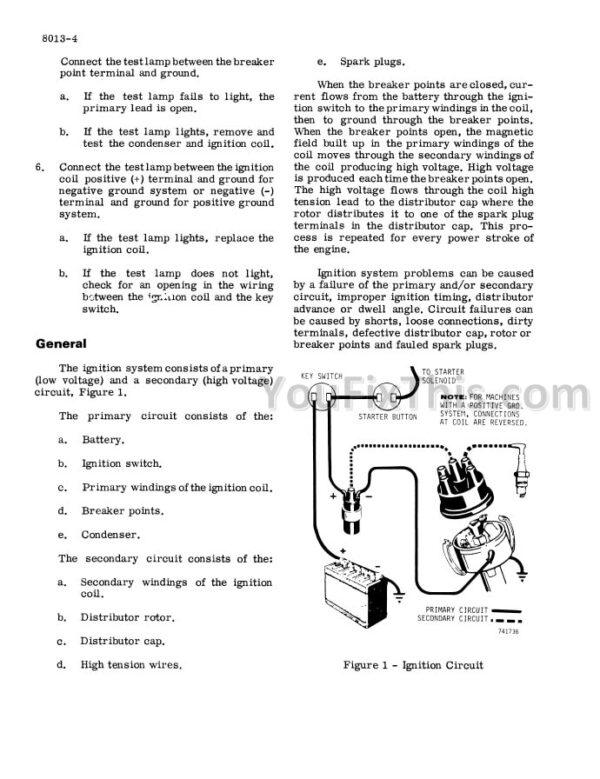

| Electrical | 709-798 | Wiring Diagrams, Trouble Shooting, Ignition System, Batteries, Starter and Starter Solenoid, Alternator, Generator and Voltage Regulator |
| Mounted Equipment | 799-974 | Loader, Dozers, Winch, Ripper, Three-Point Hitch, Roll-Over Protection Structure, Model 26 and 26C Backhoe, Model 32 Backhoe |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Maximum air nozzle pressure for cleaning | 30 PSI | p. 283 |
| Water pressure limit for cleaning | 40 PSI | p. 283 |
| Lower mounting bolts torque | 22-30 foot pounds | p. 302 |
| Fan belt deflection | 1/2 inch | p. 305 |

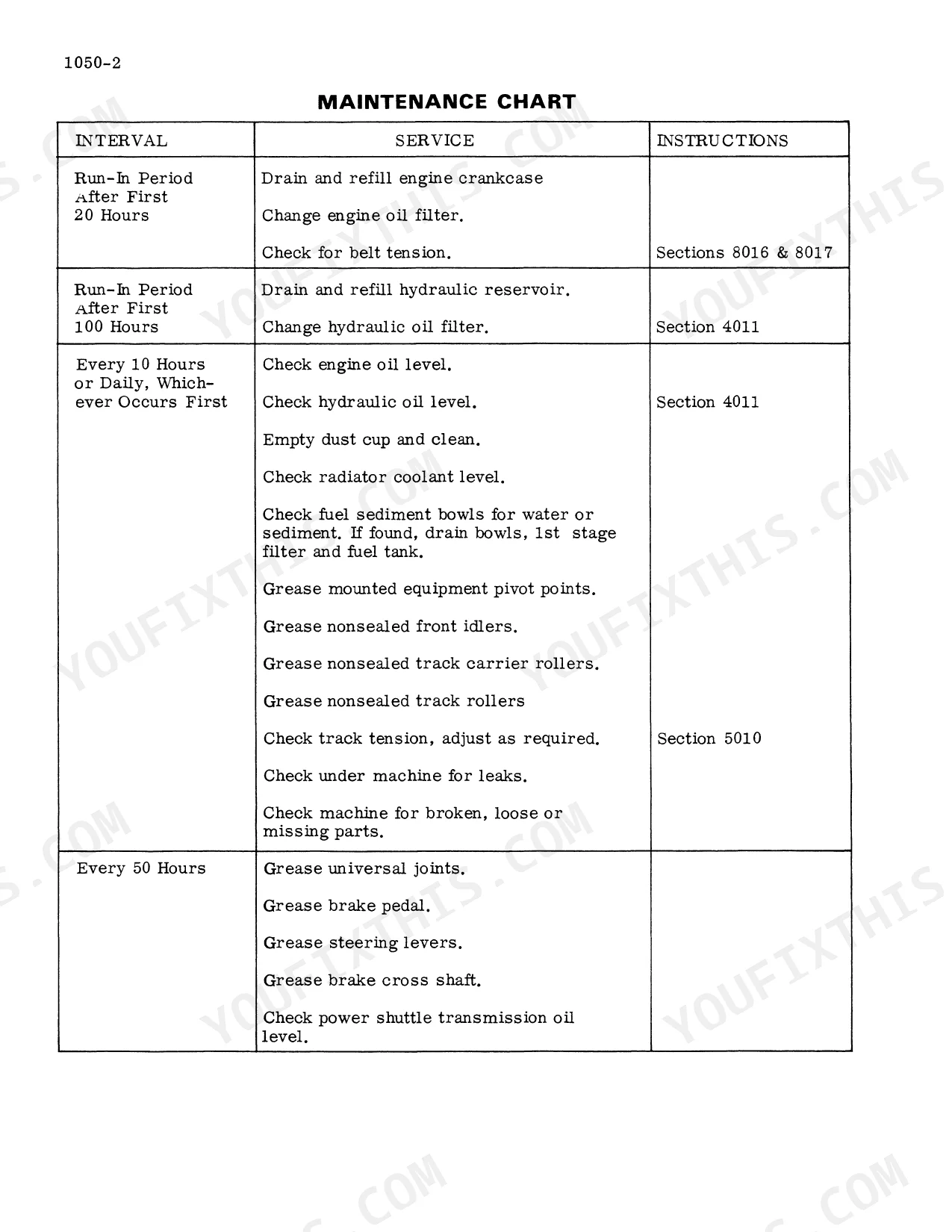

| Filter Replacement Interval | 500 Hours | p. 330 |
| Fuel filter replacement | Every 1000 hours | p. 395 |
| Return filter | 40 micron | p. 399 |
| Filter service period | Every 200 hours | p. 399 |
| Track roller shaft bushing I.D. after pressing | 1.7525-1.7550 inches | p. 592 |
| Alternator belt tension (used belt) | 80 to 90 pounds | p. 780 |
| 350 CRAWLER | ||
| 188 Diesel Engine Rated Engine Speed | 2000 RPM | p. 3 |
| 310 CRAWLER | ||
| 188 Diesel Engine Rated Engine Speed | 1850 RPM | p. 4 |
Case 310G, 350, 310G-350, 310 Common Problems This Manual Covers
Case 310G loader hydraulics slow and weak, bucket drifts down under load
Check hydraulic oil level first; low oil pulls air into the suction line and makes every circuit spongy. Replace the 40 micron return filter element, page 399 calls for service every 200 hours. Then run the pressure checks in the hydraulics section starting on page 397 to isolate a worn pump from a leaking relief valve.
Manual Section: Hydraulics p. 399Engine overheats and pushes coolant when dozing uphill, temperature gauge pegs within minutes

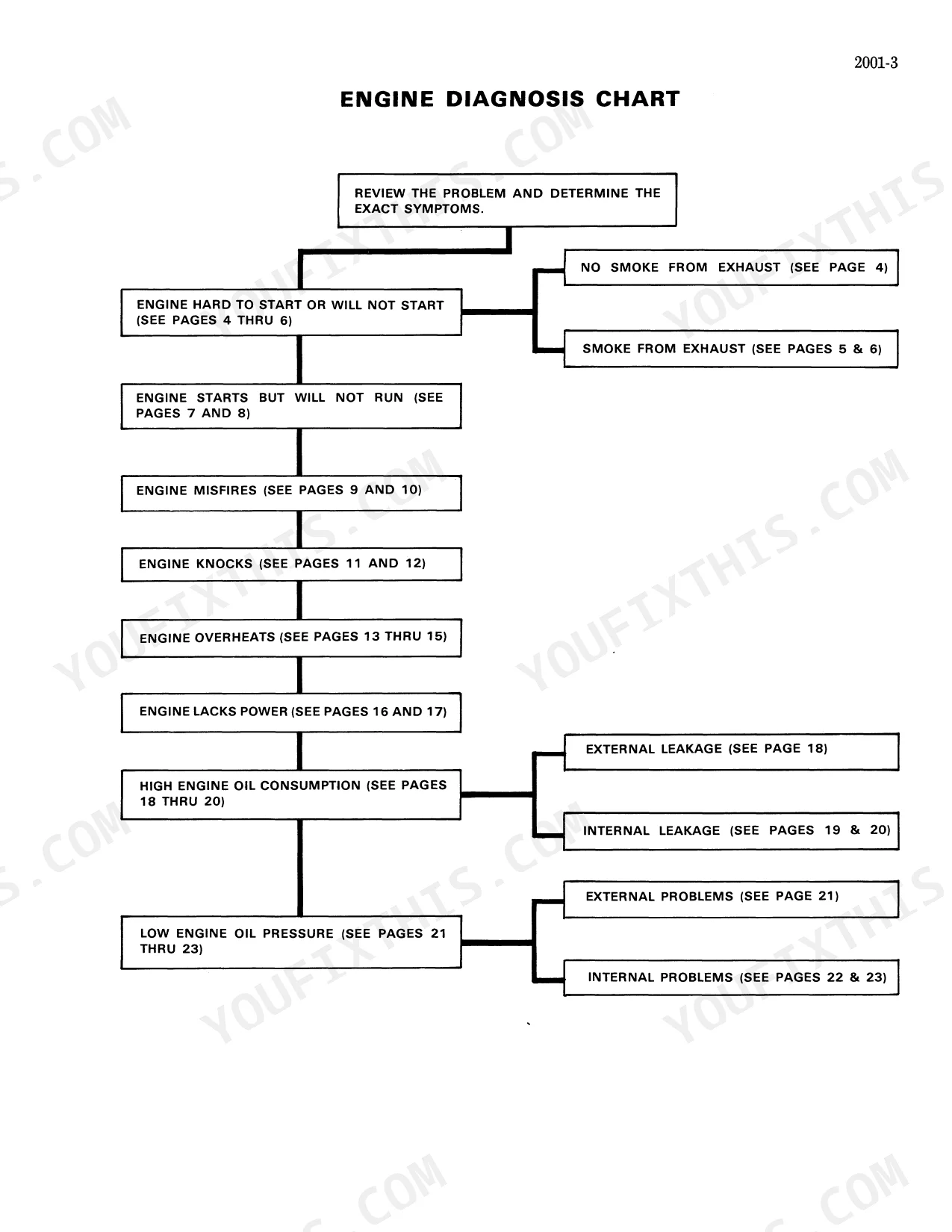

Check coolant level cold, then inspect the radiator core for packed chaff and mud; blow it out from the engine side. Verify fan belt deflection at 1/2 inch by hand pressure, page 305 shows the check. A loose belt slips under load and drops airflow. Work through the overheating steps in the engine diagnosis section.
Manual Section: Engine p. 305Diesel hard to start, stalls under load, loses power right after refueling
Drain the sediment bowl and check for water before anything else. Replace the primary and final fuel filters, page 330 calls for new elements every 500 hours or sooner when power drops off. Bleed air at the filter housing and injection pump until fuel runs clear with no bubbles, then retest under load.
Manual Section: Fuel System p. 330Track keeps coming off on side slopes, undercarriage clanks and squeaks at low speed
Check track tension first; a loose chain derails on slopes and an over-tight one eats pins and bushings. Inspect rollers and idlers for flat spots and leaking seals, then check sprocket teeth for hooking. If you press new roller shaft bushings, size the bore to 1.7525 to 1.7550 inches after pressing, per page 592.
Manual Section: Track and Suspension p. 592Battery dead every morning, ammeter shows discharge, belt squeals at full throttle
Test battery voltage and clean both cable terminals before condemning the alternator. Check belt tension with a gauge: 80 to 90 pounds for a used belt, or 1/2 inch deflection by hand, page 780 covers the adjustment. Load-test the charging circuit afterward to confirm output.
Manual Section: Electrical p. 780Frequently Asked Questions
What are the replacement specifications for engine air filter elements?
The air cleaner is a dry type with a built-in pre-cleaner. The filter element should be cleaned or replaced when the air restriction indicator shows a red band, or if the element is damaged. Washing the element in a solution of Case Filter Element Cleaner A40910 and water is the preferred method, and the filter should be replaced after six washings. p. 283

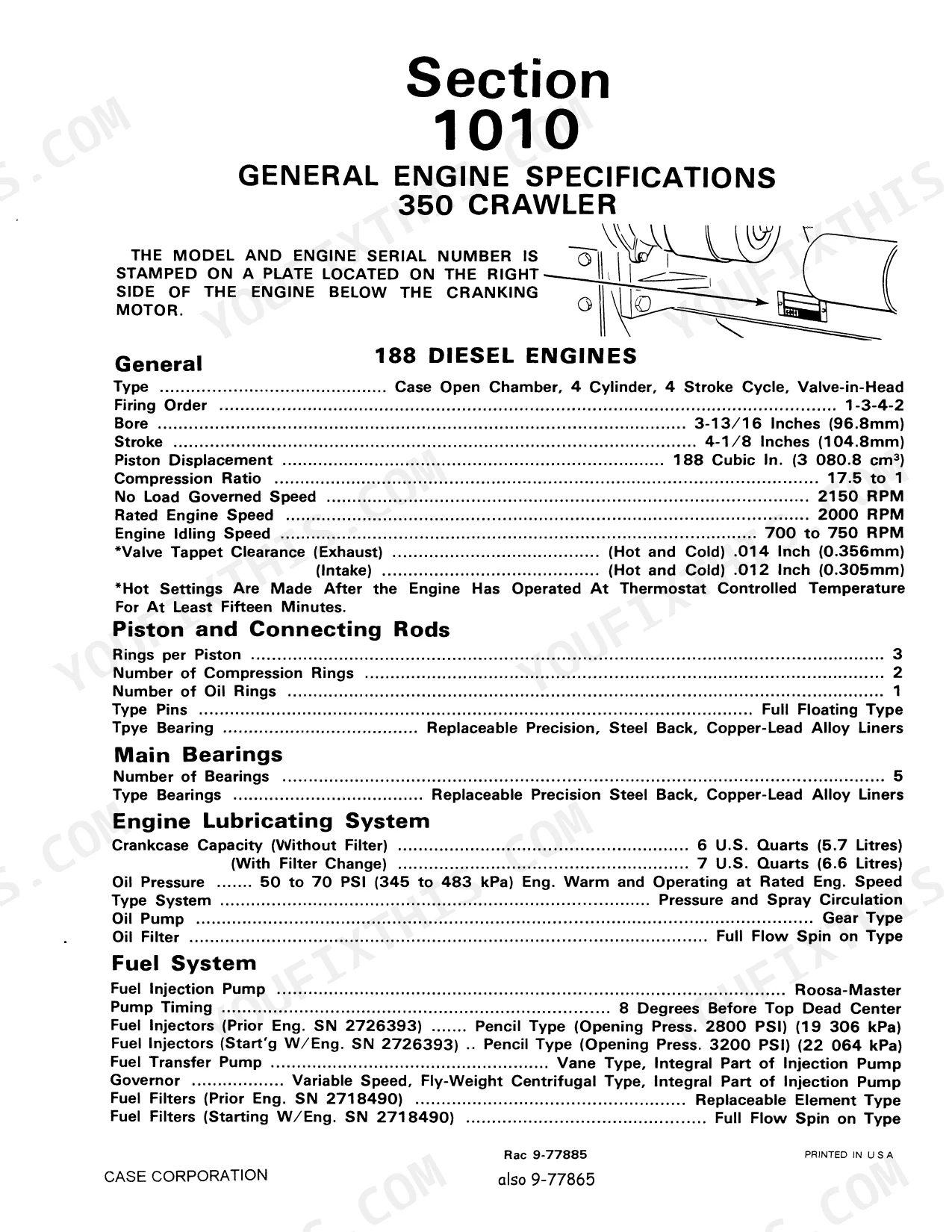

What is the valve tappet clearance for the 188 diesel engine?
For the 188 diesel engine, the valve tappet clearance for both the intake and exhaust valves is .014 inch (0.356mm) for the exhaust and .012 inch (0.305mm) for the intake, measured when the engine is at operating temperature. p. 3

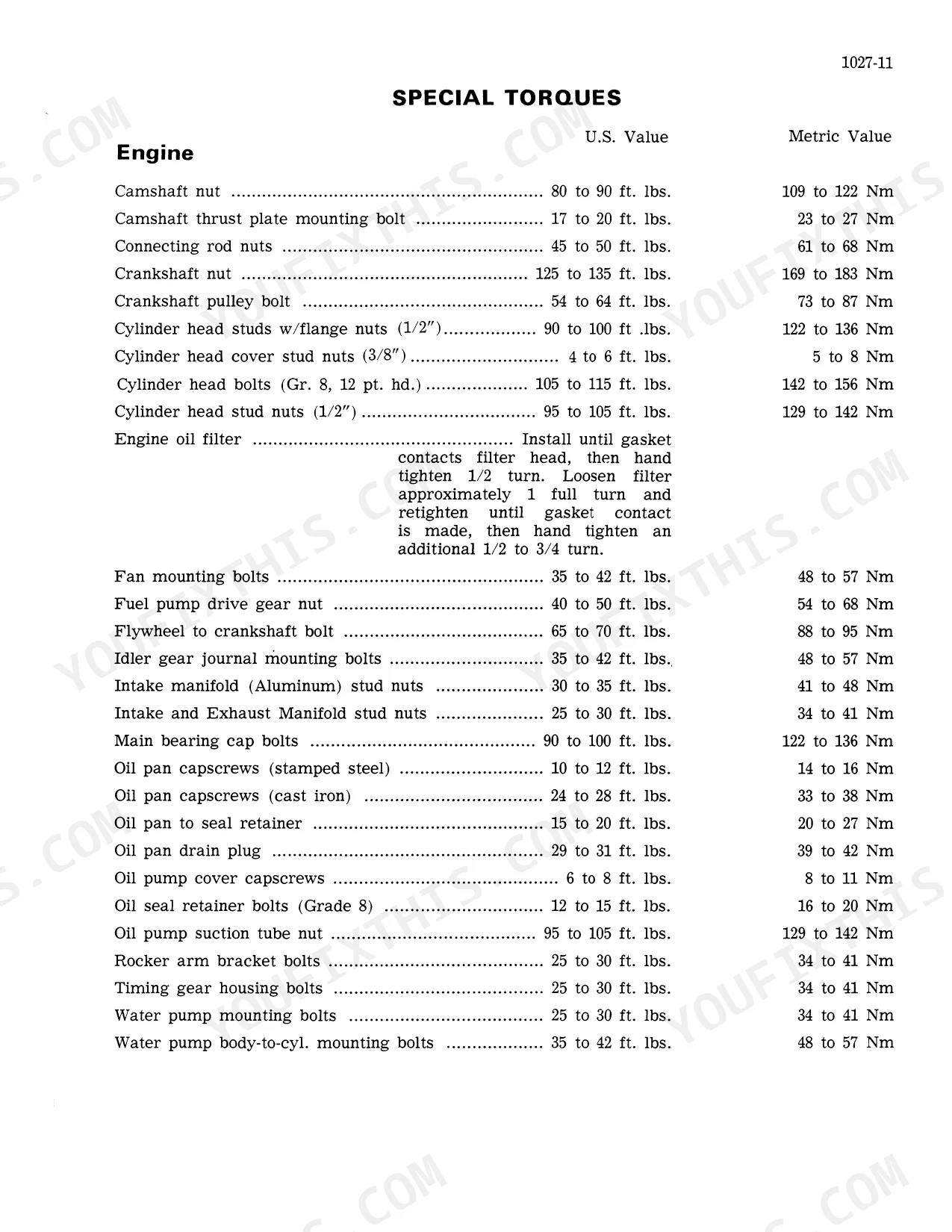

What is the correct torque for the cylinder head bolts on the 188 diesel engine?
The cylinder head bolts (Grade 8, 12 pt. hd.) on the 188 diesel engine should be torqued to 105 to 115 ft. lbs. (142 to 156 Nm). p. 17
What is the crankcase oil capacity for the 188 diesel engine?
The crankcase capacity for the 188 diesel engine is 6 U.S. Quarts (5.7 Litres) without the filter, and 7 U.S. Quarts (6.6 Litres) with a filter change. p. 3
What is the correct fan belt tension for the 350 crawler?
The fan belt should be adjusted to have 1/2 inch (12.7 mm) of deflection under 50 to 60 lbs. (22.7 to 27.2 kg) of tension on the belt tension gauge. p. 293
Do I get instant access to this Case 310G Service Manual?
Straight to your device: 974 pages of scanned Service Manual, downloadable the moment payment goes through.
Are there any print restrictions on this Case 310G manual?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
