Part of the Case Repair Manuals.
This binder covers the 580LSP and 590LSP electronic control box in detail. You get error codes flashed on the indicator lamps, the diagnostic box, calibration and fault tables. From there it moves on to the Carraro gearbox, the Clark T16000 powershift, axles, brakes and steering. The hydraulic side runs from pump pressure checks to the boom and dipper safety valves.
This is Case binder Cre 7-79443GB, Edition 04-00, in English, made up of separate section booklets. Engine overhaul and fuel injection are not in it. They are in the separate Engine Service Manual.
What's Inside This Case 580LE–590LSP Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Table of Contents | 1-4 | Contents, Section, Reference, Division |
| Standard Torque Specifications and Loctite Chart | 5-12 | Torque, Decimal, Metric, Hydraulic Fittings, Loctite |
| Fluids and Lubricants | 13-18 | Capacities, Engine Oil, Hydraulic Fluid, Fuel, Transmission |
| Engine and Radiator Removal and Installation | 19-36 | Radiator, Engine Removal, Shroud, Bracket |
| Stall Tests | 37-48 | Idle, Torque Converter Stall, Hydraulic Stall, Inspection Sheets |
| Electrical Components Removal and Installation | 49-57 | Alternator, Starter, Harness, Instrument |
| Electrical Schematics | 58-124 | Fuse and Relay Box, Legend, Plate, Harness, Wiring |
| Electronic System and Troubleshooting 580LSP-590LSP | 125-166 | Error Codes, Indicator Lamps, Diagnostic Box, Calibration |

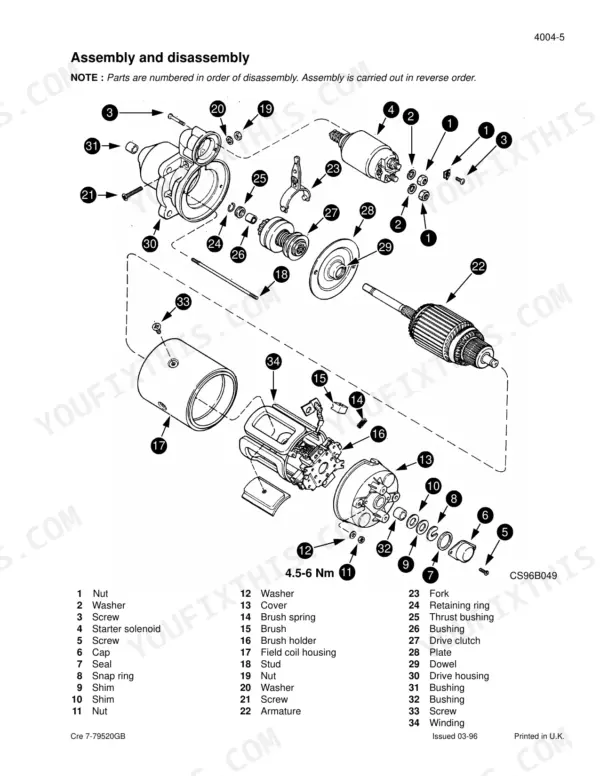

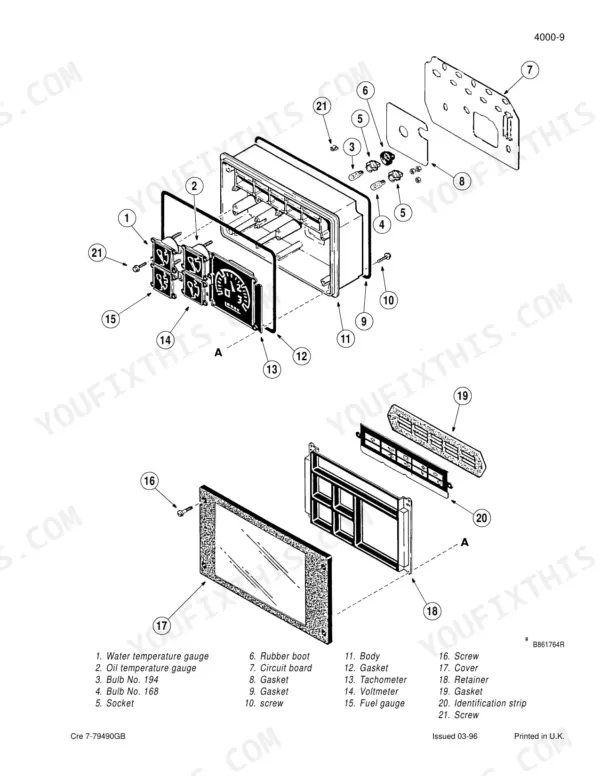

| Battery, Starter Motor, Instrument Cluster and Alternator | 167-212 | Battery Load Test, Starter No-Load Test, Instrument Cluster, Alternator |
| Steering Components, Specifications and Troubleshooting | 213-254 | Steering Relief Valve, Pressure, Cylinder Removal |
| Steering Control Valve, Orbitrol and Steering Cylinders | 255-290 | Orbitrol, Rotary Control Valve, Steering Cylinders |
| Front Axle, Two and Four Wheel Drive | 291-384 | Front Axle, Planetary, Swivel Housing, Drive Shaft |
| Power Train and Transmission Troubleshooting | 385-448 | Transmission Removal, Clutch Pressures, Test Points, Powershift |
| Wheels, Tires and Rear Axle 580LE-580SLE | 449-526 | Wheel Nuts, Tire Pressure, Rear Axle, Planetary, Brake Discs |
| Rear Axle and Planetary | 527-676 | Carraro Axle, Differential Lock, Planetary |

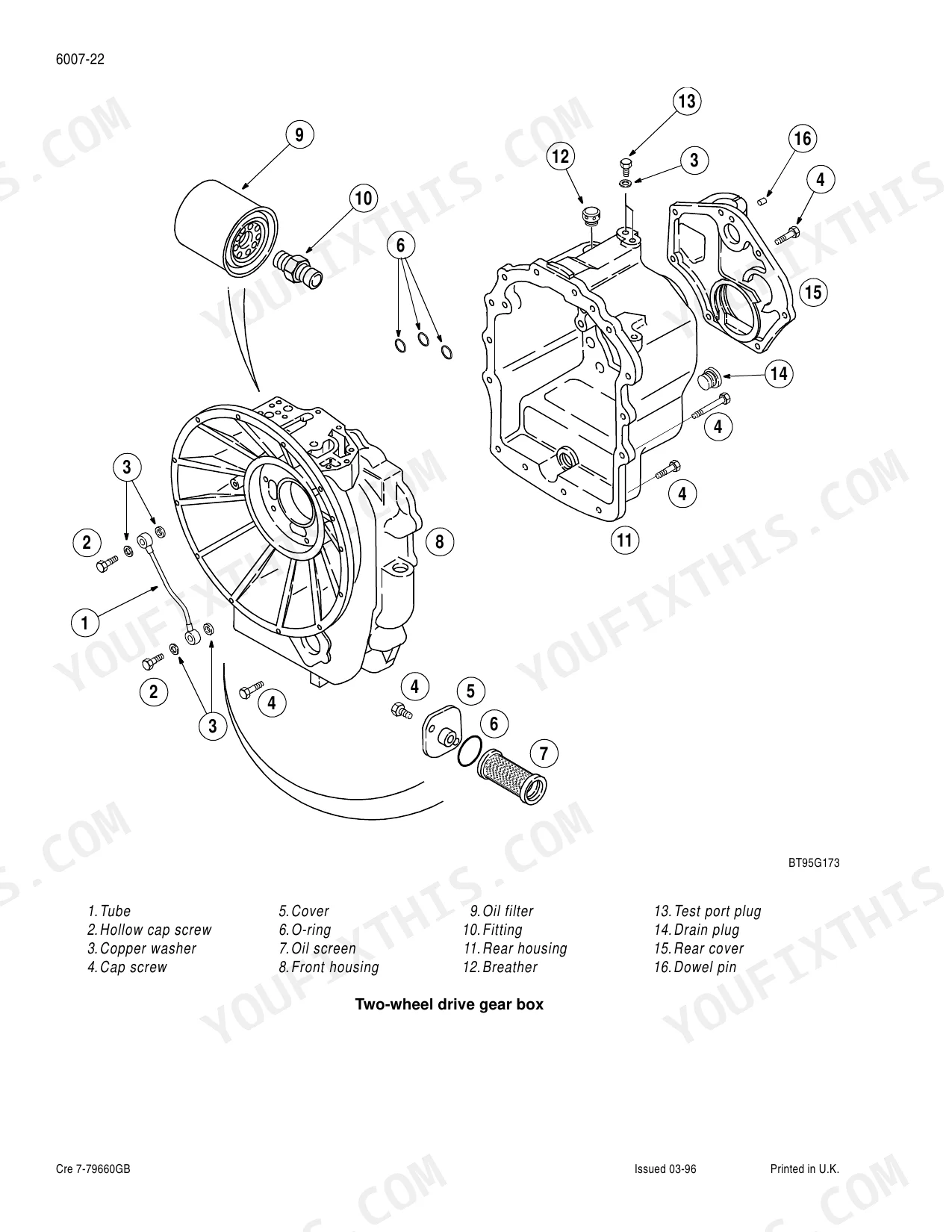

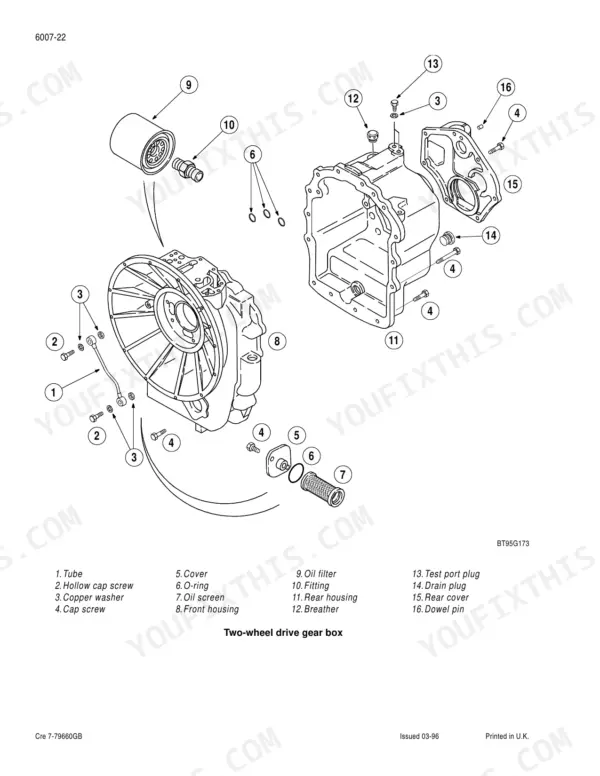

| Carraro Gear Box | 677-804 | Input Shaft, Secondary Shaft, Clutches, Housing |

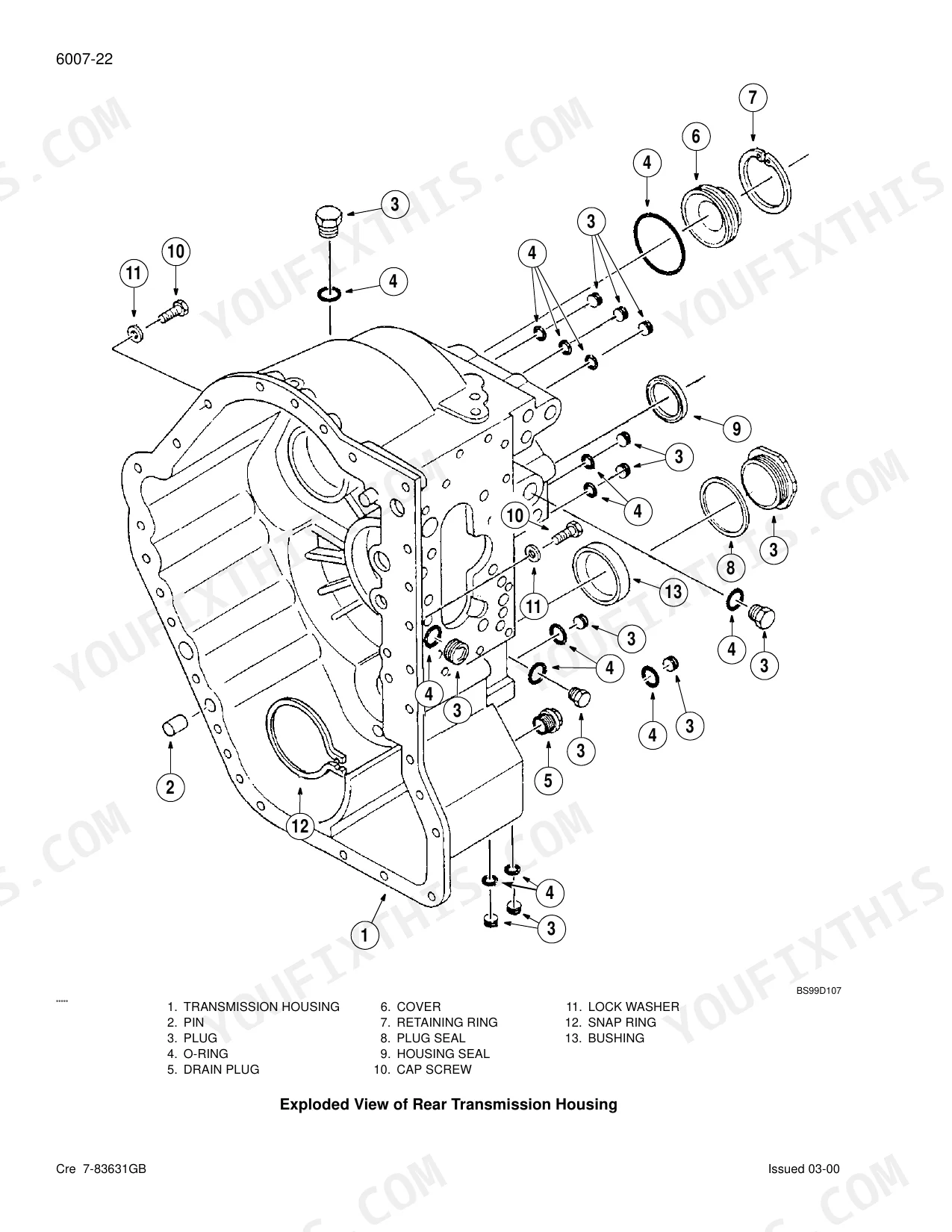

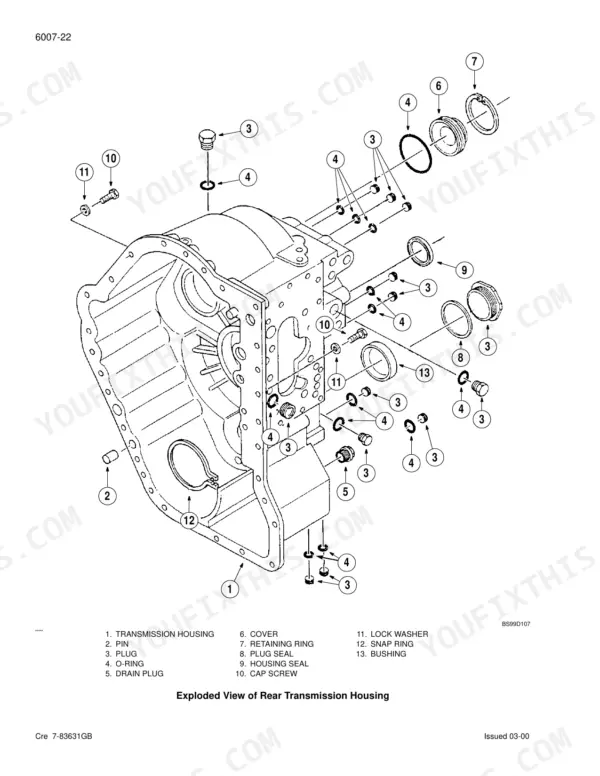

| Clark Powershift Transmission T16000 | 805-902 | Clutch Disassembly, Torque Converter, Control Valve |

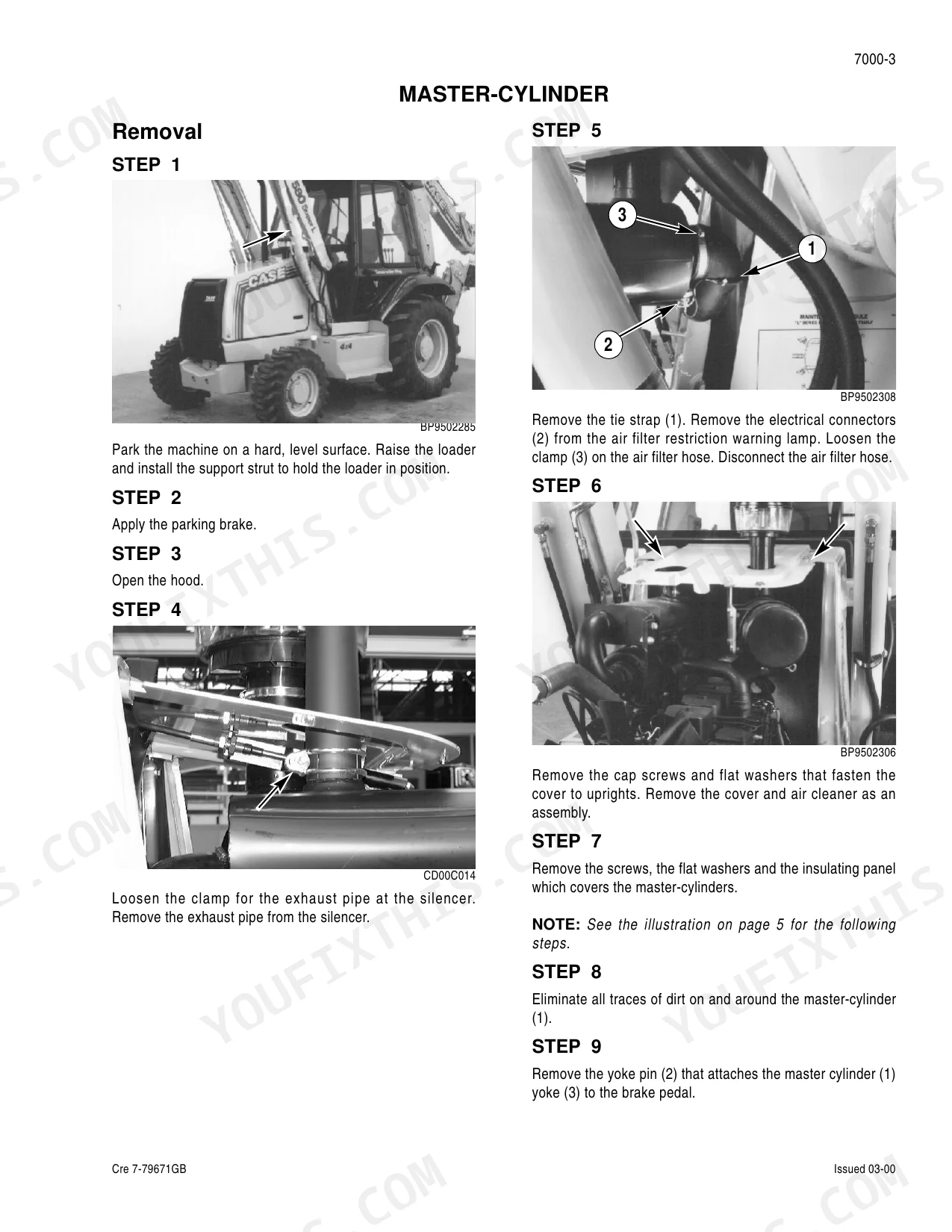

| Braking System and Master Cylinder | 903-914 | Brake Master Cylinder, Pedal, Removal |
| Hydraulic Components, Pressure Checks and Hydraulic Pump | 915-1064 | Oil Cooler, Hydraulic Pump, Relief Valve, Ride Control, Nitrogen |
| Loader Control Valve and Cylinders | 1065-1134 | Loader Control Valve Sections, Spool, Cylinder Seals |

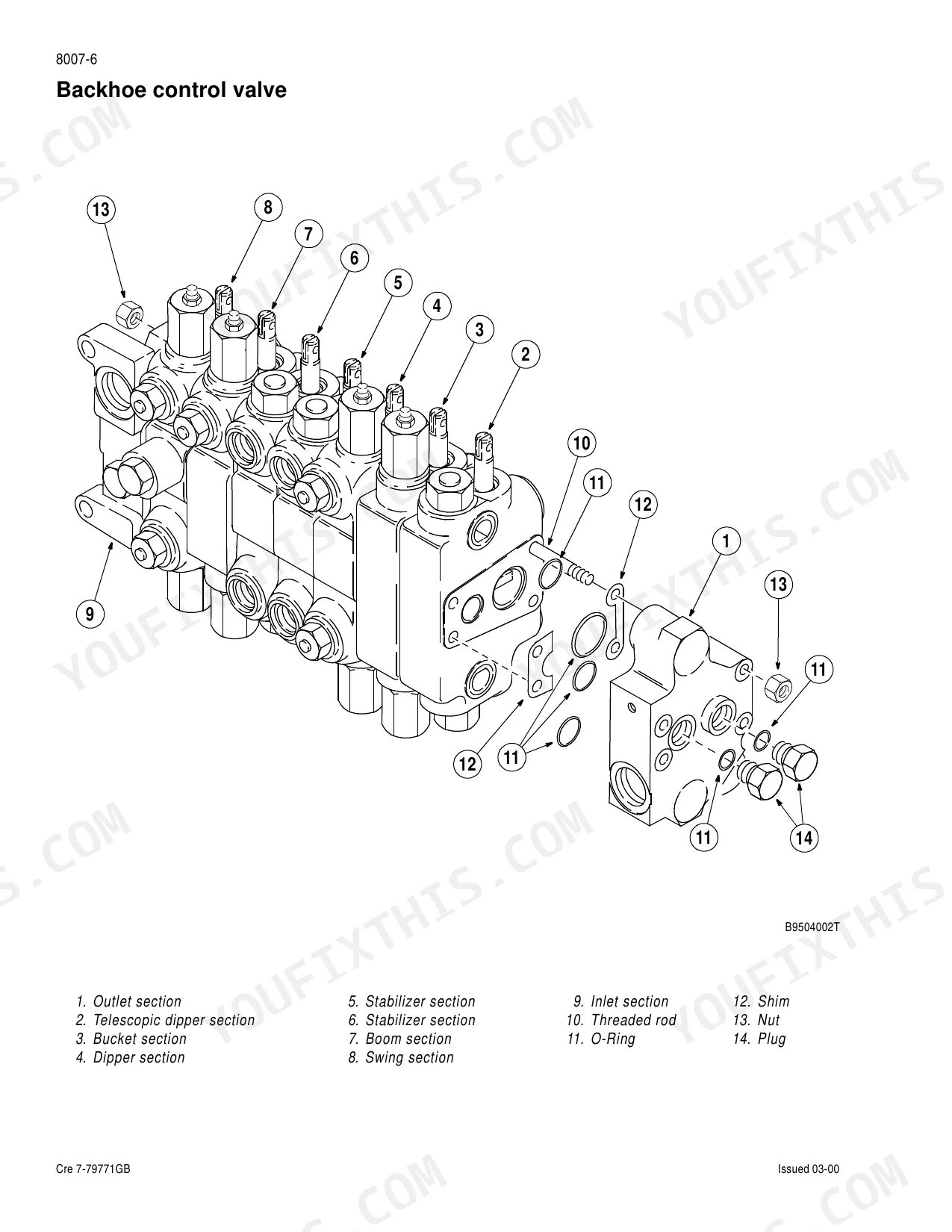

| Backhoe Control Valve and Auxiliary Control Valve | 1135-1272 | Backhoe Control Valve Sections, Stabilizer, Auxiliary |

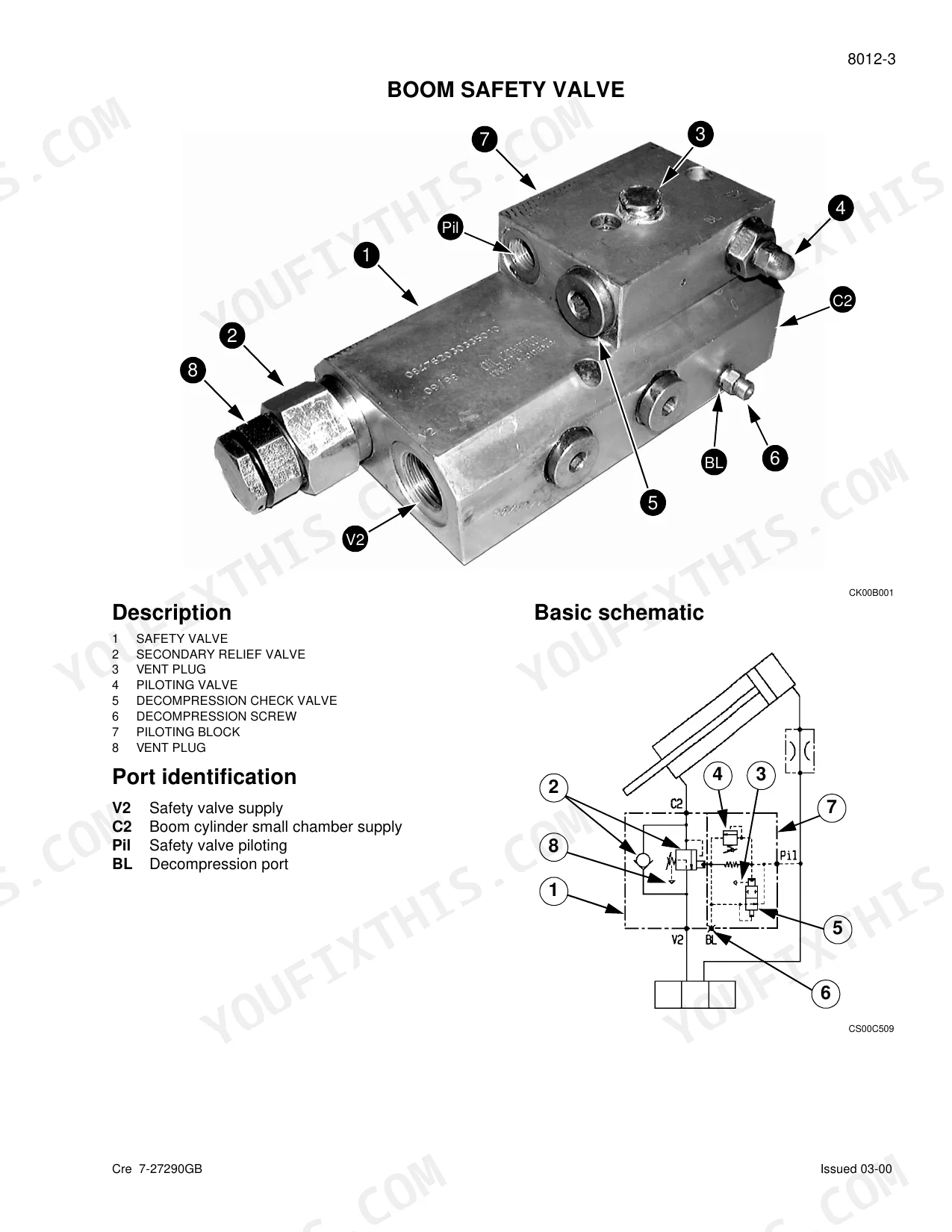

| Accumulator, Solenoid Valves and Safety Valves | 1273-1318 | Accumulator, Solenoid Valves, Boom Safety Valve, Dipper Safety Valve, Swing Sequence Valve |
| Pedals, Levers and Air Conditioning | 1319-1420 | Throttle, Brake, R-134a, Charging, Compressor |
| Loader, Cab and Backhoe Attachment | 1421-1492 | Bucket, Blade, Teeth, ROPS Cab, Boom, Backhoe |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil capacity with filter replacement | 11 litres | p. 15 |
| Cooling system capacity without / with heating system | 15.8 litres / 16.5 litres | p. 15 |
| Fuel tank capacity | 128 litres | p. 15 |
| Total hydraulic system capacity, 580LE / 580SLE / 590SLE | 106 / 125 / 136 litres | p. 15 |
| Hydraulic reservoir filling capacity with filter replacement | 54.5 litres | p. 15 |
| Hydraulic fluid | CASE MS1210 or CASE Hydraulic Fluid | p. 15 |
| Powershift gearbox oil, 580LPS and 590SLE | Elfmatic G3 | p. 15 |
| Thermostat begins to open / fully open | 83°C / 95°C | p. 20 |
| Radiator cap opening pressure | 1 bar | p. 20 |
| Full speed without load, 580LE | 2300 to 2410 rpm | p. 39 |
| Torque converter stall speed, 580LE | 2235 to 2310 rpm | p. 39 |
| Hydraulic pump output, 580LE | 108 L/min, 210 bar at 2200 rpm | p. 969 |
| Hydraulic pump rear / front body, 580SLE | 104 L/min / 36 L/min, 210 bar at 2200 rpm | p. 999 |
| Main relief valve | 210 to 215 bar | p. 969 |
| Swing relief valve | 190 to 195 bar | p. 969 |
| Ride Control accumulator | 24 to 26 bar | p. 969 |
| Alternator rated output (Bosch) | 14 volts at 65 amperes | p. 195 |
| Starter no-load current draw | 95 amperes maximum | p. 178 |
| Rear wheel mounting nuts | 555 to 665 Nm | p. 450 |
| Air conditioning refrigerant capacity | 1.82 kg | p. 1386 |
Case 580LE–590LSP Series Common Problems This Manual Covers
580LSP/590LSP backhoe works slower than usual, even in Normal mode or Fine mode
Check that the two-speed solenoid valve is working before you go further. Do this with the component inspection procedure (C7) in the 580LSP/590LSP electronic system and troubleshooting booklet, which lists the backhoe running more slowly than usual in Normal mode or in Fine mode.
Manual Section: Electronic System and Troubleshooting 580LSP-590LSP p. 138Loader raises and lowers but moves slowly and ignores changes in engine speed
Watch the tachometer and hourmeter on the instrument panel first. If they do not work correctly, or the H17 and H18 lamps flash error code 25 or 26, check the tachometer connection between wire (31S) on connector (X19) and pin (30) on the control box (J2) connector.
Manual Section: Electronic System and Troubleshooting 580LSP-590LSP p. 139Machine will not move with the Carraro transmission
Put a gauge on test point M1 and read the pump supply pressure. Possible causes are a stuck or damaged cold oil by-pass valve, a bad pressure regulator or a bad pump. Section 6007 covers repairing or replacing them. If pressure stays at zero in forward, neutral and reverse, look at the control valve.
Manual Section: Transmission Troubleshooting p. 421Air conditioning gives no cooling and has no refrigerant: hot air from the evaporator, compressor will not run or stops quickly
Adding refrigerant alone won't fix this because the gas has leaked out somewhere. Check the system for leaks, then remove all traces of the old refrigerant. Repair the leaks, then charge with new R-134a. The air conditioning booklet covers the charging procedure and compressor service.
Manual Section: Air Conditioning Troubleshooting p. 1369Frequently Asked Questions
Which Case loader backhoes does this service manual cover?
It covers the Case 580LE, 580SLE, 580LSP, 580LPS, 590SLE and 590LSP loader backhoes. This is service manual binder Cre 7-79443GB, Edition 04-00, in English. It is made up of separate section booklets, each with its own reference number. It covers both transmissions, the Carraro gearbox and the Clark powershift. There are also booklets written only for the 580LE and 580SLE. p. 1
What are the engine oil, fuel tank and hydraulic system capacities of the Case 580LE to 590LSP loader backhoes?
Engine oil with a filter change is 11 litres. The cooling system holds 15.8 litres without the heating system and 16.5 litres with it. The fuel tank holds 128 litres. Total hydraulic capacity is 106 litres on the 580LE, 125 litres on the 580SLE and 136 litres on the 590SLE. Filling the reservoir with a filter change takes 54.5 litres of CASE MS1210 or CASE Hydraulic Fluid. The 580LPS and 590SLE powershift gearbox takes Elfmatic G3. p. 15
What hydraulic pump output and relief valve settings does the manual give for the 580LE and 580SLE?
The 580LE pump is rated at 108 L/min and 210 bar at 2200 rpm. The 580SLE has a two-body pump. The rear body gives 104 L/min and the front body 36 L/min, both at 210 bar and 2200 rpm. The main relief valve is set at 210 to 215 bar and the swing relief valve at 190 to 195 bar. The Ride Control accumulator is charged to 24 to 26 bar. p. 969
Does the manual list error codes for the 580LSP and 590LSP electronic system?
Yes, but only for the 580LSP and 590LSP electronic system. The green indicator lamp (H18) flashes the tens and the blue lamp (H17) flashes the units. Each code table lists the component, the possible cause, the error code and its type. Supply voltage too low is 48 and too high is 49. A control box internal defect in the diagnostic circuits is 91. Rpm no swing is 25 and rpm incorrect swing speed is 26. Error code 93 cancels all the other codes. p. 134
What is inside this manual: wiring schematics, troubleshooting, repair procedures, engine overhaul?
It has electrical schematic plates with legends, plus fuse and relay box and harness wiring pages. Troubleshooting flowcharts cover steering, transmission and hydraulics. Tables cover the 580LSP/590LSP electronics and the air conditioning. Pressure checks list their test points. Removal, disassembly and assembly cover the axles, both transmissions, brakes, control valves, cylinders and safety valves. Torque tables and fluids and lubricants are included too. Engine overhaul and fuel injection are not covered. The contents page refers you to the Engine Service Manual. p. 1
