This Case 1830 service manual pdf packs 274 pages of factory-direct rebuild and diagnostic procedures for the Case 1830 Uni-Loader skid steer. Open to the hydraulic section and you get full circuit diagrams covering the loader control valve, selector valves, auxiliary hydraulics, and lift and bucket cylinders, with dedicated troubleshooting steps for each. You also get complete hydrostatic system diagrams and operation, wiring diagrams with electrical fault charts, engine and cooling system procedures, and a front-section torque chart to pull before touching a single fastener. Torque the wheel nuts to 80-90 foot-pounds, set the lift cylinder piston bolt to 150-180 foot-pounds, and top the cooling system to 8 quarts before startup. No more chasing hydraulic faults with a pressure gauge and a guess. Download, search by keyword, open on any device, and walk straight to your machine.
What's Inside This Case 1830, 1830 Uni-Loader Manual
| System | Pages | Key Topics |
|---|---|---|

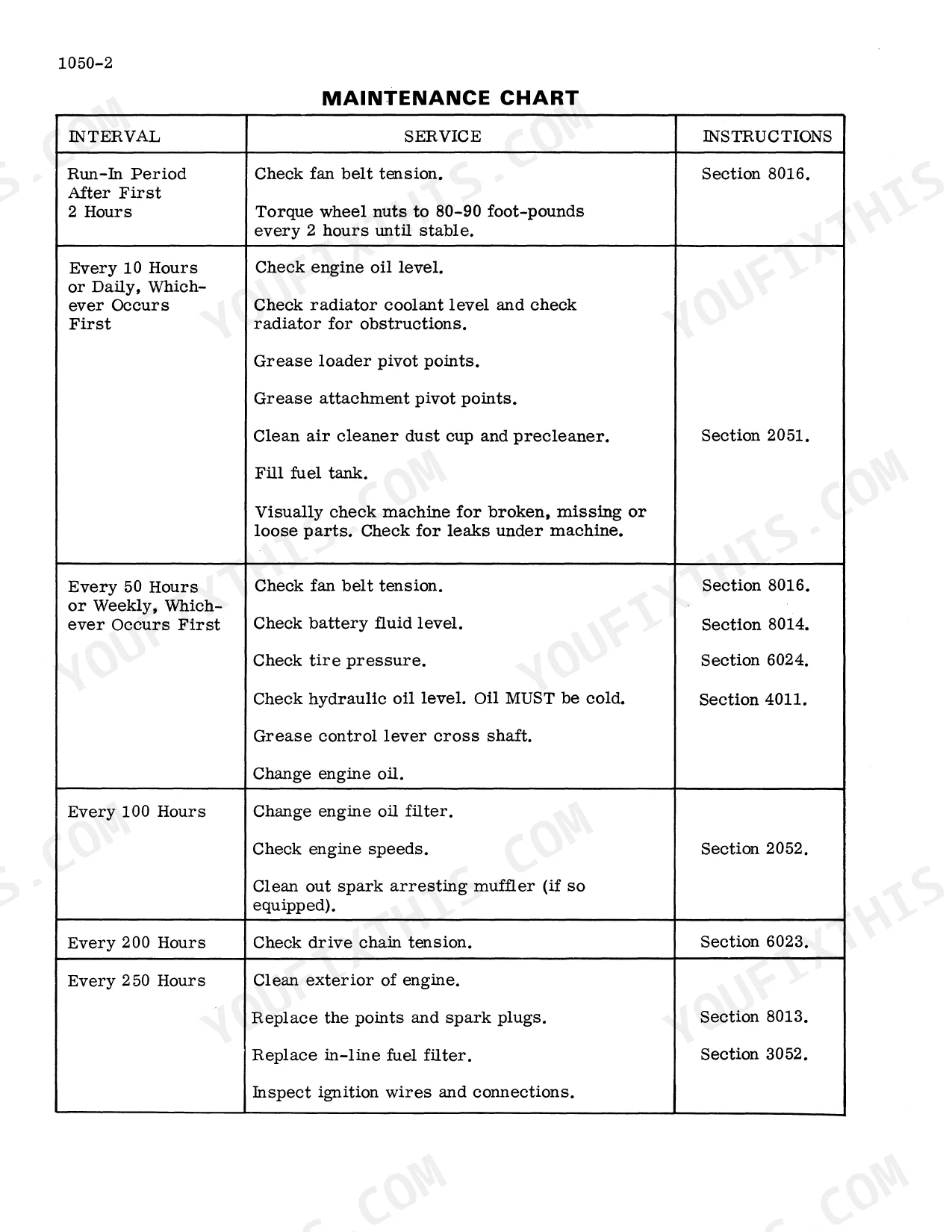

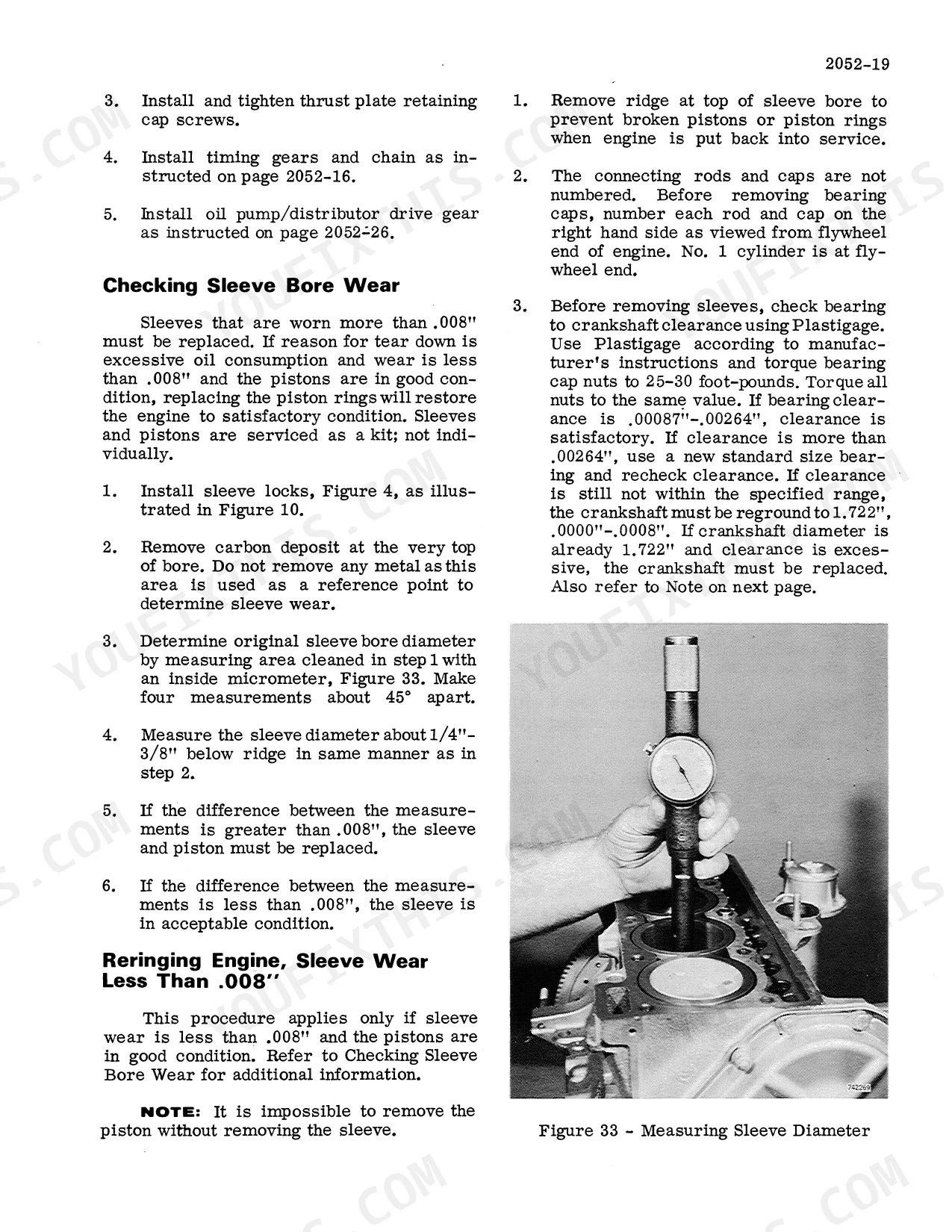

| General | 3-10 | Maintenance and Lubrication (Torque Chart) |
| Engine | 11-50 | Air Cleaner, Engine and Drive Coupling, Cooling System |
| Fuel System | 51-62 | Fuel Pump, Fuel Tank and Lines, Carburetor and Pcv Lines |

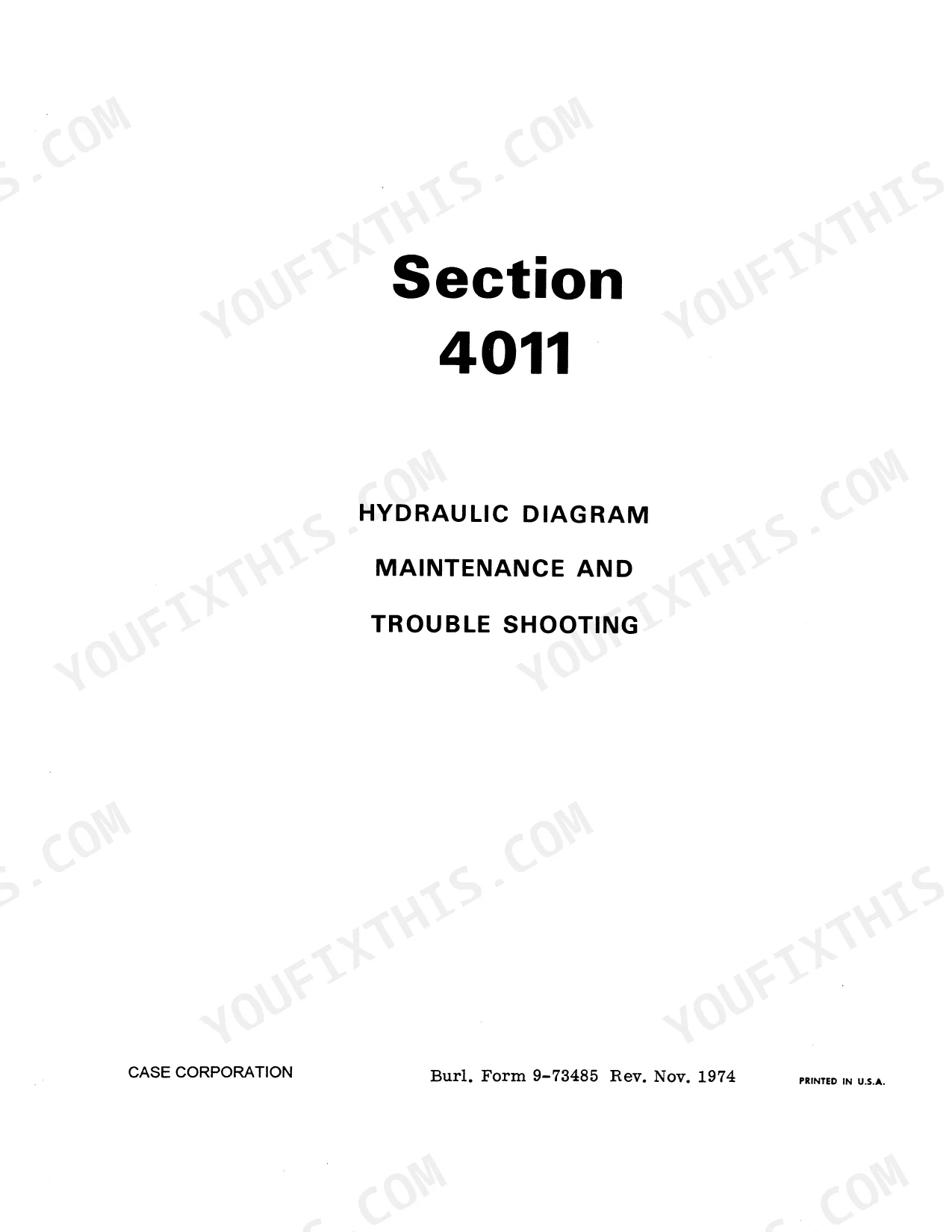

| Hydraulic System | 63-122 | Hydraulic Diagram, Maintenance and Trouble Shooting, Auxiliary Hydraulic Diagrams, Equipment Pump, Loader Control Valve, Selector Valves, Auxiliary Control Valve |
| Power Train | 123-192 | Drive Chains, Axles and Cluster Sprockets, Wheels and Tires, Hydrostatic System Diagrams and Operation, Trouble Shooting, Testing and Adjustments, Hydrostatic Pump |
| Beakes | 193-198 | Brake Adjustment, Brake Pedal Lock, Brake Shoes, Brake Drum |
| Electrical System | 199-258 | Wiring Diagram, Trouble Shooting, Ignition System, Battery, Starter, Alternator |
| Mounted Equipment | 259-274 | Loader, Loader Auxiliary Hydraulic Installations, Roll-Over Protection Structure |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Piston bolt torque | 150-180 foot-pounds | p. 120 |
| Wheel Nut Torque | 80-90 foot-pounds | p. 3 |
| Fuel Tank Capacity | 14.5 gallons (U.S.) | p. 4 |
| Engine Crankcase Oil Capacity (with filter change) | 3 quarts (U.S.) | p. 4 |
| Cooling System Capacity | 8 quarts (U.S.) | p. 4 |
Case 1830, 1830 Uni-Loader Common Problems This Manual Covers

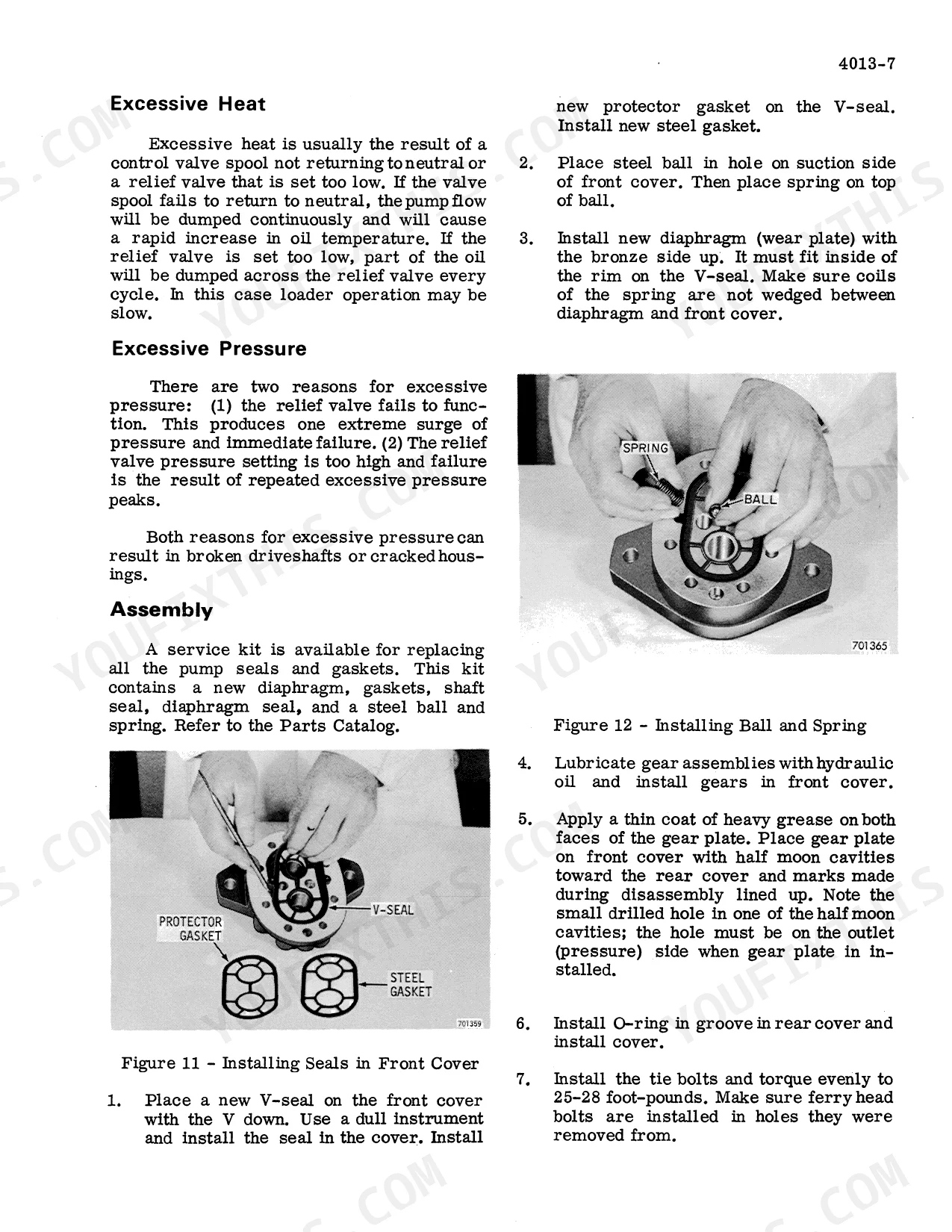

Case 1830 Uni-Loader complete hydraulic lift power loss, bucket won't raise after 200 hours p. 63
Check the hydraulic filter for restriction before condemning the pump. Inspect the equipment pump on page 63 for shaft seal weeping or scored internal gears. Verify the loader control valve spool moves freely without binding. Change the hydraulic filter every 25 hours of operation to prevent debris from starving pump flow.
Manual Section: Equipment Pump Failure CausesBoom drifts downward on its own after releasing loader controls, won't hold position p. 120
Inspect the lift cylinder rod for external oil weeping and the control valve spool for wear or internal bypass. Remove and rebuild the cylinder with a new seal kit; torque the piston bolt to 150-180 foot-pounds on reassembly as specified on page 120. Hold the loaded bucket elevated for two minutes after reassembly to confirm drift is corrected.
Manual Section: Hydraulic System Trouble ShootingEngine bogs, loses power, and stalls when lifting under heavy hydraulic load p. 11
Check the air cleaner restriction indicator on page 11; a plugged element starves the engine under load. Verify engine oil is filled to 3 quarts with filter. Inspect the sway valve block and loader control valve spool for sticking, which creates excessive hydraulic drag on the engine at peak lift demand.
Manual Section: Engine Trouble ShootingLoader lift cycles sluggish and slow, all hydraulic functions responding with reduced speed
Replace the hydraulic filter on a strict 25-hour or 2-week schedule, whichever comes first. A restricted element cuts flow to the equipment pump and all control valves. Drain the reservoir, install a new filter, refill, then cycle the loader through full lift and tilt motions several times to purge air and confirm restored response speed.
Manual Section: Hydraulic SystemFrequently Asked Questions
What are common issues with Case 1830 skid steer?
Common issues include electrical problems such as grounded battery cables, loose battery cables, defective batteries, faulty alternators or regulators, and issues with the starting circuit. Hydraulic system problems can involve poor operation of a single circuit due to cylinder packing, or poor operation of all circuits due to low hydraulic oil level, dirty filters, or incorrect main relief valve settings. These issues are detailed in the troubleshooting charts for the electrical and hydraulic systems.
How to troubleshoot no start on Case 1830?
To troubleshoot a no-start condition, first check for a blown fuse between the starter button and ammeter. Next, determine the battery condition and inspect the wiring for any frayed insulation or other damage. If these checks do not resolve the issue, proceed to check the starting circuit as detailed in the manual, referring to Figure 2 for the starting circuit diagram.
How do you fix case 1830 Uni-Loader complete hydraulic lift power loss, bucket won't raise after 200 hours?
Check the hydraulic filter for restriction before condemning the pump. Inspect the equipment pump on page 63 for shaft seal weeping or scored internal gears. Verify the loader control valve spool moves freely without binding. Change the hydraulic filter every 25 hours of operation to prevent debris from starving pump flow.
How do you fix boom drifts downward on its own after releasing loader controls, won't hold position?
Inspect the lift cylinder rod for external oil weeping and the control valve spool for wear or internal bypass. Remove and rebuild the cylinder with a new seal kit; torque the piston bolt to 150-180 foot-pounds on reassembly as specified on page 120. Hold the loaded bucket elevated for two minutes after reassembly to confirm drift is corrected.
What do I get after purchasing this manual?
This is a 274-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this Service Manual cover the hydraulic system?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
