Part of the Case Repair Manuals.
For the hydrostatic drive, the book gives you the test numbers. It lists servo, charge, case and drive pressures, then covers servicing the pump and motor. The piston pump and compensator get the same treatment, with flow, stand by and cut off pressures.
On the engine side it covers the 466 diesel family and overhaul of the Case 6-590 and 6-830. That includes cylinder head, valve train, cylinder block, turbocharger and lubrication. Bosch MW and CAV injection pumps are covered too, with injection pump timing. You also get wiring diagrams and hydraulic schematics for the 2022-2044 and the 2055, plus steering, transmission, drum drive, brakes, Sanden A/C, picker drums and basket.

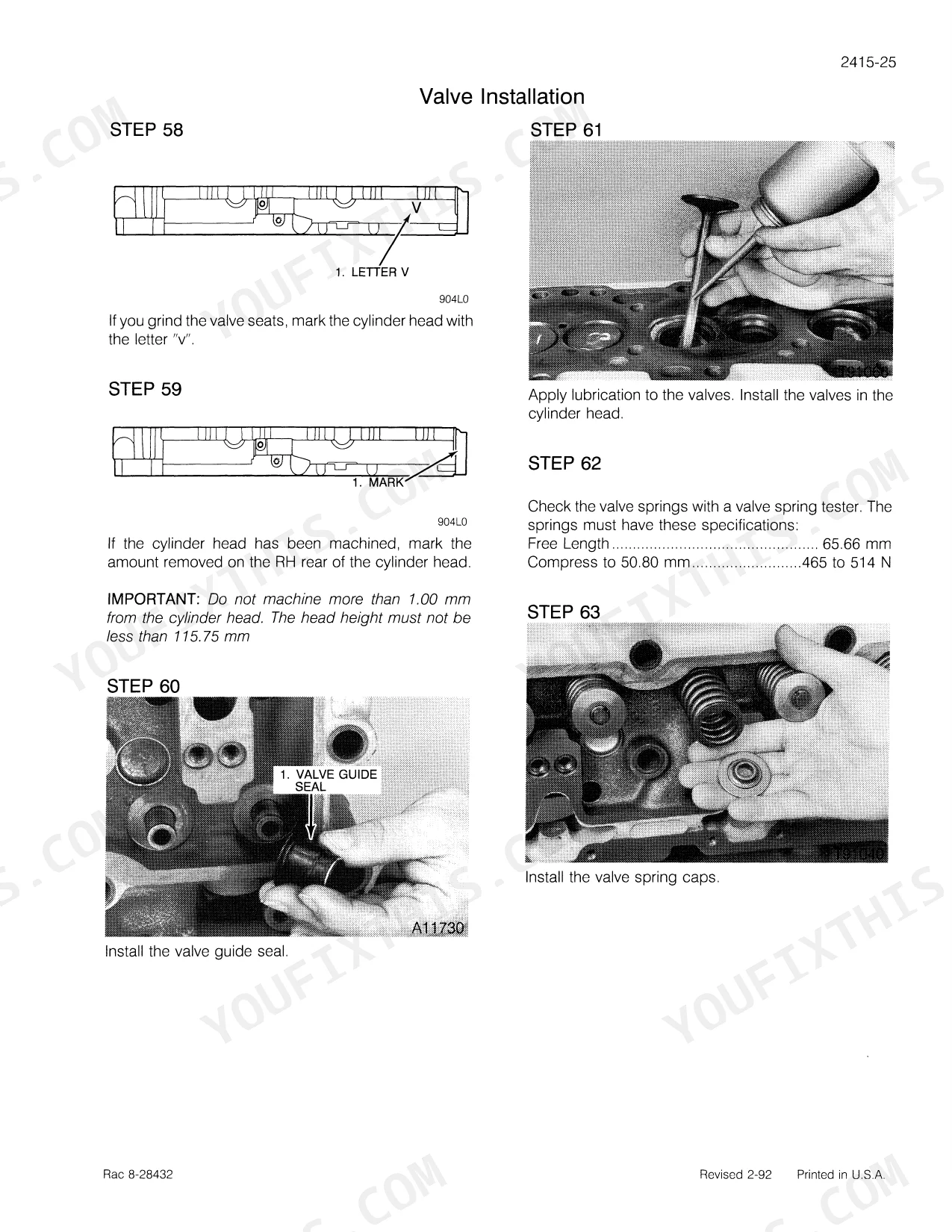

A rebuild usually stalls because one number is missing. Print the pages and take them to the bench, grease and all. Check the cylinder head and valve train specs before it goes back together.
What's Inside This Case 1822–2055 Manual
| System | Pages | Key Topics |
|---|---|---|
| Table of Contents and 466 Engine Specifications (1020) | 1-18 | Table of Contents, Specification Details for 466 Cubic Inch Engines |

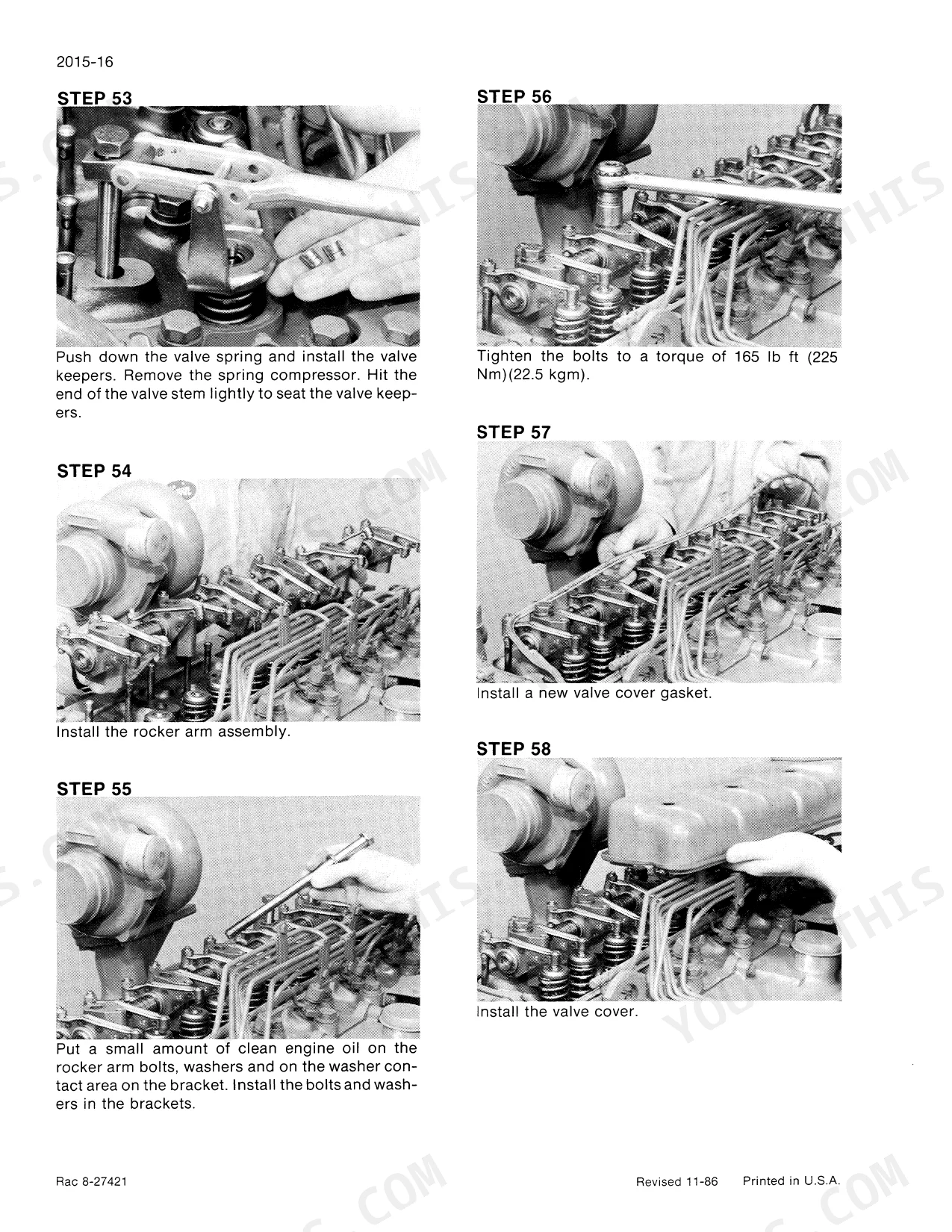

| 466 Engine Troubleshooting and Tune-Up (2010, 2015) | 19-86 | Engine Troubleshooting for D-358, D-466, DT-466B, DT-466C and Dti-466C Engines, Engine Tune-Up |
| Engine Removal and Installation (2020) | 87-108 | Engine Removal and Installation |

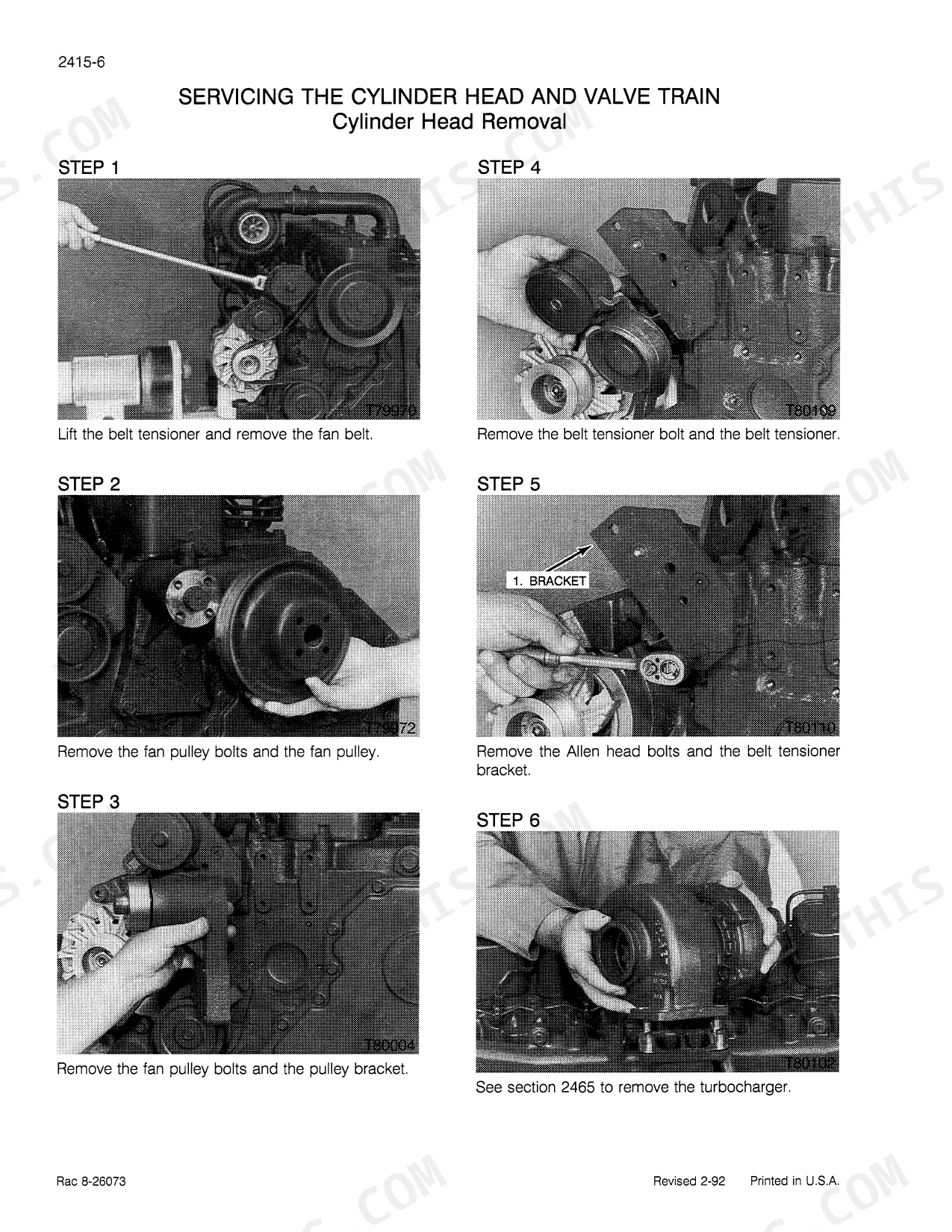

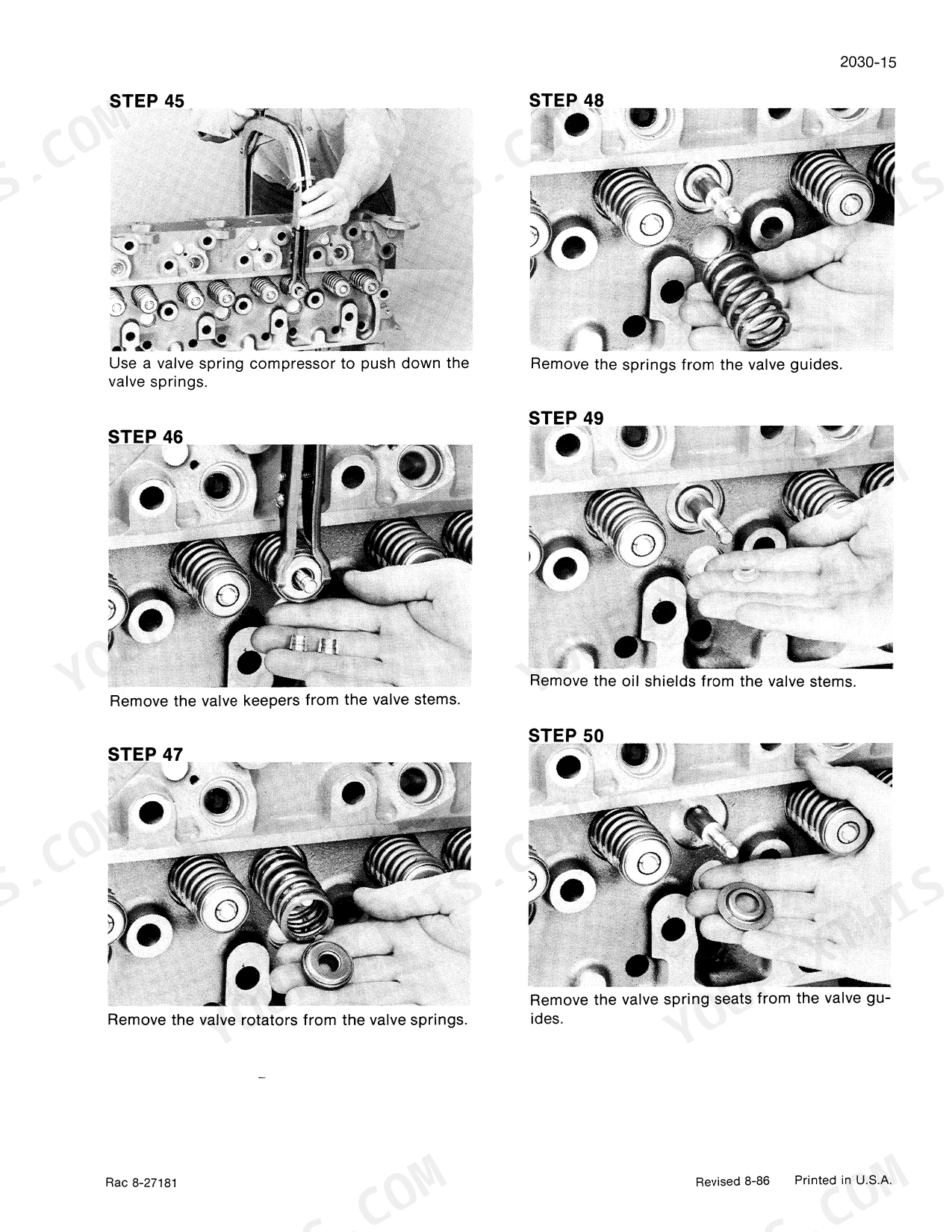

| 466 Engine Cylinder Head, Valve Train and Cylinder Block (2030, 2040) | 109-256 | Cylinder Head and Valve Train, Cylinder Block Seals, Pistons, Rods, Sleeves, Bearings, Crankshaft, Piston Oil Nozzles, Camshaft |

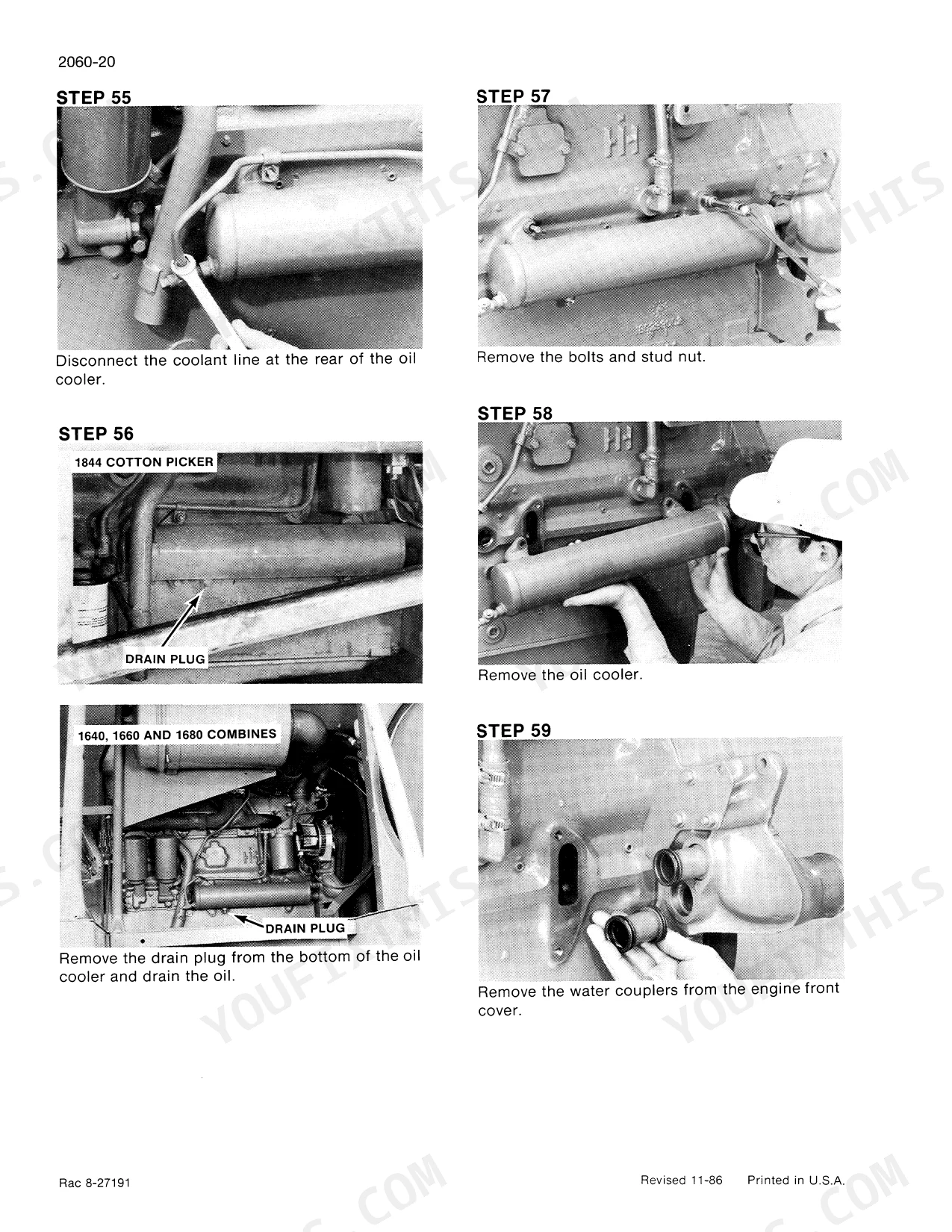

| 466 Engine Lubrication, Turbocharger, Cooling and Air Induction (2060-2090) | 257-352 | Lubrication System, T04B Turbocharger, Turbocharger Failure Analysis, Cooling System, Air Induction and Exhaust System |
| 590 Diesel Engine (2401-2465) | 353-554 | Specification Details, Cylinder Head and Valve Train, Cylinder Block, Lubrication, After Cooler, Cooling System, Turbocharger |
| 830 Diesel Engine (2403-2465) | 555-730 | Specification Details, Cylinder Head and Valve Train, Cylinder Block, Lubrication, Cooling System (Thermostat, Water Pump, Fan Pulley and Belt Tensioner), Turbocharger |
| Fuel System, Injection Pumps and Injectors (3010-3413) | 731-872 | Fuel System and Filters, Robert Bosch Type MW Injection Fuel Pump, Fuel Injectors, CAV Injection Pump, 6-830 Injection Pump (Pump Drive Gear, Timing Pin, Fuel Shutoff Solenoid, Primer Pump and Pump Timing) |
| Wiring Schematics and Electrical Troubleshooting (4001-4014) | 873-1175 | Wiring Schematic and Troubleshooting for 2022-2044 and for 2055 Cotton Pickers, Electrical System Troubleshooting, Bosch Alternator, Instrument Cluster, Starting Motor, Digital Tachometer, Compactor and Monitor Troubleshooting |
| Electrical Wiring Diagrams (4020-4030) | 1176-1200 | Cotton Picker Electrical Wiring Diagram, Cab Electrical Wiring Diagram, Electro Hydraulic Valve Wiring Diagram |

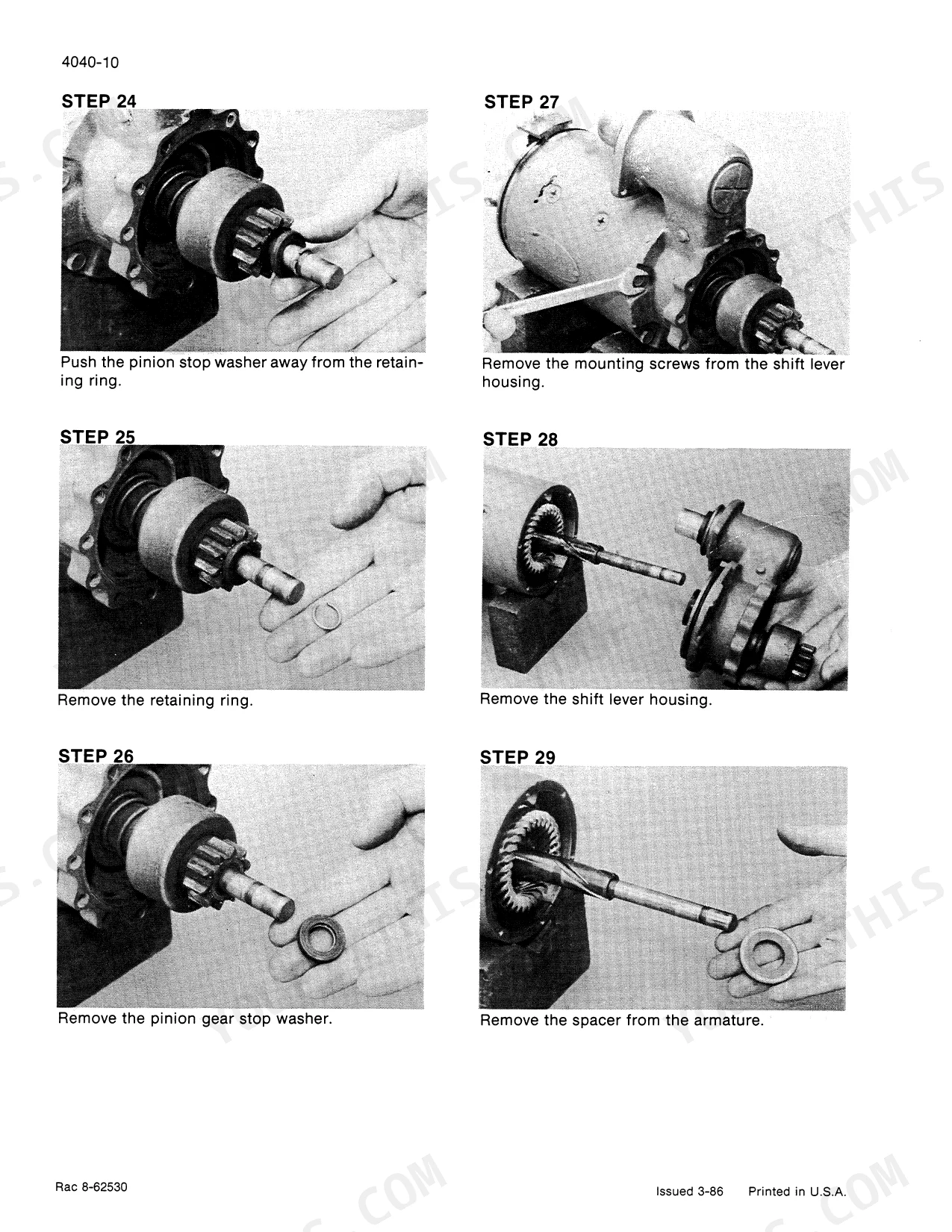

| Batteries, Starting Motor and Alternator (4235-4070) | 1201-1272 | Battery Servicing and Testing, Starting Motor, Alternator System, Neutral Start Switch |
| Steering (5003-5040) | 1273-1378 | Steering Axle and Lines, Testing Steering System, Steering Column and Hand Pump, Steering Cylinder |
| Hydrostatic Propulsion Drive (6010-6030) | 1379-1464 | Hydrostatic Propulsion Drive Testing and Troubleshooting, Foot-N-Inch Valve, Hydrostatic Drive Pump Removal, Installation and Service (Eaton Series 1), Hydrostatic Drive Motor |
| Transmission, Drum Drive and Final Drive (6035-6060) | 1465-1596 | Transmission and Drum Drive Assembly Removal and Installation, Transmission, 2055 Transmission Service, Drum Drive Assembly, Drum Drive, Final Drive and Pinion Assembly |
| Brakes (7010-7020) | 1597-1634 | Service and Parking Brake, Brake Valve and Cylinders |
| Hydraulic Schematics, Troubleshooting and Testing (8001-8030) | 1635-1784 | Hydraulic Schematics and Troubleshooting for 2022-2044 and for 2055 Cotton Pickers, Hydraulic System Troubleshooting, Hydraulic System Testing, Hydraulic Oil Filters |
| Hydraulic Pump, Valves and Cylinders (8037-8062) | 1785-1916 | Hydraulic Pump and Compensator, Electro-Hydraulic Valves, Hydraulic Manifold Valve, Hydraulic Valves, Cylinders and Motor, Drum Height Control Valve |

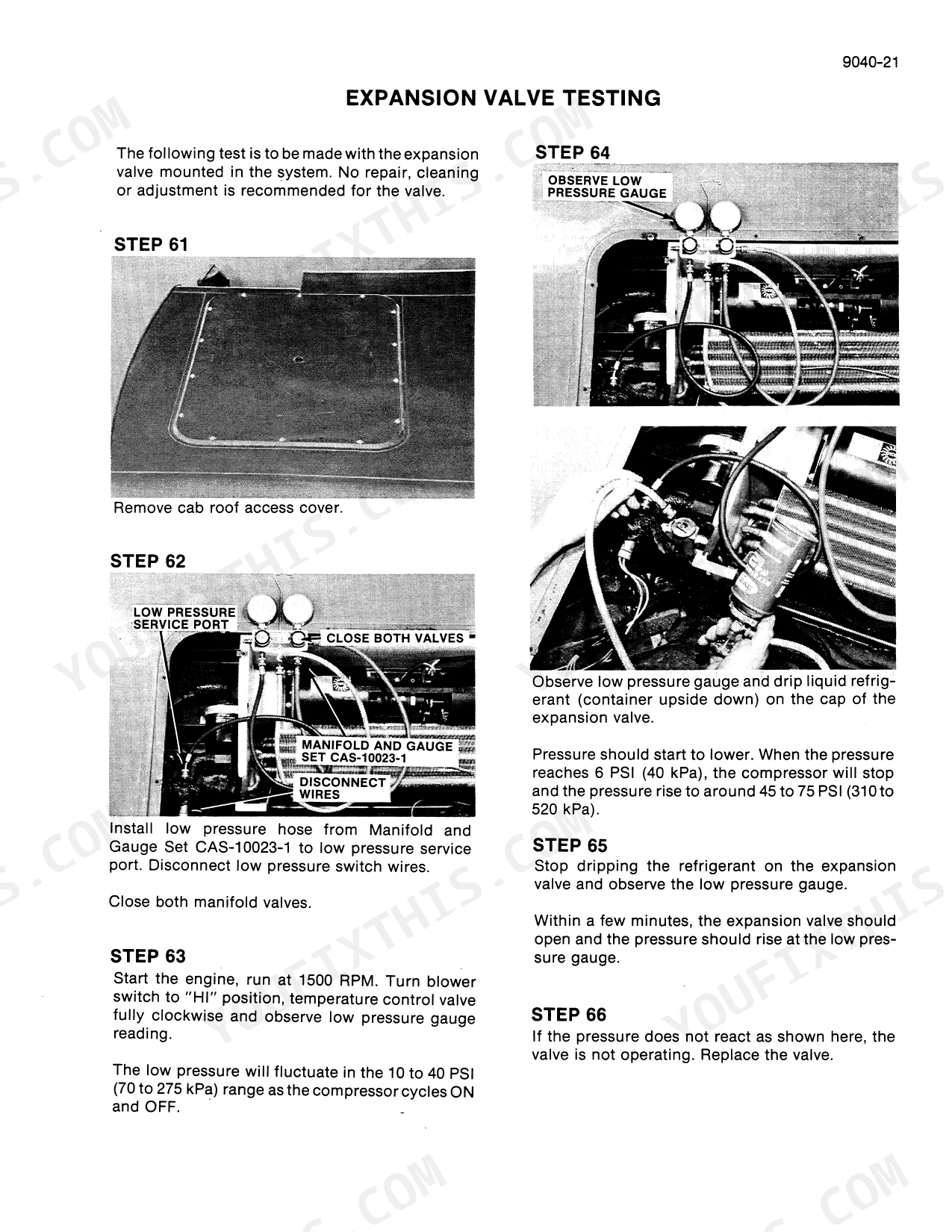

| Air Conditioning (9000-9040) | 1917-2010 | Sanden SD 508 HD Compressor, Air Conditioner Troubleshooting, System Service, Recovery, Evacuation and Recharging, Components Service, Compressor Removal and Installation |
| Cab Blower, Seat, Fan, Moistener and Basket (9050-9077) | 2011-2088 | Cab Blower, Operators Seat, Fan Assembly, Pressure Moistener System Pump, Basket Assembly Service |
| Picker Drums, Spindle Lubrication and Drum Gearboxes (9080-9093) | 2089-2368 | Picker Drum Removal and Installation, Automatic Picker Drum Height Linkage Adjustment, 2055 Drum Removal, Picker Drum Service, Gear Driven Picker Drum Service, Picker Bar and Spindle Lubrication System, Drum Gearboxes and Input Drive Shafts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydrostatic drive servo pressure | 150 to 170 PSI (1,034 to 1,172 kPa) | p. 1381 |
| Hydrostatic drive pressure | 5400 to 5600 PSI (37,233 to 38,612 kPa) | p. 1381 |
| Hydrostatic charge pressure (above case pressure) | 210 to 230 PSI (1,448 to 1,586 kPa) | p. 1381 |
| Hydrostatic case pressure, maximum | 40 PSI (276 kPa) | p. 1381 |
| Piston pump flow, 2022 and 2044 | 26.6 GPM (Minimum) @ 2000 PSI (100.7 L/Min @ 13,790 kPa) | p. 1638 |
| Piston pump stand by pressure with orifice tee installed, 2022 and 2044 | 500 to 800 PSI | p. 1638 |
| Piston pump stand by pressure without orifice tee installed, 2022 and 2044 | 350 to 500 PSI (2,413 to 3,447 kPa) | p. 1638 |
| Piston pump cut off pressure, 2022 and 2044 | 2400 to 2500 PSI (16,547 to 17,237 kPa) | p. 1638 |
| Piston pump differential pressure, 2022 and 2044 | 340 to 390 PSI (2,344 to 2,689 kPa) | p. 1638 |
| Steering turns lock to lock, 2022 | 3.7 to 4.1 | p. 1638 |
| Steering turns lock to lock, 2044 | 5.2 to 5.6 | p. 1638 |
| Piston pump flow, 2055 | 26.6 GPM (Minimum) @ 2000 PSI (100.7 L/Min @ 13,790 kPa) | p. 1679 |
| Piston pump cut off pressure, 2055 | 2400 to 2500 PSI (16,547 to 17,237 kPa) | p. 1679 |
| Steering turns lock to lock, 1822 | 3.7 to 4.1 | p. 1711 |
| Steering turns lock to lock, 1844 | 5.2 to 5.6 | p. 1711 |
| Basket raise pressure, basket empty, 1822 and 1844 | 700 to 1100 PSI (4826 to 7584 kPa) | p. 1711 |
| Basket leakdown, maximum, 1822 and 1844 | 1 inch in 2.5 Hours (25.4 mm in 2.5 Hours) | p. 1711 |
| Rear wheel bolt torque | 140 to 160 lb ft (190 to 217 Nm) | p. 1360 |
| Fuel injection pump static timing, DT-466C (1844 Cotton Picker) | 25 degrees BTC | p. 54 |
Case 1822–2055 Common Problems This Manual Covers
Hydrostatic transmission will not operate in either direction
Before troubleshooting, check the fluid level, replace the filter, check the suction hose, fix any external leaks and warm the fluid to at least 100 F (38 C). If charge pressure is very low or zero, the system is low on fluid, so fill the reservoir and find the leak. Low charge pressure points to a plugged charge pump suction line or filter. Clean the line, replace the filter and remove air from the system. If charge and case pressure are normal, check the whole control linkage and adjust it to the neutral position of the pump control arm.
Manual Section: Hydrostatic Propulsion Drive Testing and Troubleshooting (6010) - Transmission Will Not Operate in Either Direction p. 1389No hydraulics
Make sure the hydraulic oil reservoir is full, the filters are clean and the batteries and charging system work properly. Check the pump drive belt for cracking or glazing, check its tension, and replace or adjust it. Next, check whether the pump pulley is slipping on the shaft and whether the pump input shaft is broken. If the pump drive is OK, test pump output using the hydraulic testing section.
Manual Section: Hydraulic System Troubleshooting (8010) - No Hydraulics p. 1715Steering works but there are no electro-hydraulic functions
First check that the drum safety switch is in the unlock position. Then turn the key switch on and run a jumper wire from the normally open terminal of the engine oil pressure switch to ground. Check the voltage at the activated solenoid coil. That tells you whether to chase the wiring or the valve, using the electro-hydraulic valve wiring diagram.
Manual Section: Hydraulic System Troubleshooting (8010) - Steering Works but no Electro-Hydraulic Functions p. 1716Air conditioning gives no cooling
Start by checking whether the compressor runs. For a mechanical problem, go to the external compressor check. For an electrical problem, go to the blower motor and compressor clutch check. Refrigerant problems go to the refrigerant checks, and internal system problems go to the pressure test section. Recovery, evacuation and recharge procedures for the Sanden compressor are in the same part of the book.
Manual Section: Air Conditioner Troubleshooting (9001) - No Cooling p. 1931Frequently Asked Questions
What are the hydraulic piston pump specifications for the Case 2022 and 2044 cotton pickers?
Pump flow is 26.6 GPM minimum at 2000 PSI (100.7 L/Min @ 13,790 kPa). Cut off pressure is 2400 to 2500 PSI (16,547 to 17,237 kPa). Pump differential pressure is 340 to 390 PSI (2,344 to 2,689 kPa). Stand by pressure is 500 to 800 PSI with the orifice tee installed and 350 to 500 PSI (2,413 to 3,447 kPa) without it. The 2055 lists the same flow and cut off pressure. p. 1638
What are the hydrostatic drive test pressures on these Case cotton pickers?
Servo pressure is 150 to 170 PSI (1,034 to 1,172 kPa). Drive pressure is 5400 to 5600 PSI (37,233 to 38,612 kPa). Charge pressure is 210 to 230 PSI (1,448 to 1,586 kPa) above case pressure. Case pressure should not go over 40 PSI (276 kPa). Take those four readings before you condemn a pump or motor. Saving one wrong teardown pays for the book. p. 1381
How do I silence the row unit monitor alarm on a Case cotton picker?
Push the ALARM RESET touch switch. It silences the audible alarm and turns off a flashing indicator light. Normally you stop, fix the problem, and the monitor resets itself once it gets an acceptable sensor signal again. The switch is for when you decide to keep picking with something you can't fix yet, such as a damaged rotor sensor or signal wire. p. 1167
How do I reset the air cleaner service indicator?
The red signal shows when the air cleaner elements need service. Service the filter elements first. Then push up on the reset button at the bottom of the indicator. The red signal disappears once the indicator is reset. p. 347
What is the rear wheel bolt torque on the Case 1822–2055 cotton pickers?
Lightly oil the wheel bolt threads, then tighten the rear wheel bolts to 140 to 160 lb ft (190 to 217 Nm). Oiling the threads is part of the procedure, so don't skip it and torque them dry. p. 1360
