Both the naturally aspirated 6-830 and the turbocharged 6T-830 diesel engines are covered here, in the 276 page Case 6-830, 6T-830 Service Manual PDF published under OEM number 8-28420. Cylinder head and valve train work runs through the front of the book, and the cylinder block section is the longest stretch in it: crankshaft, pistons, rods, sleeves, camshaft, bearings and seals, each teardown ending in reassembly specs. Turbocharger failure analysis sits with the turbo procedures, so a wheel that rubbed tells you why before you hang a new one. Electrical specifications and starting circuit troubleshooting close it out. Machining limit on the cylinder head is 1.00 mm and minimum head height is 115.75 mm, so you measure before you decide to reuse it; fuel filters go every 500 hours. Bookmarked and text searchable, and the pages print clean enough to live on the bench and get dirty.
What's Inside This Case 6-830, 6T-830 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 3-14 | Specification Details, Run-In Instructions |

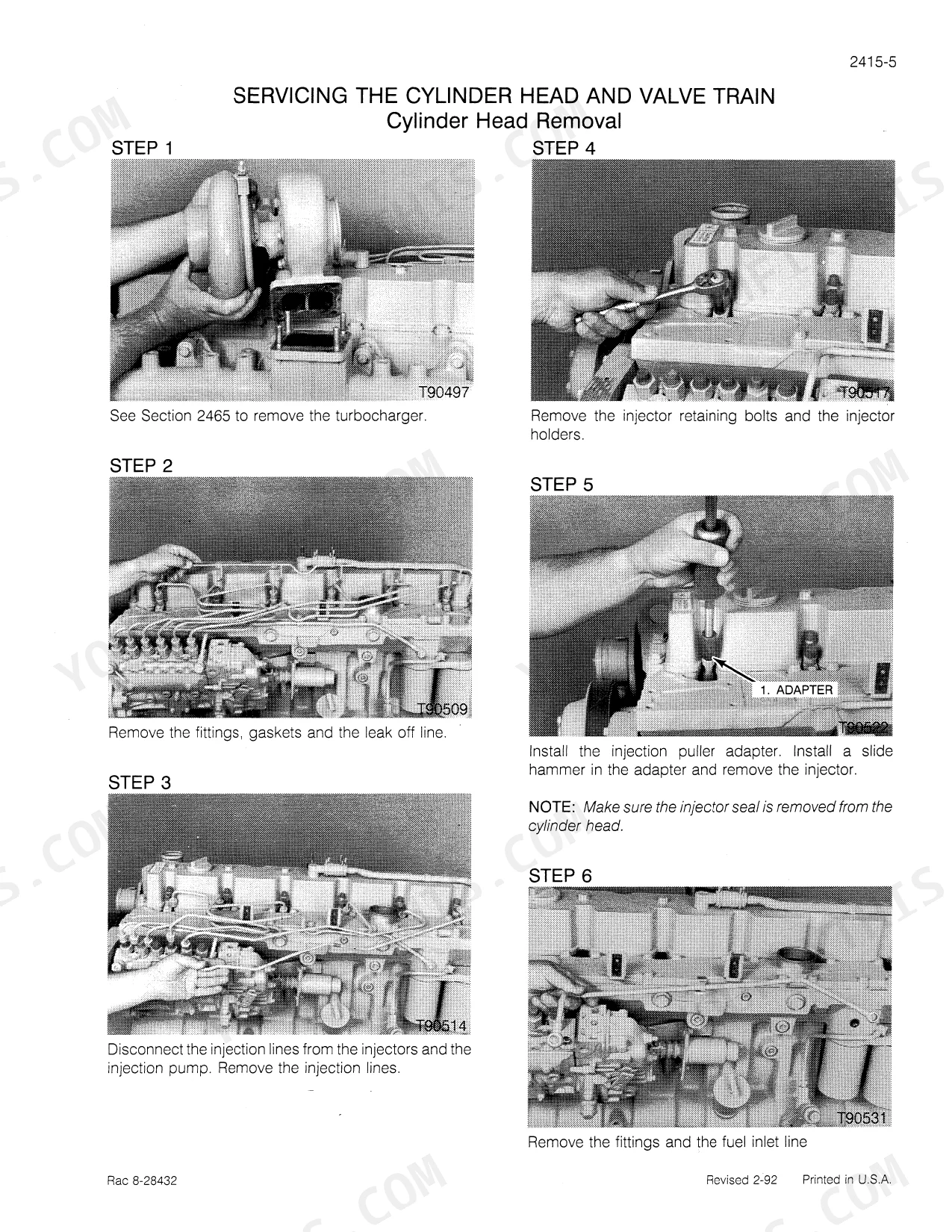

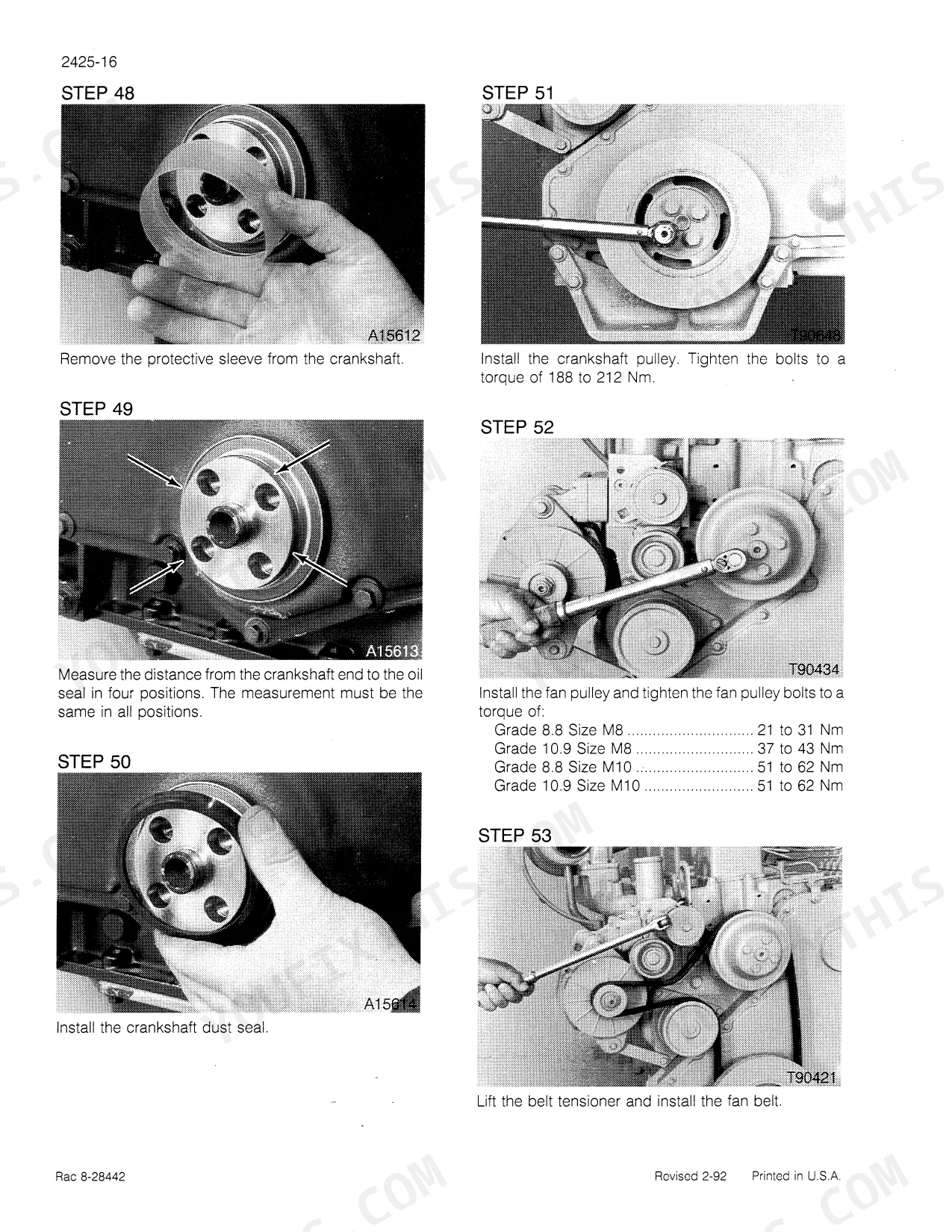

| Cylinder Head and Valve Train | 15-50 | Cylinder Head Removal, Valve Disassembly, Valve Installation, Rocker Arm Assembly, Cylinder Head Torque |
| Cylinder Block | 51-129 | Crankshaft, Pistons, Rods, Sleeves, Camshaft, Bearings, Seals |
| Lubrication System | 131-147 | Oil Pan, Oil Pump, Oil Cooler, Oil Filter Housing, Oil Inlet Tube |
| Cooling System | 149-164 | Thermostat, Water Pump, Fan Pulley, Belt Tensioner |
| Turbocharger | 165-188 | Turbocharger Removal, Turbocharger Disassembly, Turbocharger Assembly, Turbocharger Installation, Failure Analysis |
| Fuel System | 197-260 | Fuel Systems and Filters, Injection Pump, Fuel Injectors |

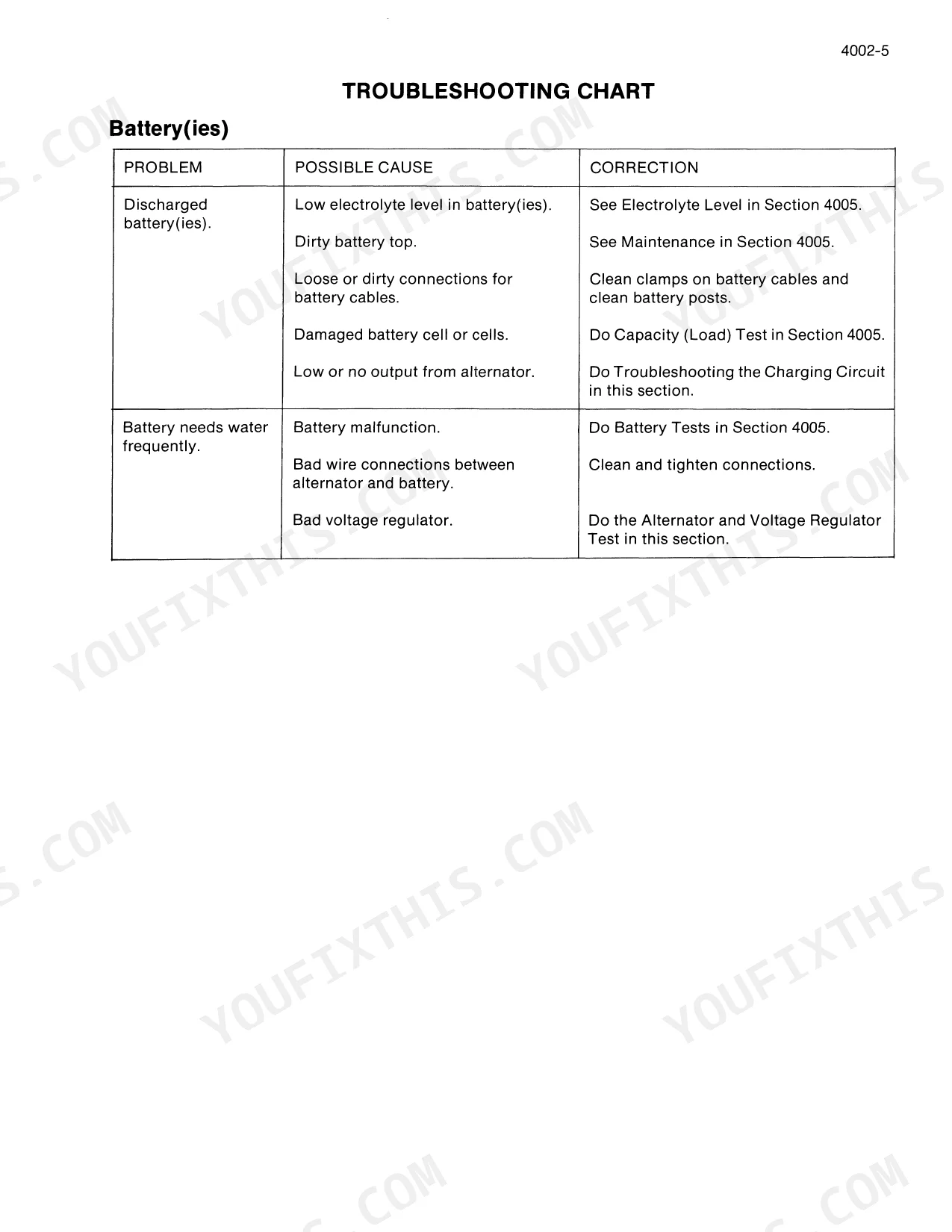

| Electrical | 261-276 | Electrical System Specifications, Troubleshooting the Starting Circuit |
Quick Reference Specifications

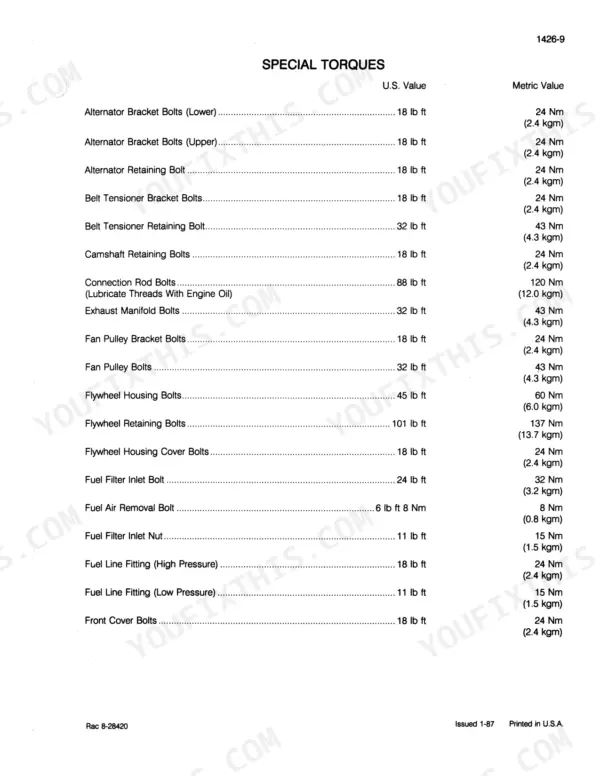

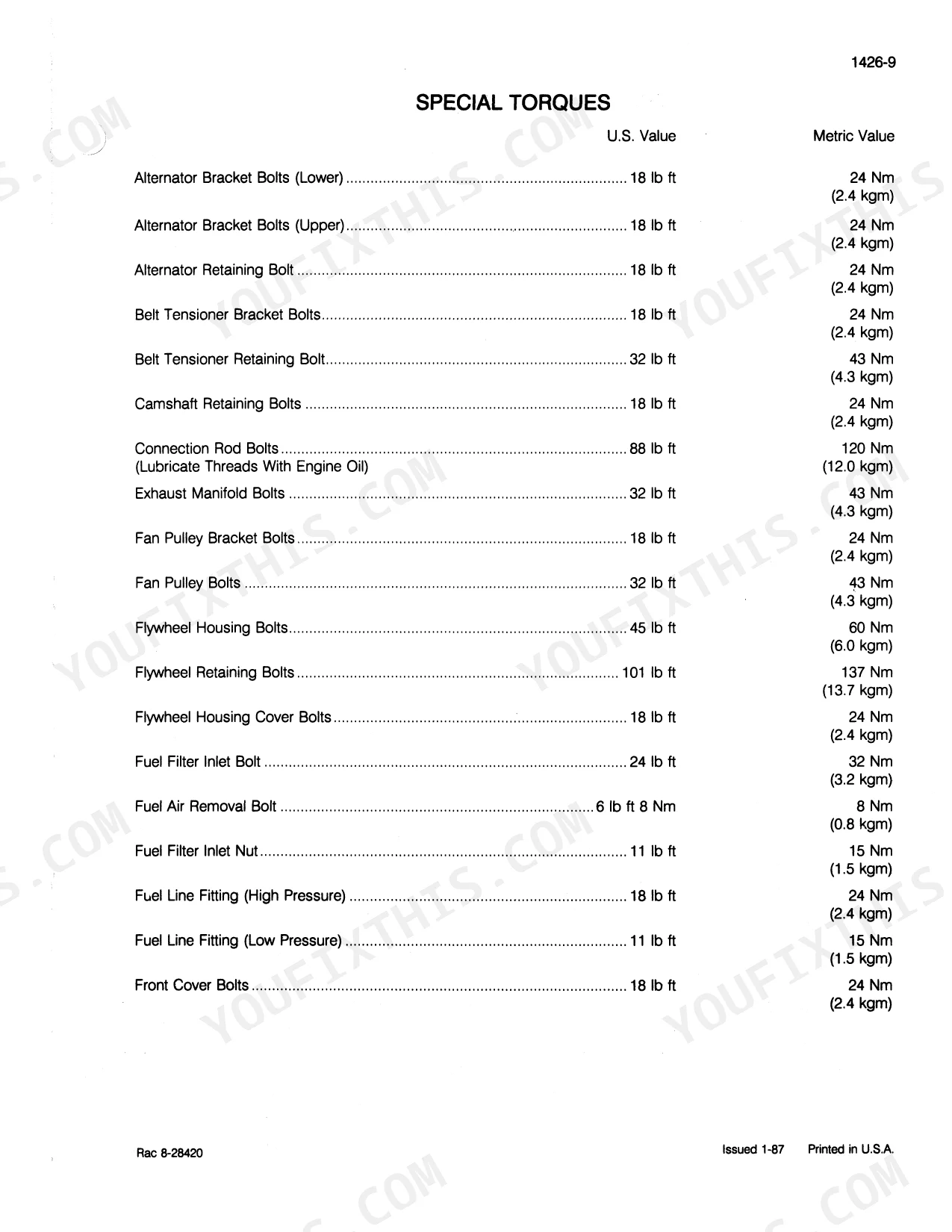

| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Head Gasket Thickness | 0.27 mm, 0.48 mm | p. 41 |
| Cylinder Head Machining Limit | 1.00 mm | p. 39 |
| Filter Replacement | Every 500 hours | p. 198 |
| Belt Tension: Spring Tension at 35 degree angle (minimum) | 18 lb ft (24 Nm) | p. 152 |
| Injector Retaining Bolt Torque | 18 lb ft (24 Nm) | p. 240 |
| Leak Off Bolt Torque | 7 lb ft (9 Nm) | p. 240 |

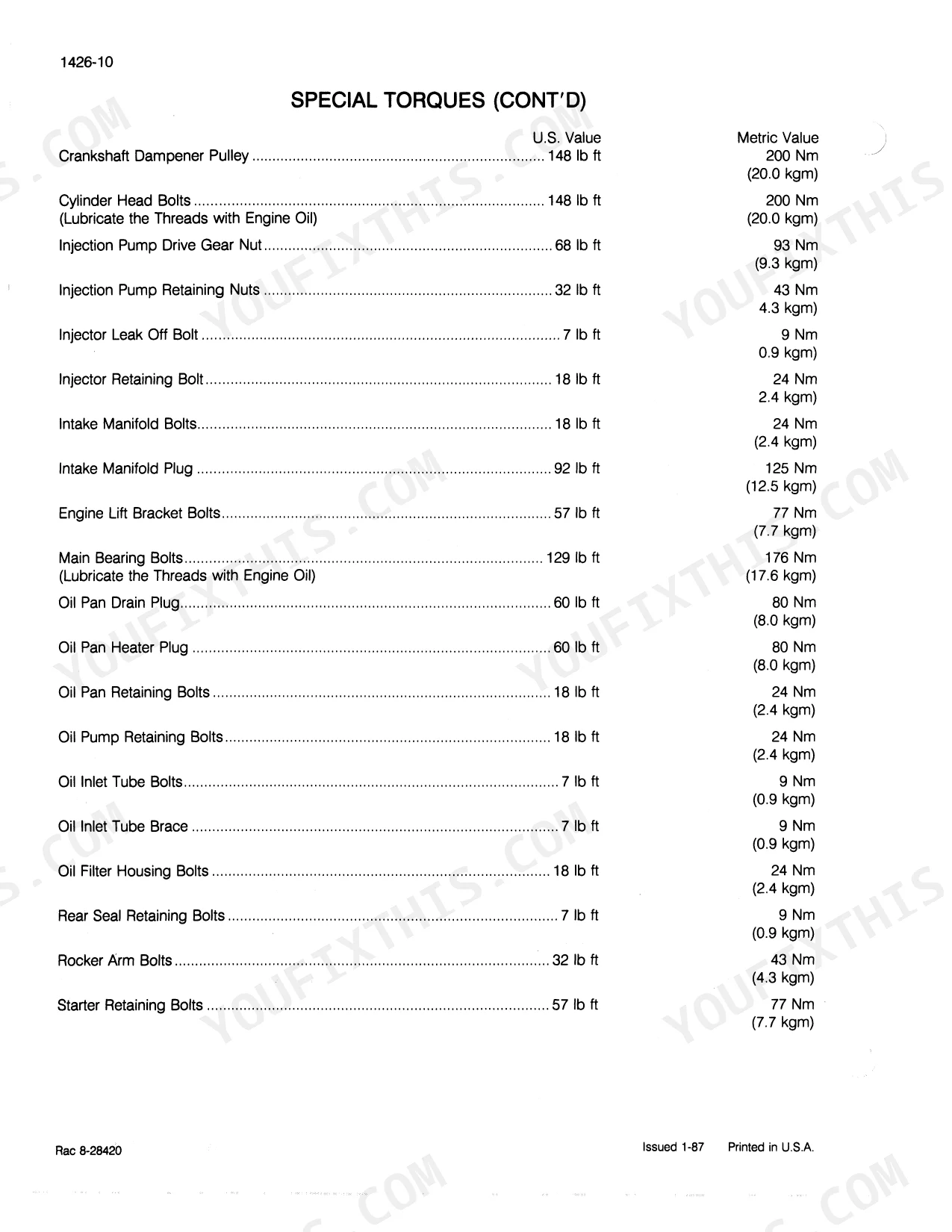

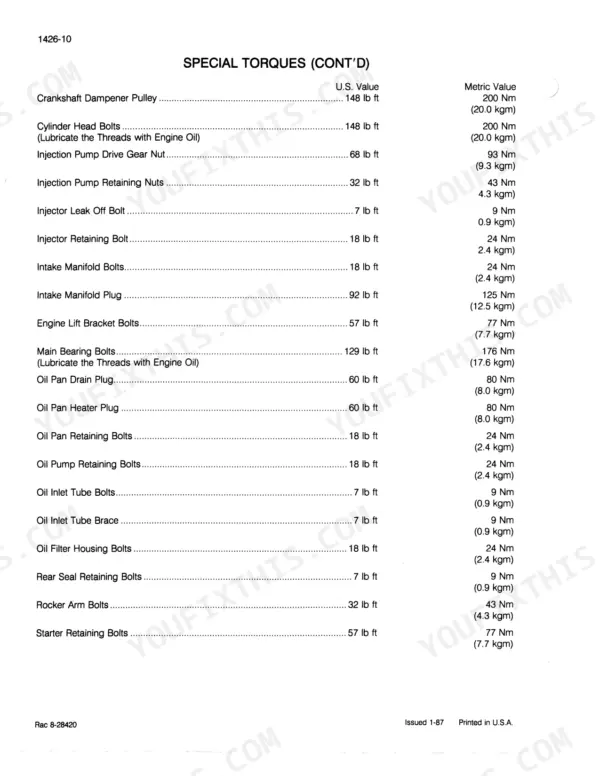

| Cylinder Head Bolts (Prior to Serial Number 44487830) | 200 Nm | p. 11 |
| Cylinder Head Bolts (Serial Number 44487830 and After) - Short Bolts | 70 Nm Plus 90 Degrees | p. 18 |
| Cylinder Head Bolts (Serial Number 44487830 and After) - Long Bolts | 142 Nm Plus 90 Degrees | p. 18 |
| Main Bearing Bolts | 176 Nm | p. 12 |
| 6-830 | ||
| Engine Oil Capacity (6-830) | 22.0 L | p. 133 |
| 6T-830 | ||
| Engine Oil Capacity (6T-830) | 22.4 L | p. 133 |
Case 6-830, 6T-830 Common Problems This Manual Covers
Case 6-830 diesel cranks but will not fire after fuel filter change, no smoke at exhaust
Bleed the fuel system before you chase anything else. Verify the stop control is out of the stop position, then crack the filter bleed screws and work the hand primer until solid fuel flows. Confirm supply pressure holds 140 to 172 kPa as listed on page 198, and change the filter element every 500 hours.
Manual Section: Fuel System p. 198Engine runs rough at idle, misses under load, black smoke from one cylinder
Find the dead hole first. Crack each injector line nut at the pump one at a time and listen for a change in note; the cylinder that stays flat owns the bad nozzle. Pop test that injector against 20 464 to 21 263 kPa for new units on page 239. Torque retaining bolts to 24 Nm.
Manual Section: Fuel Injector Troubleshooting p. 239Sharp metallic knock at idle, gets louder as engine warms up
Check injection pump timing before you pull anything apart. Verify oil level against the 22.0 L capacity for the 6-830 on page 133, then follow the pump timing procedure at pages 227 through 235 with the gear marks aligned to spec.
Manual Section: Injection Pump TimingOverheats under sustained load, coolant pushes out overflow, temperature climbs past normal
Test the belt before blaming the head gasket. Measure spring tension at the 35 degree angle; minimum is 24 Nm per page 152, and a slipping belt starves the water pump long before the gauge moves. Then pressure test the cap and inspect the head gasket sealing surface.
Manual Section: Cooling System p. 152Coolant in the oil, white smoke, cylinder head resurfaced and gasket still leaking
Measure the head before you bolt it back down. Minimum height is 115.75 mm with a 1.00 mm total machining limit on page 39, and a head cut past that will not seal at any torque. Match gasket thickness to the 0.27 mm or 0.48 mm options, then torque short bolts to 70 Nm plus 90 degrees in sequence.
Manual Section: Cylinder Head and Valve Train p. 39Low oil pressure and heavy crankcase blowby on a fresh rebuild during run-in

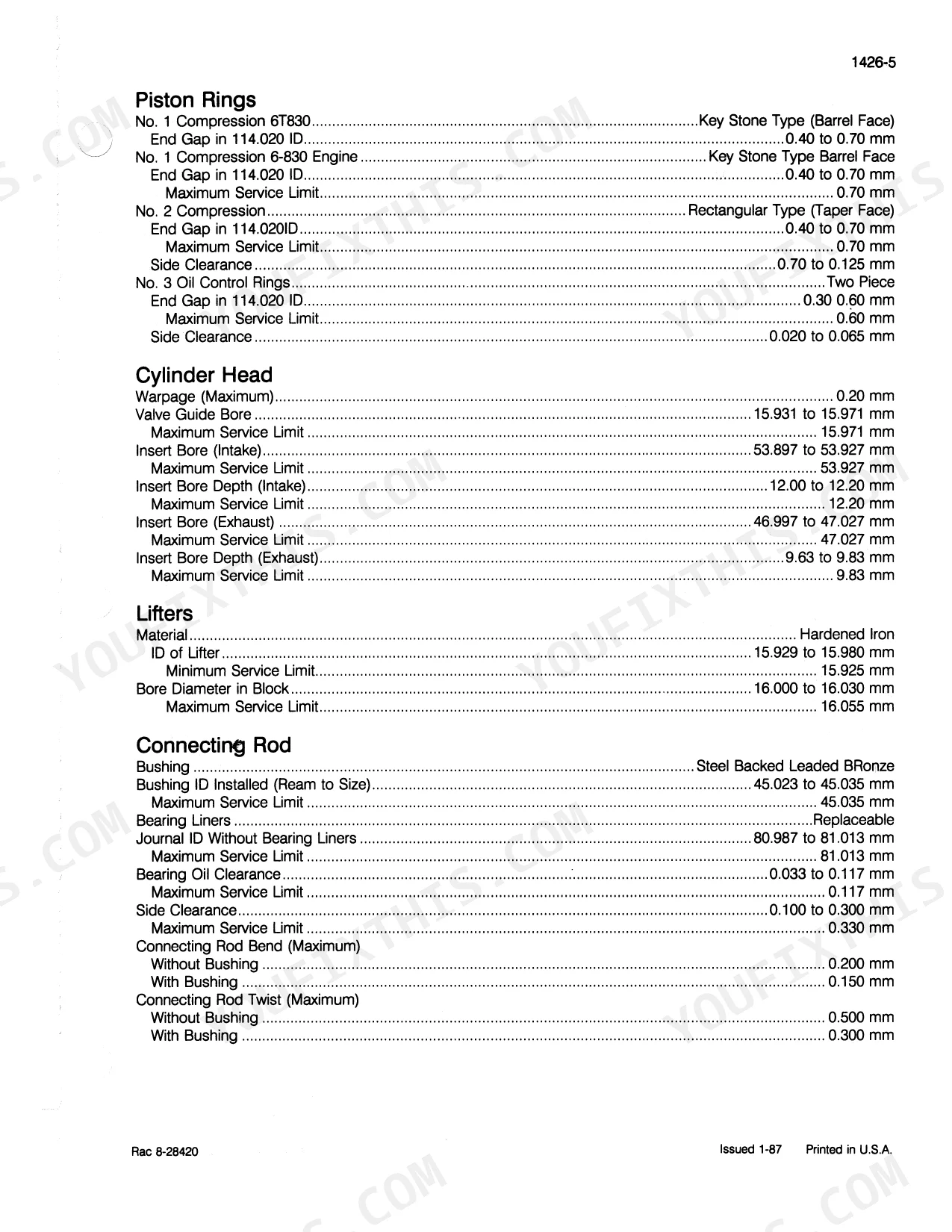

Stop and measure clearances before more hours go on it. Check ring end gap and main and rod bearing clearance against the block specifications starting at page 51, then verify crankshaft endplay. Torque main bearing bolts to 176 Nm and connecting rod bolts to 120 Nm per the tables on pages 11 and 12.
Manual Section: Cylinder Block p. 51Frequently Asked Questions
What is the fuel filter element replacement interval on a Case 6-830, 6T-830 diesel engine?
The fuel filter elements should be replaced every 500 hours of operation, or sooner if there is a noticeable loss of engine power. p. 198
What is the correct torque specification for the cylinder head bolts on the 6-830 engine?
For engines prior to serial number 44487830, the cylinder head bolts should be torqued to 200 Nm. For engines with serial number 44487830 and after, the short bolts are torqued to 70 Nm plus 90 degrees, and the long bolts are torqued to 142 Nm plus 90 degrees. p. 18
What is the specified valve clearance for the intake and exhaust valves on the 6-830 engine?
The cold valve clearance for the intake valves is 0.30 mm, and the cold valve clearance for the exhaust valves is 0.60 mm. p. 48
What is the engine oil capacity for the 6-830 engine including the oil filter?
The total engine oil capacity for the 6-830 engine, including the oil filter, is 23.5 quarts (22.0 liters). p. 133
What is the procedure for bleeding air from the fuel system?
To bleed the fuel system, loosen the air removal screw above the filter head and actuate the hand primer pump until clear fuel without air bubbles flows from the screw. Then, loosen the fuel return fitting on the injection pump, actuate the hand primer pump, and tighten the fitting once clear fuel flows. p. 198
What do I get after purchasing this Case 6-830 manual?
This is a 276-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print a copy of this Case 6-830 Service Manual for the shop?
Yes, printing is unrestricted: a single page, a chapter, or the lot, on letter or A4.
