Part of the Case Repair Manuals.
Whether it sits on a bench or mounted to a test stand, this 298-page Case 6T-830, 6TA-830 service manual pdf (OEM 7-65441) provides the factory data required to overhaul these diesel engines. The document details teardown sequences for the cylinder block, crankshaft, and camshaft, breaking down main bearing clearances and piston installation. Complete procedures guide you through servicing the fuel injection pump timing and adjusting the HX40W turbocharger. You will find highly specific tolerances throughout the chapters, such as the 21 to 27 Nm torque value for the injector retaining bolt and the 200 Nm specification for early cylinder head bolts. Bookmarked and searchable, it keeps the exact numbers for this engine on your bench.
What's Inside This Case 6T-830, 6TA-830 Manual
| System | Pages | Key Topics |
|---|---|---|

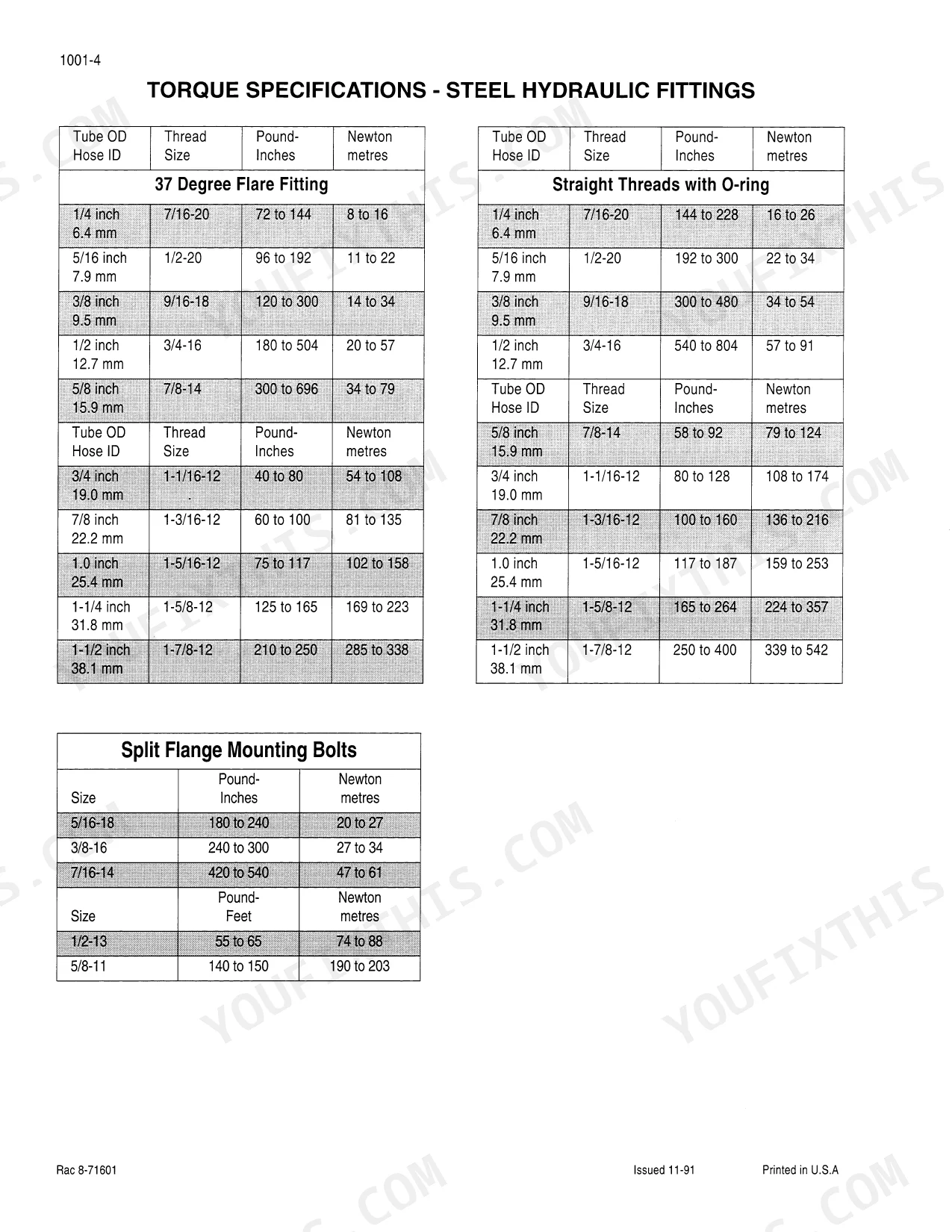

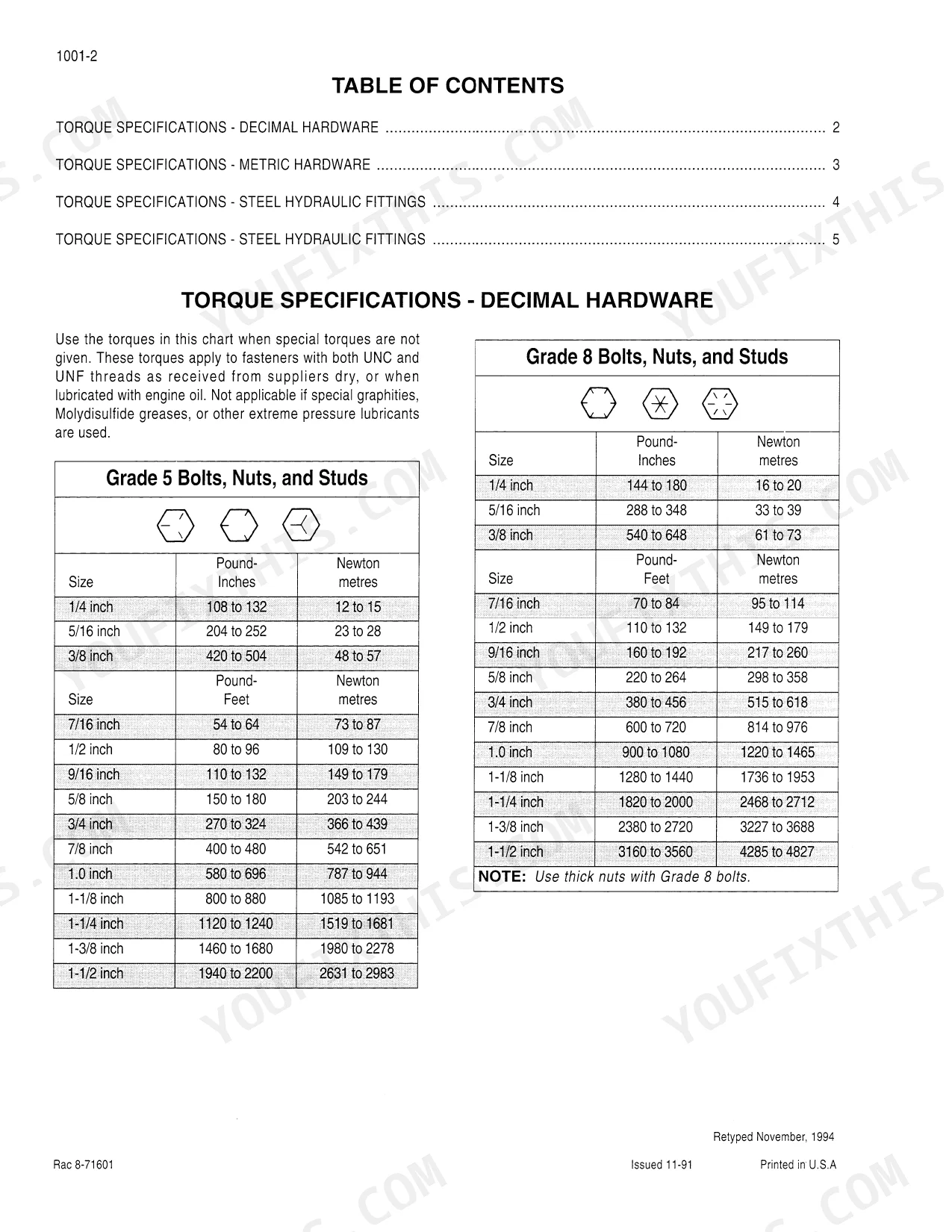

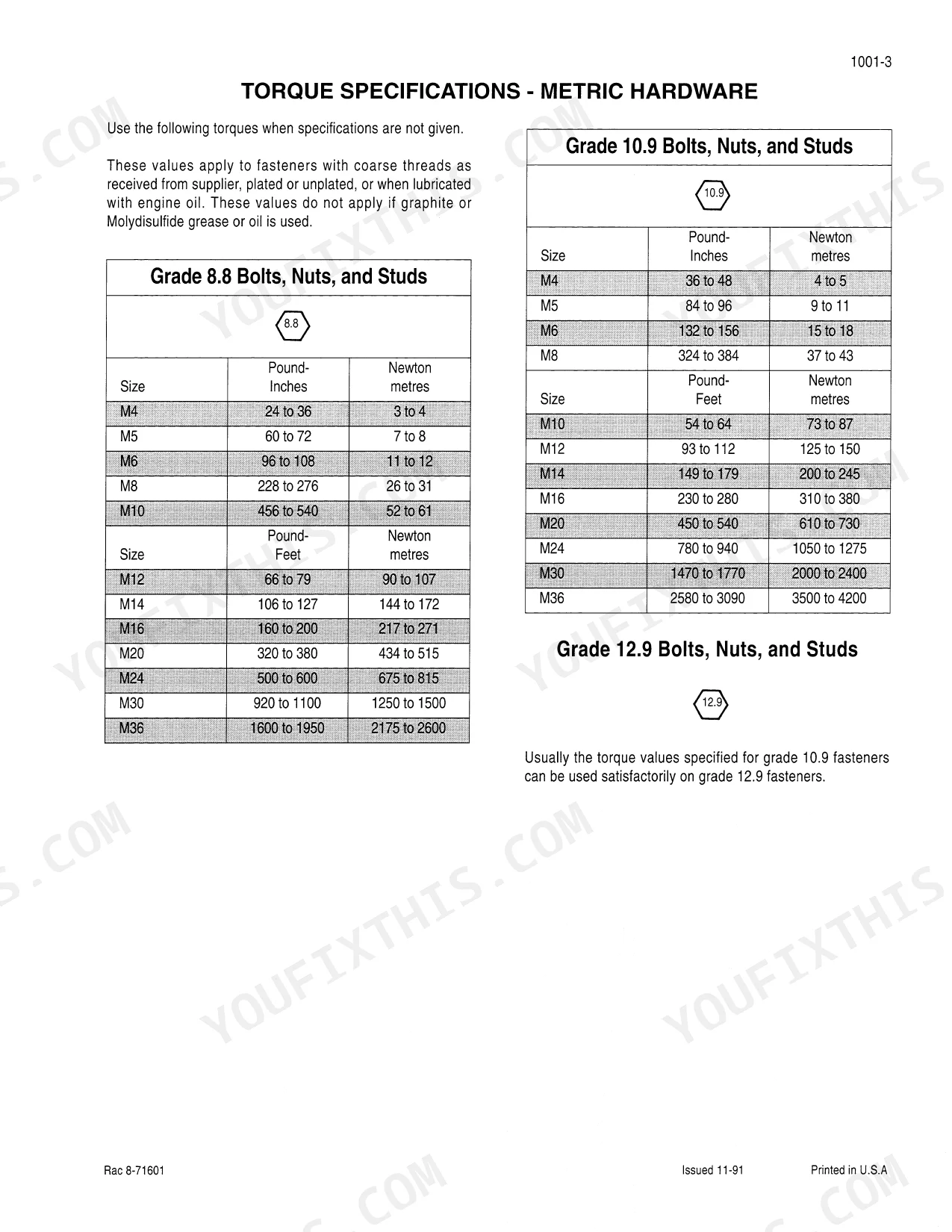

| Standard Torque Specifications | 4-9 | Decimal Hardware, Metric Hardware, Steel Hydraulic Fittings |
| Loctite Product Chart | 10-17 | Threadlockers, Instant Adhesives, Gasket Eliminators, Flange Sealants, Pipe and Hydraulic Sealants, Primers and Cleaning Solvents |

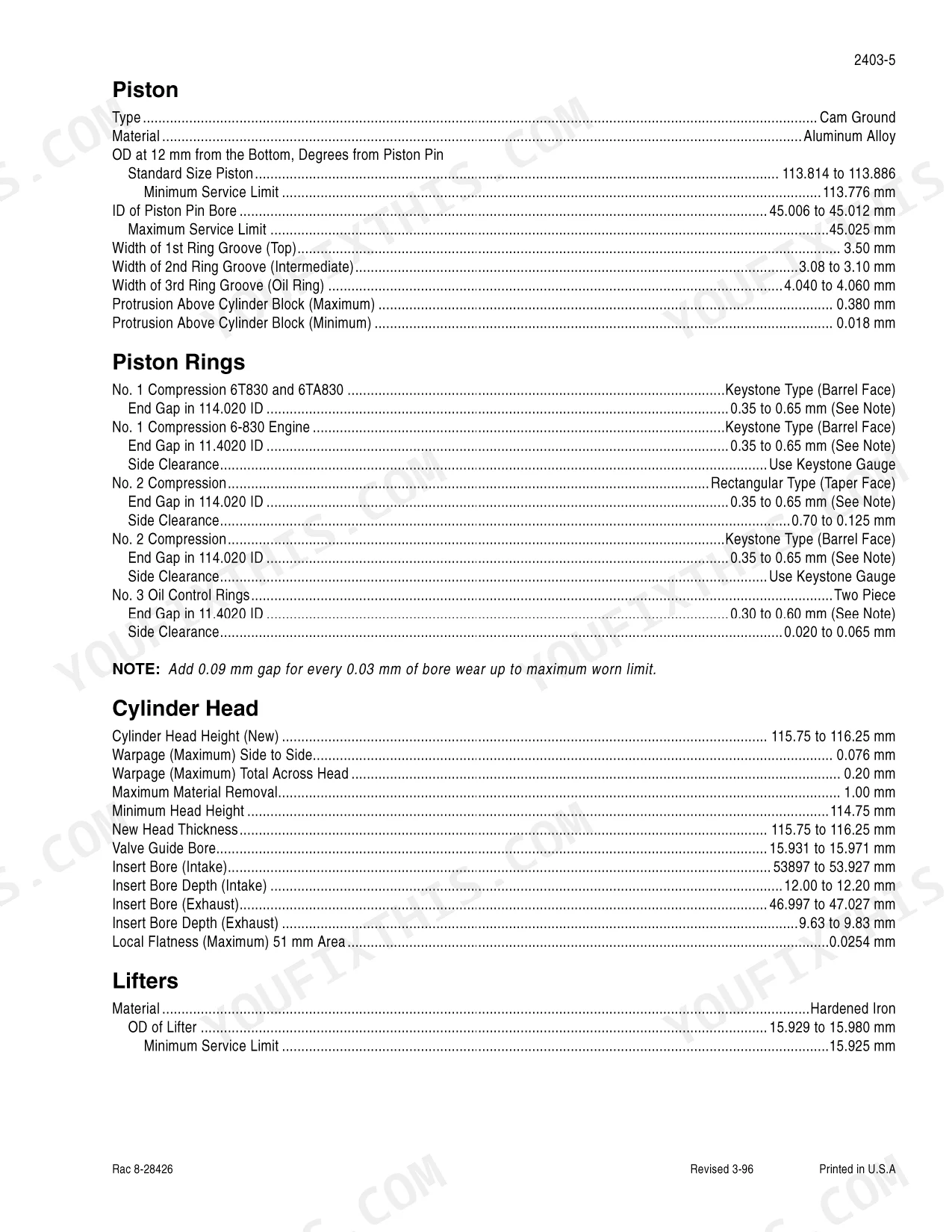

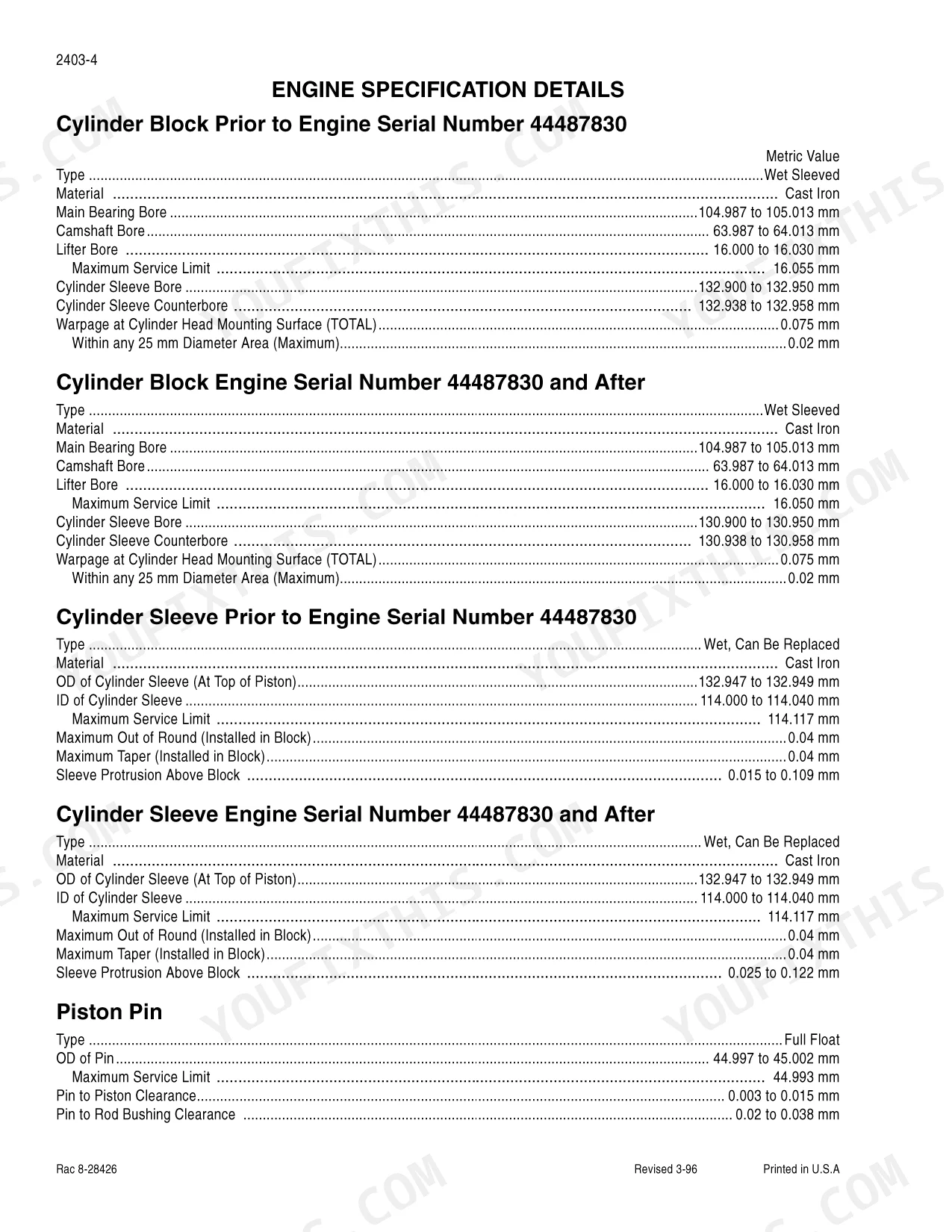

| Specification Details | 18-27 | Run-In Instructions, Engine Specification Details |
| Cylinder Block | 28-69 | Cylinder Head Removal, Cylinder Head Disassembly and Inspection, Cylinder Head Assembly |

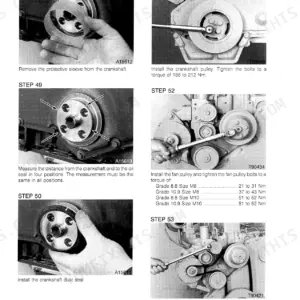

| Crankshaft, Pistons, Rod, Sleeves, Camshaft, Bearings, Seals and Flywheel | 70-158 | Servicing the Engine Block, Crankshaft and Main Bearings, Camshaft |
| Lubrication System | 159-174 | Oil Pump Service, Oil Filter Housing and Oil Cooler, Oil Pan and Oil Inlet Tube Service |
| Cooling System | 175-188 | Water Pump Service, Thermostat Service, Belt Tensioner Service |
| Turbocharger | 189-214 | Servicing the Turbocharger, Disassembly, Inspection After Disassembly |
| HX40W Turbocharger | 215-240 | Turbocharger Service, Disassembly, Cleaning and Inspection |

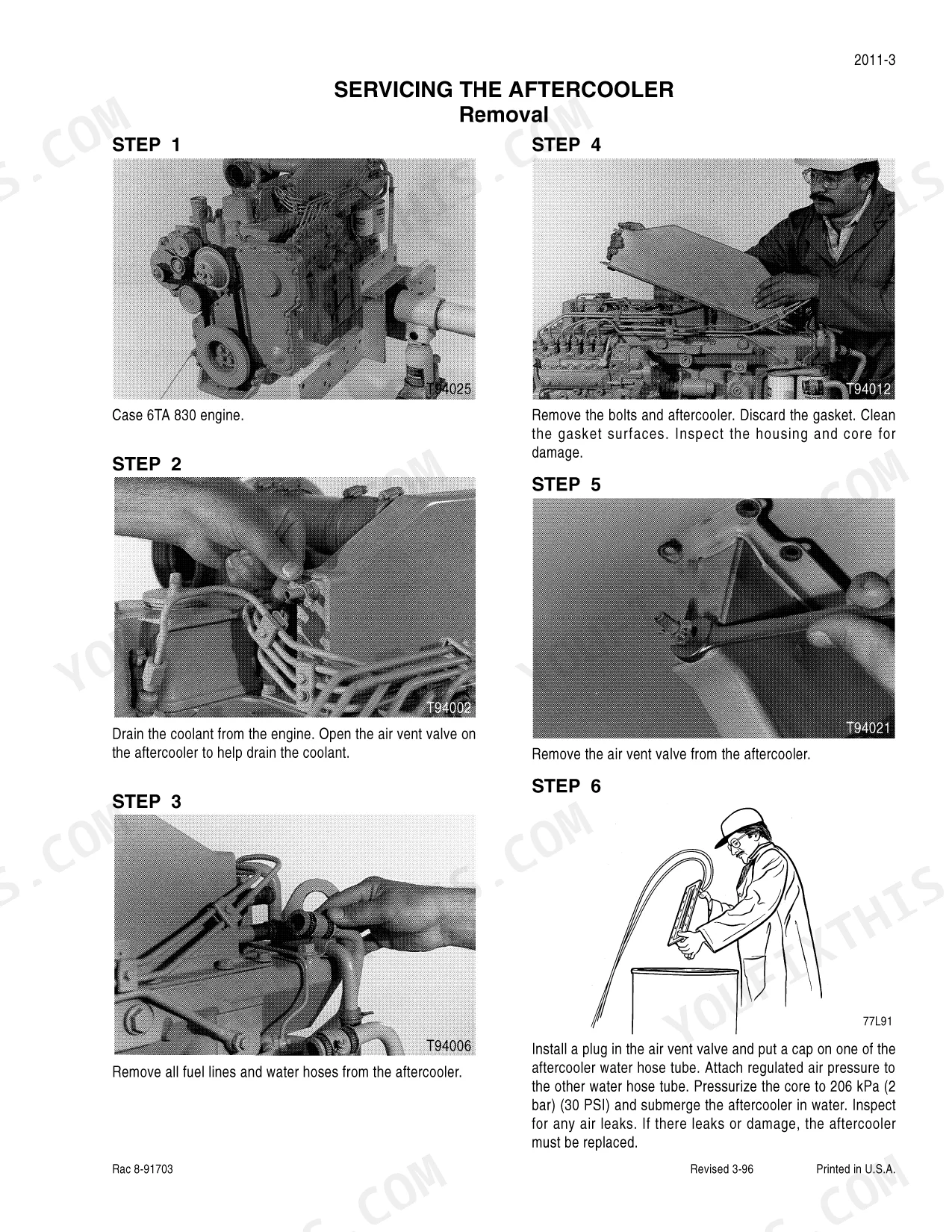

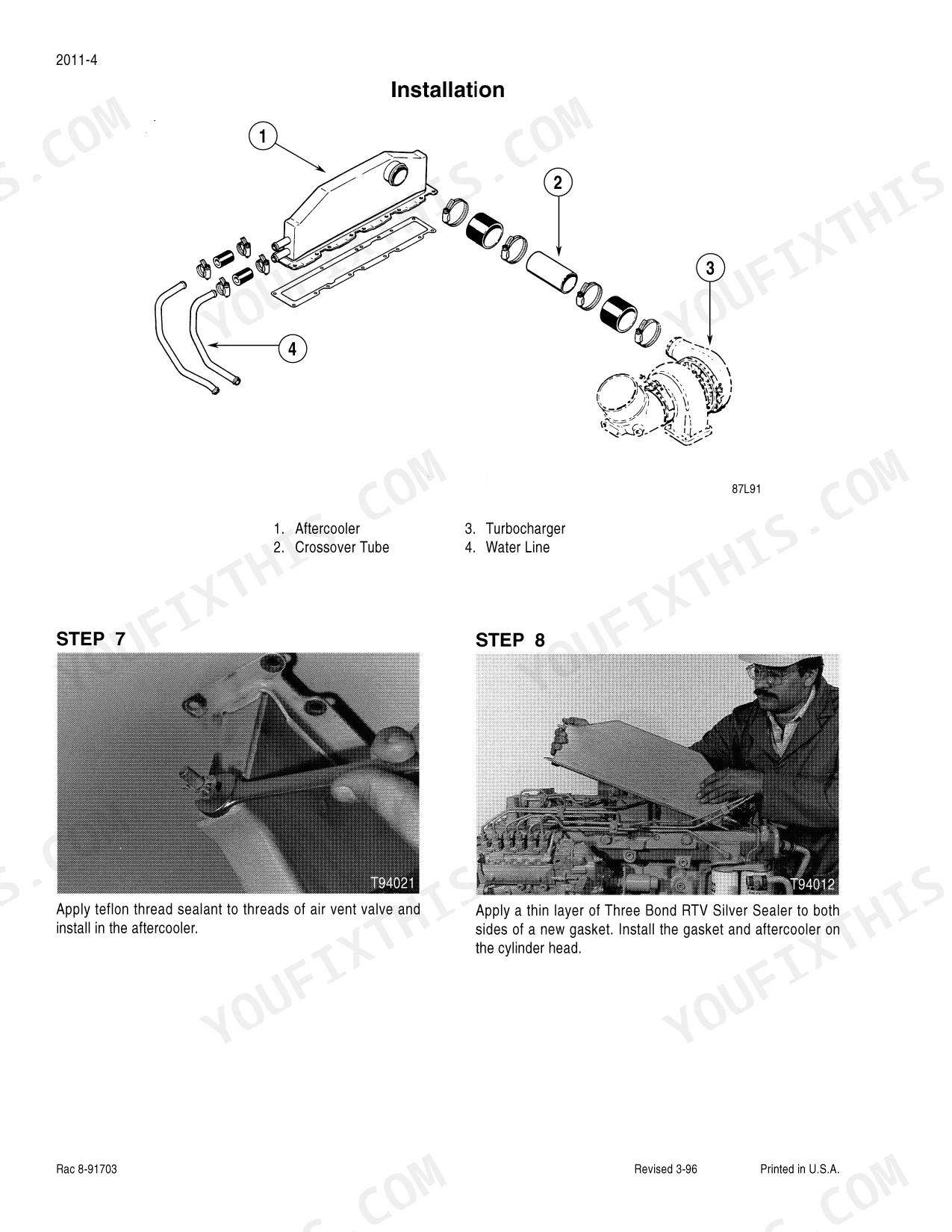

| Injection Pump | 245-276 | Servicing the Fuel System, Injection Pump Timing |
| Fuel Injectors | 277-298 | Testing Injectors, Injector Service, Injector Adjustments |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Water hose clamp torque | 4 to 6 Nm | p. 16 |
| Aftercooler mounting bolts torque | 21 to 27 Nm | p. 16 |
| Fuel Filter Inlet Fitting | 21 to 27 Nm | p. 31 |
| Fuel Filter Outlet Fitting | 21 to 27 Nm | p. 31 |
| Injector Retaining Bolt | 21 to 27 Nm | p. 31 |
| Replacement Gasket Thickness | 0.27 mm, 0.48 mm | p. 60 |
| Fuel System Operating Pressure at Rated Speed | 20 to 25 PSI (140 to 172 kPa) | p. 241 |
| Injector Retaining Bolt Torque | 18 lb ft (24 Nm) | p. 280 |
| Crossover Tube Clamps Torque | 4 to 6 Nm | p. 13 |
| Cylinder Block Main Bearing Bore | 104.987 to 105.013 mm | p. 21 |
| 6TA-830 | ||
| Cylinder Head Bolt Torque (Engine Service No. 44487830 and After) | Step 1: 70 Nm, Step 2: 142 Nm | p. 62 |
| Prior to Engine Serial Number 44487830 | ||
| Cylinder Sleeve Protrusion Above Block | 0.015 to 0.109 mm | p. 21 |
Case 6T-830, 6TA-830 Common Problems This Manual Covers
Case 6T-830 hard starting or no start, engine fires then dies after a few seconds
Check the fuel filter first. Install new filters dry, hand tighten half a turn, then loosen and retighten 1/2 to 3/4 turn per the procedure on page 243. Bleed the lines, then verify fuel pump inlet pressure holds at least 10 PSI (68.9 kPa) as listed on page 242 while cranking.
Manual Section: Troubleshooting Guide for the Diesel Fuel Injection System p. 250Low power, will not reach rated output, black smoke under load
Inspect the intake for leaks using the induction check on page 17 before blaming the pump. Measure fuel system operating pressure at rated speed against the 20 to 25 PSI (140 to 172 kPa) figure on page 242. Retorque injector lines to 21 to 27 Nm and recheck injection pump timing.
Manual Section: Troubleshooting Guide for the Turbocharger p. 192Rough or unstable idle, engine surges and misses on one cylinder
Locate the bad injector by cracking lines one at a time, as covered starting on page 283. Pop test every injector on the stand and confirm opening pressure variation between cylinders stays under 1034 kPa, per page 279. Torque nozzle cap nuts to 18 lb ft (24 Nm) on reassembly.
Manual Section: Locating Bad Injectors p. 283Overheating and coolant loss with no visible external leak
Verify coolant level cold, then clean the radiator core and pressure test the cap. Check the belt tensioner against the 24 Nm spring tension spec on page 176. If the coolant still disappears, pull the head and inspect the gasket and sleeve protrusion before reassembly.
Manual Section: Cooling System p. 175White smoke, coolant in the oil, or loss of compression on adjacent cylinders
Remove the head and measure cylinder sleeve protrusion above the block, 0.015 to 0.109 mm on engines prior to serial number 44487830. Select replacement gasket thickness from the 0.27 mm or 0.48 mm options on page 60. Torque 6T-830 head bolts in sequence: 50 Nm, 149 Nm, then 200 Nm.
Manual Section: Cylinder Block p. 62Engine knock, low oil pressure, or crankshaft rough to turn by hand
Measure the main bearing bore in the block, 104.987 to 105.013 mm, and check piston pin to rod bushing clearance at 0.02 to 0.038 mm using the specs on page 21. Torque main bearing bolts to 95 Nm plus 60 degrees per page 26, rotating the crank after each cap to confirm free movement.
Manual Section: Crankshaft, Pistons, Rod, Sleeves, Camshaft, Bearings, Seals and Flywheel p. 70Frequently Asked Questions
What are the torque specifications for the cylinder head bolts on a 6T-830 engine?
For engines prior to serial number 44487830, the torque is 200 Nm. For engines with serial number 44487830 and after, the procedure is to torque all bolts to 70 Nm, then torque the long bolts to 142 Nm, followed by a 90-degree turn. p. 26
How do I bleed the fuel system on a 6TA-830 engine?
To bleed the fuel system, turn on the fuel supply, loosen the air removal screw on the fuel filter housing, and operate the hand primer pump until clear fuel with no bubbles flows from the screw. Then, loosen the fuel return line fitting on the injection pump and operate the hand primer pump until clear fuel flows. p. 243
What is the valve clearance on a Case 6T-830, 6TA-830 diesel engine?
The valve clearance for the 6-830 engine, when set cold, is 0.30 mm for intake valves and 0.60 mm for exhaust valves. p. 67
What is the correct belt tension for the 6-830 engine?
The spring tension for the belt tensioner should be at least 24 Nm when measured at a 35-degree angle. p. 176
What is the procedure for checking the oil pressure regulator valve spring on a Case 6T-830, 6TA-830 engine?
To check the oil pressure regulator valve spring, use a spring tester to ensure it meets the following specifications: free length of 86.63 mm, outside diameter of 18.87 mm, and a minimum compression force of 153 N at 60.3 mm. p. 161
Is this Case 6T-830 manual a PDF I download?
All 298 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Can I print this Case 6T-830 manual?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
