Need factory service data for your Case IH 5088 or 6088 and the draper header in front? This 325-page service manual (OEM #84175530) covers the 2142, 2152, and 2162 Draper Header with CA20 Combine Adapter across the full AXIAL-FLOW® lineup: 7010, 8010, 7120, 8120, 9120, and the 2500 Series. Inside: hydraulic schematics tracing every draper drive, reel lift, and selector valve circuit, plus electrical harness diagrams covering combine-specific wiring for each platform. You get a complete troubleshooting section, wobble box rebuild procedures, and torque tables for U.S. standard, metric, and aluminum fasteners. Press idler roller bearings to 13–14 mm (0.51–0.55 inch) and torque the bolt to 95 Nm (70 ft-lb); single knife belt deflection checks at 20 mm minimum under 24.4 Nm. Your combine is down and every hour costs money. Bookmarked and keyword-searchable: pull it up on any device, find the spec, get back to cutting.
What's Inside This Case IH 2142, 2152, 2162 Draper Header Manual
| System | Pages | Key Topics |
|---|---|---|
| 2142, 2152 and 2162 Draper Header CA20 Combine Adapter Service Manual | 1 | - |

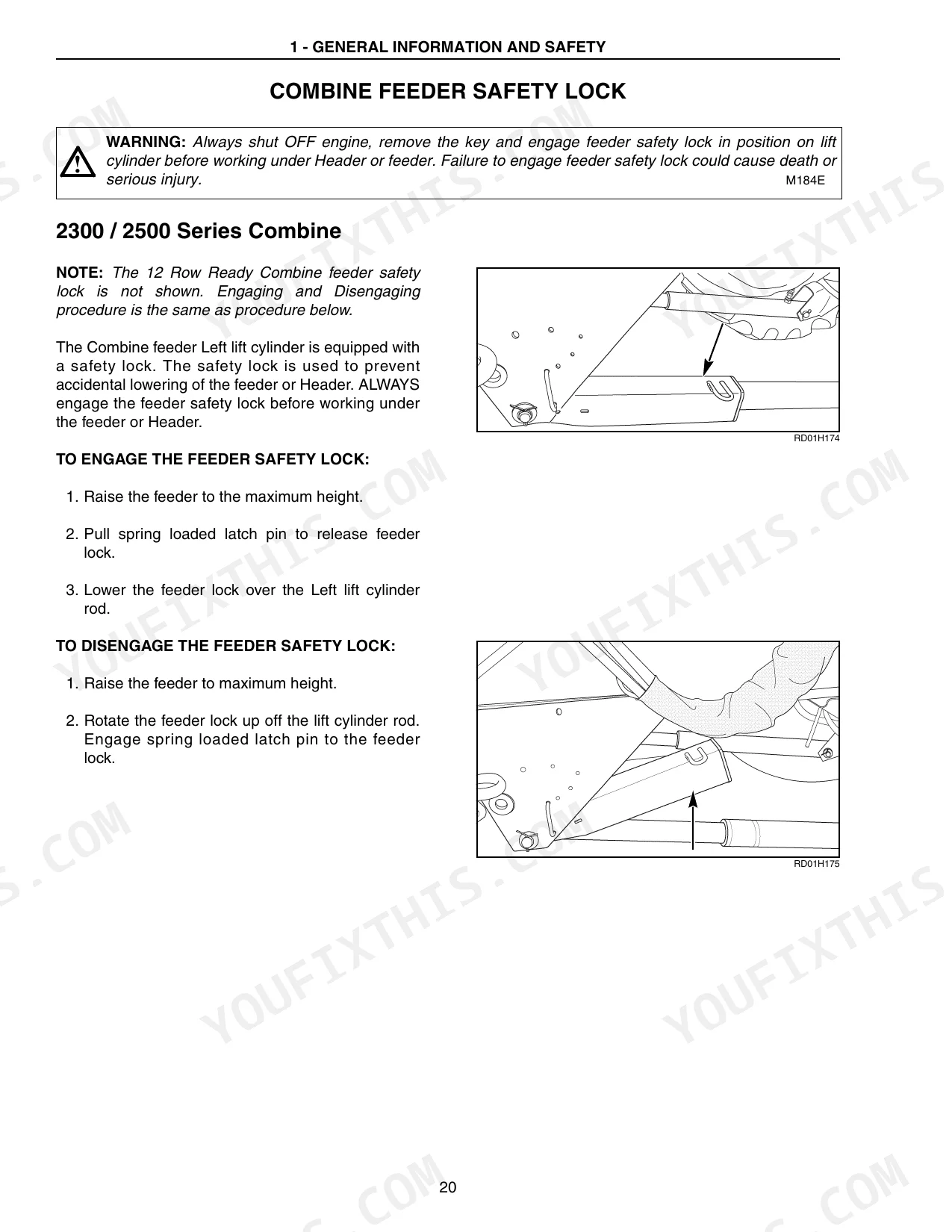

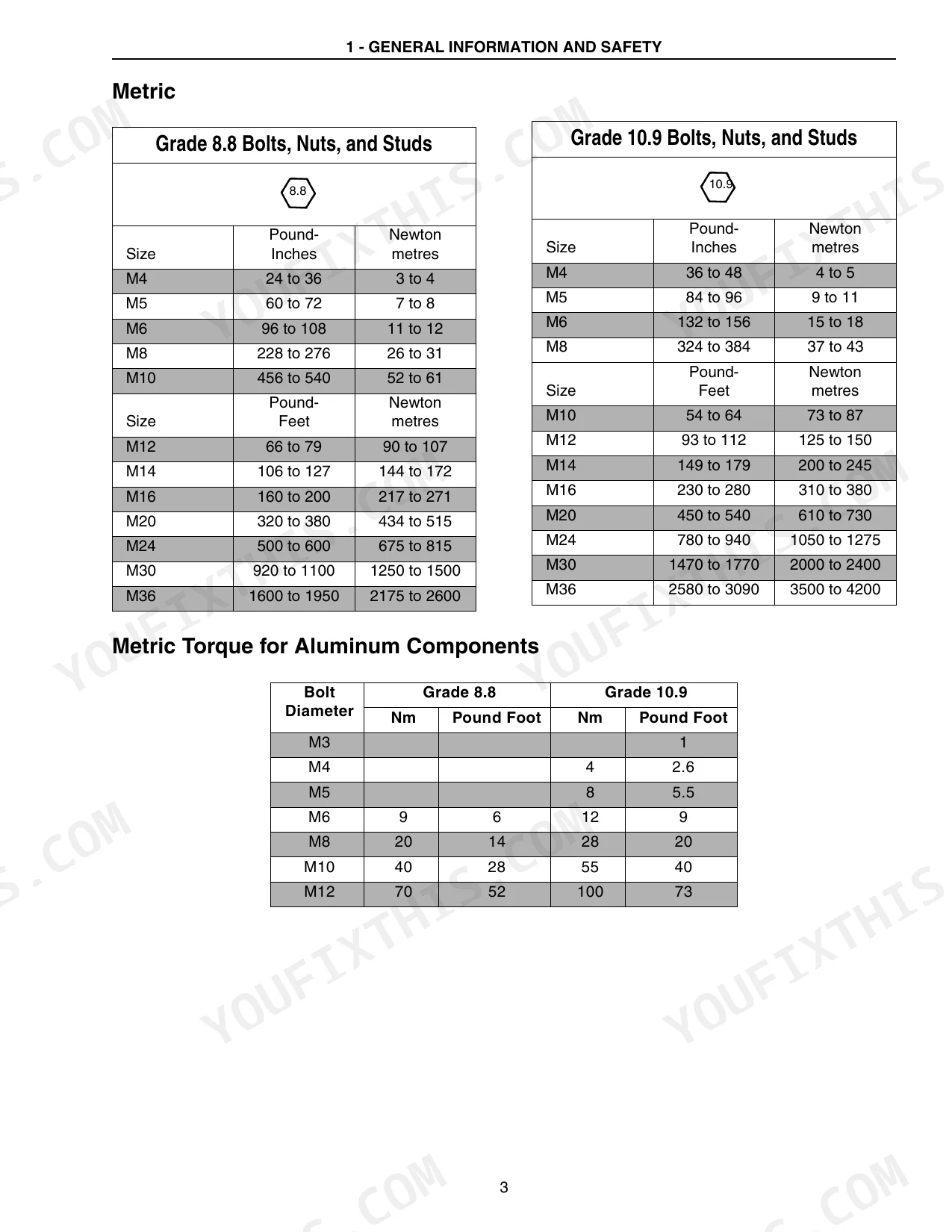

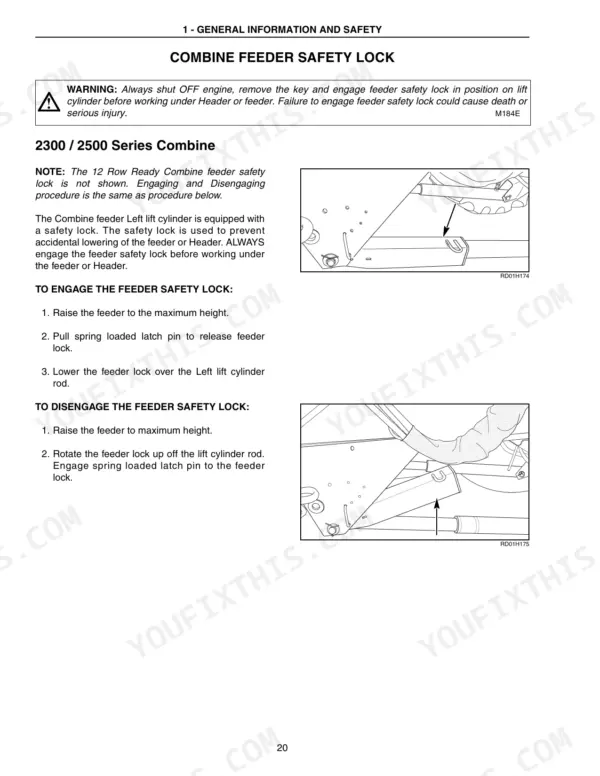

| General Information and Safety | 6-29 | Standard Bolt Torque (U.S. Standard, Metric, Metric Torque for Aluminum Components), Hydraulic Fittings (Steel Hydraulic Fittings), Product Identification Numbers, Environment |
| Troubleshooting | 30-45 | - |
| General Procedures | 46-59 | Taper Lock Hub (How It Works, Removal and Installation), Lock Collar (How It Works, Universal Joint (How It Works, Rebuilding the Universal Joint) |

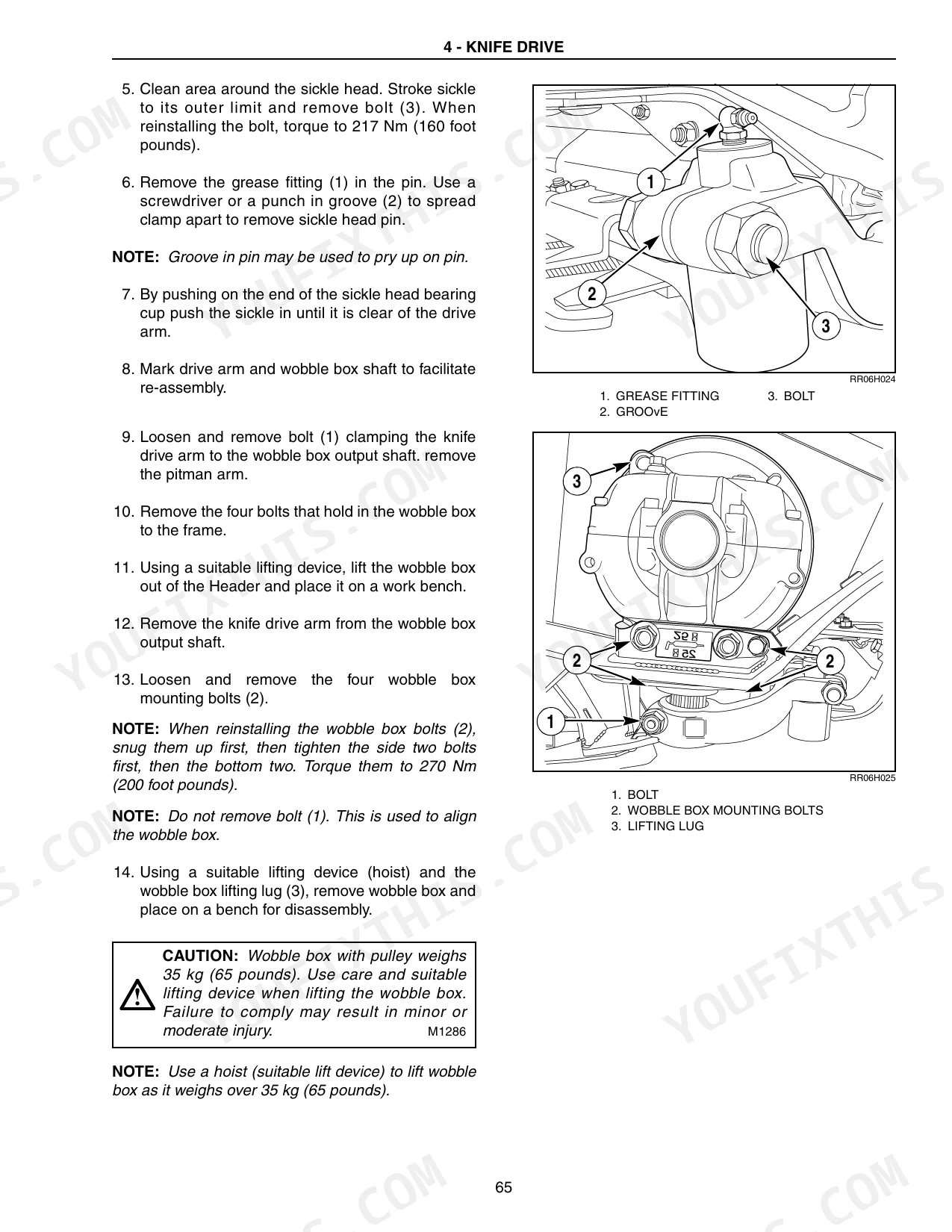

| Knife Drive | 60-95 | Knife Drive System (Single Knife, Double Knife) |

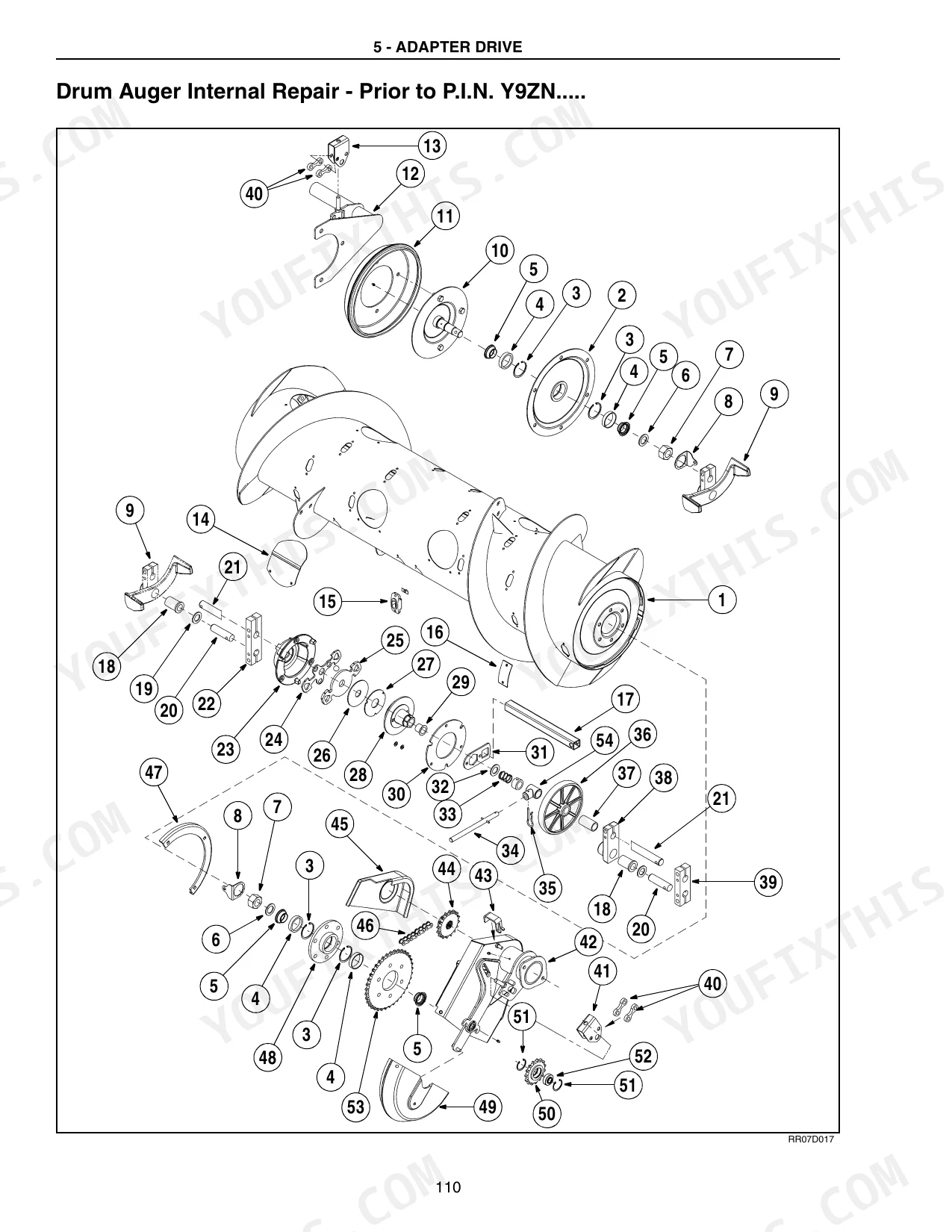

| Adapter Drive | 96-127 | Adapter Gearbox (Prepare to Remove Gearbox, Install Gearbox, Disassembly, Assembly) |

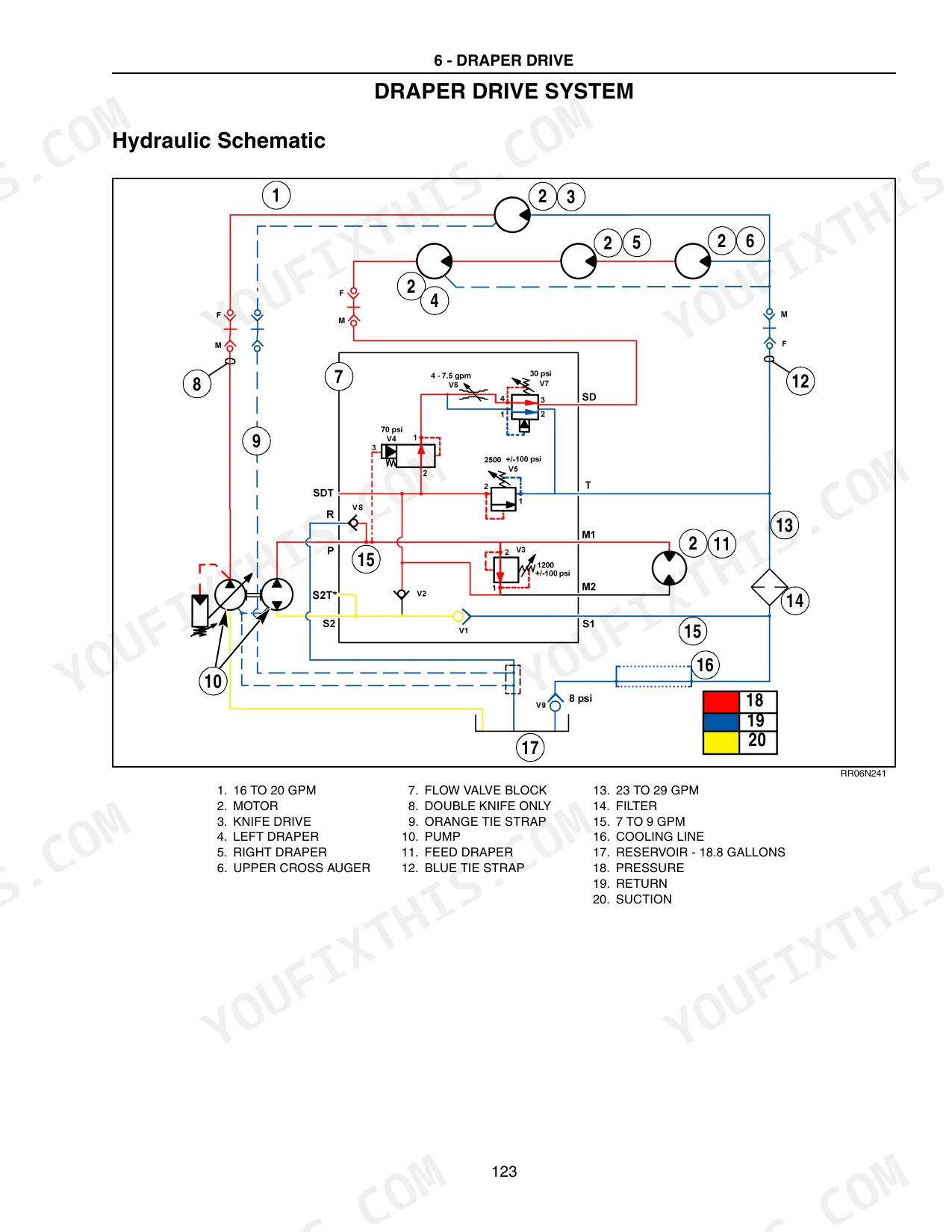

| Draper Drive | 128-149 | Draper Drive System (Hydraulic Schematic, Draper Deck, Idler Roller Bearing Replacement, Drive Roller Bearing Replacement, Adapter Feed Deck, Adapter Idler Roller Bearing Replacement, Feed Draper Drive Roller Bearing Replacement) |
| Reel Drive | 150-181 | Reel Drive System (Reel Configuration, Single Span Reel Removal, Double Reel Removal, Reel Drive Repair, Single Reel Drive Disassembly, Single Reel Assembly, Split Reel Drive Disassembly, Double Reel Drive Assembly) |
| Hydraulic System | 182-281 | Combine Adapter Hydraulics (How It Works, Forward Operation, Feed Draper Relief, Side Draper Relief, Schematics), Reverse Operation (Relief Pressure |

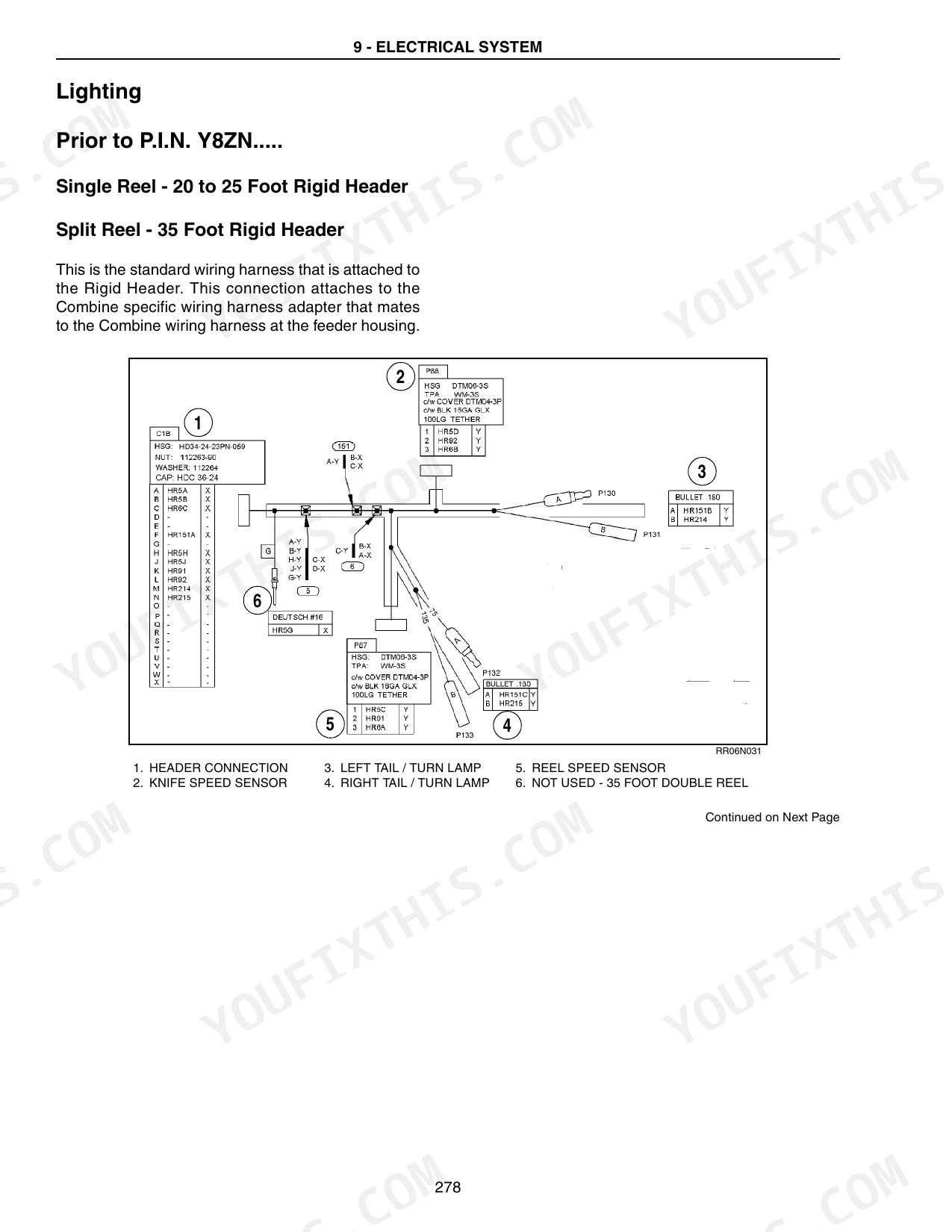

| Electrical System | 282-313 | Electrical Harnesses (Header - General Information, Lighting, Prior to P.I.N. Y8ZN....., P.I.N. Y8ZN..... and After, Electrical Harness Combine Specific, Transport Wiring Harnesses, Selector Valve, Combine Electrical Harness for the Selector Valve) |
| Flex Linkage | 314-323 | Flex Linkage (How It Works, Disassembly, Assembly), Wing Balance, Cutter Bar Straightness, Cutter Bar Stringing |
| Structure | 324-325 | Impact Repairs (How It Works, Cutter Bar Stringing, Impact Repair Parts) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic flow sensor reset procedure | Refer to Header Operator’s Manual for calibration | p. 146 |
| Idler roller bearing press-in depth | 13 to 14 mm (0.51 to 0.55 inch) | p. 133 |
| Idler roller seal press-in depth | 12 to 13 mm (0.47 to 0.51 inch) | p. 133 |
| Single Knife Drive Belt Deflection | minimum of 20 mm (0.8 inches) deflection using 24.4 Nm (18 pounds) of force | p. 63 |
| Double Knife Drive Timing Belt Deflection | 13 mm (1/2 inch) using 27 Nm (6 pounds) | p. 66 |
| Drive roller bearing press-in depth | 13 to 14 mm (0.51 to 0.55 inch) | p. 136 |
| Drive roller seal press-in depth | 12 to 13 mm (0.47 to 0.51 inch) | p. 136 |
| Main Gearbox Oil Capacity | 2.5 Liters | p. 14 |
| Hydraulic Reservoir Oil Capacity | 60 Liters | p. 14 |
| Wobble Box Oil Capacity | 2.2 Liters | p. 14 |
| Piston Pump Compensator Pressure | 3000 psi | p. 208 |
| Grade 5 Bolt Torque (1/4 inch) | 108 to 132 Pound-Inches | p. 7 |
Case IH 2142, 2152, 2162 Draper Header Common Problems This Manual Covers
Case IH 2152 left draper belt slows, stalls intermittently when entering crop p. 133
Inspect the idler roller bearings on the affected draper deck. Pull the roller assembly and check for rough rotation, contamination, or pitting. Press replacement bearings to 13 to 14 mm (0.51 to 0.55 inch) depth and seals to 12 to 13 mm (0.47 to 0.51 inch) per page 133. Torque the roller bolt to 95 Nm (70 foot pounds).
Manual Section: Draper DriveDraper belt won't hold tension, slips or rides off rollers during operation p. 145
Verify center draper tension first: the spring retainer (5) must sit flush with the outside housing per page 145. If tension checks out, remove and inspect the drive roller bearings. Press replacements to 13 to 14 mm (0.51 to 0.55 inch) depth and torque the drive roller bolt to 95 Nm (70 foot pounds) per page 136.
Manual Section: Draper DriveHeader won't lower far enough to pick up downed or short-stemmed crop p. 30
Check the troubleshooting index at page 30 under Header Flotation for the full diagnostic sequence. Verify hydraulic system pressure at the piston pump compensator, which should hold 3000 psi at full demand per page 208. Then inspect the flex linkage for bent or seized components restricting downward travel, starting at page 314.
Manual Section: TroubleshootingKnife drive belt slipping or chattering, uneven p. 63
Inspect the knife drive belt for wear, glazing, or cracking and check belt tension and sheave alignment. Examine the wobble box drive and its mounting per the Knife Drive section beginning on page 63. Replace a stretched, chattering, or damaged belt and re-tension to the factory specification before returning the header to service.
Manual Section: Knife DriveFrequently Asked Questions
Torque specs for mounting bolts on Case IH 2162 Draper Header reel drive?
The manual provides torque specifications for various bolts within the reel drive assembly. For the motor assembly, bolts should be torqued to 95 to 108 Nm (70 to 80 foot pounds). Additionally, bolts securing the U-joint assembly and the left reel to the reel drive shaft should be torqued to 102 to 115 Nm (75 to 85 foot pounds).
What are the replacement specifications for End roller idler bearings?
When installing new idler roller bearings, the bearing must be pressed into the tube 13 to 14 mm (0.51 to 0.55 inch) from the outside edge of the tube. The new seal should be pressed in 12 to 13 mm (0.47 to 0.51 inch) from the outside edge of the tube, and the area (A) should be filled with 8 cc of grease before installation.
What are the replacement specifications for Draper belt tensioners?
For draper belt tensioning, the manual refers to the "Draper Tension Decal" for proper adjustment. This decal visually indicates to "TURN BOLT (1) TO TIGHTEN DRAPER UNTIL WHITE INDICATOR BAR (2) CROSSES SLOT (3) AND FILLS INBOARD HALF OF SLOT." For specific numerical tension values, the manual directs to the Operator's Manual.
How do you fix case IH 2152 left draper belt slows, stalls intermittently when entering crop?
Inspect the idler roller bearings on the affected draper deck. Pull the roller assembly and check for rough rotation, contamination, or pitting. Press replacement bearings to 13 to 14 mm (0.51 to 0.55 inch) depth and seals to 12 to 13 mm (0.47 to 0.51 inch) per page 133. Torque the roller bolt to 95 Nm (70 foot pounds).
Is this Service Manual a digital download?
Instant PDF download. You get the full 325-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are there hydraulic schematics in this Case IH 2142 & variants manual?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Case IH 2142 & variants.
