All 260 pages of this Case IH DCX101 Repair Manual PDF (OEM #87548193) focus on one machine: your Disc Mower-Conditioner, from PTO slide lock disassembly to conditioner roll timing and cutter bar service. You get hydraulic schematics tracing lift, master/slave, header tilt, and swing cylinder circuits, plus wiring diagrams covering the trailing lights and full wire harness. Open to the troubleshooting section for a complete diagnostic chart, or flip to the lubrication schedule showing grease intervals at 50, 100, 200, and 400 hours. Set pinion shaft end play to 0.05–0.20 mm and dial the slip clutch breakaway torque to 1450 N·m before sending the mower back to the field. No more guessing clearances off a forum post. Bookmarked and keyword-searchable; pull it up on your tablet right at the machine and find the spec before the next cut.
What's Inside This Case IH DCX101 Repair Manual
| System | Pages | Key Topics |
|---|---|---|

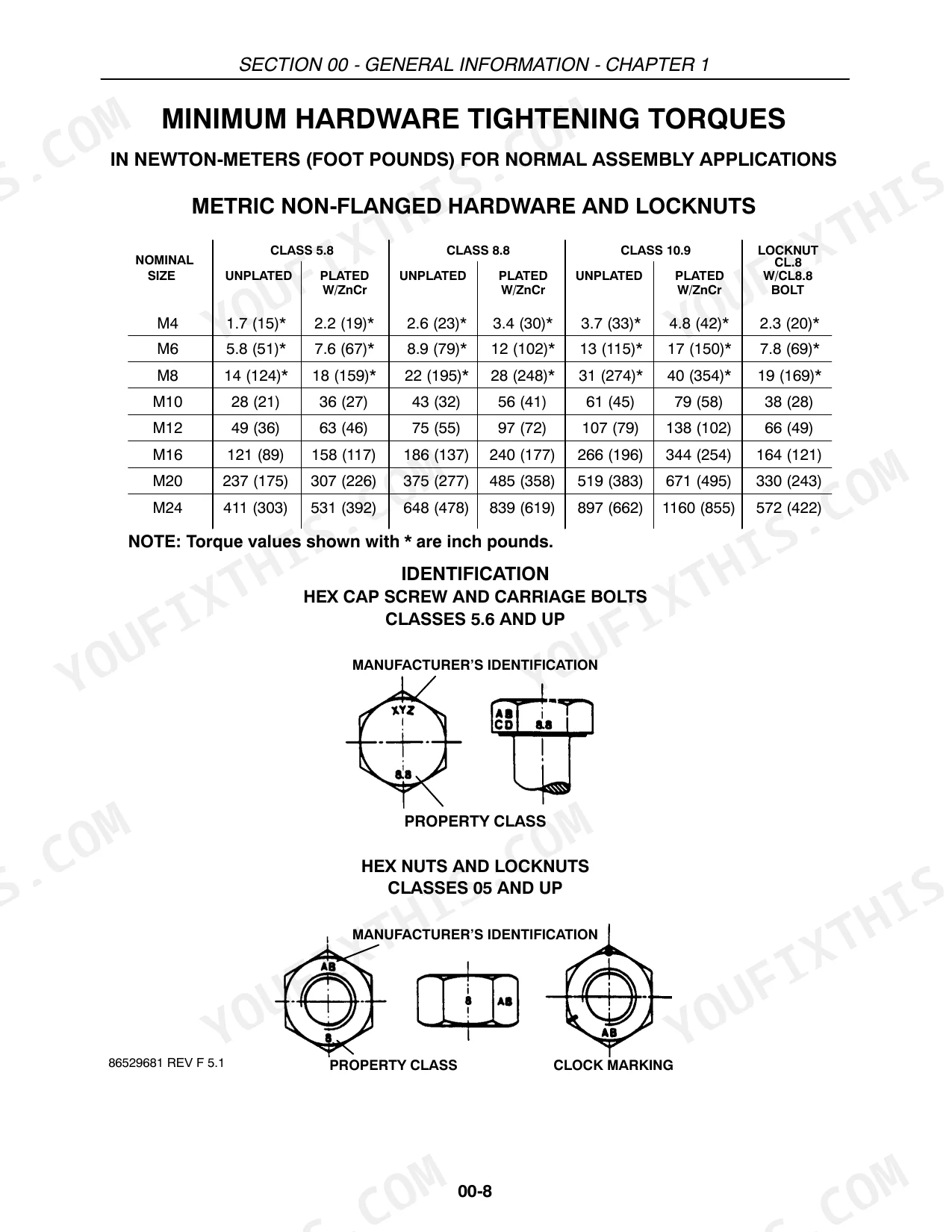

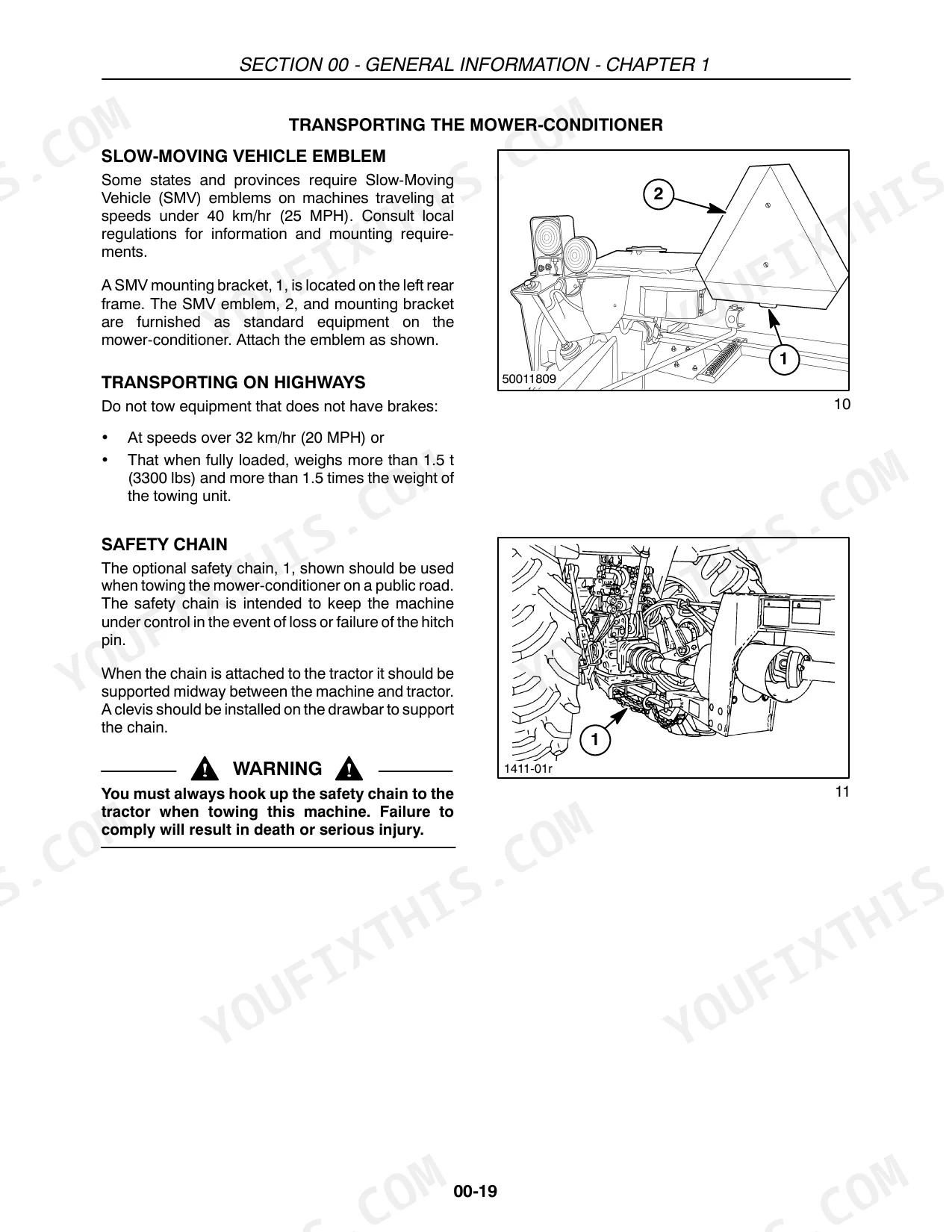

| General Information | 13-66 | Foreword, Precautionary Statements, Safety (Product Identification Number, Manual Holder), Hardware Torque Values |

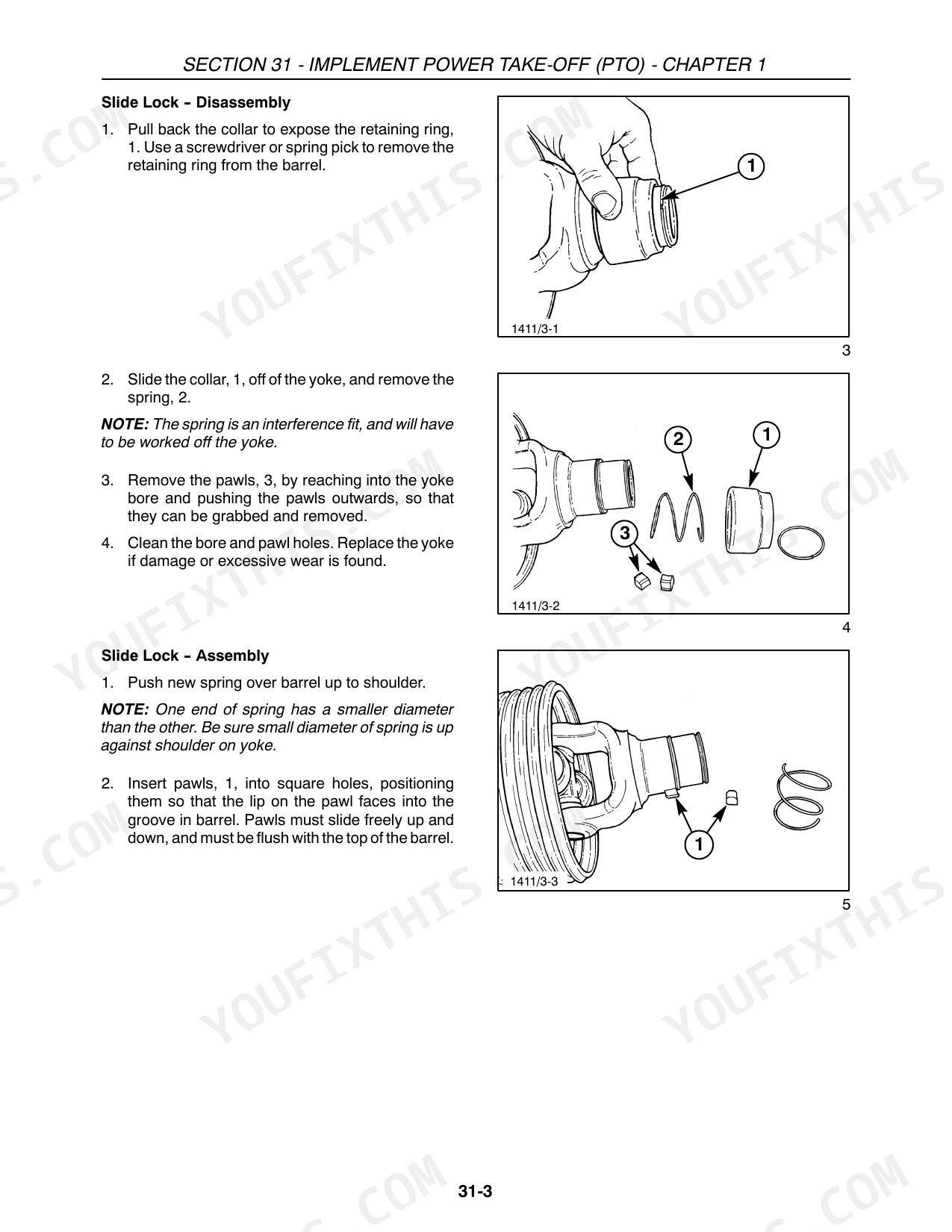

| Implement Power Take-Off (PTO) | 67-126 | Operation, Slide Lock - Disassembly, Slide Lock - Assembly, Drive Shaft Removal/Installation, Primary PTO (RPM PTO Units, Secondary PTO Assembly), RPM Ptos |
| Hydraulic Systems | 127-142 | Hydraulic Diagram, Lift Cylinder Removal, Master Cylinder, Slave Cylinder, Header Tilt Cylinder, Swing Cylinder |
| Frames | 143-150 | - |
| Electrical System | 151-156 | Trailing Lights, Wire Harness, Lights, Socket |
| Attachments / Headers | 157-242 | Cutter Bar, Bevel Gearbox, Conditioner Rolls and Drive System |
| Accessories | 243-244 | - |
| Safety Decals | 245-260 | - |

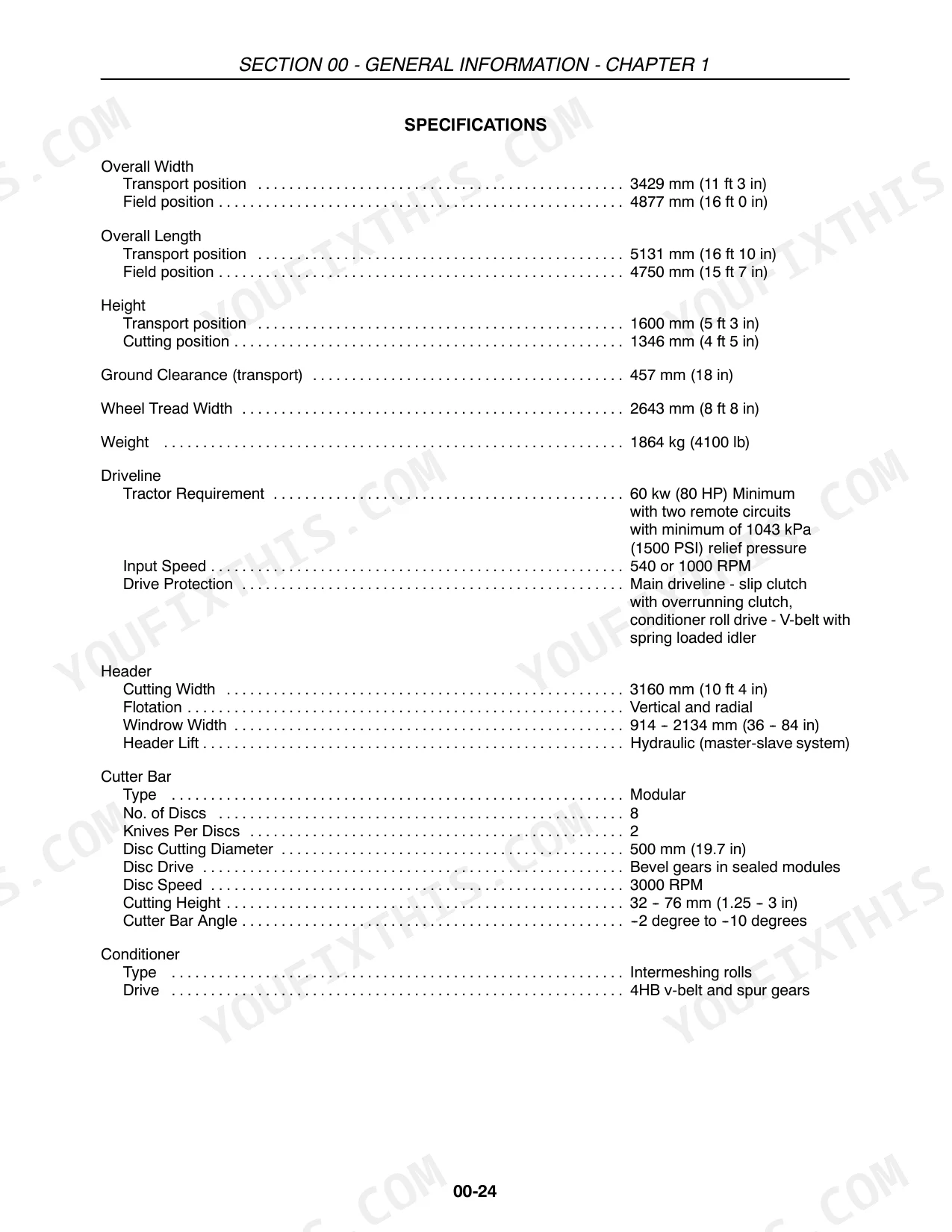

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Pinion shaft end play | 0.05 -- 0.20 mm (0.002 -- 0.008 in) | p. 186 |
| Slip clutch breakaway torque | 1450 N⋅m (1000 ft-lb) [static] | p. 92 |
| Pipe Thread Fitting Torque (1/8″ - 27) | 13 N⋅m (10 ft-lb) | p. 23 |
| Pipe Thread Fitting Torque (1/4″ - 18) | 16 N⋅m (12 ft-lb) | p. 23 |
| Pipe Thread Fitting Torque (3/8″ - 14) | 22 N⋅m (16 ft-lb) | p. 23 |
| Pipe Thread Fitting Torque (1/2″ - 14) | 41 N⋅m (30 ft-lb) | p. 23 |
| Pipe Thread Fitting Torque (3/4″ - 14) | 54 N⋅m (40 ft-lb) | p. 23 |
| Minimum PTO HP | 80 HP (60 kW) | p. 26 |
| Minimum Hydraulic Pressure | 104 bar (1500 PSI) | p. 26 |
| Maximum Hydraulic Pressure | 193 bar (2800 PSI) | p. 26 |
| 540 RPM PTO to Drawbar Hitch Pin Distance | 356 mm (14 in) | p. 27 |
| 1000 RPM PTO to Drawbar Hitch Pin Distance | 406 mm (16 in) | p. 27 |
Case IH DCX101 Common Problems This Manual Covers
Case IH DCX101 cutterbar catastrophic failure after obstacle strike, shock protection didn't engage
Inspect the cutter bar for cracked knives, loose tie bolts, failed dowel pins, and excessive disc movement. Check the slip clutch: static breakaway torque must be 1450 N⋅m (1000 ft-lb), per the service data on page 92. Replace any separator plate or disc spring showing discoloration, warpage, or cracking before returning the machine to service.
Manual Section: Attachments / HeadersDisc drive locked up or spinning erratically at 3000 RPM, excessive heat from cutter bar p. 186
Remove the top cap assembly and measure pinion shaft end play; acceptable range is 0.05 to 0.20 mm (0.002 to 0.008 in), per the cutter bar specifications on page 186. Excessive play or gear tooth damage means the module needs replacement. Spin each disc by hand before reassembly to confirm free rotation with no binding or rough spots.
Manual Section: Attachments / HeadersDisc blades wearing out prematurely after short season, edges dulled and cracked before replacement interval
Inspect each knife and bolt on the cutter bar; replace any knife showing cracks, deformation, or elongated mounting holes. The discs spin at 3000 RPM per the technical specifications on page 36, so even minor imbalance accelerates wear. Check knife bolt torque against the hardware torque values, and verify no debris is lodged under any disc.

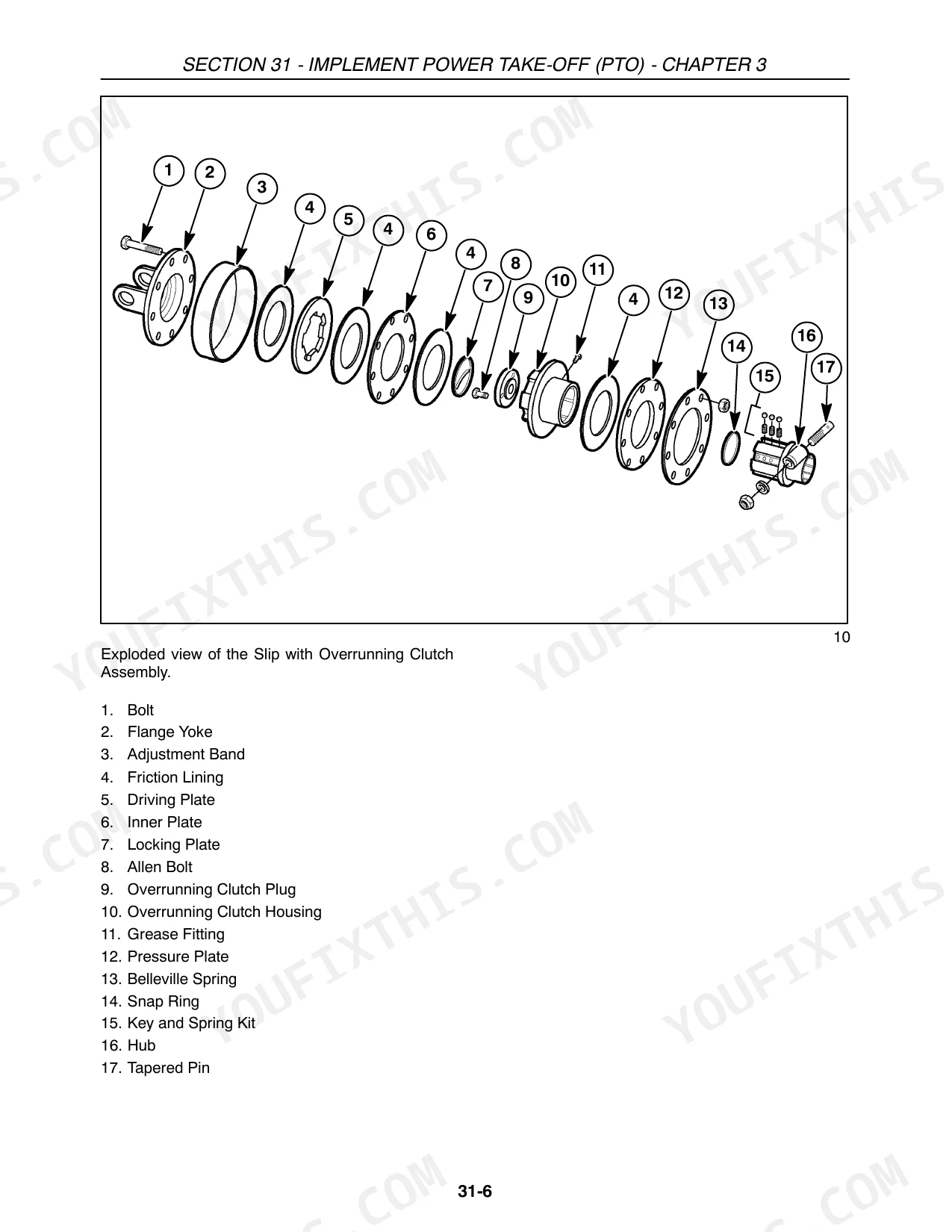

Manual Section: Attachments / HeadersSlip clutch not releasing on PTO shock load, excessive vibration through driveline p. 92
Check the slip clutch separator plate, ribbed pressure plate, and disc spring for discoloration, warpage, or cracking. The static breakaway torque is 1450 N⋅m (1000 ft-lb) per page 92; if the clutch is slipping below that threshold, worn inner drive tangs are usually the culprit. Inspect the overrunning clutch pawls and ramps for galling before reinstalling the driveline.
Manual Section: Implement Power Take-Off (PTO)Hydraulic swing cylinder not moving the tongue, machine won't fold for transport p. 127
Verify tractor hydraulic supply is within 104 to 193 bar (1500 to 2800 PSI), per page 36. Trace the swing cylinder circuit in the Hydraulic Systems section starting at page 127. Inspect all fittings for leaks; tighten 1/2-inch pipe thread fittings to 41 N⋅m (30 ft-lb) per page 23 if seepage is found at any joint.
Manual Section: Hydraulic SystemsRagged stubble and strip of uncut material left behind, cut height uneven across full width

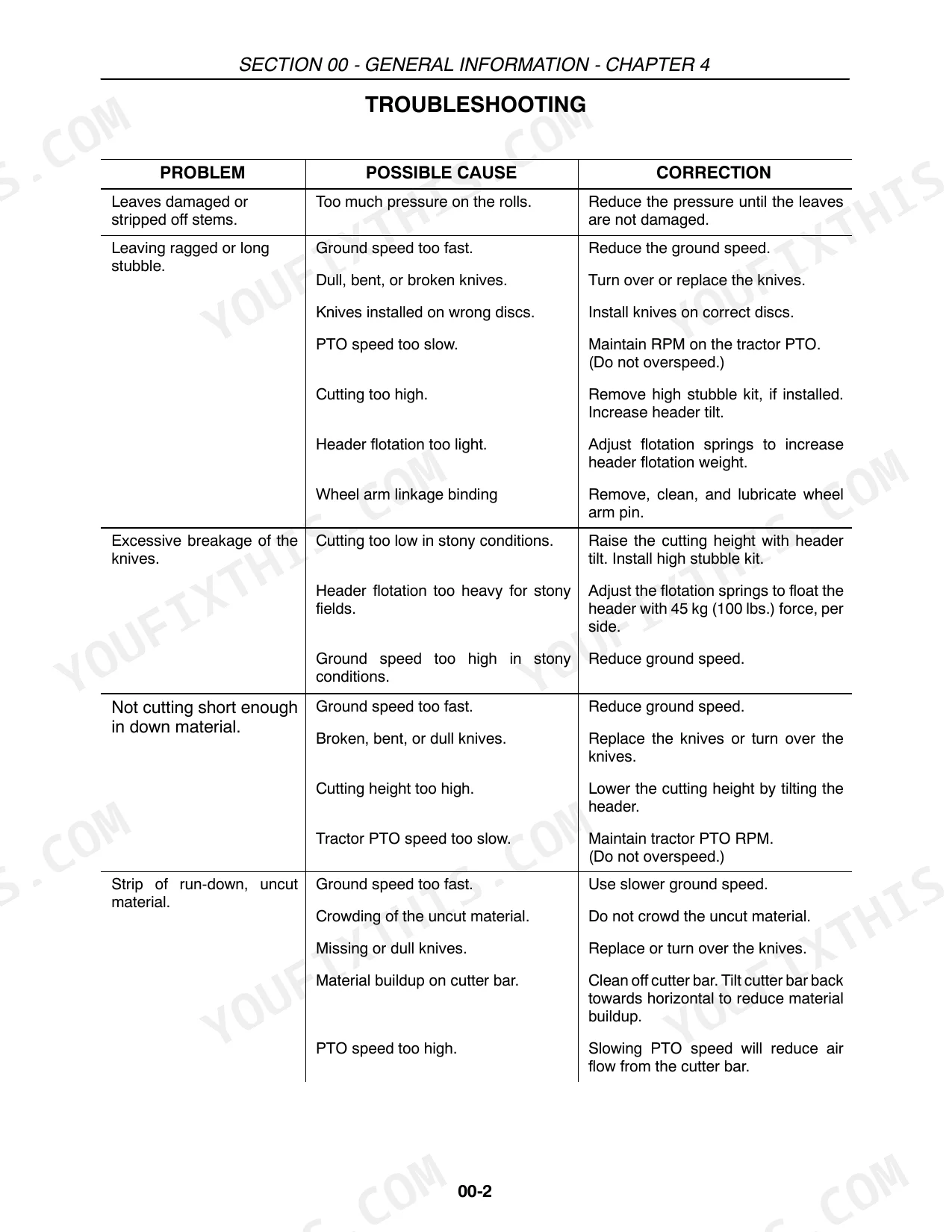

Start with the troubleshooting chart to narrow the cause: ragged stubble usually means dull or cracked knives, while a strip of uncut material points to disc timing or a clogged gap between modules. Confirm disc speed reaches 3000 RPM per page 36 before adjusting cutting height. Replace any knife showing cracks or deformation.
Manual Section: General InformationFrequently Asked Questions
How to reset the PTO on a Case IH DCX101?
To ensure the slip clutch is not locked up, it should be burnished. This involves loosening the eight cap screws 1/2 turn, operating the tractor at 1/3 throttle to engage the PTO until the clutch visibly smokes, then disengaging the PTO and retightening the cap screws until the space band contacts the clutch housing, then backing off each nut 1/4 turn. The slip clutch is set at 1450 N⋅m (1000 ft-lb) static breakaway torque.
What are the torque specs for the discbine blades on a Case IH DCX101?
When reinstalling discs, torque the retaining bolts to 113 N⋅m (83 ft-lb). For knife replacement, install the capscrew and tighten to 163 N⋅m (120 ft-lb).
How to reset the hydraulic system on a Case IH DCX101?
To reset the hydraulic system if air is present, bleed air from the lift cylinders. This involves lowering the mower-conditioner and holding the tractor valve in the lower position for 10 to 15 seconds, or raising it and holding the valve in the raise position for 10 to 15 seconds. Loosen the hose swivel fitting at the upper end of the slave cylinder, actuate the tractor hydraulic lever at low idle until oil flow is free of air, then tighten the fitting.
What are the torque specs for the PTO coupling on a Case IH DCX101?
For 540 RPM PTO units, when reinstalling the PTO drive shaft, torque the 1/2″ x 3″ cap screw and lock nut to 87 N⋅m (64 ft-lb). For 1000 RPM PTO units, torque the tapered pin nut to 142 N⋅m (105 ft-lb) when reinstalling the PTO drive shaft.
What format is this manual in?
This is a 260-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Case IH DCX101 Repair Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this Case IH DCX101 Repair Manual have electrical diagrams?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Case IH DCX101.
