Every one of the 310 pages in this Case DCX131 Repair Manual (OEM #86630601) targets the Disc Mower-Conditioner: PTO drivetrains, hydraulic cylinders, the electrical lighting system, and full header attachments. You get hydraulic schematics covering the lift, master, slave, header tilt, and tongue swing cylinders, plus wiring diagrams for the trailing lights and lighting control box. Inside: exploded views across the cutter bar and header assemblies, a recommended lubrication chart, and step-by-step rebuild procedures for the slip clutch, overrunning clutch, and swivel hitch gearbox. Torque the cutter bar top cap to 113 N·m (83 ft.-lbs.), then drive the disc hub retaining bolt to 203 N·m (150 ft.-lbs.) or rotate it 90 degrees past contact. Your DCX131 is down and the dealer wants $200 to tell you what you already know. Bookmarked for instant navigation; grab your tablet, walk to the machine, and start wrenching.
What's Inside This Case IH DCX131 Repair Manual
| System | Pages | Key Topics |
|---|---|---|

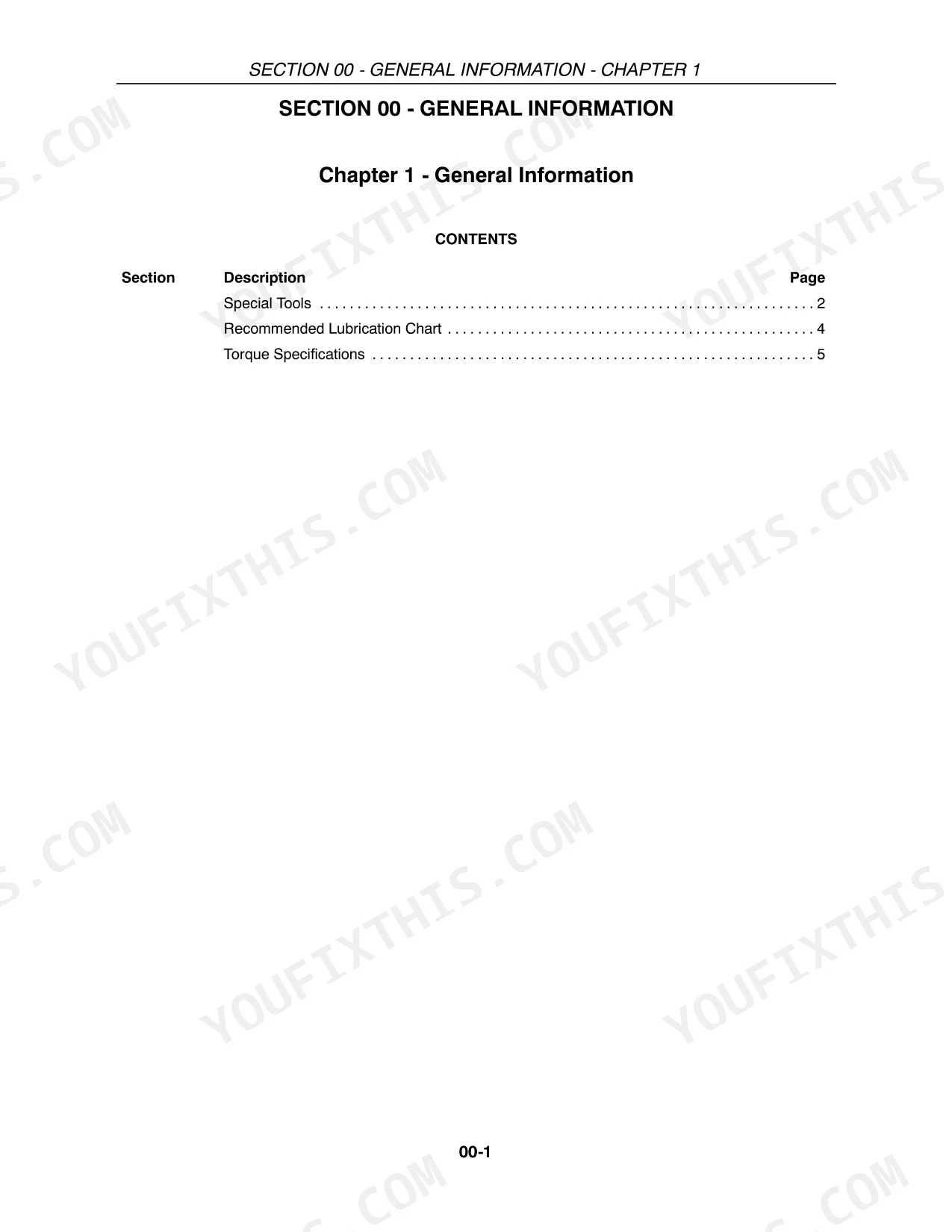

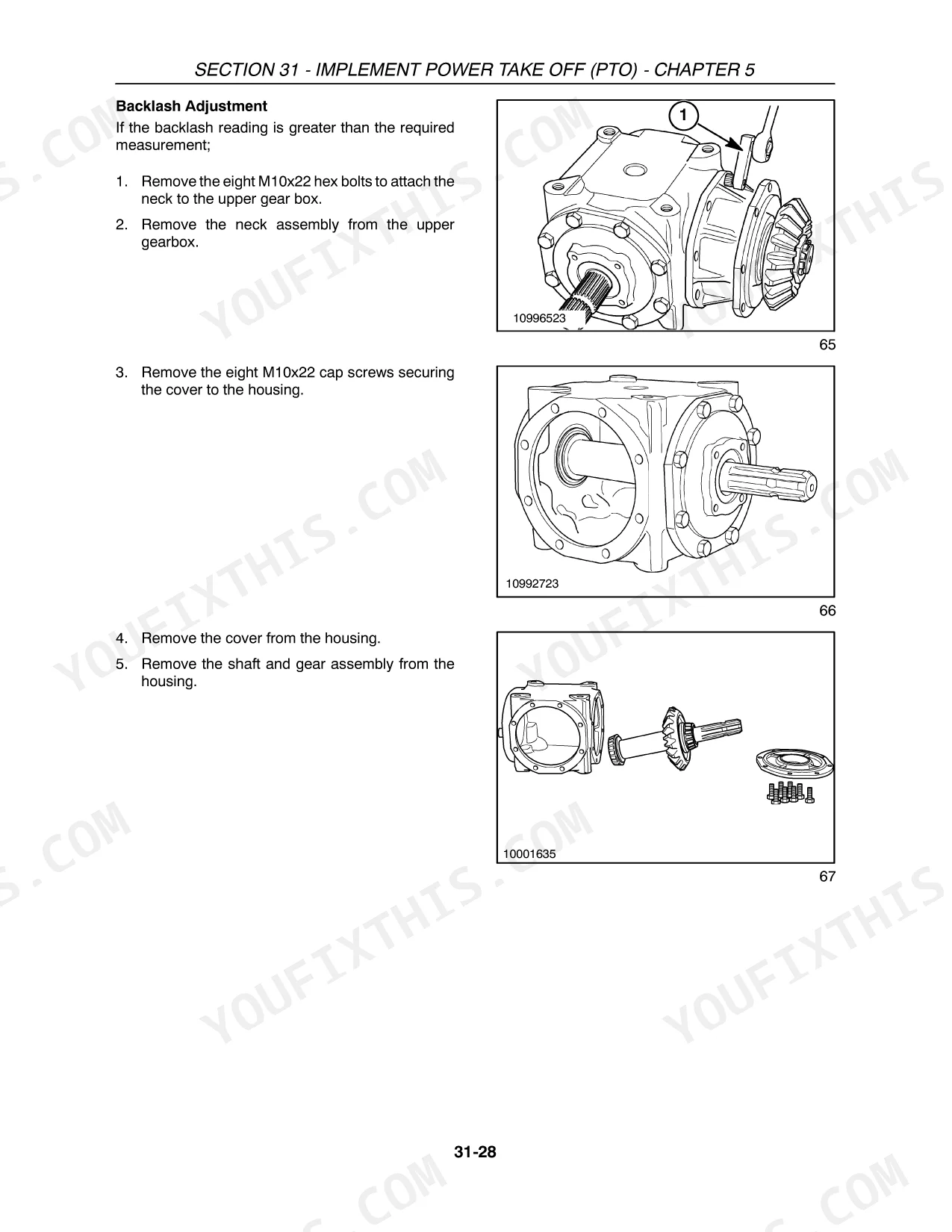

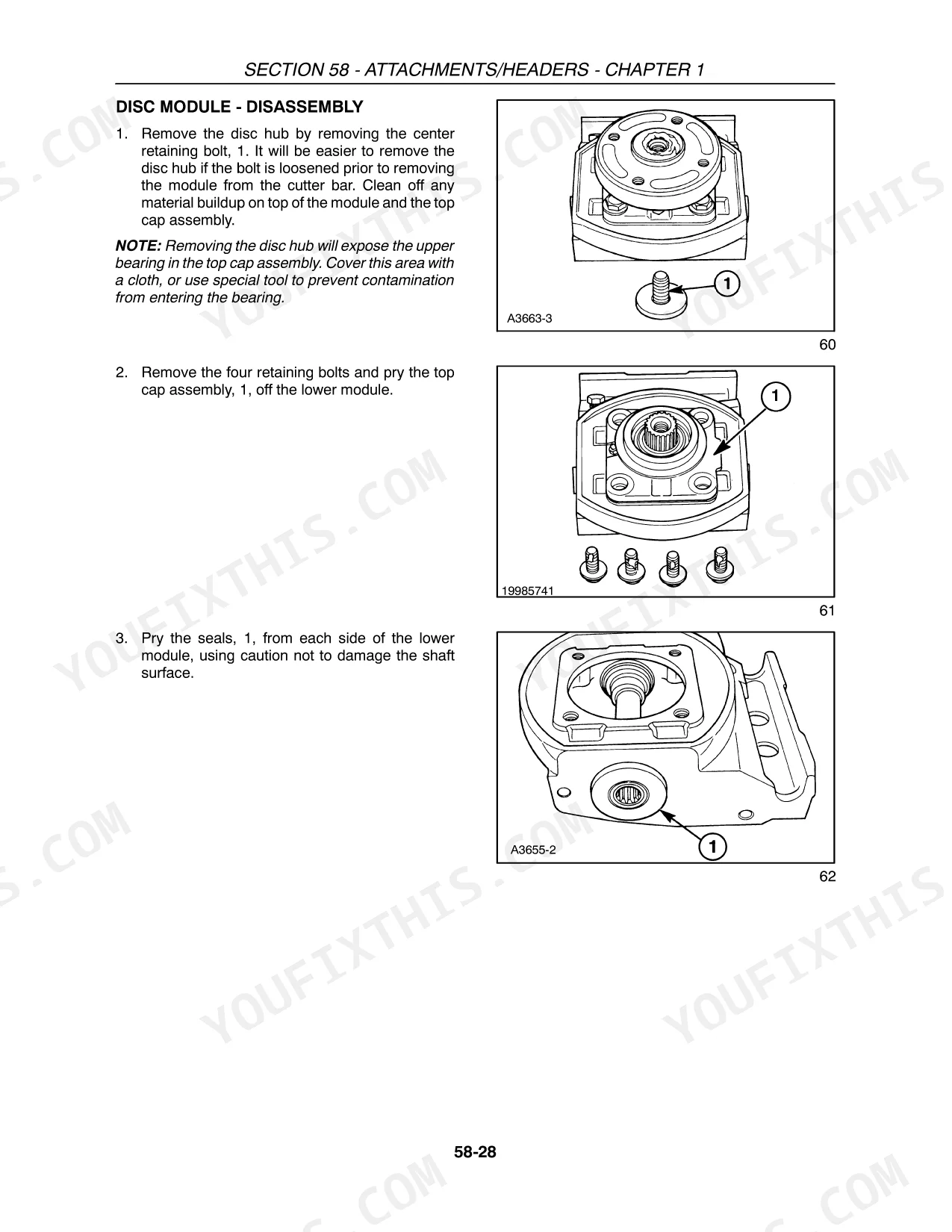

| General Information | 11-18 | Special Tools, Recommended Lubrication Chart, Torque Specifications |
| Implement Power Take Off (PTO) | 19-126 | Drive Lines (Standard Tongue), Drive Lines (Swivel Hitch Tongue), Slip Clutch, Overrunning Clutch, Gearbox (Swivel Hitch) |
| Hydraulic System | 127-152 | Hydraulic Diagram, Lift Cylinder, Master Cylinder, Slave Cylinder, Header Tilt Cylinder, Tongue Swing Cylinder |
| Electrical System | 153-162 | Trailing Lights, Installing Socket, Trailer Connector Repair, Lighting Control Box |
| Cutter Bar & Left Pedestal Shaft | 163-218 | Cutter Bar, Left Pedestal Shaft |
| Drive Gearboxes | 219-276 | Gearbox (Center Pivot), Gearbox (Right-Hand), Gearbox (Conditioner Drive) |
| Conditioner Rolls & Drive | 277-296 | Conditioner Rolls, Conditioner Roll Drive |

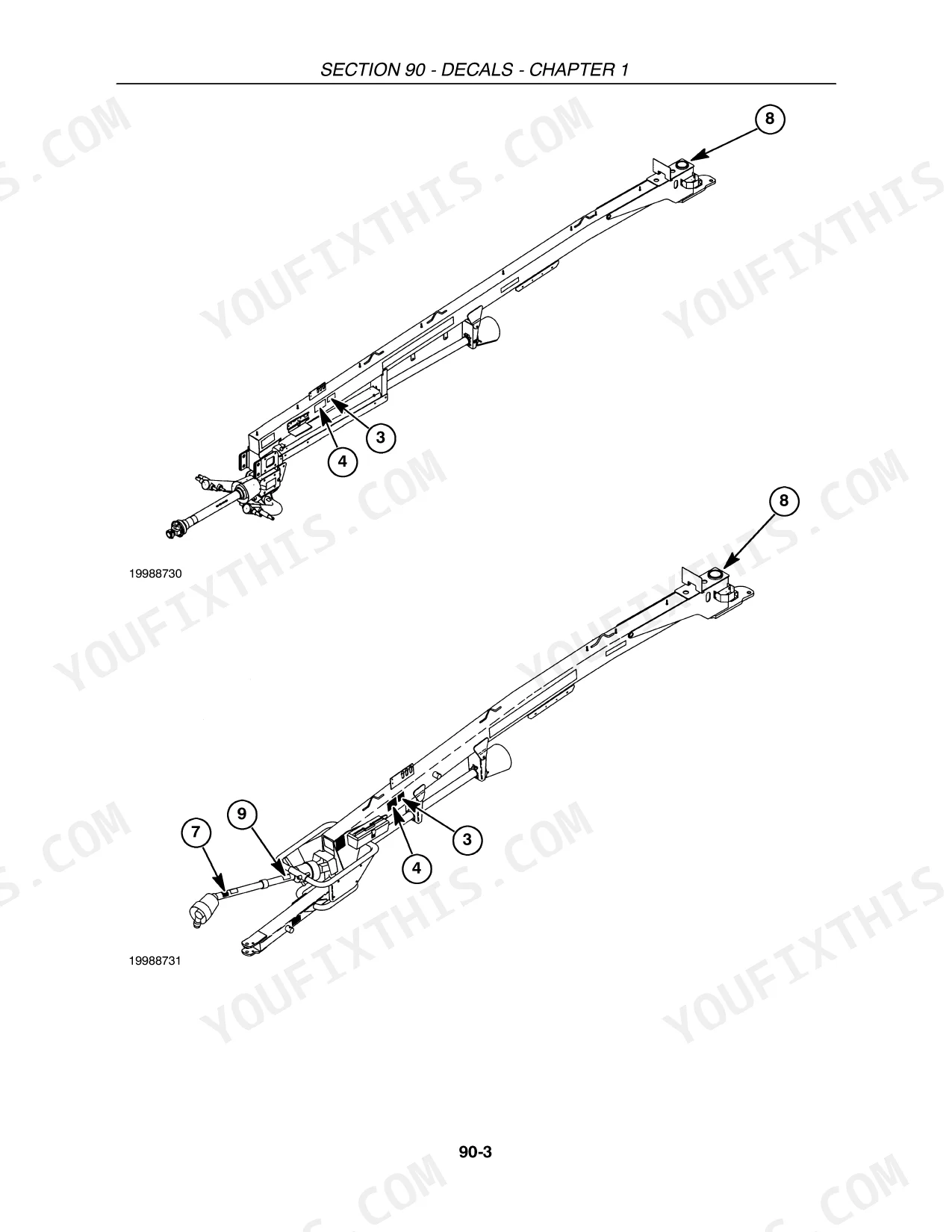

| Decals | 297-310 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cutter Bar - Top Cap Installation - Torque | 113 N·m (83 ft.-lbs.) | p. 180 |
Case IH DCX131 Common Problems This Manual Covers
Case IH DCX131 top cap retaining bolts backing out during operation, cutter bar module loose and vibrating p. 180
Remove the loose hardware. Apply silicone sealant to the end of the threads on the new top cap retaining bolts. Install the bolts and torque them to 113 N·m (83 ft.-lbs.) exactly as specified on page 180. Inspect the module for further damage.
Manual Section: Attachmants/ HeadersDisc hub hex head cap screw stripped out, cutting blades binding or spinning freely under load p. 181
Discard the old hex head bolt and install a new 12-point bolt. Apply a small amount of silicone sealant to the end of the disc hub retaining bolt. Torque the fastener to 203 N·m (150 ft.-lbs.) as outlined on page 181.
Manual Section: Attachmants/ HeadersDisc hub retaining bolt loose after initial tightening, cutter bar timing thrown off during heavy cutting p. 181
Inspect the washer and mating surface for galling. Apply silicone sealant to the disc hub retaining bolt threads. Install the bolt until it contacts the washer, then turn the bolt exactly 90 degrees to achieve the correct clamping force outlined on page 181.
Manual Section: Attachmants/ HeadersFrequently Asked Questions
What are the torque specs for the pivot tongue bolts on CASE IH DCX131?
For the standard tongue, tighten the bearing flangette mounting bolts to 113 N·m (83 ft.-lbs.) and the bearing hanger pivot bolt to 224 N·m (165 ft.-lbs.) during assembly. These specifications are found in the Tongue Jackshaft - Assembly procedure.
How to lubricate pivot tongue on CASE IH DCX131
To lubricate the pivot tongue and its components, use High Viscosity Lithium Base-NLGI#2 grease for all grease fittings. Specific lubrication for U-joints and shafts should also be performed before operating the disc mower.
How do you fix case IH DCX131 top cap retaining bolts backing out during operation, cutter bar module loose and vibrating?
Remove the loose hardware. Apply silicone sealant to the end of the threads on the new top cap retaining bolts. Install the bolts and torque them to 113 N·m (83 ft.-lbs.) exactly as specified on page 180. Inspect the module for further damage.
How do you fix disc hub hex head cap screw stripped out, cutting blades binding or spinning freely under load?
Discard the old hex head bolt and install a new 12-point bolt. Apply a small amount of silicone sealant to the end of the disc hub retaining bolt. Torque the fastener to 203 N·m (150 ft.-lbs.) as outlined on page 181.
How will I receive this Case DCX131 Repair Manual?
This is a 310-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this Case DCX131 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are there wiring harness diagrams in this Case DCX131 manual?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
