Need the factory operator reference for your Case IH Farmall 95U, 105U, or 115U tractors? This 402-page operator manual (OEM #84498894) puts every control label, safety warning, and daily procedure in one place. Inside: a full maintenance interval schedule, a troubleshooting section covering engine, electrical, and hydraulic faults, complete fluid capacity tables, and operating procedures for everything from four-wheel drive engagement to DPF regeneration. Your instrument panel and programmable display get a full walkthrough, including error code viewing and dashboard calibration. Change the hydraulic circuit oil filter at 300 hours, engine oil and filter at 600; the clutch plate spec is 305 mm (12 in). Every hour your machine sits idle costs real money. Open it on any device, jump to your section with bookmarks, and get the factory answer before you start the engine.
What's Inside This Case Ih Agriculture 95U, 105U, 115U Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 9-32 | Note to the Owner, Ec Declaration of Conformity, Commission Directive 2010/52/EU, Noise Level, Electro-Magnetic Interference, International Symbols, Introduction |
| Safety Information | 33-54 | Air Conditioning Safety Regulations, Vehicle Vibration Levels, Cab Guard, Machine Stability, Personal Protective Equipment (Ppe), Tractor Jacking Points |

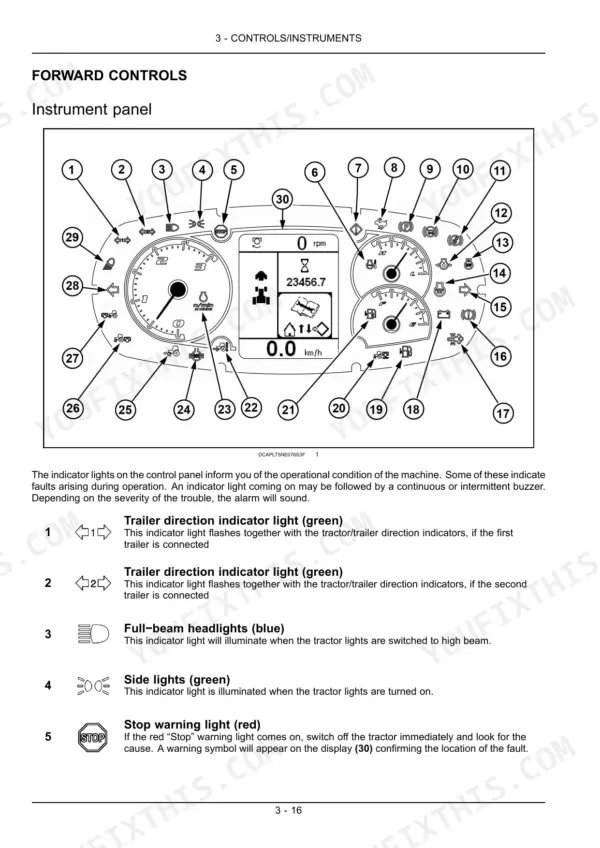

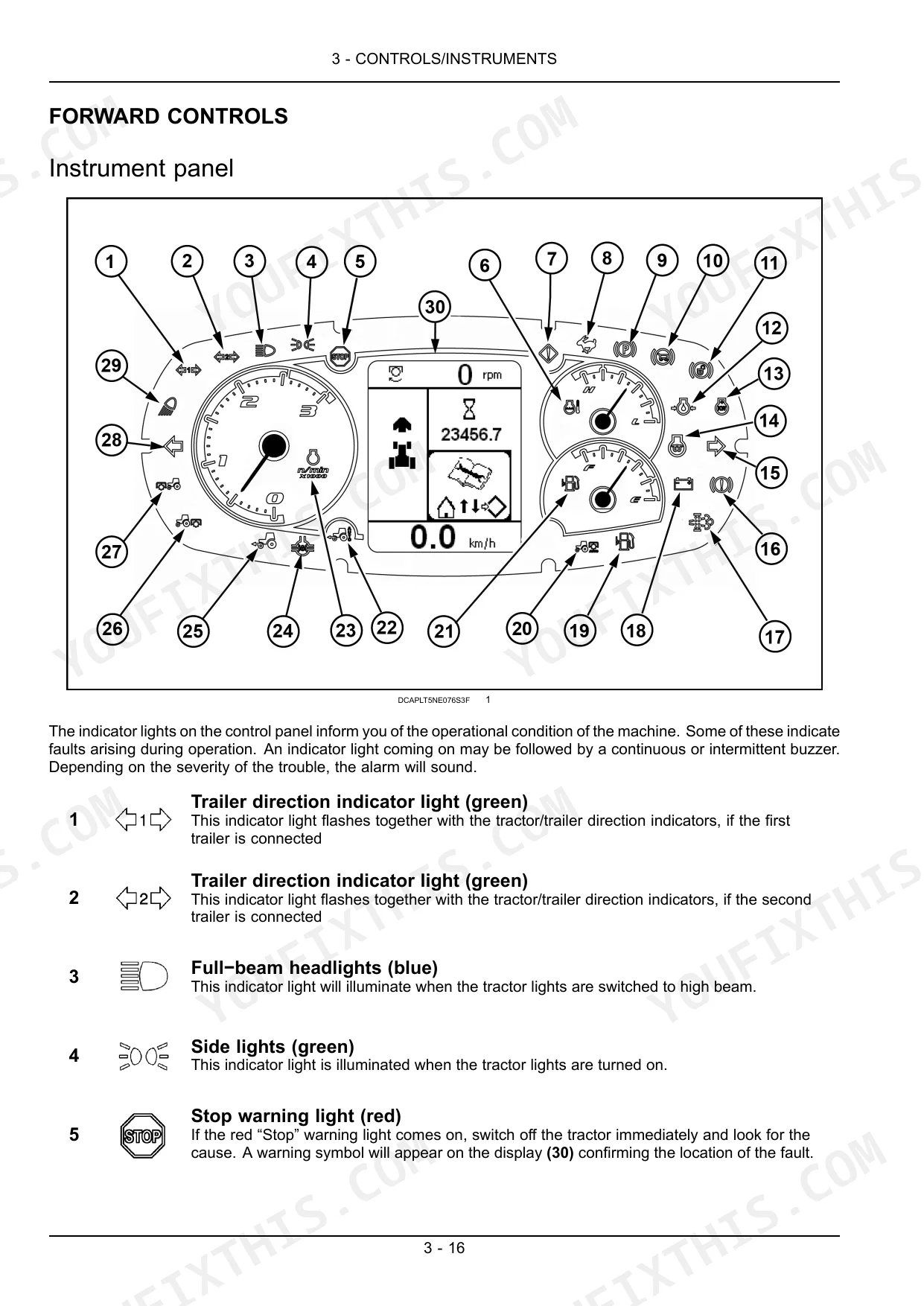

| Controls/Instruments | 55-102 | Access to Operator's Platform (Cab, Heating, Ventilation or Air-Conditioning Control), Operator's Seat (Standard Seat, Air Seat "Deluxe" Model, Air Seat "Premium" Model, Seat Belt) |

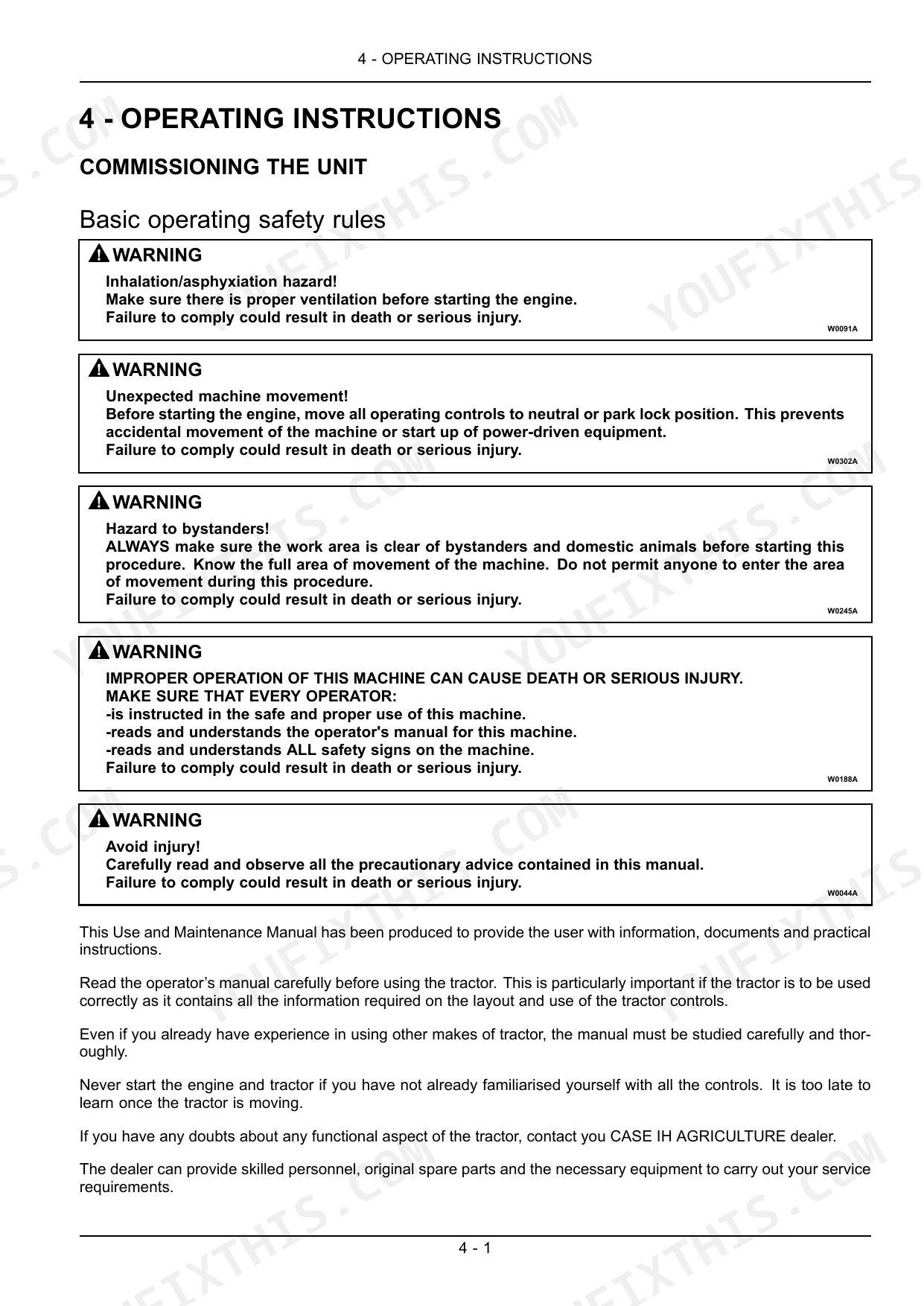

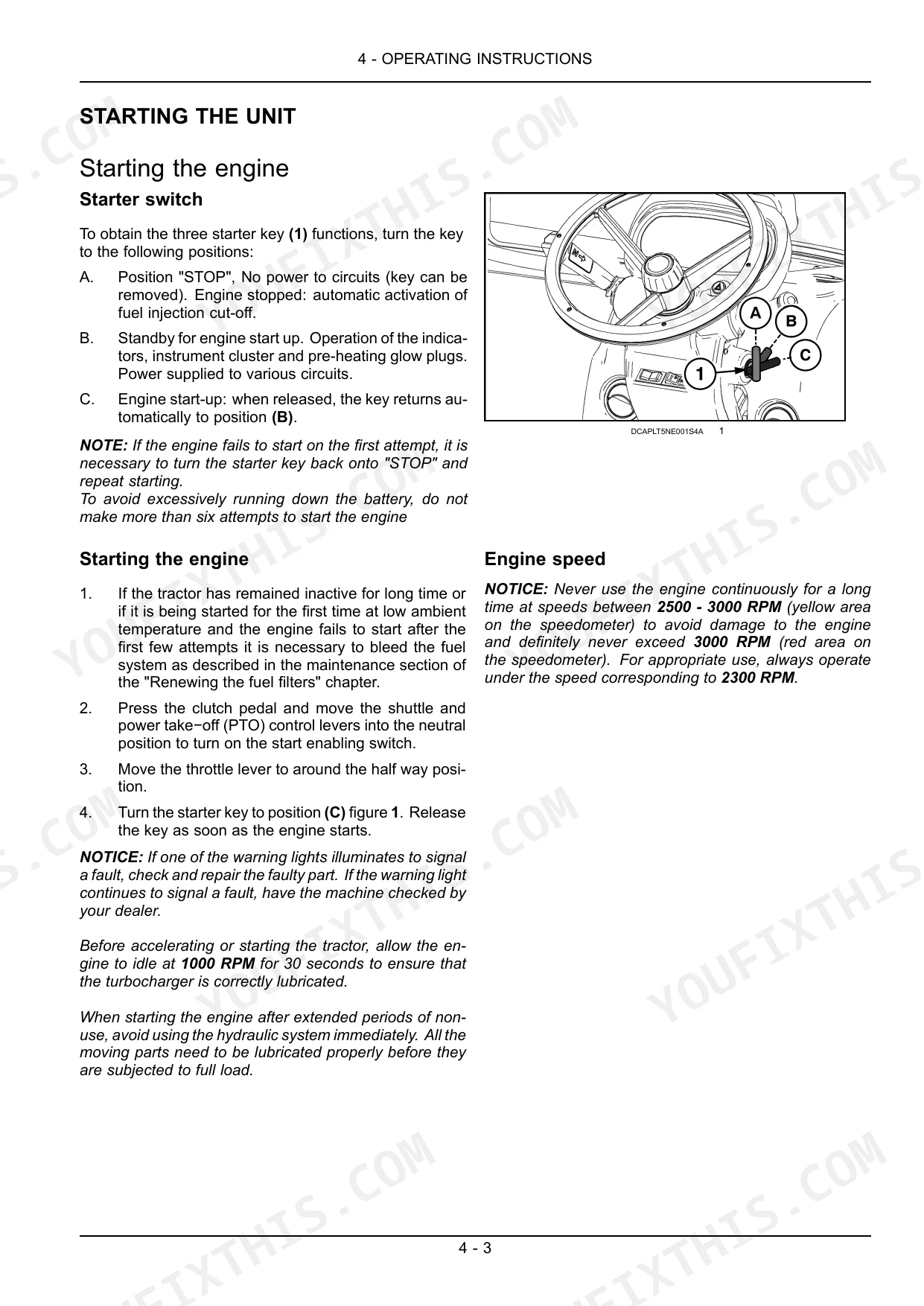

| Operating Instructions | 103-122 | Commissioning the Unit (Basic Operating Safety Rules), Starting the Unit (Starting the Engine, Idle Engine Speed Control), Stopping the Unit (Stopping the Engine) |
| Transport Operations | 123-124 | Road Transport (Transporting the Machine), Recovery Transport (Towing the Tractor) |
| Working Operations | 125-184 | Four-Wheel Drive with Electro-Hydraulic Control, Differential Lock Hydraulic Control, Remote Valves Operation, Power Take Off Operating Instructions |
| Maintenance | 185-238 | Maintenance Chart, Radiator Expansion Tank, Air Conditioning - Dehydration Filter, Engine Oil Level, Hydraulic Circuit Oil Filter, Change Engine Oil and Filter |

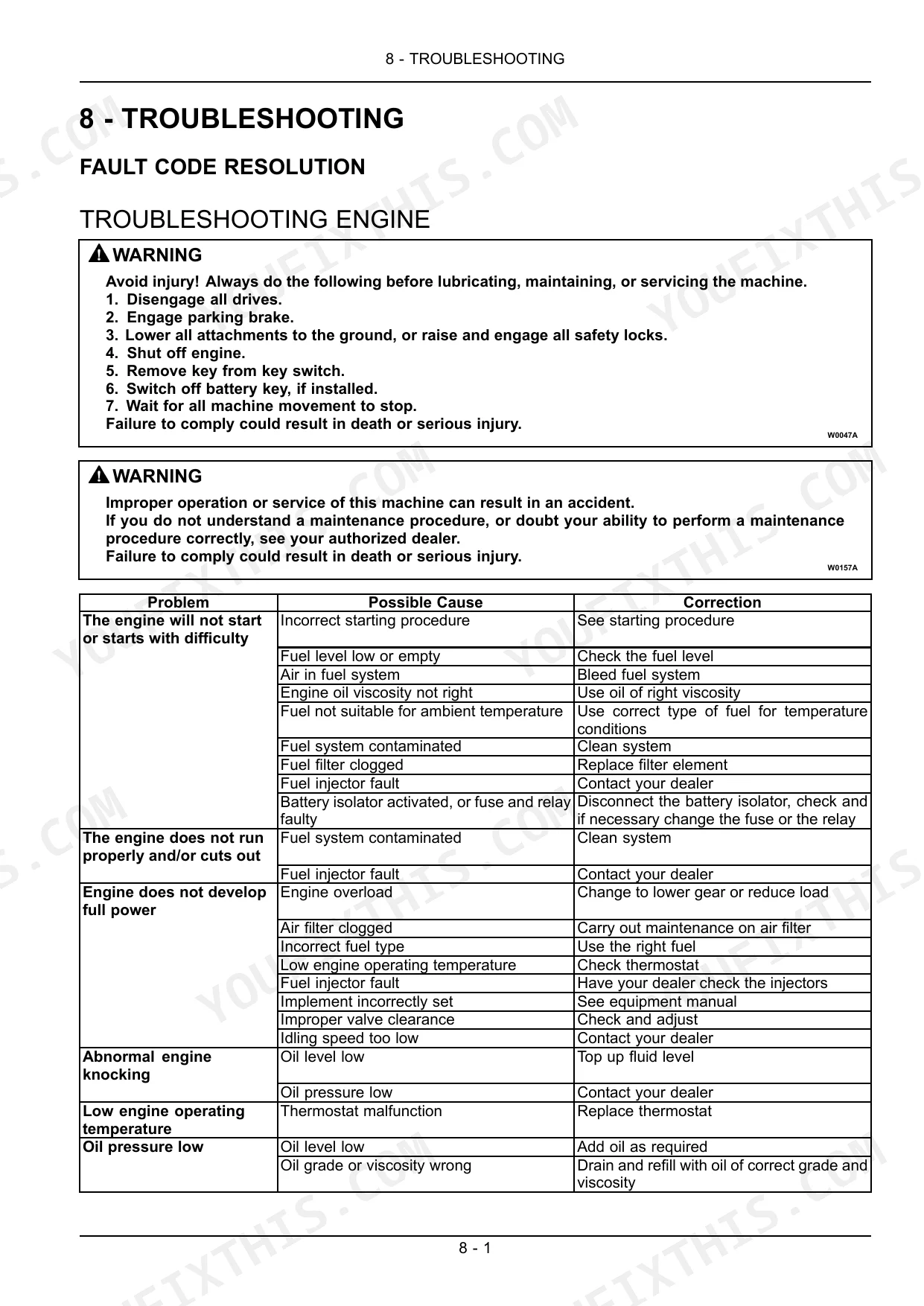

| Troubleshooting | 239-254 | Troubleshooting Engine, Electrical System - Troubleshooting, Hydraulic Systems - Troubleshooting, Rear Three-Point Hitch - Troubleshooting |
| Specifications | 255-260 | Dimensions and Weights, Technical Data |
| Accessories | 261-274 | Radio, Front-End Loader, Joystick for Control Valves, Hydraulic Valve for Trailer Brakes, Mechanical Trailer Brake Bracket |
| Supplement - P/N 47527623 | 283-402 | Connection of Hydraulic Pipes “Diverter”, Disconnection of Hydraulic Pipes “Diverter”, Air-Conditioning Refrigerant, Sulfur in Fuel, Engine - Replace |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel filter replacement interval | Every 600 hours | p. 196 |
| Hydraulic circuit oil filter replacement interval | Every 300 hours | p. 196 |
| Engine oil and filter replacement interval | Every 600 hours | p. 196 |

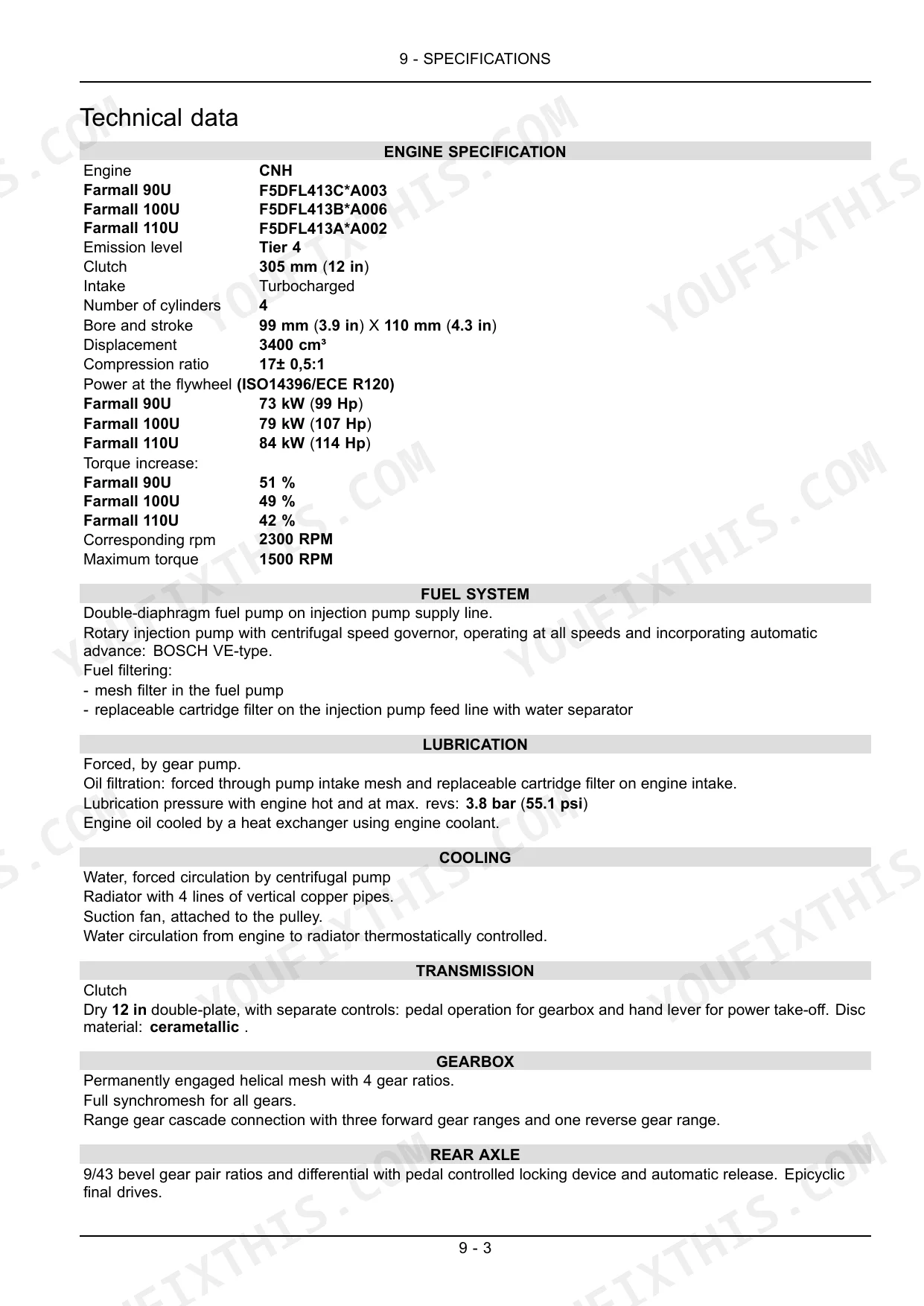

| Clutch plate diameter | 305 mm (12 in) | p. 257 |
| Clutch pedal clearance (tractors without cabs) | 185 mm (7.3 in) | p. 200 |
| Hot oil signal threshold (transmission oil) | above 100 °C (212.0 °F) | p. 233 |
| Cooling system capacity | 16 l (4.2 US gal) | p. 230 |
| Fuel tank capacity | 155 l (40.9 US gal) | p. 230 |
| Engine sump (Max) capacity | 8.1 l (2.1 US gal) | p. 230 |
| Hydraulic lift oil pump pressure relief valve calibration | 190 bar (2755.0 psi) | p. 258 |
| Maximum lift capacity (with two supplementary cylinders) | 4548 kg (10027 lb) | p. 258 |
| Minimum turning radius (brake assisted) | 350 cm (138 in) | p. 259 |
Case Ih Agriculture 95U, 105U, 115U Common Problems This Manual Covers
Case IH Farmall warning light on dashboard stays lit after engine startup, operator unsure what action to take p. 246
Check the alarm reference on page 246 to identify the indicator color: red means stop immediately, amber means investigate soon. Cross-reference the display warnings overview starting on page 247 to match the exact symbol. Verify engine oil level is within the 8.1 l (2.1 US gal) sump capacity and coolant level is within the 16 l (4.2 US gal) cooling system range before restarting.
Manual Section: ALARM(S)Engine stalls or cuts out under heavy load during field operations p. 239
Check fuel level in the 155 l (40.9 US gal) tank first. Review the engine troubleshooting chart on page 239 under 'does not run properly/cuts out.' Verify the fuel filter is not past its 600-hour replacement interval per the maintenance schedule on page 196. If the filter is overdue, replace it before returning to load operations.
Manual Section: TROUBLESHOOTING ENGINEp. 251
Frequently Asked Questions
How to reset engine oil service reminder Farmall 115U
To reset the engine oil service reminder, first ensure the engine is switched off. Then, press and hold the switch (2) on the symbol (B) for more than three seconds to enter the programming menu. Navigate to "OIL RESET" S1 using switch (3) on symbol (D), then press switch (2) on symbol (B) to display "RESET". Press switch (2) on symbol (B) again to reset the hour meter, which will display "OFF". The engine oil pressure warning on the instrument panel will blink for two seconds to confirm the reset.
What are the replacement specifications for Fuel filter?
The manual describes the fuel filter as a replaceable cartridge filter on the injection pump feed line with a water separator. To replace, place a container under the filters, disconnect the sensor of the prefilter, unscrew the two filtering cartridges, fill new filters with clean fuel, oil gaskets, and tighten by hand 3/4 of a turn. After replacement, bleed the fuel system by opening the bleed valve (3) and operating the priming pump (4) until fuel comes out.
What are the replacement specifications for Hydraulic filter?
The hydraulic circuit oil filter is a replaceable cartridge filter. To replace it, remove the old filter cartridge (1), lightly oil the seal of the new filter, and screw it on, tightening by hand 3/4 of a turn. Ensure a container is placed under the filter to collect oil during the operation. The manual does not provide a specific part number or detailed technical specifications for the filter itself.
How do you fix case IH Farmall warning light on dashboard stays lit after engine startup, operator unsure what action to take?
Check the alarm reference on page 246 to identify the indicator color: red means stop immediately, amber means investigate soon. Cross-reference the display warnings overview starting on page 247 to match the exact symbol. Verify engine oil level is within the 8.1 l (2.1 US gal) sump capacity and coolant level is within the 16 l (4.2 US gal) cooling system range before restarting.
How quickly can I access this Case IH Farmall 95U, 105U, 115U?
You get a 402-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Case IH Farmall 95U, 105U, 115U Operator Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
