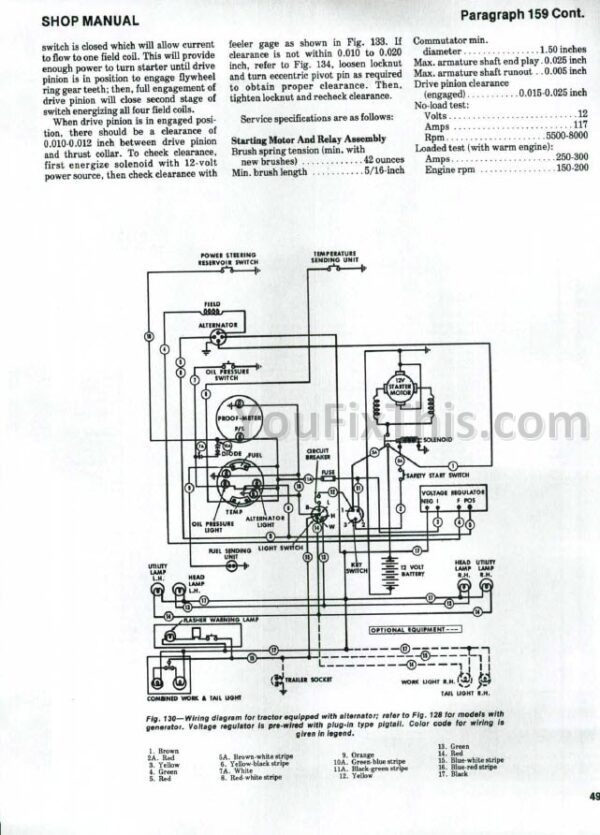

Wrenching on a Ford 8000, 8600, 8700, 9000, 9600, 9700, TW-10, TW-20, or TW-30? This 92-page Ford 8000 shop manual PDF packs teardown and repair procedures for the whole tractor family into one download. You get factory wiring diagrams for the alternator, generator, and starting circuits, hydraulic schematics tracing the lift system from pump to remote valves, and a full diesel fuel section on injector testing, pump timing, and governor adjustment. Engine, clutch, Dual Power, transmission, differential, PTO, brakes, and power steering all get step-by-step overhaul coverage. Check cranking compression at 380-480 psi at 200 RPM, and torque the PTO locating pin to 70-95 ft.-lbs. Your tractor is down and the dealer is booked solid. This bookmarked PDF opens on any device; carry your tablet out to the machine and start wrenching.
What's Inside This Ford 8000-9700 Series & TW-10/20/30 Manual
| System | Pages | Key Topics |
|---|---|---|

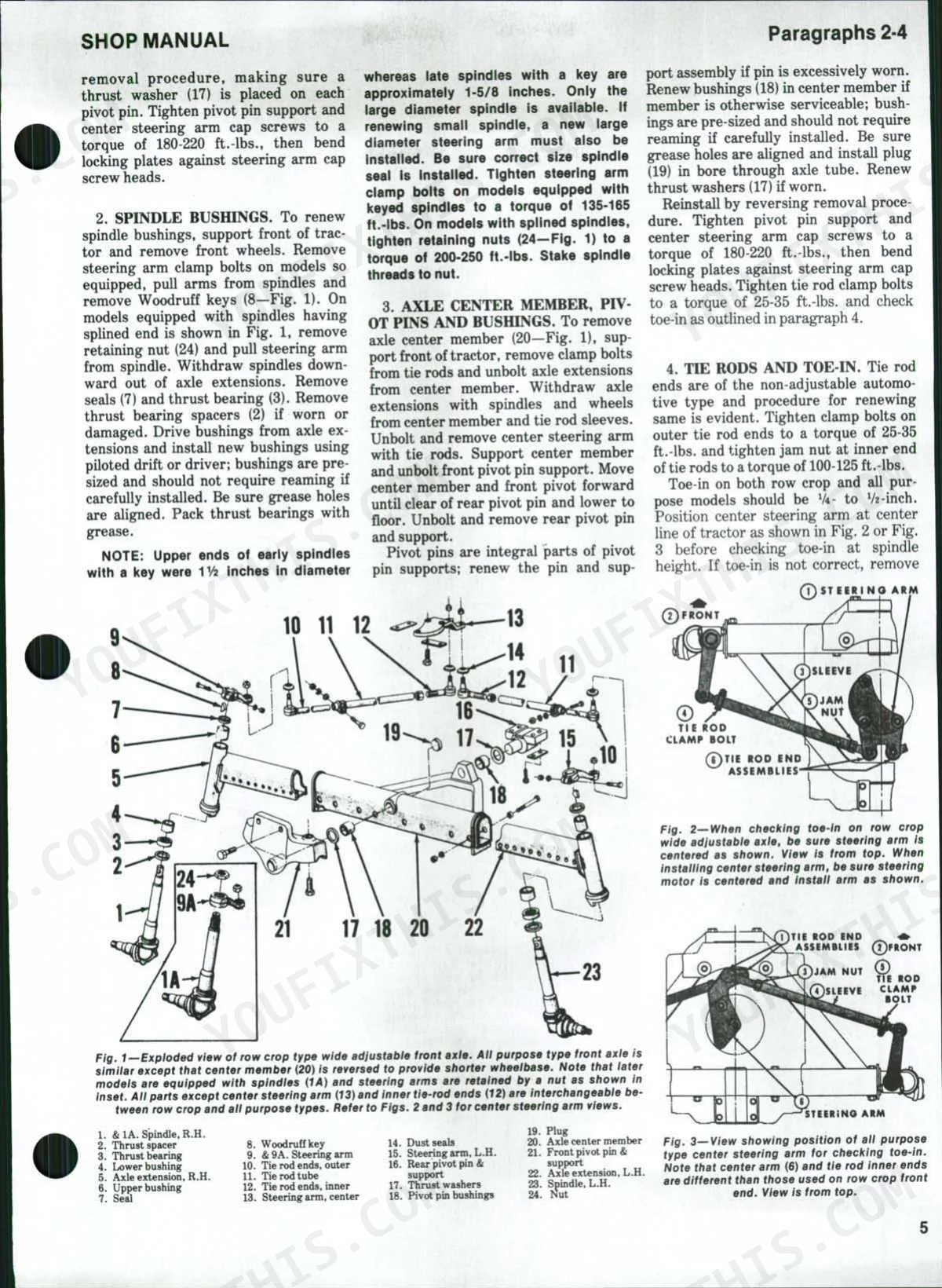

| General Information and Front Systems | 1-14 | Index, Condensed Service Data, Tune-Up, Capacities & Clearances, Front Axle (Wide Adjustable, Tricycle Spindle), Front Support (Pedestal), Hydrostatic Power Steering System (Troubleshooting, Pump R&R/Overhaul, Hydramotor Unit R&R/Overhaul, Steering Column Jacket/Shaft R&R, Blocking Spool R&R, Cover Retaining Snap Ring R&R, Ross Steering Motor Overhaul) |
| Drivetrain and Engine Components | 15-33 | Front Wheel Drive Axle (R&R, Spindle Bushings, Axle Center Member, Tie Rods, Toe-In, Wheel Hub, Planetary Carrier, Axle Shafts, Steering Knuckle, King Pins), Differential and Bevel Gears (R&R, Overhaul), Drive Shaft (R&R, Transfer Box (Operation, R&R, Engine (R&R with Clutch, Compression, Cylinder Head R&R, Valves, Valve Clearance, Rocker Arms, Timing Gear Cover/Gears, Camshaft, Connecting Rods, Pistons, Piston Pins, Crankshaft, Flywheel, Oil Seals) |
| Fuel, Cooling, Electrical, and Turbocharger Systems | 34-46 | Oil Pan, Oil Pump and Relief Valve, Diesel Fuel System (Troubleshooting, Filters, Bleeding, Injection Nozzles, Fuel Injection Pump, Fuel Lift Pump, Governor & Throttle Linkage), Turbocharger (Troubleshooting, R&R, Overhaul), Intercooler (Overhaul), Cooling System (Radiator Pressure Cap, Thermostat, Radiator, Water Pump), Engine Oil Cooler, Fan and Fan Bracket, Electrical System (Generator, Regulator, Alternator) |

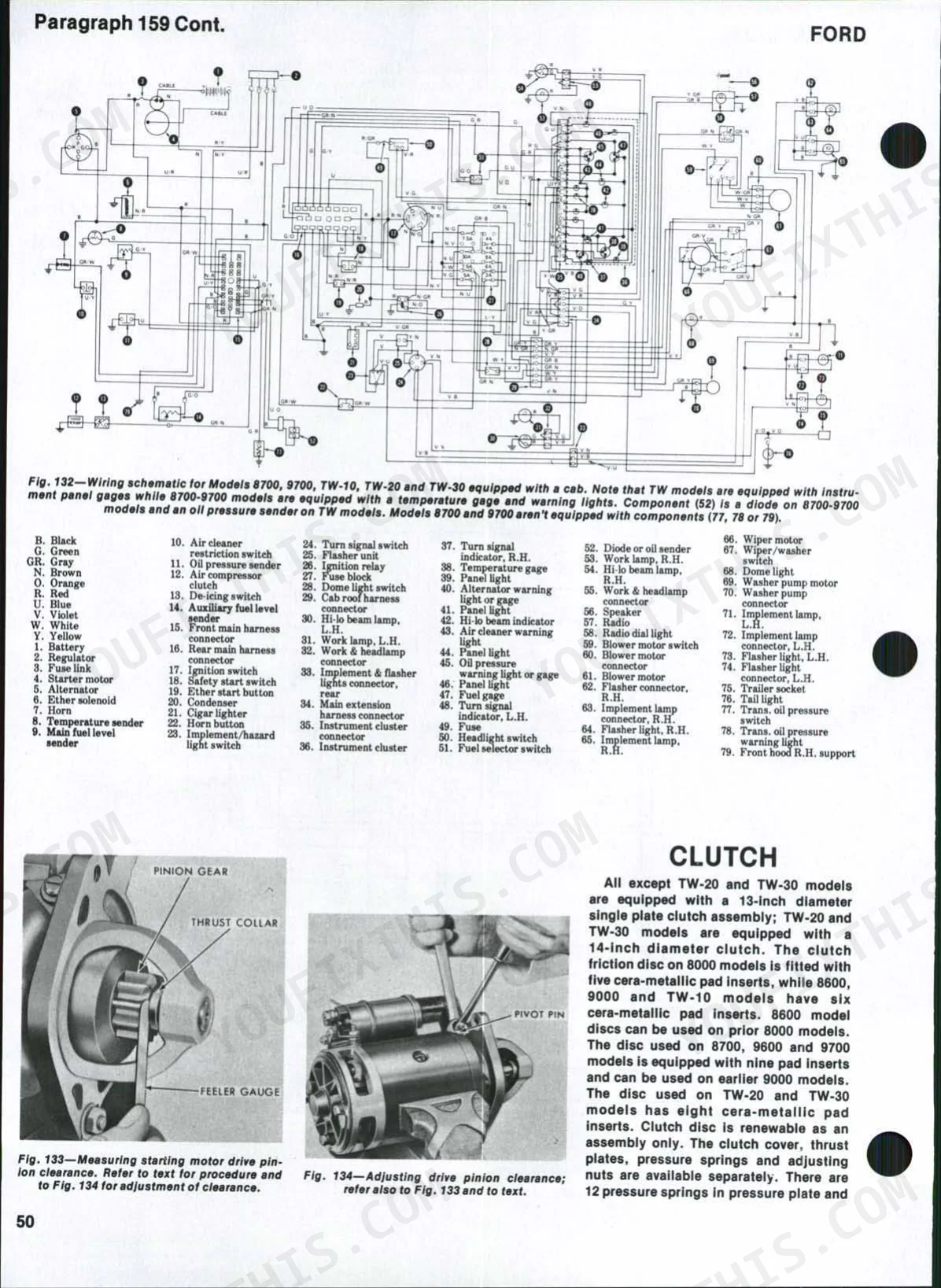

| Electrical System & Clutch | 47-52 | Alternator Specifications, Regulator Specifications, Starting Motor Description and Specifications, Wiring Diagrams (Generator and Alternator), Clutch Types and Specifications, Pedal Free Travel Adjustment, Clutch Overhaul |
| Dual Power & Transmission | 52-66 | Dual Power System Description, Dual Power Lubrication and Hydraulic Pressure, Dual Power R&R and Overhaul, Dual Power Control Valve, Low Pressure Oil System, Pressure Regulator Valve R&R and Overhaul, Transmission Description and Lubrication, Parking Brake Adjustment and Linkage, Transmission Shift Levers and Linkage, Transmission Top Cover R&R, Transmission Overhaul (Shift Cam, Index Arm, Shift Cover, Oil Pump, Rear Cover, Seals, Gears), Input Shaft Oil Seals Renewal, PTO Shaft Oil Seal Renewal, Complete Transmission Overhaul, Transmission Handbrake R&R and Overhaul |
| Final Drive and Rear Axles & Brakes | 67-73 | Final Drive and Rear Axles Lubrication, Differential Lock System, Differential and Bevel Ring Gear R&R, Carrier Bearing Preload and Bevel Gear Backlash Adjustment, Differential Overhaul, Main Drive Bevel Pinion R&R, Pinion Mesh Position Adjustment, Rear Axle and Final Drive Assembly R&R, Rear Axle Shaft and Bearings R&R, Planetary Drive Overhaul, Brakes Adjustment (All Models), Brake Fluid and Bleeding, Master Cylinder Overhaul, Power Brake Valve R&R and Overhaul, Brake Pistons and Discs |
| Power Take-Off & Hydraulic Lift System | 74-92 | Power Take-Off (PTO) System Description, PTO Troubleshooting, PTO/Differential Lock System Pressure Check, PTO Control Linkage Adjustment, PTO/Differential Lock Hydraulic Pump R&R and Overhaul, PTO Upper (Clutch Output) Shaft and Reduction Gears R&R, PTO Clutch Shaft End Play, PTO Output Shaft R&R, PTO Clutch and Valve Assembly R&R and Overhaul, Hydraulic Lift System Fluid and Filters, Hydraulic Lift System Troubleshooting, Hydraulic Pressure Check, Lower Link Hanger Stop Adjustment, Control Lever Linkage Adjustment, Position Control Adjustment, Draft Control Adjustment, Hydraulic Pump and Adapter Plate R&R and Overhaul, Pump Adapter Plate Overall, Differential Lock Valve R&R, Pressure Relief Valve R&R, Flow Control Valve R&R, Variable Flow Valve R&R, Lift Cover, Cylinder and Valve Assembly R&R, Control Valve Overhaul, Safety Valve Overhaul, Lift Cylinder and Piston R&R, Lift Shaft and Related Linkage R&R, Lower Link Hangers, Torsion Bar and Draft Control Linkage R&R, Remote Control Valves Check, Adjust, R&R and Overhaul, Cab Remove and Reinstall |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Locating pin torque | 70-95 ft.-lbs. | p. 77 |
| Pto upper shaft and gears bearing retainer torque (TW-30 models) | 68-92 ft.-lbs. | p. 77 |
| Flow control valve clearance in bore | 0.0005-0.0011 inch | p. 86 |
| Top Compression Ring End Gap | 0.012-0.038 inch | p. 31 |
| 8000, 8600, 8700, 9000, 9600, 9700 | ||
| Engine Compression, Gage Lbs. at Cranking Speed of 200 Rpm | 380-480 psi | p. 3 |
| TW-10, TW-20, TW-30 | ||
| Normal Oil Pump Pressure | 60-80 psi at 2200 rpm | p. 35 |
| D7NN-10300-B | ||

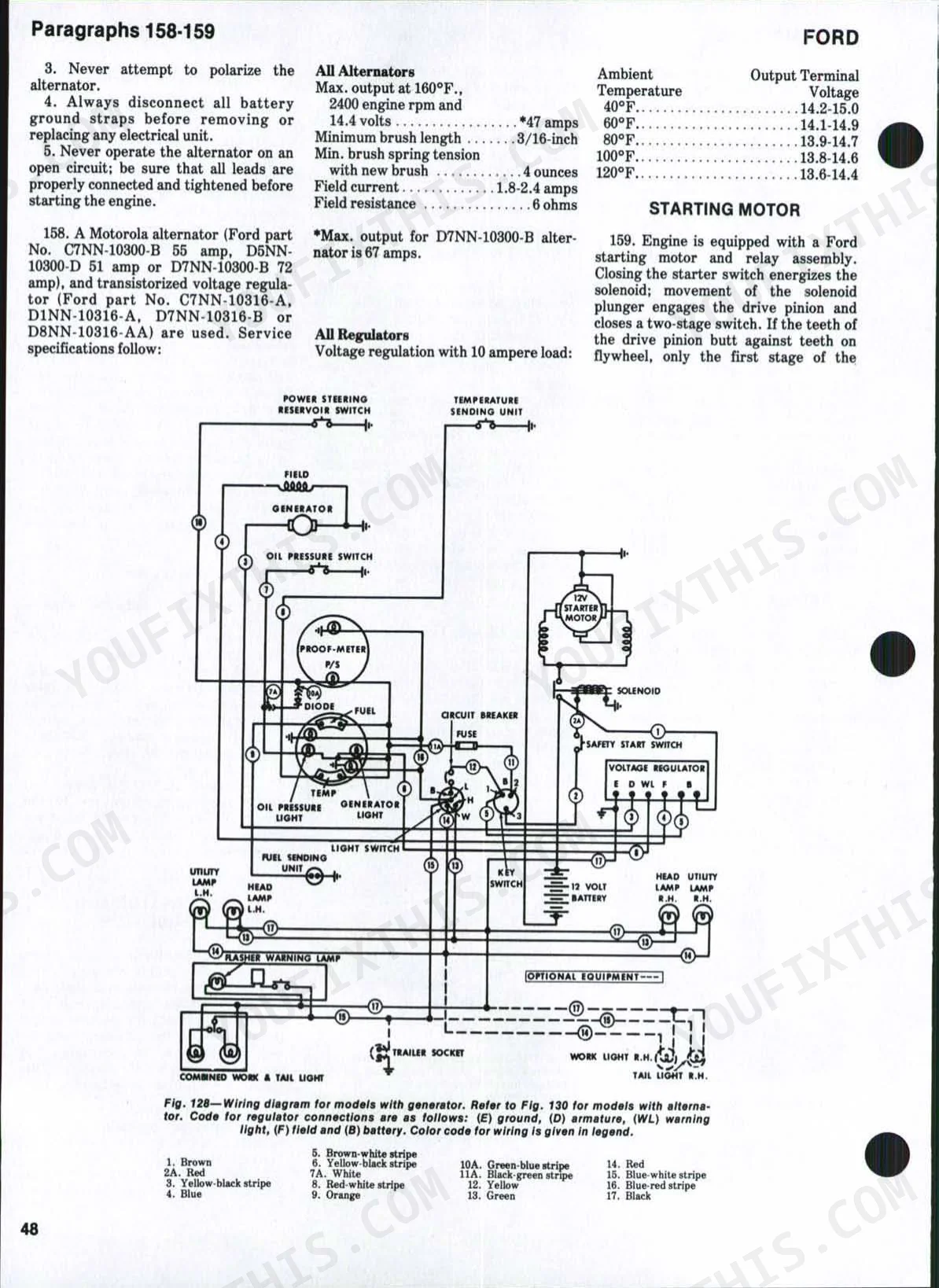

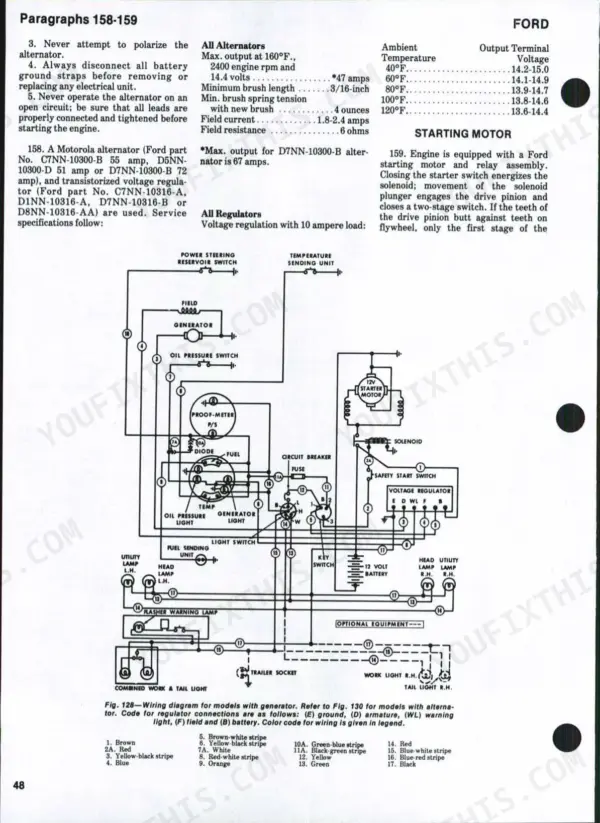

| Alternator Max. Output (D7NN-10300-B) | 67 amps | p. 47 |
| TW-10, TW-20 | ||
| Dual Power Hydraulic Oil Pressure | 185-220 psi | p. 52 |
| TW-30 | ||
| Transmission Lubricant Capacity | 92 quarts | p. 55 |
Ford 8000-9700 Series & TW-10/20/30 Common Problems This Manual Covers

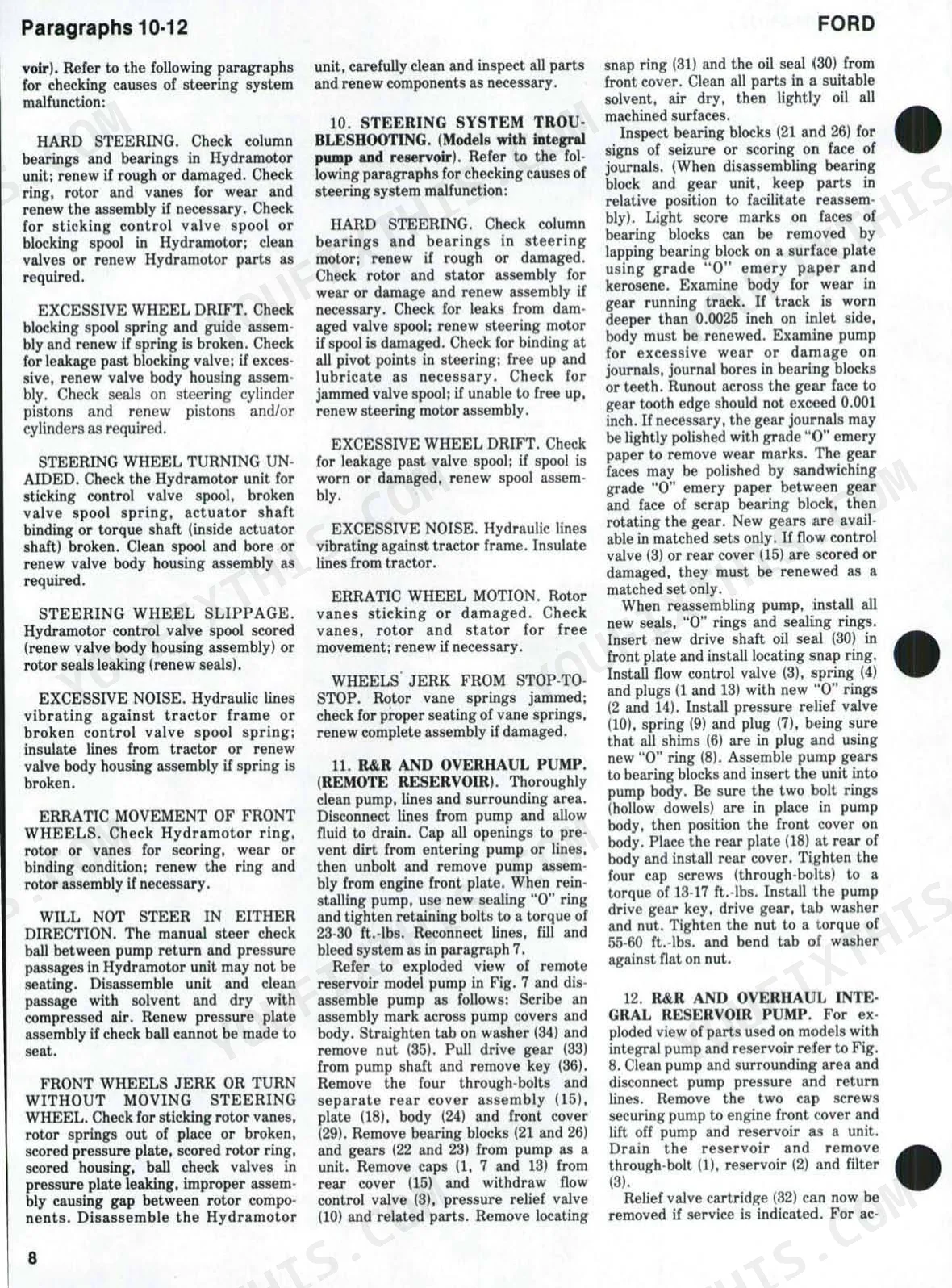

Ford TW-20 steering wheel turns unaided, front wheels jerk stop to stop without driver input
Check the power steering troubleshooting chart on page 7 first. Test relief pressure at 700 rpm; TW models should hold 2500-2600 psi. Pull the hydramotor and inspect the control valve spool for sticking or scoring, check the spool spring, and verify the check ball seats in the manual steer check. Replace scored spools.
Manual Section: Power Steering System Troubleshooting p. 7Engine cranks but won't start, or starts then dies after a few seconds
Bleed the fuel system at the filters and injection pump, then work through the no-start steps on pages 35-36. Check for air leaks on the suction side and confirm the lift pump delivers fuel. On 8000 through 9700 models, verify cranking compression of 380-480 psi at 200 rpm before condemning the injection pump.

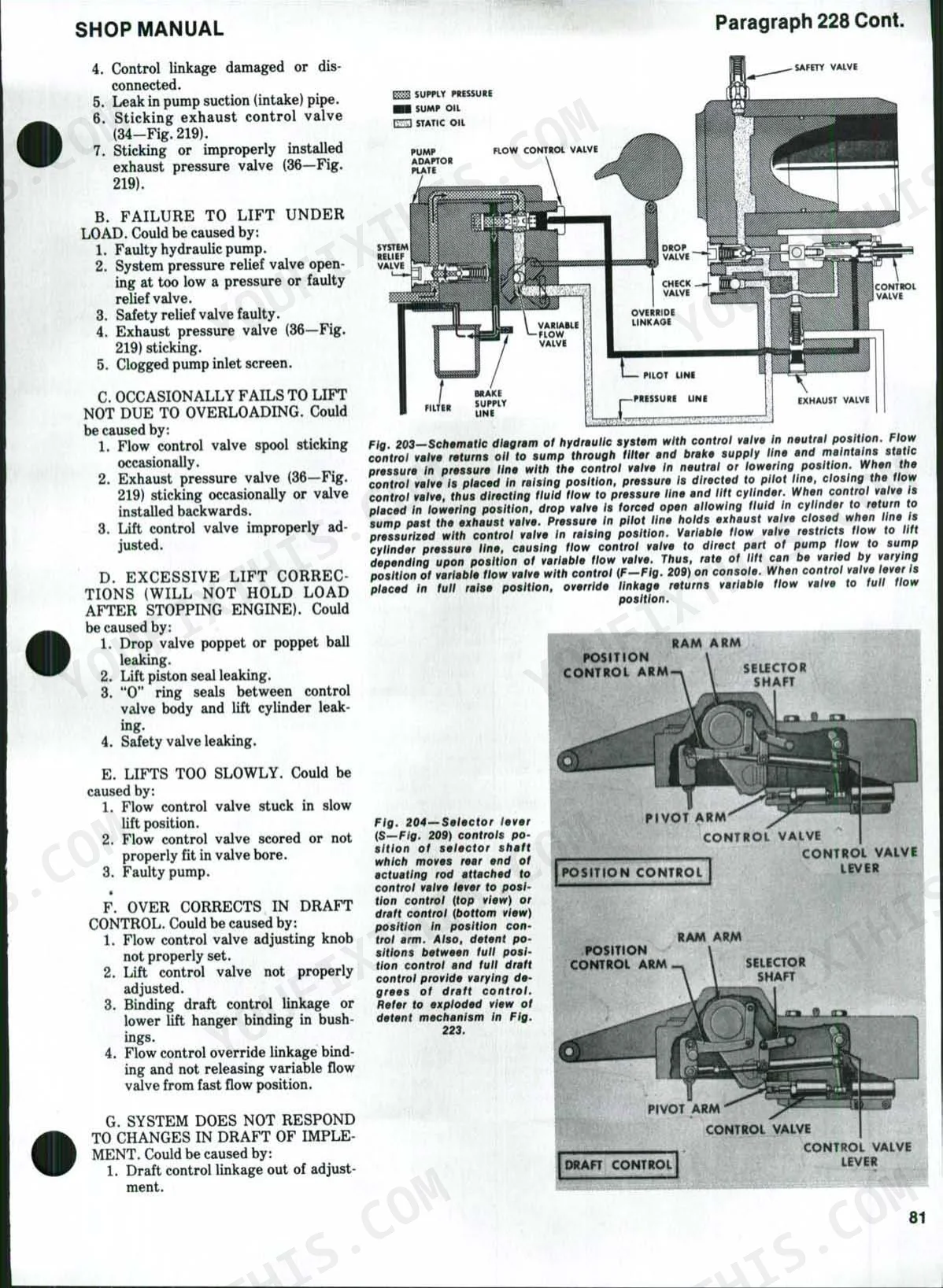

Manual Section: Diesel Fuel System Troubleshooting p. 35Three-point hitch fails to lift under load or raises implement too slowly when oil warms
Test hydraulic relief pressure at 700 rpm, closing the shut-off valve only long enough to read the gage. Adjust with 0.010 or 0.026 inch shims; never exceed 0.080 inch total pack thickness. Work through the lift troubleshooting steps on pages 79-80, then check flow control valve clearance of 0.0005-0.0011 inch covered on page 86.
Manual Section: Hydraulic Lift System Troubleshooting p. 79Dual Power unit won't shift into underdrive, or clutch slips under a heavy pull
Check Dual Power hydraulic oil pressure first; TW-10 and TW-20 models should show 185-220 psi (page 52). Verify control rod and linkage adjustment with the procedure on pages 52-53 before pulling the unit. If pressure and linkage check good, inspect the direct drive and underdrive clutch packs for worn or warped plates.
Manual Section: Dual Power System Troubleshooting p. 52PTO stalls under load, or keeps turning after the control lever is shifted off
Adjust the PTO brake band before tearing anything down: loosen the locknut, tighten the band adjusting screw to 9-11 in.-lbs., back it off 1 1/2 turns, then lock it (page 79). Check clutch control cable and linkage travel, then test PTO system pressure per the troubleshooting table on page 74. Replace worn clutch plates if pressure is good.
Manual Section: Power Take-Off System Troubleshooting p. 74Frequently Asked Questions
What are the torque specifications for Ford 9000 series engine bolts?
For cylinder head bolts, tighten 1/2-inch bolts or nuts to 110 ft.-lbs. using steps of 90 and 100 ft.-lbs., and 9/16-inch bolts to 160 ft.-lbs. using steps of 120 and 140 ft.-lbs. For engine to transmission bolts, tighten 5/8-inch bolts to a torque of 95-130 ft.-lbs. and 4-inch bolts to 180-220 ft.-lbs. p. 27
What are the replacement specifications for Hydramotor control valve spool?
The Hydramotor control valve spool is not serviced separately. If the spool is damaged or excessively worn, it is replaced as part of a complete housing kit or a new housing assembly, which includes necessary parts to rebuild the housing assembly. p. 9
What are the replacement specifications for Valve body housing assembly?
The valve body housing assembly is replaced as a complete unit if it is excessively worn, scored, or damaged, making the unit unfit for further service. The manual does not provide specific numerical replacement specifications for individual components of the assembly, but rather indicates replacement of the entire assembly. p. 11

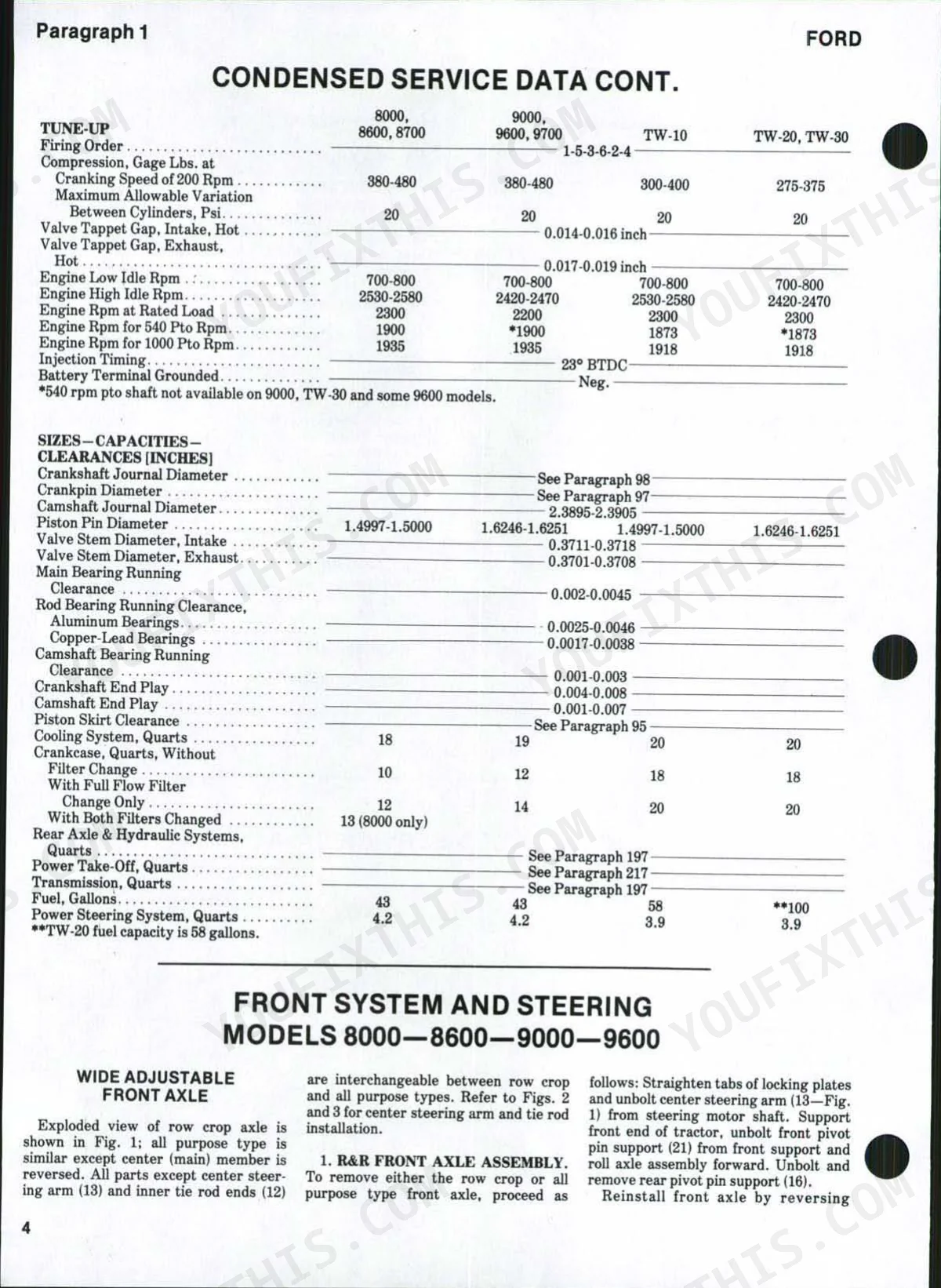

What is the crankcase oil capacity for Ford 8000, 8600, 8700, 9000, 9600, 9700, TW-10, TW-20, and TW-30 models?
For 8000, 8600, 8700 models, the crankcase capacity is 10 quarts without filter change, 12 quarts with full flow filter change only, and 13 quarts with both filters changed (8000 only). For 9000, 9600, 9700 models, it is 12 quarts without filter change and 14 quarts with full flow filter change only. For TW-10, TW-20, TW-30 models, it is 18 quarts without filter change and 20 quarts with full flow filter change only. p. 3
What are the valve tappet gap specifications for intake and exhaust valves on Ford 8000, 8600, 8700, 9000, 9600, 9700, TW-10, TW-20, and TW-30 models?
The valve tappet gap for intake valves (hot) is 0.014-0.016 inch for all models. The valve tappet gap for exhaust valves (hot) is 0.017-0.019 inch for all models. p. 3
What format is this manual in?
This is a 92-page scanned PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Ford 8000 & variants Shop Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
