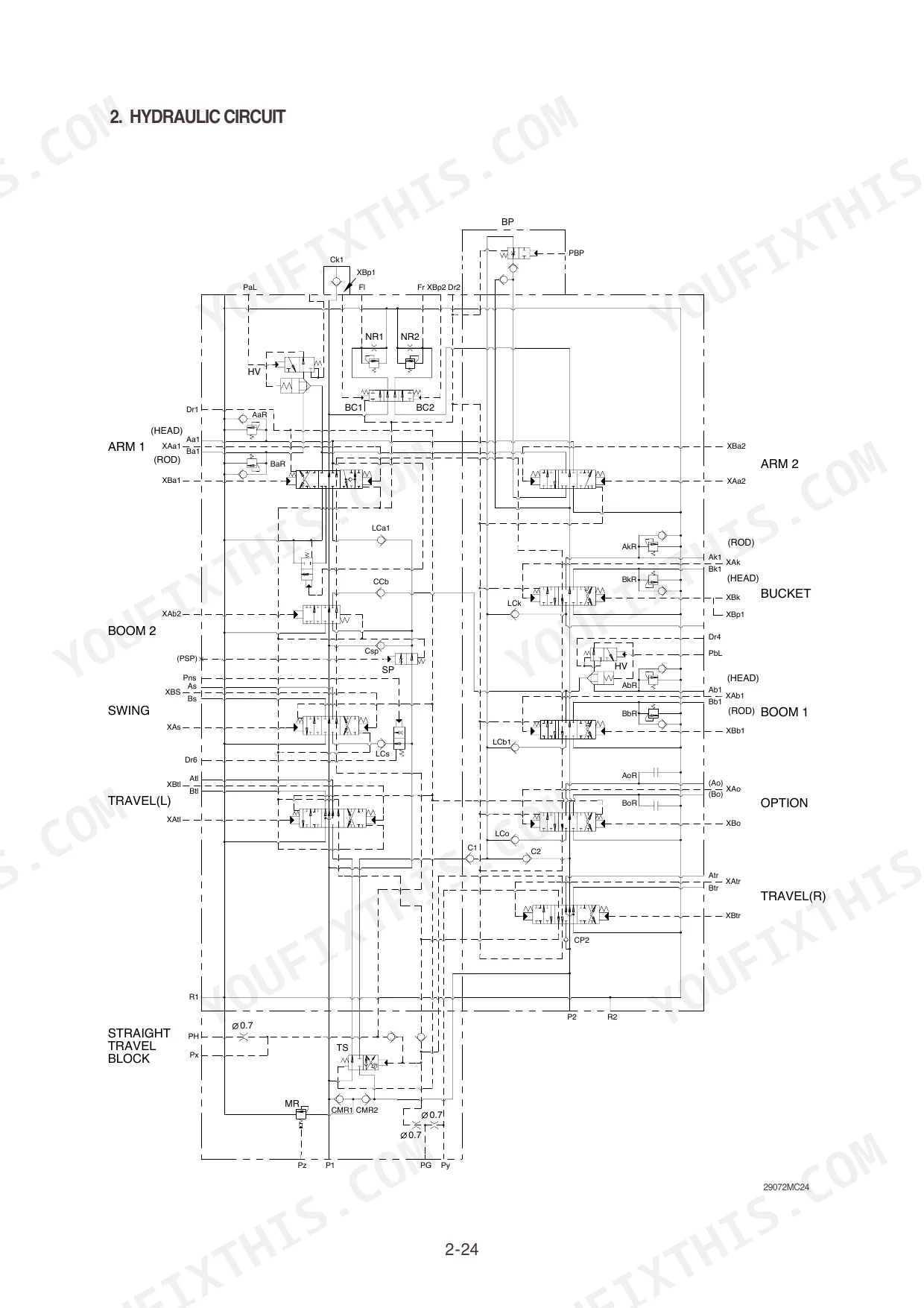

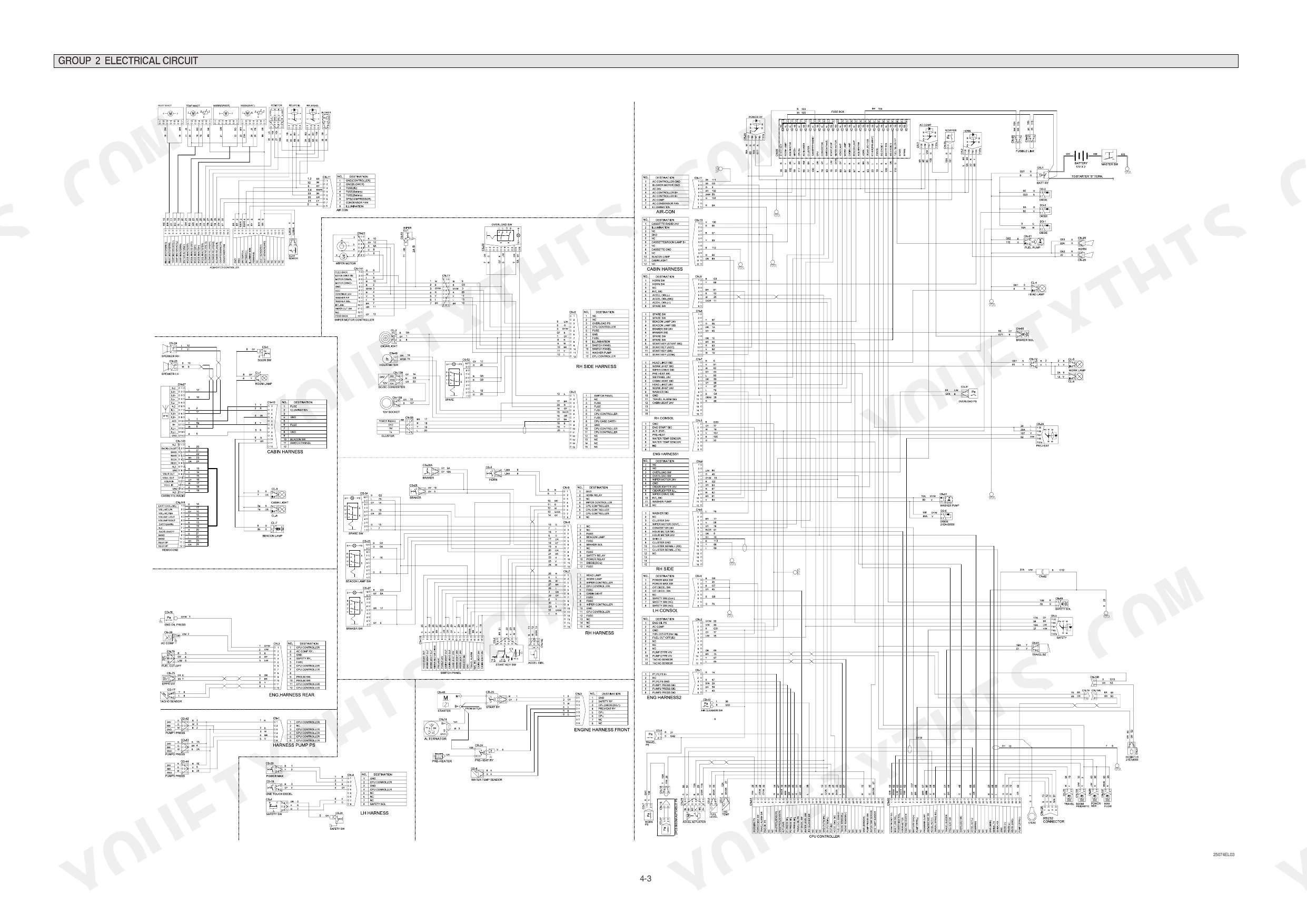

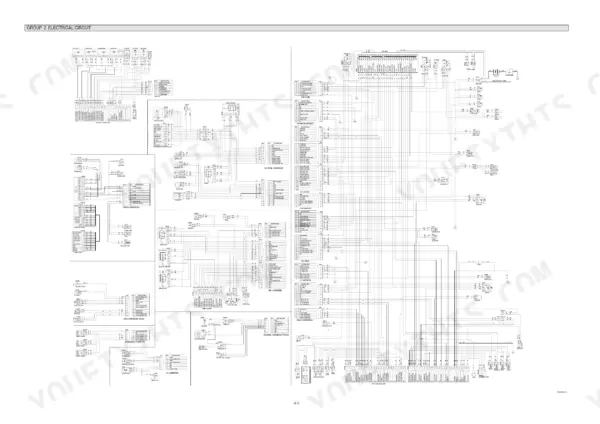

Need real factory data for your Hyundai R250LC-7 or R250NLC-7? This 520-page Hyundai R250LC-7, R250NLC-7 service manual PDF walks both Crawler Excavator variants from safety checks through work equipment teardown. You get full hydraulic schematics with component mounting details for the pump, control valves, and boom, arm, and bucket cylinders, plus wiring diagrams that trace every circuit on the machine. A fat troubleshooting section backs up error code references and torque tables for metric fasteners. Fill the hydraulic tank to 190 L (300 L total system), set the pilot relief valve at 35 kgf/cm2, and check the engine speed sensor at 300 ± 30 Ω before you condemn a harness. Tired of pressure-testing blind? Bookmarked with a full text layer: punch in a spec, jump straight to the page, and get your excavator digging again.
What's Inside This Hyundai R250LC-7, R250NLC-7 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction Guide | 506 | Bolt Specifications, Standard Torque Values, Metric Fasteners |
| Engine System | 507 | Engine Mounting, Radiator Mounting, Coupling Mounting, Air Cleaner, Accel Actuator |
| Cooling System and Fuel Tank Mounting | 508 | Water Separator, Air Compressor, Receiver Drier, Oil Cooler, Reservoir Tank, Fan Guard |
| Electric System | 509-510 | Electric Components Mounting 1, Electric Components Mounting 2 |
| Hydraulic System | 511-513 | Hydraulic Components Mounting 1, Hydraulic Components Mounting 2, Hydraulic Components Mounting 3 |
| Undercarriage | 514-515 | Undercarriage Mounting, Undercarriage Mounting High Walker |
| Structure | 516-519 | Cab and Accessories Mounting, Cab Interior Mounting, Cowling Mounting, Counterweight and Covers Mounting |
| Work Equipment | 520 | Arm Cylinder, Bucket Cylinder, Boom Cylinder, Bucket Control Link, Side Cutter |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Hydraulic tank capacity | 190 L (50.2 U.S. gal) | p. 29 |
| Hydraulic system capacity | 300 L (79.3 U.S. gal) | p. 29 |
| Bypass relief valve opening pressure | 1.5kgf/cm2 (21psi) | p. 130 |
| Pilot relief valve setting pressure | 35kgf/cm2 | p. 132 |
| Engine speed sensor resistance | 300 ± 30 Ω | p. 226 |
| Track shoe mounting bolt, nut | 78 ± 8.0 kgf·m (564 ± 57.8 lbf·ft) | p. 344 |
| Tightening torque for M20 x 2.5 (Item 3) | 57.9 ± 8.7 kgf·m (419 ± 62.9 lbf·ft) | p. 520 |
| Tightening torque for M22 x 2.5 (Item 4) | 81.9 ± 16.1 kgf·m (592 ± 116 lbf·ft) | p. 520 |
| Engine oil quantity | 24 L | p. 25 |
| Fuel tank capacity | 340 L | p. 29 |

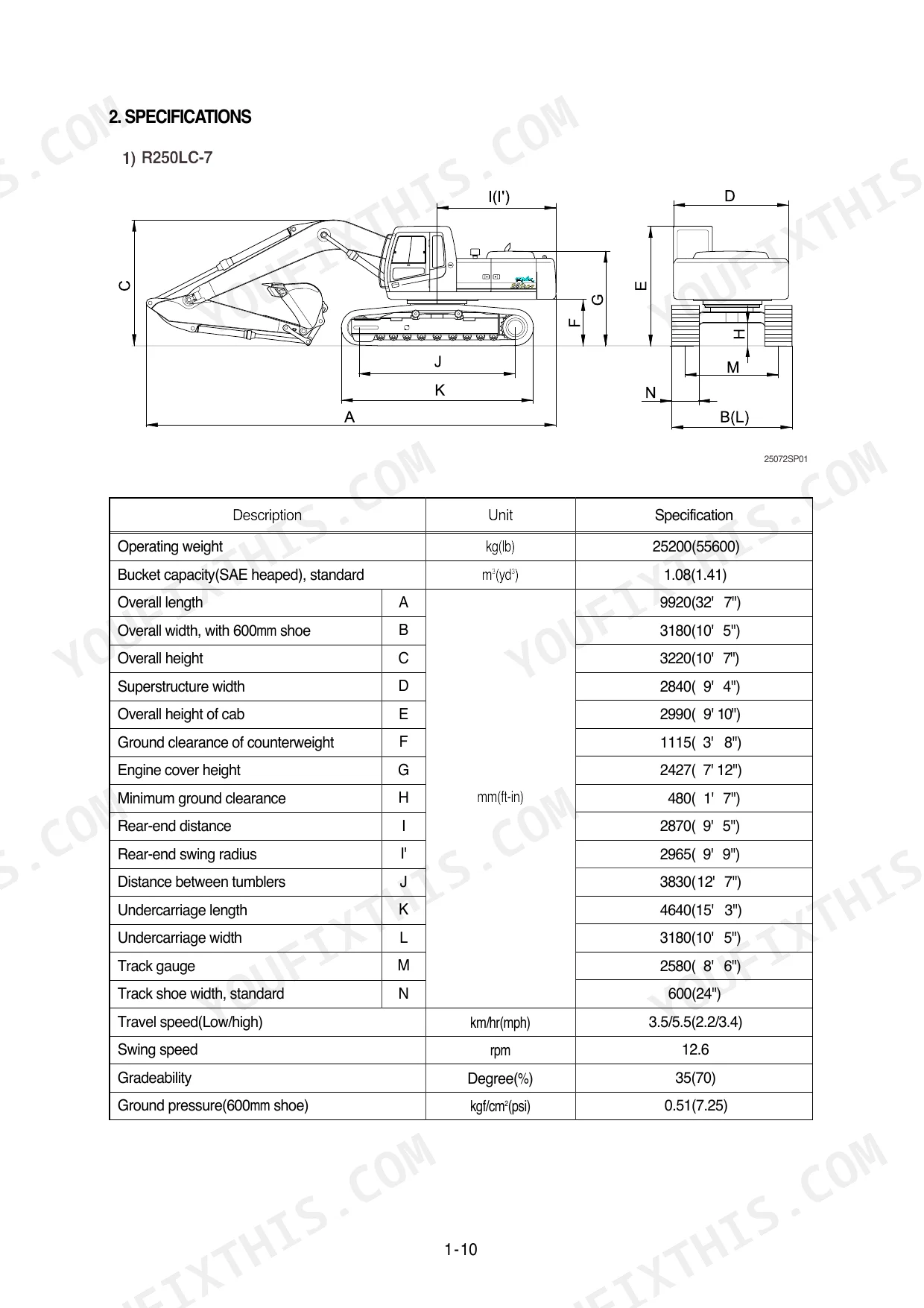

| R250LC-7 | ||
| Operating weight | 25200 kg | p. 11 |
| R250NLC-7 | ||
| Operating weight | 25100 kg | p. 12 |

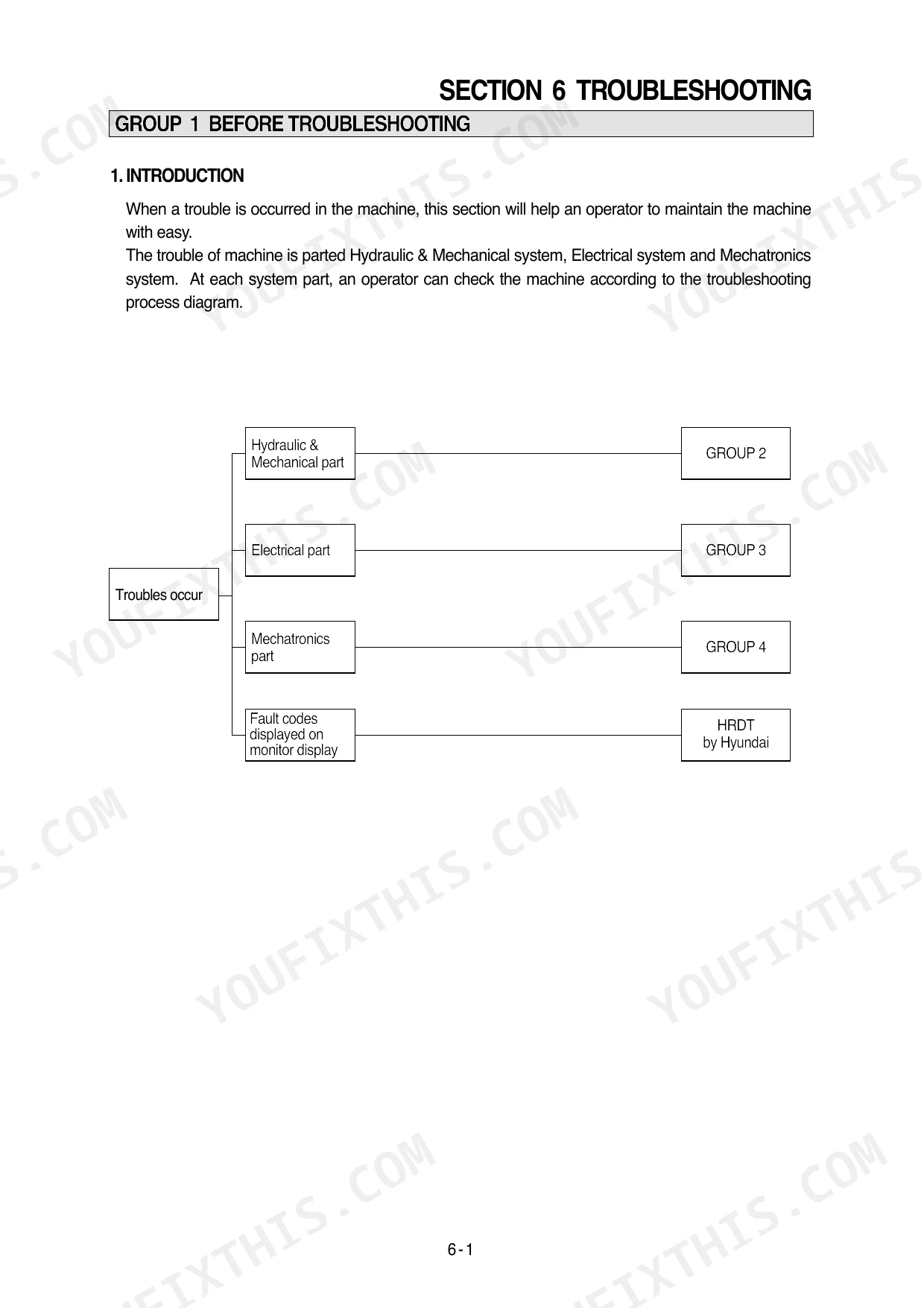

Hyundai R250LC-7, R250NLC-7 Common Problems This Manual Covers
Hyundai R250LC-7 hydraulics slow and jerky, oil running hot, pump whines under load
Drain and replace the hydraulic oil if it looks cloudy or smells burnt; total system capacity is 300 L (79.3 U.S. gal). Replace the return filter at the same time; a clogged element opens the bypass relief at 1.5 kgf/cm2 (21 psi), spec on page 130, and dumps unfiltered oil back into the tank.
Manual Section: Hydraulic and Mechanical System Troubleshooting p. 130Engine cranks but won't fire, rough idle and power fade after fuel filter change
Replace both fuel filters and drain the water separator, mounting shown on page 508. Bleed the system until fuel runs bubble-free at the injection pump. If the machine sat parked half-empty, inspect the 340 L fuel tank for water and algae; condensation loves a partly filled tank in cold weather.
Manual Section: Cooling System and Fuel Tank Mounting p. 508Starter clicks once or engine cranks slowly, no-start comes and goes on cold mornings
Load-test the battery and clean both cable ends; a corroded terminal drops enough voltage to mimic a dead starter. Check the ground strap from frame to engine block, then trace the start circuit on the wiring diagram. Test the engine speed sensor too; resistance should read 300 ± 30 ohms.
Manual Section: Electrical System Troubleshooting p. 226Boom drifts down and functions feel spongy after cylinder reseal or hose replacement
Verify oil level in the 190 L (50.2 U.S. gal) hydraulic tank, then cycle each cylinder slowly to both stroke ends several times at low idle to purge trapped air. Follow the service procedures starting before loading the machine. Recheck tank level after purging; escaped air means the level drops.
Manual Section: Hydraulic and Mechanical System Troubleshooting p. 29Coolant temperature gauge climbs into the red during long trenching passes in summer heat
Clean the radiator and oil cooler cores with low-pressure air, working from the fan side out; the mounting layout is on page 508. Verify coolant level in the reservoir when cold and pressure-test the cap. Watch the hydraulic side as well; the hydraulic oil temperature warning trips at the threshold given in the electrical component specification.
Manual Section: Cooling System and Fuel Tank Mounting p. 508Frequently Asked Questions

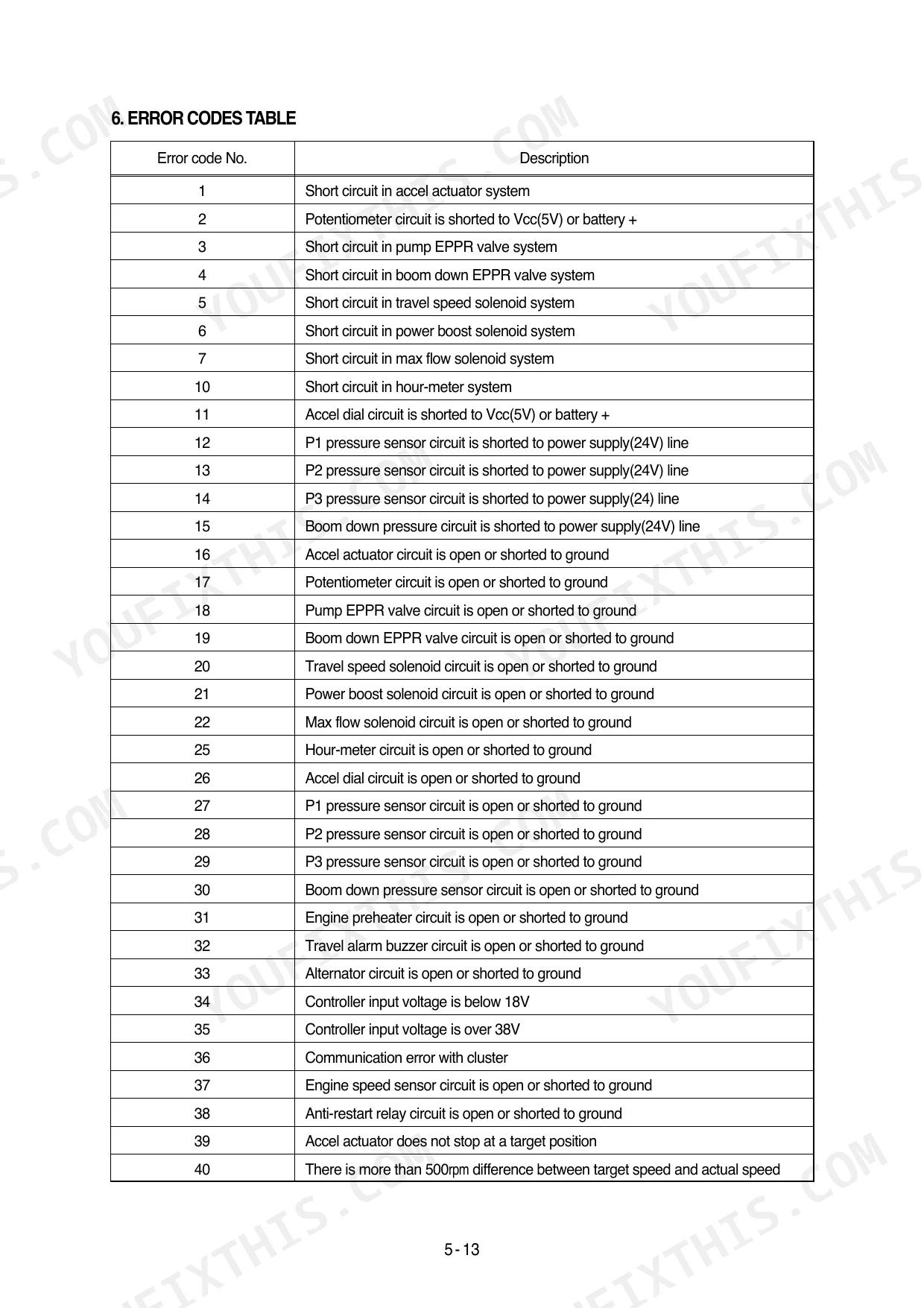

How do I reset the recorded error codes on the Hyundai R250LC-7?
To delete all recorded error codes, select the recorded error (TIME Er) display on the cluster. Then, press the engine and select switch at the same time for 2 seconds or more. The cluster display will change to 'TIME Er : 00', indicating that all recorded error codes have been deleted from the CPU controller memory. p. 218

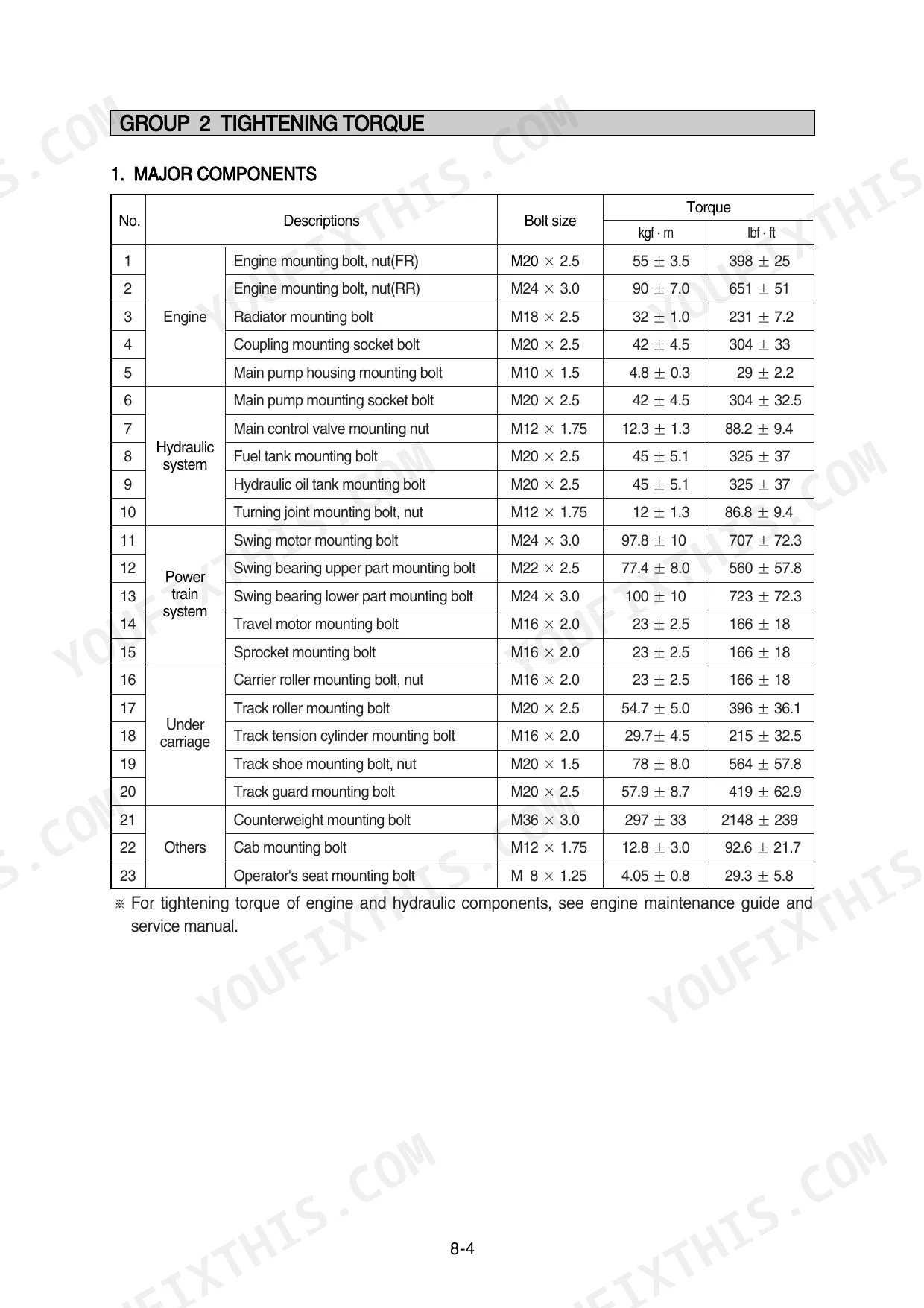

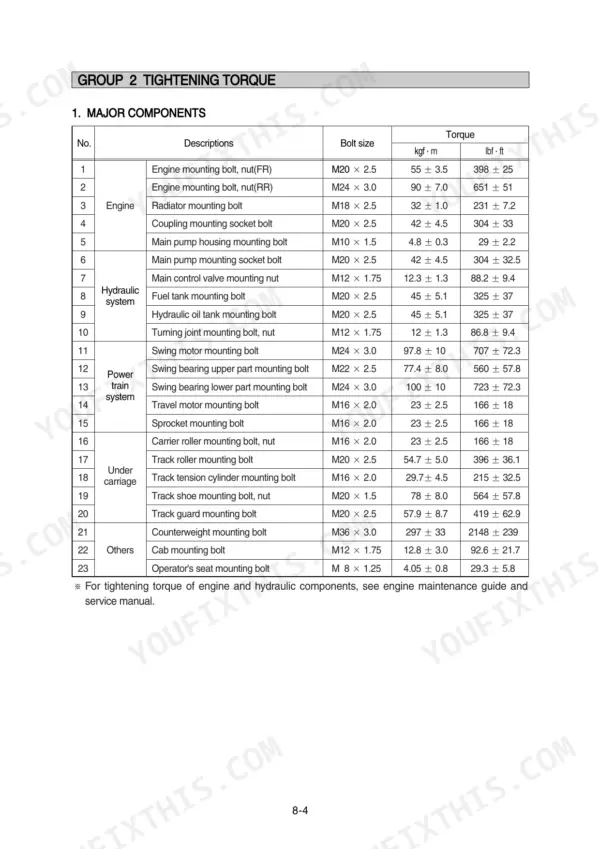

What is the torque specification for the track shoe mounting bolts on a Hyundai R250LC-7?
The tightening torque for the track shoe mounting bolt and nut (M20 x 1.5) on the Hyundai R250LC-7 is 78 ± 8.0 kgf·m (564 ± 57.8 lbf·ft). p. 343
What is the replacement specification for the hydraulic oil in the hydraulic tank?
The hydraulic tank capacity is 190 liters (50.2 U.S. gal) for the tank itself, and the total system capacity is 300 liters (79.3 U.S. gal). p. 29
What is the tightening torque for the main pump mounting socket bolts?
The tightening torque for the main pump mounting socket bolts (M20 x 2.5) is 42 ± 4.5 kgf·m (304 ± 32.5 lbf·ft). p. 343

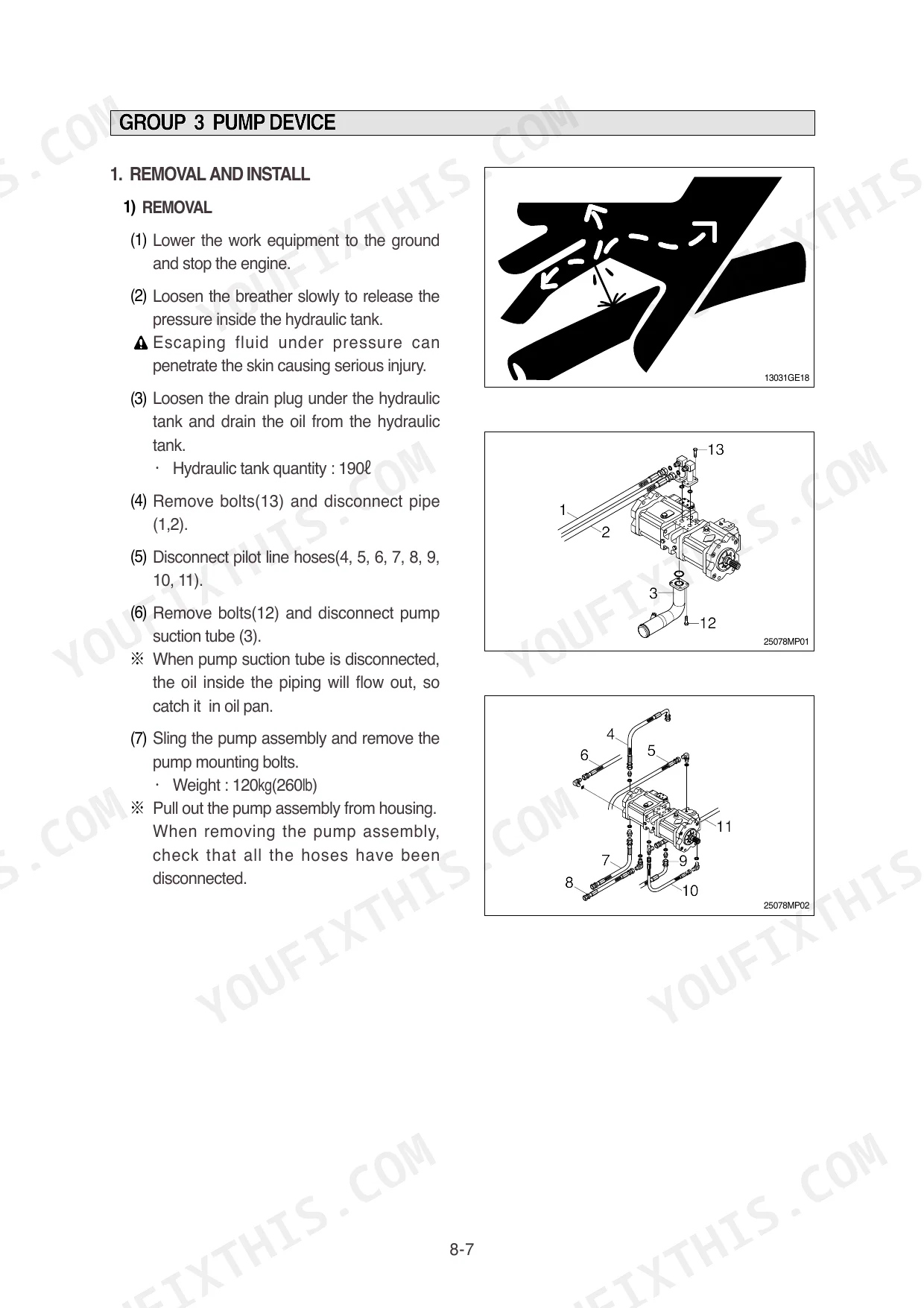

How do I bleed the air from the hydraulic pump after installation?
After installing the pump, remove the air vent plug (2EA), tighten it lightly, start the engine at low idling, and check for oil coming out of the plug. Once oil flows, tighten the plug fully. p. 347
What exactly do I receive with this Hyundai R250LC-7 Service Manual?
One searchable PDF covering 520 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Am I free to print this Hyundai R250LC-7 Service Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
