Part of the Hyundai Repair Manuals.

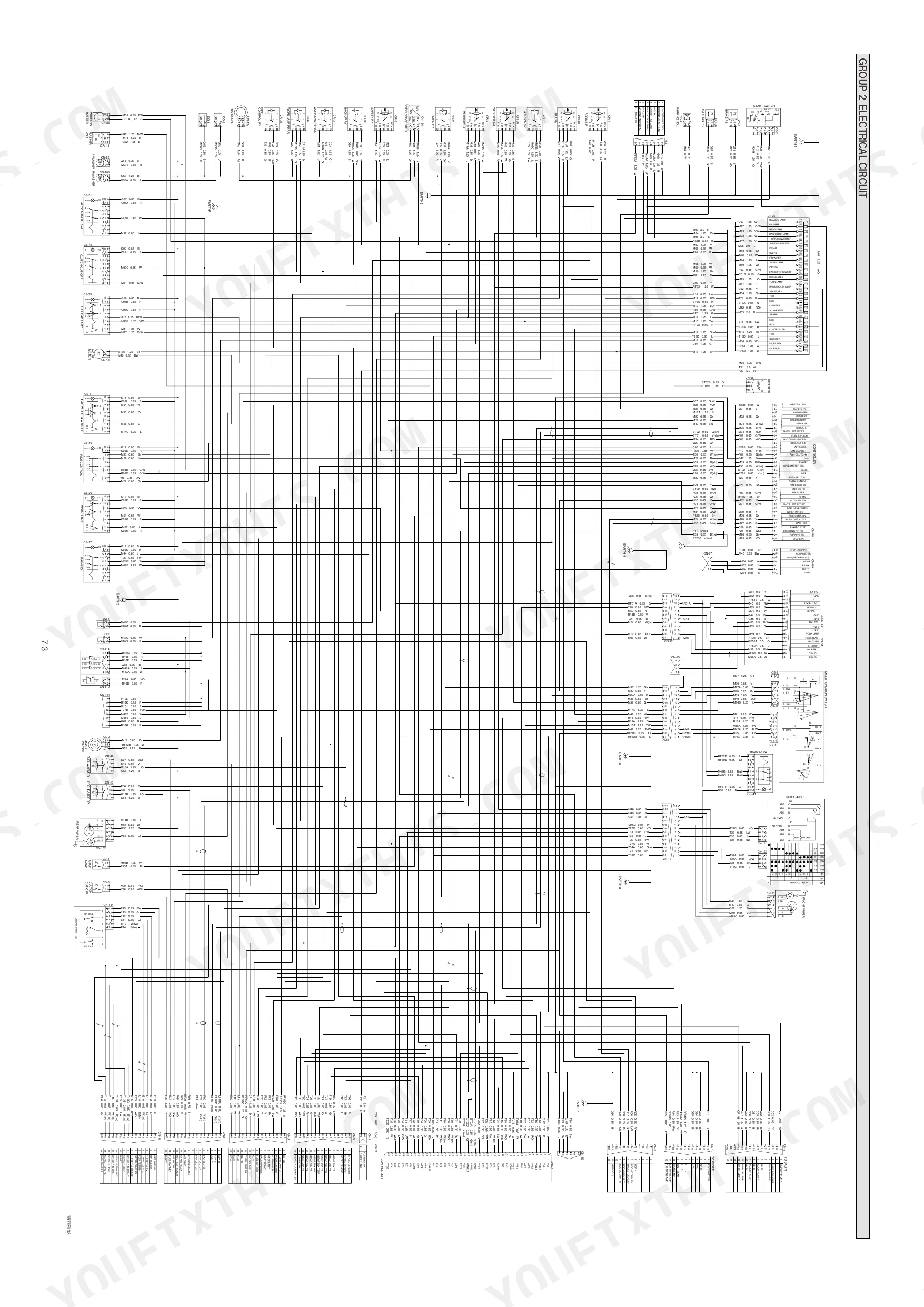

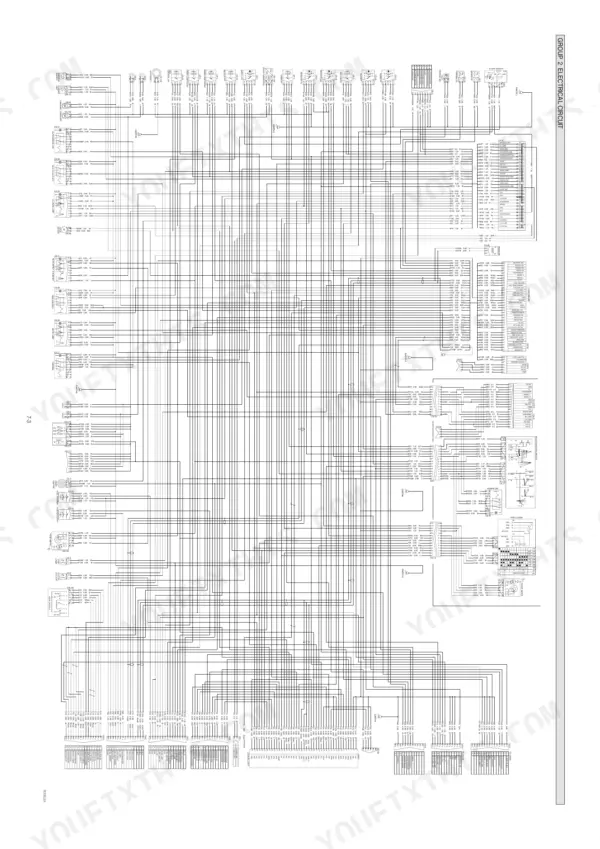

Looking for the Hyundai HL757-7 service manual PDF your dealer won't sell you? All 468 pages cover the wheel loader front to back: power train, brakes, steering, work equipment, and the full electrical system. Inside you get factory wiring diagrams with component locations, hydraulic schematics with complete circuit routing, error code tables, and a full troubleshooting section with operational checks for every system. Page after page of step-by-step procedures walk you through teardown and reassembly the way Hyundai's own techs do it. Torque the transmission mounting bolts to 100 kgf·m, set the engine mounting bolts at 57.9 kgf·m, and fill the crankcase with its full 16L before startup. No more tracing electrical gremlins with a multimeter and a prayer. Bookmarked PDF that opens on any device; search any spec by keyword and get back to wrenching.

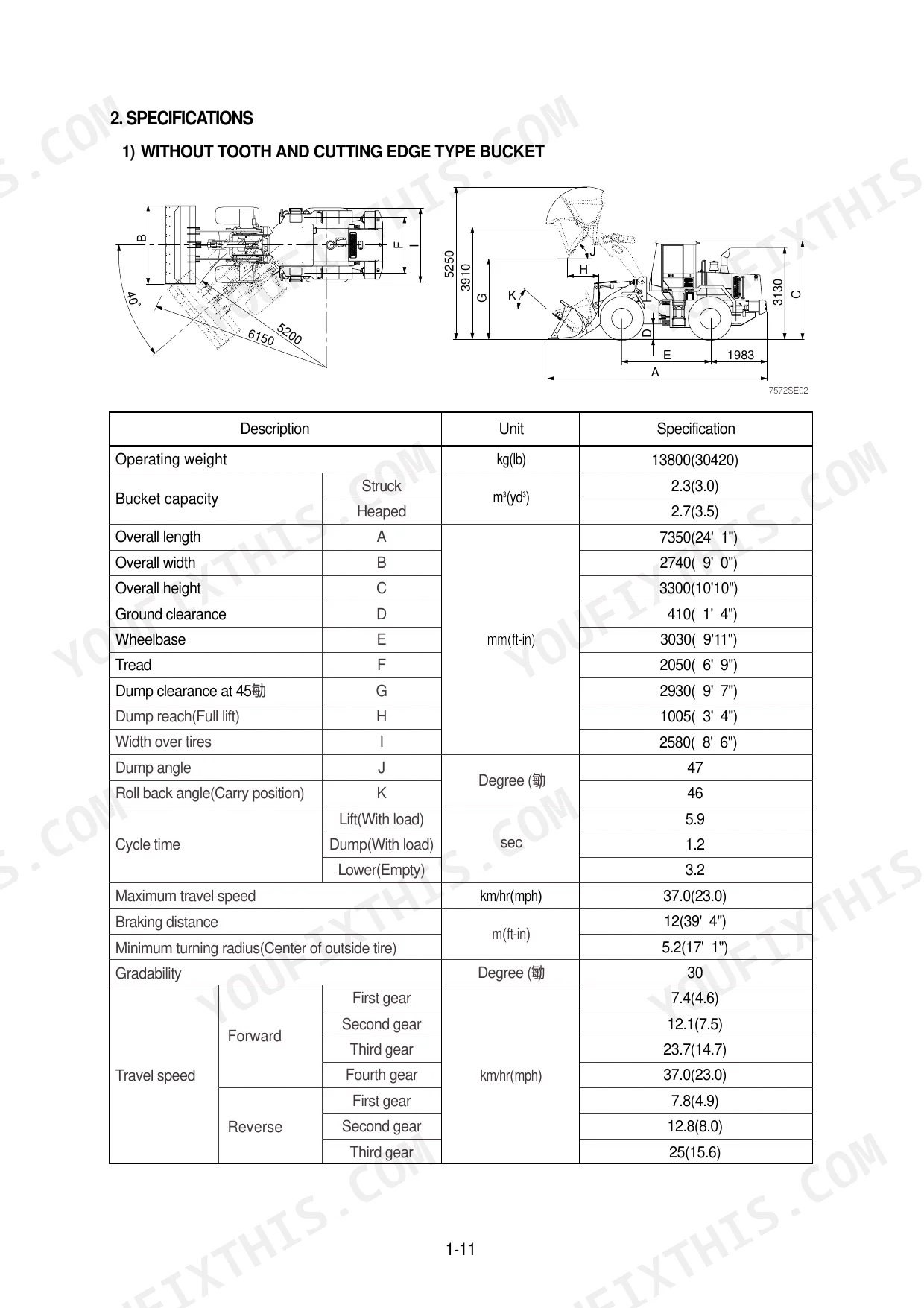

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Tightening torque for Engine mounting bolt(2EA) | 57.9±8.7 kgf·m | p. 18 |
| Tightening torque for Transmission mounting bolt | 100±15 kgf·m | p. 18 |
| Engine oil capacity | 16 L | p. 15 |
| Engine Oil Quantity | 16 L | p. 16 |
| Engine High Idling Speed | 2330 rpm | p. 16 |
| Engine Low Idling Speed | 950 rpm | p. 16 |
| Main Relief Valve Pressure | 210 kgf/cm2 | p. 17 |
| Transmission Oil Capacity | 43 L | p. 22 |
| Hydraulic Oil Filter Replacement Interval | 250 hours | p. 363 |
| Boom Cylinder Drift Limit | 60 mm | p. 339 |
| Bucket Cylinder Drift Limit | 75 mm | p. 339 |
Hyundai HL757-7 Common Problems This Manual Covers

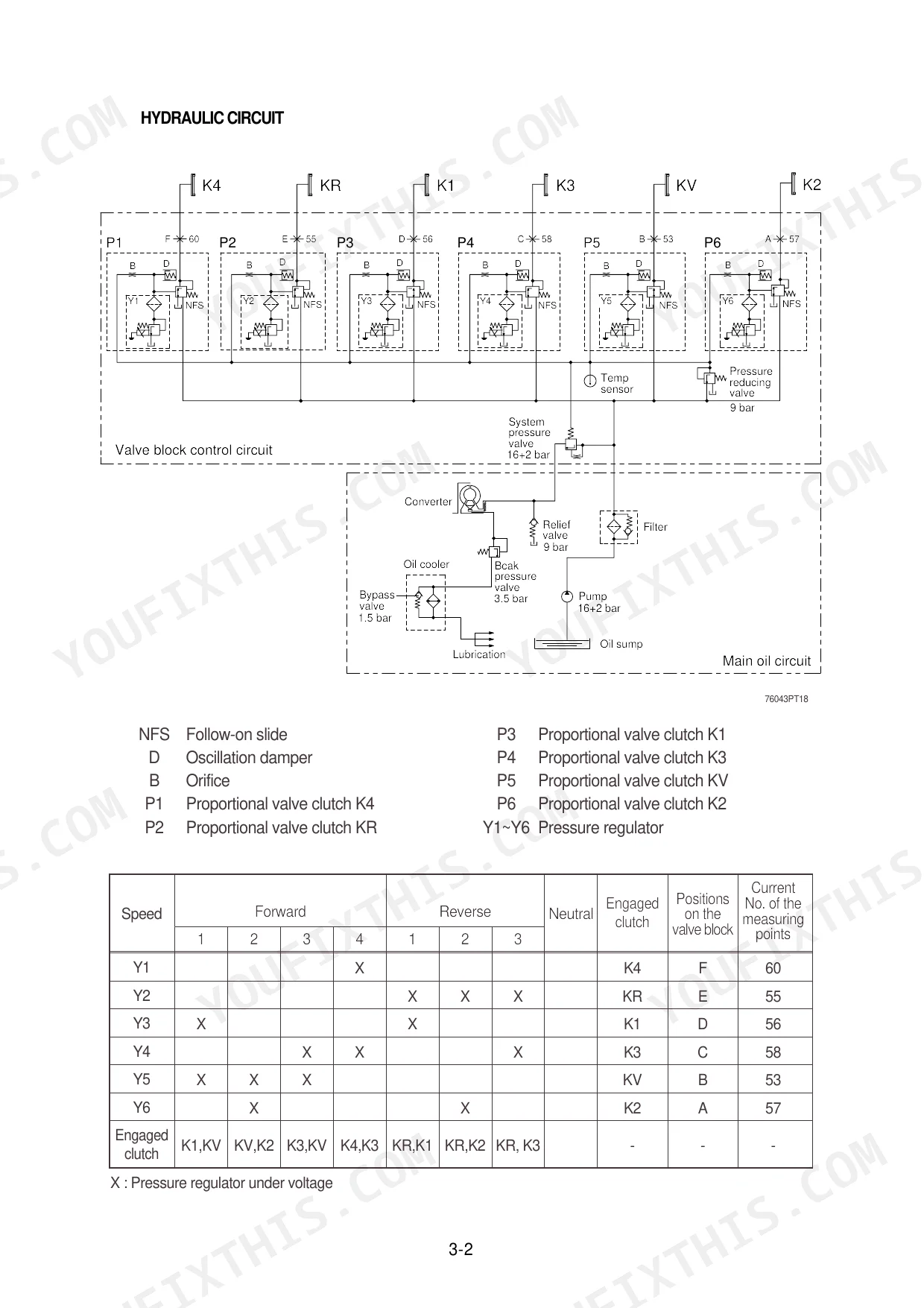

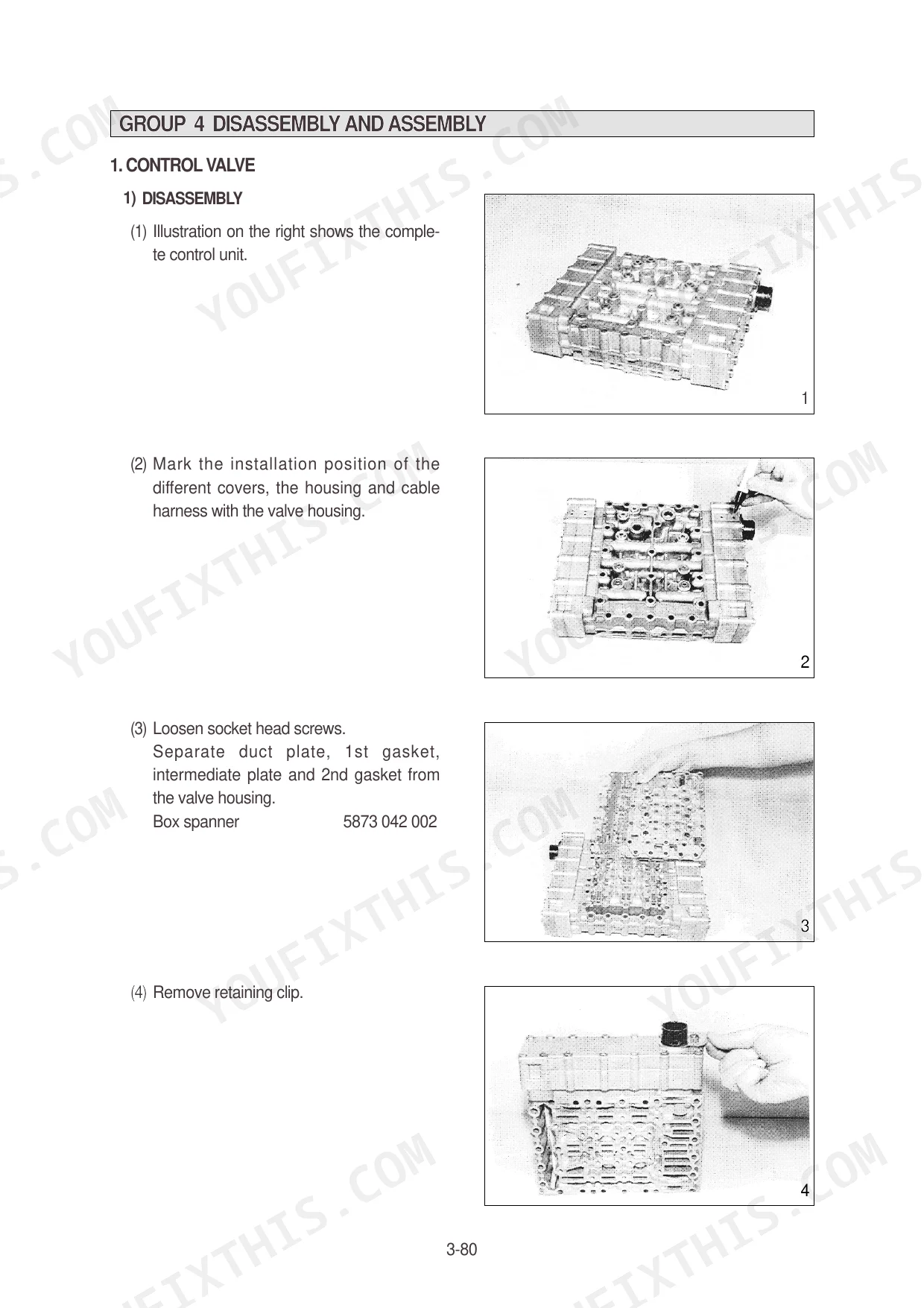

Hyundai HL757-7 transmission slips under load, machine will not move in any gear

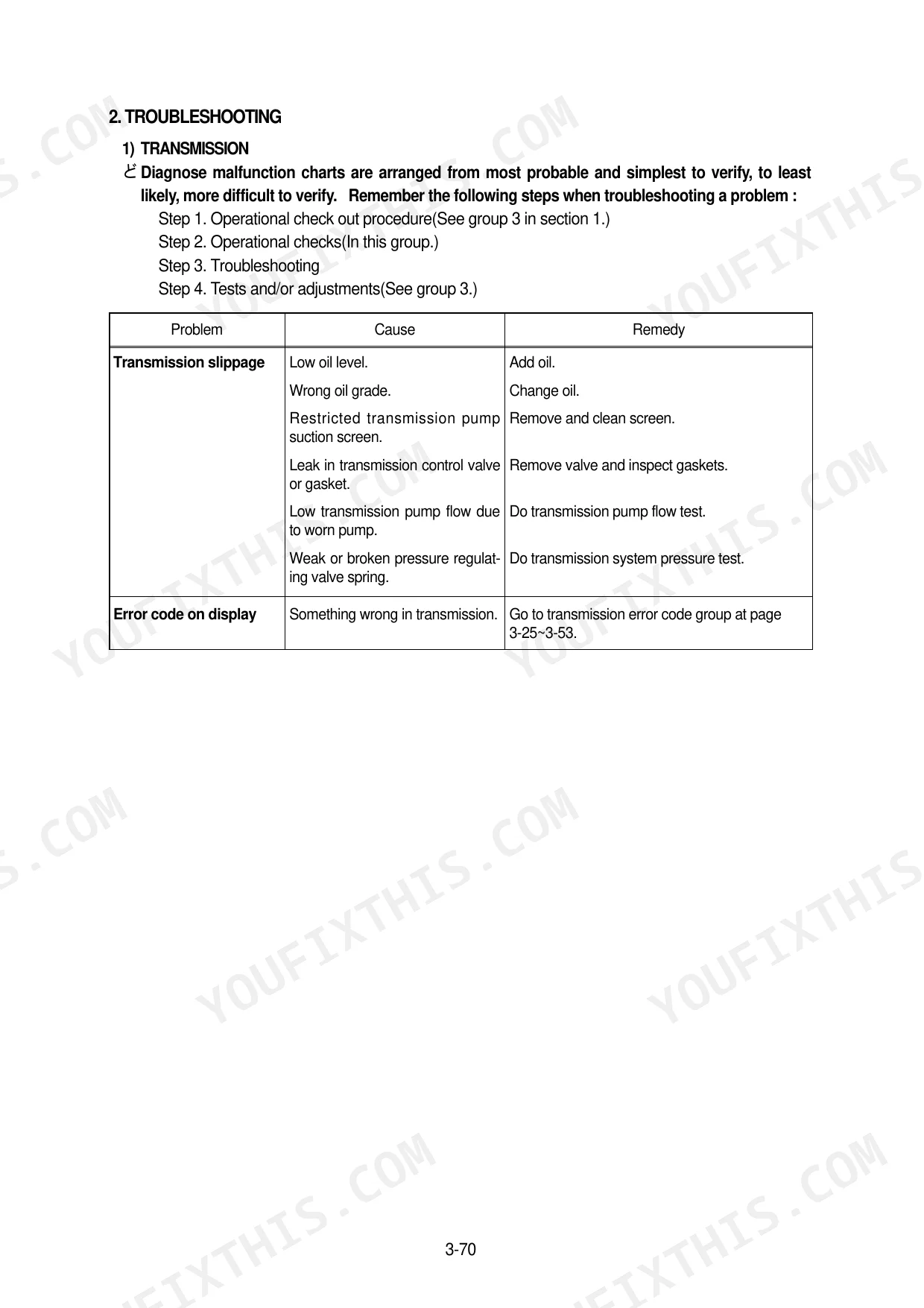

Check transmission oil level first; the system holds 43 L, and low fluid mimics clutch failure. Verify clutch pressures with the troubleshooting procedures starting, working through the slippage and no-move charts in order. If pressures check out, pull the error code reference before splitting anything open.
Manual Section: Transmission TroubleshootingBoom drifts down overnight and bucket dumps slowly with the engine shut off
Measure drift with the bucket loaded and the boom horizontal. Spec on page 339 allows 60 mm of boom cylinder drift and 75 mm of bucket cylinder drift over the test period; anything beyond that means leaking cylinder piston seals or a worn control valve spool. Repair the worst offender first, then retest.
Manual Section: Work Equipment Troubleshooting p. 339Hydraulic functions slow and jerky, oil foaming in the tank after long shifts
Check the hydraulic tank level and look for milky, foamy oil; an air leak on the pump suction side produces both symptoms. Replace the hydraulic oil filter if it has more than 250 hours on it, per the interval on page 363, then test main relief pressure against the 210 kgf/cm2 setting listed on page 17.
Manual Section: Work Equipment Troubleshooting p. 363Steering feels heavy and slow to respond, worse at low engine idle
Check hydraulic oil level and condition before touching the steering unit. Verify low idle sits at 950 rpm; a lazy engine makes steering feel worse than it is. Work through the steering system section starting on page 241, testing for binding, kick-back, and slow response, and inspect the steering cylinder pins for wear.
Manual Section: Steering System Troubleshooting p. 241Engine cranks slowly, cluster warning lamps flicker, starting switch sometimes does nothing
Test battery voltage under load before replacing anything. Clean and tighten the ground connections at the frame and starter, then trace the starting switch circuit on the wiring diagram. Once running, confirm low idle holds 950 rpm and high idle reaches 2330 rpm; erratic speeds point to a supply fault.
Manual Section: Electrical System TroubleshootingFrequently Asked Questions
What are the torque specifications for the engine mounting bolts on the Hyundai HL757-7?

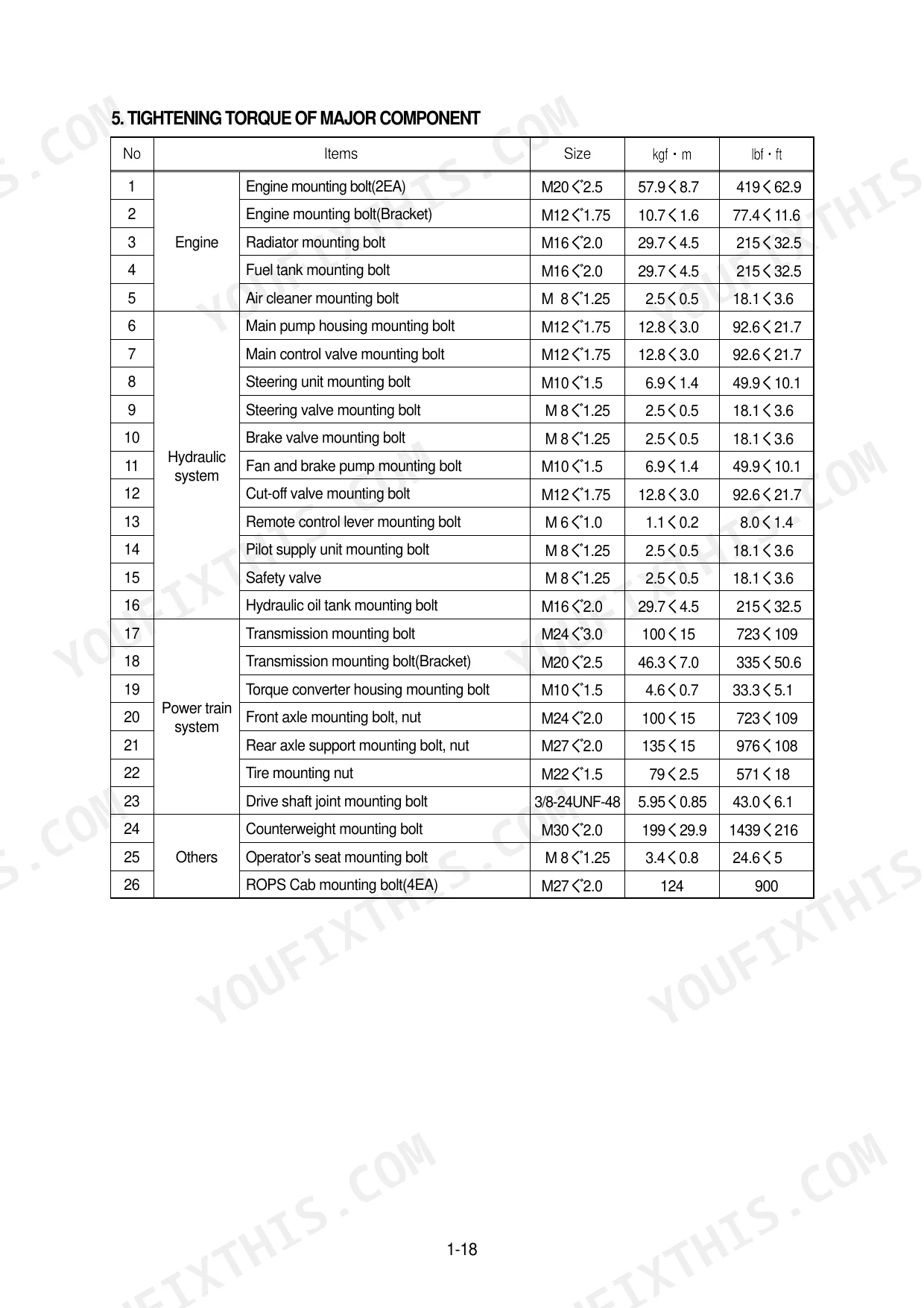

The torque specification for the engine mounting bolts (2EA) is 57.9 ± 8.7 kgf·m (419 ± 62.9 lbf·ft). For the engine mounting bolts on the bracket, the torque is 10.7 ± 1.6 kgf·m (77.4 ± 11.6 lbf·ft). p. 19
What is the recommended engine oil capacity for the Hyundai HL757-7?
The engine oil pan capacity for the Hyundai HL757-7 is 16 liters (4.2 U.S. gallons). p. 16

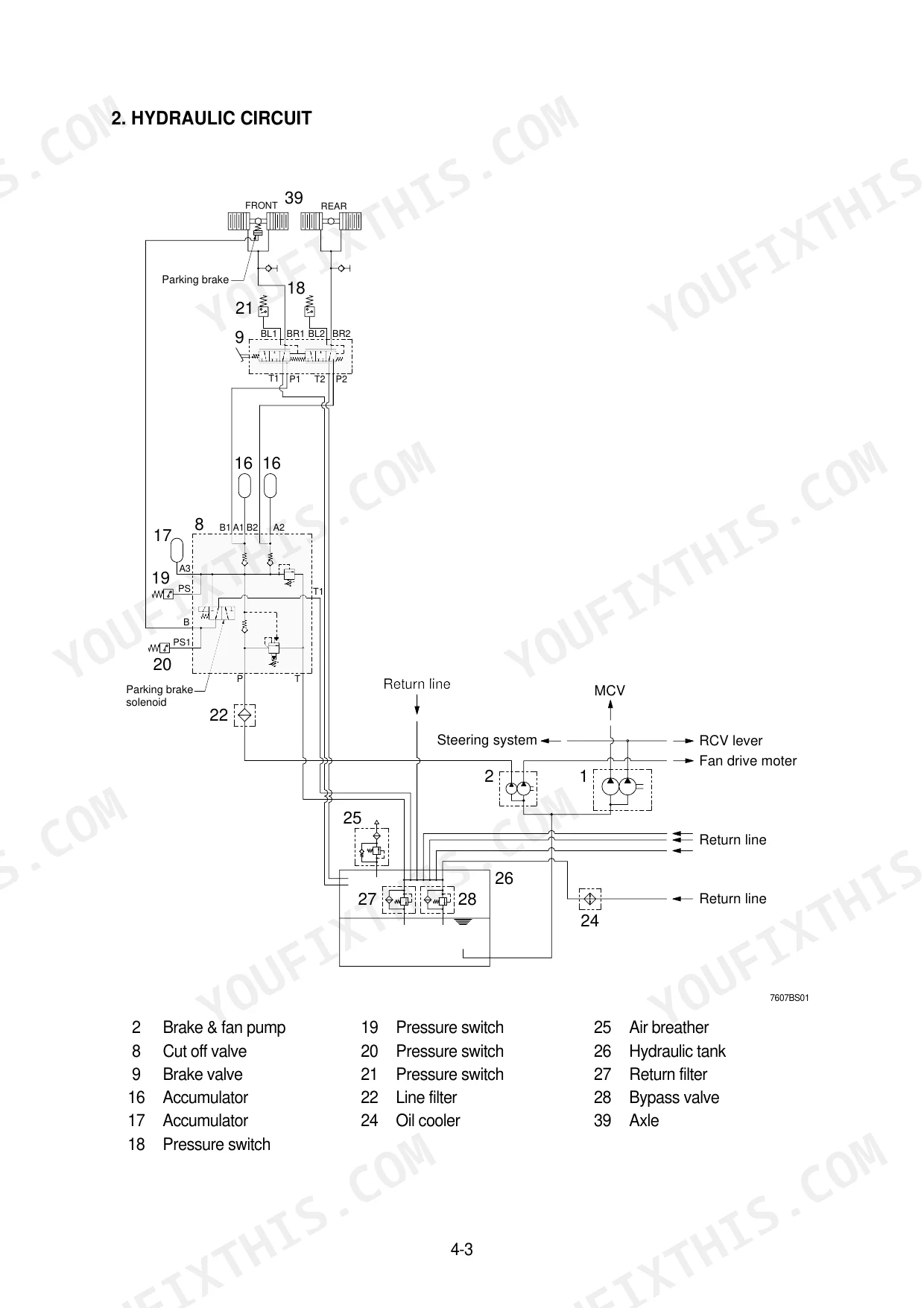

What is the procedure for bleeding the hydraulic brake system on the Hyundai HL757-7?
Bleeding the brake system requires two people. Connect a clear plastic tube to the bleed screw (B) and route it to the hydraulic reservoir filler tube or container (A). Run the engine at low idle, push and hold the brake pedal, then open the bleed screw on the differential and axle assembly until oil flows free of air. Repeat this for each bleed screw. p. 234
What is the standard clearance for the bucket rollback circuit relief valve check?
The standard clearance for the bucket rollback circuit relief valve check is not explicitly defined as a clearance, but the bucket must be positioned at a 45-degree angle against an immovable object. The bucket angle must not change when the transmission is engaged in 3rd speed forward. p. 339
What is the maximum leakage specification for the steering unit leakage test?
The maximum leakage specification for the steering unit leakage test is 7.5 liters per minute (2 gpm) at an oil temperature of 45±5°C (113±9°F) and high idle engine speed. p. 268
How quickly can I access this Hyundai HL757-7 manual after buying?
Instant PDF download. You get the full 468-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this Hyundai HL757-7 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
