Need factory data for your Hyundai R210LC-7? This 644-page Hyundai R210LC-7 service manual PDF covers the crawler excavator in all three builds: standard, Long Reach, and High Walker. Open to full electrical circuit diagrams with connector pinouts, complete hydraulic schematics from main circuit through pilot and combined operation, and a heavy troubleshooting section for hydraulic, electrical, and mechatronics faults. You also get step-by-step disassembly and assembly for the pump device, main control valve, swing and travel motors, and cylinders, plus an entire chapter of component mounting torques. Confirm the batteries read 2 x 12V x 100Ah, check the 24V-5.5kW starting motor, and set the bypass relief valve to open at 1.5 kgf/cm2. Chasing a pilot pressure fault without a schematic wastes your whole afternoon. A live text layer puts the right spec on your screen in seconds.
What's Inside This Hyundai R210LC-7 Manual

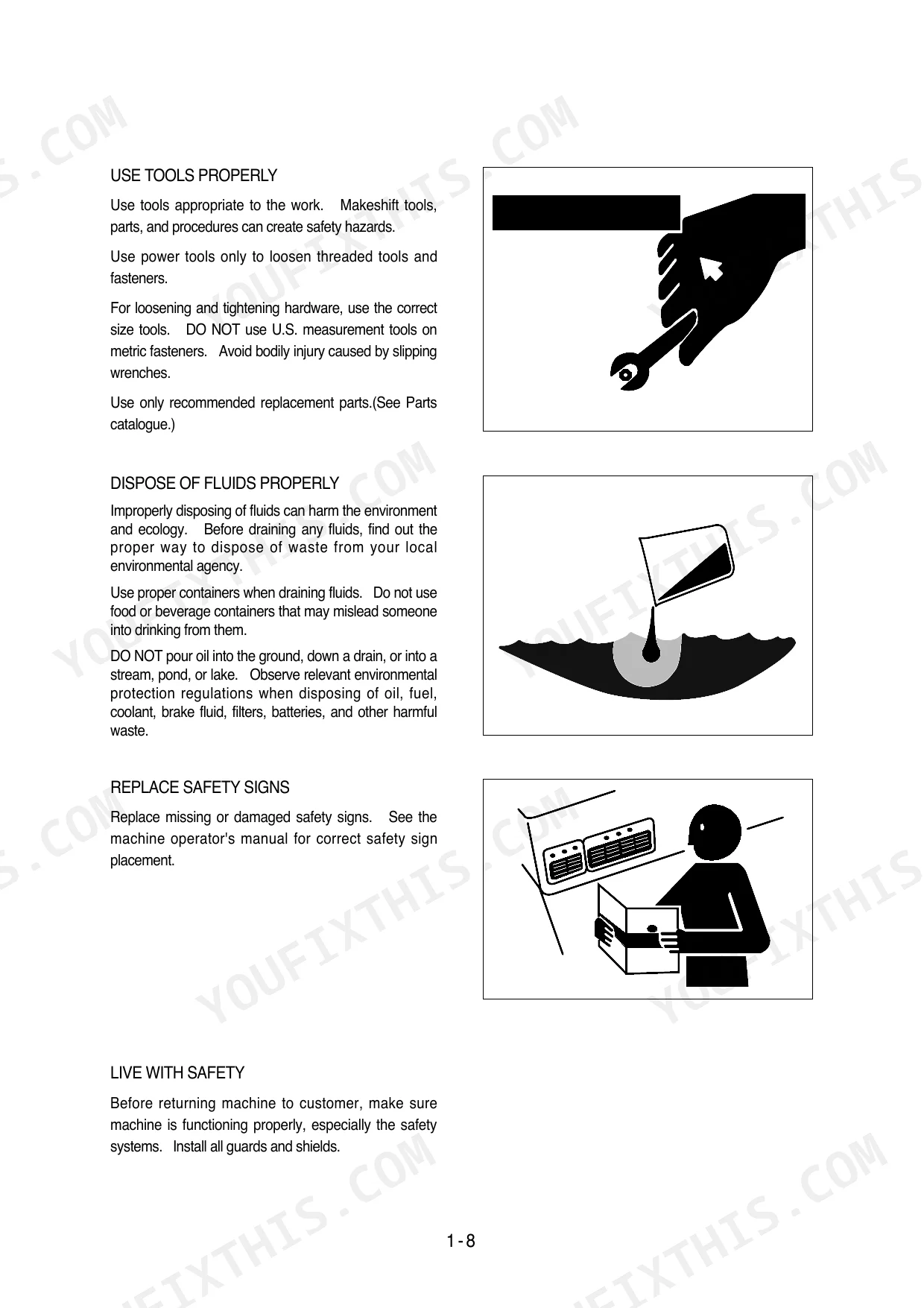

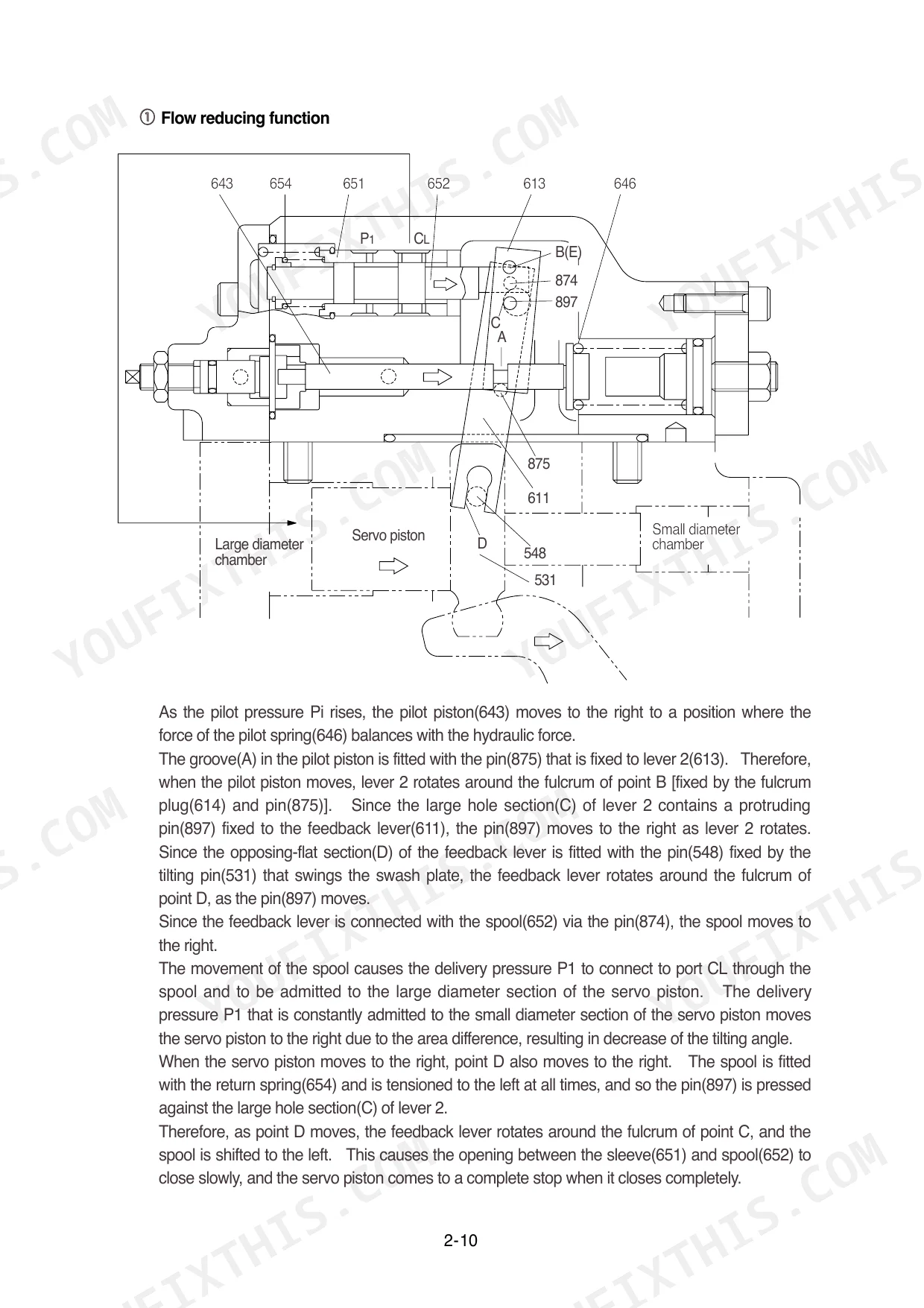

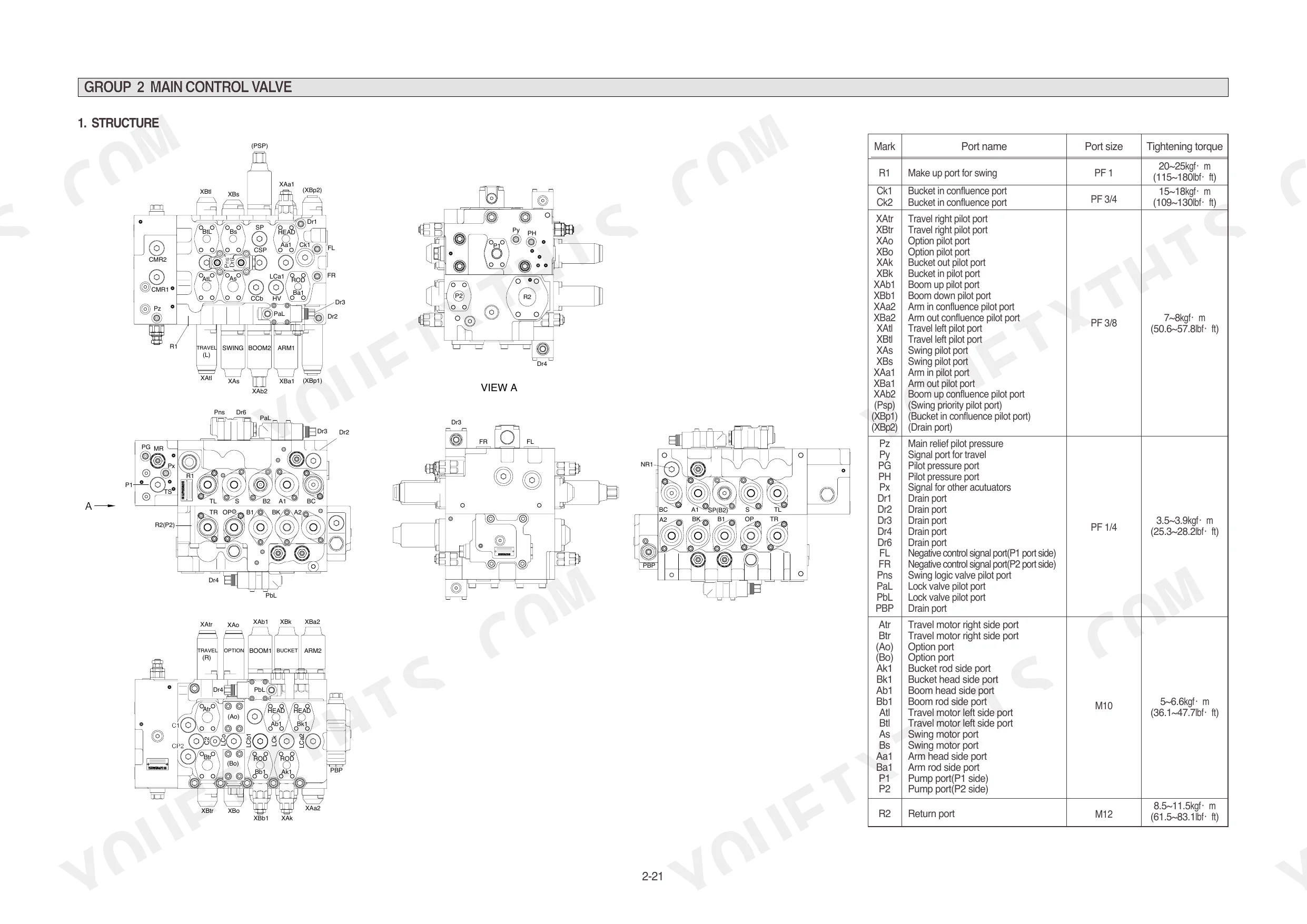

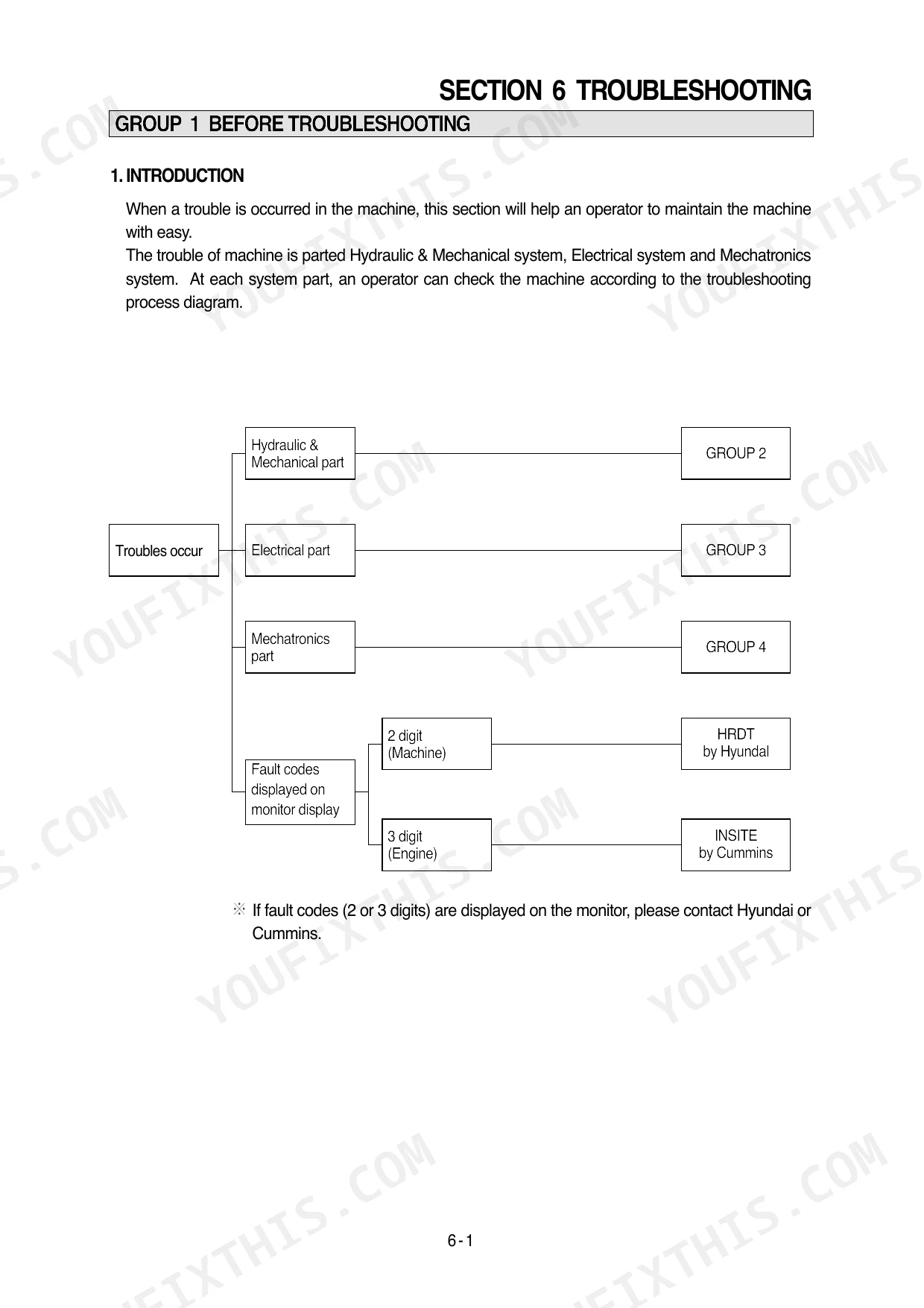

| System | Pages | Key Topics |
|---|---|---|
| General | 2-10 | Safety Hints, Machine Specifications, Major Components, Conversion Tables |
| Component Mounting Torque | 11-46 | Introduction Guide, Engine System, Electric System, Hydraulic System, Undercarriage, Structure, Work Equipment |
| Structure and Function | 47-149 | Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Rcv Pedal |
| Hydraulic System | 150-183 | Hydraulic Circuit, Main Circuit, Pilot Circuit, Single Operation, Combined Operation |
| Electrical System | 184-271 | Component Location, Electrical Circuit, Electrical Component Specification, Connectors |
| Mechatronics System | 272-314 | Mode Selection System, Automatic Deceleration, Power Boost, Travel Speed Control, Monitoring System |
| Troubleshooting | 315-382 | Before Troubleshooting, Hydraulic and Mechanical System, Electrical System, Mechatronics System |
| Maintenance Standard | 383-419 | Operational Performance Test, Major Components, Track and Work Equipment |
| Disassembly and Assembly | 420-644 | Precaution, Tightening Torque, Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Turning Joint |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery | 2 x 12V x 100Ah | p. 42 |
| Starting motor | 24V-5.5kW | p. 42 |
| Bypass relief valve opening pressure | 1.5kgf/cm2 | p. 154 |
| Bypass valve opening pressure | 1.5kgf/cm2 | p. 155 |
| Voltage (Engine OFF, Start switch OFF, Battery 1EA) | 10~12.5V | p. 192 |
| Track shoe mounting bolt, nut | 78 ± 8.0 kgf·m | p. 424 |
| Operating Weight (R210LC-7) | 21700 kg | p. 22 |
| Swing Speed | 12.5 rpm | p. 43 |
| Engine Oil Capacity | 24 L | p. 42 |
| Main Relief Valve Pressure | 330 kgf/cm2 | p. 43 |
Hyundai R210LC-7 Common Problems This Manual Covers
Hyundai R210LC-7 engine cranks slowly or won't start in cold weather, batteries seem weak
Test battery voltage with the start switch off; both 12V 100Ah batteries in series should read 20 to 25V, the spec on page 192. Below that range, load-test each battery and clean the ground cable connections. If voltage checks good but cranking stays slow, bench-test the 24V-5.5kW starter motor before condemning anything else.
Manual Section: Electrical System p. 192Boom and arm slow to respond, all hydraulic functions sluggish once oil warms up
Check main relief pressure at the pump; it should hold 330 kgf/cm2. Low readings across every circuit point to pump wear or a stuck relief valve, not one actuator. Also replace the hydraulic return filter; its bypass valve opens at only 1.5 kgf/cm2, noted on page 154, so a clogged element sends unfiltered oil straight to tank.
Manual Section: Hydraulic System p. 154Engine fires then dies within seconds, or stalls when hydraulics load up

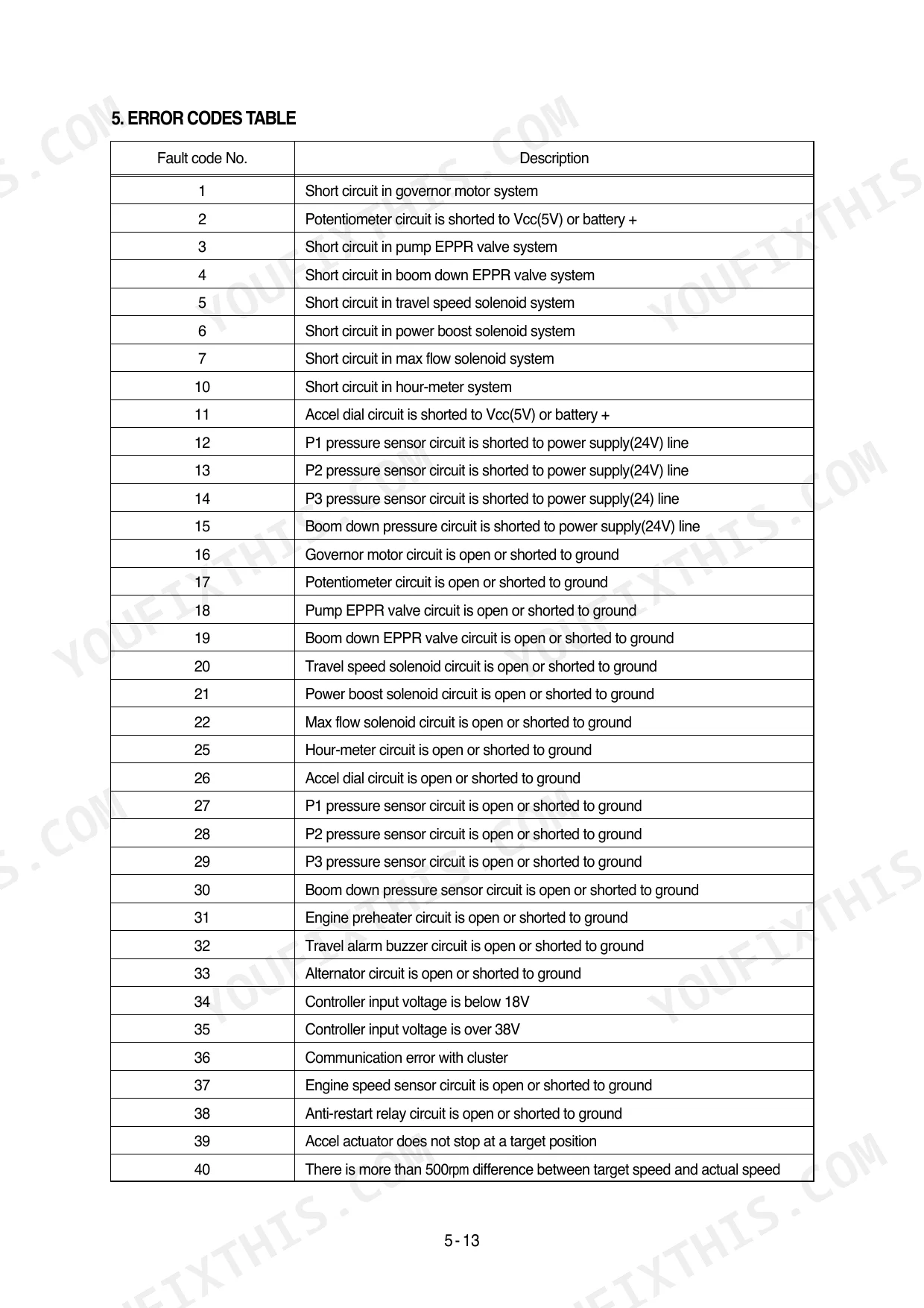

Bleed the fuel system first; air pulled past loose hose clamps or worn injector seals will kill the engine seconds after start. If it stalls under load instead, read the error codes against the reference on page 285, check the engine speed sensor connector, and verify system voltage holds 20 to 27V with the engine running, per page 196.
Manual Section: Mechatronics System p. 285Swing motion weak or slow, upper structure hesitates and drags before it starts rotating
Measure swing speed with the hydraulic oil warm; the machine should turn a steady 12.5 rpm, the standard on page 43. If the swing drags from a stop, test the swing parking brake releasing pressure, which must reach 35 kgf/cm2 per the maintenance standard on page 401. A brake that never fully releases drags and glazes.
Manual Section: Maintenance Standard p. 401Track shoes rattling or clunking during travel, shoe hardware working loose on rough ground
Torque all track shoe mounting bolts to 78 ± 8.0 kgf·m, the spec listed on page 425. Replace any bolt found fully loose instead of reusing it; a stretched bolt will not hold torque. Inspect the shoe contact faces for fretting, then recheck torque after the first full shift back on the ground.
Manual Section: Disassembly and Assembly p. 425Frequently Asked Questions
How do I clear fault codes on a Hyundai R210LC-7 excavator?
To delete all recorded error codes, select the recorded error (TIME Er) display on the cluster. Press the engine and select switch at the same time for 2 seconds or more. The cluster display will change to 'TIME Er : 00', indicating that the CPU controller has deleted all recorded error codes from the memory. p. 284
Why is my Hyundai R210LC-7 not starting?
If the engine does not start, check the battery condition, start relay, and fuel cut-off solenoid. Ensure the battery voltage is 20-30V during the start attempt. If the battery is defective, check the engine system charge or replace the battery after checking its specific gravity. p. 351
What is the tightening torque for the engine mounting bolts on the Hyundai R210LC-7?

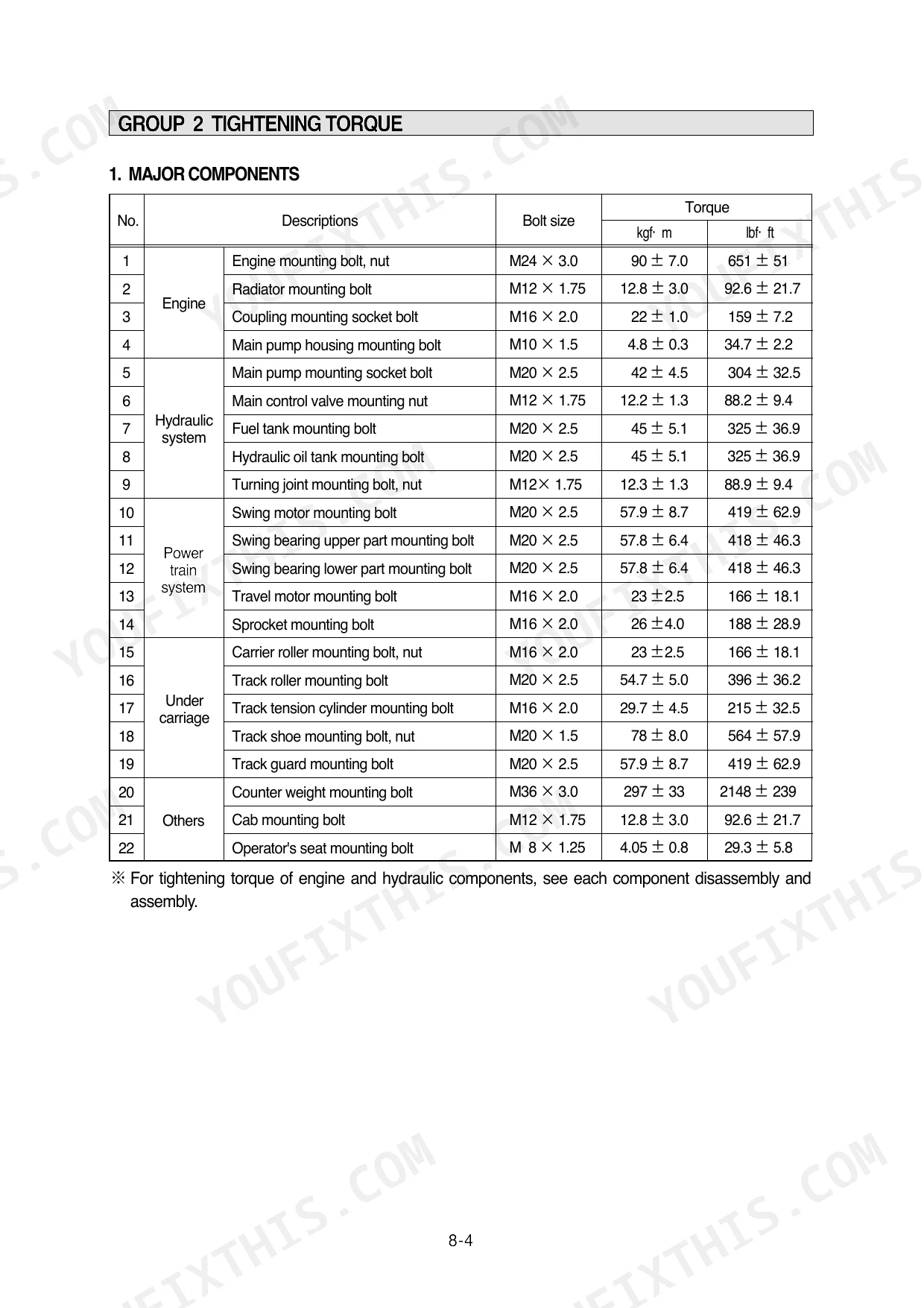

The tightening torque for the engine mounting bolts (M24 x 3.0) is 90 ± 7.0 kgf·m (651 ± 51 lbf·ft). p. 424
What is the standard oil capacity for the hydraulic tank on the Hyundai R210LC-7?
The hydraulic tank capacity is 180 liters (48 U.S. gal). p. 427

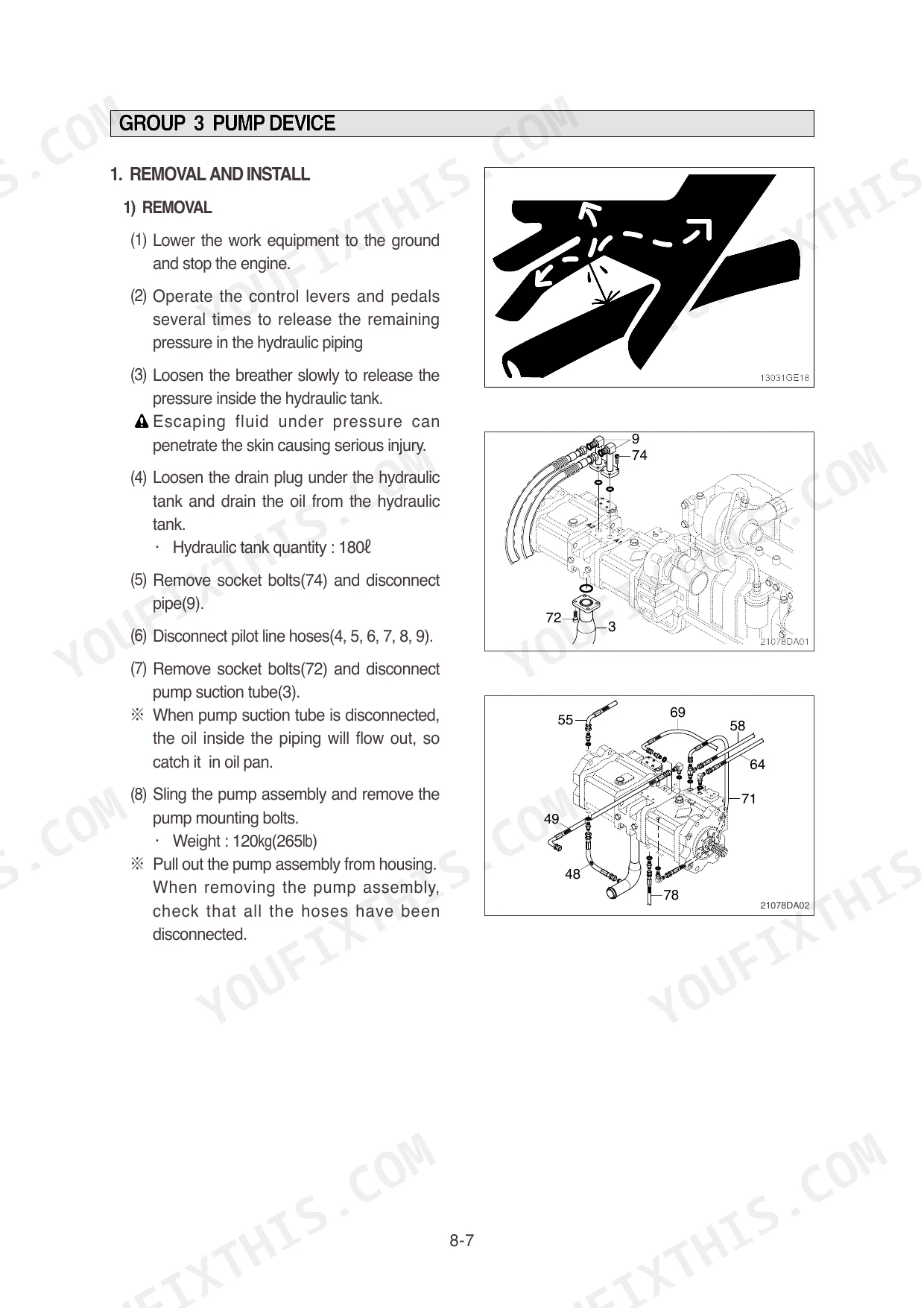

How do I bleed air from the hydraulic pump after installation?
To bleed air from the hydraulic pump, remove the air vent plug (2EA), tighten the plug lightly, start the engine at low idling, and check for oil coming out of the plug. Once oil flows, tighten the plug fully. p. 428
Is this Hyundai R210LC-7 Service Manual a digital download?
Instant PDF download. You get the full 644-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this Hyundai R210LC-7 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
