Looking for a Hyundai R380LC-9 service manual PDF you can trust? This 537-page factory Service Manual covers the R380LC-9 hydraulic excavator, from the main pump and control valve to the swing and travel drives. Inside: full hydraulic schematics with pilot and main circuit routing, complete electrical wiring diagrams with connector pinouts, self-diagnostic error codes for the mechatronics system, and a step-by-step disassembly section that walks you through pump, swing device, and turning joint teardowns. It also carries mounting torques for the engine, undercarriage, and work equipment, plus operational performance tests to benchmark a tired machine. Set the pilot relief at 40 kgf/cm2 and confirm both 12V, 160Ah batteries hold charge before you chase electrical gremlins. Your excavator is down. Get the factory numbers, not forum guesses. Bookmarked by system; pull it up on your phone in the shop and get back to work.
What's Inside This Hyundai R380LC-9 Manual

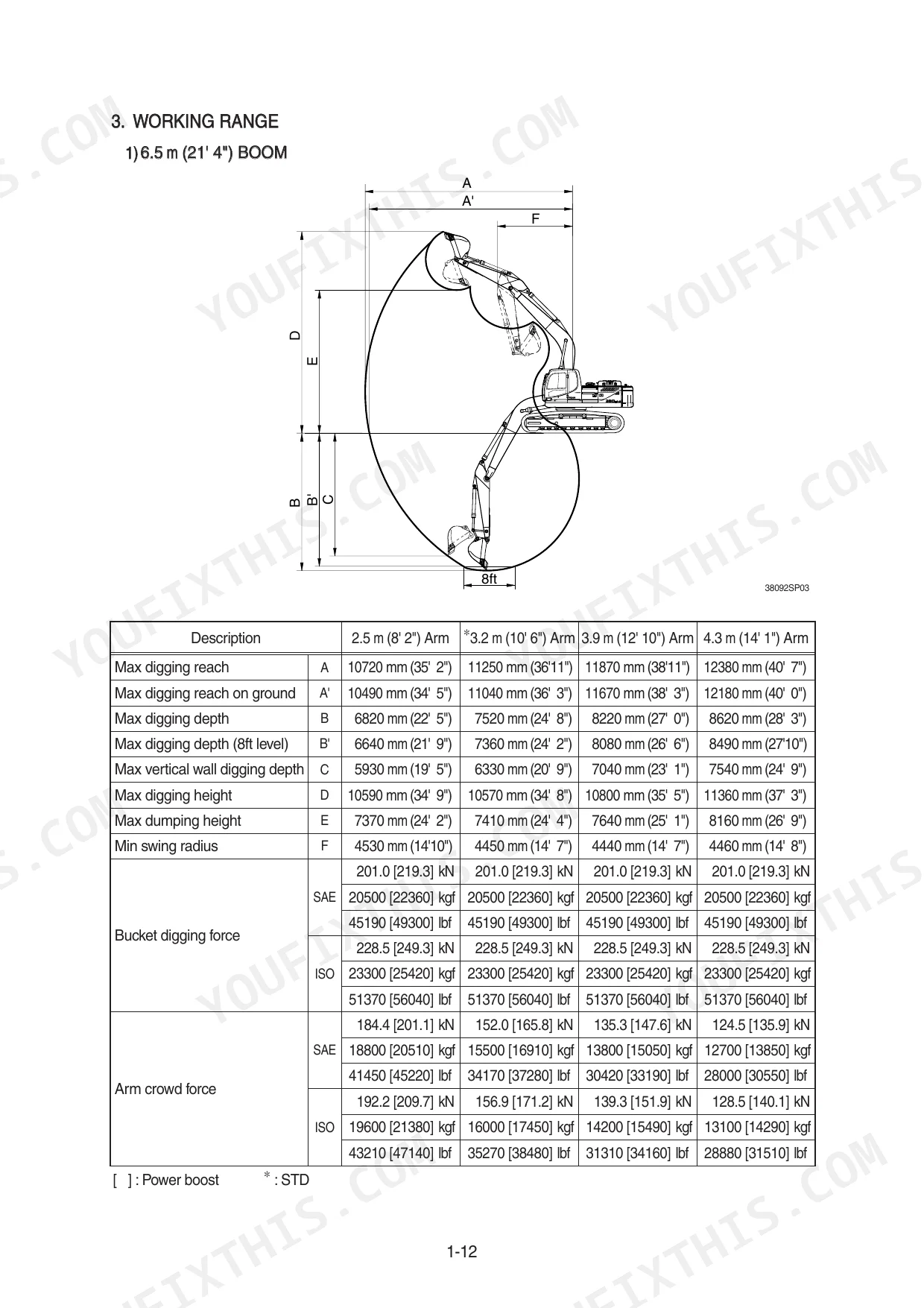

| System | Pages | Key Topics |
|---|---|---|
| General | 11-36 | Safety Hints, Specifications |

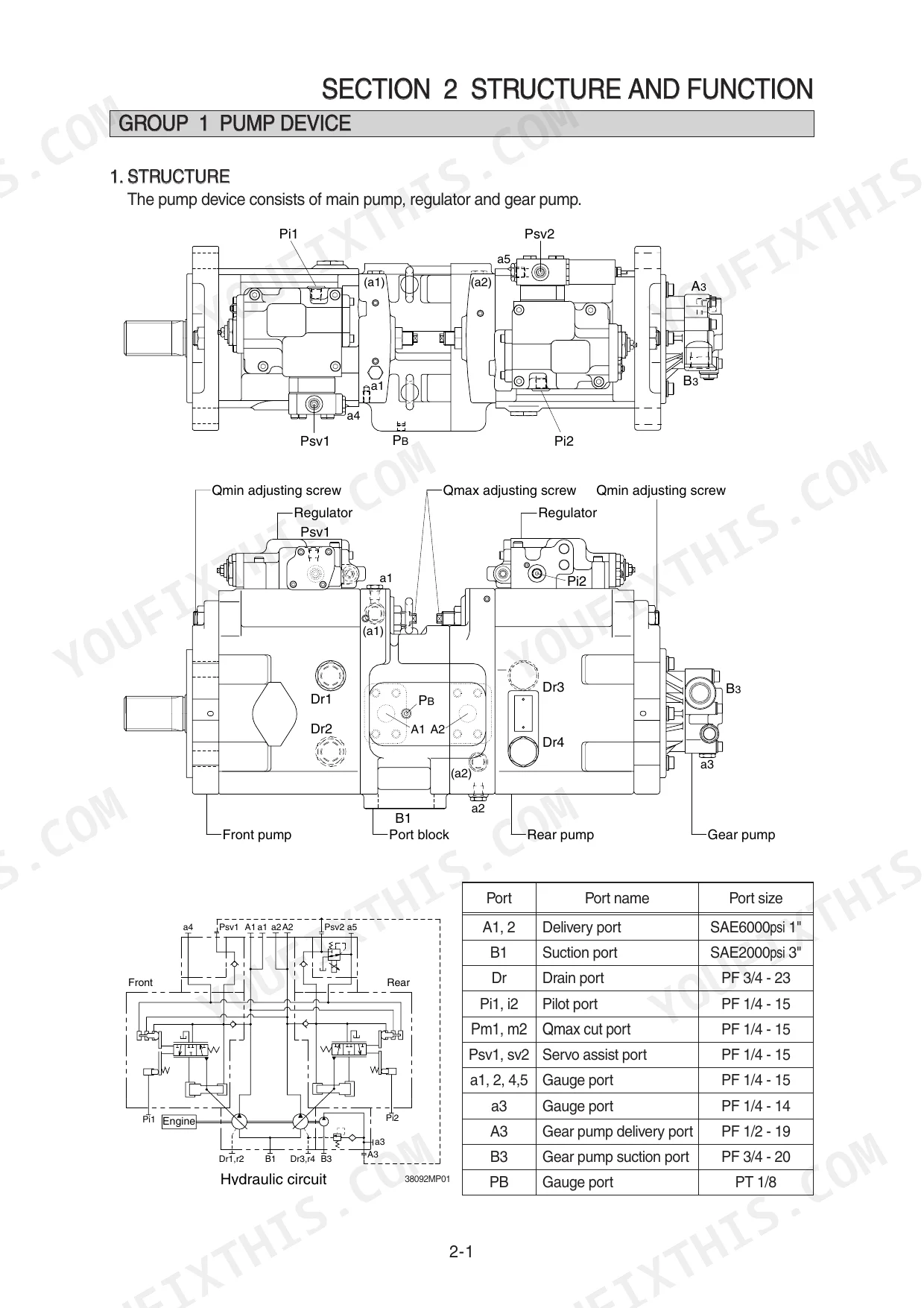

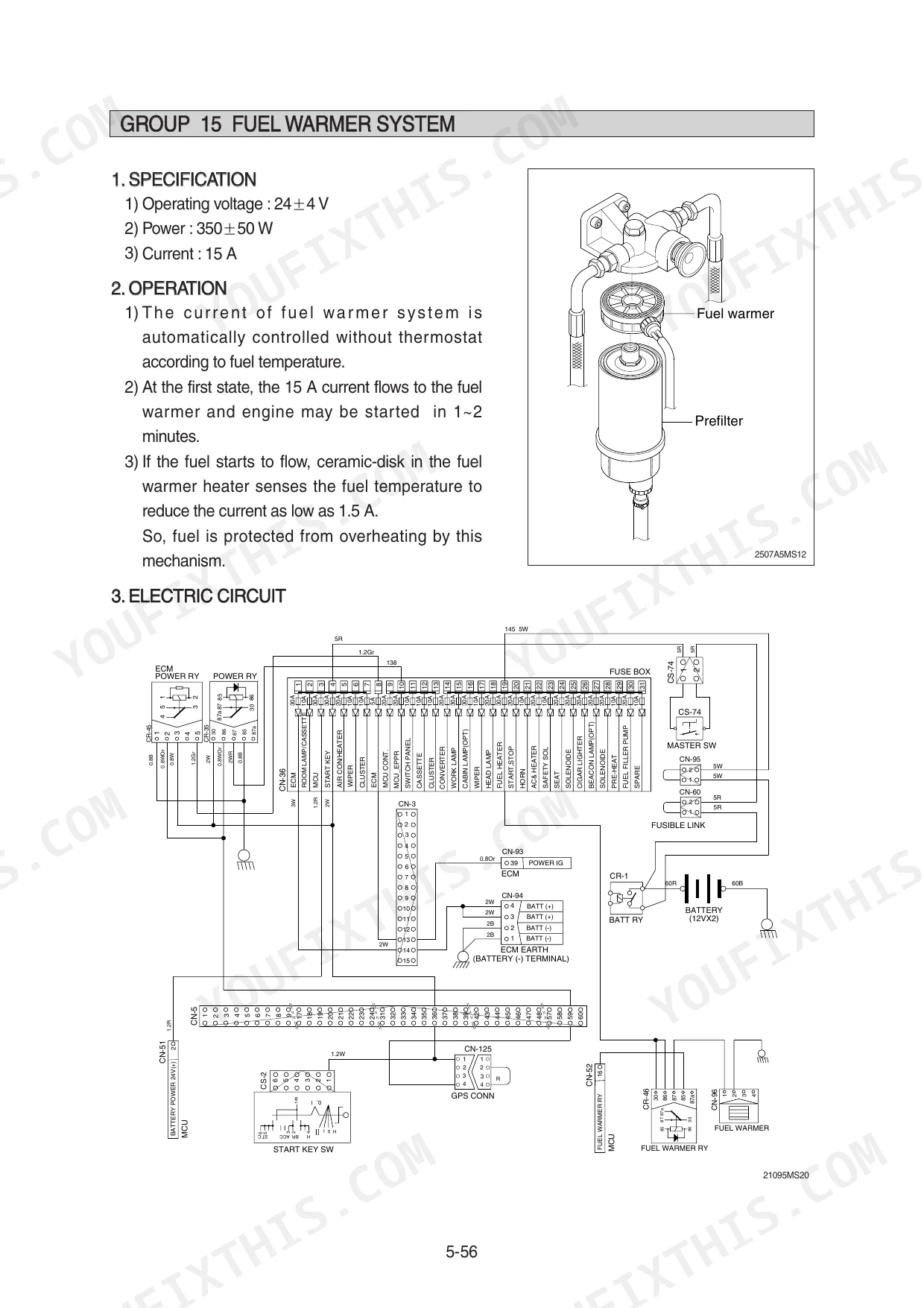

| Structure and Function | 37-120 | Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Rcv Pedal |
| Hydraulic System | 121-152 | Hydraulic Circuit, Main Circuit, Pilot Circuit |
| Electrical System | 153-204 | Component Location, Electrical Circuit, Connectors |
| Mechatronics System | 205-261 | Outline, Mode Selection System |
| Maintenance Standard | 330-367 | Operational Performance Test, Major Components, Track and Work Equipment |
| Disassembly and Assembly | 368-522 | Precaution, Tightening Torque, Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Turning Joint |
| Component Mounting Torque | 523-537 | Introduction Guide, Engine System, Electric System, Undercarriage, Structure, Work Equipment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery | 2 x 12V x 160Ah | p. 33 |
| Starting motor | 24V-7.5 kW | p. 33 |
| Pilot relief valve setting pressure | 40 kgf/cm2 | p. 126 |
| Bypass relief valve opening pressure (full-flow filter) | 1.5 kgf/cm2 | p. 124 |
| Bypass check valve setting pressure (1) | 3.0 kgf/cm2 | p. 124 |
| Voltage | 20~25V | p. 159 |
| Starter | 24V 4.5kW | p. 179 |
| Solenoid valve | 15~25 Ohm | p. 176 |
| Eppr valve | 15~25 Ohm | p. 176 |
| System pressure regulator relief setting (Travel) | 360 ± 10 kgf/cm2 | p. 350 |
| Main pump play between piston & shoe caulking section | 0-0.1 mm | p. 351 |
| Main pump combined height of set plate & spherical bushing | 23.8 mm | p. 354 |
Hyundai R380LC-9 Common Problems This Manual Covers
Hyundai R380LC-9 all hydraulic functions weak, boom and arm slow under load, low system pressure
Test main pump pressure at the gauge port; maximum is 330 kgf/cm2 per the specs on page 33. If pressure is low, inspect the main relief valve for wear and reseat it, torquing to 12.2 to 14.3 kgf·m per page 415. Confirm travel relief holds 360 ± 10 kgf/cm2 against the standard on page 350.
Manual Section: Hydraulic and Mechanical System TroubleshootingBoom drifts down and arm creeps with controls in neutral, worse once the oil warms up
Measure drift with warm oil against the operational performance test limits in the Maintenance Standard section starting on page 330. Swap the boom port relief valve with a known-good unit to separate valve trouble from cylinder leakage; torque the replacement to 12.2 to 14.3 kgf·m (88.2 to 103 lbf·ft) per page 415. Reseal the cylinder if drift follows it.
Manual Section: Maintenance Standard p. 330Engine cranks slowly or won't turn over after the machine sits overnight in cold weather
Test both batteries under load; system voltage should read 20 to 25V per page 159. Clean the ground strap and battery terminals, then torque the battery mounting bolts to 2.5 ± 0.5 kgf·m (18.1 ± 3.6 lbf·ft) per page 527. If voltage holds under crank, pull the starter and bench-test it before replacing anything else.
Manual Section: Electrical System TroubleshootingActuator speed slow in every work mode, auto decel sluggish, nothing showing on the cluster
Measure EPPR valve coil resistance at the connector; normal is 15 to 25 ohms per page 176. With the engine running, verify the pump EPPR valve draws 100 to 700 mA and outputs 4 to 20 kgf/cm2 per page 235. If current is in range but pressure won't track the command, clean or replace the valve.
Manual Section: Mechatronics System TroubleshootingHydraulic oil cloudy or milky, travel and work functions hesitate after long hydraulic breaker use
Drain the hydraulic oil and replace every filter; breaker work contaminates oil far ahead of standard intervals. Verify the full-flow filter bypass relief opens at 1.5 kgf/cm2 per page 124, because a plugged element sends unfiltered oil straight to the pump. Check drain line pressure stays under the 1.5 kgf/cm2 limit on page 125, then bleed air to stop cavitation.
Manual Section: Hydraulic System p. 121Frequently Asked Questions
How do I clear the warning light on a Hyundai R380LC-9?
If the buzzer sounds and a warning lamp lights up, press the BUZZER STOP switch to cancel the buzzer sound. The warning lamp will remain lit until the condition is resolved. If the pop-up warning lamp appears on the center of the LCD, it will move to its original position and blink when the select switch is pushed, at which point the buzzer will also stop. p. 239

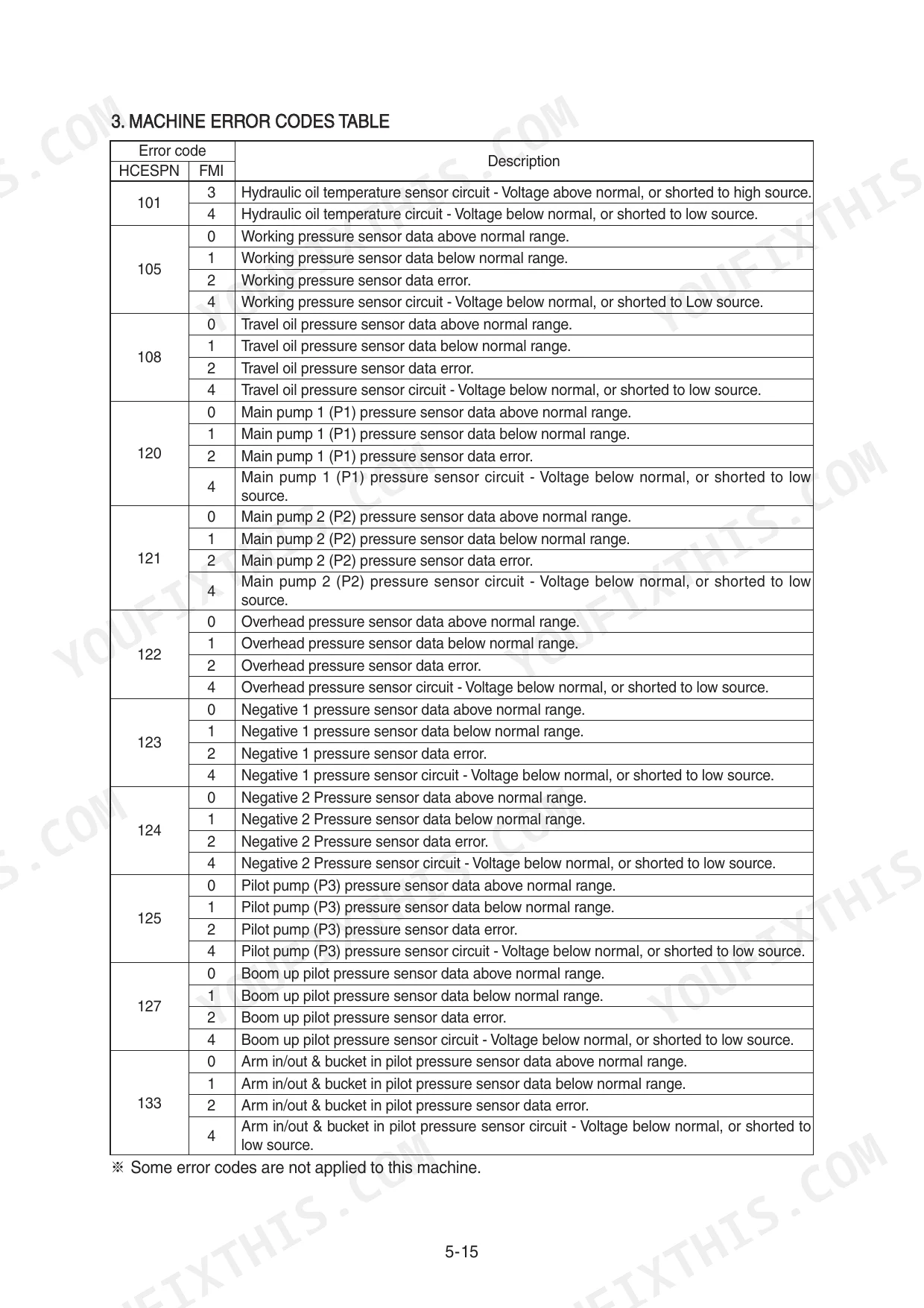

What is the procedure to reset the logged faults on a Hyundai R380LC-9?
To delete logged faults, open the 'Monitoring' menu on the cluster, select 'Delete logged fault', and confirm the deletion when prompted. This will clear the stored fault codes for the MCU or engine ECM. p. 219

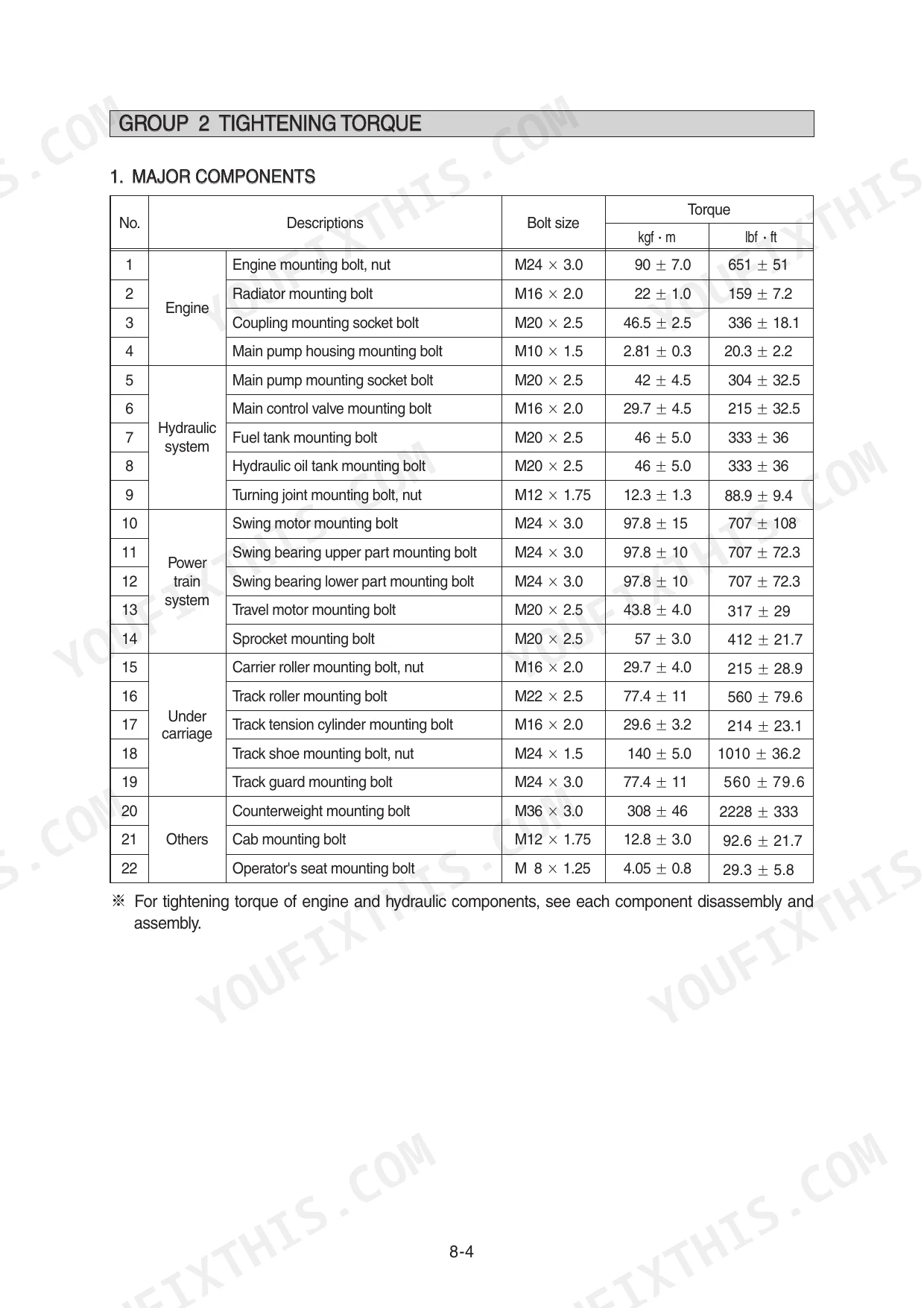

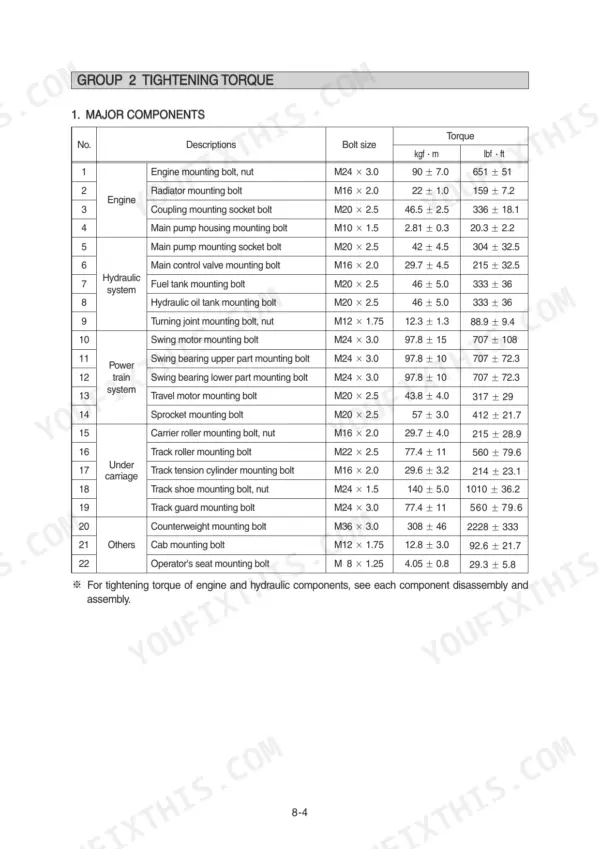

What is the tightening torque for the engine mounting bolts on the R380LC-9?
The engine mounting bolts (M24 x 3.0) should be tightened to a torque of 90 ± 7.0 kgf·m (651 ± 51 lbf·ft). p. 372

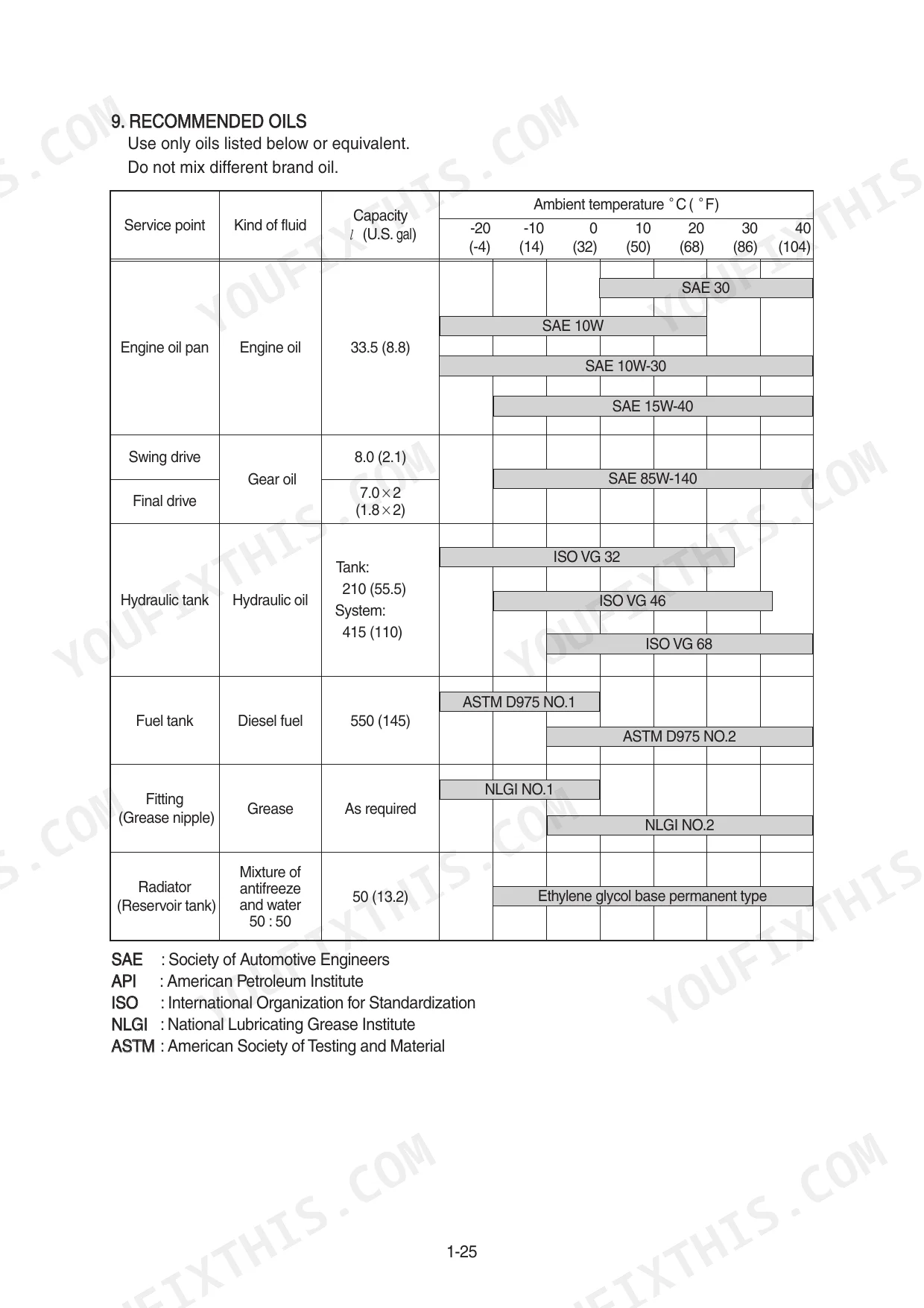

What is the standard interval for changing the engine oil?
The engine oil should be changed every 500 hours of operation as measured by the engine hour meter. p. 357

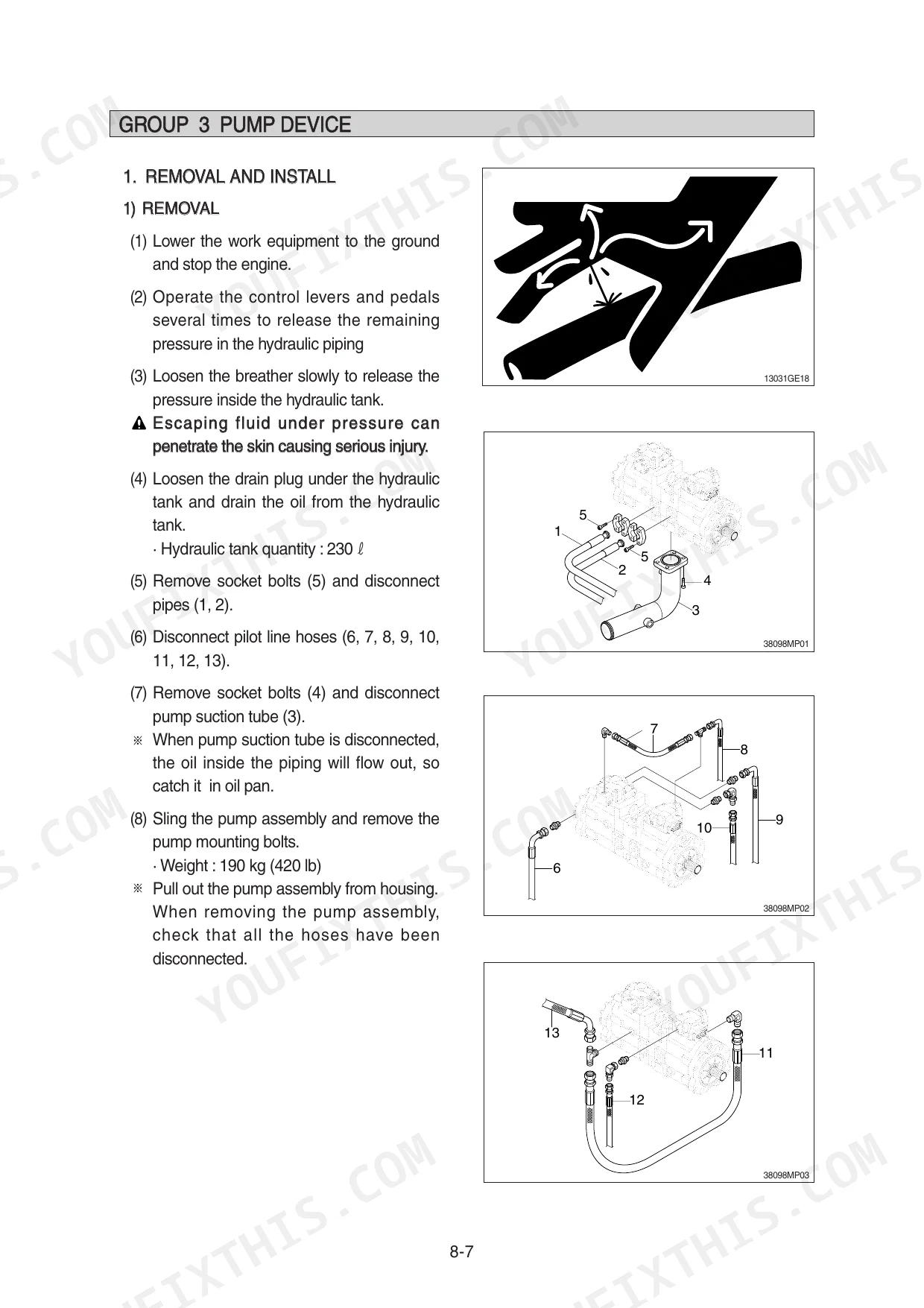

How do I bleed the air from the hydraulic pump after installation?
To bleed air from the hydraulic pump, remove the air vent plug (2EA), tighten it lightly, start the engine at low idling, and wait until oil comes out from the plug. Once oil flows, tighten the plug fully. p. 376
Is this Hyundai R380LC-9 manual a PDF I download?
Instant PDF download. You get the full 537-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is printing allowed for this Hyundai R380LC-9 Service Manual?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
