Part of the Hyundai Repair Manuals.
All 531 pages of this Hyundai Robex 480LC-9, 480-9, 520LC-9 Service Manual PDF focus on one job: getting your crawler excavator back to factory condition. Inside: hydraulic circuit schematics covering main and pilot routing, full electrical wiring diagrams with connector pinouts, and a self-diagnostic troubleshooting section for the mechatronics and engine control systems. You also get step-by-step disassembly and assembly procedures for the pump device, main control valve, swing and travel motors, plus mounting torque tables for everything from the undercarriage to the work equipment. Chasing a fuel gauge complaint? The sender should read 50 Ω at full and 600 Ω near empty, with 20-32V at cluster pin 1. No more hunting electrical gremlins with a multimeter and a prayer. Bookmarked with a real text layer: jump to any section, search any spec, right from the phone in your shop.
What's Inside This Hyundai ROBEX 480LC-9, ROBEX 480-9, ROBEX 520LC-9 Manual
| System | Pages | Key Topics |
|---|---|---|

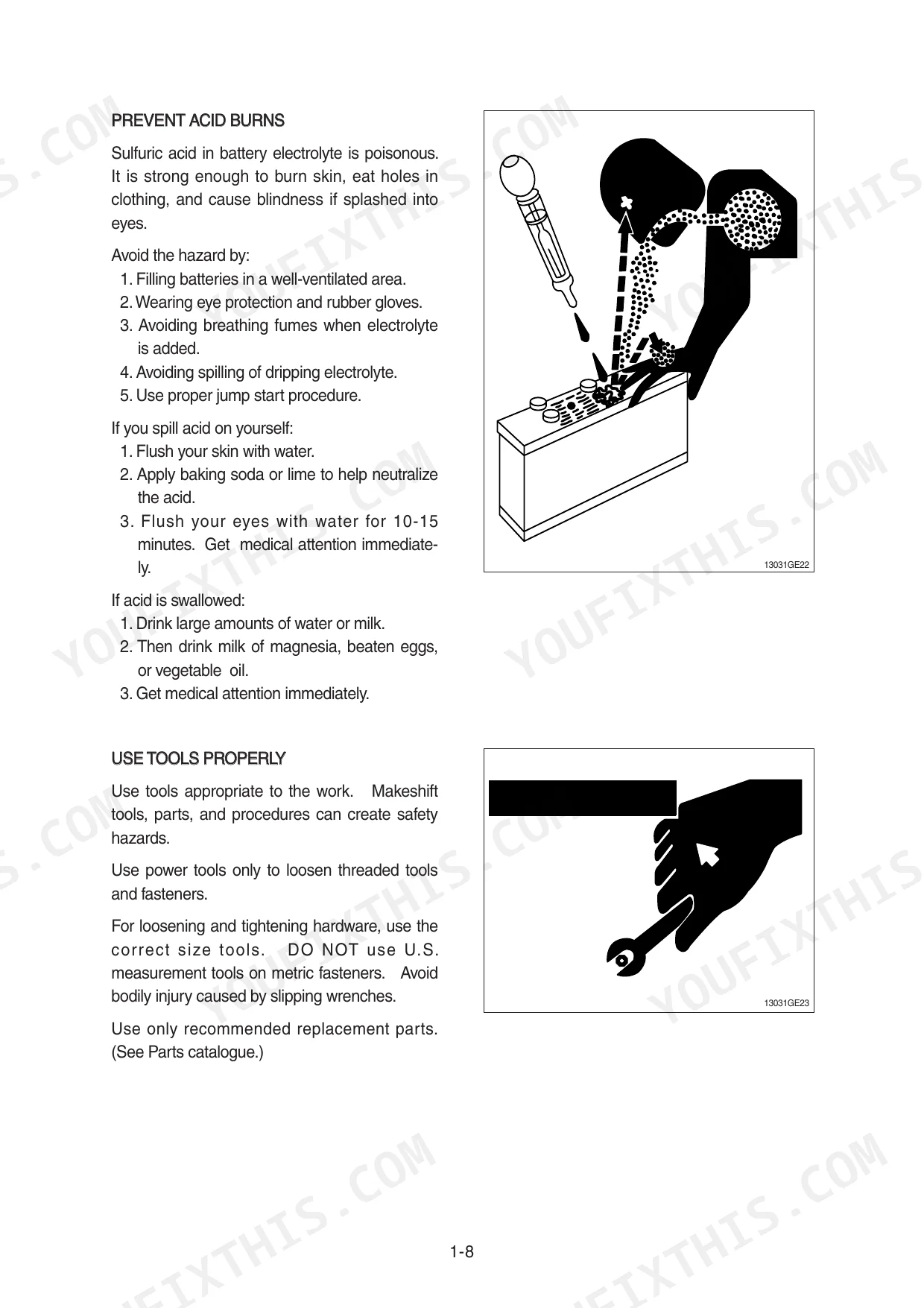

| General | 1-55 | Safety Hints, Specifications |
| Structure and Function | 56-133 | Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Rcv Pedal |

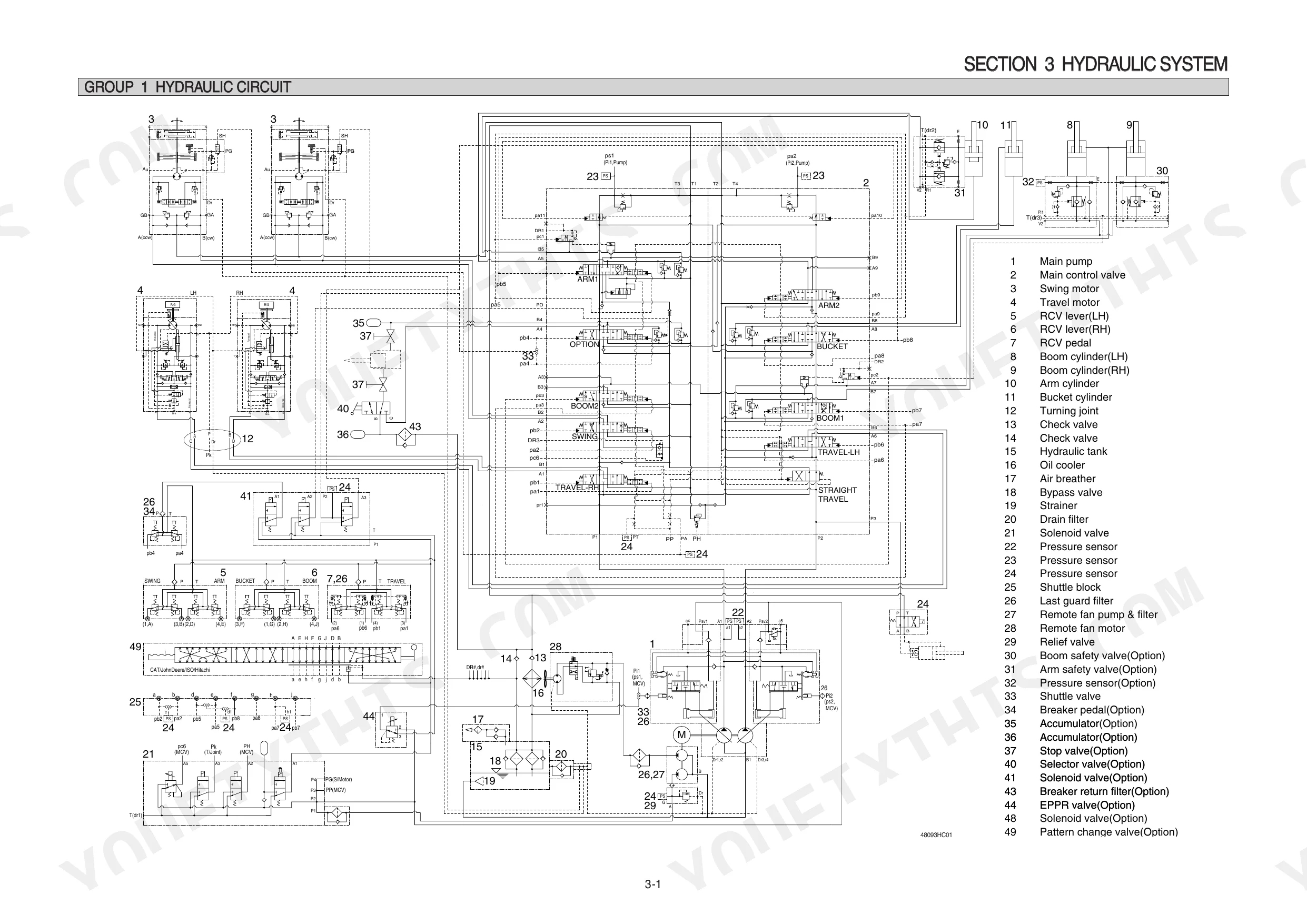

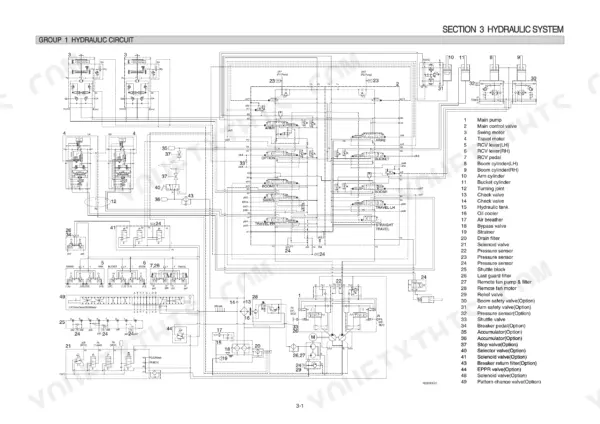

| Hydraulic System | 134-163 | Hydraulic Circuit, Main Circuit, Pilot Circuit |

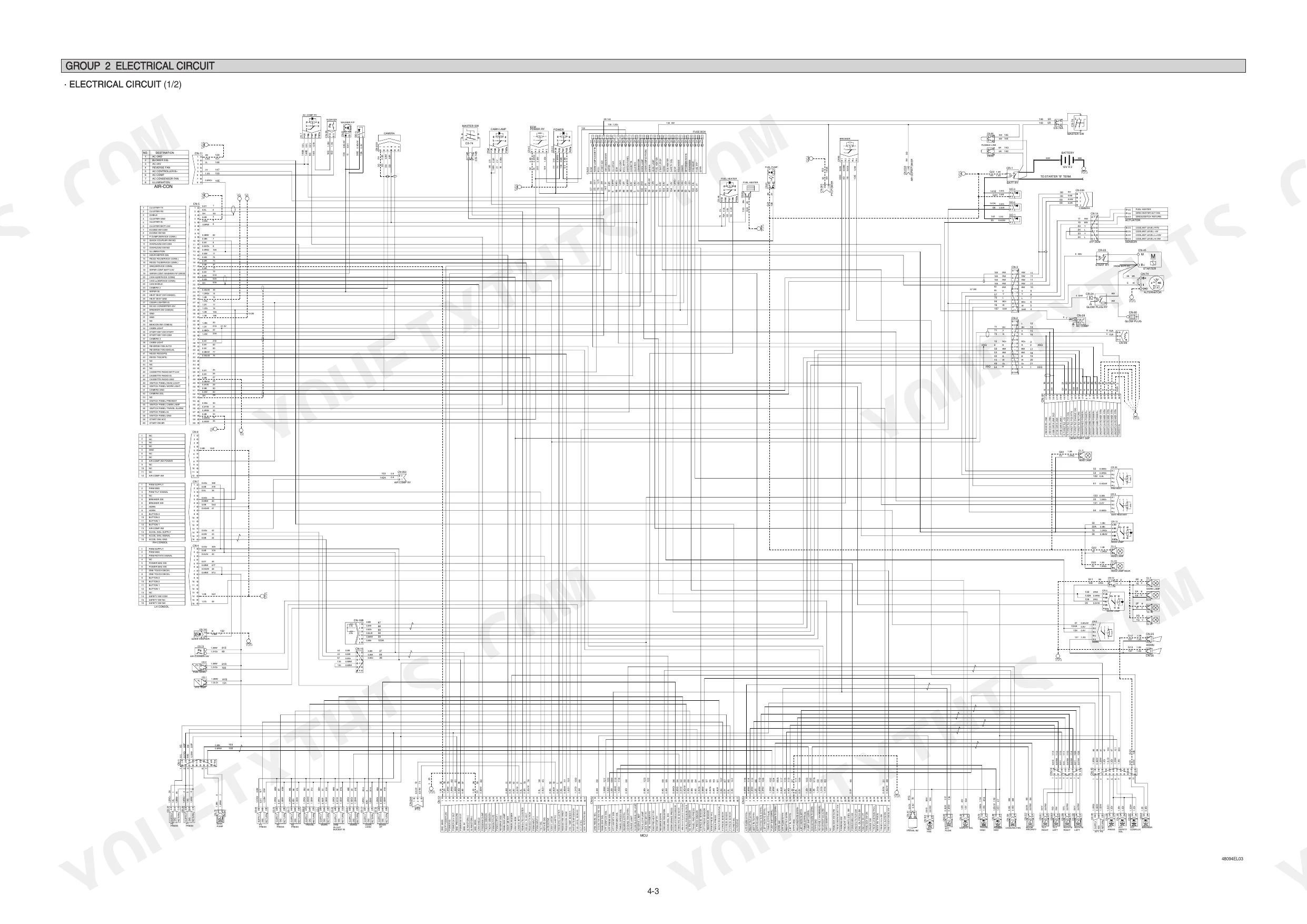

| Electrical System | 164-214 | Component Location, Electrical Circuit, Electrical Component Specification |
| Mechatronics System | 215-269 | Outline, Mode Selection System, Self-Diagnostic System |
| Maintenance Standard | 338-373 | Operational Performance Test, Major Components, Track and Work Equipment |

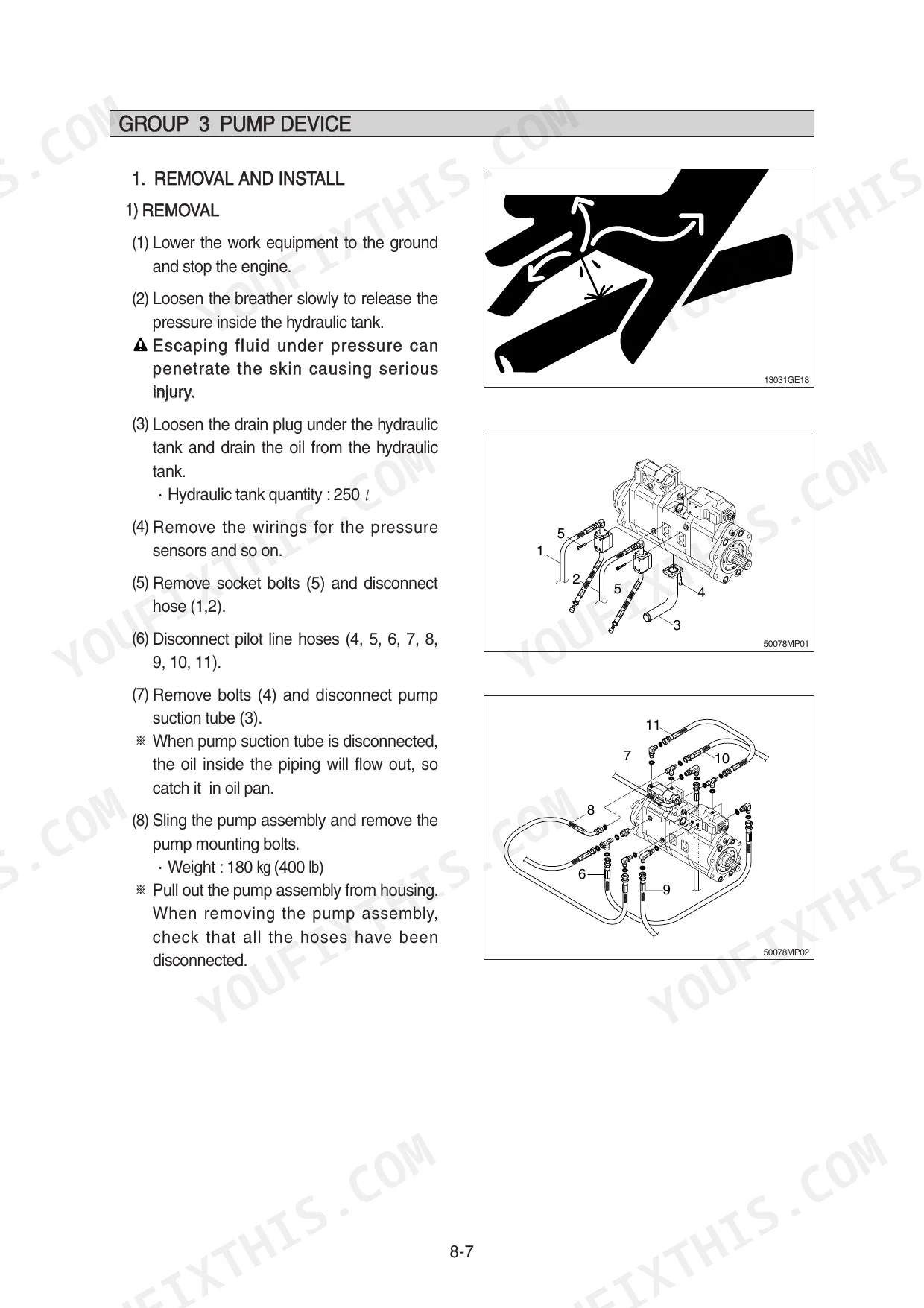

| Disassembly and Assembly | 374-516 | Precaution, Tightening Torque, Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Turning Joint |
| Component Mounting Torque | 517-531 | Introduction Guide, Engine System, Electric System, Undercarriage, Structure, Work Equipment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel sender resistance at Full | 50 Ω | p. 186 |
| Fuel sender resistance at 11/12 | 100 Ω | p. 186 |
| Hydraulic oil temperature gauge white range | 40-105°C (104-221°F) | p. 249 |
| Engine coolant temperature gauge white range | 40-105°C (104-221°F) | p. 249 |
| Cluster connector pin 1 battery voltage | 20-32V | p. 248 |
| Cluster connector pin 5 power IG voltage | 20-32V | p. 248 |
| Travel motor mounting bolt | 57.9 ± 8.7 kgf·m (419 ± 62.9 lbf·ft) | p. 379 |
| Tightening torque for Travel motor | 57.9±6.0 kgf·m (419±43.4 lbf·ft) | p. 526 |
| Engine Oil Quantity | 37.85 L | p. 51 |
| ROBEX 480LC-9 | ||
| Operating Weight | 48100 kg | p. 23 |
| ROBEX 480-9 | ||
| Operating Weight | 46900 kg | p. 24 |
| ROBEX 520LC-9 | ||
| Operating Weight | 51000 kg | p. 25 |
Hyundai ROBEX 480LC-9, ROBEX 480-9, ROBEX 520LC-9 Common Problems This Manual Covers
Hyundai Robex 480LC-9 engine won't rev past 1300 RPM, accel dial has no effect

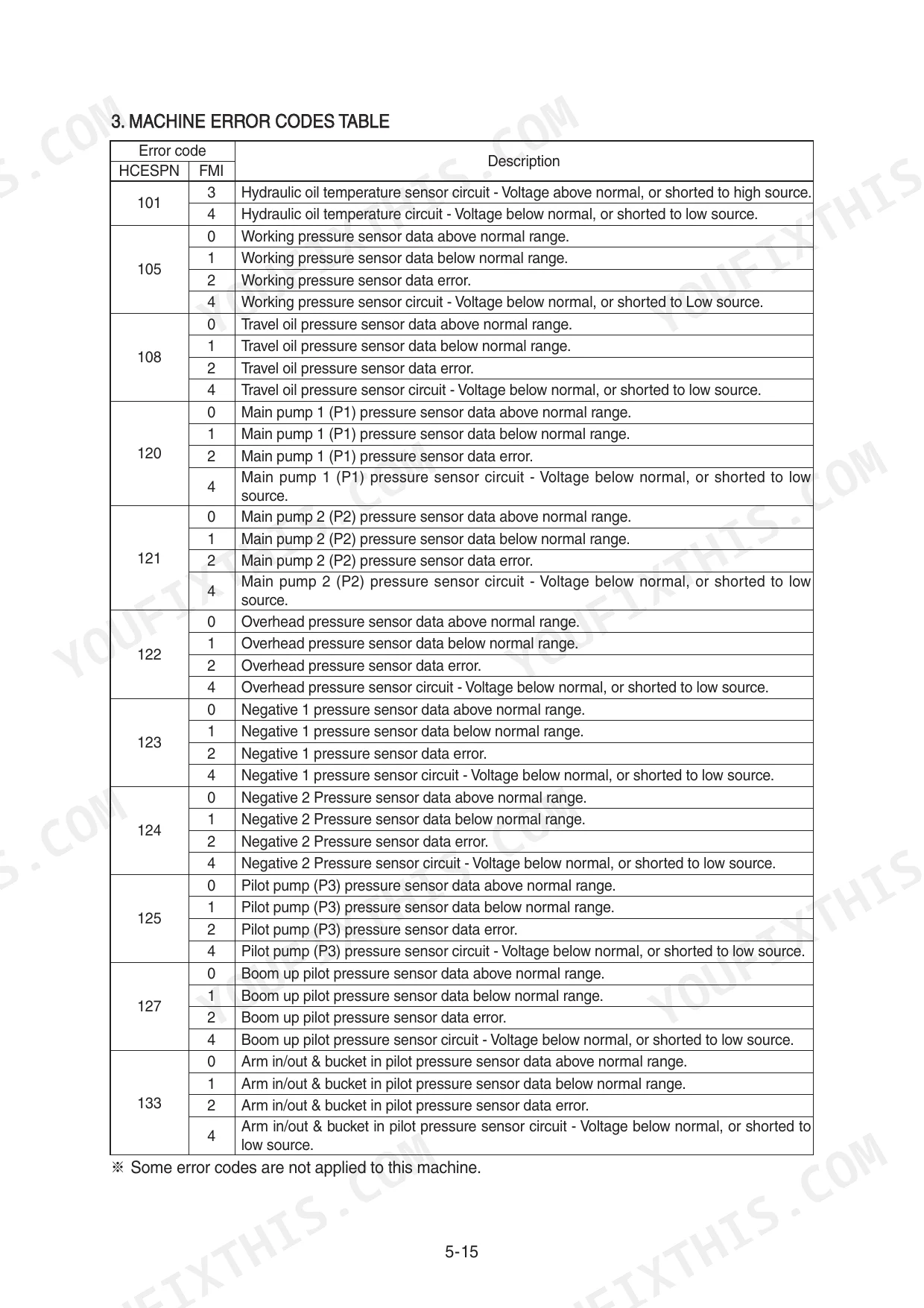

Check the self-diagnostic display for codes 340 or 341, listed in the error code reference. Code 340 points to the potentiometer circuit shorted high or low; 341 means the governor actuator circuit is open or overcurrent. Verify system supply holds 20-32V before condemning parts, then inspect the harness for chafed wiring.
Manual Section: Mechatronics System Troubleshooting p. 297Machine pulls to one side during travel, one track noticeably slower on level ground
Check track tension on both sides first; a tight track drags and mimics a weak motor. Measure travel relief pressure on each side and compare; both circuits should reach 345 kgf/cm2. Swap crossover relief valves side to side to isolate a bad valve. If a motor comes off, torque mounting bolts to 57.9±6.0 kgf·m (419±43.4 lbf·ft), shown on page 526.
Manual Section: Travel System Troubleshooting p. 297Fuel gauge reads empty with a full tank, low fuel warning buzzer stays on
Test the fuel sender resistance at the tank: 50 Ω at full, rising to 700 Ω at the empty warning point, per the chart on page 186. The lamp is supposed to trigger below 61 L (16.1 U.S. gal) of fuel, shown on page 250. Check the harness for a short to ground (code 42) before replacing the sender.
Manual Section: Electrical System p. 186Hydraulic oil temperature warning comes on during heavy digging, gauge climbs past the white range
Check hydraulic oil level and blow out the cooler fins with compressed air first; plugged cores are the usual culprit. Verify the gauge against the normal white range of 40-105°C (104-221°F), listed on page 249. Sustained stalling against relief at 330 kgf/cm2 heats oil fast, so watch operator habits. Sample the oil; cloudy oil points to water intrusion or cavitation.
Manual Section: Engine and Sensor Troubleshooting p. 300Cluster display goes blank or flashes communication error codes 840 and 841 while working
Measure voltage at the cluster connector: pin 1 battery and pin 5 ignition power should each read 20-32V, per the pin chart on page 248. Check the serial TX and RX lines for 0-5V activity. Match codes 840, 841, and 850 against the error code reference, then clean and reseat harness connectors before replacing the cluster.
Manual Section: Electrical System Troubleshooting p. 248Frequently Asked Questions
How do I clear error codes on a Hyundai ROBEX 480-9 excavator?
To clear logged fault codes, navigate to the 'Monitoring' menu on the cluster, select 'Delete logged fault', and confirm the deletion when prompted by the system. This process is detailed in the 'Self-Diagnostic System' section. p. 229
What does the Hyundai ROBEX 480LC-9 engine communication error mean?
An engine communication error (HCESPN 840, FMI 2) indicates a communication data error between the cluster and the engine ECM. You should check the communication line between them and verify the fault codes on the cluster. p. 251
What is the code for low fuel or water in fuel on a Hyundai ROBEX 480LC-9?
The warning lamp for water in fuel blinks when 'Engine check water in fuel' is displayed in the message box, indicating you should check the water separator. For low fuel, the warning lamp blinks when the fuel level is below 61 liters (16.1 U.S. gal). p. 250
What are the replacement specifications for the Potentiometer (accelerator) sensor?
The potentiometer (accel dial) sensor has a normal resistance of about 5k ohms (terminal A-C) and a normal voltage of about 5V (terminal A-C) or 2~4.5V (terminal C-B). p. 186
What is the tightening torque for the engine mounting bolts on a ROBEX 480LC-9?

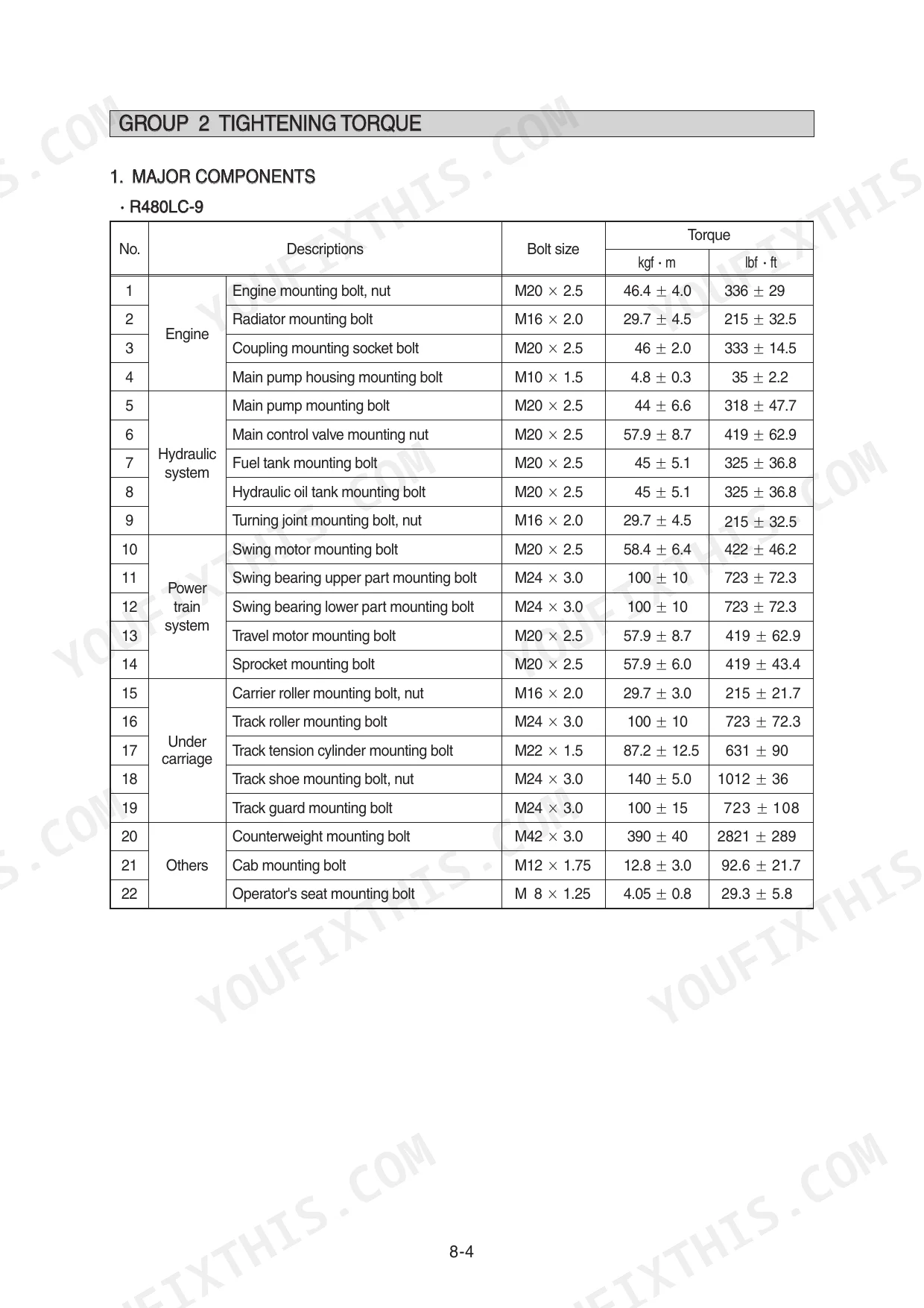

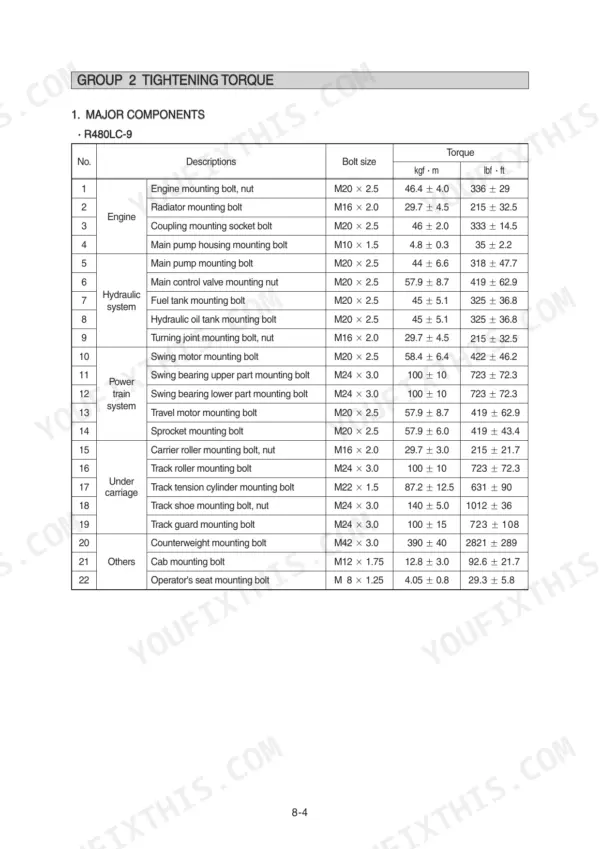

The engine mounting bolts and nuts (M20 x 2.5) on the ROBEX 480LC-9 should be tightened to a torque of 46.4 ± 4.0 kgf·m (336 ± 29 lbf·ft). p. 378
How will I receive this Hyundai Robex 480LC-9 Service Manual?
Instant PDF download. You get the full 531-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is printing allowed for this Hyundai Robex 480LC-9 Service Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
