Part of the Hyundai Repair Manuals.

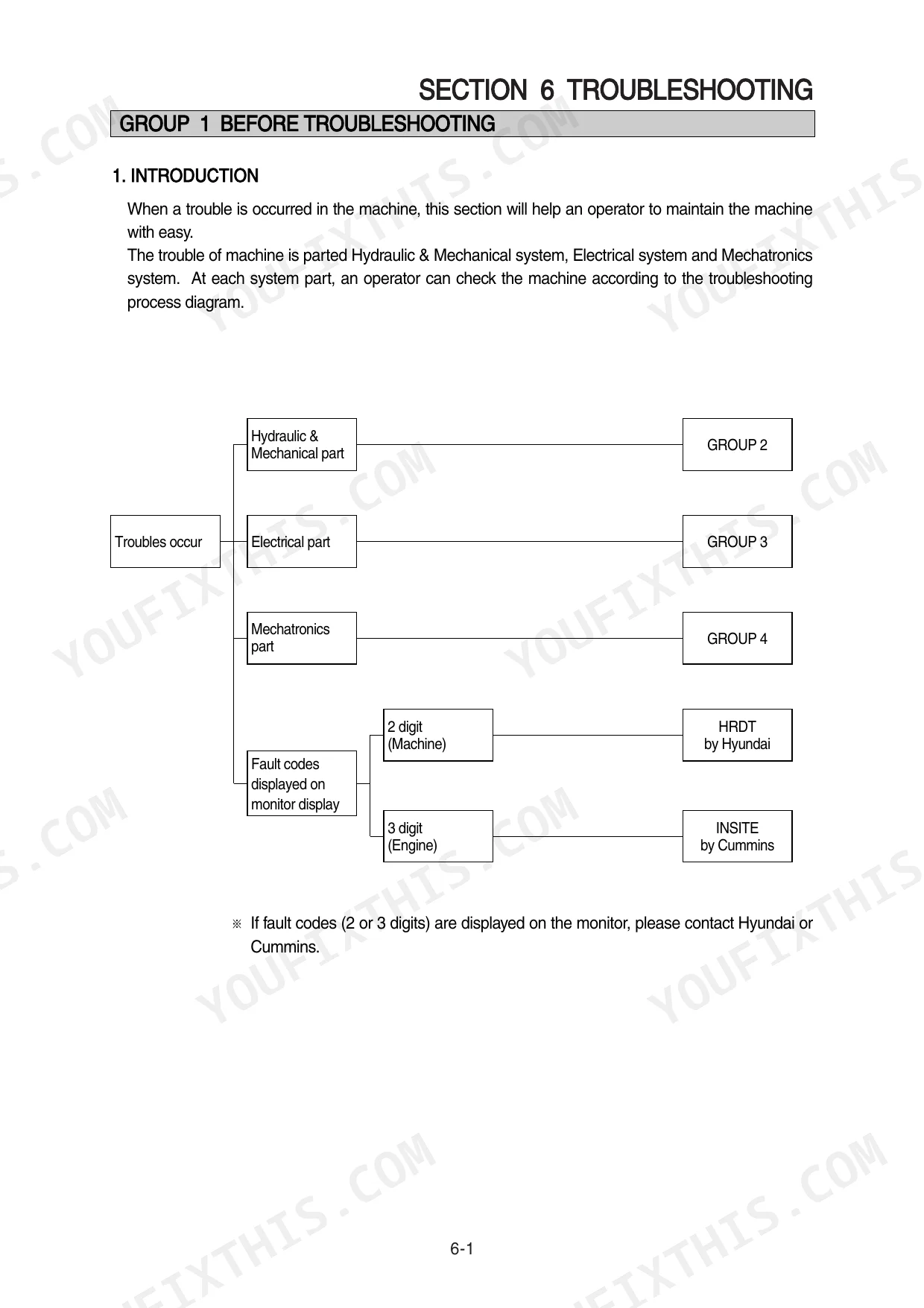

Need real factory data for your Hyundai R450LC-7A, R500LC-7A? This service manual PDF packs 526 pages of specs, circuits, and rebuild procedures for both hydraulic excavators. You get complete electrical wiring circuits with connector pinouts and component locations, hydraulic schematics tracing the main and pilot circuits through single and combined operation, and a full troubleshooting section covering hydraulic, electrical, and mechatronics faults. Open to the disassembly chapter and follow step-by-step teardowns of the pump device, main control valve, swing and travel motors, cylinders, and undercarriage. Set the main relief valve at 330 kgf/cm2 with power boost off; if pilot functions feel weak, check the pilot relief against its 35 kgf/cm2 spec. Your machine is down and the clock is running. Bookmarked and keyword-searchable, this PDF opens on any device; download it and take it straight to the excavator.
What's Inside This Hyundai R450LC-7A, R500LC-7A Manual
| System | Pages | Key Topics |
|---|---|---|

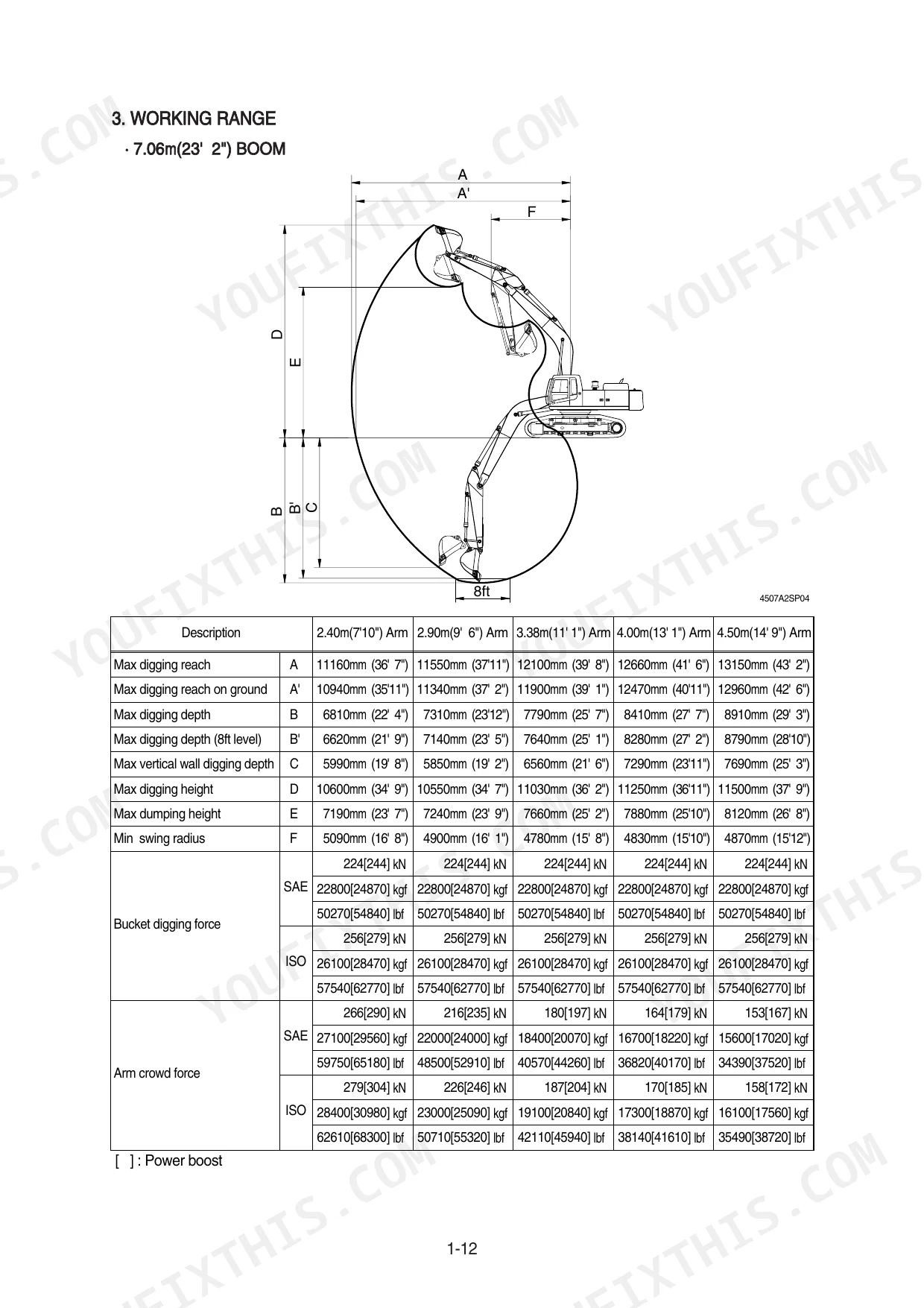

| General | 11-60 | Safety Hints, Specifications |

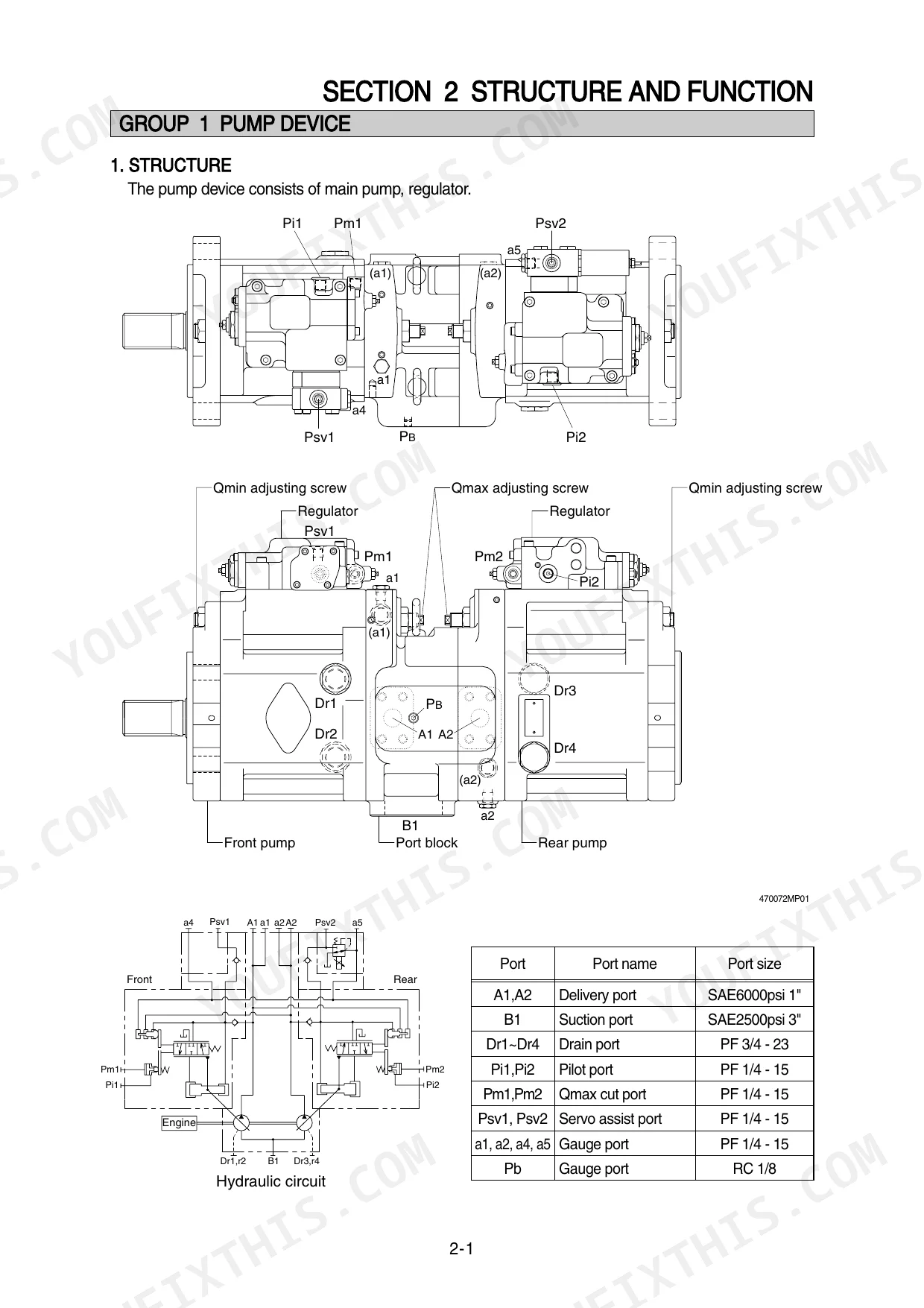

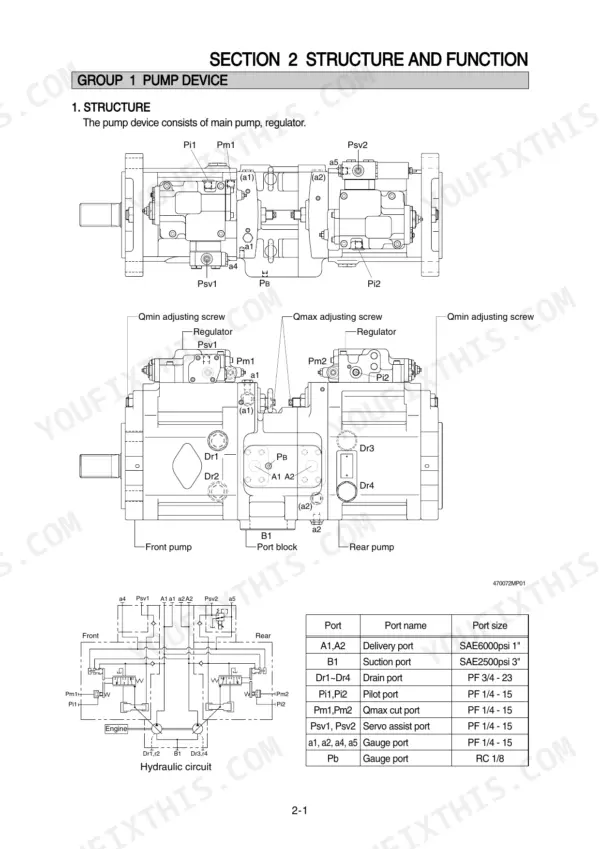

| Structure and Function | 61-138 | Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Rcv Pedal |

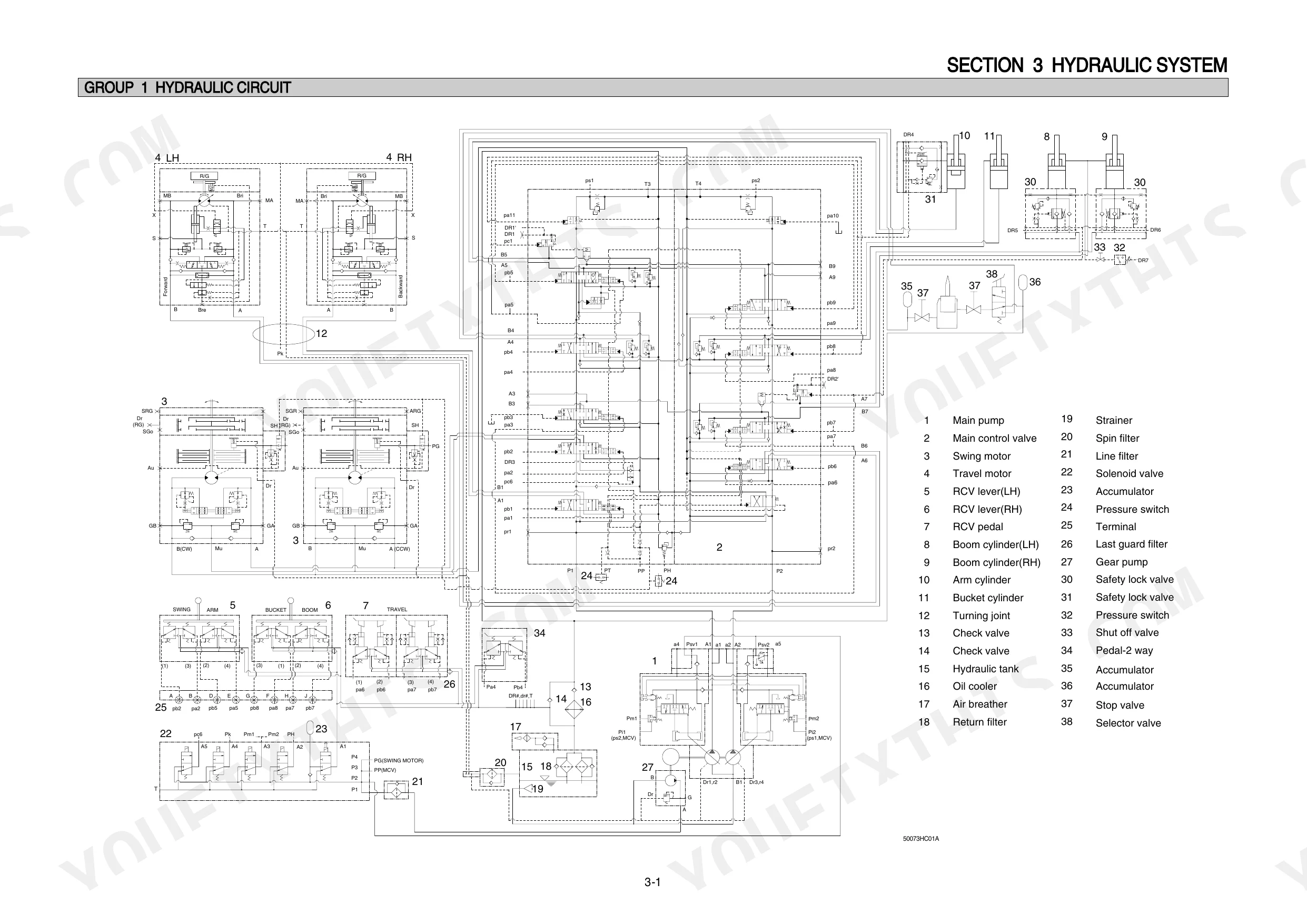

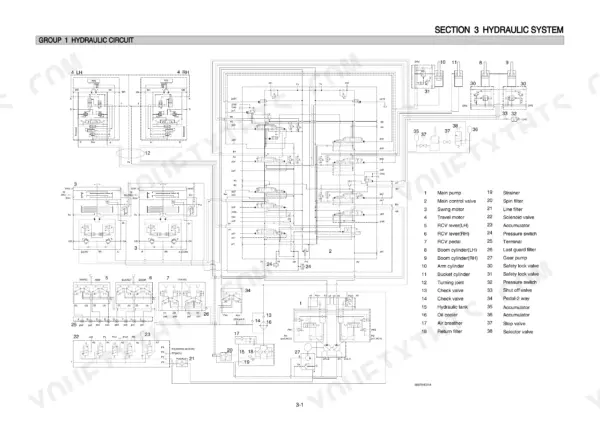

| Hydraulic System | 139-164 | Hydraulic Circuit, Main Circuit, Pilot Circuit, Single Operation, Combined Operation |

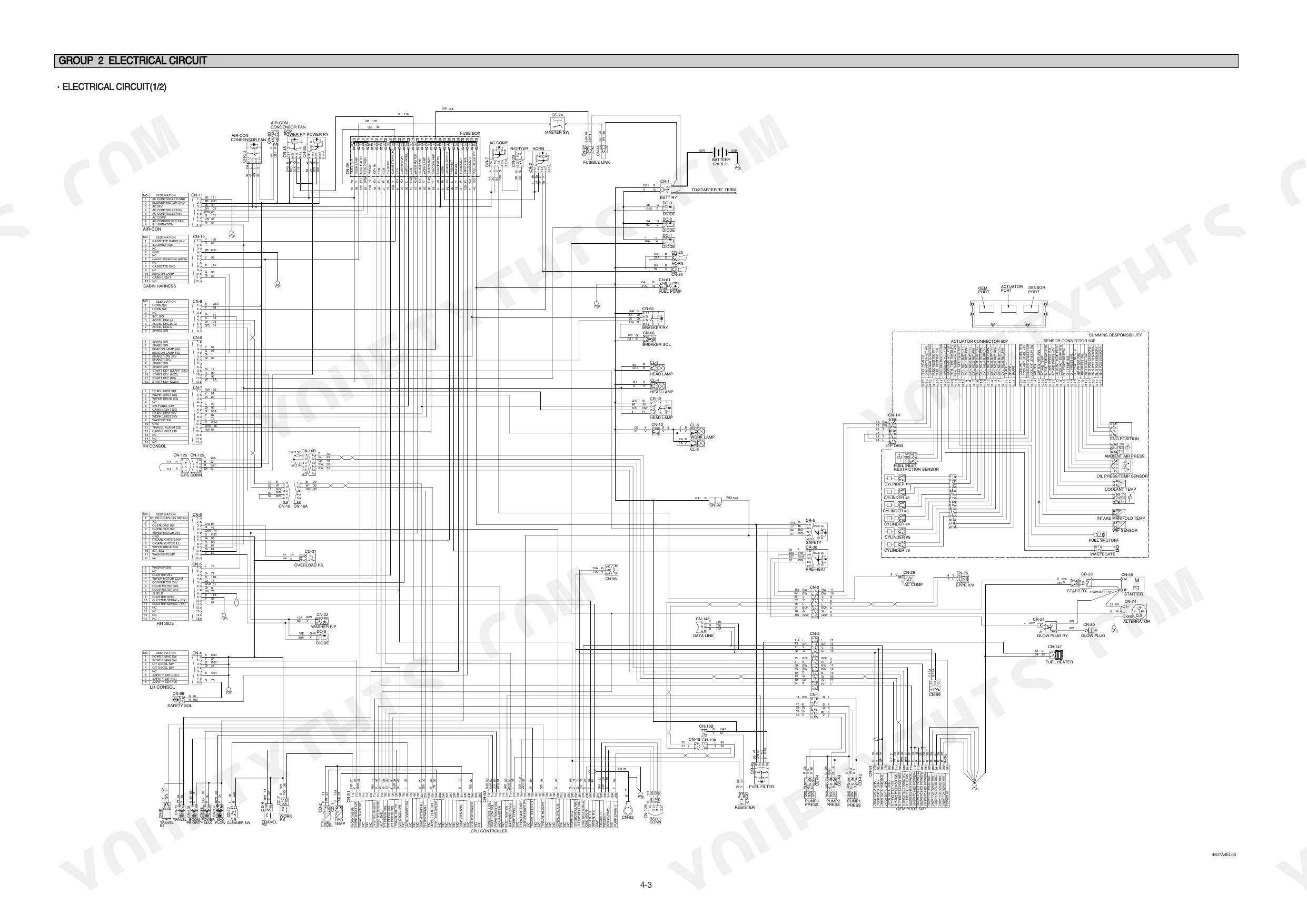

| Electrical System | 165-212 | Component Location, Electrical Circuit, Electrical Component Specification, Connectors |
| Mechatronics System | 213-264 | Outline, Mode Selection System, Monitoring System |
| Maintenance Standard | 315-348 | Operational Performance Test, Major Components, Track and Work Equipment |

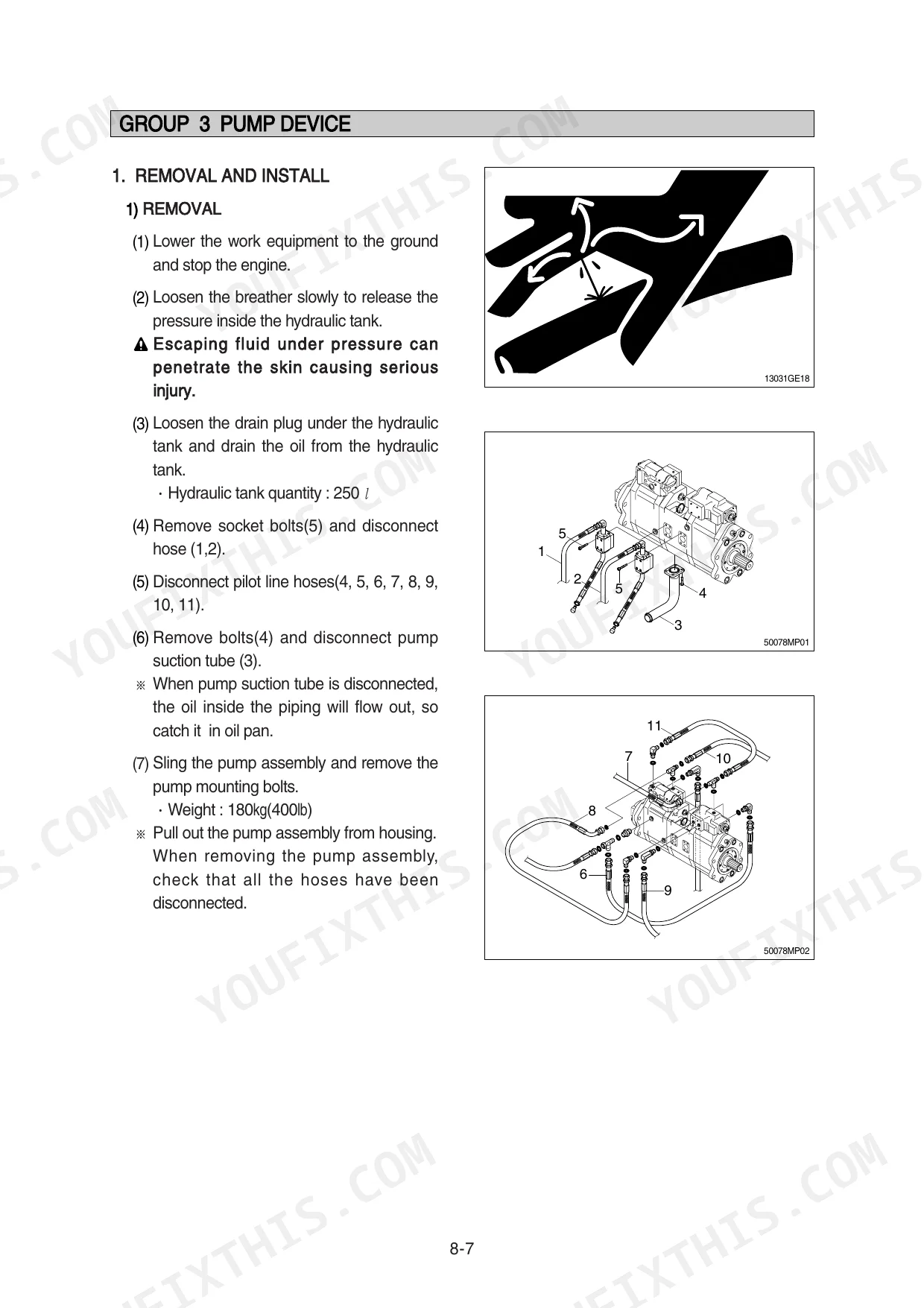

| Disassembly and Assembly | 349-510 | Precaution, Tightening Torque, Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Turning Joint |
| Component Mounting Torque | 511-526 | Introduction Guide, Engine System, Electric System, Undercarriage, Structure, Work Equipment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Bypass check valve setting pressure | 5.0kgf/cm2 (71psi) | p. 142 |
| Pilot relief valve setting pressure | 35kgf/cm2 | p. 144 |
| Temperature sensor (Hydraulic) resistance at 50°C | 804 Ω | p. 186 |
| Temperature sensor (Hydraulic) resistance at 80°C | 310 Ω | p. 186 |
| Main relief valve set pressure (Power boost OFF) | 330kgf/cm2 | p. 220 |
| Main relief valve set pressure (Power boost ON) | 360kgf/cm2 | p. 220 |
| Actuator operating voltage | 0~1V | p. 310 |
| Hydraulic oil temperature for testing | 50±5°C | p. 333 |

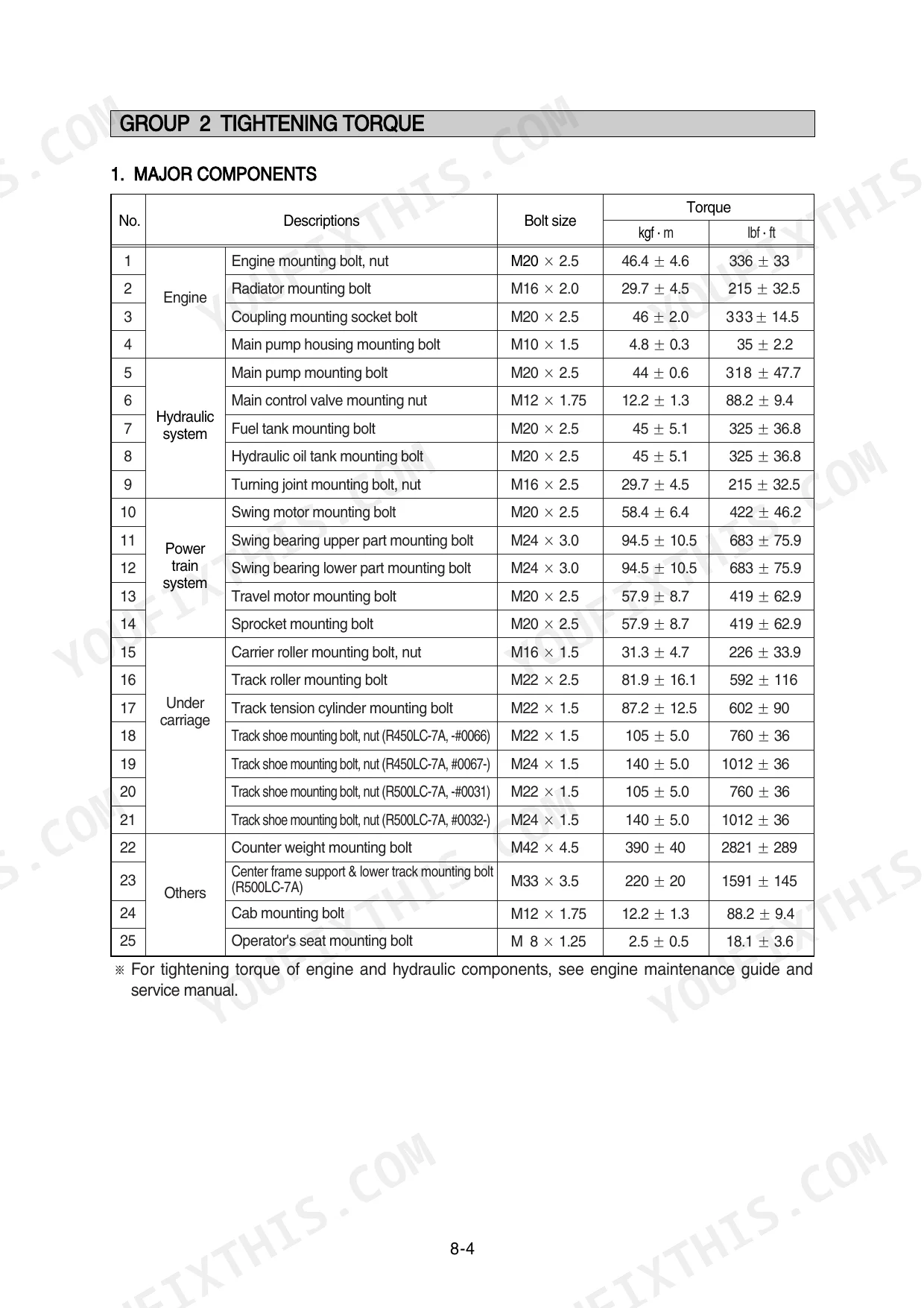

| Travel motor mounting bolt | 57.9 ± 8.7 kgf·m (419 ± 62.9 lbf·ft) | p. 518 |
| Main pump mounting bolt | 44 ± 0.6 kgf·m (318 ± 47.7 lbf·ft) | p. 353 |
| Locking screw (Item 11) | 1.0 kgf·m (7.4 lbf·ft) | p. 419 |
| Tightening torque for Main pump mounting bolts (M20x2.5) | 46±5.1 kgf·m | p. 517 |
Hyundai R450LC-7A, R500LC-7A Common Problems This Manual Covers
Hyundai R450LC-7A all hydraulic functions weak, boom and bucket slow to respond under load
Check main relief valve pressure with a gauge on the pump delivery port. The set pressure is 330 kgf/cm2 with power boost off and 360 kgf/cm2 with boost on, listed on page 220. Verify pilot pressure holds 35 kgf/cm2 per page 144; low pilot pressure keeps spools from stroking fully. Adjust or replace the relief valve if pressure sags.
Manual Section: Hydraulic and Mechanical System Troubleshooting p. 220Boom or arm drifts down slowly with pilot controls in neutral, machine creeps on slopes
Warm the hydraulic oil to 50±5°C per the test standard on page 333, then check each oil port relief valve for early opening. A port relief cracking below its setting lets the cylinder creep in neutral. Run the operational performance drift test in the Maintenance Standard section, and replace the port relief valve or cylinder seals if drift exceeds spec.
Manual Section: Maintenance Standard p. 333Hydraulic functions sluggish and jerky first thing on cold mornings, oil temperature below 25 degrees
Run the engine at low idle and cycle boom, arm, and bucket gently until the oil reaches operating range; the manual's test standard is 50±5°C on page 333. Cold thick oil forces flow through the bypass check valve, which opens at 5.0 kgf/cm2 (71 psi) per page 142, sending unfiltered oil through the system. Never load the machine below 25°C.
Manual Section: Hydraulic System p. 142Monitor shows hydraulic oil temperature sensor fault code, temperature reading stuck high or erratic
Test the hydraulic oil temperature sensor with an ohmmeter. Resistance should read 804 Ω at 50°C and 310 Ω at 80°C per the component specifications on page 186. Readings far off those values mean a failed sensor; replace it. If the sensor checks good, inspect the connector and harness for a short to a high voltage source.
Manual Section: Electrical System Troubleshooting p. 186Travel weak or deviates to one side under load, machine pulls when climbing grades
Measure travel relief pressure on the weak side; the system pressure regulator setting for travel is 345±10 kgf/cm2, shown on page 335. Compare left and right readings at the same engine speed. If pressures match, inspect the track for dragging rollers or over-tight adjustment before pulling the travel motor. Swap relief valves side to side to confirm a faulty valve.
Manual Section: Travel System TroubleshootingFrequently Asked Questions
How do I clear error codes on a Hyundai R450LC-7A or R500LC-7A excavator?
To delete all recorded error codes, select the recorded error (TIME Er) display on the cluster. Press the BUZZER STOP switch and the SELECT switch simultaneously for 2 seconds or more. The cluster display will change to 'TIME Er : 00', indicating that the CPU controller has deleted all recorded error codes from the memory. p. 225
What are the torque specifications for the track roller mounting bolts on a Hyundai R450LC-7A or R500LC-7A?
The track roller mounting bolts for these models require a tightening torque of 81.9 ± 16.1 kgf·m (592 ± 116 lbf·ft). These bolts are specified as M22 × 2.5. p. 353
What is the tightening torque for the main pump mounting bolts on the R450LC-7A and R500LC-7A?
The main pump mounting bolts (M20 × 2.5) should be tightened to a torque of 44 ± 0.6 kgf·m (318 ± 47.7 lbf·ft). p. 353
What is the standard engine oil quantity for the Cummins QSM 11 engine?
The standard engine oil quantity for the Cummins QSM 11 engine is 37.85 liters (10 U.S. gallons). p. 35
Will this Hyundai R450LC-7A Service Manual download right away?
Instant PDF download. You get the full 526-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this Hyundai R450LC-7A Service Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Is there a wiring diagram in this Hyundai R450LC-7A Service Manual?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
