Wrenching on a Hyundai HL730-7A, HL730XTD-7A, or HL730TM-7A? This 397-page wheel loader shop manual PDF covers all three variants front to back. Inside: complete electrical circuits with connector specs, hydraulic schematics for the whole power train, and troubleshooting charts for every major system, from brakes to steering to work equipment. You also get factory disassembly and assembly procedures plus tests and adjustments to bring each system back into spec. Torque the M16 engine mounting bolts to 29.7 ± 4.5 kgf·m, warm the engine at 1200 rpm, and confirm the gear pump tops out at 150 kgf/cm². No more chasing wiring faults with a multimeter and a prayer. Bookmarked with a full text layer, so you can search any spec, jump straight to the right section, and get your loader back to work.
What's Inside This Hyundai HL730-7A, HL730XTD-7A, HL730TM-7A Manual
| System | Pages | Key Topics |
|---|---|---|

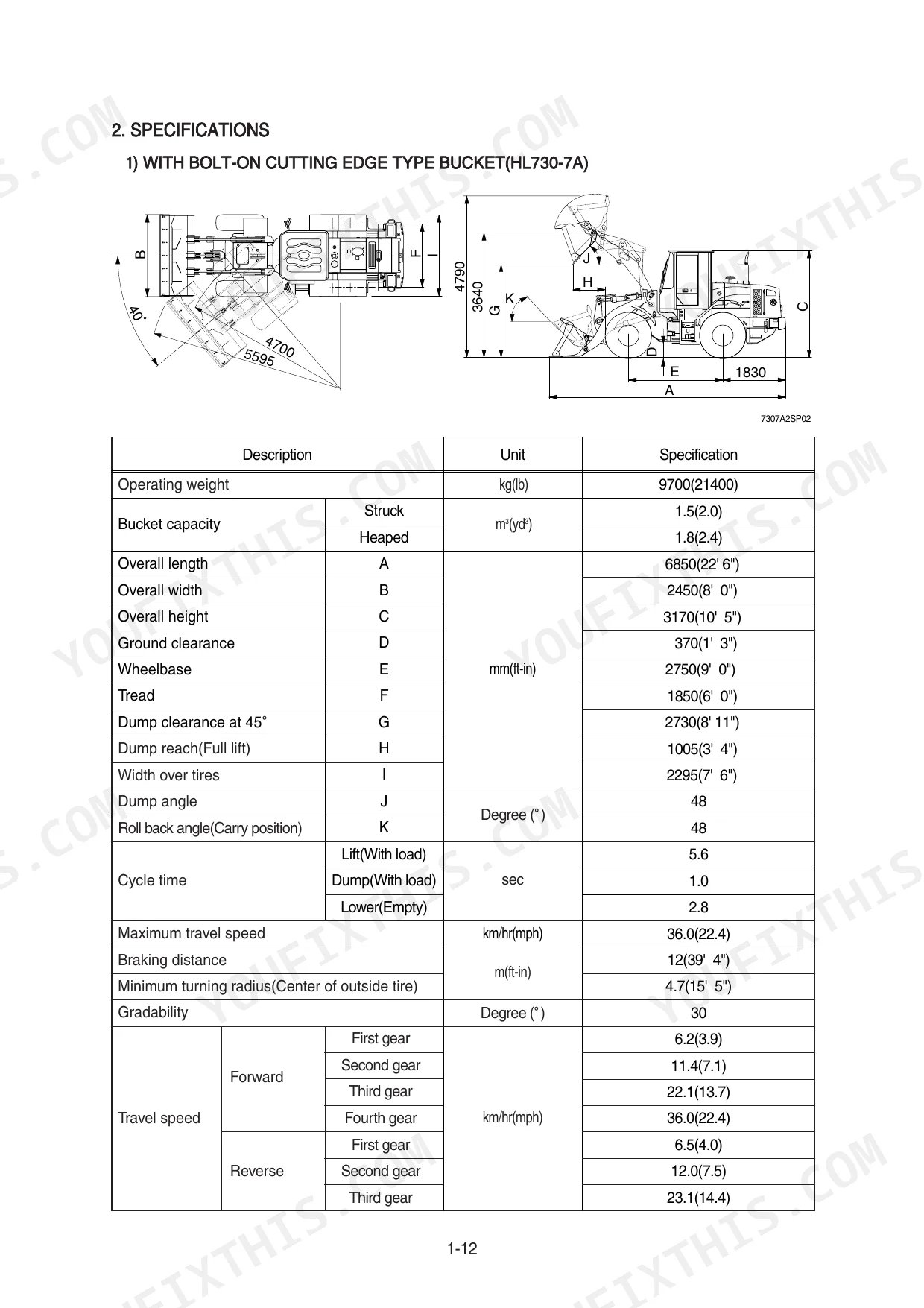

| General | 1-30 | Safety Hints, Specifications, Operational Checkout Record Sheet |

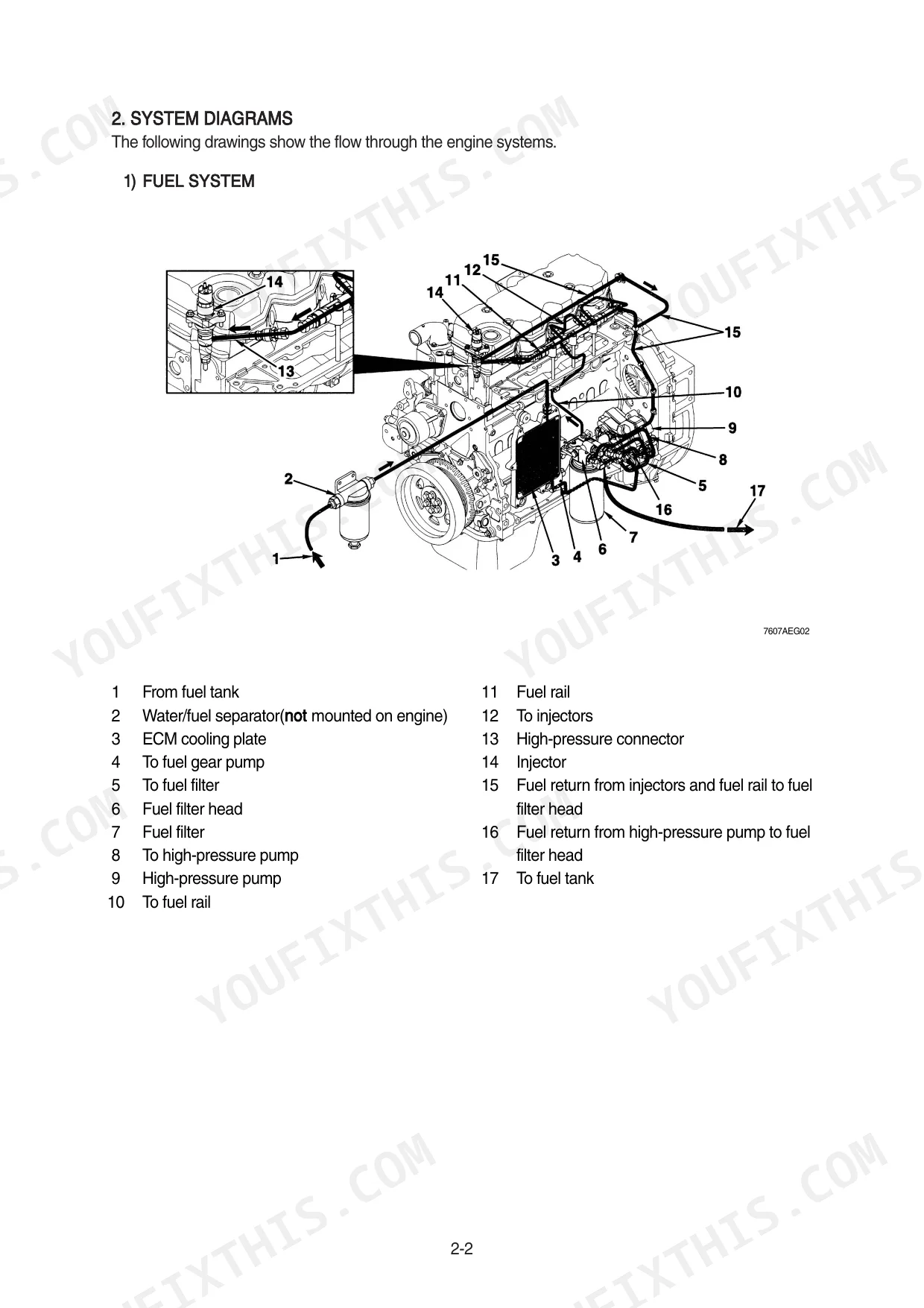

| Engine | 31-39 | Structure and Function, Fuel Warmer System, Engine Speed and Stall RPM |

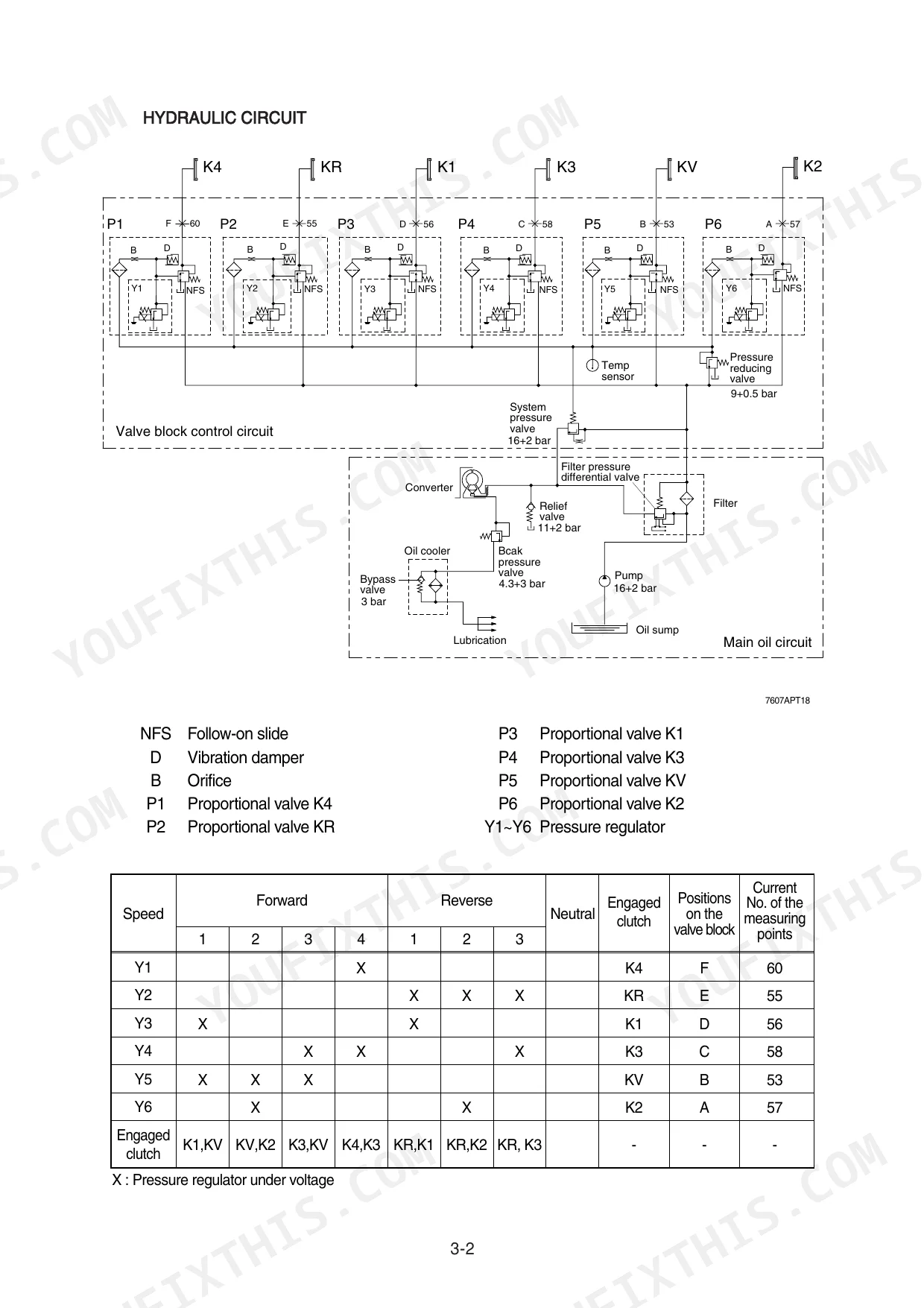

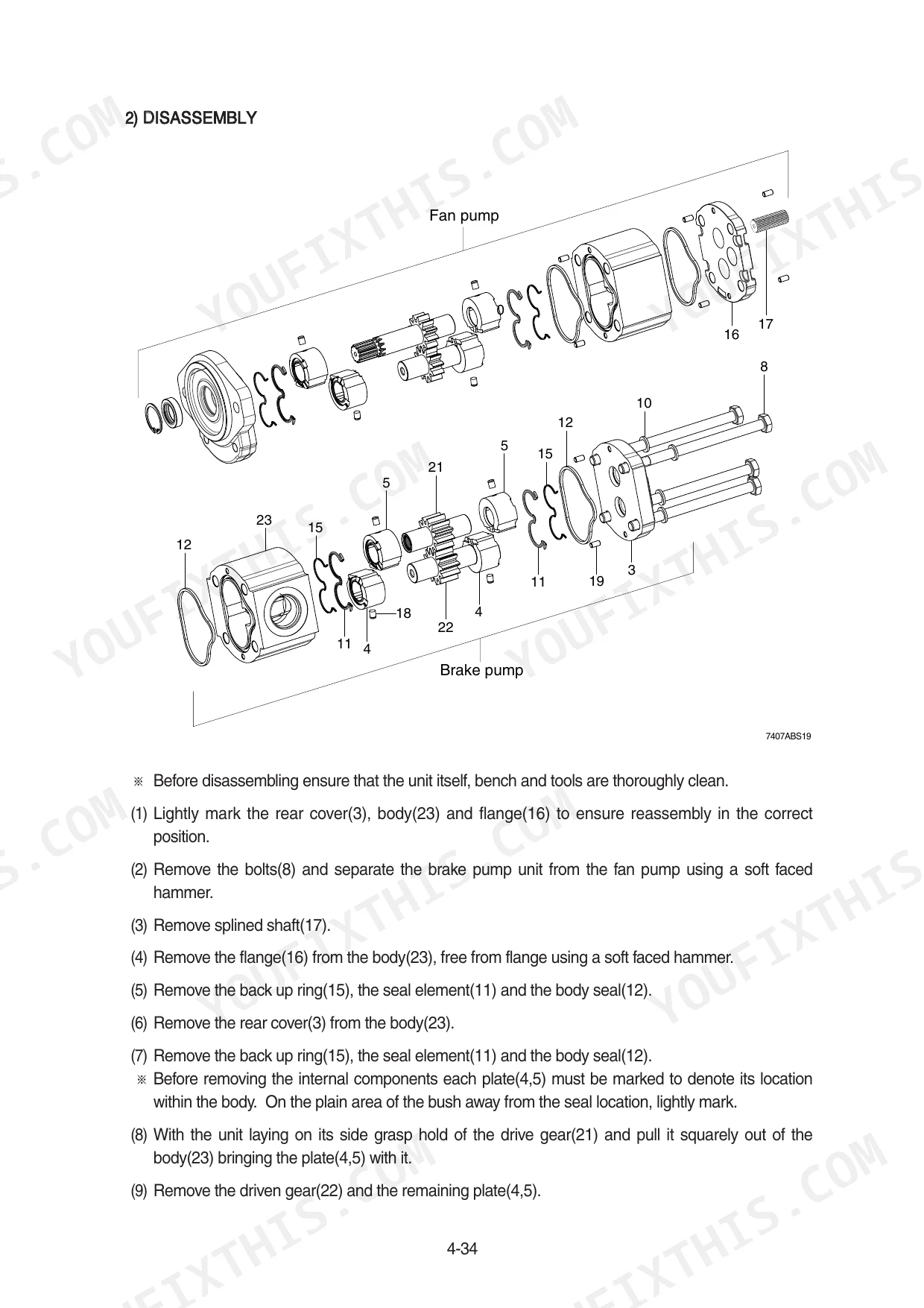

| Power Train System | 40-117 | Structure and Function, Operational Checks and Troubleshooting, Test and Adjustments, Disassembly and Assembly |
| Brake System | 118-156 | Structure and Function, Operational Checks and Troubleshooting, Tests and Adjustments, Disassembly and Assembly |
| Steering System | 157-226 | Structure and Function, Operational Checks and Troubleshooting, Tests and Adjustments, Disassembly and Assembly |
| Work Equipment | 227-313 | Structure and Function, Operational Checks and Troubleshooting, Tests and Adjustments, Disassembly and Assembly |

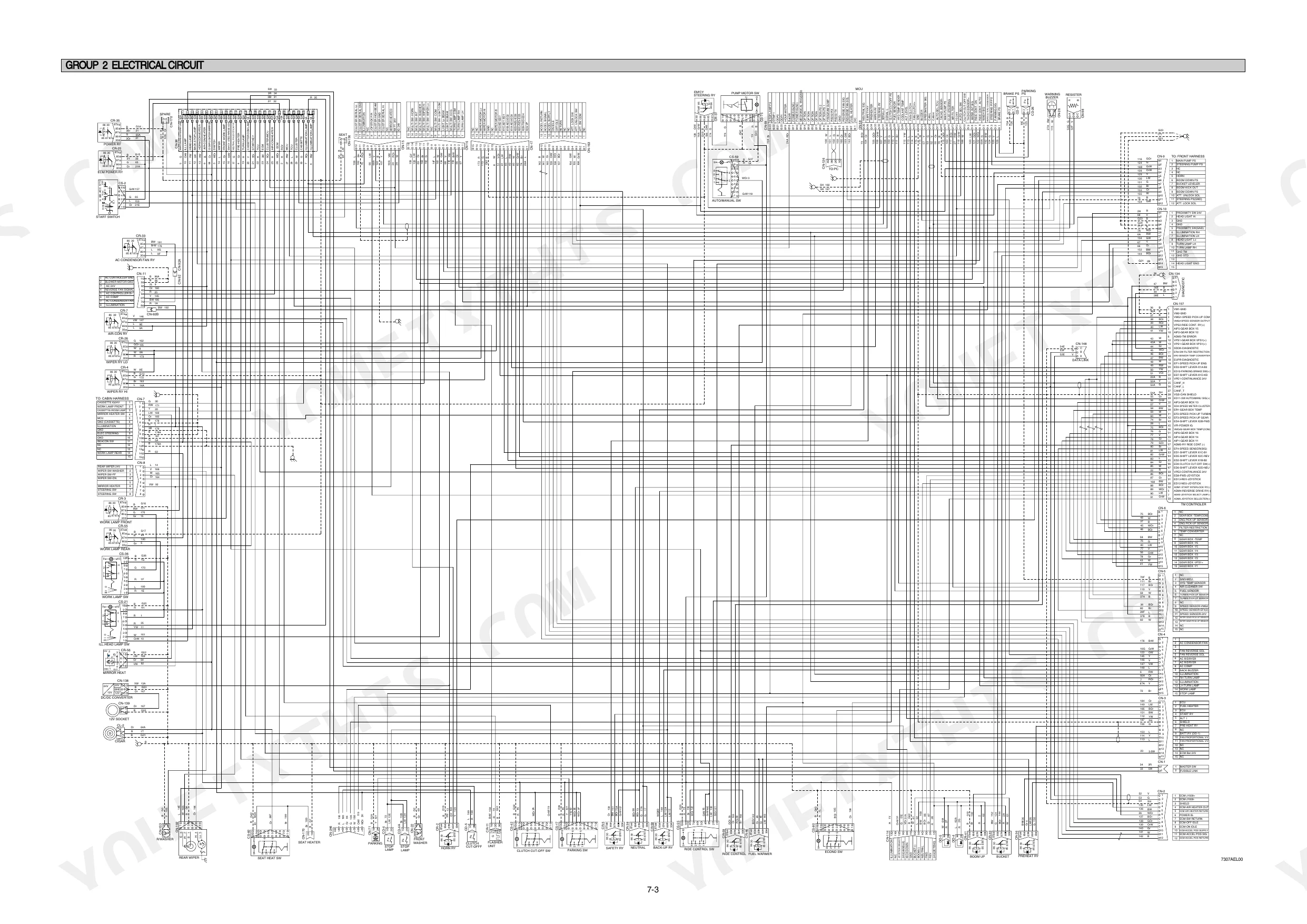

| Electrical System | 314-397 | Component Location, Electrical Circuit, Monitoring System, Electrical Component Specification, Connectors, Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

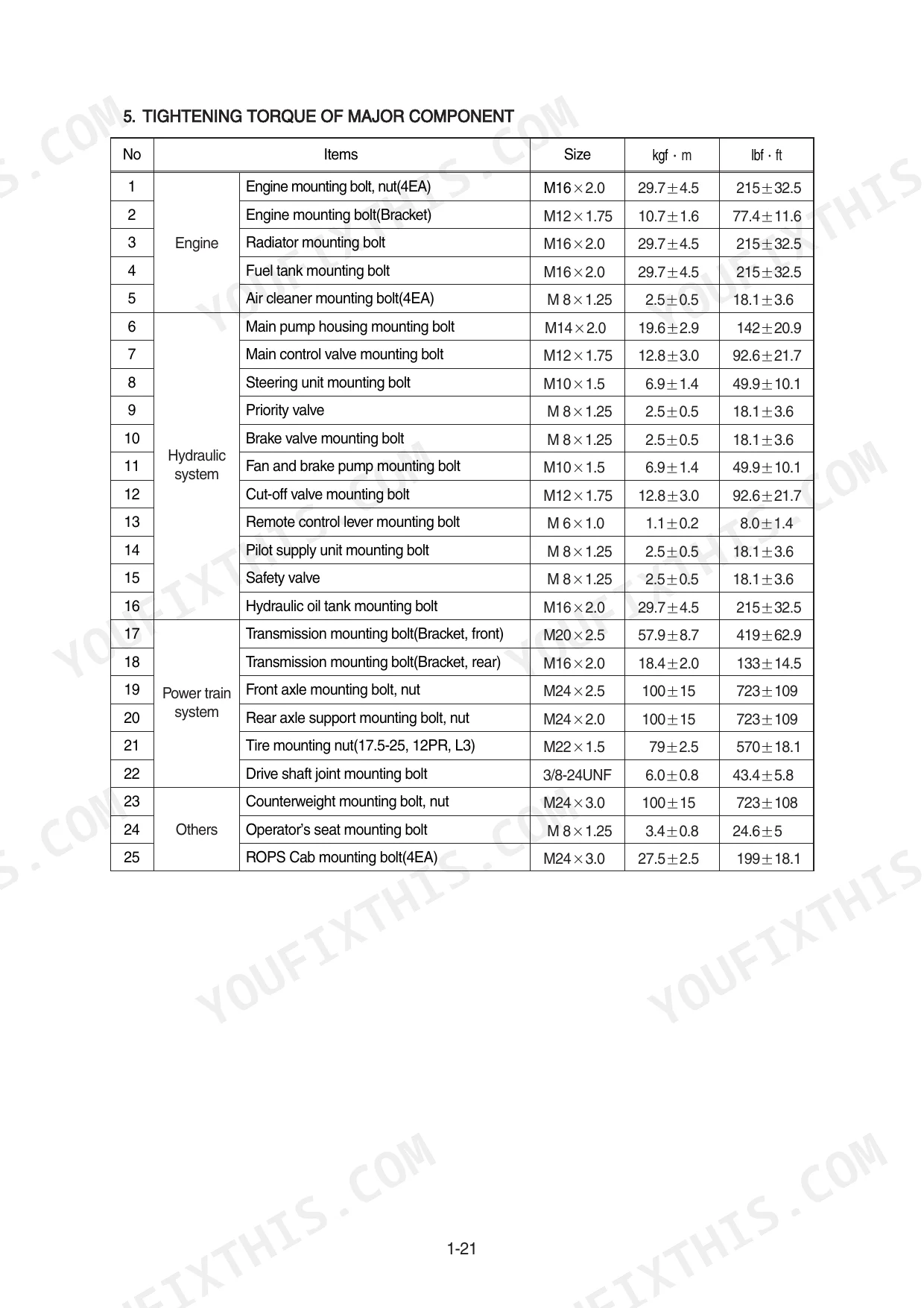

| Engine mounting bolt, nut(4EA) | 29.7 ± 4.5 kgf·m | p. 25 |
| Engine mounting bolt(Bracket) | 10.7 ± 1.6 kgf·m | p. 25 |
| Idle rpm for warm up | 1200 rpm | p. 57 |
| maximum delivery pressure | 150kgf/cm2 | p. 127 |
| Torque wrench | 0-7.1 kgf·m (0-51.6 lb·ft) | p. 191 |
| Ball diameter | 8.5 mm | p. 194 |
| Boom cylinder drift limit | 30mm | p. 266 |
| Bucket cylinder drift limit | 30mm | p. 266 |
| Pilot pressure setting | 30~35bar (430~500psi) | p. 288 |
| Engine coolant temperature red range | Above 104°C (219°F) | p. 336 |
| Engine Oil Quantity | 11 L | p. 21 |
| Engine High Idling Speed | 2230 ± 50 rpm | p. 21 |
Hyundai HL730-7A, HL730XTD-7A, HL730TM-7A Common Problems This Manual Covers

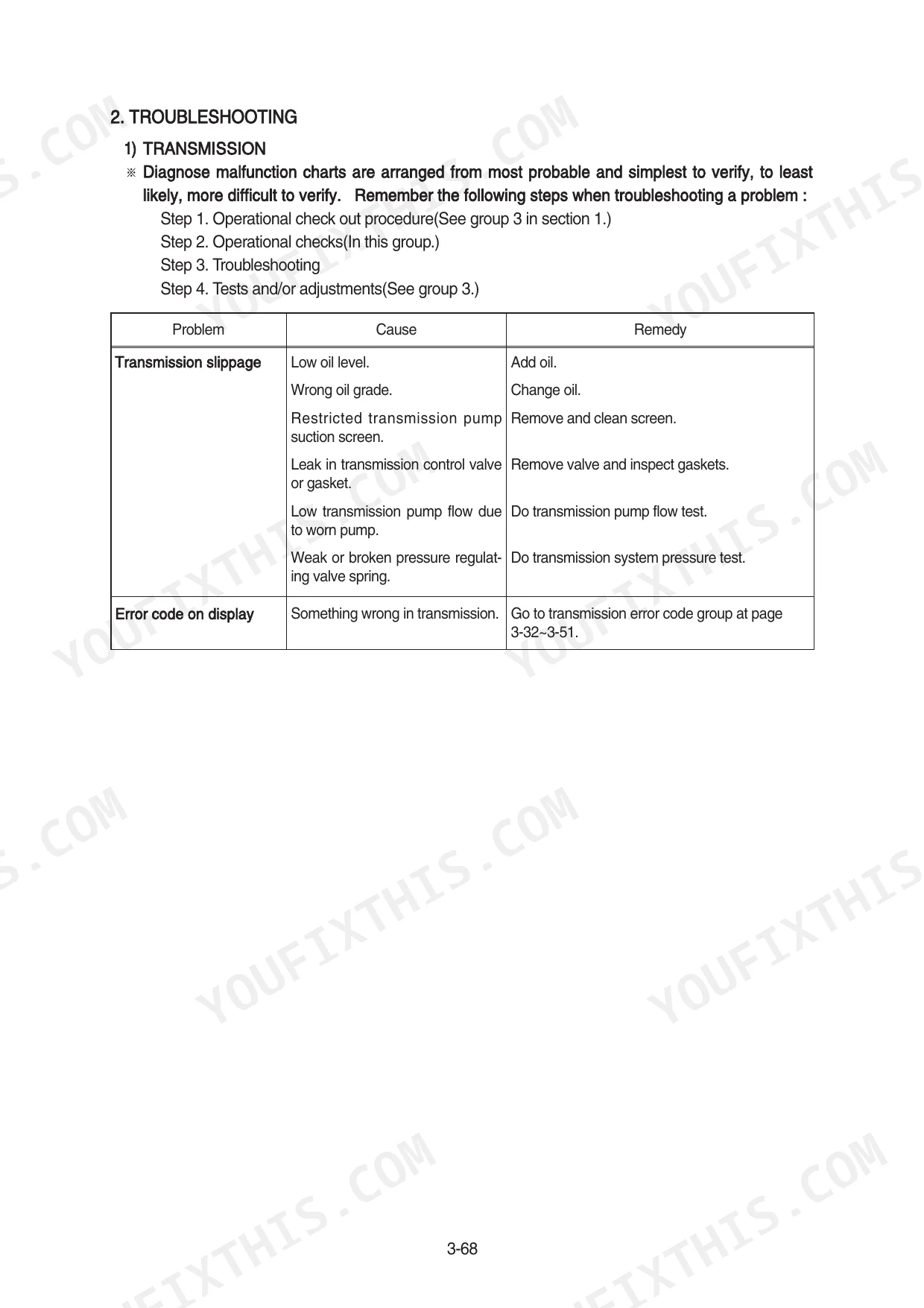

Hyundai HL730-7A transmission will not shift, dash gear indicator stays fixed when selector is moved
Check the gear selector output signal at the column controller connector before condemning the transmission. Follow the shifting troubleshooting procedures starting. Verify transmission oil temperature is below the red range shown on the cluster, since overheating triggers protective derating. If the selector sends no signal with the key on, replace the column controller.
Manual Section: Transmission Troubleshooting p. 91Steering wheel heavy and slow at low idle, gets worse when the oil warms up
Warm the machine, then check steering effort at low idle, where the complaint shows first. Remove the steering unit relief valve and inspect the 8.5 mm ball and seat, shown on page 194, for debris holding the ball off its seat. Clean the orifice and spool; replace the unit if scoring is deep.
Manual Section: Steering System Troubleshooting p. 157Loader hydraulics weak and sluggish, boom raises slow, bucket drifts down under load
Check hydraulic oil level first; check the tank level against the capacity in the General specifications. Test main relief pressure against the 210 kgf/cm² setting listed on page 22. Measure bucket cylinder drift with a loaded bucket; anything past the 30 mm limit on page 266 points to internal cylinder leakage. Inspect the cooler and suction line for restriction.
Manual Section: Work Equipment Troubleshooting p. 227Emergency steering warning lamp stays dark during pump test, emergency steering does not work
Run the emergency steering pump test with the engine at low idle and watch the lamp. Test for battery voltage at the pump motor relay using the wiring diagram. Check the bulb and ground path before replacing the pump motor; most no-lamp failures are on the circuit side.
Manual Section: Electrical System Troubleshooting p. 157Instrument cluster blank or gauges dead, warning lamps do not light at key on
Measure voltage at the cluster connector with the key on; a healthy charging system reads above 24 volts on the volt meter, and readings below that indicate discharging. Trace cluster power and ground through the wiring diagram. Clean corroded pins and reseat both connectors before spending money on a replacement cluster.
Manual Section: Electrical System Troubleshooting p. 314Frequently Asked Questions
What does error code 010 mean on the Hyundai HL730-7A?
Error code 010 indicates that the power input voltage is low, specifically below 18V. This is classified under the electrical system fault codes. p. 59
What is the procedure to reset the transmission after a fault code F6?
The F6 error code indicates that clutch adjustment data has been lost. To resolve this, you must execute the AEB (Automatic Electronic Calibration) cycle, which takes about 3 to 4 minutes. p. 91
What is the tightening torque for the engine mounting bolts on the HL730-7A?
The tightening torque for the engine mounting bolts (M16x2.0) is 29.7 ± 4.5 kgf·m (215 ± 32.5 lbf·ft). p. 24
What is the recommended oil capacity for the engine oil pan?
The engine oil pan has a capacity of 11 liters (2.9 U.S. gallons). p. 27
What is the maximum pressure setting for the main relief valve in the main control valve?
The main relief valve set pressure for the main control valve is 210 kgf/cm² (2990 psi). p. 22
How quickly can I access this Hyundai HL730-7A manual after buying?
All 397 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Can I print just the pages I need from this Hyundai HL730-7A manual?
Yes, printing is unrestricted: a single page, a chapter, or the lot, on letter or A4.
