Part of the Hyundai Repair Manuals.
All 396 pages of this Hyundai HL730-7, HL730TM-7 Service Manual PDF cover one machine: the HL730 wheel loader, from power train to work equipment. You get full electrical circuit diagrams with connector pinouts and component specifications, hydraulic circuits for the brake, steering, and work equipment systems, plus page after page of disassembly and assembly procedures. A dedicated troubleshooting section walks you through operational checks on the transmission, brakes, and steering unit before you pull anything apart. The main pump tops out at 210 kgf/cm2 (2990 psi); torque the pump housing mounting bolts to 19.6 kgf-m, plus or minus 2.9, and you're within factory limits. No more chasing wiring faults with a multimeter and a prayer. Bookmarked by system and text-searchable: type the spec you need, find the page, and go fix the loader.
What's Inside This Hyundai HL730-7, HL730TM-7 Manual
| System | Pages | Key Topics |
|---|---|---|

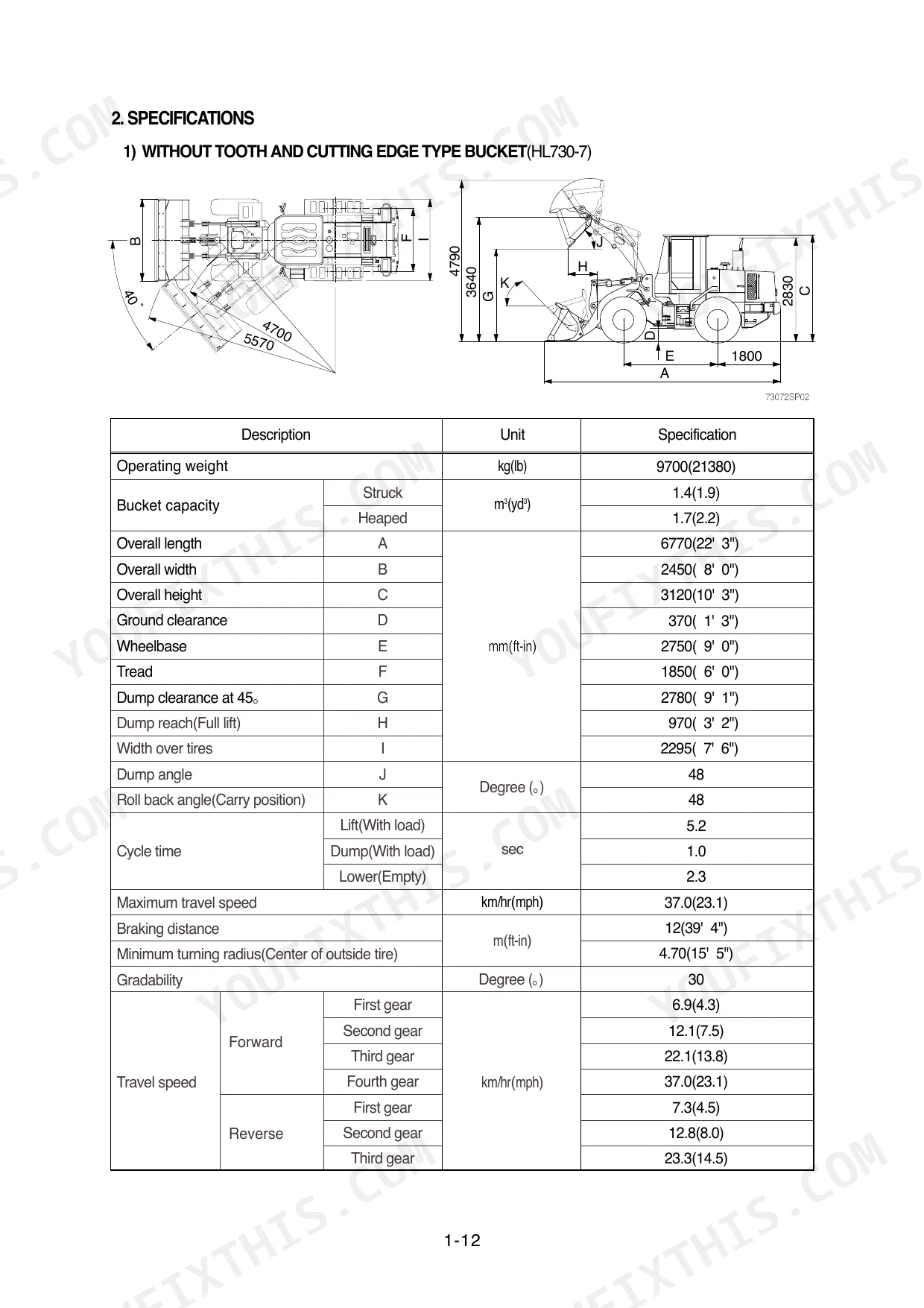

| General | 1-38 | Safety Hints, Specifications, Operational Checkout Record Sheet |

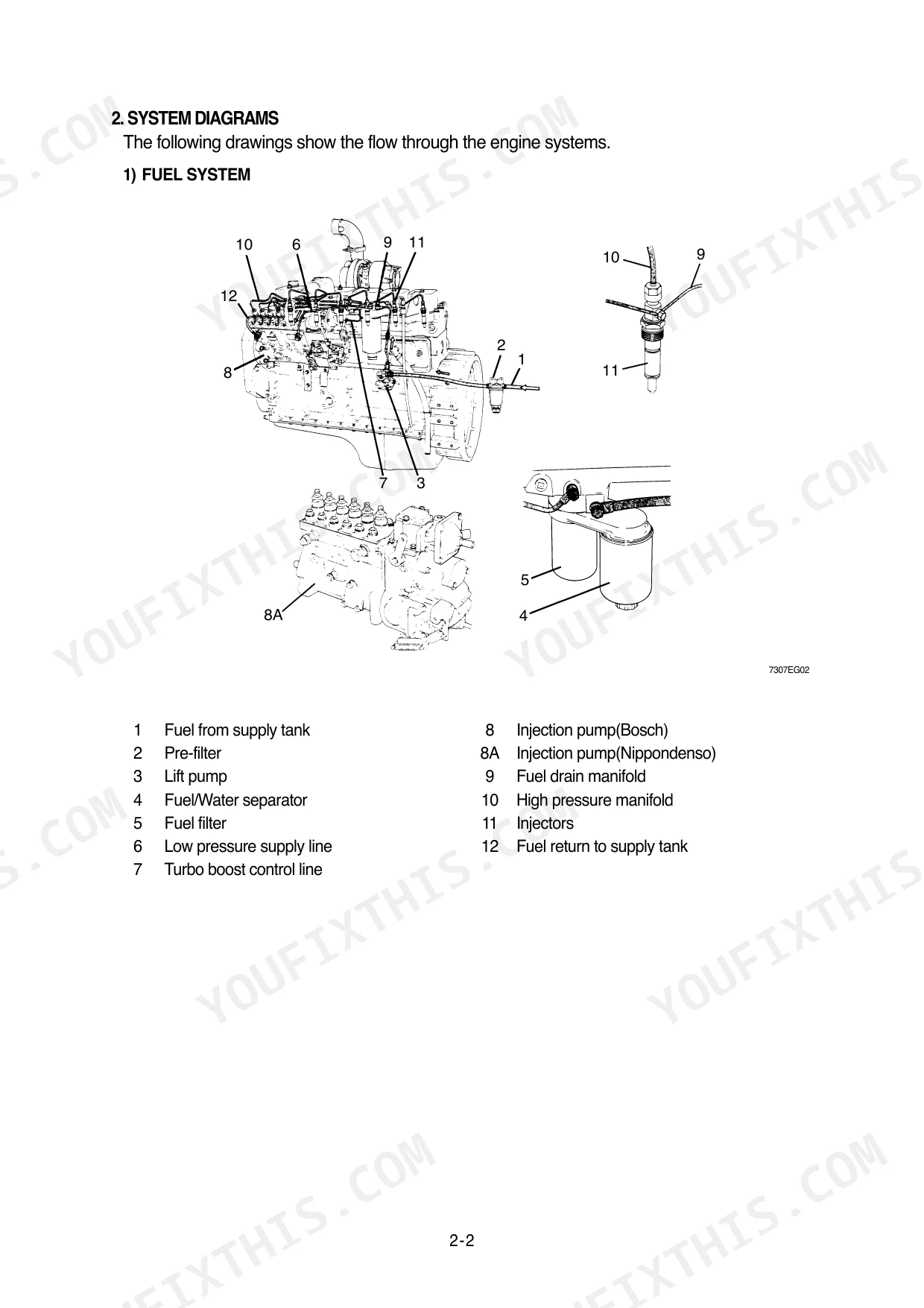

| Engine | 39-47 | Structure, System Diagrams |

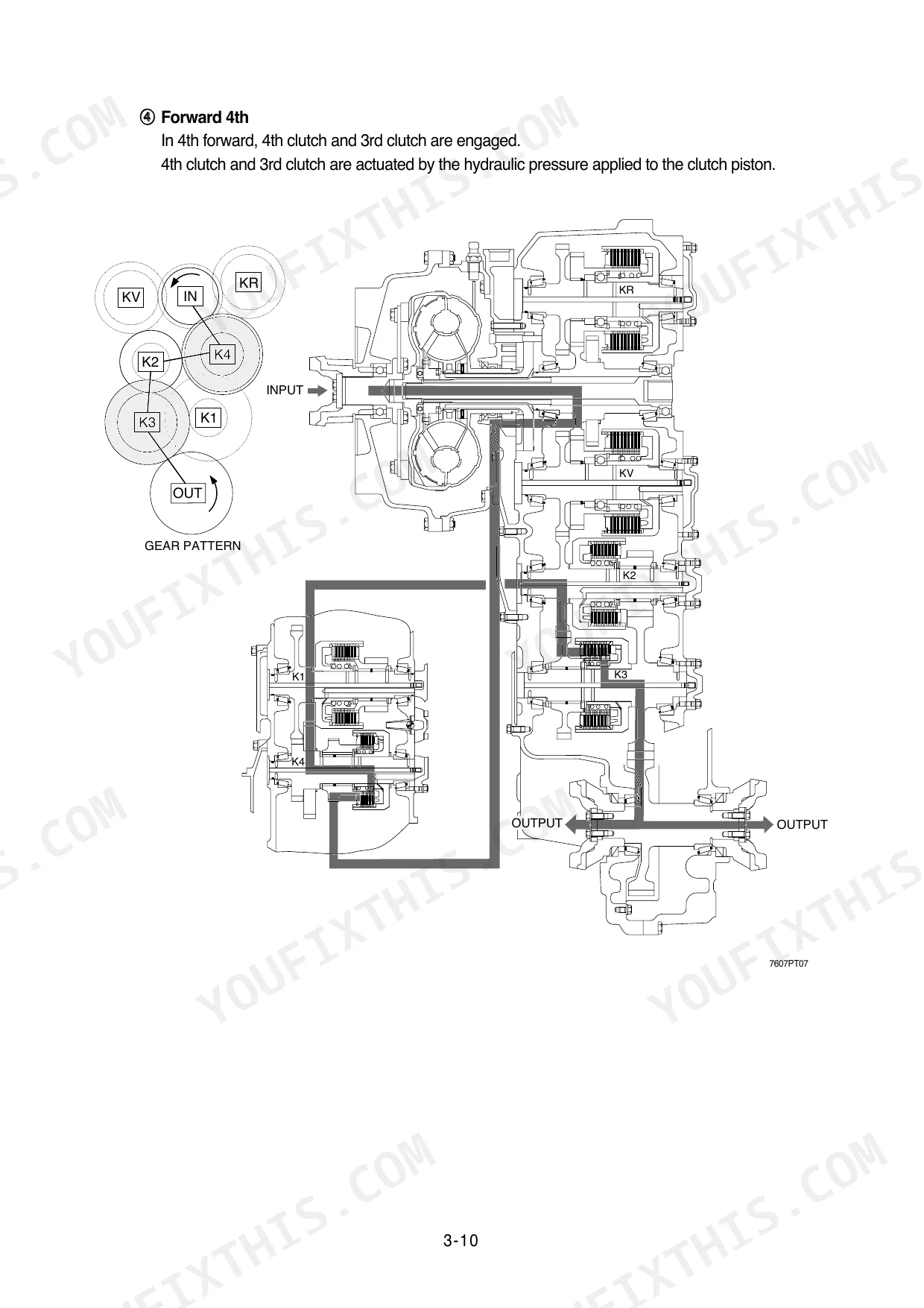

| Power Train System | 48-122 | Structure and Function, Operational Checks and Troubleshooting, Test and Adjustments, Disassembly and Assembly |
| Brake System | 123-161 | Structure and Function, Hydraulic Circuit, Brake Pump, Brake Valve |
| Steering System | 162-231 | Outline, Hydraulic Circuit, Steering Unit, Steering Cylinder, Troubleshooting |

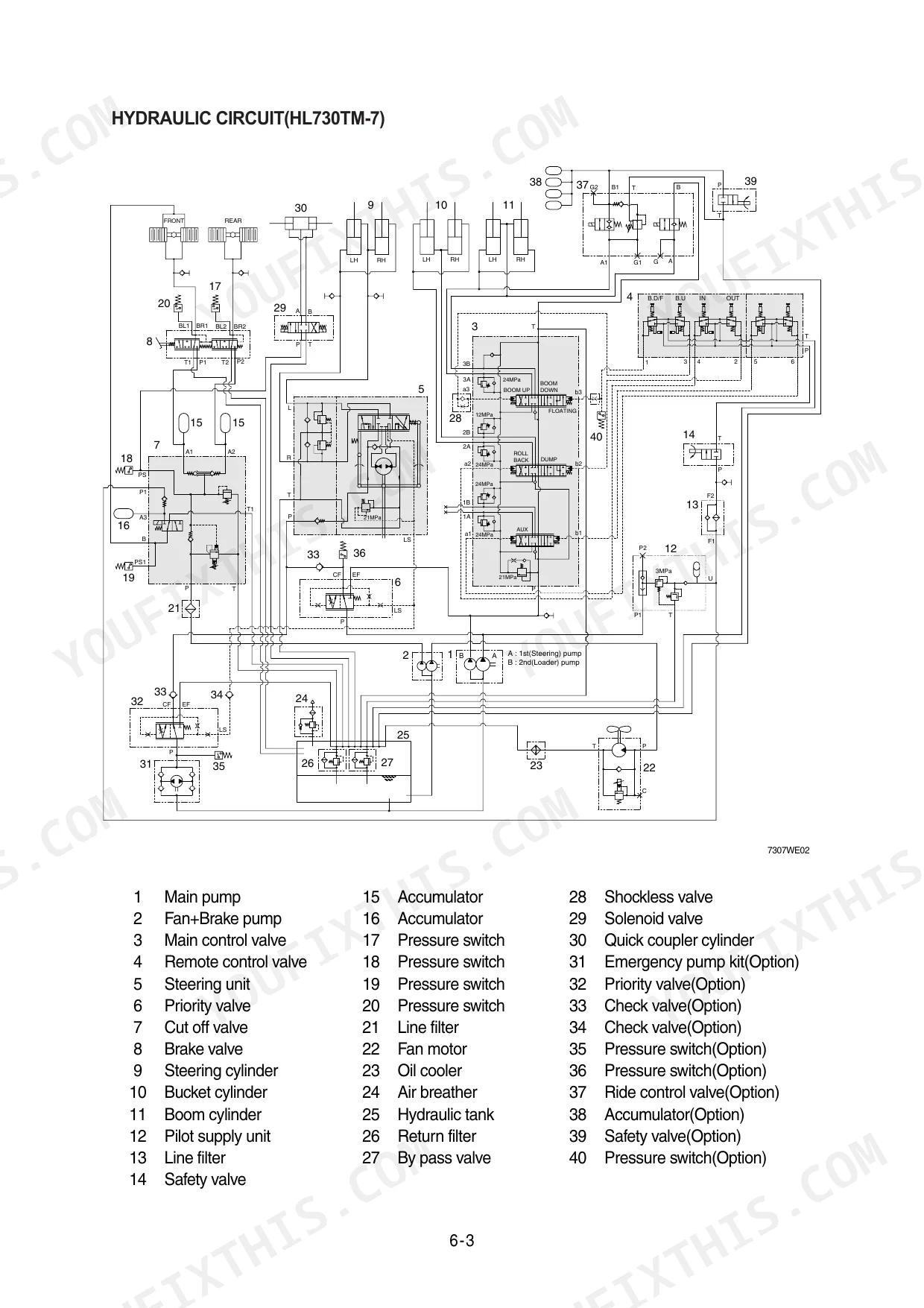

| Work Equipment | 232-320 | Hydraulic System Outline, Hydraulic Circuit, Main Pump Operation, Remote Control Valve, Main Control Valve |

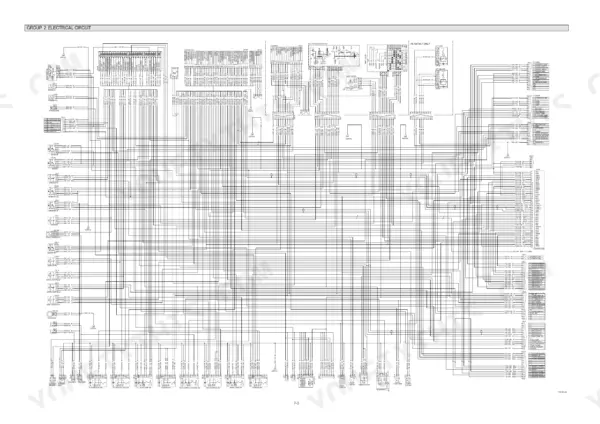

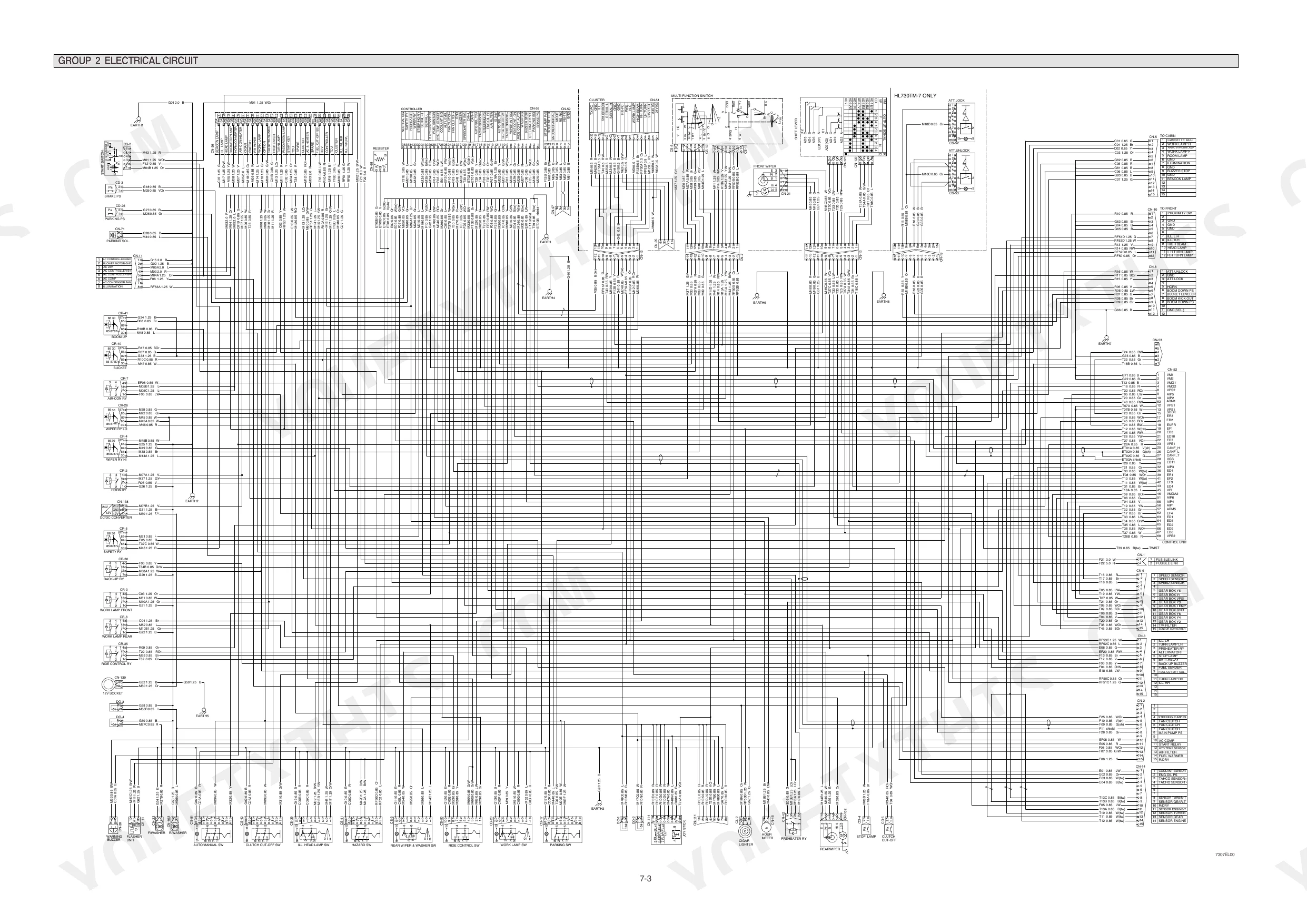

| Electrical System | 321-396 | Component Location, Electrical Circuit, Monitoring System, Electrical Component Specification, Connectors, Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Steering unit mounting bolt torque | 6.9 ± 1.4 kgf·m | p. 32 |
| Main pump housing mounting bolt torque | 19.6 ± 2.9 kgf·m | p. 32 |
| Main pump capacity | 36+28.5cc/rev | p. 30 |
| Main pump maximum operating pressure | 210kgf/cm² (2990psi) | p. 30 |
| Converter relief valve opening pressure | 9 bar | p. 63 |
| Converter back pressure valve opening pressure | 3.5 bar | p. 63 |
| Steering unit relief valve pressure | 21MPa | p. 164 |
| Relief pressure | 20.5~21.5Mpa (205~215bar, 3200~3300psi) | p. 187 |
| Tighten torque for LS plug | 5.1 ± 1 kgf·m (36.9 ± 7.2 lbf·ft) | p. 193 |
| Tighten torque for PP plug | 5.1 ± 1 kgf·m (36.9 ± 7.2 lbf·ft) | p. 193 |
| Nut (Pipe assy) torque | 30 ± 3 kgf·m (217 ± 21.7 lbf·ft) | p. 219 |
| Engine Oil Quantity | 11 L | p. 32 |
Hyundai HL730-7, HL730TM-7 Common Problems This Manual Covers
Hyundai HL730-7 steering wheel heavy at low idle, slow response even at high idle
Check steering relief pressure first; spec is 20.5 to 21.5 MPa (205 to 215 bar) on page 187. Low or erratic readings usually mean the relief valve in the steering unit is clogged with dirt or the spool orifice is plugged. Remove the valve, clean it in solvent, and flush the circuit before retesting.
Manual Section: Steering System Troubleshooting p. 187Transmission won't shift and dash gear display doesn't follow the selector lever

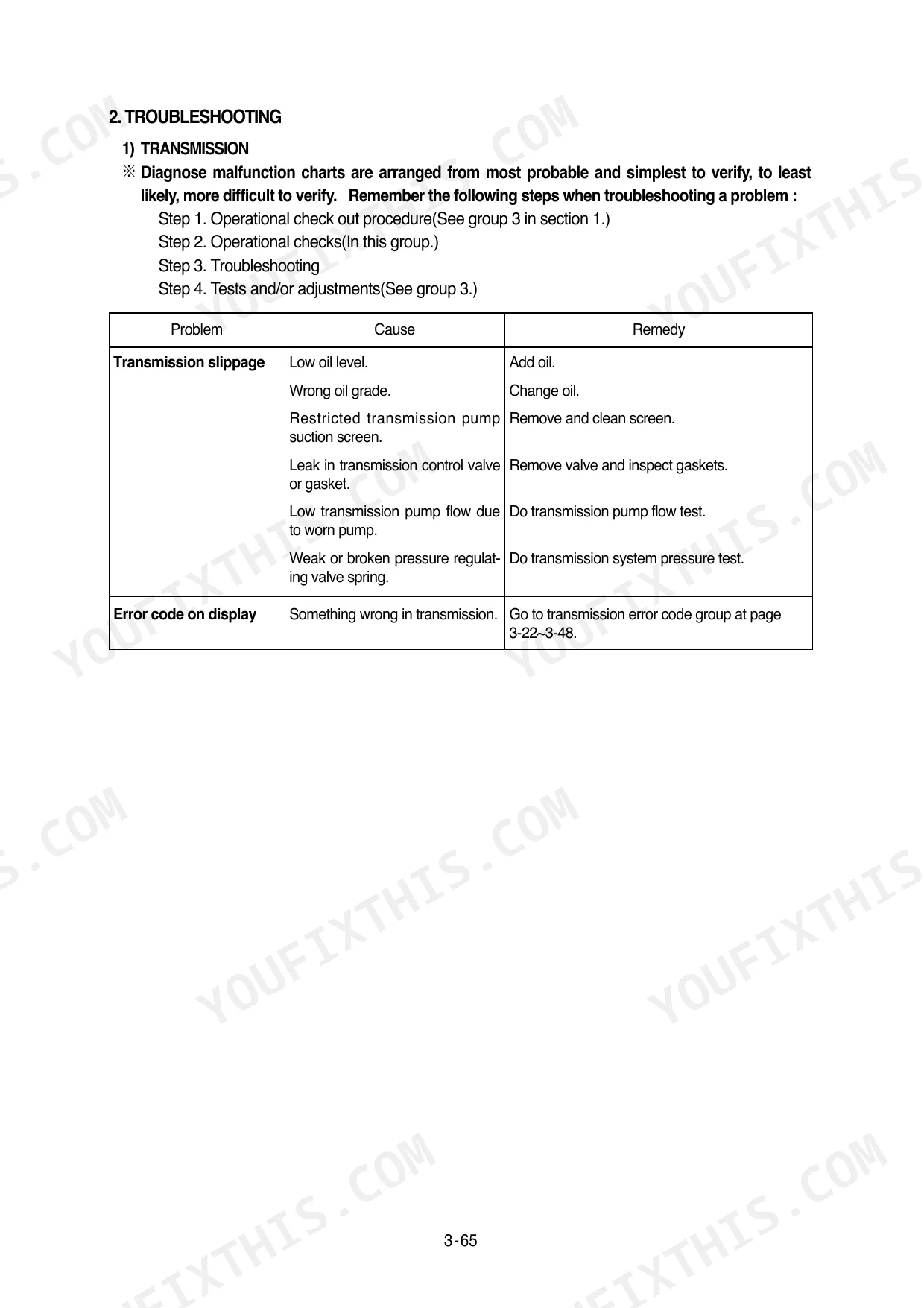

Test clutch system pressure before condemning parts; maximum control pressure is 16+2 bar per page 62. If pressure checks good, move to the gear selector and controller wiring, since a dead selector signal keeps the TCU from ever seeing the shift command. Work through the transmission troubleshooting procedures starting to separate electrical faults from hydraulic ones.
Manual Section: Transmission TroubleshootingEmergency steering test lamp stays dark when the test switch is pushed with key on
Check the lamp bulb and fuse first, then trace the test circuit using the wiring diagram. Test the emergency steering pump motor for power and ground at its connector. Do not operate the machine until the lamp works; the emergency circuit has to hold steering pressure near the 21 MPa relief setting shown on page 164.
Manual Section: Electrical System TroubleshootingBoom drifts down with a loaded bucket, all hydraulic functions feel slow and weak
Measure boom cylinder drift against the limit for your model listed on page 274, then test system relief pressure; spec is 210 kgf/cm2 on page 289. Low pressure across every function points to a worn main pump or a stuck relief valve. Inspect the suction line for air leaks and confirm the hydraulic tank holds its full 90 L.
Manual Section: Work Equipment Troubleshooting p. 289Brake pedal feels soft and stopping power fades out on long downhill grades
Check brake pump delivery first; maximum delivery pressure is 150 kgf/cm2 as listed on page 131. If pressure checks good, bleed the service brakes to purge trapped air, then inspect for leaking lines and worn discs. Brakes that drag or lock up instead point to a sticking brake valve, so cycle the pedal and watch for slow return.
Manual Section: Service Brake Troubleshooting p. 131Frequently Asked Questions
What are the replacement specifications for the steering unit relief valve?
The relief pressure for the steering unit is specified as 20.5 to 21.5 Mpa (205 to 215 bar, 3200 to 3300 psi). If the pressure is not within this specification, you must remove the plug (A) from the steering unit and turn the adjusting screw in the relief cartridge using a hex head wrench to adjust the pressure. p. 187
What is the tightening torque for the steering cylinder nylon nut?
The tightening torque for the nylon nut (17) on the steering cylinder is 40 ± 4 kgf·m (289 ± 29 lbf·ft). p. 219

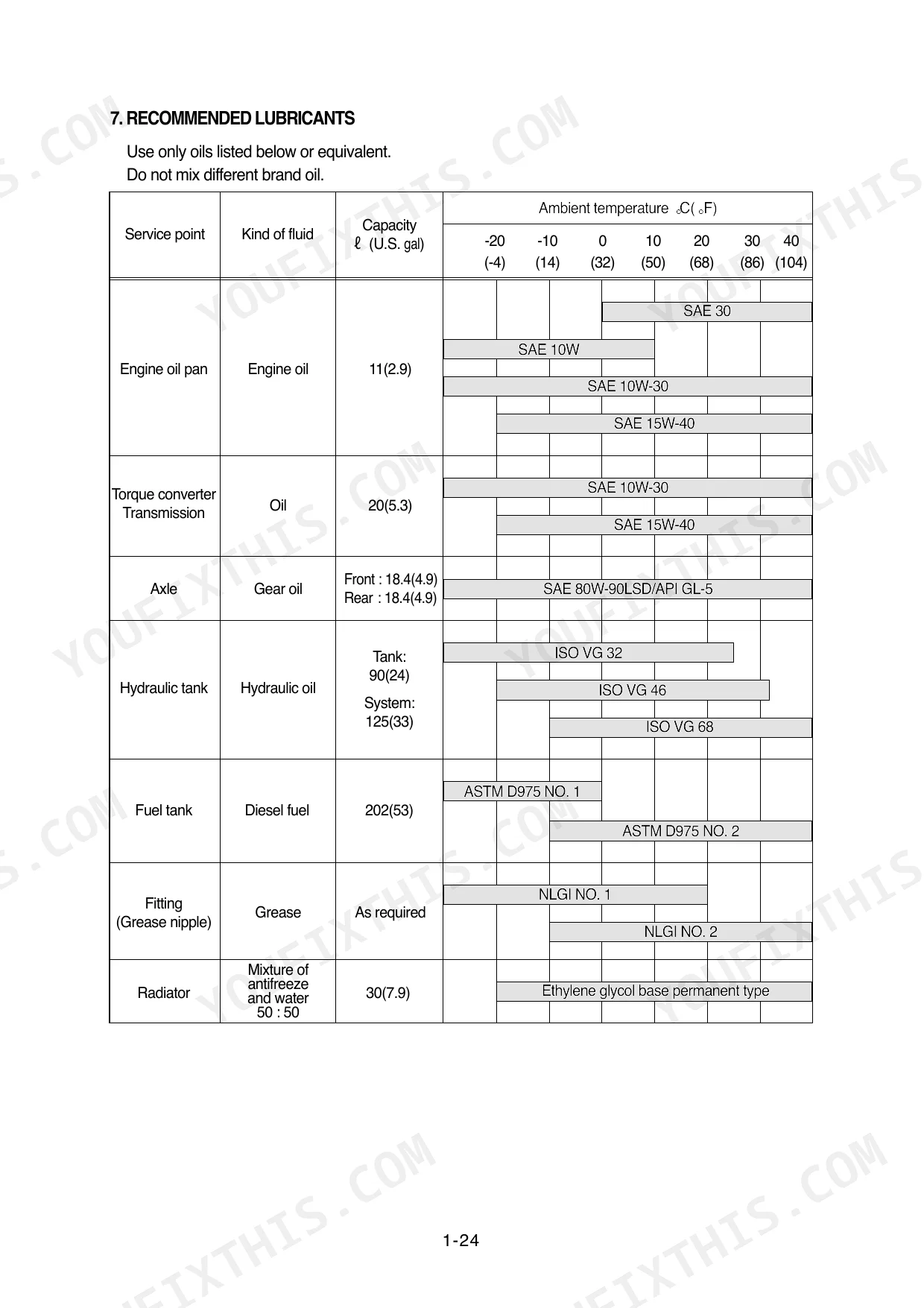

What is the hydraulic tank capacity for the HL730-7?
The hydraulic tank capacity for the HL730-7 is 90 liters (24 U.S. gallons). p. 35
What is the procedure for bleeding the hydraulic brake system?
Two people are required to bleed the brake system. Put a clear plastic tube on bleed screw (B) to route fluid to container (A), start the engine at low idle, and hold the brake pedal down until the bleeding procedure is complete. If bubbles continue for more than 2 minutes, stop and check for the cause. p. 155
What is the tightening torque for the main pump rear body nut?
The tightening torque for the rear body flanged nut (21) on the main pump is 23.2 kgf·m (168 lbf·ft). p. 305
What exactly do I receive with this Hyundai HL730-7 Service Manual?
This is a 396-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Hyundai HL730-7 manual print-friendly?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
