Wrenching on a Hyundai R16-9 mini excavator? This 402-page Hyundai R16-9 service manual PDF is the full factory book: structure and function, hydraulic circuits, electrical system, troubleshooting, maintenance standards, and complete disassembly and assembly for the whole machine. You get hydraulic schematics tracing the main and pilot circuits through every single and combined operation, plus wiring diagrams with component locations and connector views for chasing electrical gremlins. Step-by-step teardown procedures walk you through the pump device, main control valve, swing and travel motors, RCV levers, cylinders, and undercarriage, backed by mounting torque tables for every system. Set your main relief at 210 kgf/cm2 (2990 psi), overload relief at 230 kgf/cm2 (3270 psi), and replace the pump shaft once wear hits 0.025 mm. No more guessing pressures off a forum thread. Bookmarked and keyword-searchable; pull it up on your phone right next to the machine.
What's Inside This Hyundai R16-9 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 11-31 | Safety Hints, Specifications |
| Structure and Function | 32-106 | Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Rcv Pedal |

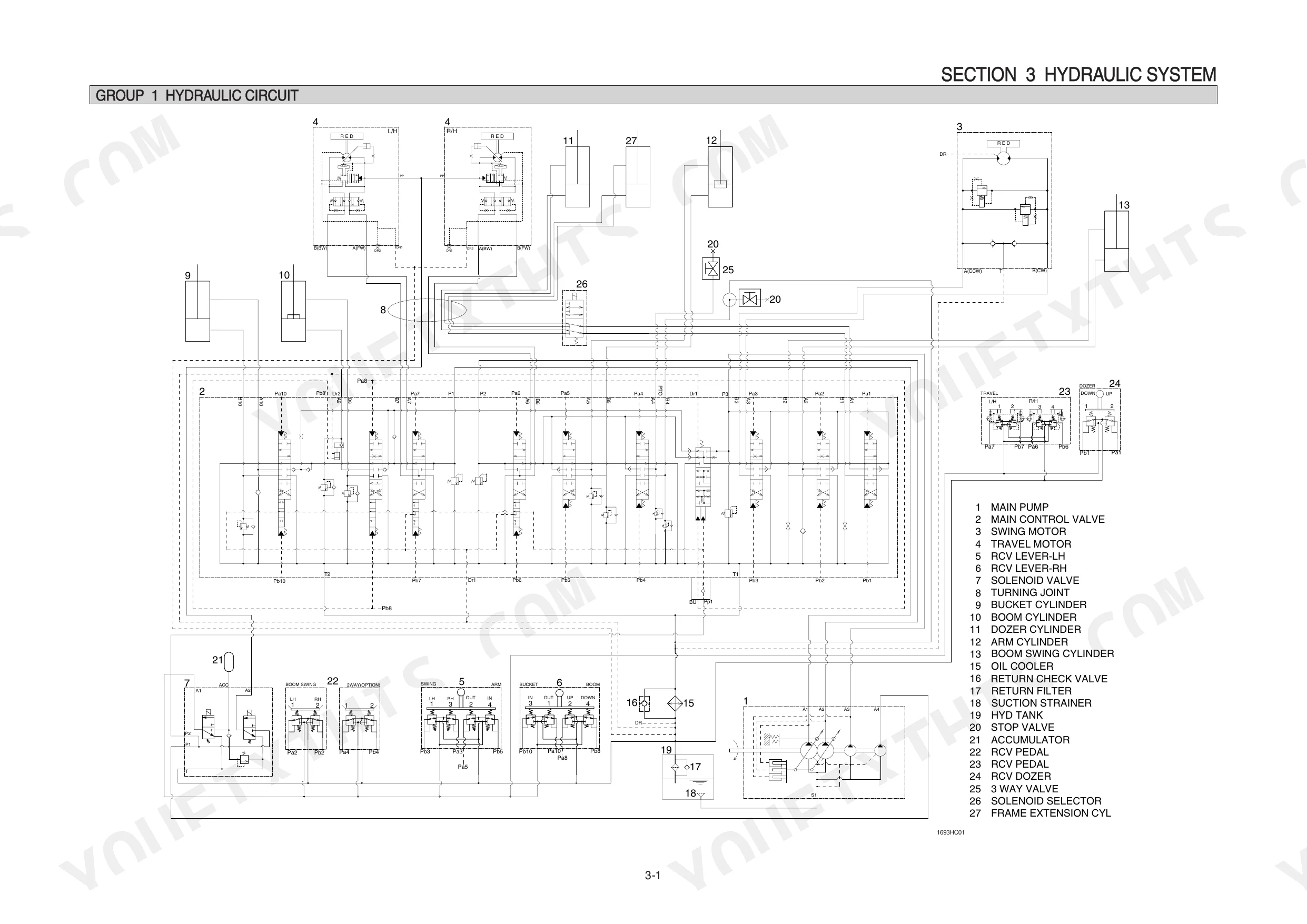

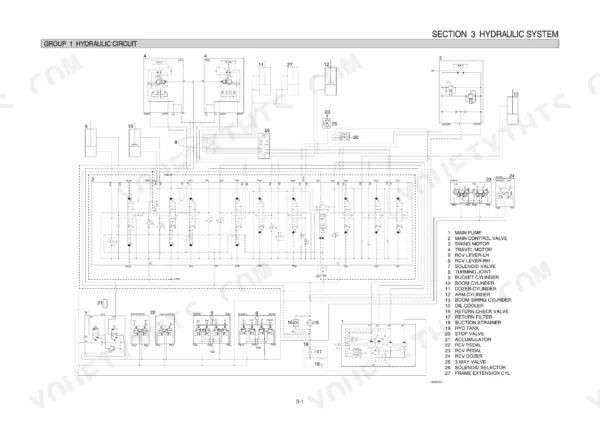

| Hydraulic System | 107-136 | Hydraulic Circuit, Main Circuit, Pilot Circuit, Single Operation, Combined Operation |
| Electrical System | 137-179 | Component Location, Monitoring System, Electrical Circuit |
| Troubleshooting | 180-216 | Before Troubleshooting, Hydraulic and Mechanical System |
| Maintenance Standard | 217-253 | Operational Performance Test, Major Components, Track and Work Equipment |
| Disassembly and Assembly | 254-391 | Precaution, Tightening Torque, Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Turning Joint |
| Component Mounting Torque | 392-402 | Introduction Guide, Engine System, Electric System, Undercarriage, Structure, Work Equipment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main relief valve pressure | 210 kgf/cm2 (2990 psi) | p. 30 |
| Overload relief valve pressure | 230 kgf/cm2 (3270 psi) | p. 30 |
| Shaft (3) Worn depth | 0.025 mm or more | p. 237 |
| Valve plate (5) Worn depth | 0.020 mm or more | p. 237 |
| Engine mounting bolt (engine-bracket) | 7.4 ± 1.5 kgf·m | p. 259 |
| Engine mounting bolt (bracket-frame) | 12.3 ± 1.5 kgf·m | p. 259 |
| Main pump mounting bolt | 10 ± 1.0 kgf·m | p. 259 |
| Coupling mounting bolt | 5.15 ± 0.25 kgf·m | p. 259 |

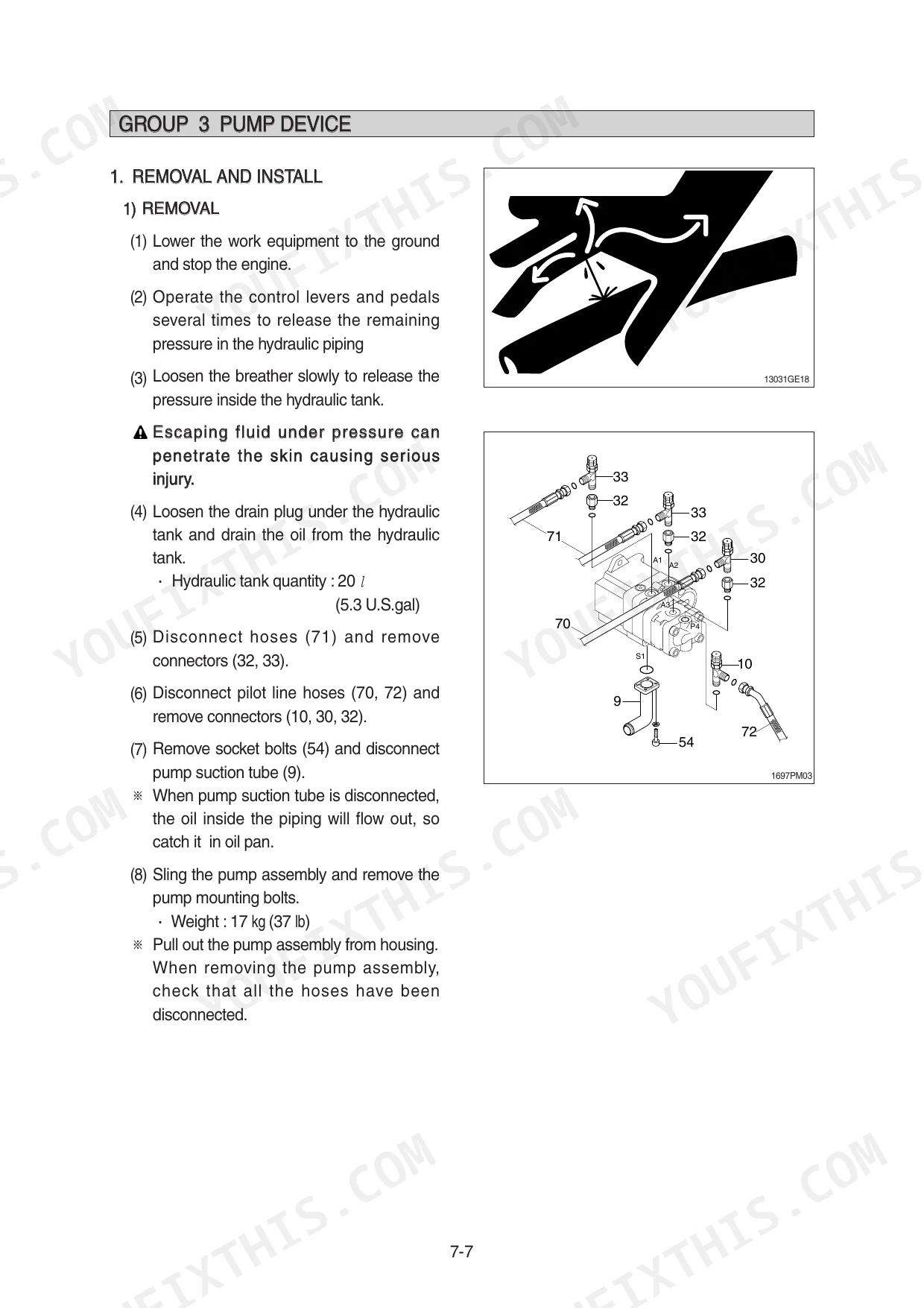

| Hydraulic tank quantity | 20 L | p. 261 |
| Plug tightening torque | 3±0.3 kgf·m (21.7±2.17 lbf·ft) | p. 307 |

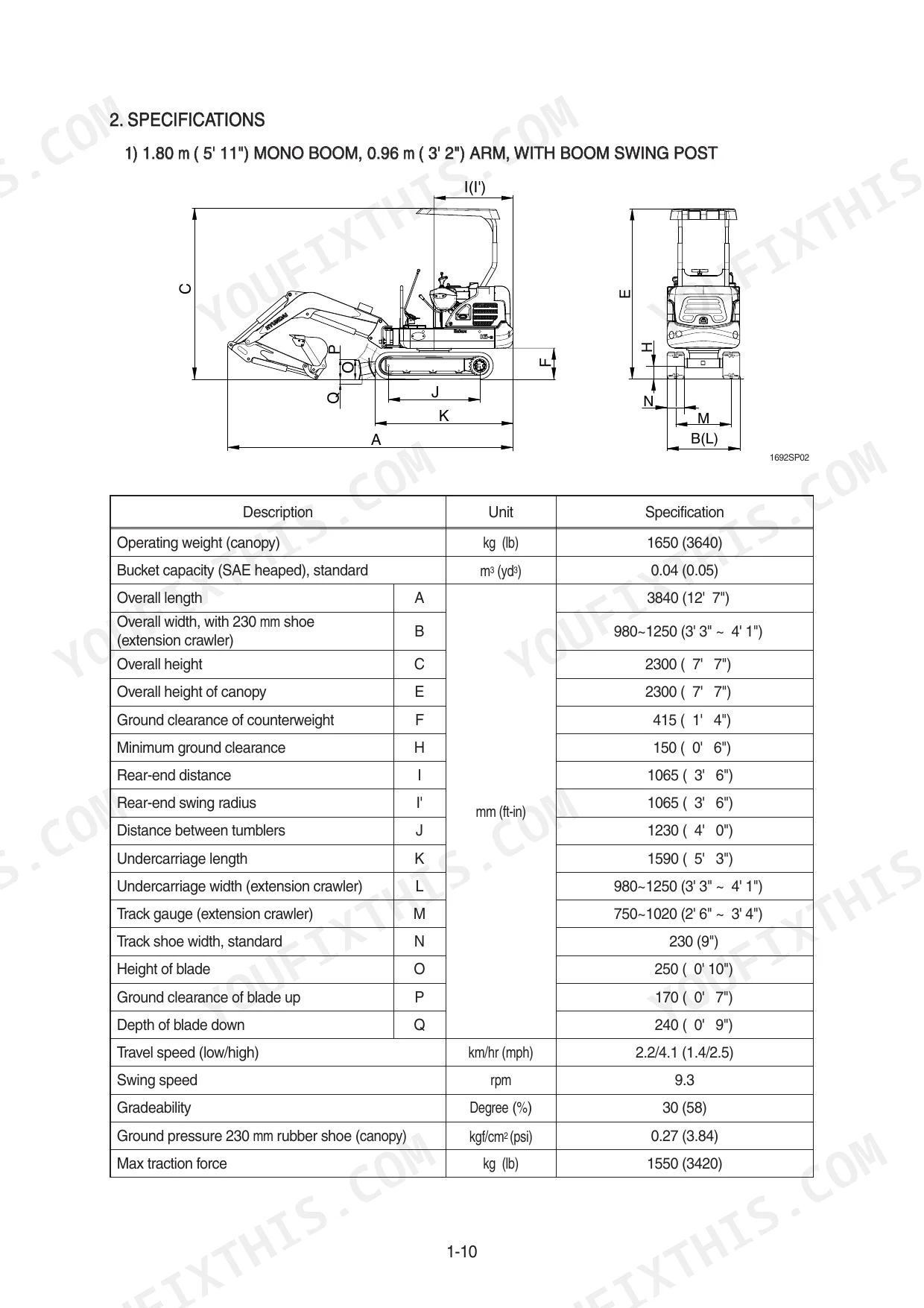

| Operating weight (canopy) | 1650 kg | p. 21 |
| Engine oil quantity | 4.2 L | p. 28 |
Hyundai R16-9 Common Problems This Manual Covers
Hyundai R16-9 won't move in any direction, engine runs fine but no travel or boom response

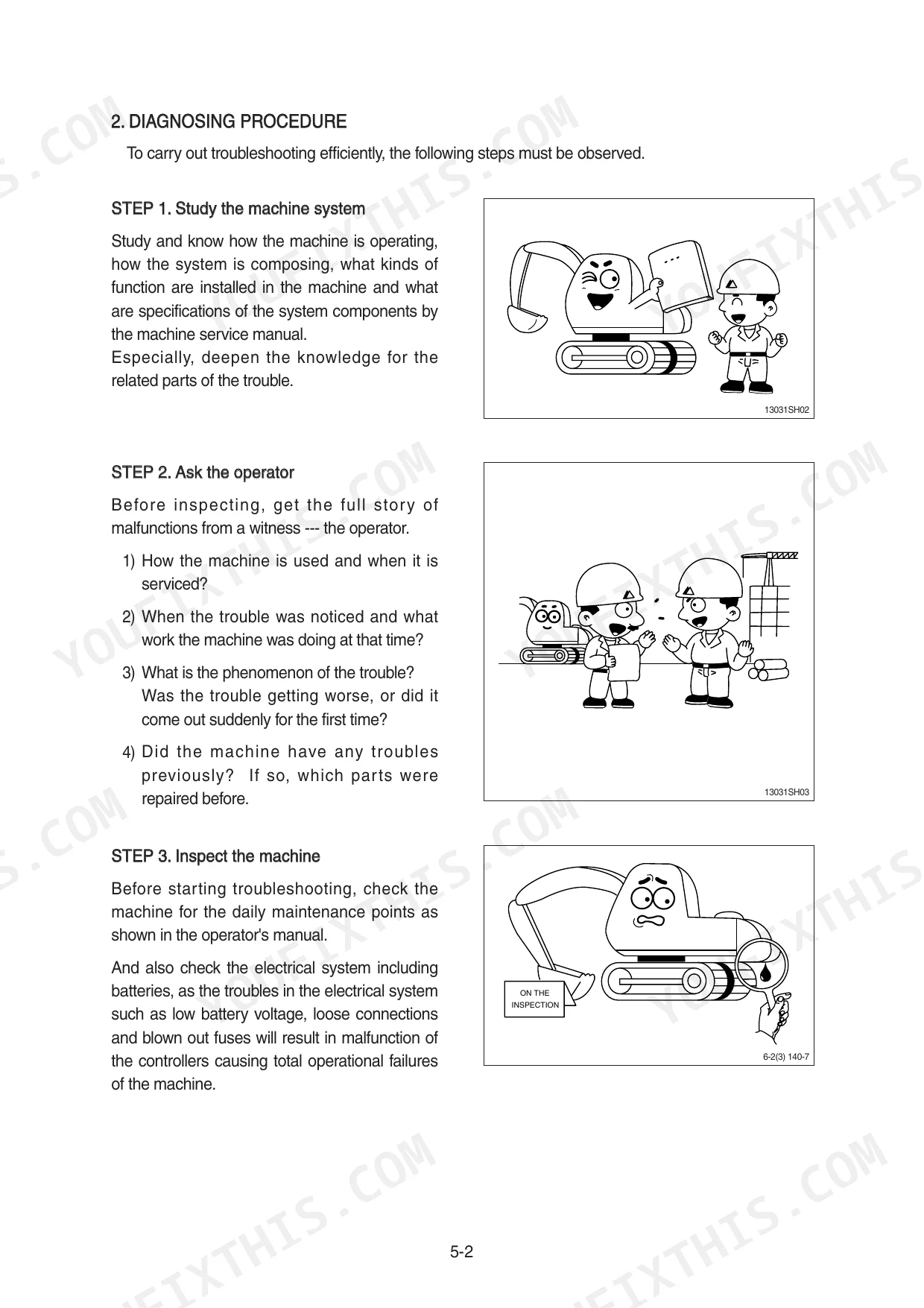

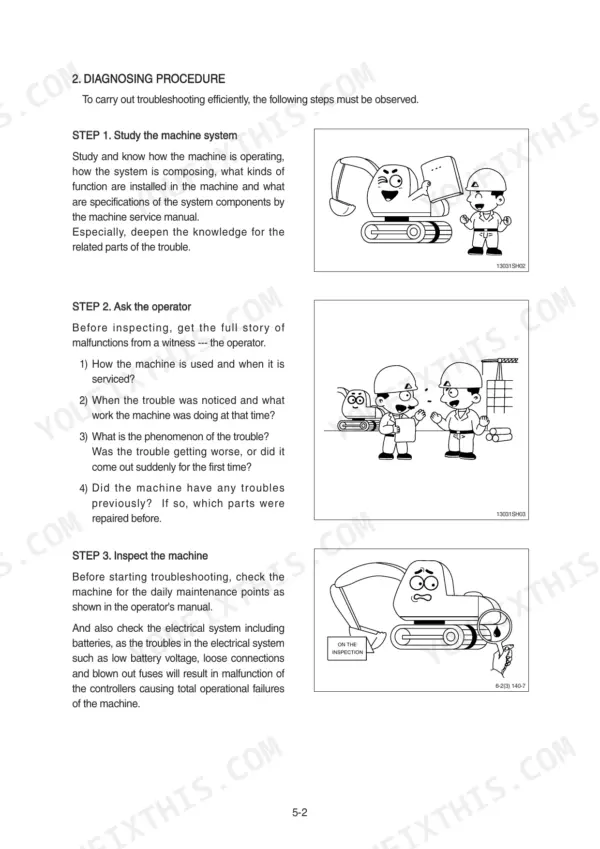

Check hydraulic oil level first; the tank holds 20 L and a low level starves the pump. Inspect the suction filter for blockage and the engine coupling for sheared elastic plates. Work through the troubleshooting procedures starting on page 182, then gauge main relief pressure against the 210 kgf/cm2 (2990 psi) spec.
Manual Section: Troubleshooting p. 182All hydraulic functions weak and slow, digging force drops off once the oil warms up
Test main relief valve pressure with a gauge on the pump outlet; spec is 210 kgf/cm2 (2990 psi) on page 30, with overload relief at 230 kgf/cm2. If pressure reads low, inspect the relief valve for a stuck poppet or scored seat. Drain the tank and check the filter for seal fragments; debris here means flushing the whole circuit.
Manual Section: Hydraulic and Mechanical System Troubleshooting p. 30Boom drifts down slowly and bucket creeps while all controls sit in neutral
Check the pilot circuit relief valve setting; it should hold 30 kgf/cm2 as listed on page 112. If pilot pressure holds, isolate internal leakage by capping cylinder lines one at a time: a rod that keeps creeping means worn piston seals. Inspect the rod and tube for cracks and scoring before ordering a seal kit.
Manual Section: Cylinder TroubleshootingStarter motor cranks at normal speed but the engine never fires, worse on cold mornings

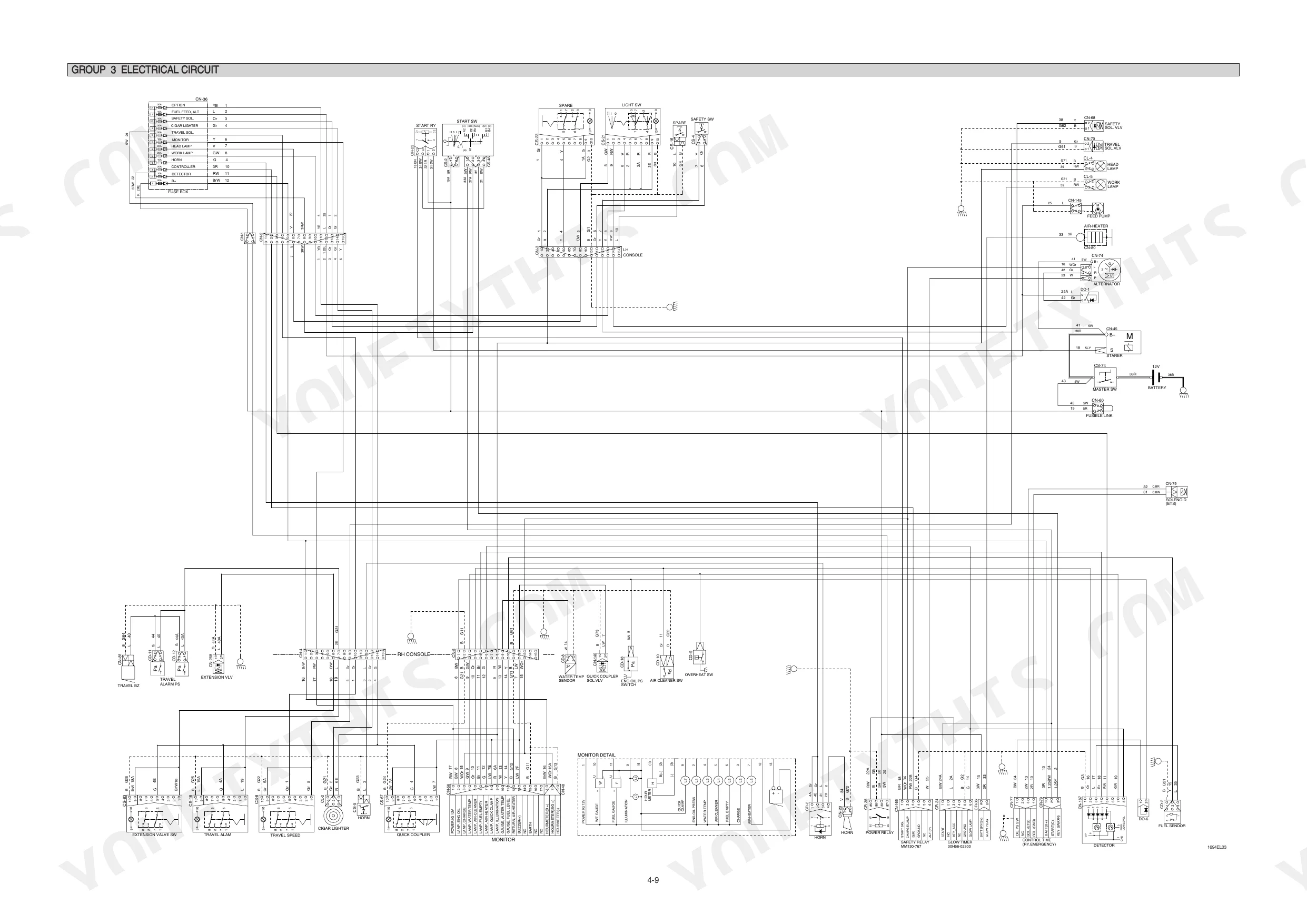

Verify fuel reaches the injection pump; crack a fuel pipe fitting and crank briefly to confirm flow, then bleed air from the system. Check that the safety solenoid gets voltage during cranking, tracing the circuit on the wiring diagram on page 146. Before restart attempts, confirm engine oil sits at the full mark; capacity is 4.2 L.
Manual Section: Electrical System TroubleshootingKnocking and rattling noises from swing bearing and work equipment pins during operation
Grease every pin and bushing on the boom, arm, and bucket daily; dry joints hammer themselves oval in a hurry. Measure clearance at each pin and adjust or shim to less than 1 mm per the maintenance standard starting on page 217. Torque any loose mounting hardware to the component mounting torque tables on page 392.
Manual Section: Maintenance Standard p. 217Frequently Asked Questions
How to troubleshoot Hyundai R16-9 hydraulic pump noise?
If the pump makes abnormal noise, first check if the oil level in the hydraulic tank is at the standard level. If the noise persists, check for air in the oil, water in the oil, or a clogged suction filter. Refer to page 5-5 for the troubleshooting flow chart regarding unusual noise from the pump connection. p. 186
Why is the Hyundai R16-9 travel speed low?
Low travel speed can be caused by a faulty travel relief valve, a broken hydraulic pump, or a travel motor's parking brake not being released properly. Check if the travel speed changes when the LH and RH travel brake valves are exchanged. Refer to page 5-14 for the detailed troubleshooting flow chart. p. 194
What is the engine oil capacity for the Hyundai R16-9?
The engine oil capacity for the Mitsubishi L3E engine is 4.2 liters (1.1 U.S. gallons). p. 28

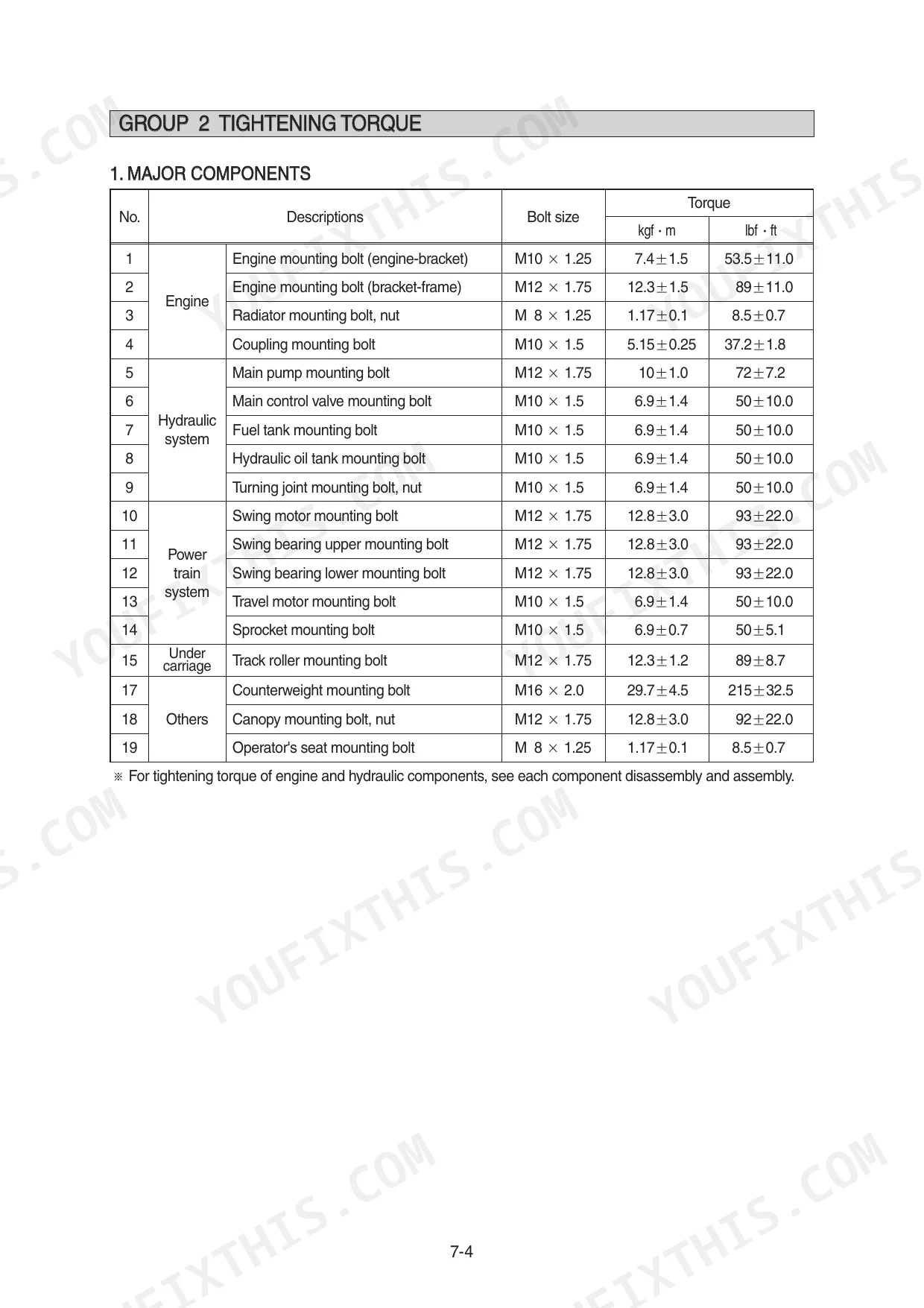

What is the tightening torque for the main pump mounting bolts?
The tightening torque for the main pump mounting bolts (M12 x 1.75) is 10 ± 1.0 kgf·m (72 ± 7.2 lbf·ft). p. 258
What is the standard engine speed for high idle on the R16-9?
The standard high idle engine speed for the R16-9 is 2500 ± 50 rpm. p. 221
What exactly do I receive with this Hyundai R16-9 Service Manual?
You download the Service Manual yourself: 402 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Can I print specific sections of this Hyundai R16-9 Service Manual?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
