Looking for the factory procedures to repair your compact track barrow? This 181-page JCB Dumpster HTD5, Dumpster Service Manual PDF (OEM #9803/9570-4) breaks down the complete hydraulic drive system, skip mechanism, and undercarriage components. Detailed hydraulic schematics map out the loader pump and drive motors, and clear electrical circuit diagrams support rapid fault tracing. Open to any chapter to find step-by-step teardown instructions and highly detailed exploded views of the entire framework. Set the track motor relief valve directly to 150 bar and lock down the drive sprocket securing bolts to exactly 74 Nm. Equipment downtime drains your profit margin. Download this bookmarked file, pull it up on your phone right in the dirt, and fix the problem on the first try.
What's Inside This JCB Dumpster HTD5, DUMPSTER Manual
| System | Pages | Key Topics |
|---|---|---|

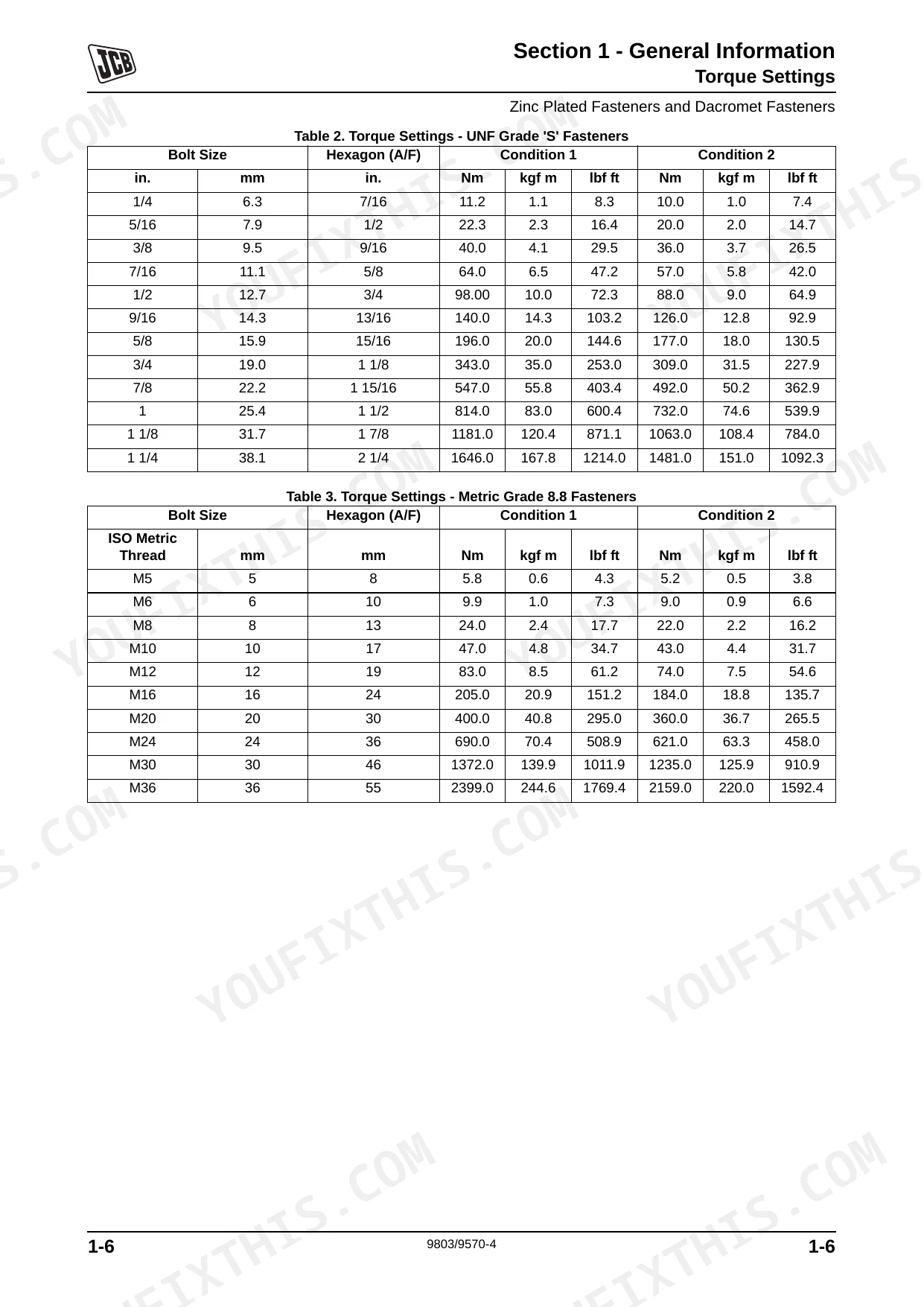

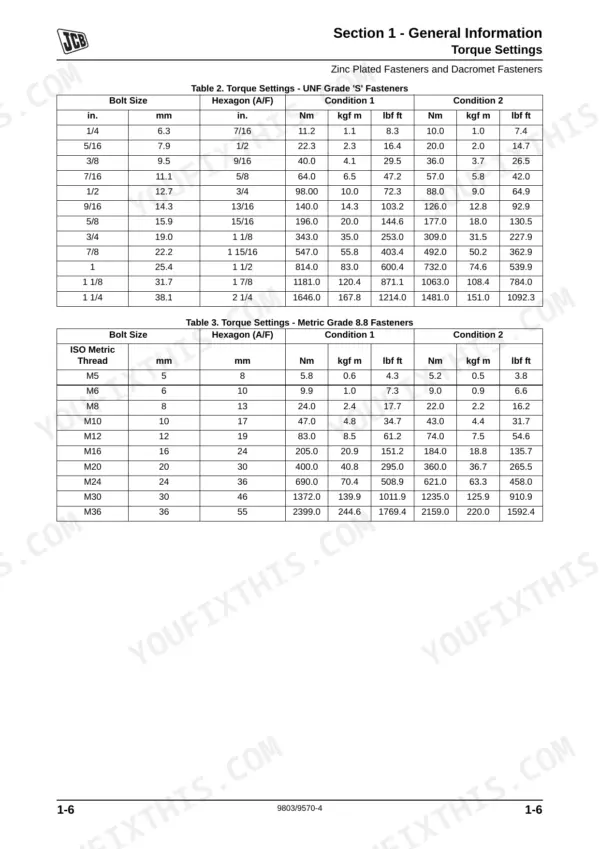

| General Information | 4-23 | Introduction, Machine Identification, Torque Settings, Hydraulic Connections, Service Tools, Consumables |
| Care & Safety | 24-37 | Safety Notices, Safety Checklist, Safety Decals |

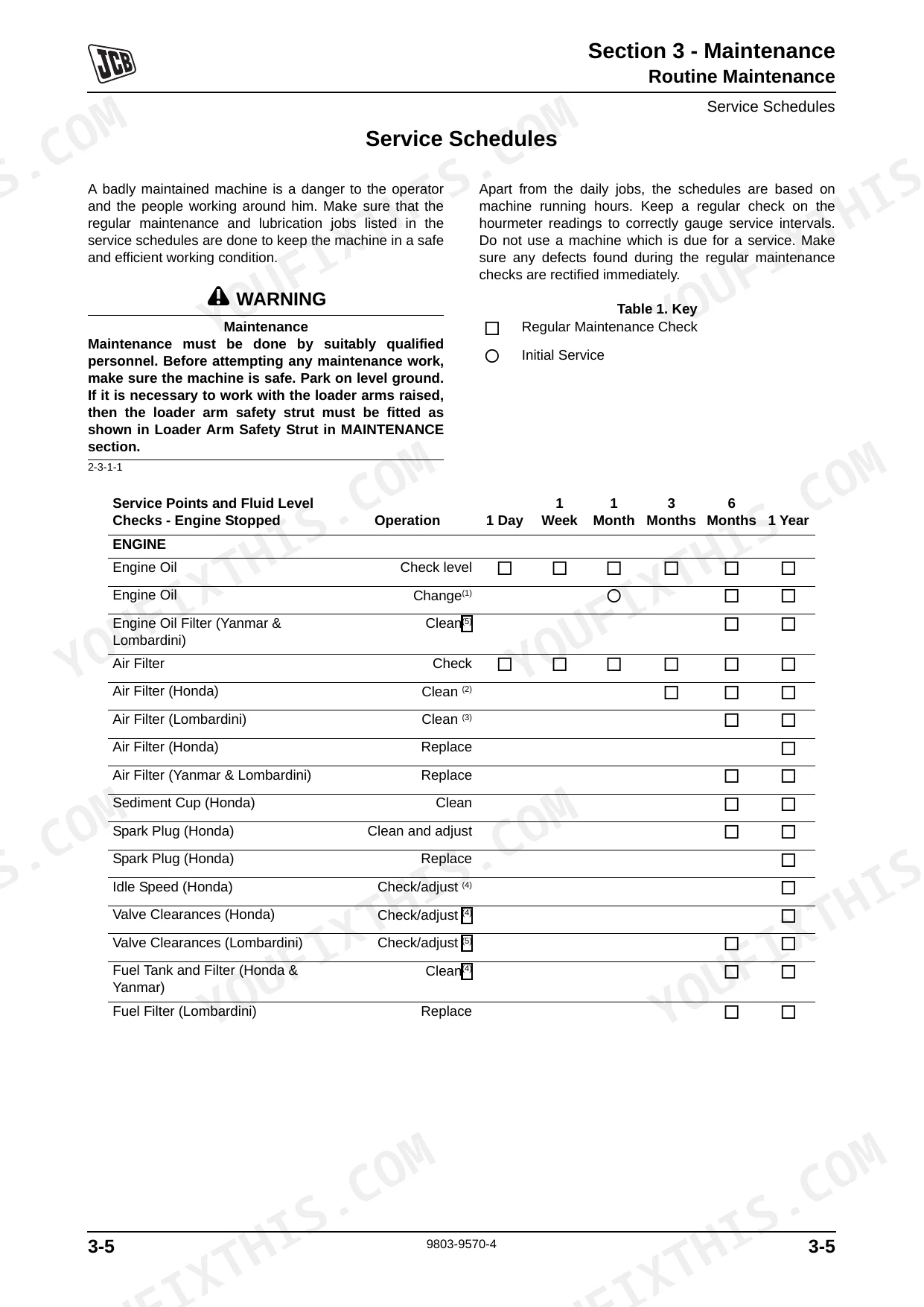

| Maintenance | 38-67 | Routine Maintenance, Service Schedules, Lubricants and Capacities, Check for Damage and Cleaning, Safety Strut, Greasing, Engine Air Filter, Engine Oil |

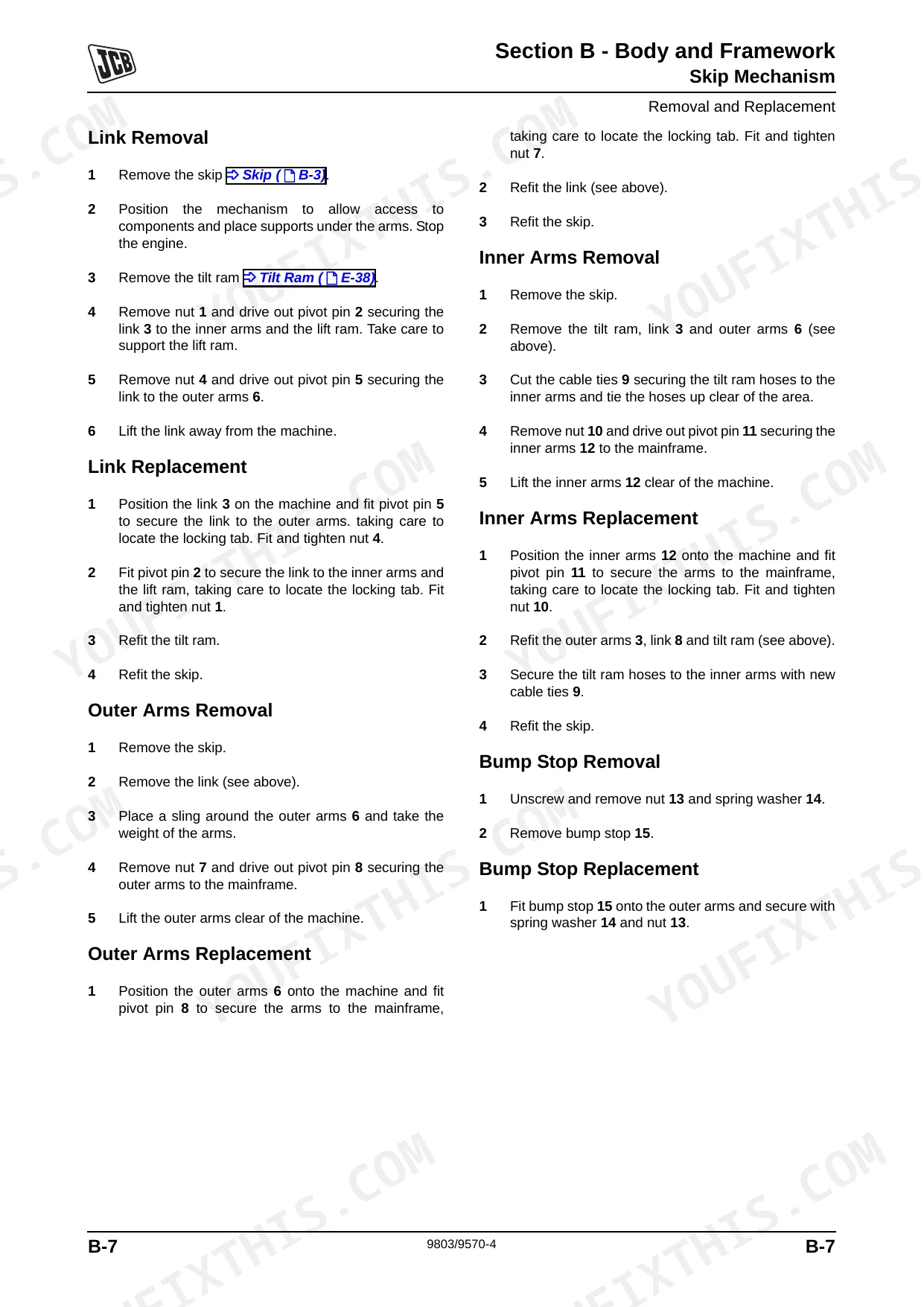

| Body and Framework | 68-81 | Engine Cover, Skip, Skip Mechanism, Hydraulic Tank |

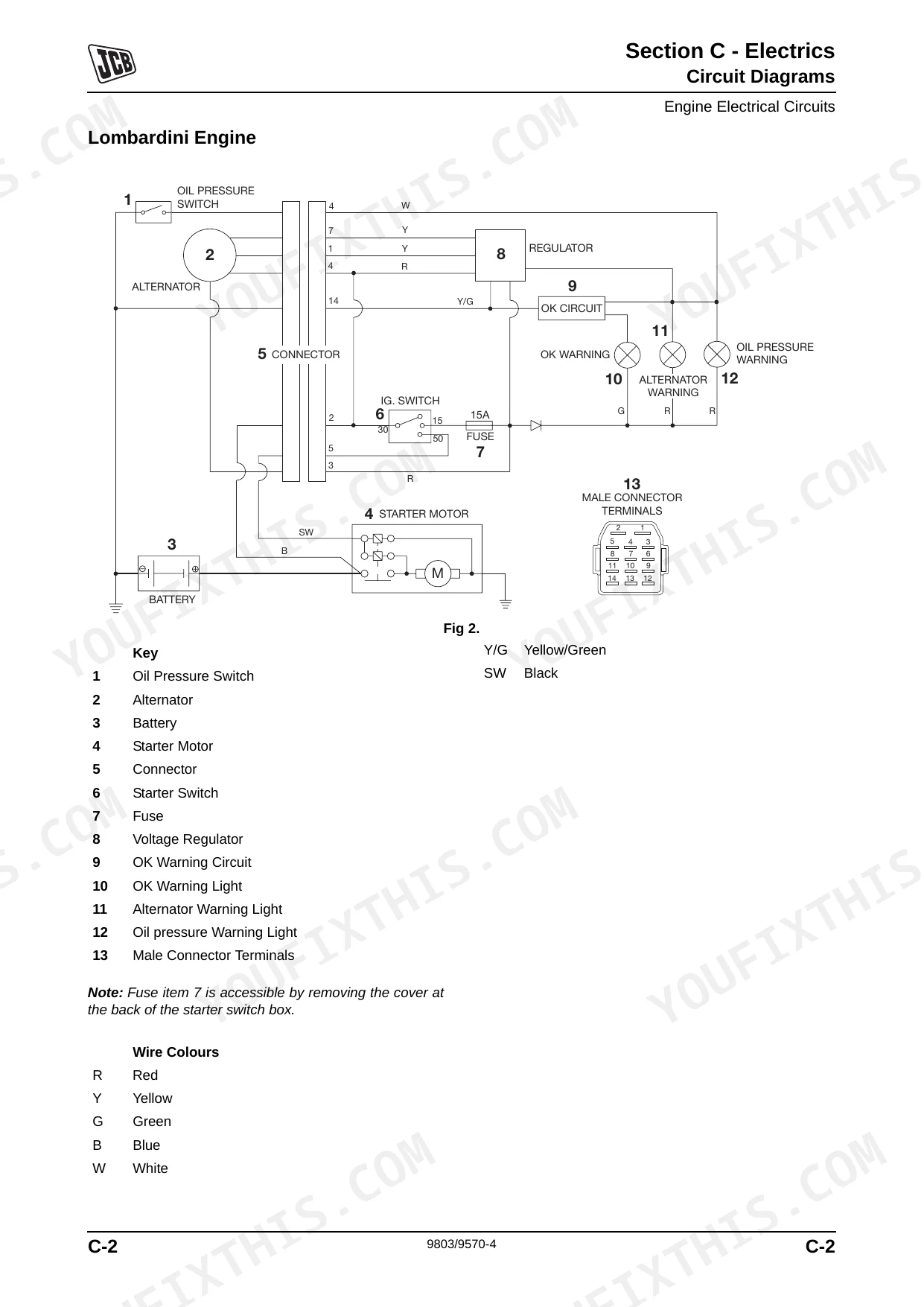

| Electrics | 82-95 | Circuit Diagrams, Switches, Battery |

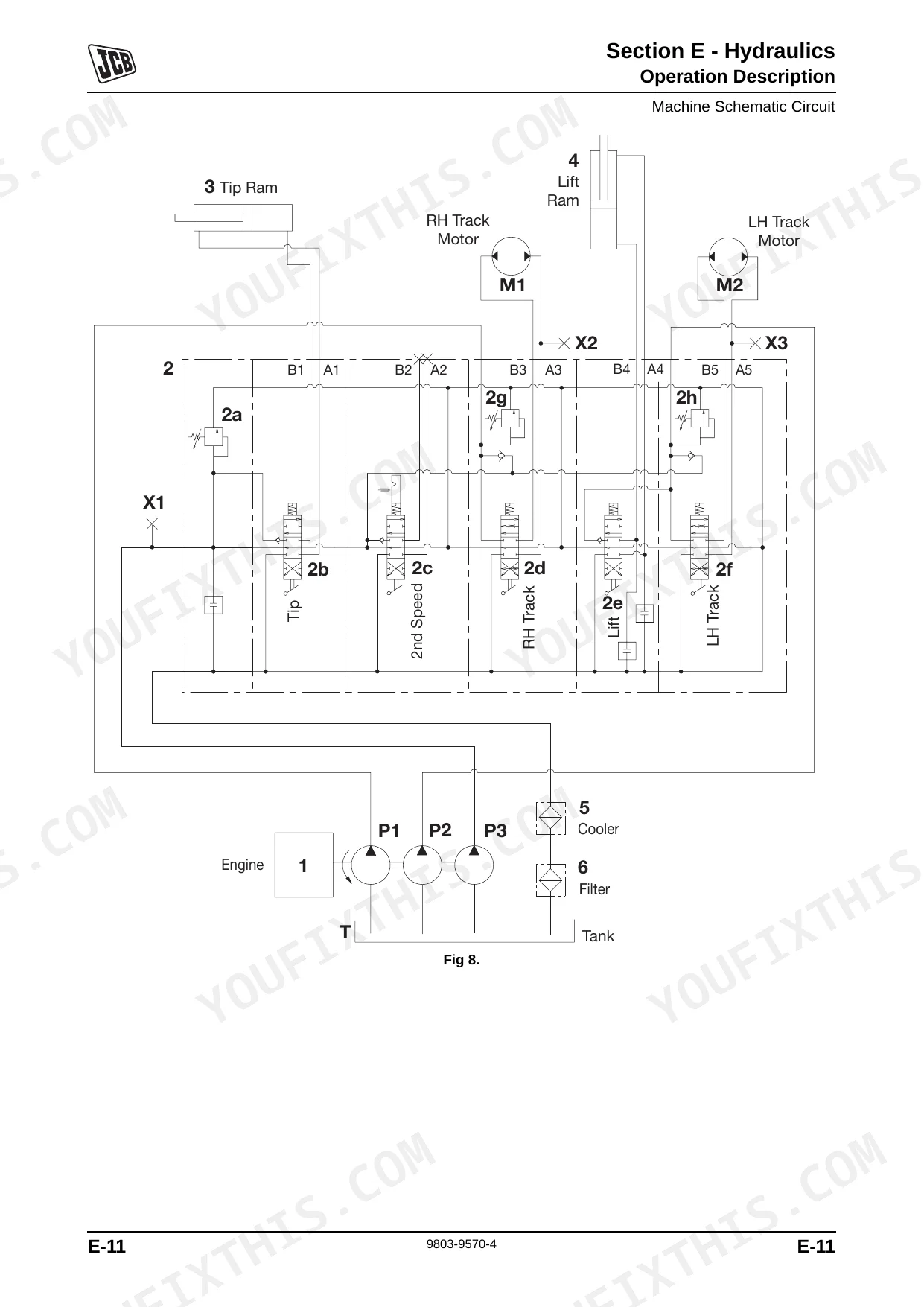

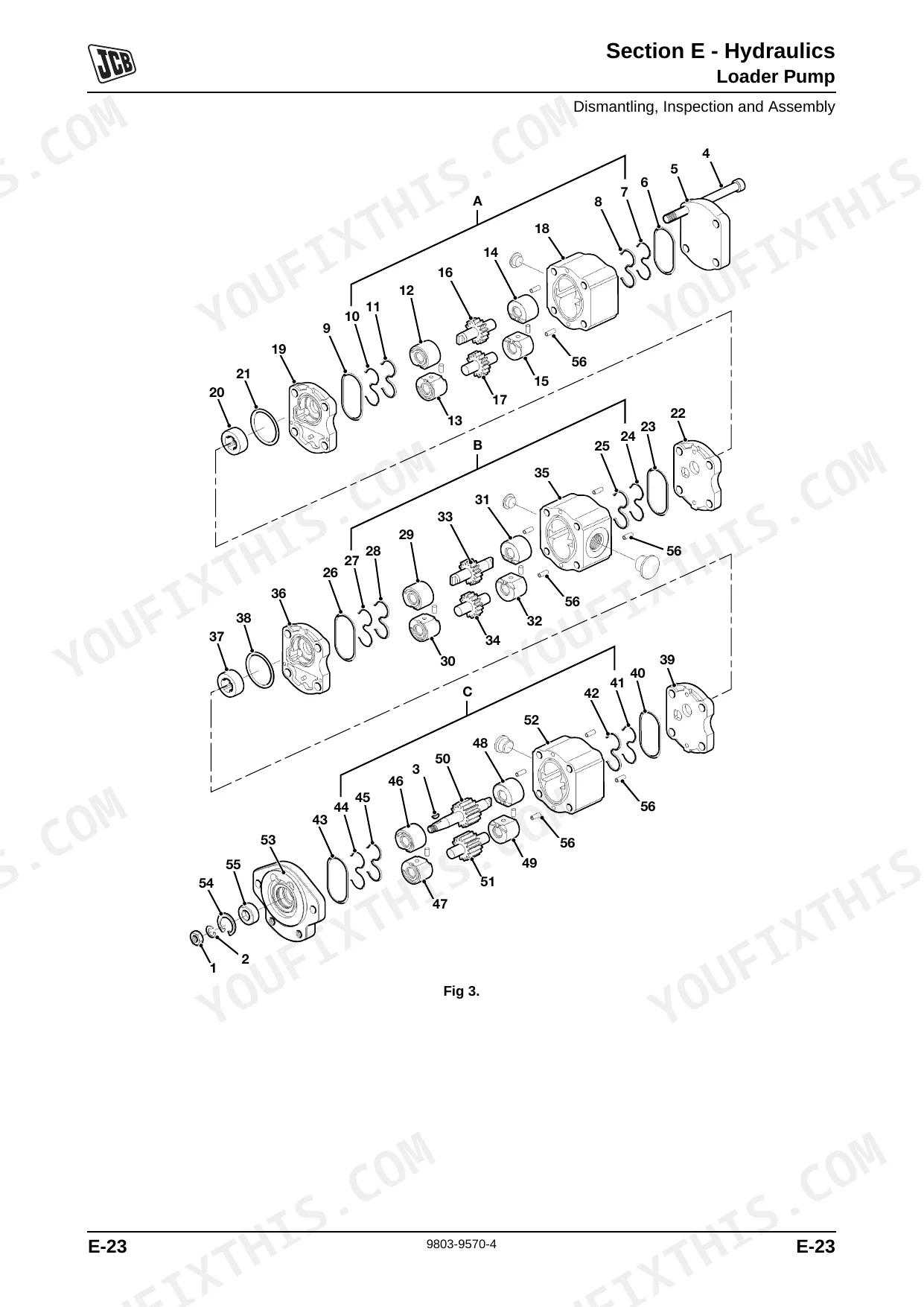

| Hydraulics | 96-143 | Technical Data, Operation Description, Service Procedures, Pressure Testing, Loader Pump, Drive Motors, Valves, Rams |
| Tracks | 144-175 | Technical Data, Track Maintenance, Track Damage, Track Repair |

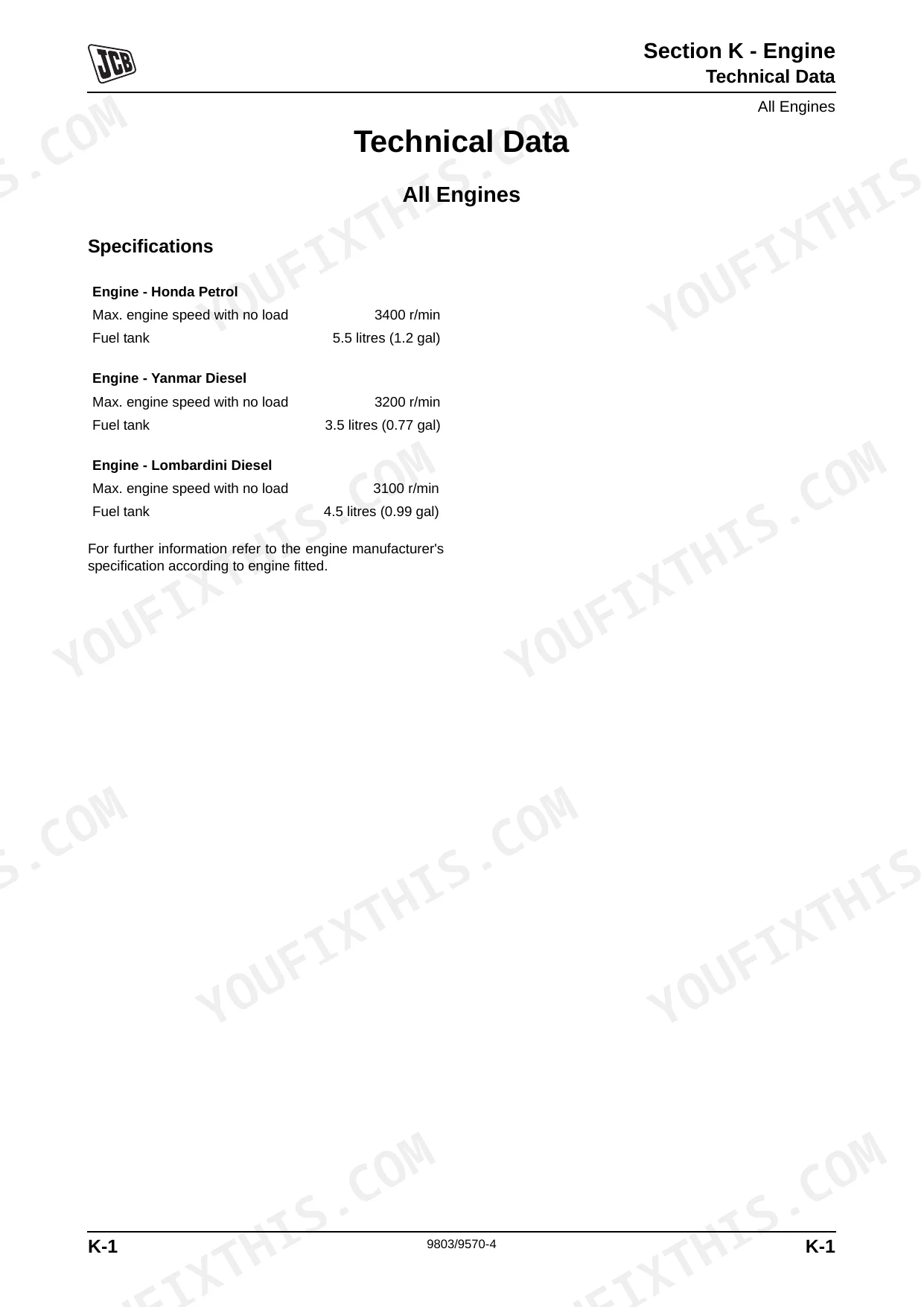

| Engine | 176-181 | Technical Data, Engine Mounting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Drive Sprocket securing bolts (D and E) torque | 74 Nm (54.6 lbf ft; 7.5 kgf m) | p. 160 |
| Track Motor Relief Valve Setting | 150 bar (2175 lbf/in2) | p. 99 |
| BSP Adaptors with Bonded Washers Torque Setting (1/4 in.) | 34.0 Nm (3.4 kgf m; 25.0 lbf ft) | p. 16 |
| Dumpster HTD5 (Honda engine) | ||
| Fuel Tank Capacity | 5.5 litres | p. 178 |
| Engine Oil Capacity | 1.1 litres | p. 47 |
| Spark Plug Gap | 0.70 - 0.80 mm | p. 60 |
| Dumpster HTD5 (Yanmar engine) | ||
| Fuel Tank Capacity | 3.5 litres | p. 178 |
| Dumpster HTD5 (Lombardini engine) | ||
| Fuel Tank Capacity | 4.5 litres | p. 178 |
| Engine Oil Capacity | 1.2 litres | p. 47 |
| Dumpster HTD5 (up to M1360211) | ||
| Hydraulic System Capacity (up to M1360211) | 18.5 litres | p. 47 |
| Dumpster HTD5 (from M1360212) | ||
| Hydraulic System Capacity (from M1360212) | 13 litres | p. 47 |
| Dumpster HTD5 | ||
| Main Relief Valve Pressure | 150 bar | p. 99 |
JCB Dumpster HTD5, DUMPSTER Common Problems This Manual Covers
JCB Dumpster HTD5 track drive becomes weak and leaks hydraulic oil around the track motor block p. 99
Inspect the track motor seals and O-rings for leaks. Test the track motor relief valve pressure, ensuring it holds at 150 bar as specified on page 99. If replacing the motor assembly, torque the drive sprocket securing bolts to 74 Nm according to page 160.
Manual Section: HydraulicsMachine struggles to turn when loaded and steering or tacking performance drops significantly during operation p. 99
Test the main hydraulic circuit pressure to verify it reaches the 150 bar main relief valve pressure limit shown on page 99. Check the auxiliary spool block for internal leakage. Drain and refill the hydraulic system, noting the 18.5 litres capacity for early models on page 47.
Manual Section: HydraulicsHydraulic oil forms visible drips on the engine or undercarriage after driving and under pressure p. 16
Check all 1/4 inch BSP adaptors and bonded washers around the spool block. Torque any loose fittings to 34.0 Nm as directed on page 16. Inspect the track motor end caps for weeping seals and replace damaged O-rings before testing under load.
Manual Section: General InformationSkip lowering and lift functions are sluggish or only operate correctly when using the left track control p. 99
Inspect the lift and tilt rams for internal bypassing. If rebuilding the cylinders, torque the lift ram piston head to 200 Nm following the specs on page 99. Verify hydraulic fluid levels, filling the system to 13 litres for models from M1360212 as noted on page 47.
Manual Section: HydraulicsEngine runs rough or struggles to maintain RPM when the hydraulic pump is under heavy load p. 60
Remove and inspect the spark plug for carbon fouling or wear. Adjust the spark plug gap to 0.70 - 0.80 mm for Honda engine models as specified on page 60. Drain the crankcase and refill with 1.1 litres of fresh engine oil according to page 47.
Manual Section: MaintenanceFrequently Asked Questions
How do I reset the JCB HTD5 hydraulic system after maintenance?
After replacing a track drive motor, it is necessary to run the motor to bleed air from the hydraulic system before operating the machine. This ensures proper function of the hydraulic system post-maintenance.
how to reset JCB HTD5 after battery disconnect
When disconnecting the battery, first remove the earth (-) lead. When reconnecting, fit the positive (+) lead first. After installing the battery in the machine, wait five minutes before connecting it up to ensure proper stabilization.
How do you fix JCB Dumpster HTD5 track drive becomes weak and leaks hydraulic oil around the track motor block?
Inspect the track motor seals and O-rings for leaks. Test the track motor relief valve pressure, ensuring it holds at 150 bar as specified on page 99. If replacing the motor assembly, torque the drive sprocket securing bolts to 74 Nm according to page 160.
How do you fix machine struggles to turn when loaded and steering or tacking performance drops significantly during operation?
Test the main hydraulic circuit pressure to verify it reaches the 150 bar main relief valve pressure limit shown on page 99. Check the auxiliary spool block for internal leakage. Drain and refill the hydraulic system, noting the 18.5 litres capacity for early models on page 47.
Is this Service Manual a digital download?
This is a 181-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this JCB Dumpster HTD5, Dumpster Service Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Does this JCB Dumpster HTD5, Dumpster Service Manual cover the hydraulic system?
Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
Document Quality
This document is a scanned PDF, featuring an OCR layer that allows you to search and copy the full text, although the text itself has a slight fuzziness characteristic of OCR. The main titles on section cover pages are image-only. Diagrams and illustrations are primarily clear line drawings, with all labels and details remaining readable. The pages are clean, free from scan artifacts, stains, or skewed content, and there are several intentionally blank pages throughout the document.
