Looking for the factory repair procedures for your 1994-2008 JCB Micro excavator? This 305-page JCB 8008 Service Manual PDF (OEM #9803/9310-5) breaks down every system on the Micro Plus, 8010, Tier 3, and CTS variants. Full electrical circuit diagrams, track gearbox rebuild procedures, and a dedicated troubleshooting section for the hydraulic control valves are all included. Open to any chapter and find step-by-step teardown instructions paired with high-quality exploded views of the upper structure and boom linkage. Fill the track gearbox with exactly 0.3 liters of SAE 30 engine oil, and tighten the track roller assembly screws to 78-90 Nm. Your machine is down, so get the right numbers straight from the manufacturer. Download the digital file, pull it up on your shop tablet, and start turning wrenches.
What's Inside This JCB Micro & variants Manual
| System | Pages | Key Topics |
|---|---|---|
| Care and Safety | 22-39 | Safety Notices, Safety Check List, Operating Safety, Maintenance Safety, Safety Decals |

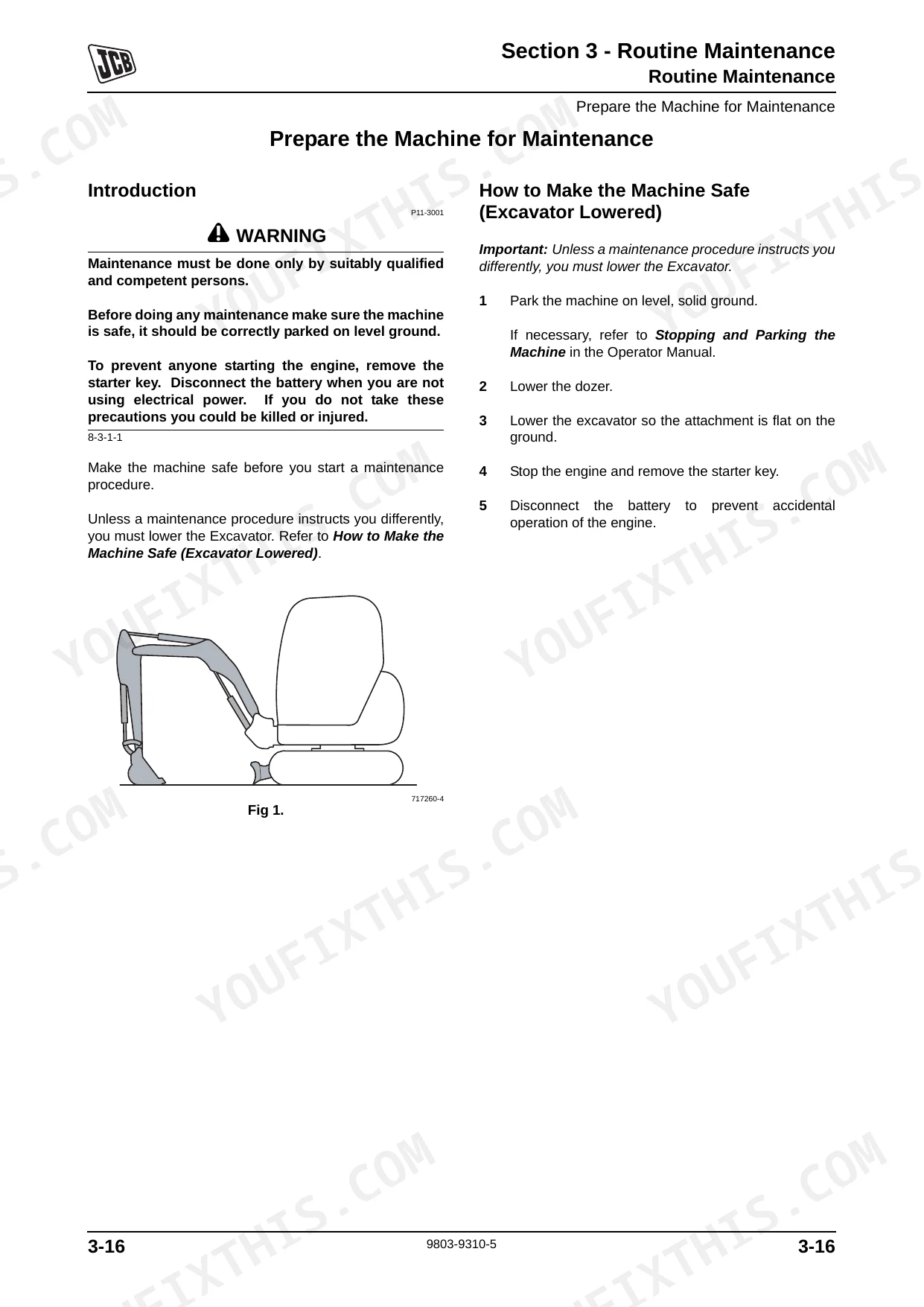

| Routine Maintenance | 40-87 | Service Requirements, Health and Safety, Service Schedules, Fluids, Lubricants and Capacities, Tools, Prepare the Machine for Maintenance, Cleaning the Machine |

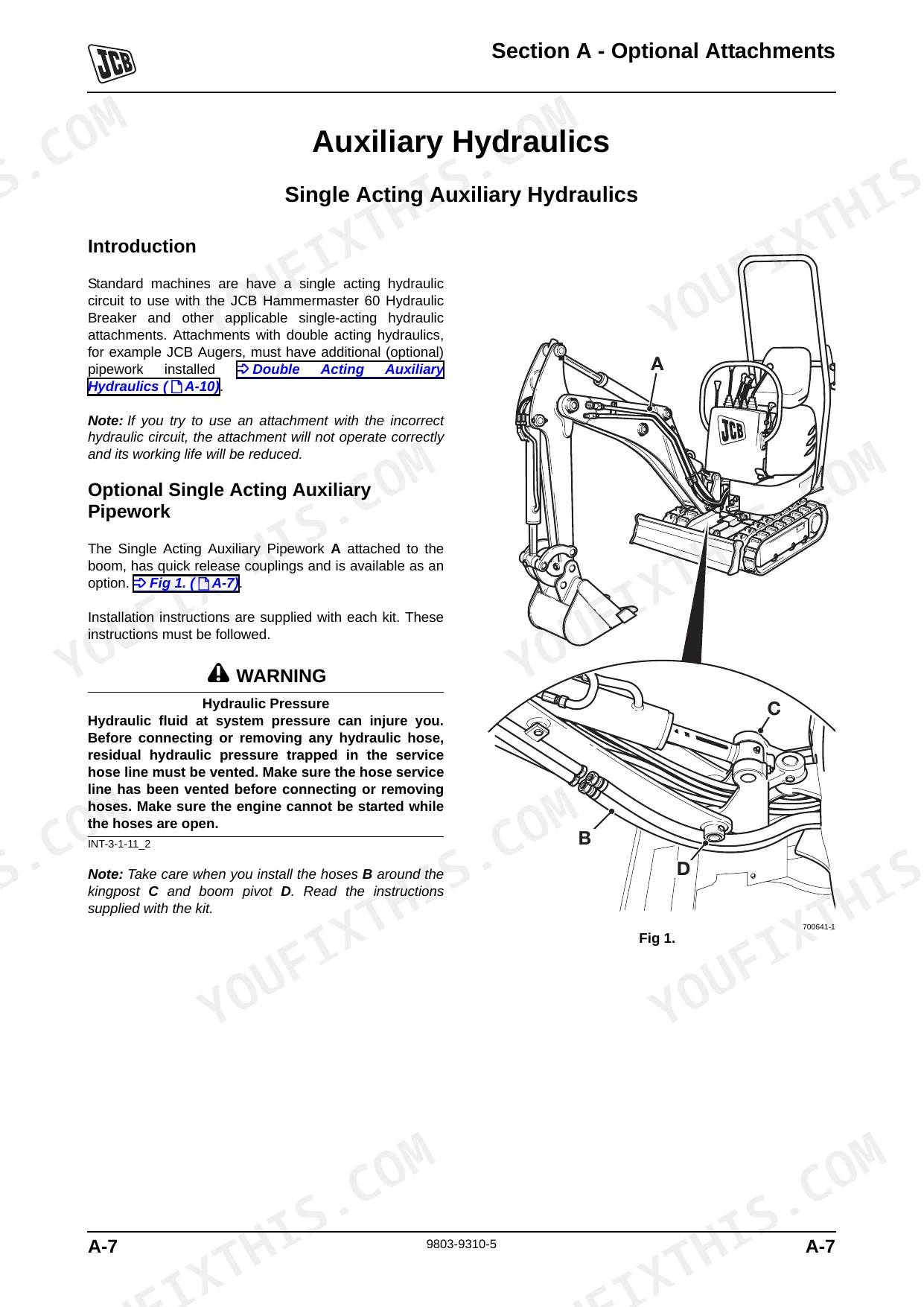

| Attachments | 88-103 | Available Attachments, Buckets, Auxiliary Hydraulics |
| Body and Framework | 104-129 | Upper Structure, Bucket Ram Pivot and Linkage, Dipper, Boom, Kingpost, Dozer Blade, Counterweight, Fuel Tank |
| Electrics | 130-167 | Technical Data, Starter, Service Procedures, Harness Data, Fan Belt, Circuit Diagrams, Alternator, Test Methods |
| Controls | 168-175 | Controls General, Valve Control Rods |

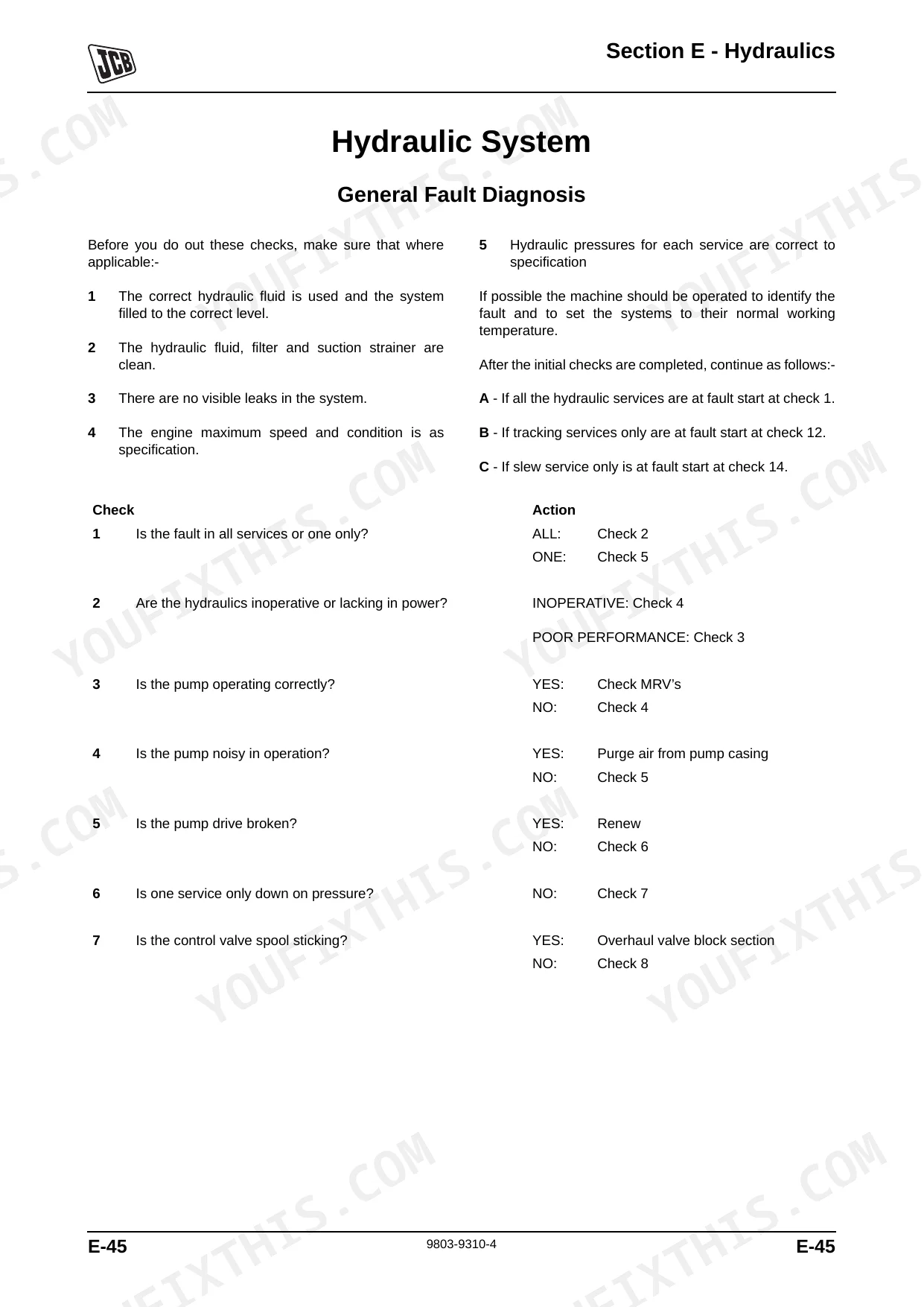

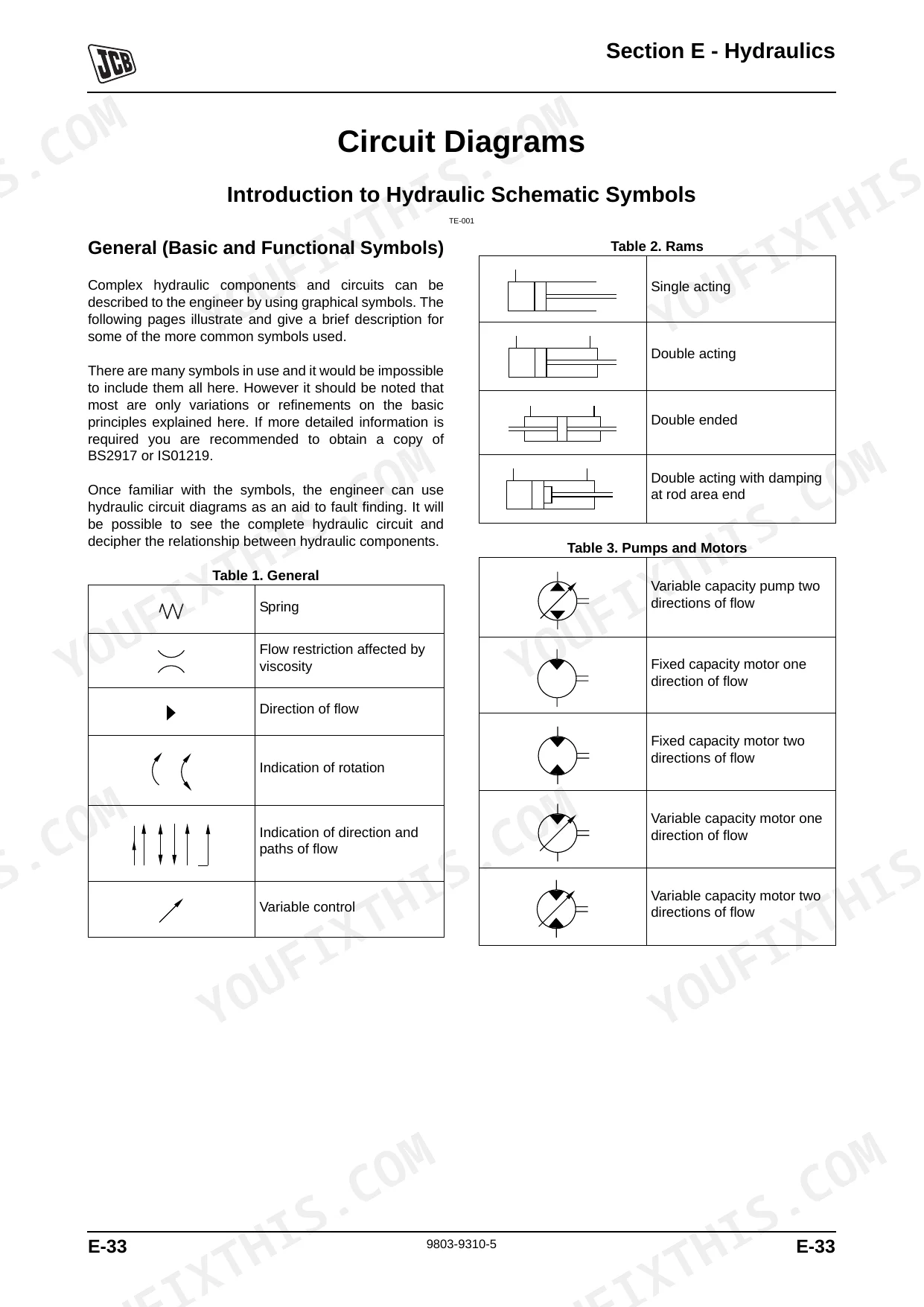

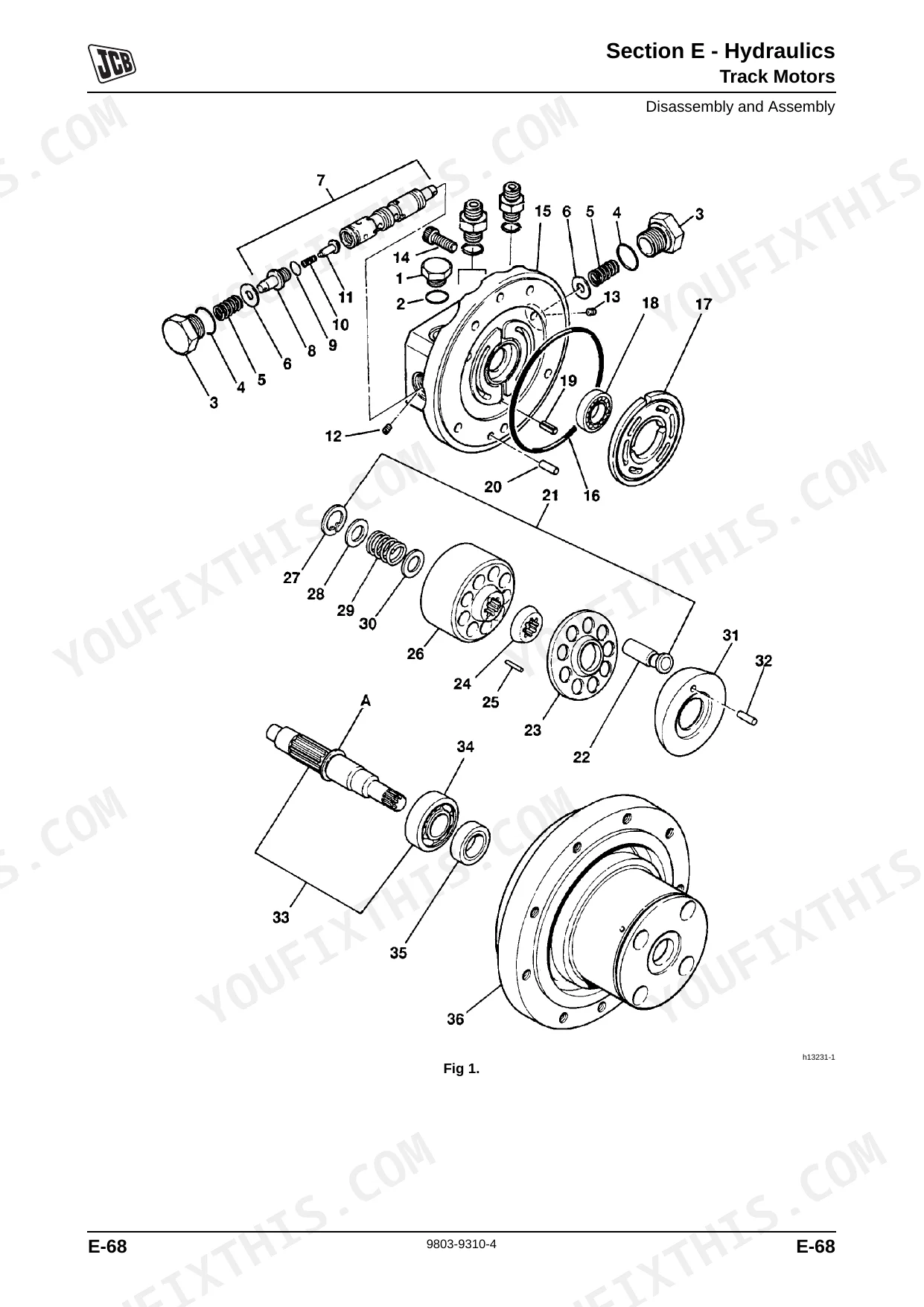

| Hydraulics | 176-271 | Technical Data, Machine Cycle Times, Service Procedures, Operation Description, Circuit Diagrams, Hydraulic System, Hydraulic Pump, Control Valve |
| Transmission | 272-281 | Track Gearboxes |
| Tracks | 282-297 | General, Track Rollers - Micro Plus, Idler and Recoil Unit - Micro Plus |

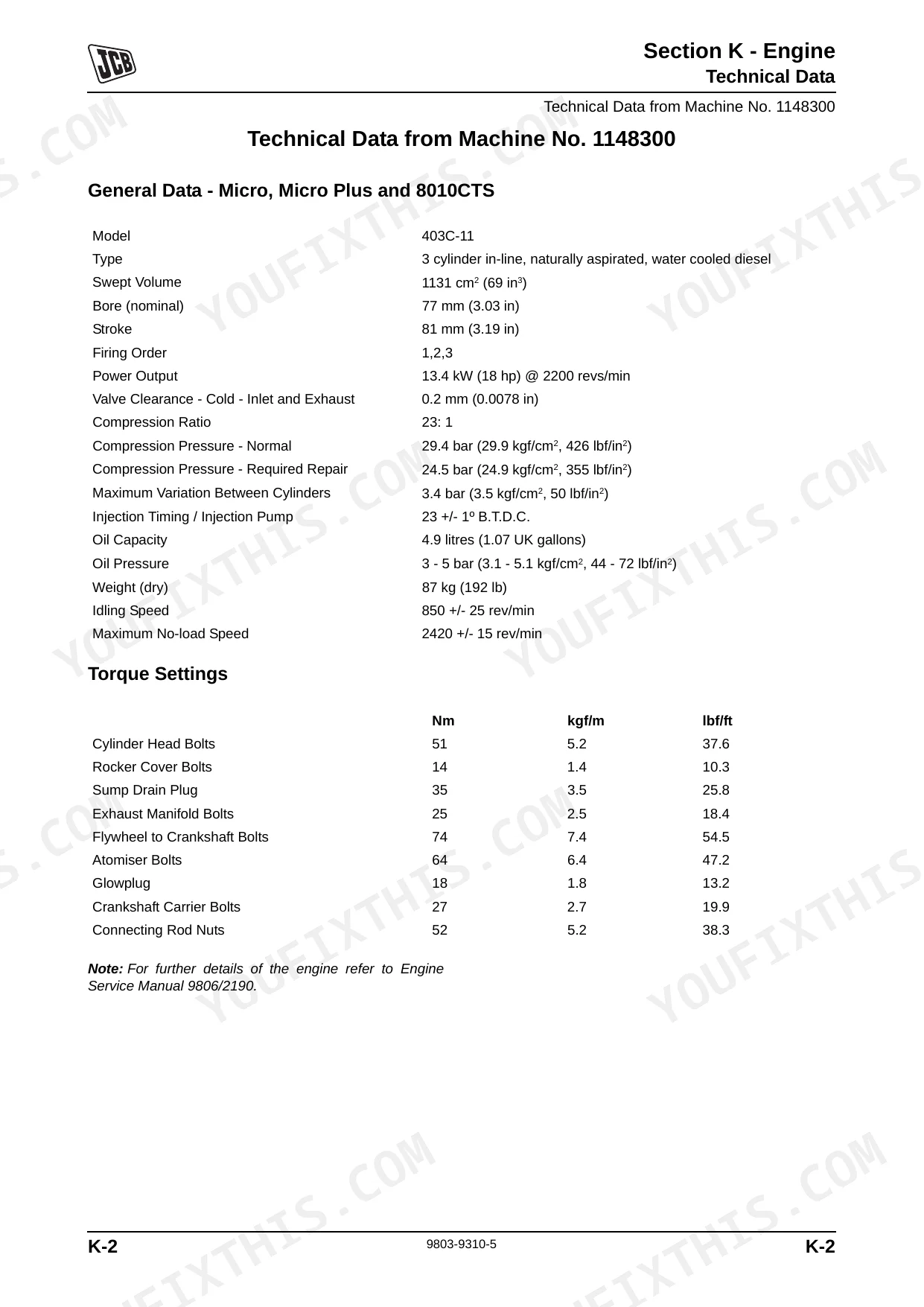

| Engine | 298-305 | Technical Data |

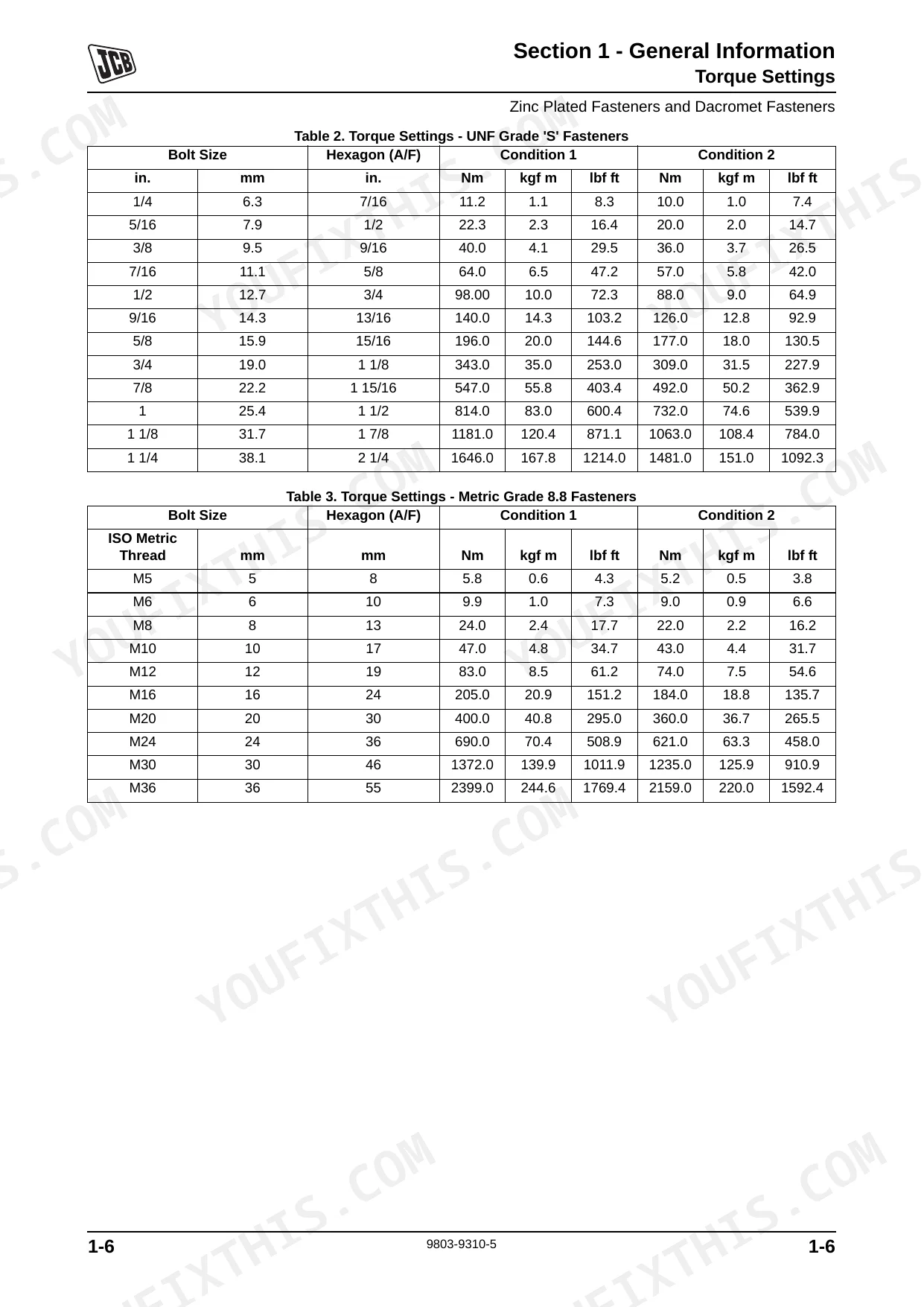

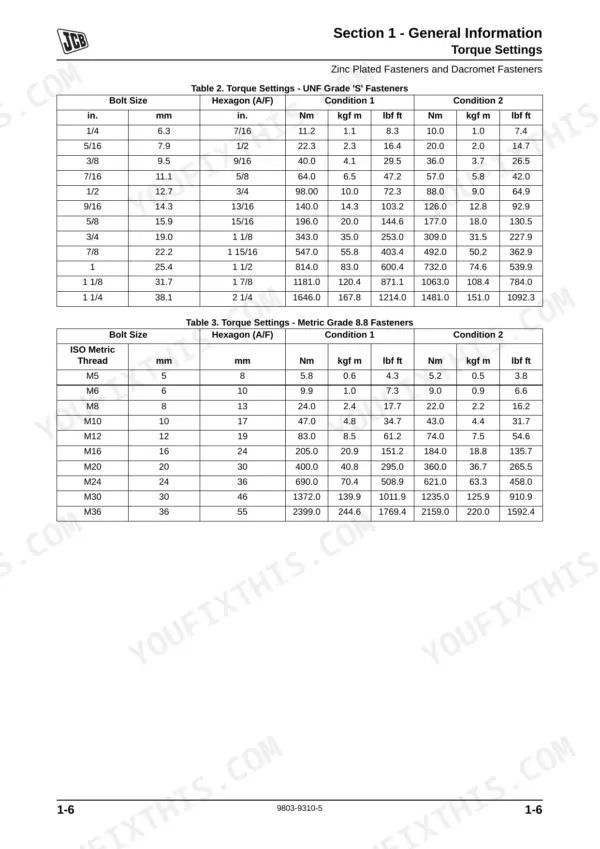

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Track roller assembly screws torque | 78 - 90 Nm (57 - 67 lbf ft) | p. 294 |
| Track gearbox oil capacity | 0.3 (0.07) Litres (Gal) | p. 54 |
| Track gearbox oil type | JCB SAE 30 Engine Oil (Not Multigrade) | p. 54 |
| Engine oil filter change interval | 500 hours | p. 51 |
| Fuel filter/sedimenter element change interval | 500 hours | p. 51 |
| Fuel sedimenter drain and clean interval | 50 hours | p. 51 |
| Fan belt slack | 5 mm (0.2 in.) | p. 77 |
| Fan belt tension check force | 10 N (1 kgf, 0.51 lbf) | p. 154 |
| Pivot pin diameter reference value | 30 mm (1.18 in.) | p. 110 |
| Pivot pin diameter permitted limit | 29 mm (1.14 in.) | p. 110 |
| Idler external surface (width) nominal | 48 mm (1.890 in) | p. 286 |
| Idler external surface (width) tolerance | - 8 mm (-0.315 in) minimum | p. 286 |
JCB Micro & variants Common Problems This Manual Covers
JCB Micro excavator engine cranks over fine after winter storage but will not start or fire p. 134
Bleed the fuel system to remove trapped air. Inspect the fuel filter and sediment bowl. Verify the battery maintains 12 V during cranking, as detailed on page 134. If the solenoid lacks power, check the main 40 Amp fuse on page 72.
Manual Section: ElectricsBoom lift is slow and main hydraulic functions feel weak and jerky under heavy load p. 182
Test the boom main relief valve pressure and verify it reaches the pressure shown in the Technical Data section of the manual. Inspect all cylinder seals for leaks. Drain and refill the hydraulic tank with the hydraulic fluid quantity specified in the Fluids, Lubricants and Capacities section.
Manual Section: HydraulicsRubber tracks constantly derail on uneven ground and feel excessively loose during turning maneuvers p. 288
Measure track tension at the center roller and adjust to the tension value specified in the Tracks section of the manual. Inspect the idler and lower rollers for excessive wear. Refill each track gearbox with 0.3 litres of oil as noted on page 54.
Manual Section: TracksBattery warning light stays illuminated while running and engine cooling fan turns slower than normal p. 154
Inspect the alternator drive belt for glazing or cracking. Apply a force of 10 N (1 kgf, 0.51 lbf) midway between the pulleys, as specified on page 154. Adjust the tensioner until the belt slack measures exactly 5 mm (0.2 in.) according to page 77.
Manual Section: ElectricsFrequently Asked Questions
What are the torque specs for JCB Micro/Micro Plus track rollers or undercarriage bolts?
For track roller assembly, torque the screws to 78 - 90 Nm (57 - 67 lbf ft). For idler wheel assembly, torque the bolts to 98 Nm (72 lbf ft). These values are found in the 'Track Rollers - Micro Plus' and 'Idler and Recoil Unit - Micro Plus' sections respectively.
What are the replacement specifications for track gearbox oil?
The track gearbox requires 0.3 litres (0.07 US gallons) of JCB SAE 30 Engine Oil (Not Multigrade). The international specification for this oil is API CD/SF, MIL-L-46152, MIL-L-2104D. This information is detailed in the 'Fluids, Lubricants and Capacities' section on page 54.
What are the replacement specifications for engine oil filter canister?
When replacing the engine oil filter canister, unscrew the old canister and clean the filter mounting face. Smear the seal on the new filter canister with oil and screw it in hand tight, then an additional one quarter turn. The manual does not provide a specific part number for the filter canister.
How do you fix JCB Micro excavator engine cranks over fine after winter storage but will not start or fire?
Bleed the fuel system to remove trapped air. Inspect the fuel filter and sediment bowl. Verify the battery maintains 12 V during cranking, as detailed on page 134. If the solenoid lacks power, check the main 40 Amp fuse on page 72.
Is this Service Manual a digital download?
You get a 305-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are electrical wiring diagrams included in this JCB Micro & variants manual?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The main body text is crisp and easy to read throughout. Diagrams and illustrations are raster images; their labels are generally readable, though some fine print may lose sharpness at high zoom levels. Pages are clean, well-aligned, and free from scan artifacts or marks. Be aware that several pages are intentionally left blank as filler.
