Part of the JCB Repair Manuals.

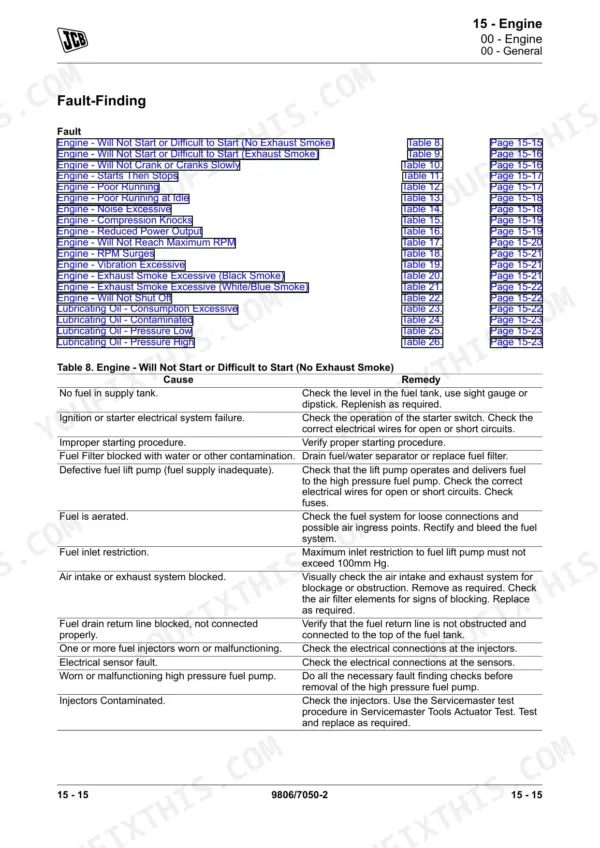

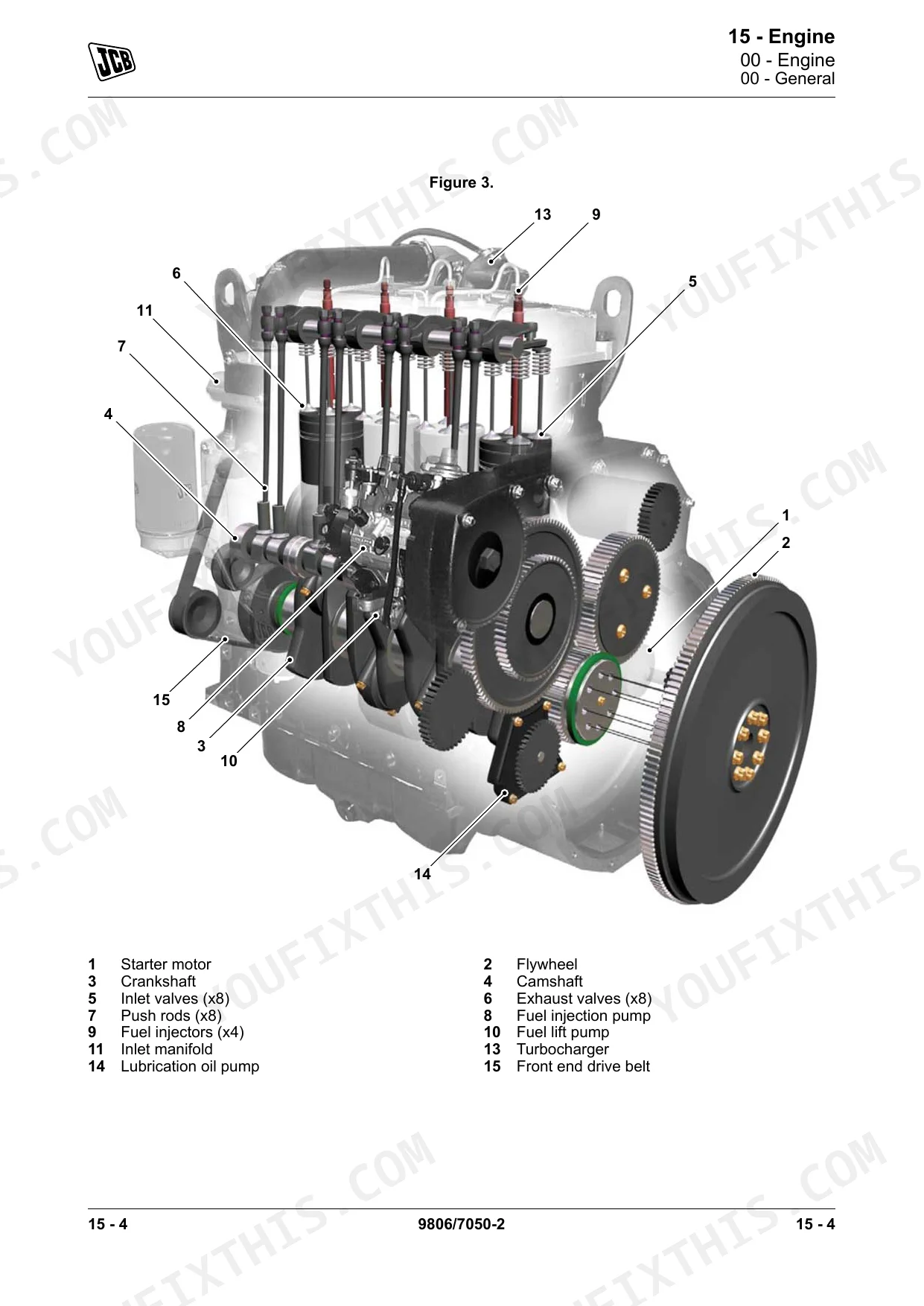

Need the exact factory numbers to rebuild your 2009-2017 diesel? This 534-page JCB T2/3 Mech Engine 4 Cyl Service Manual PDF (OEM #9806/7050) covers everything to get your powerplant back to factory condition. Inside, you get complete engine teardown procedures, electrical schematics with wire number identification, and a dedicated fault-finding section for battery and relay diagnostics. Open the file to find exploded views of the fuel injection pump, timing gear assemblies, and cooling pack configurations. Set your cold inlet valve clearances to 0.19-0.27mm and apply the full five-stage cylinder head torque sequence starting at 40 N·m as specified on page 88. Engine rebuilds leave zero room for guesswork. Download this bookmarked file straight to your shop tablet, jump right to the spec, and get the machine running right.
What's Inside This JCB JCB T2/3 Mech Engine 4 Cyl Manual

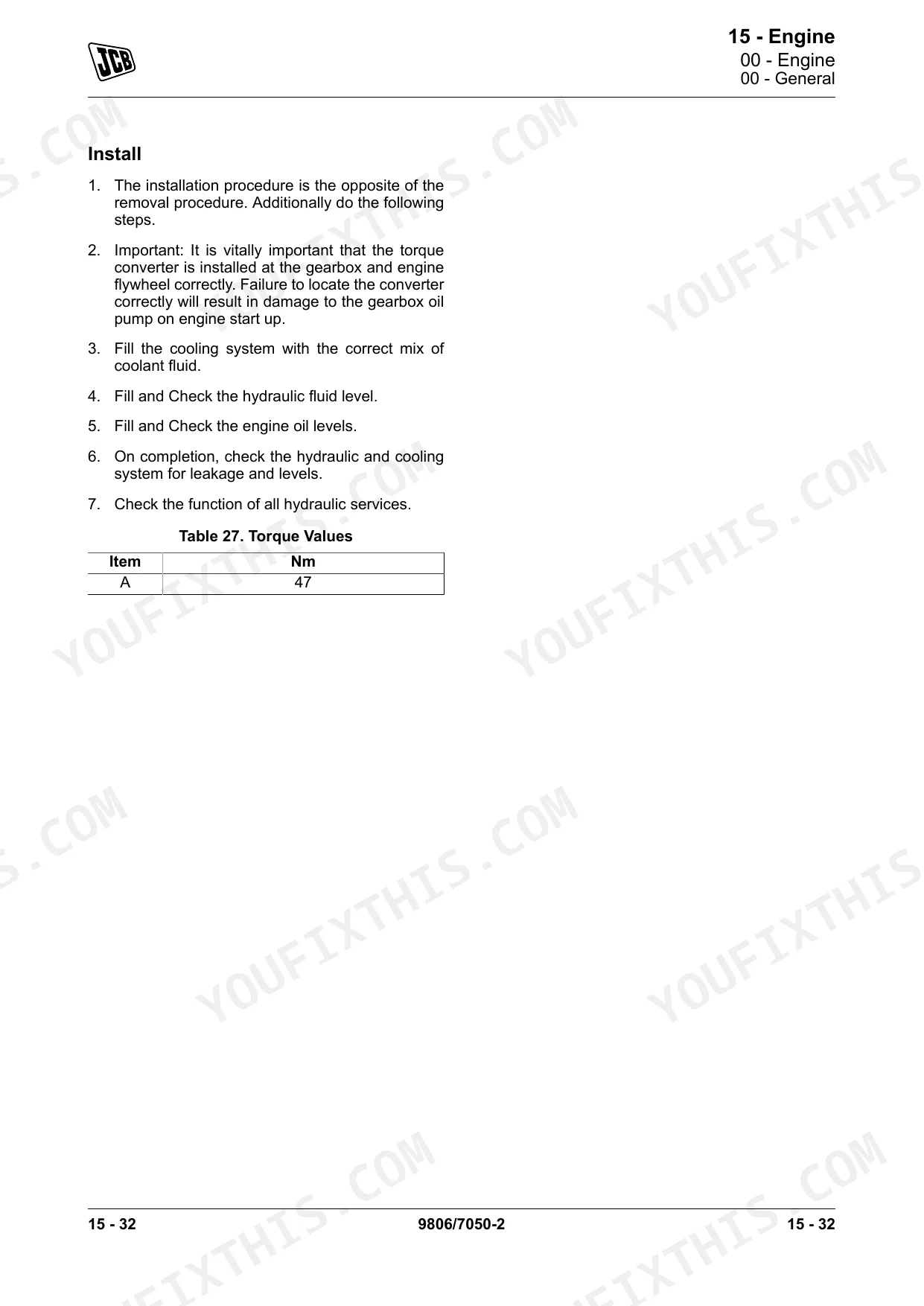

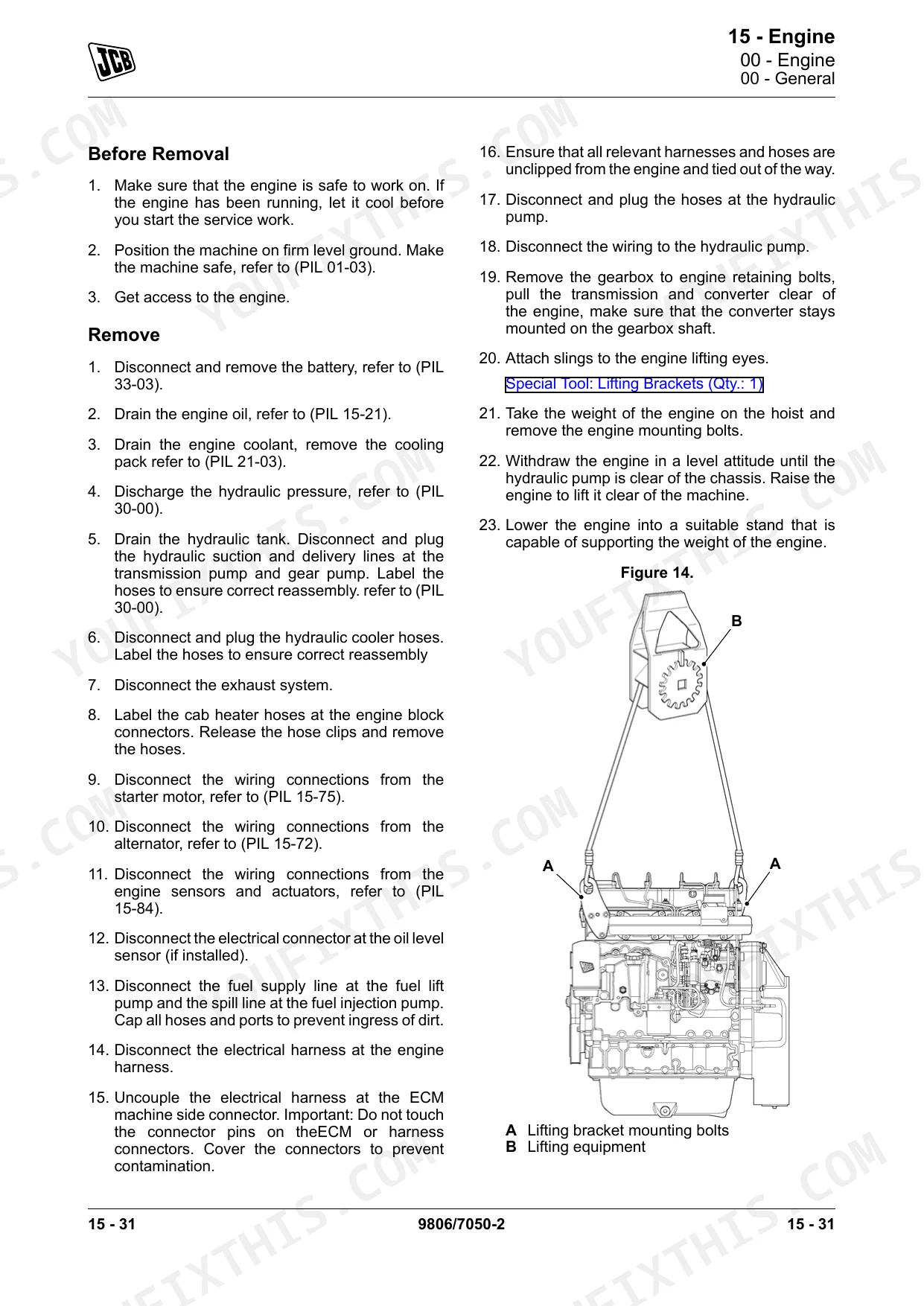

| System | Pages | Key Topics |
|---|---|---|
| Machine | 5-26 | Introduction (General, Product Compliance, Intended Use), Safety (- Yours and Others, Warnings, Maintenance Safety, Operating Safety, Worksite Safety, Risk Assessment, General) |
| Body and Framework | 27-32 | Contents (Identification Label, Engine), Notes, Identification Label, Introduction, Engine Data Labels, Example of the Engine Identification Number |
| Operator Station | 33-38 | Contents (Safety Label/Chart, General), Notes, Safety Label/Chart, General, Introduction |
| Engine Technical Data | 39 | Acronyms Glossary (Crankcase Ventilation, Direct Current, Dial Test Indicator, Engine Control Module, Engine Shut-Off Solenoid, Power Take-Off), Engine Overview (Crankcase, Cylinder Head, Bedplate, Crankshaft, Camshaft, Engine Belt) |
| Engine Specifications – Internal Components | 39 | Crankcase (Cylinder Bore, Main Bearing Bolts Torque, Surface Finish, Main Bearing Bore, Camshaft Bore), Cylinder Head (Distortion, Valve Recess Depth, Valve Seat Angle, Cylinder Head Bolts Torque, Cylinder Head Gasket), Bedplate (Main Bearing Bolts, Bedplate Peripheral Bolts), Connecting Rod (Big-End Bearing, Technical Data), Piston (Piston Ring, Valve (Technical Data, Component Identification) |
| Engine Components – Service Procedures | 40-316 | Oil Sump, Timing Gear, Flywheel, Oil Pump, Mount, Oil Cooler, Alternator, Starter Motor, Sensor, Solenoid, Switch, Oil Filter (Check Level, Remove and Install), Air Filter (Check Condition, Crankcase Ventilation Filter, Valve (Adjust, Connecting Rod (Remove and Install, Disassemble and Assemble), Piston (Disassemble and Assemble), Manifold, Rocker and Fittings |
| Air Intake System | 40-316 | Air Filter (Introduction, Health and Safety, Check Condition, Remove and Install), Crankcase Ventilation Filter (Introduction, Component Identification, Operation), Manifold |
| Fuel and Exhaust System | 317-402 | Acronyms Glossary, Tank, Fuel Filter, Filter Element, Fuel Lift Pump, High Pressure Fuel Pump (Delphi Dfp 210/310), Turbocharger, Fuel Bleeding Procedure |
| Cooling System | 403-442 | Acronyms Glossary, Cooling Pack, Radiator, Expansion Tank, Pump, Hydraulic Diagrams |

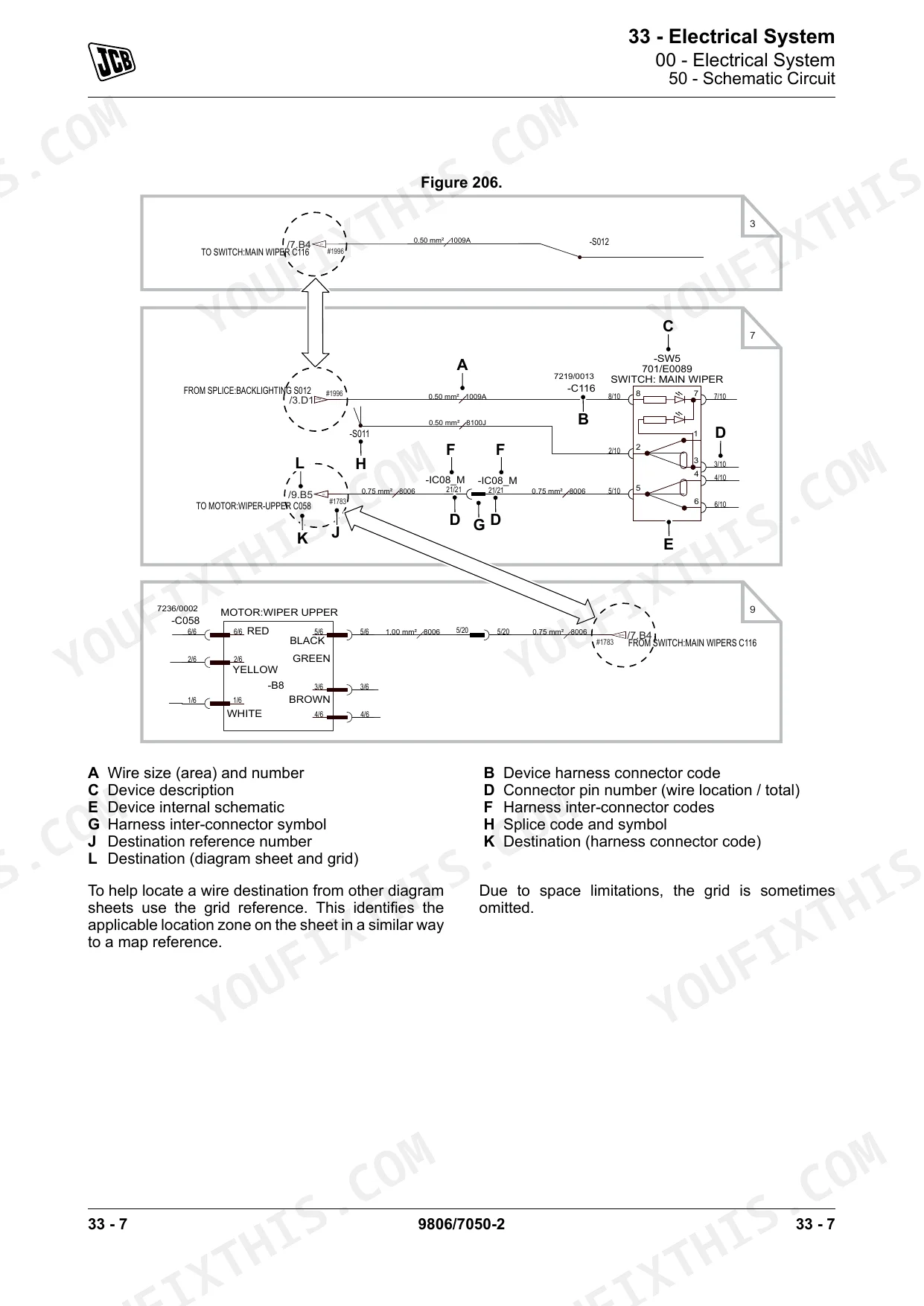

| Electrical System | 443-468 | Schematic Circuit, Wiring Harness, Engine Electrics, Introduction, Health and Safety (Arc Welding), Fault-Finding, Battery Fault Table |
| Fasteners and Fixings | 469-484 | General, Screws, Bolts |
| Consumable Products | 485-510 | Acronyms Glossary, Oil, Refrigerant |

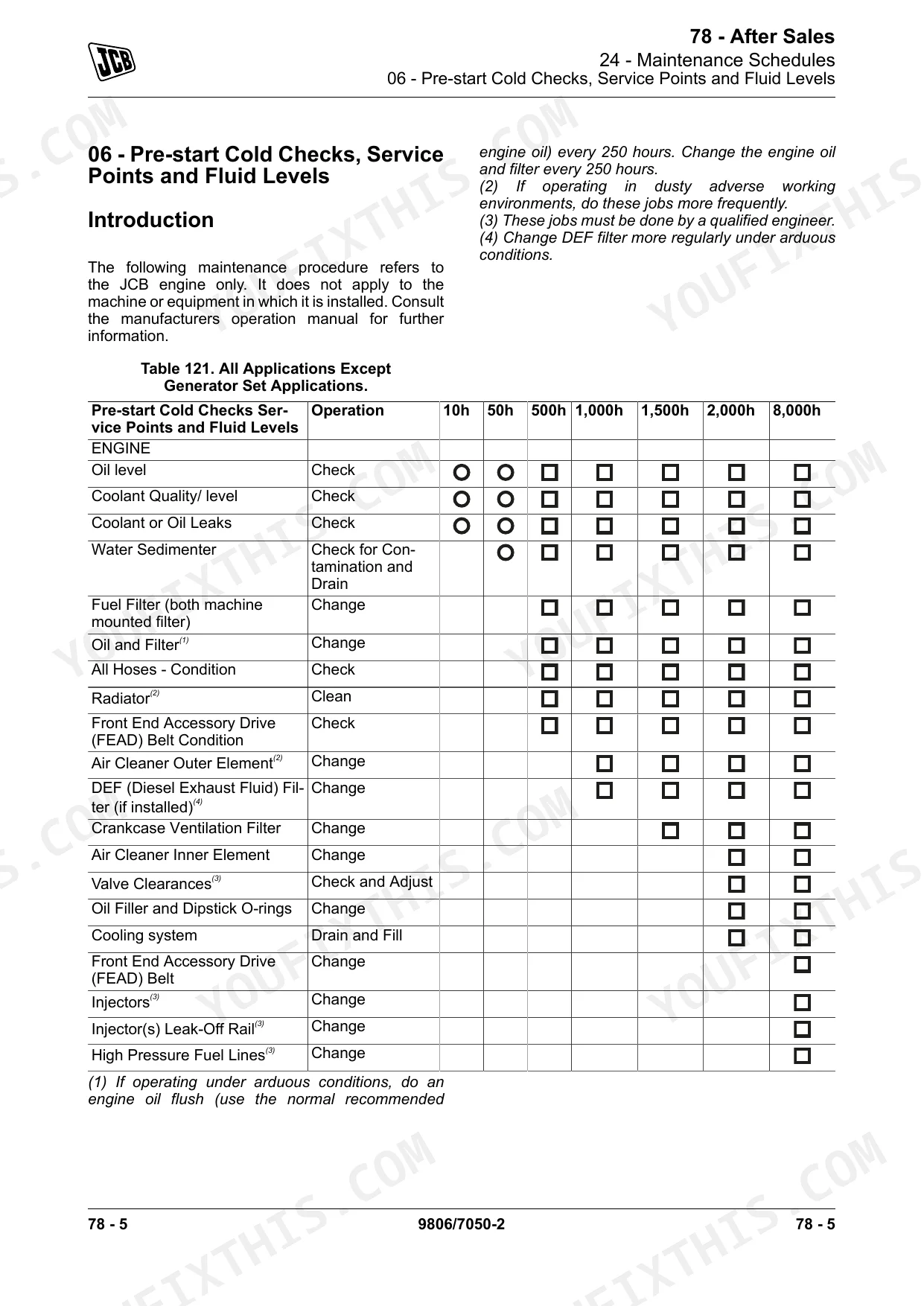

| After Sales | 511-534 | Acronyms Glossary, Maintenance Schedules (General, Maintenance Intervals, Pre-Start Cold Checks, Service Points and Fluid Levels) |

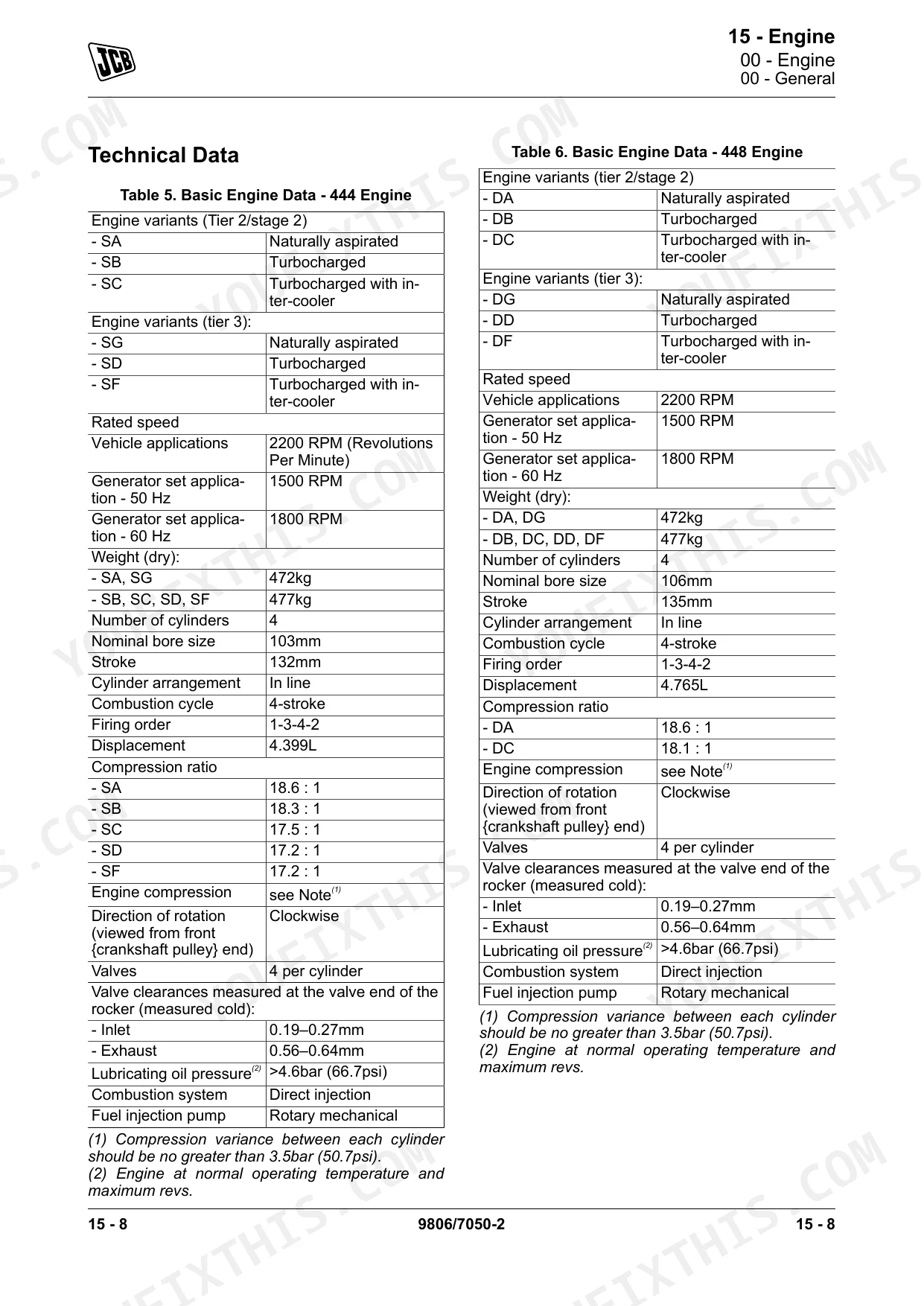

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head to crankcase bolts - first stage torque | 40N·m | p. 88 |
| Cylinder head to crankcase bolts - second stage torque | 75N·m | p. 88 |
| Main bearing bolts torque - First stage | 50N·m | p. 80 |
| Main bearing bolts torque - Second stage | 115N·m | p. 80 |
| Valve Clearances (measured cold) - Inlet | 0.19–0.27mm | p. 50 |
| Valve Clearances (measured cold) - Exhaust | 0.56–0.64mm | p. 50 |
| Fuel filter restriction - maximum pressure drop (For pressure filter) | 0.65bar (9.4psi) | p. 322 |
| Fuel filter restriction - maximum pressure drop (For suction filter) | 0.27bar (3.9psi) | p. 322 |
| Fuel lift pump type | Mechanical diaphragm | p. 322 |
| Fuel lift pump operating pressure | 0.8bar (11.6psi) | p. 373 |
| High pressure pump type | Delphi DFP 210/310 | p. 322 |
| High pressure fuel pump drive shaft nut torque (DP210/310) - Stage 2 | 90 Nm | p. 88 |
JCB JCB T2/3 Mech Engine 4 Cyl Common Problems This Manual Covers

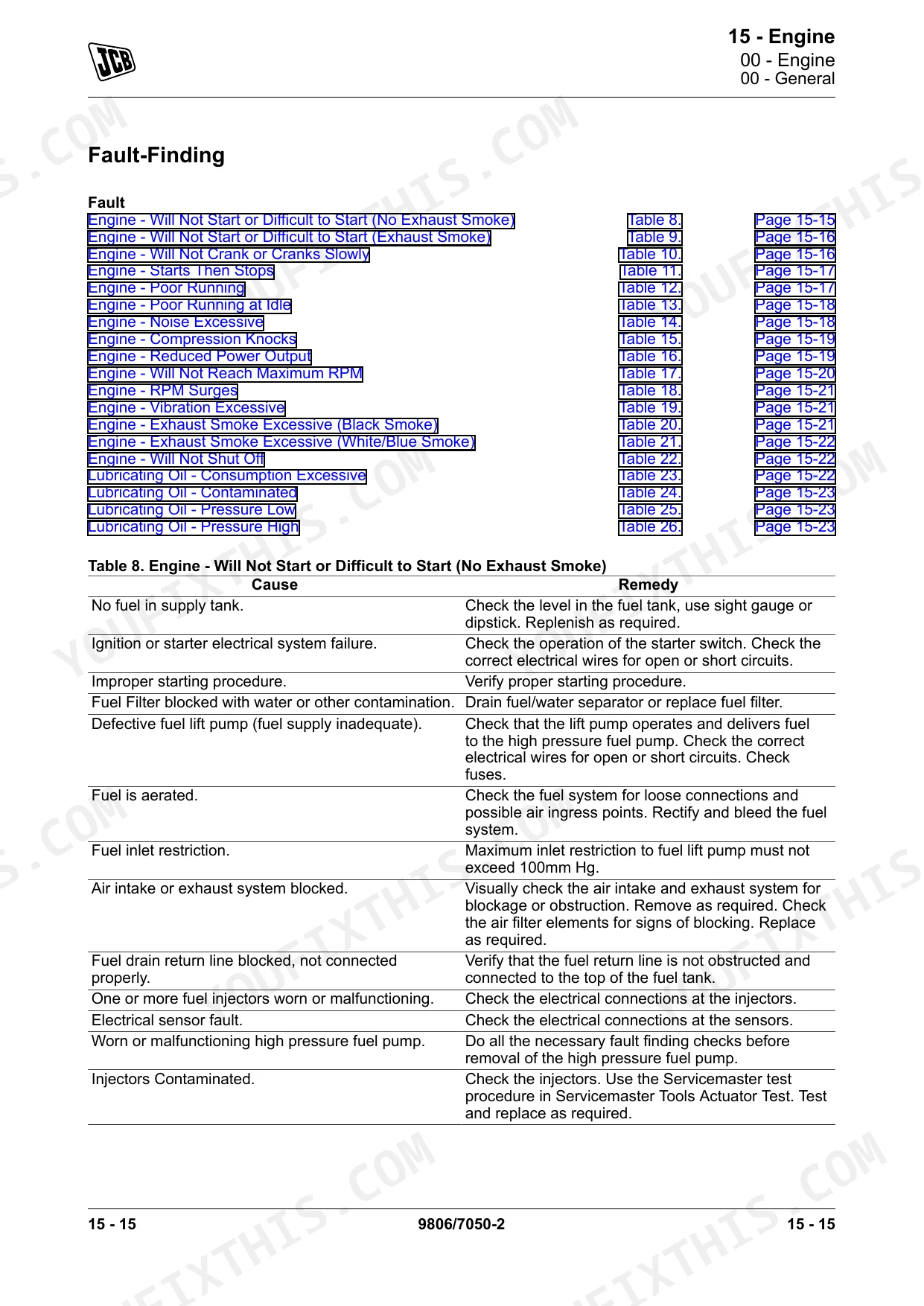

JCB T2/3 Mech Engine 4 Cyl hard starting or failure to start in cold conditions. p. 373
Inspect the fuel filter for restrictions and test the mechanical diaphragm fuel lift pump. Verify the operating pressure reaches exactly 0.8bar (11.6psi) as specified on page 373. Drain any water contamination from the supply lines. Replace the pressure filter element and tighten it to 35N·m.
Manual Section: Fuel and Exhaust SystemRough idle and low power at higher engine speeds after warming up. p. 50
Measure valve clearances cold. Adjust the inlet valves to fall between 0.19–0.27mm following the procedure on page 50. Inspect the tappets for excessive wear before reassembly. Reinstall the tappet cover and torque the cover bolts to the value specified in the manual.
Manual Section: Engine - Poor RunningLoud whining noise from the exhaust manifold and abnormal turbocharger operation under heavy load. p. 393
Inspect the turbocharger turbine shaft for free rotation and excessive end float. Check the oil supply pipes for blockages. When reinstalling the turbocharger, tighten the banjo bolts and retaining nuts to the torque values specified in the manual for this section.
Manual Section: Turbocharger Check (Condition)Frequent coolant loss and severe engine overheating during continuous high load operation. p. 408
Check the cooling pack and radiator for external blockages. Test the pressure cap to ensure it holds the pressure rating specified in the cooling system section. Verify the drive belt tensioner is secure using a 16mm socket. Inspect the thermostat operation if temperature fluctuates.
Manual Section: Coolant - Over TemperatureFrequently Asked Questions
What are the torque specs for JCB T2/3 engine cylinder head bolts?
The torque specifications for JCB T2/3 engine cylinder head bolts are applied in stages. The first stage is 40 N·m, the second stage is 75 N·m, the third stage is 75 N·m, the fourth stage is 90°, and the final stage is 180°. These values are for cylinder head to crankcase bolts 1-18.
What are the torque specs for JCB 4-cylinder engine main bearing bolts?
The torque specifications for JCB 4-cylinder engine main bearing bolts are applied in stages. For main bearing bolts 1-10, the first stage torque is 50 N·m, the second stage torque is 115 N·m, and the final stage is an additional 180° turn. These values are critical for proper assembly.
How do I bleed fuel on a JCB mechanical diesel engine?
To bleed the fuel system on a JCB mechanical diesel engine, turn on the machine ignition switch for 30 seconds, then turn it off for 10 seconds. Repeat this cycle twice more before starting the engine. This process helps remove air from the fuel system.
What are the replacement specifications for Fuel filter?
The main fuel filter is rated at 5 micron (0.005 mm), and the pre-filter at 10 micron. Fuel filters should be changed regularly according to the maintenance schedule, with intervals of 500 hours or 1,000 hours. Special tools like the Spanner - HP Fuel Filter (334/G5933) and Fuel Filter Removal Tool (4 cyl) (892/01383) are used for replacement, with a tightening torque of 35 N·m for the filter element and 24 N·m for the filter strap.
What format is this manual in?
Immediate download of the complete 534-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this Service Manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Can I find hydraulic circuit diagrams in this JCB T2/3 Mech Engine 4 Cyl manual?
Yes. This service manual includes hydraulic circuit content across multiple sections. Hydraulic diagrams and flow schematics appear throughout the Fuel and Exhaust System and Cooling System chapters.
