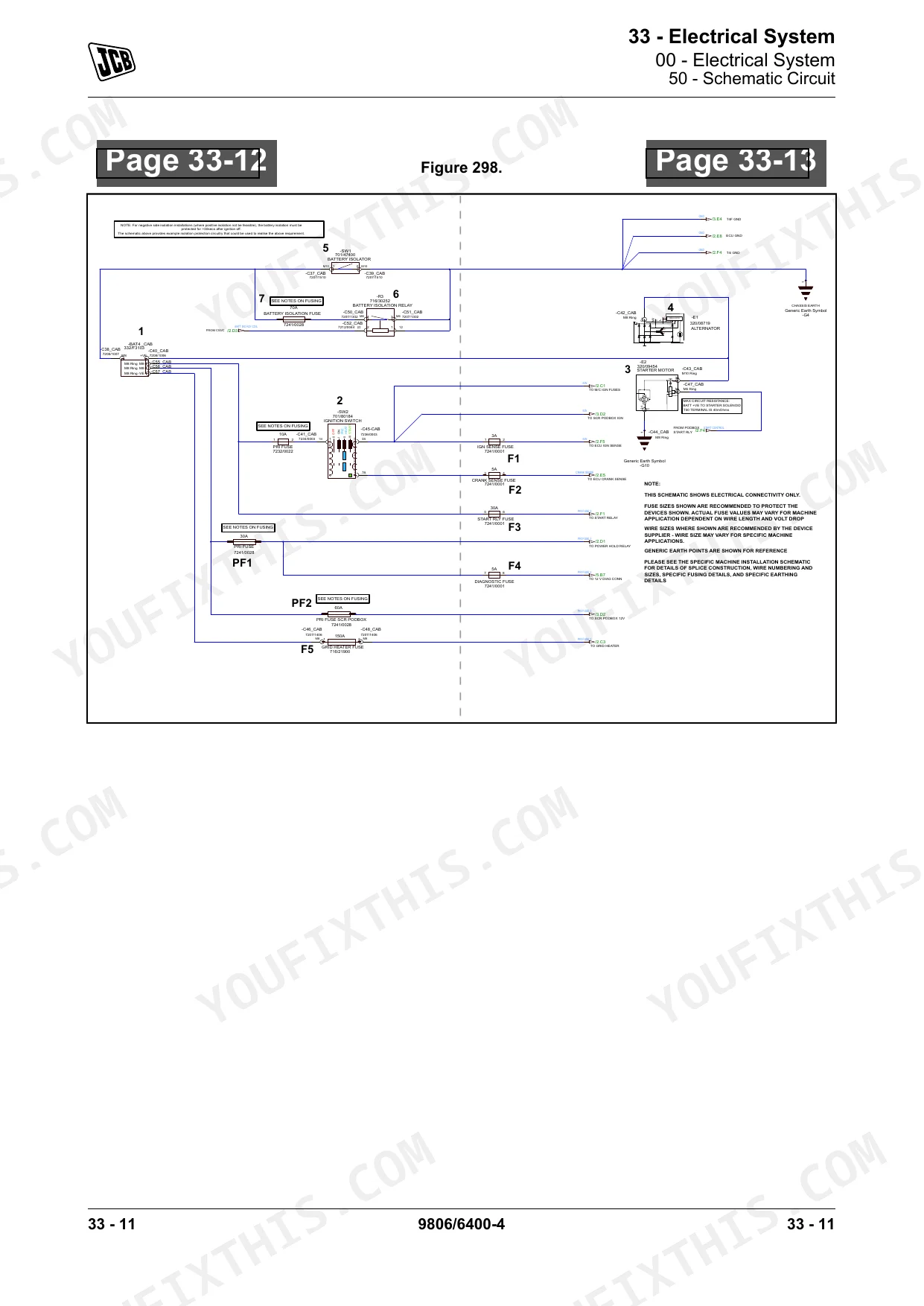

Every overhaul on your 2017-2018 power plant begins with this 784-page JCB T4F 444 Elec Engine (4 Cyl), T4F 448 Elec Engine (4 Cyl) Service Manual PDF (OEM #9806/6400-4). Inside, you get complete wiring diagrams for the engine harness, fluid flow schematics, and extensive electronic diagnostic fault codes. Open to any section and find step-by-step rebuild procedures for the fuel injection pump and selective catalytic reduction system. Lock down the rocker shaft fixing bolts to exactly 24 Nm, and verify the fuel filter element is tightened to 35 Nm before priming the system. Parts cannons are expensive. Download the file, open the bookmarks on your tablet, and fix the engine right the first time.
What's Inside This JCB JCB T4F 444 Elec Engine (4 Cyl), T4F 448 Elec Engine (4 Cyl) Manual

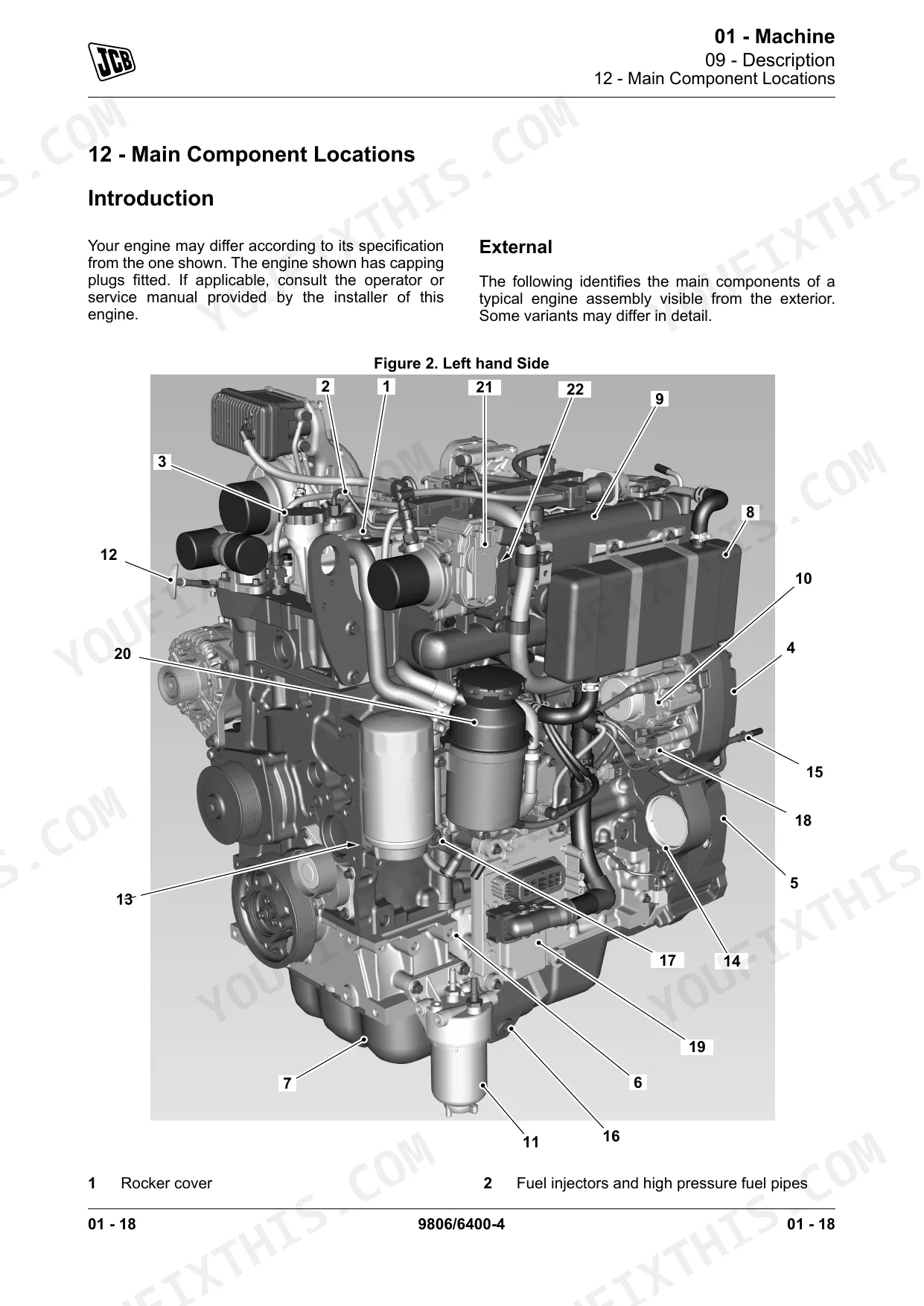

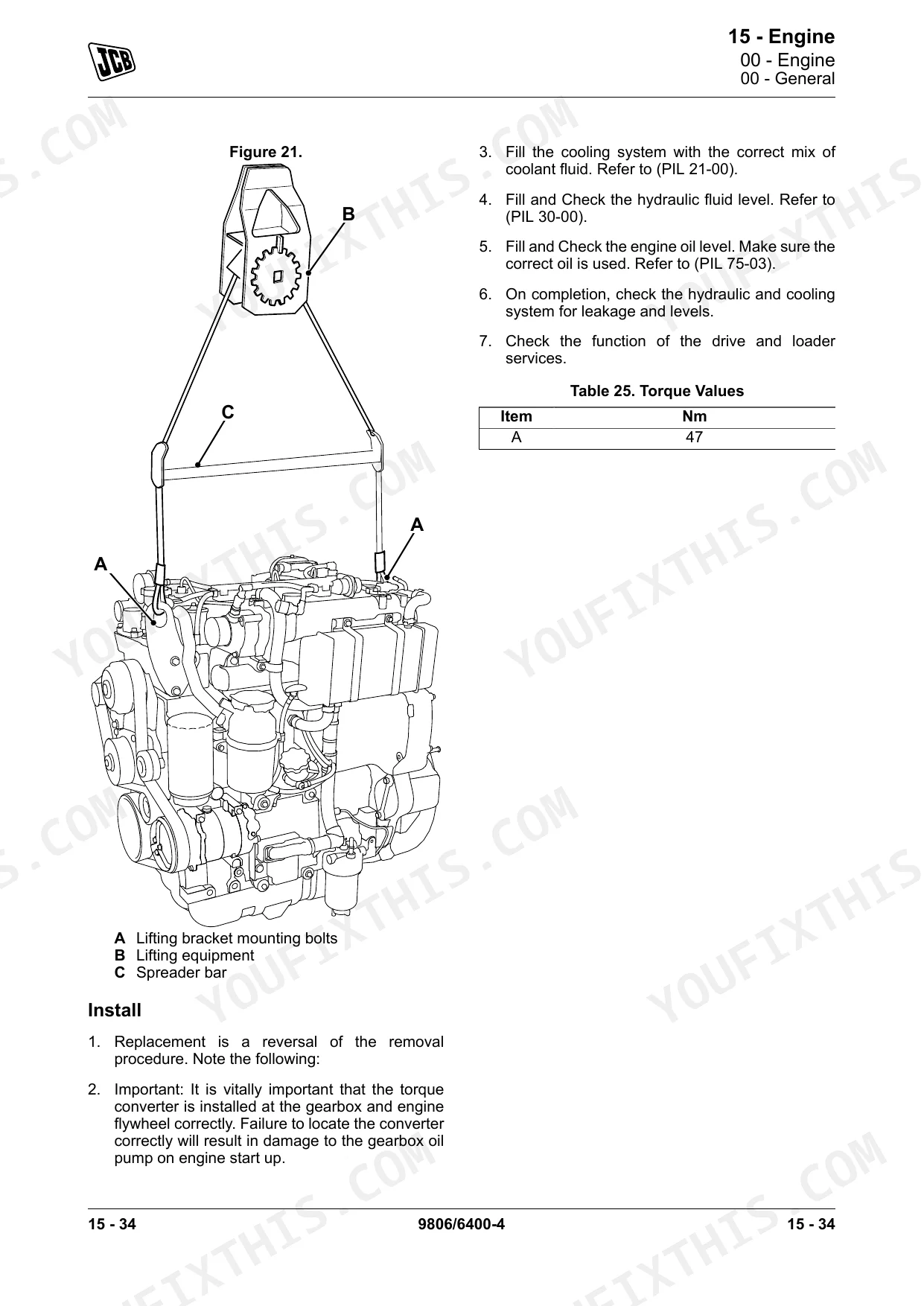

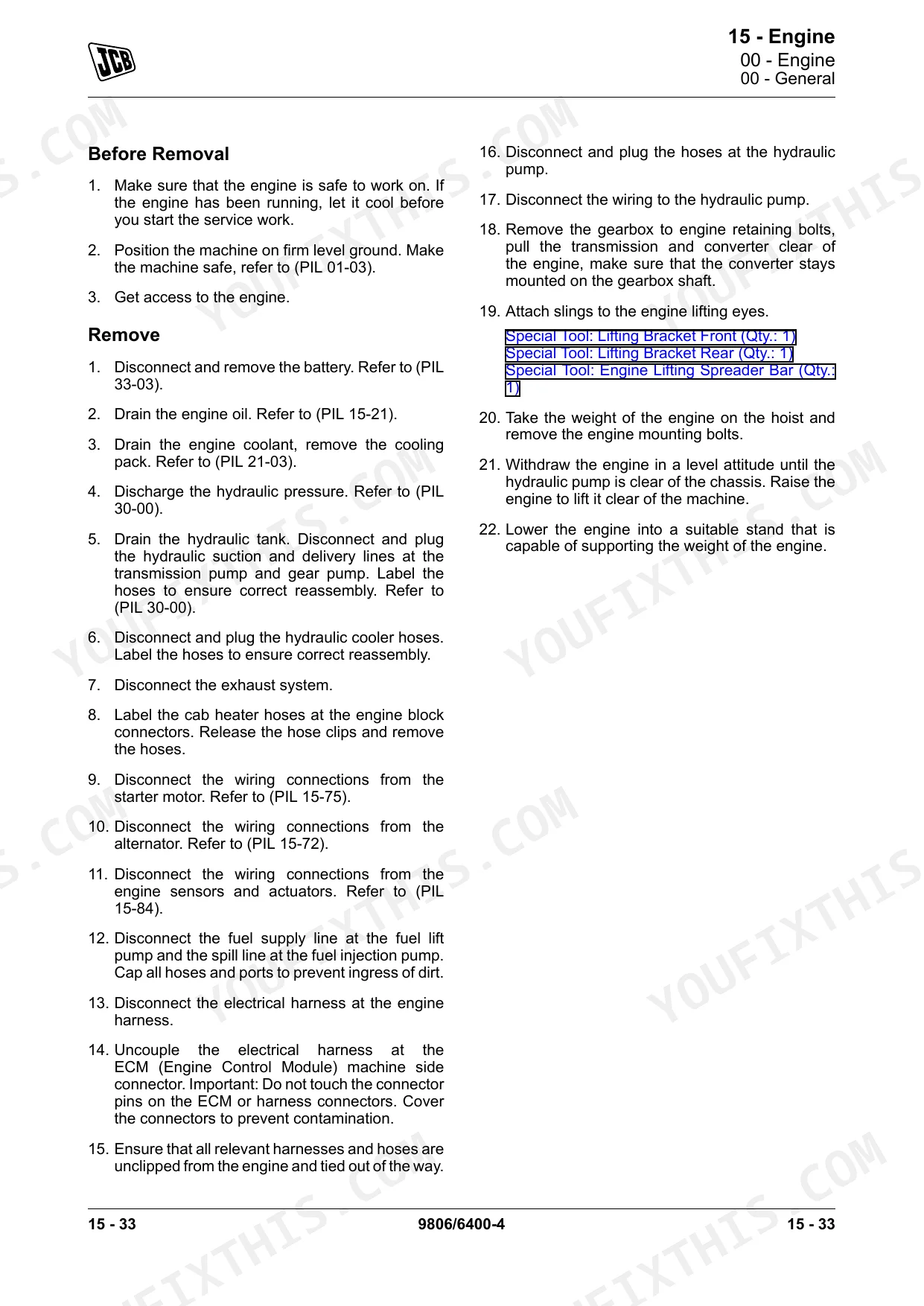

| System | Pages | Key Topics |
|---|---|---|
| Machine | 5-34 | Acronyms Glossary, Introduction (General, Product Compliance, Intended Use) |
| Body and Framework | 35-40 | Identification Label, Figure 8. B, Table 1. Example of the Engine Identification Number, Table 2., Table 3. Explanation of the Engine Identification Number |
| Operator Station | 41-46 | Safety Label/Chart, General (Introduction) |
| Engine | 47-356 | Acronyms Glossary, Crankcase (General), Cylinder Head (General), Bedplate (General), Crankshaft (General, Main Bearing, Front Oil Seal, Rear Oil Seal, Pulley), Camshaft (General) |
| Fuel and Exhaust System | 357-524 | Acronyms Glossary, Tank (General), Filter (General, Element, Pre-Filter Element), Water Separator (General, Water in Fuel Sensor) |
| Cooling System | 525-562 | Acronyms Glossary, Cooling Pack (General, Radiator), Expansion Tank (General), Pump (General), Thermostat (General), Inlet (General), Hose (General) |
| Electrical System | 563-710 | Acronyms Glossary, Harness (General, Engine), Control Module (General, Engine, Selective Catalytic Reduction, Nitrogen Oxide Sensor) |
| Fasteners and Fixings | 711-726 | Screws (General), Bolts (General) |
| Consumable Products | 727-752 | Acronyms Glossary, Oil (General, Engine, Refrigerant), Fluids (General, Antifreeze, Diesel Exhaust Fluid), Fuel (General) |
| After Sales | 753-784 | Acronyms Glossary, Maintenance Schedules (General, Maintenance Intervals, Pre-Start Cold Checks, Service Points and Fluid Levels) |

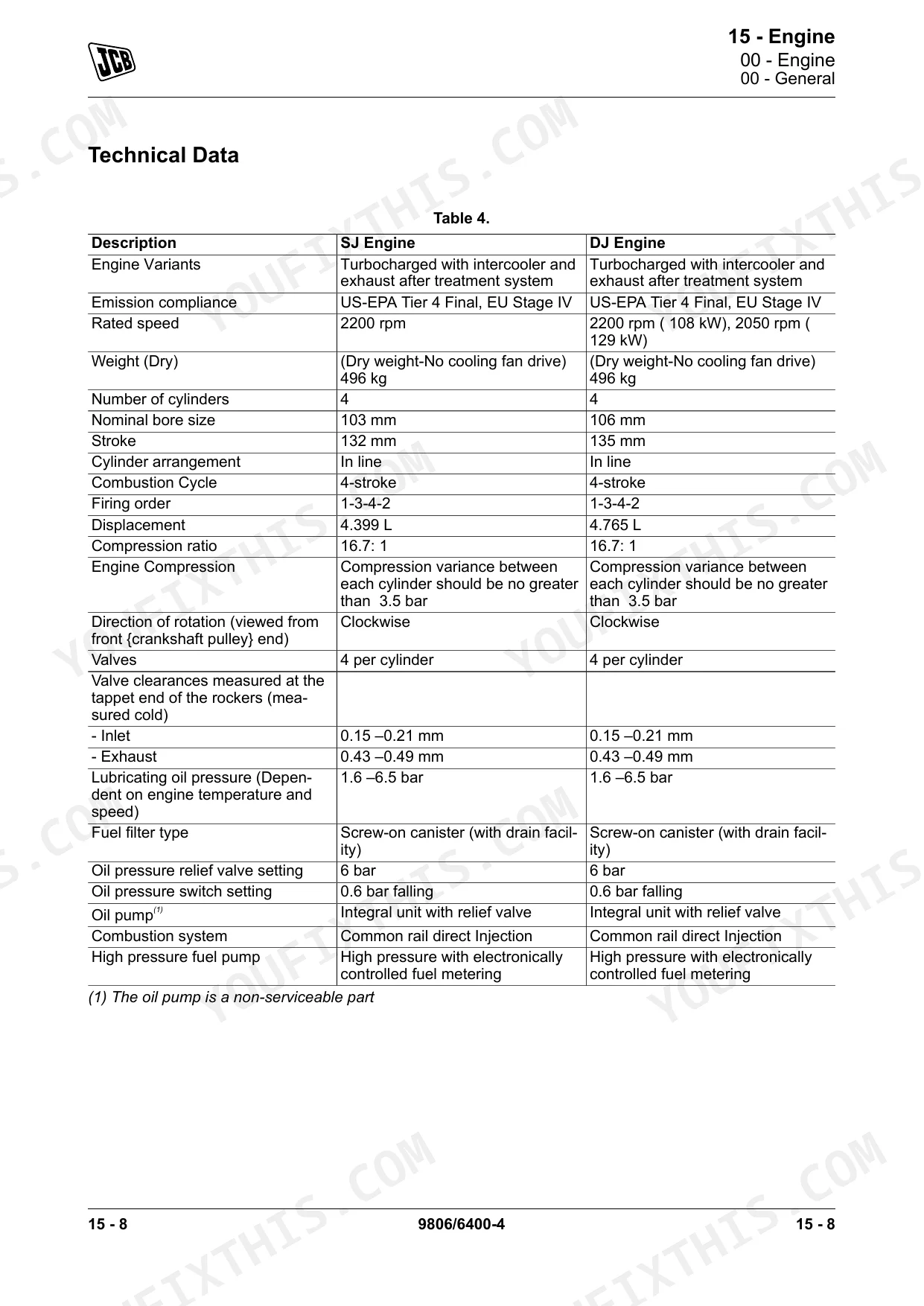

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Rocker shaft fixing bolts torque | 24 Nm | p. 207 |
| Rocker shaft - oil feed pedestal fixing bolt torque | 24 Nm | p. 207 |
| Fuel filter strap retaining screw torque | 24 N·m | p. 382 |
| Fuel filter element torque | 35 N·m | p. 383 |
| Injector clamp bolt torque | 28 Nm | p. 412 |
| Fuel injector replacement | must be replaced | p. 410 |
| ECM fixing bolts torque | 24 Nm | p. 640 |
| ECM replacement | must be replaced | p. 640 |
| Starter motor securing bolts torque | 47 ± 4 Nm | p. 285 |
| Starter motor electrical lead (Terminal 30) torque | 15 ± 3 Nm | p. 285 |
| Air filter element replacement | must only be renewed | p. 157 |
| Air filter inner element replacement | installed at least every other time the outer element is changed | p. 157 |

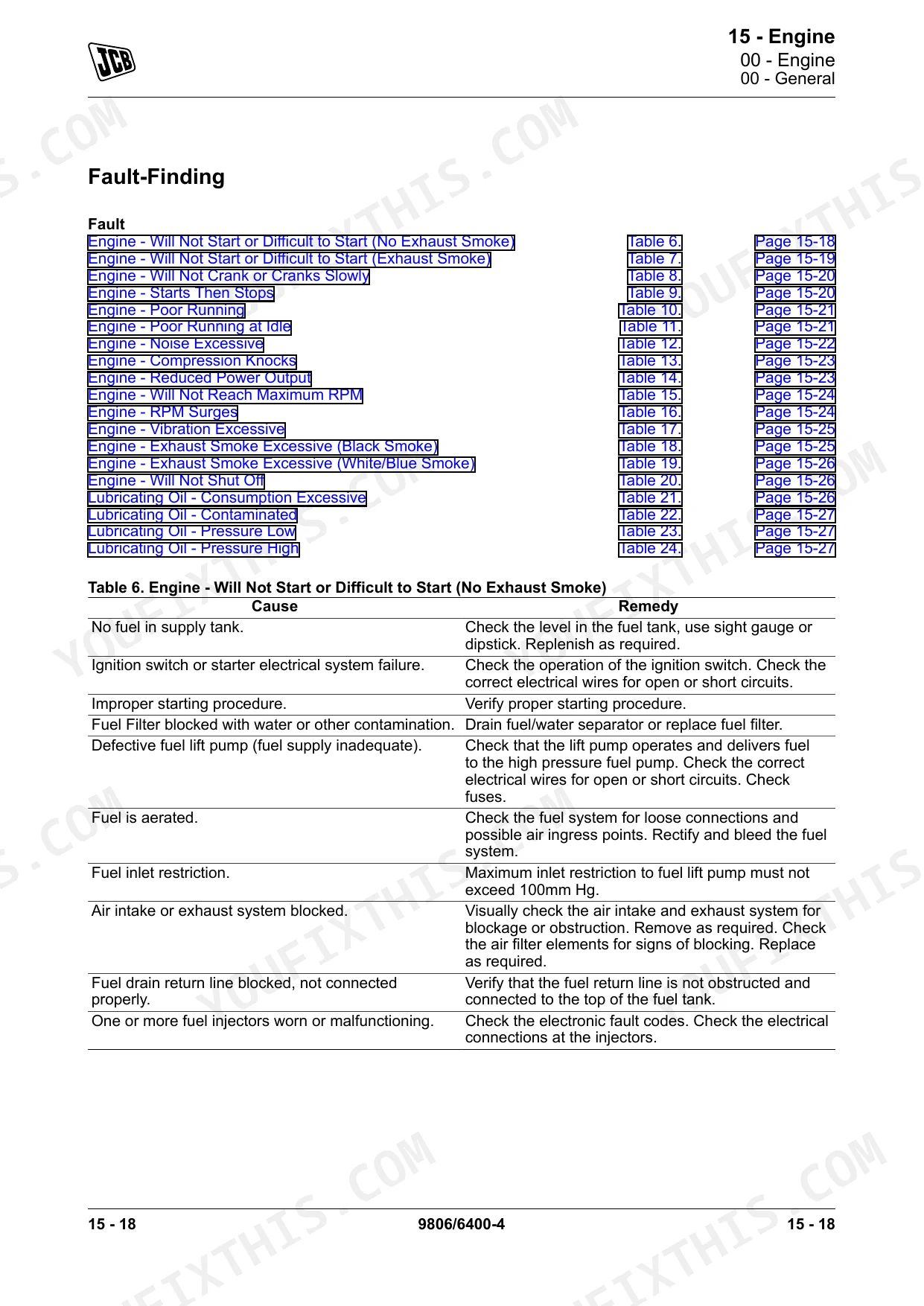

JCB JCB T4F 444 Elec Engine (4 Cyl), T4F 448 Elec Engine (4 Cyl) Common Problems This Manual Covers
JCB T4F 444 or 448 engine cranks and fires but dies completely after a few seconds p. 383
Inspect the fuel delivery lines and filter for air intrusion. Replace the fuel filter element and torque it to 35 N·m as shown on page 383. Bleed the fuel system and verify return flow rates during cranking before attempting another start.
Manual Section: Fuel and Exhaust SystemIntermittent misfire under load with open-circuit fault codes triggering during heavy vibration p. 412
Test the injector wiring harness connections for continuity. If replacing a faulty injector, always use a new unit and tighten the injector clamp bolt to exactly 28 Nm. Check page 412 for the correct clamping sequence to prevent fuel rail leaks.
Manual Section: Engine Fault-Finding (General)Temperature gauge spikes into the red zone during normal operation and coolant boils over p. 530
Check the radiator cap pressure setting on page 530 against the specification in the manual. Inspect the thermostat and water pump for leaks. When installing a new coolant pump, tighten the fixing screws to the torque value specified in the Cooling System section.
Manual Section: Cooling SystemEngine turns over very slowly or refuses to crank when turning the ignition key p. 286
Measure battery voltage drop during a crank attempt. If the starter motor is faulty, replace the complete starter motor as instructed on page 286. Secure the new unit by torquing the starter motor securing bolts to 47 ± 4 Nm.
Manual Section: EngineFrequently Asked Questions
How do I reset the JCB T4F 444 Elec Engine fault code?
To reset fault codes on a JCB T4F 444 Elec Engine, use the Servicemaster diagnostic tool. Navigate to the "Fault Codes Page" within Servicemaster and click the "Erase Fault Codes" button to clear logged fault codes from the ECM memory. If new injectors are installed or the ECM is replaced, the ECM must be reprogrammed with the new injector codes.
How do I reset the JCB T4F 448 Elec Engine ECU after a shutdown?
After an ECU shutdown, use the Servicemaster diagnostic tool to reset fault codes. Connect a laptop with Servicemaster diagnostic software to the machine's CANbus, navigate to the "Fault Codes Page", and click the "Erase Fault Codes" button to clear logged fault codes from the ECM memory. If the ECM was replaced, it must be reprogrammed with the correct injector codes.
What does fault code P062E-11 mean on a JCB 444 engine?
The fault code P062E-11 on a JCB 444 engine indicates a CRITICAL issue: "Injector Bank 1 fault shorted to ground (SC2GND)". The dash display will show "P062E-11-Please Contact JCB Dealer". Use Servicemaster to erase the logged fault code once the injector bank 1 circuit short to ground has been diagnosed and repaired.
What are the torque specs for the rocker assembly on a JCB 444/448 engine?
The torque specifications for the rocker assembly on a JCB 444/448 engine are 24 Nm for the rocker shaft fixing bolts (Item 2) and 24 Nm for the rocker shaft oil feed pedestal fixing bolt (Item 3), per page 207.
What are the replacement specifications for the fuel filter on a JCB T4F 444/448 engine?

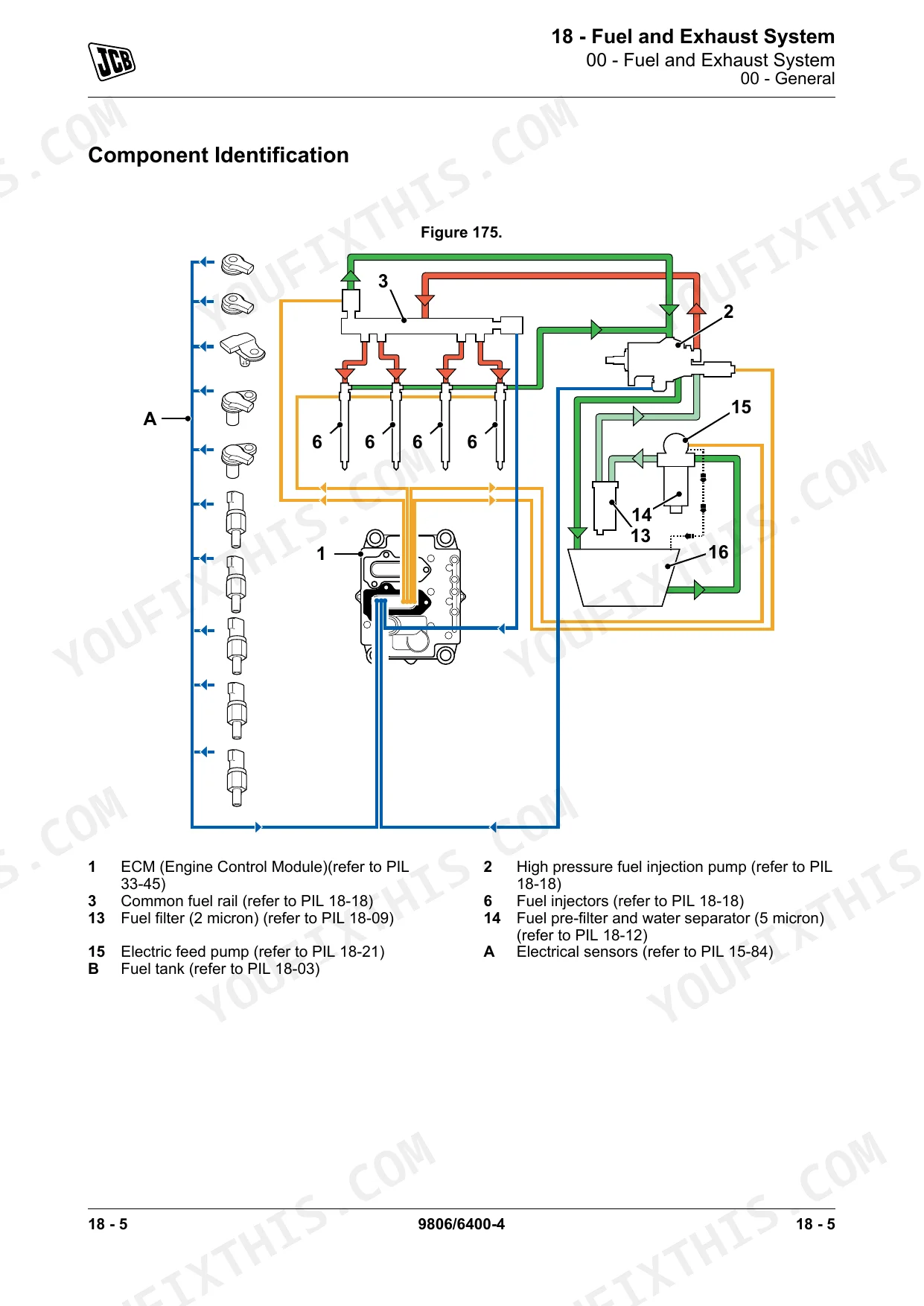

The replacement specifications for the fuel filter include a main filter with a 2 micron rating and a pre-filter with a 5 micron rating, per page 364. Use only the correct specification filters and replace them according to the machine maintenance schedule.
Are injectors interchangeable between cylinders on a JCB T4F engine?
No. Fuel injectors on the JCB T4F engine are not interchangeable between cylinders or other engines and must be installed in their original positions. Each injector carries a unique calibration code, and if a new injector is installed, the ECM must be reprogrammed with the new injector codes.
Document Quality
This document is a scanned PDF with an optical character recognition (OCR) layer, allowing you to search and copy the full text content. The text quality is crisp and consistently easy to read across all pages. Diagrams and illustrations, including both line drawings and rendered images, are clear with readable labels, though some embedded text in images may appear slightly less sharp when magnified. The pages are clean, free from scan artifacts, stains, or skewed content. You will find several "Notes" pages included as filler throughout the manual.
