This is the factory Kubota service manual for the BX24 compact tractor and its matched attachments, covering the BX24, the RCK54(P)-23BX and RCK60B-23BX mid mount mowers, the LA240 front loader, and the BT601 backhoe. It runs 437 pages and is built around the D902-E2-BX-2 diesel engine.The manual is organized into nine sections: general service data, engine, transaxle, front axle, steering, hydraulics, mower, loader, and backhoe. You get servicing specifications, tightening torques, troubleshooting tables, and detailed disassembly and assembly procedures, including mounting and dismounting the LA240 loader and BT601 backhoe. Whether you are diagnosing weak hydraulics, restoring HST performance, servicing the mower deck, or rebuilding safety switches and the charging system, this PDF gives you the factory level detail an operator manual leaves out.
What's Inside This Kubota BX24 Package Manual

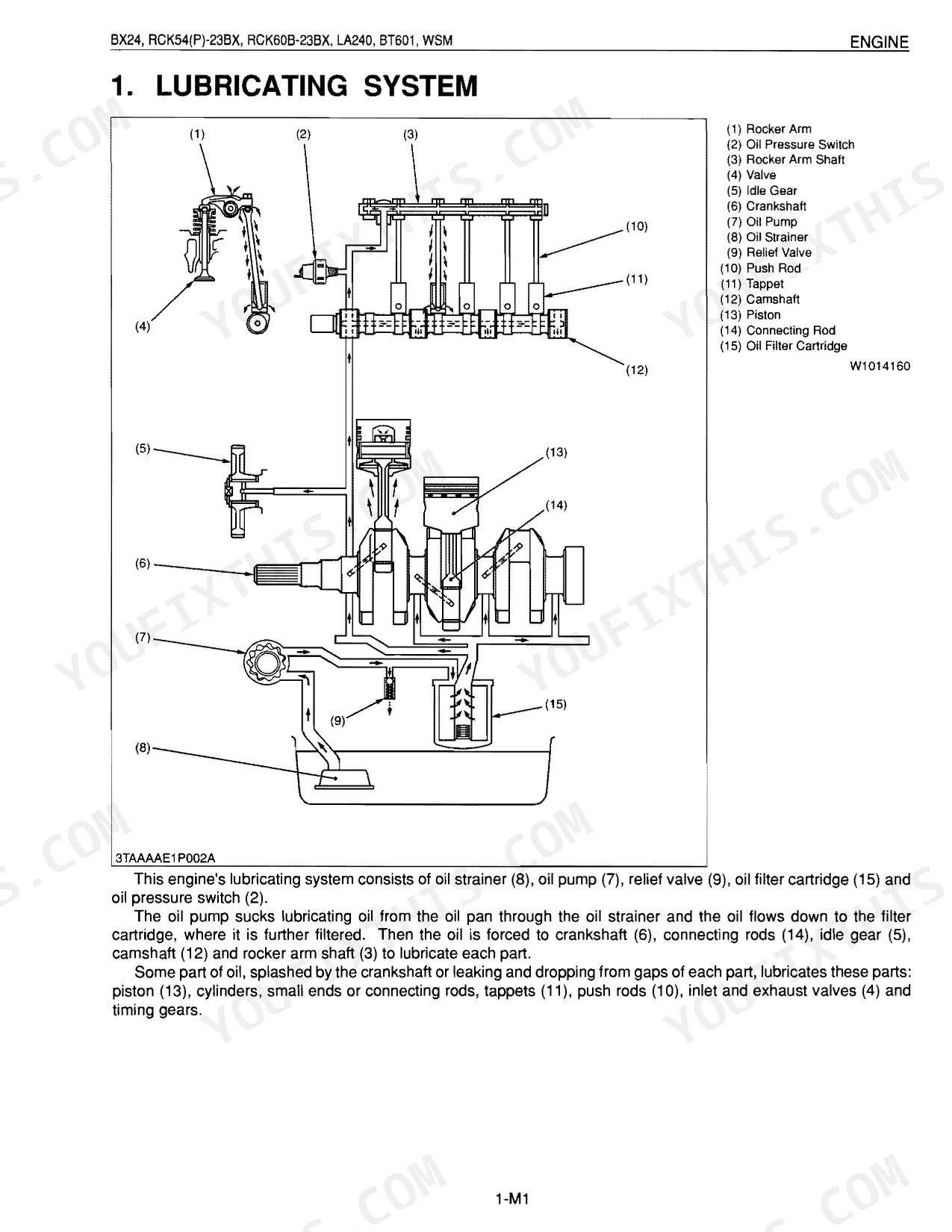

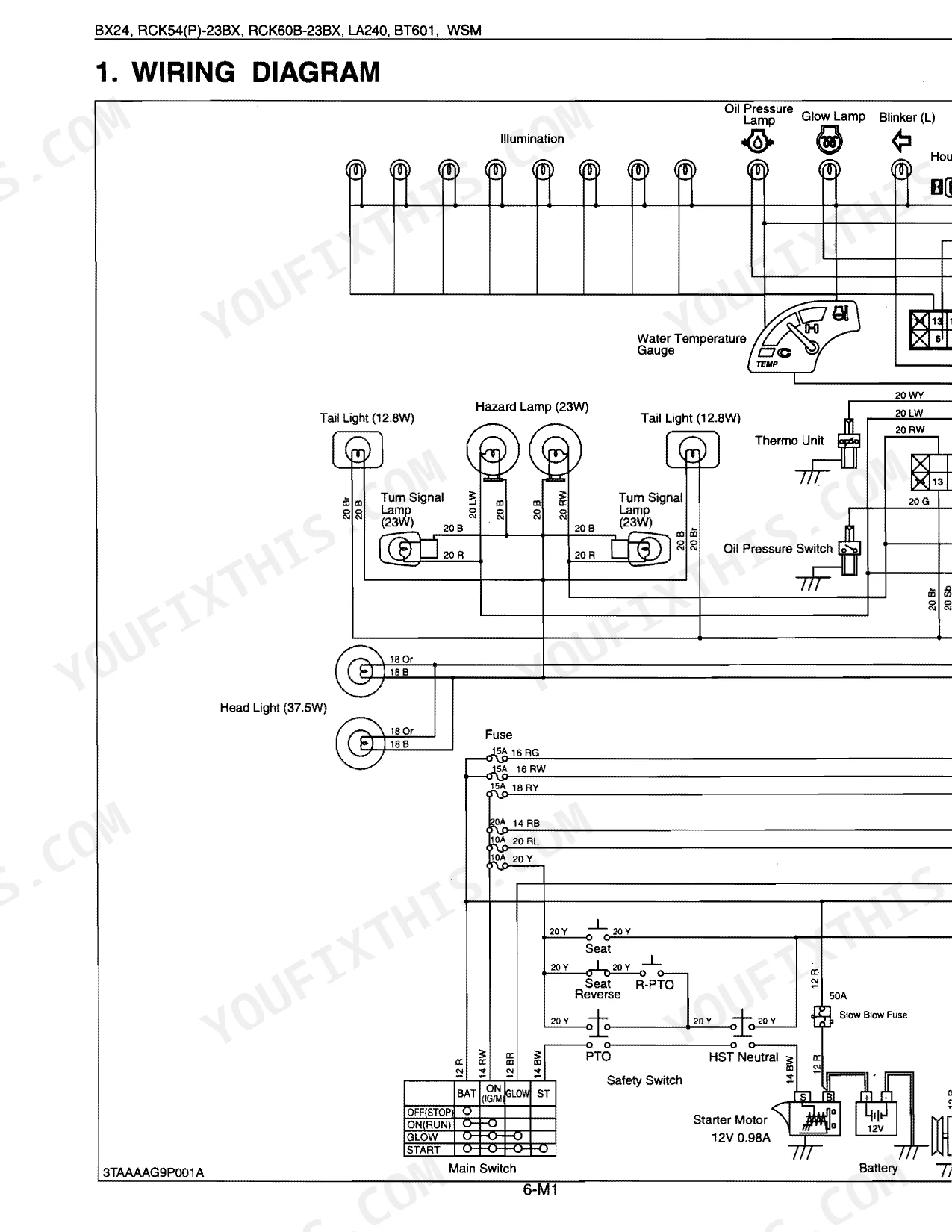

| System | Pages | Key Topics |
|---|---|---|
| General | - | Backhoe Identification, Lubricants, Maintenance Check List, Check and Maintenance |
| Sect 1 Engine | - | Cylinder Head, Valves, Gear Case, Timing Gears, Piston, Connecting Rod, Flywheel, Crankshaft |
| Sect 2 Transaxle | - | Hydrostatic Transmission, Range Gear Shift, Front Wheel Drive, Differential Gear, Brake, PTO System |
| Sect 3 Front Axle | - | Front Wheel Alignment, Camber, Kingpin Angle, Caster, Toe-In |
| Sect 4 Steering | - | Hydraulic Circuit, Steering Controller, Steering Cylinder, Relief Valve |
| Sect 5 Hydraulic | - | Hydraulic Circuit, Hydraulic Pump, Control Valve, Flow Priority Valve, Relief Valve, Hydraulic Cylinder |
| Sect 6 Electrical | - | Wiring Diagram, Starting System, Charging System, Lighting System, Gauges, DC Outlet |
| Sect 7 Mower | - | Power Transmission, Lifting Mechanism, Self-Balancer System, Mower Blade, Gear Box, Universal Joint |
| Sect 8 Loader | - | Dismounting and Mounting Front Loader From Tractor |
| Sect 9 Backhoe | - | Dismounting and Mounting (Dismounting the Backhoe, Mounting the Backhoe to Tractor, Disassembling the Backhoe) |

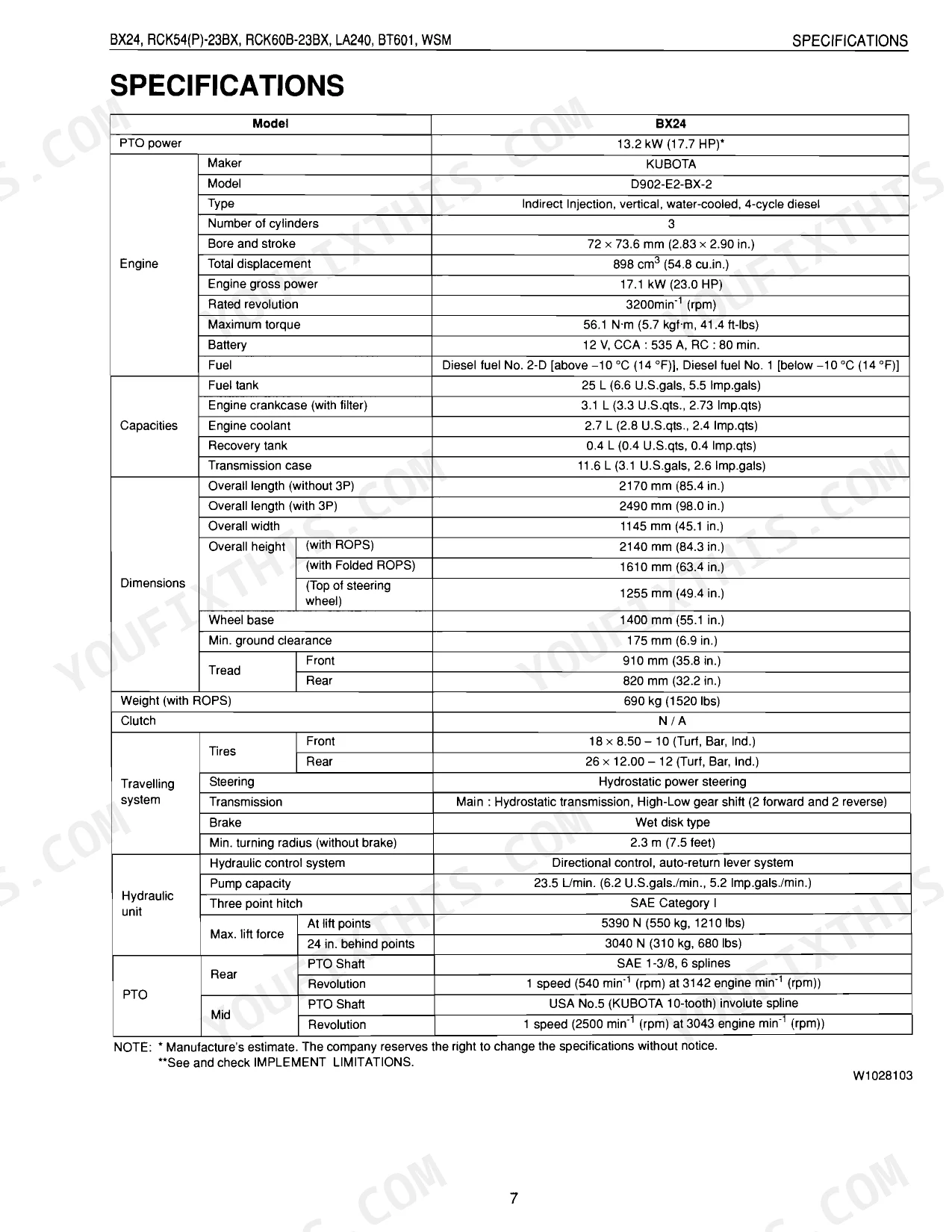

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

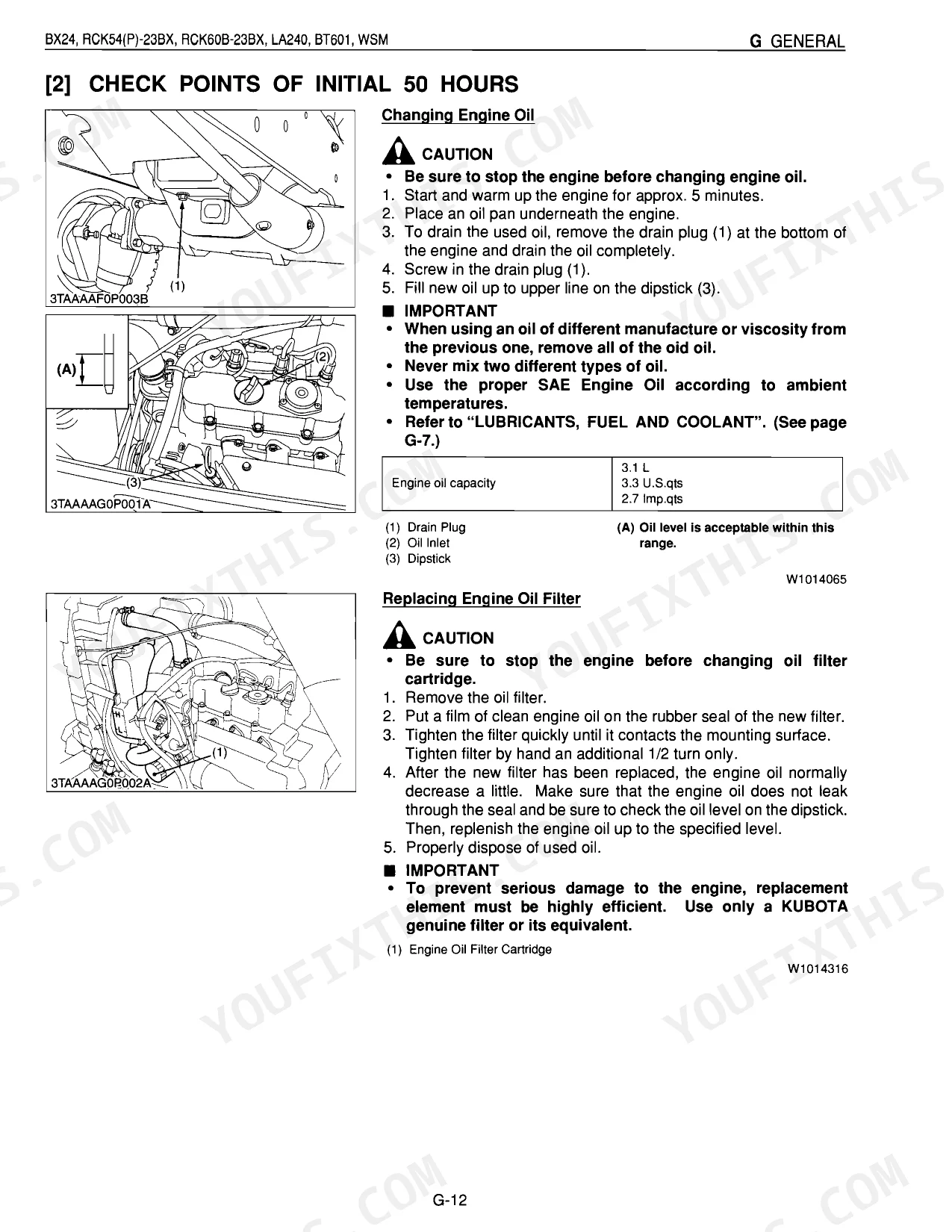

| Transmission Oil Filter Replacement Interval | Initial 50 hours, then as needed (tighten by hand an additional 1/2 turn only) | p. 22 |
| Engine Oil Filter Replacement Interval | Initial 50 hours, then as needed (tighten by hand an additional 1/2 turn only) | p. 22 |
| Fuel Filter Element Replacement Interval | Replace if clogged by debris or contaminated by water (check annually or every 100 service hours for fuel lines) | p. 22 |
| Air Cleaner Element Replacement Interval | Once yearly or after every sixth cleaning, whichever comes first | p. 22 |
| Front Axle Case Oil Capacity | 4.7 L (5.0 U.S.qts, 4.1 Imp.qts) | p. 19 |
| Front Axle Case Oil Type | KUBOTA SUPER UDT fluid or SAE80, SAE90 gear oil | p. 19 |
| Rear PTO Switch Continuity (When switch push is pushed) | 0 Ω | p. 296 |
| Rear PTO Switch Continuity (When switch push is released) | Infinity | p. 296 |
| Front End Loader Troubleshooting - Boom Does Not Rise (Probable Causes & Solutions) | Control valve malfunctioning (Repair or replace, page 8-S11), Boom cylinder defective (Repair or replace, page 8-S12), Control lever linkage defective (Repair or replace, page 8-S10), Hydraulic pump malfunctioning (Repair or replace, page 5-S12), Oil filter clogged (Clean or replace, page G-13), Hydraulic hose damaged (Replace, page 8-S12) | p. 375 |
| Hydraulic System Troubleshooting - Implement Does Not Rise (No Noise) (Probable Causes & Solutions) | Control valve broken (Replace, page 5-S13), Control valve improperly assembled (Repair, page 5-S13), Relief valve spring damaged (Replace, page 5-S4), Spool sticks (Repair, page 5-S13), Piston O-ring or cylinder damaged (Replace, page 5-S14), Oil filter cartridge clogged (Replace, page G-13) | p. 254 |
Kubota BX24 Package Common Problems This Manual Covers
Loader or hydraulics lose lifting power
The front loader or three point functions feel weak or slow as fluid ages or the pump, control valve, or cylinders wear. The Hydraulic section carries the circuit, pump, control valve, and relief valve service to find the cause.
Manual Section: Sect 5 Hydraulic p. 237Cranks but will not start
A no-start on the BX24 often comes down to a safety interlock switch, wiring, or starting circuit fault rather than the engine. The Electrical section covers the starting system, safety switches, and wiring diagram.
Manual Section: Sect 6 Electrical p. 270Weak or inconsistent HST drive
Hydrostatic drive that feels soft or hesitant traces to fluid condition, filter, or wear in the transmission. The Transaxle section covers the HST, range shift, front wheel drive, and differential.
Manual Section: Sect 2 Transaxle p. 127Backhoe mounting and hydraulic trouble
Removing, refitting, or servicing the BT601 backhoe demands the correct sequence and hydraulic connections. The Backhoe section documents dismounting, mounting to the tractor, and disassembly.
Manual Section: Sect 9 Backhoe p. 388Uneven cut or mower deck faults
Streaking, scalping, or vibration from the RCK54(P) or RCK60B deck ties to blade wear, the self balancer, gear box, or lift mechanism. The Mower section covers power transmission, the lifting mechanism, and blade service.
Manual Section: Sect 7 Mower p. 316Engine hard starting or rough running

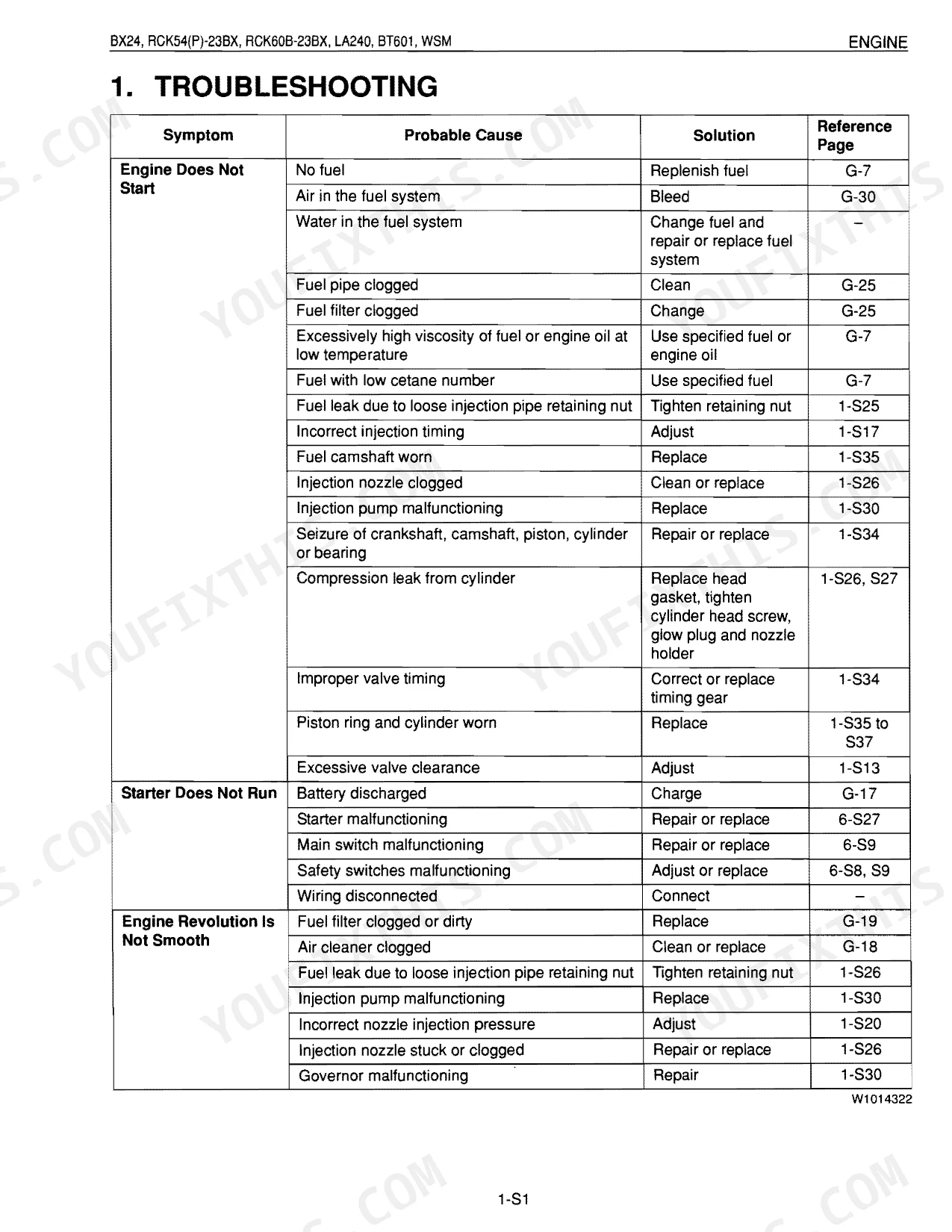

Difficult starts and poor running on the D902 diesel come from fuel delivery and engine condition. The Engine section provides checking, disassembly, and servicing for the cylinder head, valves, pistons, and crankshaft.
Manual Section: Sect 1 Engine p. 59Frequently Asked Questions
What does this manual cover?
It is the Kubota service manual for the BX24 compact tractor with its RCK54(P)-23BX and RCK60B-23BX mowers, LA240 loader, and BT601 backhoe. All 437 pages cover the tractor plus these attachments in one document.
Where are the torque specifications?

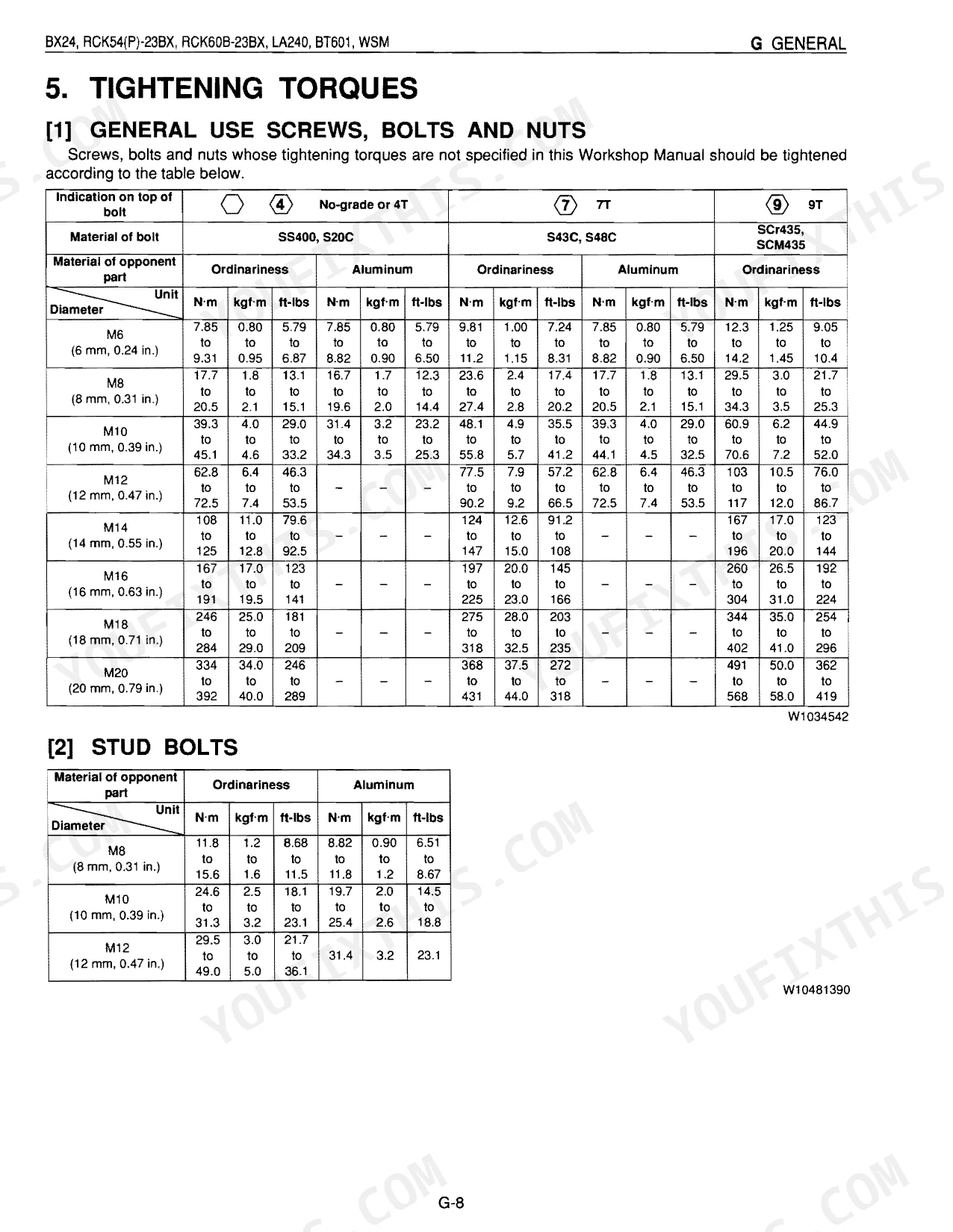

The General section lists tightening torques for general use screws, bolts, and nuts, stud bolts, and plugs, and each repair section adds its own torque tables for that assembly. p. 11
Does it explain why the loader lifts weakly?
Yes. The Hydraulic section provides the circuit, pump, control valve, and relief valve procedures, and the manual includes loader troubleshooting for a boom that does not rise, with probable causes and fixes. p. 237
Can it help with safety switch and no-start problems?
Yes. The Electrical section covers the starting system, safety switch continuity values, and the wiring diagram so you can test the interlocks and starting circuit. p. 270
What do I get after purchasing this Kubota BX24 & variants manual?
The full 437-page searchable Service Manual lands in your account the moment payment clears. Open it on a laptop, tablet, or phone right at the workbench.
Are there any print restrictions on this manual?
None. The PDF ships DRM-free, so print whatever sections you want to carry out to the shop. Standard letter or A4 paper both work.

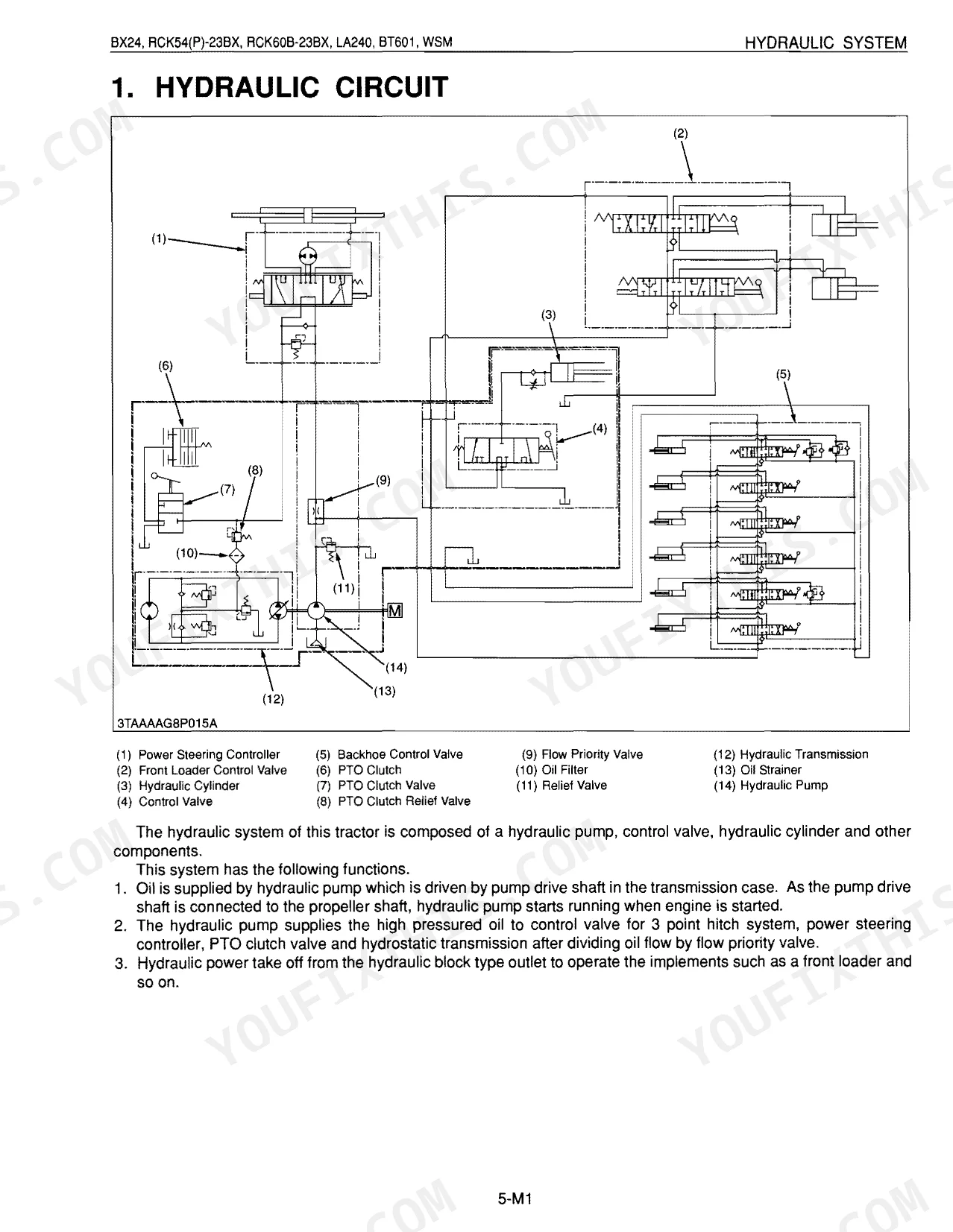

Can I find hydraulic circuit diagrams in this Kubota BX24 & variants manual?
Yes. The hydraulic schematics map every circuit, control valve, and component spec for the Kubota BX24 and its variants.
