Kubota's factory manual (OEM #9Y111-03920) focuses on the mower deck, power transmission, and maintenance routines for the ZD326RP and ZD331RP zero-turn mowers. The torque tables cover metric screws, stud bolts, American standard fasteners, and plugs, alongside a maintenance schedule split by interval: daily, every 50 hours, and every two years. Exploded views of the deck assembly, troubleshooting charts, fluid capacities, and 11 pages of disassembly and reassembly round out the 42 pages. Bevel backlash in the gear box runs 0.13 to 0.25 mm; refill the box with 0.4 L of SAE 90 GL-3 oil, then torque the blade screws to 98.1 to 117 N·m before the next cut. When the machine is down, this gets you the factory answer on the first try, with bookmarked sections that jump you straight to the repair you're after.
What's Inside This Kubota ZD326RP, ZD331RP Manual
| System | Pages | Key Topics |
|---|---|---|
| Ri Information | 3-11 | Safety First, Safety Decals, Specifications, Dimensions |

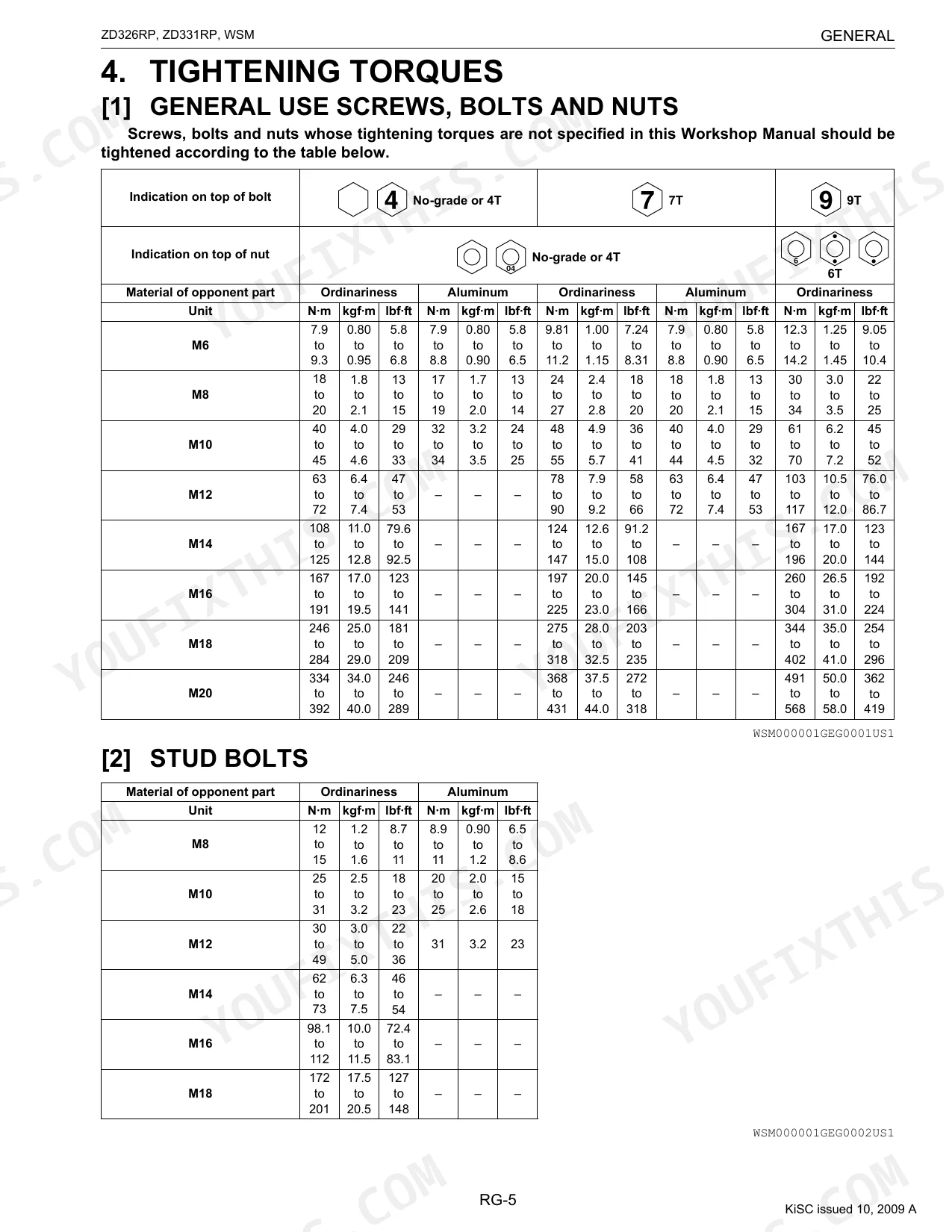

| Rg General | 12-23 | Identification, Lubricant, Fuel And Coolant, Tightening Torques (Stud Bolts, Metric Screws, Bolts And Nuts, American Standard Screws, Bolts And Nuts With UNC Or UNF Threads, Plugs) |
| R6 Mower | 24-42 | Power Transmission, Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling And Assembling (Checking And Adjusting) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Mower blade screw torque | 98.1 to 117 N·m (10.0 to 12.0 kgf·m, 72.4 to 86.7 lbf·ft) | p. 31 |

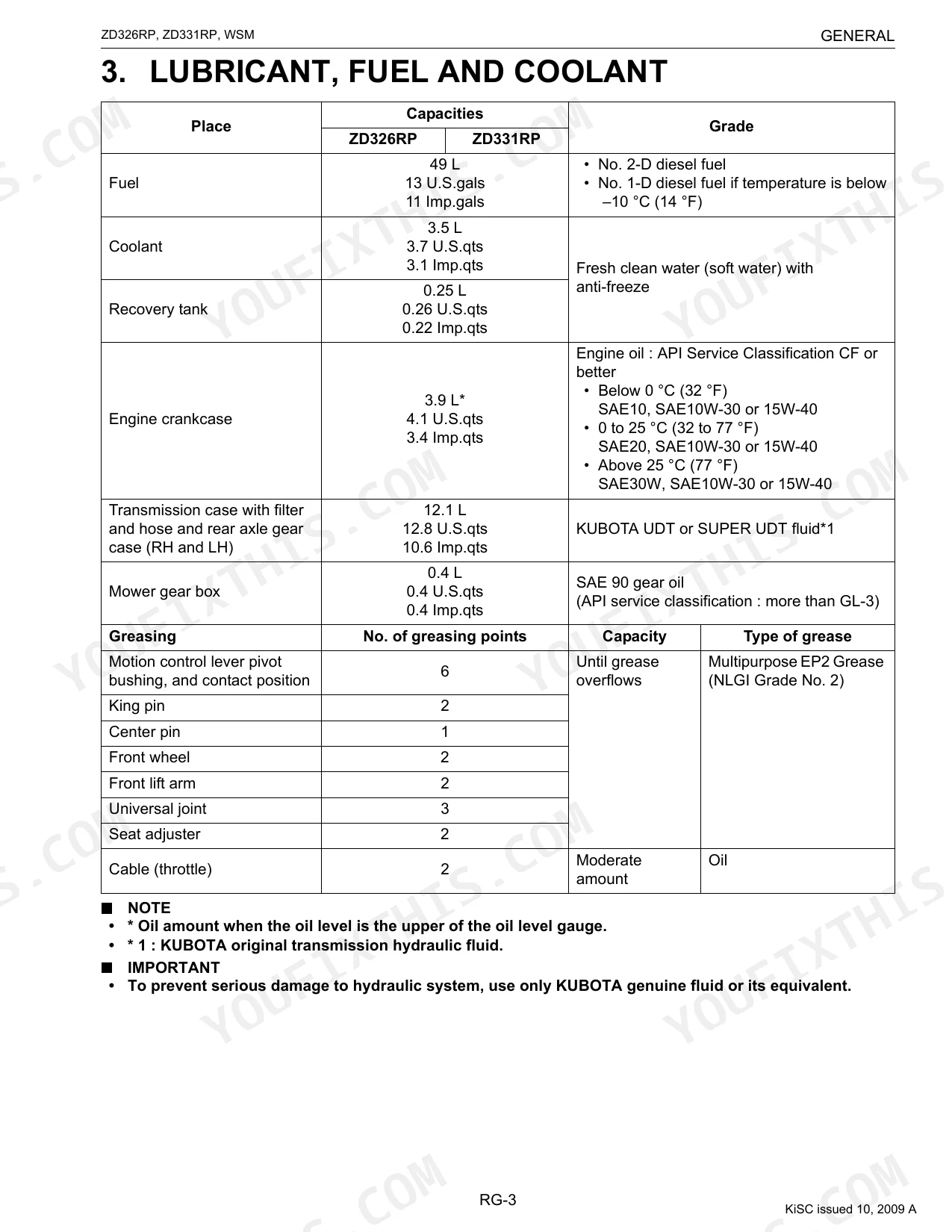

| Mower gear box oil capacity | 0.4 L (0.4 U.S.qts, 0.4 Imp.qts) | p. 16 |
| Mower gear box oil type | SAE 90 gear oil (API service classification : more than GL-3) | p. 16 |

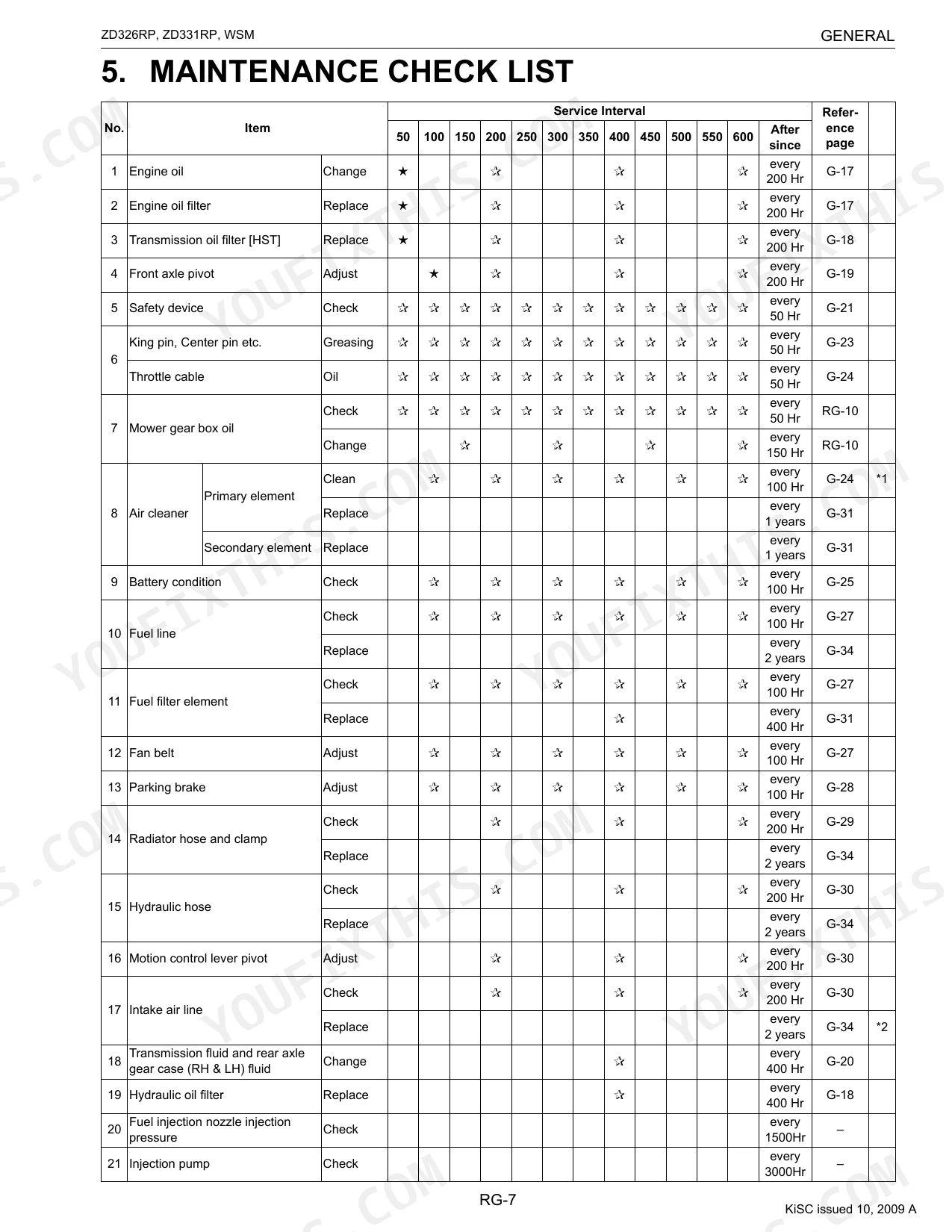

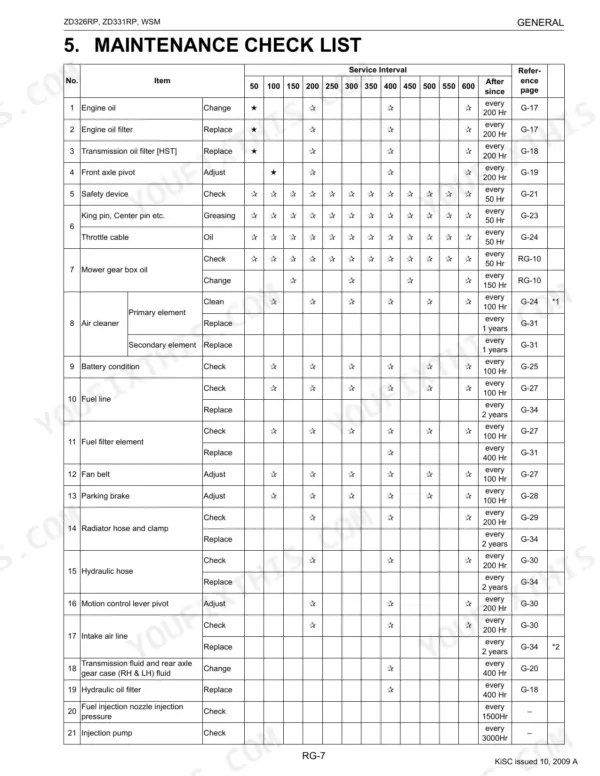

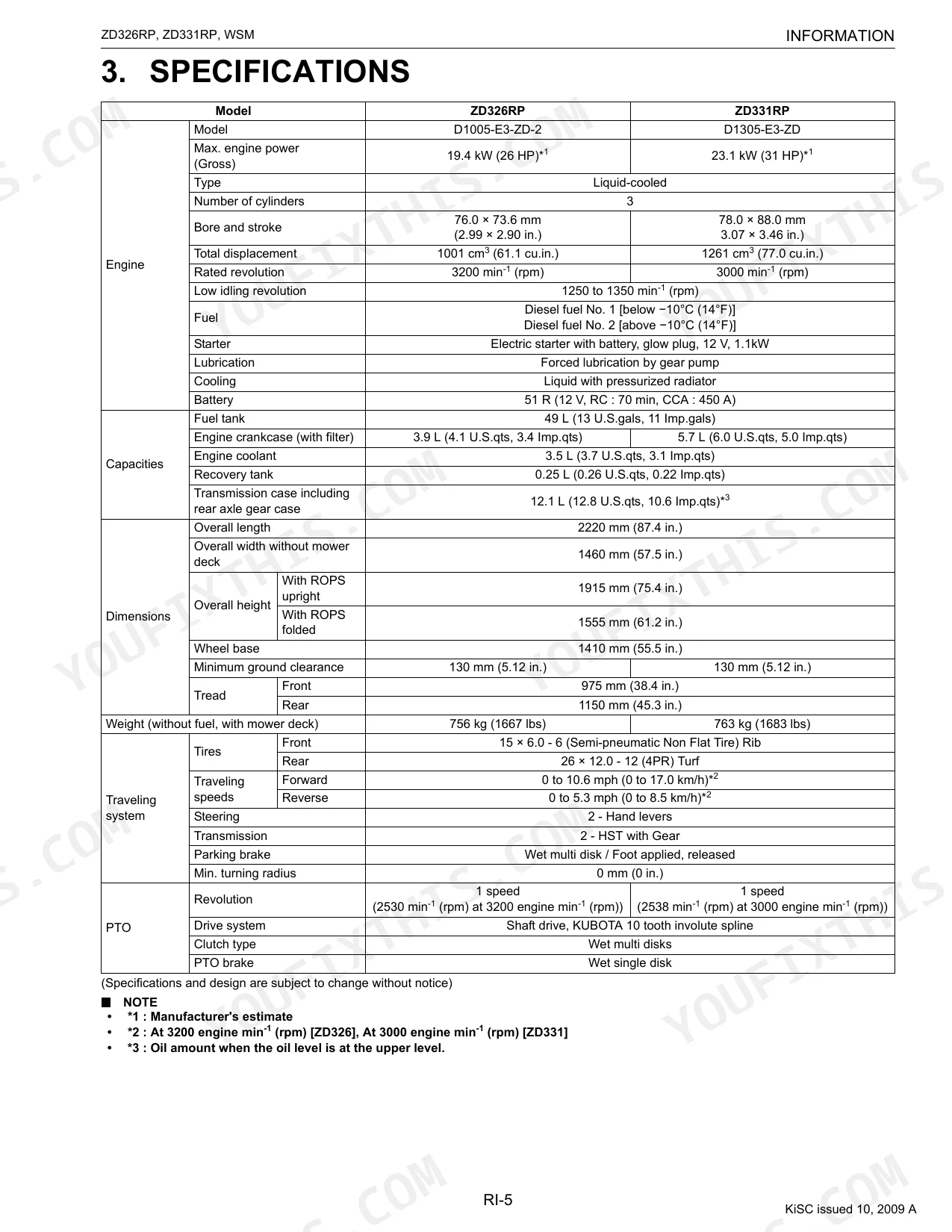

| Air cleaner Primary element cleaning interval | every 100 Hr | p. 20 |
| Air cleaner Primary element replacement interval | every 1 years | p. 20 |
| Mower belt replacement | as required | p. 20 |
| Front axle pivot adjustment interval | every 200 Hr | p. 20 |
| Motion control lever pivot greasing points | 6 | p. 16 |
| Motion control lever pivot adjustment interval | every 200 Hr | p. 20 |
| Blade length | 523 mm (20.6 in.) | p. 10 |
| Number of blades | 3 | p. 10 |
| Height of the blade at the concrete surface for leveling | 76 mm (3 in.) | p. 33 |
Kubota ZD326RP, ZD331RP Common Problems This Manual Covers
Kubota ZD326RP/ZD331RP deck gearbox grinding noise or overheating under load in tall grass p. 30
Drain and inspect the mower gearbox oil right away. Refill to capacity with SAE 90 gear oil (API GL-3 or higher); each gearbox holds 0.4 L (page 16). With the belt removed, check pinion shaft turning force: it must be less than 118 N (page 30). If resistance is high or the oil came out discolored and metallic, measure bevel gear backlash. The allowable limit is 0.40 mm before a gearbox rebuild is required.
Manual Section: R6 MowerMower creeps forward or backward when motion control levers are centered and released p. 20
Check neutral adjustment and lever alignment at the 200-hour interval shown on page 20. Verify both levers return to the same centered position with equal spacing. Inspect the 6 motion control lever pivot grease points (page 16) for wear or binding that prevents clean return.
Manual Section: Rg GeneralUneven cut or streaks of uncut grass despite sharp blades and correct deck height p. 33

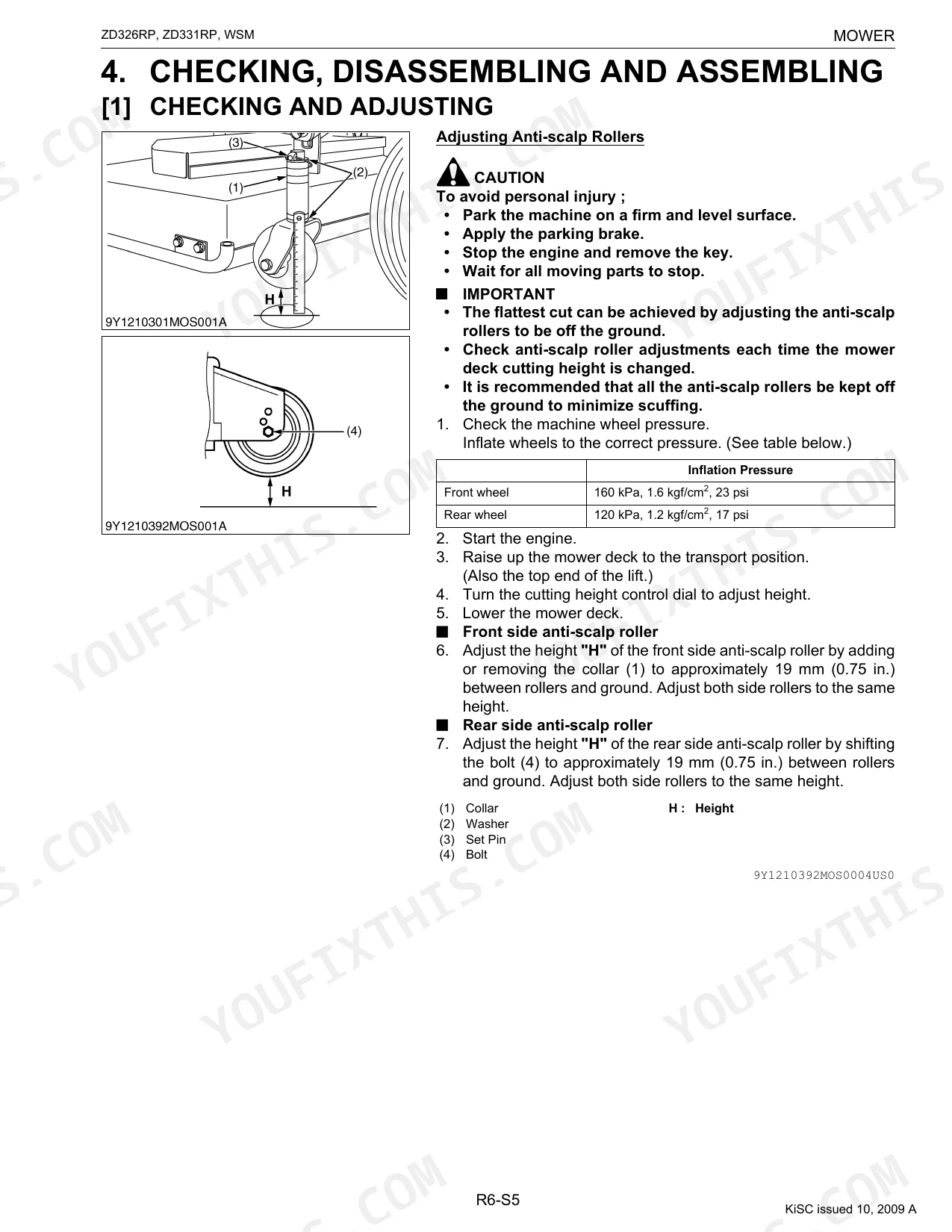

Level the deck on a flat concrete surface and measure blade height at 76 mm (3 in.) from the ground (page 33). Check left-to-right blade tip difference: it must stay under 3 mm (page 33). Confirm front-to-rear pitch sits 0 to 6.0 mm rear-high (page 34). Verify front tire pressure at 160 kPa and rear at 120 kPa (page 32); soft tires shift the deck angle and produce exactly this symptom. The troubleshooting section lists additional streaking causes.
Manual Section: R6 MowerMower belt slipping, squealing, or throwing under normal cutting load p. 39
Inspect belt condition and routing against the exploded parts view on page 37. Confirm the outer pulley mounting nut is torqued to 167 to 186 N·m (page 39); a loose pulley is the most common cause of belt throw on this platform. Make sure the deck is not overloaded, and consult the loading and vibration troubleshooting table on page 29 for other causes, including worn idler pulleys and incorrect belt tension.
Manual Section: R6 MowerFront end clunking or steering wander after extended hours of operation p. 32
Examine the front axle pivot for play at the 200-hour service interval (page 20), then tighten the pivot hardware and look for worn bushings. Confirm front tire inflation is 160 kPa (23 psi) per page 32; underinflation amplifies pivot slop and masks the actual wear.
Manual Section: Rg GeneralBlades won't engage or spin slowly even with PTO switch on and engine at full throttle p. 28

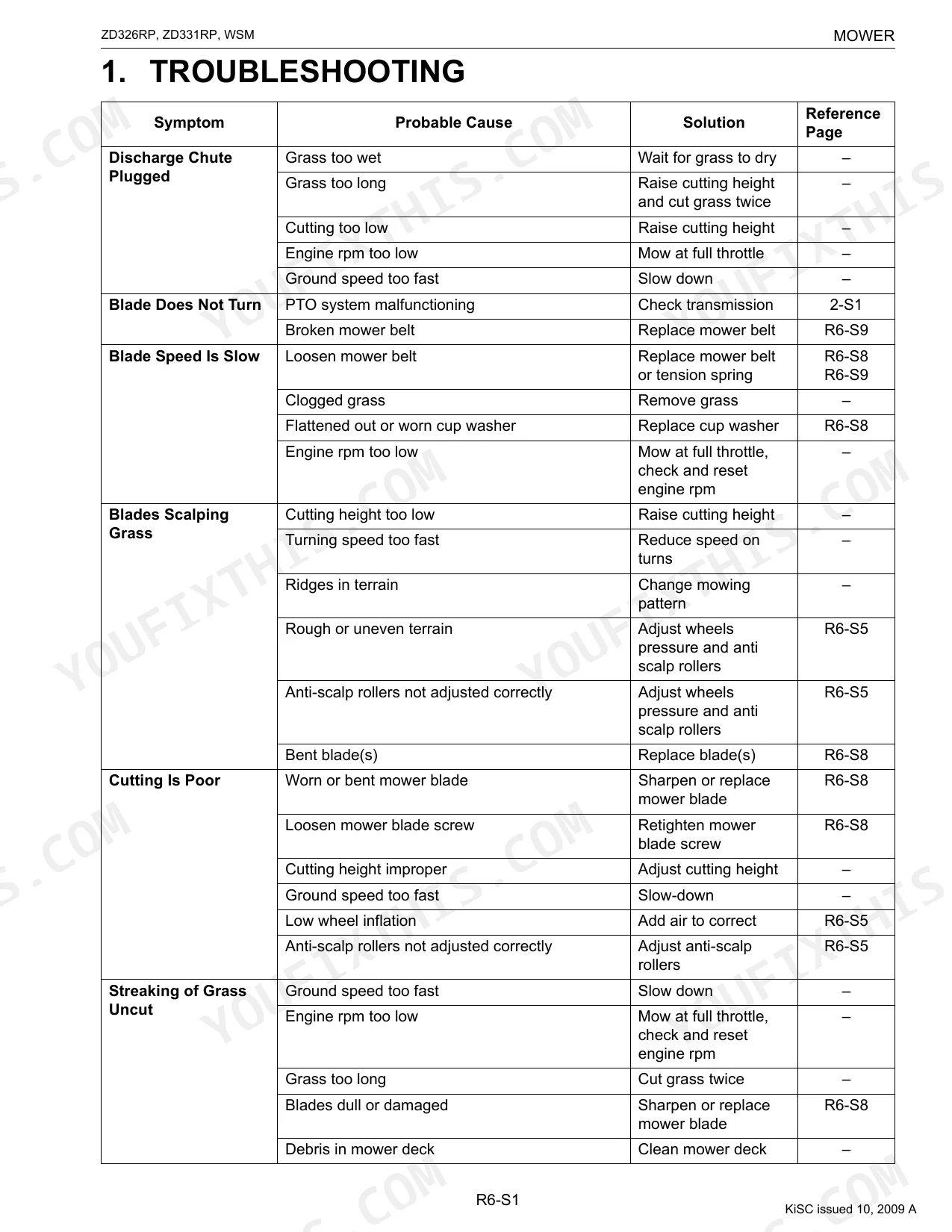

Start diagnosis at the troubleshooting table on page 28, which covers PTO system malfunction and blade-does-not-turn conditions. Verify the PTO switch, fuse, and safety interlock circuit before pulling the deck. If the deck turns by hand but drags under power, remove the belt and recheck pinion shaft turning force; spec is less than 118 N (page 30). Torque the blade mounting screws to 98.1 to 117 N·m (page 31) if blades were recently serviced, since loose blades cause drag and trip safety circuits.
Manual Section: R6 MowerFrequently Asked Questions
What are the replacement specifications for mower deck gearbox oil/gearbox components?
The gear box holds 0.4 L (0.4 U.S.qts, 0.4 Imp.qts) of SAE 90 gear oil (API service classification: more than GL-3), and you should change it every 150 hours. Backlash between the bevel gears carries a factory specification of 0.13 to 0.25 mm (0.0051 to 0.0098 in.) and an allowable limit of 0.40 mm (0.016 in.). Pinion shaft turning torque should stay under 1.5 N-m (0.15 kgf·m, 1.1 lbf·ft).
What are the replacement specifications for air filter?
Clean the air cleaner's primary element every 100 hours and replace it once a year. The secondary element also gets replaced yearly. Those intervals assume normal conditions; clean more often when you're working in dust.
How will I receive this Kubota ZD326RP, ZD331RP Service Manual?
It's a 42-page searchable PDF ready for immediate download. Works on any device, so you can pull it up on your phone right at the machine. No shipping, no waiting.
Is this Kubota ZD326RP, ZD331RP Service Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text quality is generally crisp and easy to read throughout. Diagrams and illustrations are raster images, but their labels are clear and readable. Pages are clean with no significant scan artifacts or stains, though some exhibit minor skewing. You will find a few blank pages that act as section dividers.
