Part of the New Holland Repair Manuals.
This is the CNH Belgium repair manual for the New Holland CX720, CX740, CX760, CX780, CX820, CX840, CX860 and CX880 straw walker combines, dated 2006.
It covers the New Holland 7.5 litre and Iveco engines, primary and secondary hydraulics, the hydrostatic drive and electrical schematics by series. It also follows the whole crop path, from header lift to the unloading auger.
The book is laid out by system, with engine, hydraulic, hydrostatic and crop processing specifications, a fault code index and troubleshooting tables.
What's Inside This New Holland CX720–CX880 Series Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Serial Numbers | 1-20 | Model List, Basic Instructions, Electronics Protection During Welding, Inch and Metric Torque Tables, Conversion Factors, Serial Number and Model Codes |
| Primary Hydraulic System | 21-102 | Pump Specifications, Circuit Description and Symbols, High Pressure Hydraulic Schematics, Valve and Pump Repair, Troubleshooting |
| Secondary Hydraulic System and Stack Valve | 103-152 | Low Pressure Pump Specifications and Schematic, Pump and Valve Block Removal and Inspection, Stack Valve Disassembly and Assembly |
| Pneumatic System | 153-180 | Compressor Specifications, Air Reservoir, Regulator, Troubleshooting |

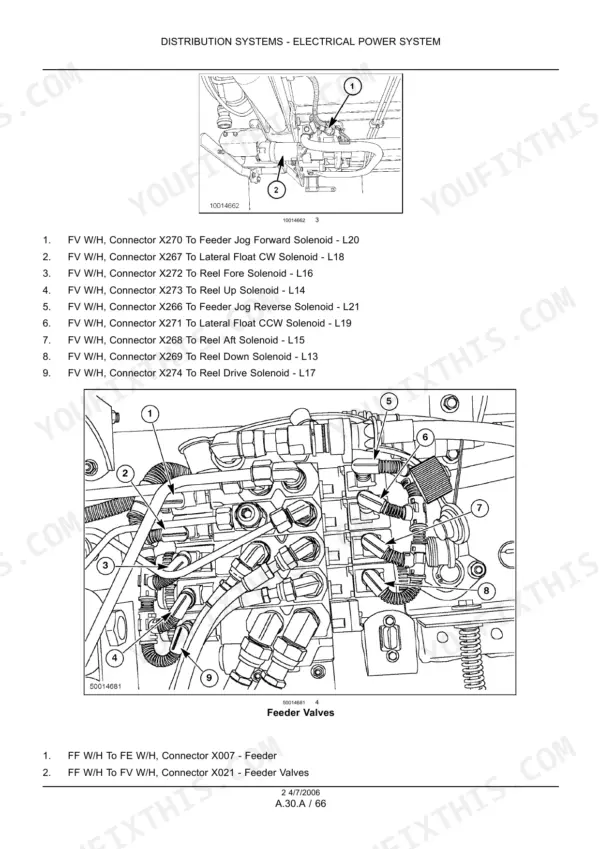

| Electrical Basics and Component Locations | 181-292 | Fuses, Relays and Sensors, Component Code Lists per Series, Component Locations on the Combine, Component Identification |

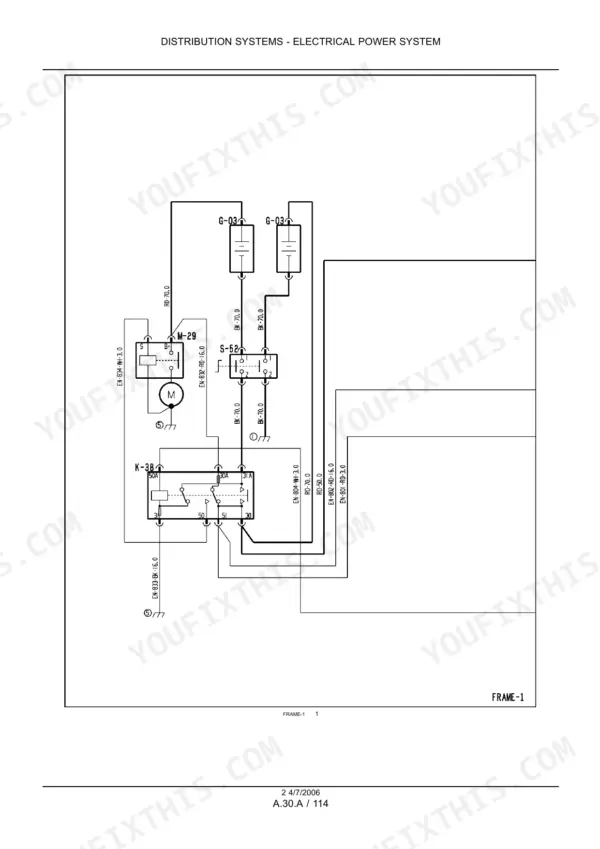

| Electrical Schematics | 293-720 | Electrical Schematic Frames 01 to 48 by Series, Component Lists |
| Harness and Connector Diagrams | 721-1290 | Component Diagrams 02 to 48, Wiring Harness Overview |

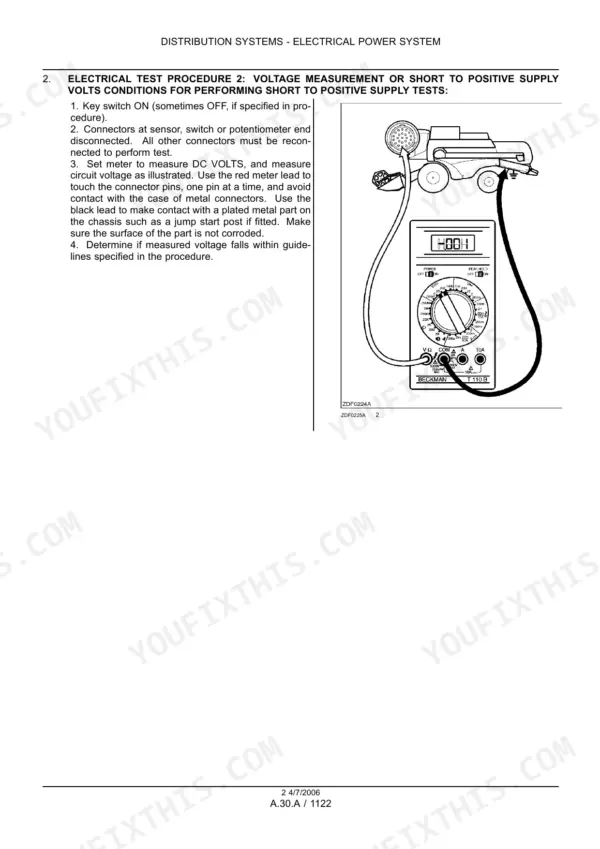

| Electrical Testing and Repair | 1291-1316 | Multimeter Preliminary Tests, Alternator Drive Overhaul, Harness Repair, Fuse Box, Alternator and Battery Troubleshooting |
| Lighting System | 1317-1394 | Logic Diagram, Interior Light Replacement, Relay, Switch and Light Tests, Fault Codes |

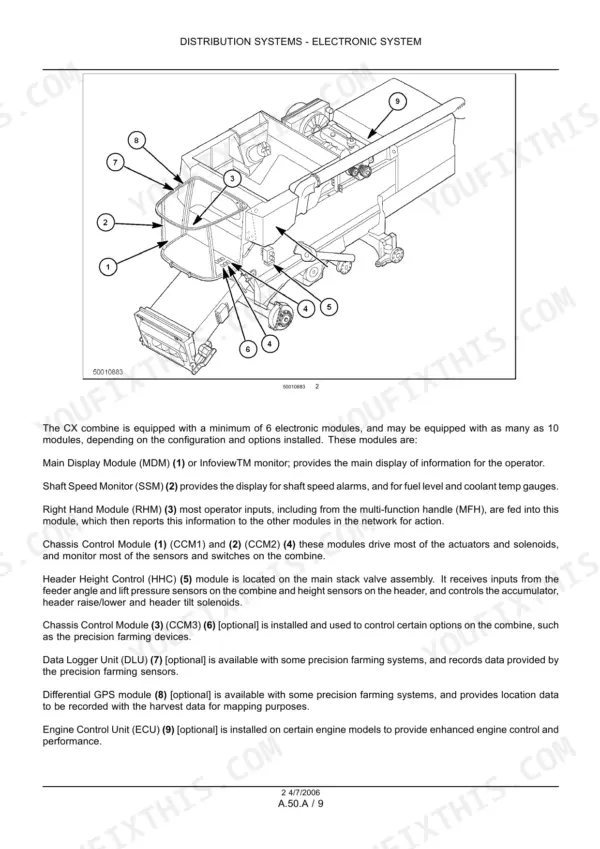

| Electronic System and Fault Code Index | 1395-1546 | Fault Code Index, InfoView Monitor, CCM1 to CCM3 Modules, Data Bus, Sensor Adjustment, Module Fault Codes |
| Engine | 1547-1830 | Torque Tables, Special Tools, General Specifications, Removal and Installation, Cylinder Head, Cylinder Block, Crankshaft, Connecting Rods and Pistons, Timing, Troubleshooting |
| Fuel and Injection System | 1831-2134 | Injection Pump, Injectors, Lift Pump, BOSCH EDC Electronic Injection Control, Bleeding, Fault Codes |

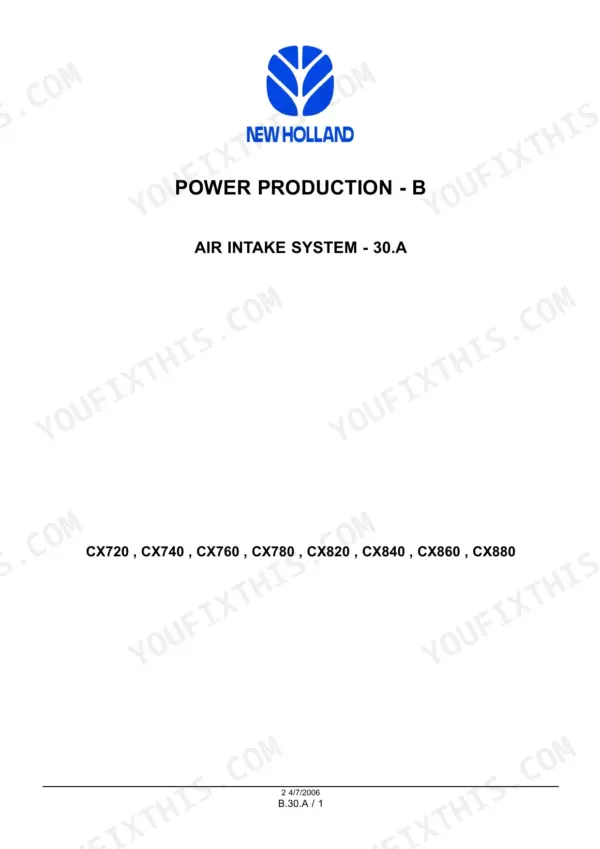

| Air Intake and Exhaust | 2135-2190 | Turbocharger Torques, Boost Pressure and Air Temperature Sensor Diagnostics, Exhaust Manifold Torques |
| Engine Cooling System | 2191-2262 | Specifications, Thermostat Removal and Test, Water Pump and Drive, Rotary Screen Brush, Fault Codes |
| Lubrication and Starting | 2263-2330 | Oil Specifications, Oil Pump, Sump, Oil Cooler, Pressure Valve, Cold Start, Starter, Relay and Switch Tests |
| Gearbox, Hydrostatic Drive and Clutches | 2331-2654 | Fixed Coupling, Mechanical Gearbox, Hydrostatic Transmission Specifications, Schematics and Troubleshooting, Threshing and Unloading Clutches, Engine Gearbox |

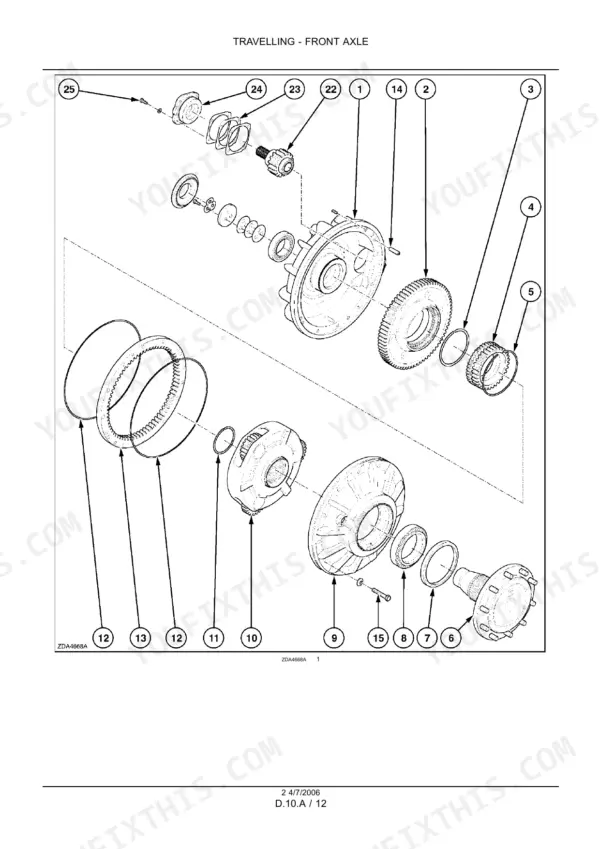

| Axles, Steering and Brakes | 2655-2890 | Front Axle and Final Drives, Rear Axle, Hydrostatic 2WD-4WD Drive, Hydraulic Steering, Service Brake, Parking Brake |
| Shields, Platform, Cab and Air Conditioning | 2891-3166 | Shields, Platform and Steps, Controls and Seat, Wipers and Washer, Heater, Air Conditioning, Safety |
| Header Lifting and Levelling | 3167-3268 | Header Lift, Levelling, Fault Codes |
| Reel, Header Drives and Feeder | 3269-3438 | Reel, Header Drives, Feeder Housing Clutches, Reverser, Lower Shaft and Roller, Fault Codes |
| Threshing Drum, Concaves and Separation | 3439-3634 | Threshing Drum and Variator, Concave Specifications, Beater, Rotary Separator, Straw Walkers, Straw Flow Beater |
| Grain Storage and Elevator | 3635-3712 | Grain Augers and Gearboxes, Grain Elevator Chain and Top Shaft |

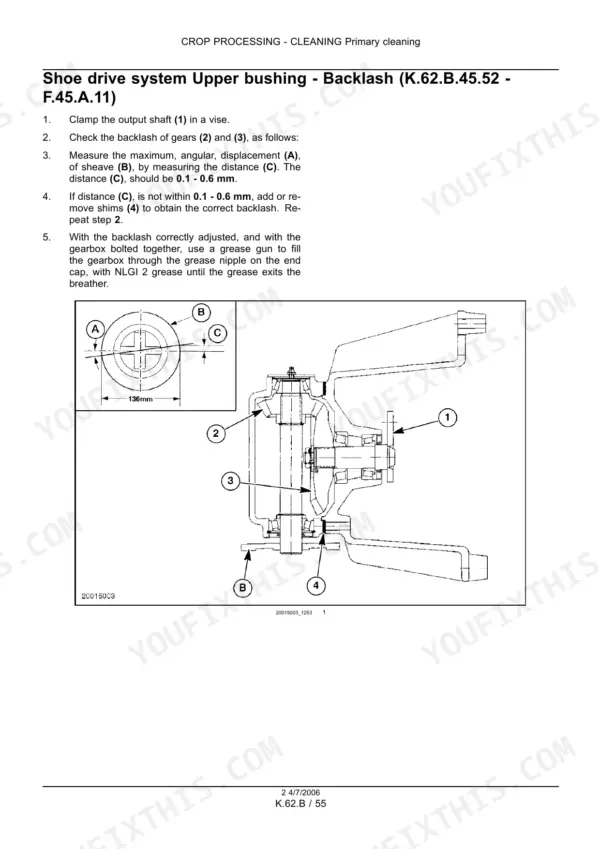

| Cleaning System and Returns | 3713-4066 | Sieves, Cleaning Fan and Variator Specifications, Returns System |
| Straw Chopper, Spreader and Unloading | 4067-4282 | Straw Chopper Specifications and Troubleshooting, Spreader, Chaff Blower, Unloading Gearbox, Auger and Tube |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine displacement | 7500 cc (458 cu. in.) CX720-CX840; 7790 cm3 (475 in3) CX860; 10300 cm3 (629 in3) CX880 | p. 1565 |
| Engine gross power | 160 kW CX720; 175 kW CX740; 190 kW CX760; 200 kW CX780 and CX820; 220 kW CX840; 245 kW (333 HP) CX860; 315 kW (428 HP) CX880 | p. 1565 |
| Engine rated and low idle speed | 2100 rpm rated; 1300 rpm low idle (CX720-CX840) | p. 1565 |
| Compression ratio | 17.0:1 (CX720 to CX840), 16 ± 0.8 (CX860), 17 ± 0.8 (CX880) | p. 1565 |
| Valve lash, cold | 0.36-0.46 mm (0.014-0.018 in) intake, 0.43-0.53 mm (0.017-0.021 in) exhaust (CX720-CX840); 0.40 mm +/- 0.05 (0.016 in +/- 0.002) (CX860, CX880) | p. 1566 |
| Engine oil pressure | 2.41 bar (35 lbf/in2) minimum at rated speed, 0.83 bar (12 lbf/in2) minimum at low idle (CX720-CX840); 5 bar (72.5 psi) warm, 2.5 bar (36.3 psi) minimum permissible (CX860, CX880) | p. 2266 |
| Cylinder head bolt tightening | 50 (37 ft. lbs.) → 100 (73 ft. lbs.) → 90 ° → 75 ° (CX860); 60 (44 ft. lbs.) → 120 (88 ft. lbs.) → 120 ° → 60 ° (CX880) | p. 1555 |
| Connecting rod and main bearing bolts | 149 Nm (110 lbf ft) connecting rod; 81 Nm + 90 ° (60 lbf ft + 90 °) main bearing (CX720-CX840) | p. 1553 |
| Fuel injection pressure | 1500 bar (21,750 psi); injector setting 280 bar +/- 12 (CX860), 296 bar +/- 6 (CX880) | p. 1571 |
| Engine oil with filter | 23 litres (24.3 US Qts.) CX720-CX840; 24 liters (6.34 gal.) CX860; 29 liters (7.7 gal.) CX880 | p. 1565 |
| Engine cooling system | 31.5 liters (8.3 gal.) CX720-CX840; 42 liters (11.1 gal.) CX860, CX880 | p. 1612 |
| Thermostat | 79-83 °C (174-181 °F) opening, 93-96 °C (199-205 °F) fully open (CX720-CX840) | p. 2195 |
| Main hydraulic pump | 114 Ltr/min (30 US gal/min) minimum output at rated speed; 21 bar (305 psi) standby; 207 bar (3000 psi) maximum system pressure | p. 25 |
| Steering | 186 bar (2700 psi); 36 Ltr/min (9.5 US gal/min) to the steering motor | p. 25 |
| Secondary hydraulic system | 43 Ltr/min (11.36 US gal/min) minimum output; 25 bar (363 psi) regulated pressure | p. 106 |
| Hydrostatic drive pressures | 420 bar (6090 psi) pressure limiter; 450 bar (6525 psi) relief valve | p. 2458 |
| Hydraulic and hydrostatic oil capacity | 70 Litres (74 qts.) approximately, total system; 36 Litres (38 qts.) reservoir | p. 2458 |
| Gearbox maximum input torque | 634 N·m (468 ft. lbs.) CX720, CX740, CX760; 632 N·m (466 ft. lbs.) CX780, CX820, CX840; 823 N·m (607 ft. lbs.) CX860, CX880 | p. 2343 |
| Cleaning fan speed | 500 - 940 rpm (CX720-CX820); 475 - 900 rpm (CX840, CX860, CX880) | p. 3721 |
| Straw chopper | 3251 rpm (HI); 1664 rpm (LO); rotor diameter 600 mm (23.6 in.) | p. 4070 |
New Holland CX720–CX880 Series Common Problems This Manual Covers
Machine will not move in either direction on the hydrostatic drive
Work through the hydrostatic troubleshooting table in the Gearbox, Hydrostatic Drive and Clutches section. First make sure the control cable is connected. Then check the hydrostatic oil level and fill the reservoir. If air has got into the system, find and repair the leak. If you are exceeding relief valve pressure, shift to a lower gear.
Manual Section: Gearbox, Hydrostatic Drive and Clutches p. 2536Engine fails to start (CX860, CX880)
Start with the batteries and recharge them if they are low. Then check the starter and replace it if it is not doing its job. If the lift pump will not prime because air is getting in, check the seal on the intake branch and the pressure at the filter inlet. Replace a clogged fuel filter or pre-filter. The Engine troubleshooting table goes through these checks.
Manual Section: Engine p. 1801Straw chopper keeps blocking
The straw chopper troubleshooting in the Straw Chopper, Spreader and Unloading section lists four causes. For dull knives, sharpen or replace the counter knives, and replace or turn the rotor knives. Slack belts need their tension adjusted. Replace wrong belts with the correct ones. Finally, adjust the chopper to suit the crop you are cutting.
Manual Section: Straw Chopper, Spreader and Unloading p. 4134Code E0145-03: engine RPM sensor shorted to high source
On CX720 to CX820 with the NH 7.5 L mechanical engine, this code means the alternator RPM sensor (G-01) circuit is shorted to a higher than normal voltage. The cause is wiring shorted to 12 volts or a controller failure. Read the sensor voltage on the InfoView monitor: normal is 4.6 volts with no metal and 6.6 volts with metal. Disconnect terminal R. If the voltage drops to 7.3 - 9.0 volts, the short is in the alternator, so repair it. The Engine section covers this code.
Manual Section: Engine p. 1824Frequently Asked Questions
Does this manual cover my New Holland CX combine?
It covers all eight models: CX720, CX740, CX760, CX780, CX820, CX840, CX860 and CX880, printed by CNH Belgium and dated 2006. The serial number contains the model code, from CX720 = 20 up to CX880 = 32. Electrical and some hydraulic schematics are split by series: 1206 - 1237, 1238 - 1281, 1282 - 1347, 1348 - 1407, 1408 - 1479, and 1480 and above. Check your serial number before you pick a schematic. p. 3
What engine is in the New Holland CX720 to CX880, and what are the power, oil and coolant figures?
CX720 to CX840 run the New Holland 7.5 litre six-cylinder, 7500 cc (458 cu. in.). Gross power is 160 kW (CX720), 175 kW (CX740), 190 kW (CX760), 200 kW (CX780 and CX820) and 220 kW (CX840). The crankcase takes 23 litres (24.3 US Qts.) and the coolant is 31.5 liters (8.3 gal.). The CX860 has the Iveco 8 litre, 7790 cm3 (475 in3), 245 kW (333 HP), with 24 liters (6.34 gal.) of oil. The CX880 has the Iveco 10 litre, 10300 cm3 (629 in3), 315 kW (428 HP), with 29 liters (7.7 gal.) of oil. Both Iveco engines hold 42 liters (11.1 gal.) of coolant. p. 1565
What are the New Holland CX combine hydraulic and steering pressures?
The main pump should deliver at least 114 Ltr/min (30 US gal/min) at rated speed. Standby is 21 bar (305 psi) and maximum system pressure is 207 bar (3000 psi). Steering runs at 186 bar (2700 psi) with 36 Ltr/min (9.5 US gal/min) to the steering motor. The secondary system gives at least 43 Ltr/min (11.36 US gal/min), regulated at 25 bar (363 psi). On the hydrostatic drive, the pressure limiter is set at 420 bar (6090 psi) and the relief valve at 450 bar (6525 psi). p. 25
What are the concave, cleaning fan and straw chopper settings for the New Holland CX720–CX880 Series combine?
The small grain concave has wire distances of 14 mm (9/16 in) and 10 mm (3/8 in), with 3.5 mm (9/64 in) wire and 16 bars. The maize concave has 26 mm (1-3/128 in) and 10 mm (3/8 in) spacing, with 6 mm (1/4 in) wire and 12 bars. The cleaning fan runs 500 - 940 rpm on CX720 to CX820, and 475 - 900 rpm on CX840, CX860 and CX880. The straw chopper turns at 3251 rpm (HI) and 1664 rpm (LO), with a 600 mm (23.6 in.) rotor. p. 3443
What is inside this manual: wiring diagrams, fault codes, troubleshooting, engine overhaul?
Electrical schematic frames 01 to 48 are given for each series, along with harness and connector diagrams and component locations on the machine. The fault code index lists the cause, the possible failure modes and the repair procedure. Troubleshooting tables cover systems including the hydrostatic drive, engine and straw chopper. The engine overhaul covers the cylinder head, block, crankshaft, connecting rods and pistons, with torque tables. p. 1405
